Established paths and new avenues: a review of the main radiological techniques for investigating sarcopenia

Introduction

Since the first definition of sarcopenia made by Rosenberg et al. in 1989, who described it as a progressive muscle loss related to aging, much effort has been devoted by the scientific community to better characterize this condition that now is even recognized by a specific code according to the international classification of diseases (ICD-10) (1-3). In particular, in 2010, the European working group on sarcopenia in older people (EWGSOP) encouraged diagnosis and care for patients with sarcopenia (4). The same group released in 2018 an updated consensus paper with a strong focus on qualitative and quantitative features of muscle loss and proposing a revised diagnostic algorithm (5).

In addition to the recommendations of specific working groups, the increasing literature of the last decade about this disease underlines the global attention on this condition. The high consideration that sarcopenia is receiving is surely linked to the progressively aging of the world population and to the severe consequences accompanying muscle loss (6,7).

Concerning the aging process, in 2019, the World Health Organization (WHO) estimated that the number of people older than 60 years will grow by 56% in 2030, from 962 million to 1.4 billion (8). Already in 2018, the WHO addressed the importance of muscle mass as key element for the well-being of the elderly. Indeed, an adequate muscle mass is considered essential to preserve cognitive functioning, delay care dependency, and reverse frailty (8). In particular, prospective studies demonstrated how muscle loss is associated with adverse outcomes including falls, disability, and incidents. It may also start a vicious cycle, amplified by the aging process, in which the loss of power causes difficulties in procuring adequate nutrition and progressively reduces independence (6). Lastly, it was recently highlighted that even cognitive impairment and depression can be associated with sarcopenia (7,9,10).

The severe socio-economic impact of all these aspects cannot be underestimated. Thus, the scientific community has issued a call to action not only for tailored treatments and social support for patients with sarcopenia but also for an accurate and early diagnostic assessment.

In the diagnostic evaluation of sarcopenia, radiological imaging plays a key role and several techniques can be used. Dual-energy X-ray absorptiometry (DXA), based on the different absorption of low and high energy X-rays by the different body components, has initially been applied to measure bone mineral density but is now increasingly used for muscles evaluation (11-14). The importance of this technique is also demonstrated by the fact that it is recommended for clinical assessment by the last consensus paper of the EWGSOP (5).

Computed tomography (CT) and peripheral quantitative CT (pQCT) which are based on the attenuation of X-rays have a consolidated role for this condition, allowing also quantitative analyses (15-20).

The diagnostic value of techniques not associated with ionizing radiation and especially suitable for the evaluation of soft tissues like ultrasound (US) and magnetic resonance (MR) has been widely evaluated demonstrating good results. Nevertheless, according to the current guidelines, the latter method is still recommended mainly for research (5,21-23).

Thus, considering the importance of sarcopenia and the fundamental role of radiological imaging, aim of this review is to provide a comprehensive overview of the advantages and disadvantages of the main different imaging modalities useful for investigating muscle loss, including insights into specific techniques, such as diffusion-weighted imaging (DWI), diffusion tensor imaging (DTI), magnetic resonance spectroscopy (MRS) and mapping.

Radiological techniques

DXA

DXA provides a model of body composition including fat, bone mineral density and lean mass (12). As above-mentioned, in the last consensus paper, the EWGSOP indicated DXA as the method of choice in clinical practice for the assessment of muscle mass, highlighting its good correlation with the measurements obtained by CT and MR (5,24).

Since the entire body mass influences muscle tissues, the absolute DXA measurements have to be adjusted according to the overall body surface (i.e., height squared, weight or body mass index) (25). In particular, the appendicular lean mass index provides clinically relevant information because the appendicular skeletal muscle mass is critical to preserve mobility and functional independence in the elderly (24,26).

Among the numerous advantages of DXA, it should be listed that it provides reliable measurements without being invasive, allows fast analyses, and it is highly reproducible when the same device and fixed thresholds are used. Unfortunately, the reliability of this technique decreases when different devices are applied. It should also be considered that factors like the level of hydration of the patients may influence the results (5). Lastly, it should be addressed that the position statements of the Sarcopenia Definition and Outcomes Consortium released in 2019 highlight that the measurement of the appendicular lean mass obtained by DXA is not seen as a good predictor of adverse outcomes in the elderly (27,28).

CT

CT can be considered overall the gold standard for the assessment of body composition since it allows a distinction of different tissues according to the attenuation of the X-ray beam. Referring to the Hounsfield Unit (HU), the standard unit of measurement, muscles with values ranging from –29 to +29 are considered low attenuating (29-31). CT allows the analysis of fat distribution within muscles, distinguishing between fat around the muscle and interstitial adipose tissue, thus providing a qualitative and quantitative characterization (18,32).

The quantification of muscle mass is usually performed segmenting definite muscle groups, whose cross-sectional area correlates with the whole-body muscle mass (Figure 1). Even if one of the most frequent level for the measurements is represented by the third lumbar vertebra, when abdominal CT scans are available, other muscles, for instance at the thoracic or cervical level, have been used in the literature with good results (33-37).

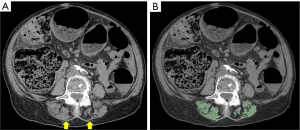

Figure 1 Axial CT scan of an 87-year-old female patient affected by cirrhosis and acute large bowel obstruction with signs of paravertebral muscles loss at level of L3 (yellow arrows in A). CT-based quantification of the muscle mass of the same patient using an open source software in (B) (3D slicer, www.slicer.org). CT, computed tomography.

For instance, Nemec and colleagues diagnosed sarcopenia, using the muscles at the T12 level, in patients that underwent transcatheter aortic valve replacement and found a correlation between the skeletal muscle index and the length of stay (36). Similarly, Nattenmüller et al., demonstrated how patients with lung cancer are affected by sarcopenia after chemotherapy and that it had a negative impact on the adherence to the treatment and to the overall survival (38).

It has to be highlighted that up to now, most of the studies were based on manual segmentations which are time consuming and affected by interobserver variability. Recently this drawback has been partially overcome by semi- or fully automated segmentation models that are providing promising results (15-17).

pQCT

pQCT, originally designed to assess structural properties like bone density and mineral content of the limbs, has been also successfully applied to investigate muscle loss (39). Indeed, muscle cross-sectional area, muscle density and intramuscular adipose tissue area can be evaluated on a single slice of interest using dedicated software distinguishing all the components (i.e., fat, muscles, and bones) by the selection of density thresholds (39).

Using pQCT, it has been demonstrated that the measurement of the muscle cross sectional area correlates with those obtained by MRI and that, in adults, smaller areas and muscles with lower density are associated with high mortality (19,20).

In comparison to conventional CT, pQCT carries the advantages of lower radiation doses and reduced costs (39). Nevertheless, its clinical application is still hampered by the lack of standardization in the protocols for the acquisition and analyses of the datasets. Moreover, specific recommendations regarding the site of measurement are still missing, even if the radius and the tibia are mainly examined (39).

US

Allowing a precise investigation of soft tissues, US has been successfully applied also for patients with sarcopenia (22). In addition to the qualitative assessment, which is characterized by a higher echogenicity in case of fibro-fatty infiltration, quantitative parameters like muscle thickness, cross-sectional area, fiber length, and pennation angle can be measured (Figure 2) (21,22). For instance, Ismail et al. demonstrated that US morphometry values are associated with lean body mass allowing the discrimination between women with and without sarcopenia (40).

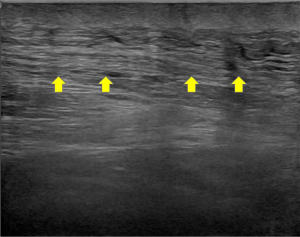

Figure 2 US scan of the left gluteus muscle of a 72-year-old male patient, referring loss of muscle strength, showing high echogenicity of the muscle tissue (yellow arrows). US, ultrasound.

While US shows certain intrinsic advantages (e.g., cost-effectiveness and the absence of ionizing radiation), that make it especially suitable for repeated measurements and to investigate pediatric patients, there are some drawbacks which cannot be overlooked. Indeed, it is highly dependent on the expertise and skills of the operator (41). Furthermore, it does not provide a comprehensive overview of the body and up to now a standardized approach regarding the best and most representative sites where to target the assessment in patients with sarcopenia are not available. In fact, muscles investigated by US might not be representative of the whole-body mass since muscle loss may not affect all compartments simultaneously or with the same severity (21,42,43).

MRI

MRI is widely considered as one of the most adequate and reliable techniques to investigate muscles because of its intrinsic high soft tissue contrast. Moreover, the continuous technical progress associated with the development of new sequences and tools allows a constantly increasing accuracy in assessing pathological changes affecting this tissue. The estimation of muscles’ degenerative processes routinely performed by semi-quantitative scores (e.g., Goutallier classification and Mercuri score) on T1-weighted turbo spin-echo images, can be implemented by robust quantitative analyses able to reveal even subclinical progressions (Figure 3) (23,44,45).

Figure 3 T1-weighted axial turbo spin echo of a 64-year-old male patient with chronic pulmonary disease well demonstrating muscle atrophy especially affecting the semimembranosus muscle on both sides (yellow arrows).

Indeed, currently, not only a qualitative evaluation of features like edema and fatty replacement can be performed but techniques like Dixon, DWI, DTI and mapping can be used to collect accurate quantitative data.

Chemical-shift based imaging

Chemical shift-based water/fat separation imaging and two-/multi-point Dixon sequences are often the modalities of choice to evaluate muscle fat fraction, also in clinical settings (46,47). These techniques rely on the different resonance frequency of fat and water protons, which permits the differentiation and quantification of the fat fraction through slight adjustments of the echo time. In particular, Dixon allows “fat-only” and “water-only” images through the acquisition of two or more echoes at different echo times (Figure 4) (24,47). This technique, allowing the separation of “healthy” muscles with preserved contractile properties from fat-containing, un-contractile fibers, gives detailed information about the functional mass (46,48).

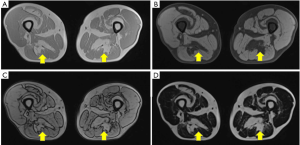

Figure 4 Axial in-phase (A), water-only (B), out of phase (C), and fat-only (D) Dixon images of a 64-year-old male patient with severe myositis, well demonstrating diffuse severe fatty conversion of the muscles of both thighs more severe in the posterior compartment (yellow arrows).

In in-vivo and phantom-based studies, Dixon showed high accuracy for the assessment of fatty replacement of muscles in dystrophic patients (49,50). Moreover, it has been successfully applied for evaluating muscle atrophy, adipose infiltration and interstitial fibrosis of denervated skeletal muscle due to traumatic injuries of the brachial plexus (46,48).

Adipose infiltration was accurately assessed also in patients with rotator cuff tears (51) and diabetes mellitus (52).

In addition to its quantitative properties, Dixon demonstrated a good performance in comparison to short tau inversion recovery (STIR) and/or chemical fat suppression sequences for diagnosing muscle edema occurring in early denervation stages (46).

The technical improvements of the last decade, including significant developments of new algorithms [e.g., iterative decomposition of water and fat with echo asymmetry and least-squares estimation (IDEAL)] further promoted the use of Dixon imaging (53). Despite all the advantages, some limitations may hamper the application of this sequence. For instance, it requires long acquisition time and is prone to artifacts in case of metal protheses. The recent three-point Dixon allowed to overcome the sensitivity to B0 inhomogeneities that was causing “fat-water swapping artifacts”, due to phase shift errors, typical of two-point Dixon imaging (54).

MRS

MRS is a non-invasive technique allowing a characterization of the biochemical composition of tissues by separating different metabolites according to their unique chemical shift properties (55).

The first musculoskeletal applications of MRS were focused on the analyses of phosphorus-containing (³¹P) compounds in muscles (56). Indeed, ³¹P is a component of adenosine triphosphate, phosphocreatine, and inorganic phosphate, all molecules involved in the metabolic processes of muscle fibers. Thus, ³¹P-MRS has been used to assess patterns of catabolic processes and exercise-related changes (56-60).

Numerous studies on both animal models and humans, applying ³¹P-MRS, identified metabolic profiles characterizing muscle degeneration and regeneration in specific diseases like Duchenne, and facio-scapulo-humeral muscular dystrophy (46,61,62). In particular, it has been shown that in the latter disease, the concentration of ³¹P correlates with the extent and rate of fat replacement and muscle strength (46,62).

Unfortunately, the routine clinical application of ³¹P-MRS is hampered by the low sensitivity of ³¹P (63). In fact, to obtain adequate signal-to-noise ratio of phosphate metabolites, which have a very low concentration, long acquisition times are needed (63).

On the contrary, in vivo proton MRS (¹H-MRS) allows the assessment of intra and extramyocellular lipids on clinical MR devices (55). This was well demonstrated for instance by Torriani et al. in their ¹H-MRS study showing how the amount of intramyocellular lipids is linked to reduced insulin sensitivity in healthy, obese or type 2 diabetic patients (64).

Investigating patients with myositis, it has even been suggested that changes in ¹H-MRS profiles may precede pathologic changes on anatomical MRI. Indeed, using this technique, Subhawong et al. showed that creatine concentration is higher in apparently normal muscles (i.e., on T1-weighted and STIR sequences) of patients affected by myositis than in healthy controls (65). This finding might be applied to identify diseases at an early stage-diseases, when they theoretically could still be reversible.

Recently, comparing Dixon and ¹H-MRS similar levels of accuracy and repeatability in assessing the fat fraction have been demonstrated (24,49). It has to be highlighted that ¹H-MRS has the capability of distinguishing between intramyocellular and extramyocellular lipid components whereas Dixon maps of the fat fraction distribution can be especially useful for “patchy” physio-pathological processes such as fibro-fatty replacement areas.

It should be also considered that recent technical improvements allow the examination of multiple voxels during a single acquisition. Previous protocols based on single-voxel spectroscopy were somehow affected by the same bias of muscle biopsies, providing a limited representation of the investigated disease due to sampling only of small muscle areas. The development of fast MRS techniques such as multiple-echo acquisition, echo-planar spectroscopy imaging, and parallel encoded MRS has reduced the scan time and allowed the efficient acquisition of spectra over large regions (46,66). Therefore, we may expect a progressively increasing application of MRS for muscle diseases, including sarcopenia.

DWI

DWI is a technique based on the degree of motion of water molecules in tissues that is related to their interaction with cell membranes and macromolecules (67,68). Aside from brain imaging, DWI’s main field of application is oncological imaging (69-71). However, it can be also reliably used for musculoskeletal diseases including myositis and sarcopenia (46,72-74). Indeed, in muscles, extra-, intra-, and transcellular water diffusion as well as capillary perfusion occur and the signal attenuation on DWI images is mainly due to the extracellular component and to microvascular perfusion (75).

Regarding the application of DWI for sarcopenia, Surov et al. found a significant correlation between the model for end stage-liver disease and muscle changes in patients with cirrhosis, and even proposed the apparent diffusion coefficient (ADC) as new biomarker (74). Similarly, McPherson and colleagues identified significant differences in ADC values of the lower limb muscles between patients with spinal cord injury and healthy controls (75) (Figure 5).

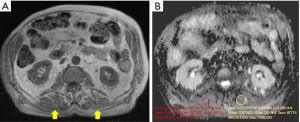

Figure 5 Axial T1-weighted turbo spin echo (A) and ADC map (B) of a 79-year-old male patient with metastatic colon cancer affected also by moderate atrophy of the paravertebral muscles at the L3 level (yellow arrows), especially on the left side. In agreement with the recent literature, which even proposed ADC values as biomarker of sarcopenia (70,71), in our patient, the left paravertebral muscles, which were more affected by atrophic changes, showed higher ADC values (red and yellow circles in B). ADC, apparent diffusion coefficient.

Despite its numerous advantages, DWI is affected by several limitations and technical challenges that should be taken into account, like, for instance, long acquisition times, high sensitivity to field inhomogeneities, and the necessity of strong gradients (76).

DTI

Muscles have a highly ordered structure that is especially suitable for being investigated by DTI. Indeed, the diffusion tensor is a 3D way of modeling DWI datasets with three principal diffusivities and as many directions. This technique allows an indirect assessment of tissues’ anisotropy and structural orientation (77-79) which are expressed by variables like fractional anisotropy (FA), mean (MD), radial, and axial diffusivity.

Initially, most of the musculoskeletal studies applying DTI were focused on the feasibility and reproducibility of the analyses as well as on the assessment of characteristics like fiber length, pennation angles, fiber curvature (80-83). Recently, DTI has been successfully applied for muscle diseases, including sarcopenia, and injuries (84-86).

For instance, Esposito et al., using an animal model, demonstrated that, responding to muscle injury and adapting to aging, muscles show an increase in FA (87). It has also been shown, in healthy volunteers, that DTI is sensitive to age-related changes affecting the muscles of the lower limb (88). Furthermore, Ponrartana et al. found a significant correlation of MD and FA with age and muscle strength in pediatric patients affected by Duchenne dystrophy (89).

Although DTI gives new insights into muscle anatomy and diseases, several challenges and shortcomings are associated with this technique. Indeed, to achieve an accurate sensitivity for fiber anisotropy in muscles, long diffusion times are needed (90,91). It has been demonstrated that stimulated echo acquisition mode (STEAM) sequences, which can be adjusted for long diffusion times represent a good solution (91). Nevertheless, it should not be overlooked that, since random areas of signal loss, probably due to involuntary muscle contractions, may occur with STEAM-DTI, using this sequence, a post-processing correction of such artifacts is recommended (92-95).

T1 and T2 mapping sequences

Following the good results obtained in cardiac imaging, T1 and T2 mapping have been applied also in the musculoskeletal field providing information about the changes occurring in the entire examined muscles and not just in targeted areas.

For instance, Marty et al. using a fast, dedicated T1 mapping sequence on healthy volunteers and patients with Becker muscle dystrophy, demonstrated that T1 values can represent biomarker of fatty infiltrations and that they correlate with the measurements (i.e., fat fraction) obtained by Dixon (96).

Similarly, the T2 mapping provided promising results for evaluating not only inflammatory alterations, occurring for example in neuromuscular diseases and juvenile dermatomyositis, but also muscle changes due to aging (97-100). Indeed, Azzabou et al. demonstrated that the increase of water T2 might be due to changes in the type of fibers, while T2 heterogeneity might be associated with muscles disorganization caused, for instance, by fibrotic replacement (98).

As all techniques, also T1 and T2 mapping are affected by certain weaknesses. For example, in the global assessment of muscles, the different components of water and fat are not separated. To overcome this limitation, recently, the use of sequences based on MR fingerprinting has been proposed (97,100).

Conclusions

In conclusion, several radiological techniques can be used for a reliable assessment of sarcopenia. Even if according to the last consensus paper of the EWGSOP, DXA still plays a pivotal role in clinical practice and CT and MR are mainly recommended for research, in an era pointing to the quantification and automatic evaluation of diseases, we call for future research extending the use of organ tailored protocols taking advantage of all the most recent technical developments. In particular, the use of MR sequences like DTI, MRS and mapping that could provide further insights into the physiopathological features of sarcopenia should be fostered. These techniques could potentially influence the global clinical management of such patients and contribute to the establishment of new standardized diagnostic criteria.
