Quantification of intranodal vascularity by computer pixel-counting method enhances the accuracy of ultrasound in distinguishing metastatic and tuberculous cervical lymph nodes

Introduction

Patients with tuberculous lymphadenitis and head and neck cancers often present with palpable neck lymph nodes. Accurate identification of metastatic neck lymph nodes is vitally important in patients with head and neck carcinoma because it helps estimate the prognosis and aids treatment planning (1-3). Regardless of the primary carcinoma, the presence of unilateral metastatic node reduces the 5-year survival rate to 50% compare to that of a patient without metastatic node, whereas the survival rate further reduces to 25% in those with bilateral metastatic lymph nodes (4,5). Tuberculosis is still common in some developing and Southeast Asia countries. In Western countries, tuberculosis can be found in patients who emigrated from countries where the disease is endemic, and in acquired immune deficiency syndrome (AIDS) patients (6,7). Correct identification and differentiation of tuberculous and metastatic lymph nodes are crucial because accurate diagnosis helps the patients to have timely and appropriate treatment.

High-resolution ultrasound has been widely used in cervical lymph node assessment. It is more sensitive than neck palpation alone in detecting cervical lymphadenopathy (8,9). Gray-scale ultrasound could effectively evaluate the distribution and the morphology of cervical lymph nodes such as the size, shape, borders, matting and the internal architecture (10), whilst colour and power Doppler ultrasound are routinely employed to assess intranodal vascularity and vascular resistance (10,11).

Although the role of gray-scale ultrasound on cervical lymph node assessment is well established and the sonographic appearance of different lymphadenopathy has been documented, the sonographic features of tuberculous nodes are variable and simulating metastatic nodes leading to misdiagnosis. A previous study used a computer algorithm to quantify the intranodal vascularity in Doppler ultrasound images, and found that using the quantified intranodal vascularity index (VI) is useful in differentiating between tuberculous and metastatic lymph nodes (12). However, the added value of intranodal VI on routine ultrasound assessment is unknown. Therefore, this study aimed to investigate the added value of this new computer-aided method on the routine ultrasound assessment in distinguishing between metastatic and tuberculous cervical lymph nodes.

Methods

This study was approved by the Human Subject Ethics Subcommittee of the authors’ institution. The study procedures conformed to the provisions in accordance with the Helsinki Declaration. Gray-scale and power Doppler sonograms of 100 patients with fine needle aspiration and cytology (FNAC) proven metastatic and tuberculous cervical lymph nodes were retrospectively reviewed. Among the 100 patients, 60 patients had known head and neck cancers or primary tumours in other body regions with cervical lymph node metastasis (15 nasopharyngal carcinomas, 15 oral cavity carcinomas, 10 lung carcinomas, 8 pharyngeal and laryngeal carcinomas, 8 papillary thyroid carcinomas, 2 colon carcinomas and 2 breast carcinomas), whilst 40 patients had known tuberculous lymph nodes and without known malignancy. These 100 patients were consecutively selected from our patient database. Patients without any confirmed pathology or cytology results and those received radiotherapy were excluded from the study.

The same operator, who had more than 30 years of experience in neck ultrasound, performed the neck ultrasound examination of the patients using the same ultrasound scanning protocol, whilst another operator carried out the image analysis. The operator was blinded to the pathology and cytology results during the time of image analysis.

All ultrasound examinations were conducted using a Philips IU22 ultrasound unit in conjunction with a 5 to 12 MHz linear transducer (Philips, Bothell, WA, USA). Both gray-scale and power Doppler ultrasound were used to evaluate cervical lymph nodes, and the lymph node of each patient with the highest vascularity was included in the study. Standardized settings for power Doppler ultrasound was employed for the detection of intranodal blood vessels which include high sensitivity, low wall filter, pulsed repetition frequency of 700 Hz and medium persistence. The colour gain was firstly increased in the beginning to show colour noise and then gradually decreased until the noise dissipated (13).

On the gray-scale ultrasound, the cervical lymph nodes were evaluated for their shape and internal architecture. The lymph node shape was determined by the short-to-long axis ratio (S/L). The S/L ratio greater than or equal to 0.5 implied a round node, whilst the ratio smaller than 0.5 implied a long or oval node. The internal architecture of lymph node was evaluated for the presence or absence of echogenic hilus and cystic necrosis. The echogenic hilus was identified as a hyperechoic linear structure that was continuous with the adjacent soft tissue. Cystic necrosis was demonstrated as focal hypoechoic area(s) within the lymph node.

Multiple Doppler ultrasound images were taken at different parts of the lymph node and the image with the highest intranodal vascularity was selected for evaluation. Settings of Doppler ultrasound were standardized and set for high sensitivity, with a low wall filter to allow detection of blood vessels with low blood flow. The pulse repetition frequency (PRF) was 500 Hz. The colour gain setting was standardized by initially increasing the gain until the colour noise was apparent, and then gradually decreasing unit the noise was just disappeared. Different from the vascular pattern classification in previous studies which is more detailed and has eight categories (14,15), in the present study the vascular patterns of lymph nodes were divided into four categories depending on the distribution of vascularity (13):

• Hilar: flow signals diverging radially from the hilus and not along the periphery of the lymph node;
• Peripheral: flow signals along the periphery of the lymph node but not arising from the hilum, with branches perforating the periphery of the node;
• Mixed: presence of both hilar and peripheral flow signals;
• Apparently avascular: without any vascular signals within the lymph node.

In the part I of the study (conventional assessment), lymph nodes were considered to be metastasis if they demonstrated at least three of the following malignant ultrasound features, otherwise the lymph nodes were considered to be tuberculous nodes:

• Short axis to long axis (S/L) ratio ≥0.5;
• Absence of echogenic hilus;
• Presence of intranodal necrosis;
• Presence of peripheral or mixed vascular patterns.

In the part II of the study, VI (degree of vascularity) of each lymph node was obtained. For each ultrasound image, the degree of intranodal vascularity was assessed by a customized algorithm using the software MATLAB (Version 9.1.0.441655 R2016b, The MathWorks, Natick, MA, USA). In the assessment of lymph node vascularity, the boundary of the lymph node (i.e., the region of interest, ROI) was outlined manually on the ultrasound image in Microsoft Paint (Version 1709, Microsoft, Redmond, WA, USA). The ROI was extracted from the ultrasound image and the total number of pixels of the ROI was measured by the customized algorithm. Eventually, the colour pixels (i.e., the pixels other than gray-scale) were extracted from the ROI and the number of colour pixels was recorded (Figures 1,2). The VI (in percentage) of each lymph node was then calculated by the following equation (16):

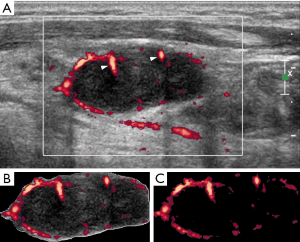

Figure 1 The sequence of image analysis of the power Doppler sonogram of a metastatic lymph node. (A) The original ultrasound image with the lymph node showed both hilar (arrows) and peripheral (arrowheads) vascularity. (B) The image with the region of interest, ROI (i.e., the lymph node) extracted from the ultrasound image, and the total number of pixels within the ROI was counted by the computer algorithm. (C) The image with the colour pixels (coded by the power Doppler ultrasound) extracted by eliminating the grey scale pixels, and the number of colour pixels was counted by the computer algorithm. The calculated vascularity index of this lymph node was 36.6%.

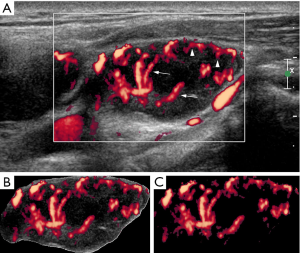

Figure 2 The sequence of image analysis of the power Doppler sonogram of a tuberculous lymph node. (A) The original ultrasound image, and the lymph node showed peripheral vascularity (arrowheads). The steps of the image analysis are the same as described in Figure 1. The calculated vascularity index of this lymph node was 15.1%.

VI = (No. of colour pixels within the ROI)/(Total number of pixels within the ROI) × 100%

An unpaired t-test was used to calculate the significance of difference in VI between metastatic and tuberculous lymph nodes. Receiver operating characteristic (ROC) curve was used to determine the optimum cut-off of VI in differentiating metastatic and tuberculous lymph nodes, and the associated sensitivity and specificity of the optimum cut-off. All statistical analyses were performed using the Statistical Package for the Social Sciences (SPSS) software (Version 20, IBM Corporation, Armonk, NY, USA). A P value <0.05 indicated statistical significance.

To evaluate the diagnostic performance in combining conventional assessment method and VI analysis, lymph nodes were considered to be metastasis if they demonstrated at least three of the abovementioned malignant ultrasound features or the VI ≥ the optimum cut-off value, otherwise the lymph nodes were considered to be tuberculosis:

The sensitivity, specificity, positive predictive value (PPV), negative predictive value (NPV) and diagnostic accuracy in the differential diagnosis in part I and II studies were evaluated and compared. Chi square test was used to calculate the significance of difference of diagnostic performance between conventional assessment and the combination of conventional assessment and VI analysis.

Results

In the part I of the study, the lymph node was considered to be metastatic if it showed three out of four predetermined sonographic appearances on its gray-scale and power Doppler sonograms, otherwise was considered to be a tuberculous node. The sonographic features of metastatic and tuberculous lymph nodes are shown in Table 1. Using the conventional assessment method based on the gray-scale ultrasound features and intranodal vascular pattern, the sensitivity, specificity, PPV, NPV and diagnostic accuracy in differentiating metastatic and tuberculous nodes were 56.7%, 55%, 65.4%, 45.8% and 56%, respectively (Figures 3,4).

Table 1 Comparison of gray-scale and power Doppler sonographic features of metastatic and tuberculous lymph nodes
Full table

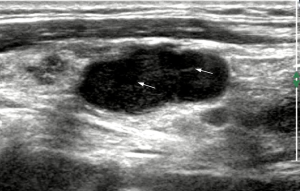

Figure 3 Longitudinal gray-scale sonogram of the same metastatic lymph node as described in Figure 1. The lymph node was hypoechoic, oval in shape, without echogenic hilus and had intranodal necrosis (arrows).

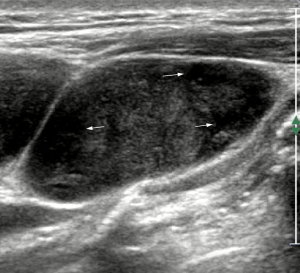

Figure 4 Longitudinal gray-scale sonogram of the same tuberculous lymph node as described in Figure 2. The lymph node was hypoechoic, oval in shape, without echogenic hilus and had intranodal necrosis (arrows). The gray-scale ultrasound features of the tuberculous node were similar to the metastatic lymph node as described in Figure 3.

In the part II of the study, the intranodal VI of each lymph node was also evaluated. The mean VI of the metastatic nodes was 23.4%±2.1%, which was significantly higher than that of the tuberculous nodes (12.0%±1.6%) (P=0.0001, Figures 1,2). A ROC curve was plotted to determine the diagnostic performance of VI in distinguishing metastatic nodes from tuberculous nodes. The ROC curve showed that the optimum cut-off of VI in differentiating between metastatic and tuberculous nodes was 20% with a sensitivity of 58.3%, specificity of 82.5% and area under the curve (AUC) of 0.71 (Figure 5). In this part of the study, a lymph node was considered to be metastatic if it showed at least three of the malignant ultrasound features, or the VI was greater than or equal to the optimum cut-off. Using these assessment criteria, the sensitivity, specificity, PPV, NPV and diagnostic accuracy in differentiating metastatic and tuberculous nodes were 80%, 52.5%, 71.6%, 63.6% and 69%, respectively.

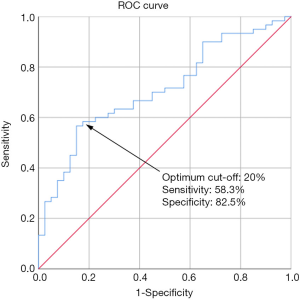

Figure 5 ROC curve of the intranodal vascularity index in differentiating metastatic lymph nodes from tuberculous lymph nodes.

Considered the results of parts I and II of the study, there was increase in the sensitivity (56.7% to 80%), PPV (65.4% to 71.6%), NPV (45.8% to 63.6%) and overall diagnostic accuracy (56% to 69%) whereas only slight decrease in the specificity (55% to 52.5%), after combining intranodal VI quantification with the conventional assessment. Statistically, the increase in sensitivity was significant (P=0.006), whereas the differences in specificity, PPV and NPV were not significant (P=0.824, 0.471 and 0.117 respectively). The increase in overall diagnostic accuracy was marginally insignificant (P=0.058).

Discussion

Evaluation of lymph node vascularity has been reported. A previous study assessed intranodal vascularity by subjective visual judgement and classified lymph nodes according to the abundance of intranodal vascularity (13). Another study evaluated the diagnostic performance of solely VI analysis of lymph node but without studied the diagnostic performance of combining VI analysis with conventional ultrasound assessment of lymph node (16). In the present study, we have investigated the added value of VI analysis on conventional ultrasound assessment to distinguish between metastatic and tuberculous cervical lymph nodes. In the first part of the study, results showed that the sonographic appearances of metastatic and tuberculous nodes were quite similar. Though intranodal necrosis was more common in the tuberculous nodes (27.5%) when compared to metastatic nodes (8.3%), both of them tended to be round in shape (metastasis: 75.0%; tuberculosis: 50.0%), without echogenic hilus (metastasis: 86.7%; tuberculosis 72.5%) and had peripheral or mixed vascularity (metastasis: 73.3%; tuberculosis: 85.0%). Hence, the diagnostic accuracy of the conventional assessment method (56%) was not good enough for an accurate diagnosis in differentiating metastatic and tuberculous nodes. This was due to the high false-negative rate of which some metastatic nodes were at the early stage of the disease and did not demonstrate sufficient malignant ultrasound features. In addition, the low diagnostic accuracy was also account for the high false-positive rate of which tuberculous nodes presented with malignant ultrasound features mimicking metastatic nodes. Therefore, using the conventional method of assessing the gray-scale ultrasound features and vascular pattern of lymph nodes, physicians may find difficulty in differential diagnosis for the tuberculosis patients with cancers on routine ultrasound examination, particularly in those regions of the world where the prevalence of tuberculosis is high.

In the second part of the study, quantification of intranodal VI was introduced in order to aid differential diagnosis. VI is a ratio of the number of colour pixels to the total number of pixels within the region of interest (i.e., the lymph node in this study) on a power Doppler sonogram, indicating the degree of vascularity. The results showed that the mean VI of the metastatic nodes (mean VI =23.4%) was significantly higher than that of the tuberculous nodes (mean VI =12%) (P<0.05). The higher intranodal vascularity of metastatic nodes is likely due to tumour angiogenesis, resulting in increased tumour blood vessels within lymph nodes. On the other hand, higher occurrence of intranodal necrosis in the tuberculous nodes could cause intranodal blood vessels to be displaced by the necrotic tissue, resulting in reduced vascularity. This finding is consistent to our previous study (12) and other previous studies showing apparently avascular pattern and vascularity displacement in tuberculous nodes on Doppler sonograms (17,18). One must note that in the present study the classification of the distribution of intranodal vascularity was qualitative assessment based on human judgement, whereas the quantification of intranodal VI was the quantity of the color pixels in Doppler ultrasound image computed by the customized algorithm.

In the differential diagnosis of metastatic, tuberculous, lymphomatous and reactive lymph nodes, a previous study demonstrated that intranodal VI had the highest accuracy in distinguishing metastatic and tuberculous nodes, suggesting that VI is a useful parameter in distinguishing these two pathological conditions (12). With the use of ROC curve, the present study found that a VI of 20% was the optimum cut-off to differentiate metastatic nodes from tuberculous nodes, and it yielded a sensitivity and specificity of 58.3% and 82.5% respectively in the differential diagnosis. The finding was consistent with a previous study in which the optimum cut-off of intranodal VI in differentiating metastatic and tuberculous lymph nodes was 22% (12).

Although computer-aided assessment of intranodal VI can objectively evaluate and quantify the intranodal vascularity and is useful in differentiating metastatic and tuberculous nodes, assessment of the internal architecture and vascular distribution of lymph node are also important in routine clinical practice (8,18). Therefore, we investigated the diagnostic value of combining intranodal VI quantification with conventional assessment of gray-scale ultrasound features and vascular pattern of lymph nodes. Results showed that there was a significant increase in the sensitivity, while the specificity remained similar, after combining intranodal VI quantification with the conventional assessment. The improvement of the sensitivity was due to the increased true-positive rate and the associated decrease in false-negative rate after using intranodal VI in the assessment. Tumour angiogenesis usually occurs before there is any substantial morphological change of the tumour (19). Some early-staged metastatic lymph nodes might not demonstrate malignant gray-scale ultrasound features such as absent echogenic hilus, round in shape and intranodal necrosis because these features are associated with extensive tumour infiltration within the lymph node. However, tumour angiogenesis could occur in these lymph nodes leading to increased intranodal VI. Therefore, metastatic lymph nodes were not identified in conventional assessment method, which was predominantly based on gray-scale ultrasound features, was detected in the intranodal VI assessment yielding higher true-positive rate. The slight decrease in the specificity was due to one tuberculous node was considered as true-negative case in conventional assessment but had an intranodal VI greater than 20% leading to slight increase in the false-positive rate.

The results of the current study showed that tuberculous nodes tended to have lower intranodal VI when compared to metastatic nodes. The lower VI in tuberculous nodes is likely due to the high incidence of intranodal necrosis in these lymph nodes which displaced the intranodal vasculature. However, one must note that intranodal necrosis is also common in metastatic nodes from squamous cell carcinoma and papillary carcinoma of the thyroid gland (8,20,21). For that reason, other sonographic features such as intranodal vascular distribution, shape, matting, existence of calcification and adjacent soft tissue edema should also be considered to identify the pathologic condition of lymph nodes (18,22,23).

The present study reported a computer-aided method to quantify the intranodal VI, and found that combined with the conventional assessment method can improve the diagnostic accuracy in differentiating metastatic and tuberculous lymph nodes. In the computer-aided analysis of Doppler ultrasound images, it took about 5 minutes to outline one lymph node on the image manually and process the image with the software program. With the availability of deep learning-based algorithm for automated segmentation of lymph nodes (24), the time for image processing could be significant reduced. This can allow the computer-aided assessment of intranodal VI to become applicable in routine clinical practice. It is widely known that the assessment of intranodal vascularity in a three-dimensional (3-D) way is more accurate than the two-dimensional (2-D) method because tumour angiogenesis is developed in a 3-D matrix (25). The present study provided a strong basis on computer-aided quantification of intranodal vascularity on 2-D ultrasound images. Further development of integrating this technology with 3-D ultrasound imaging can enhance the accuracy and reliability in the assessment of intranodal vascularity. Previous studies on analysis of the VI of breast cancer in 3-D ultrasound found that intra-tumour VI is useful in the evaluation of prognosis and treatment response of breast cancer patients (26,27). Recent superb microvascular imaging (SMI) technology allows for detection of microvascularity. Ryoo et al. (28) suggested that assessment of the vascular pattern of lymph nodes using SMI helped the differentiation of metastatic and tuberculous lymph nodes with good inter-observer agreement. As microvascularity be detected in SMI, there is a need to have a computer-aided assessment method, similar to the one described in the present study, to accurately and objectively identify the subtle vascularity within lymph nodes.

Our findings demonstrated that computer-aided method provided objective quantification of intranodal vascularity, and gave added value in routine ultrasound assessment of cervical lymph nodes. Quantified intranodal VI can enhance the accuracy of ultrasound in distinguishing metastatic and tuberculous cervical lymph nodes.
