Age- and gender-related normal references of right ventricular strain values by tissue tracking cardiac magnetic resonance: results from a Chinese population

Introduction

In recent years, right ventricular (RV) function has been increasingly recognized for its prognostic role in a wide variety of cardiovascular and pulmonary diseases. However, due to the complex structure of the RV, dense myocardial trabeculae, the ventricular anatomical structure behind the sternum and complex movement, and the evaluation methods for RV function are greatly limited (1,2). Although widely used in clinical practice, transthoracic echocardiography (TTE) lacks standard reference and relies on manipulations (3-5). Cardiac magnetic resonance (CMR), as a non-invasive imaging technology that produces three-dimensional detailed anatomical images without the use of ionizing radiation can overcome some of the limitations of echocardiography and can visualize the entire RV in a repeatable manner.

Although RV ejection fraction (EF) resulting from CMR is often used as a reference of RV function in clinical routine, more and more studies have shown that myocardial strain and strain rate have a significant clinical value for the evaluation of regional and global myocardial function, especially for the early detection of systolic ventricular dysfunction before EF reduction (3-8). The CMR technique to obtain myocardial strain can provide sensitive indication for the early detection of cardiovascular dysfunction (6-8). RV strain and strain rate values were initially evaluated using myocardial tagging technology (9). However, the laborious post-processing to extract and track the tagged lines on myocardium remains the major drawback of this tagging technology (10).

More recently, CMR cine image-based tissue tracking technology (CMR-TT) has allowed for a rapid and reliable quantification of myocardial deformation, with the advantage of high image quality unhindered by the availability of an adequate acoustic window (8-10). Normal ranges have been reported for left ventricular (LV) strain and strain rates using CMR-TT (8). Data for the right heart based on CMR-TT required to ensure clinical utility are limited. Therefore, the purpose of this study was to analyze the normal parameters of RV myocardial strain and strain rate in healthy subjects using CMR-TT and to evaluate the range of normal parameters and their correlation.

Methods

Study population

A total of 120 healthy volunteers, 12 men and 12 women in each of the 5 age deciles from 20 to 70 years, were included. All subjects received a CMR scan in our center with informed consent. Self-report history was taken to exclude subjects with chest pain, breathlessness or other cardiac symptoms, and those with a history of hypertension, diabetes, dyslipidemia, or any cardiovascular, renal, hepatic, hematological and systemic inflammatory disease. Clinical examination was performed, including office blood pressure (normal b140/90 mmHg). Blood samples were taken to confirm normal range full blood count, serum electrolytes, and random glucose. All subjects had a normal resting 12 lead ECG and either negative exercise stress echocardiography or exercise ECG. Demographic data, excluding ethnicity, were collected, and informed consent was obtained from each patient.

CMR acquisition

All subjects underwent cine CMR on 3T (Vero, Siemens, Germany) CMR scanners. The scanners used a 32-channelcardiac coil and a balanced steady-state free precession (b-SSFP) sequence with ECG gating and gated respiratory control to obtain cine CMR images, comprising a stack of contiguous short-axis slices covering the entire RV from base to apex; the long axis four-chamber slice images were also obtained. The scan was performed using the following parameters: FOV, 286 mm × 340 mm; matrix, 216×256; TR, 3.40 ms; echo time (TE), 1.70 ms; time resolution, 40 ms; slice thickness, 8 mm; 25 phases per cardiac cycle were generated resulting in a mean temporal resolution of 40 ms.

Basic functional and volume analysis

Image analysis was performed off-line using a standardized approach by two experienced cardiac radiologists with delineation of papillary muscles and trabeculations using thresholding (version 5.3.4cvi42, Circle Vascular Imaging, Canada). The global LV and RV function and volume analysis were performed using a short 3D module. The end of diastole and systole were determined automatically, based on the largest and smallest volume calculated per phase.

RV tissue tracking strain analysis

The degree of deformation was determined by a set of imaginary nodes placed on the mid-curve between the endo- and epicardial boundaries, and these boundaries were tracked by a pre-defined algorithm through the cardiac cycle. The basis of these algorithms has been previously described, and their validity has been demonstrated (11). The RV diastolic phase was determined by using the RV specific trajectory tool with the correction of readers. The tissue tracking analysis was performed by drawing out the long axis and the short axis endo- and epicardial border. The trabecula was carefully excluded, and the tricuspid plane and the apex were marked on the long axis and the short axis of the RV.

Myocardial strain was defined as the percentage of myocardial fiber shortening at the end of contraction versus the end of diastole. The long axis stress was negative due to ventricular contraction; the myocardium at the latitude of the long axis was shortened. Both myocardial strain and strain rate parameters were obtained. Myocardial stress rate is defined as the changes in myocardial stress overtime. Myocardial stress and stress rate were measured in different directions: long axis, radial direction, and circumferential direction (12).

Differences between observers were analyzed by two researchers using RV motion pictures in 20 patients. The same images were analyzed by the operators, and the results were recorded independently for blind evaluation. Intra-observer variability was assessed by one observer at different points in the 7 to 10 days for 20 patients.

Statistical analysis

For standard distribution and continuous variables, the mean value ± standard deviation is used. Data analysis was performed by SPSS 22 software program. The Shapiro-Wilk test was used to test the standard degree. The independent sample t-test was used to compare gender differences. The sample size was set based on power analysis for the analysis of variance (ANOVA) testing between age and gender. An estimated mean difference of 10, alpha* values of 0.05, and a power of 95 were used (8). To test for significant differences between RV strain measurements in patient groups of different BMI and ages, analysis of variance (ANOVA) testing was performed. The distribution of continuous variables was evaluated by the Kolmogorov–Smirnov test. Differences between patients and controls were compared by unpaired t-test. Spearman’s Rho-related tests were used to assess the relationship between stress and stress rate and age. Consistency was tested by Bland-Altman analysis, along with an intragroup correlation coefficient to calculate the 95% limits of mean deviation and consistency. P<0.05 was considered statistically significant.

Results

Patient characteristics

Following the strict inclusion criteria, 120 eligible volunteers (mean age 46.0±14.8 years, 50% men) were included in CMR scanning. The basic information of the subjects including the height, weight, body mass index (BMI), and ejection fraction (EF), end-diastolic volume (EDV) and end-systolic volume (ESV) of the LV and RV are shown in Table 1.

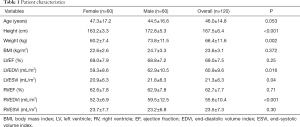

Table 1 Patient characteristics
Full table

The intra- and inter-observer variability of our study is given in Table 2. In Bland–Altman analyses, the GLS had the best intra-observer agreement (−0.13±0.51; 95% CI, −1.13–0.87) and theGRS had the best interobserver agreement (0.054±0.31; 95% CI, −0.55–0.66). The time required to the post-process of RV tissue tracking was 5.4±2.7 min per participant.

Table 2 Intra-observer and inter-observer variability
Full table

Normal references for CMR functional parameters

The functional parameters, including EF and indexed volumes of the LV and RV, are presented in Table 1. LV end-diastolic volume index (LVEDVi), LV end-systolic volume index (LVESVi) and RV end-diastolic volume index (RVEDVi) were significantly different between females and males (P<0.05 for all). The values for LVEF and RVEF were similar in males and females. There was no significant difference between different age groups in all LV and RV basic functional parameters (P>0.05 for all) (Table 3 and Table S1).

Table 3 Basic cardiac magnetic resonance (CMR) functional parameters by age decile (%)
Full table

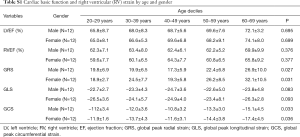

Table S1 Cardiac basic function and right ventricular (RV) strain by age and gender
Full table

Normal reference of RV strain using CMR-TT

Strain and strain rate of RV global and regional myocardium in healthy subjects of a Chinese population, and gender correlation, are shown in Table 4 and Table S2. The global peak longitudinal strain (GLS) and global peak radial strain (GRS) was −24.3±4.7 and 23.0±8.5. The peak circumferential strains (GCS) for global, basal, mid-cavity and apical segments were −13.3±4.1, −13.1±4.0, −12.5±4.7, and −15.9±5.8, respectively. There were significant gender differences in peak GRS (P=0.009) and at the base (P=0.017) and the mid-cavity (P=0.011) with greater deformation in females than in males. However, there was no significant gender correlation at the peak GLS (P=0.056), peak longitudinal systolic strain rate (GLS S’ P=0.178), and peak longitudinal systolic strain rate (GLS D’ P=0.117). Moreover, there were also significant age differences in GRS (P<0.001) and GCS for basal (P<0.001) and the mid-cavity (P=0.037) segments, which increased with age to different degrees (Table 5) (Figure 1).

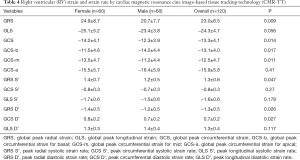

Table 4 Right ventricular (RV) strain and strain rate by cardiac magnetic resonance cine image-based tissue tracking technology (CMR-TT)
Full table

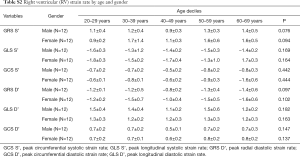

Table S2 Right ventricular (RV) strain rate by age and gender
Full table

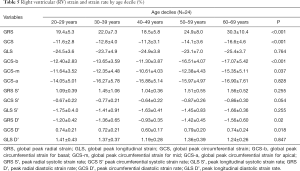

Table 5 Right ventricular (RV) strain and strain rate by age decile (%)
Full table

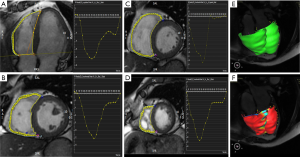

Figure 1 The cardiac magnetic resonance tissue tracking: (A) four-chamber long-axis strain, (B) the short axis circumferential basal strain, (C) short-axis circumferential mid strain, (D) short-axis circumferential apex strain. The A-D images are all diastolic images. Yellow is the tracking for the right ventricle. Each curve shows the strain values of the right ventricle in 25 phases, including the peak value. (E,F) 3D models of the right ventricle; E is diastole and F is systole.

Correlation between RV peak strain and BMI in healthy subjects

The mean value of BMI was 23.6±3.1 kg/m². There was no correlation between BMI and the RVGLS (P=0.98), GRS (P=0.71), and GCS at the base, middle, and apex (P=0.87, P=0.60, P=0.28). Moreover, there was no significant correlation between BMI and peak radial systolic strain rate and peak radial diastolic strain rate (P=0.98, P=0.37) (Table 6).

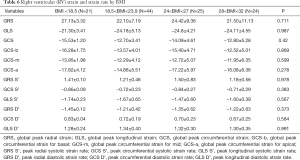

Table 6 Right ventricular (RV) strain and strain rate by BMI
Full table

Discussion

In this study, we reported the reference values for RV myocardial strain using CMR-TT from a group of healthy Chinese volunteers across a balanced stratification of age and sex. We also demonstrated an association between RV strain or strain rate parameters assessed by CMR-TT and either age or sex, and provide age-stratified normal range values for right heart CMR-TT. These results will have significant consequences for the prognostic stratification of congenital and acquired cardiovascular diseases, even though the relationship between baseline biventricular volumes and age were similar to that observed in the general population. The reproducibility of RV strain was also highly satisfactory. These findings suggest that CMR-TT is a novel technique which is fast, convenient, and can accurately assess both RV longitudinal and circumferential strain, while facilitating the rapid measurement of myocardial deformation without the limitation of the acoustic window or need for additional sequence acquisition.

Starting with the application of crystal sonomicrometry in dogs in the 1970s, the last decades have witnessed a surge in imaging techniques that can visualize local myocardial wall motion (deformation) (13). Tissue tagging, a CMR technique that prescribes multiple grids on the myocardial tissue to track deformation throughout the cardiac cycle, is typically regarded as the golden standard for LV deformation (14). Echocardiographic deformation imaging using either speckle tracking or tissue Doppler imaging has also gained popularity for those patients unfit to undergo CMR examinations (12,15). Of note, these techniques are technically demanding, time-consuming, and have primarily been validated for use in the LV, but render themselves less suitable for the thin-walled and highly trabeculated RV (11,16-20).

CMR-TT is a new method for CMR to evaluate myocardial strain using conventional CMR cine image, which can be easily acquired without contrast agent. With semi-auto contouring, the left and RV endocardium and epicardium at the end of diastole from conventional CMR cine image, myocardial tissue tracking strain, and strain rate were determined automatically (21). Compared with ultrasound speckle tracking imaging technology, CMR-TT is not affected by imaging angle, can directly observe morphological changes of the ventricle, and obtain two-ventricular free wall myocardial strain (22-26). In conditions leading to RV pressure or volume overloads such as pulmonary hypertension, tetralogy of Fallot, or Systemic RV, the contractile pattern changes from longitudinal to circumferential shortening (27,28). Given this, RV circumferential strain is also critical for those patients in clinical practice. Our study shows that CMR-TT provides highly reproducible information on RV myocardial motion not only in the longitudinal but also in the circumferential direction. CMR-TT is a fast and easy to operate non-invasive imaging technology that produces three-dimensional detailed anatomical images without the use of ionizing radiation at an average post-processing time 5 of minutes; these characteristics can overcome some limitations of echocardiography such as the ability to reproducibly visualize the entire R.

Moreover, the CMR-TT software we used in this study provides a dedicated RV strain analysis tool, which speeds up our study workflow and yields more objective results. RV TT method computes the strain with gradient optical flow algorithm, which can be very sensitive to morphologic changes affecting RV endocardial or epicardial borders. We have provided segmental GCS reference ranges based on the apex, mid and basal segments of the RV since the previous study has demonstrated that most basal and mid-ventricular segments have good reproducibility, but at the apex, reproducibility is poor. This effect is likely due to the thinning of the ventricular wall and increased blurring of the endocardium-blood pool boundary.

Truong et al. (29) demonstrated that global RV longitudinal strain peak had a correlation with gender in 50 healthy volunteers, with a GLS of −22.11%±3.51%. The GCS for global, basal, mid-cavity, and apical segments follow respectively: −11.69%±2.25%, −11.00%±2.45%, −11.17%±3.36%, and −12.90%±3.34%. Liu et al. (30) reported the normal parameters of the RV long axis in 100 normal volunteers from the cardiovascular research center of the University of Birmingham, UK, and found the RV longitudinal strain was -24.2%±3.59%, and the peak systolic strain rate was −1.54±0.41 s⁻¹. However, the myocardial strain rate and age differences were not involved in this study. In our study, we analyzed the normal reference of RV myocardial strain parameters using CMR-TT technology with a larger Chinese cohort. The GLS and GRS was −24.3±4.7 and 23.0±8.5. The GCS for global, basal, mid-cavity, and apical segments were −13.1±4.0, −12.5±4.7 and −15.9±5.8, respectively, which were slightly greater than the previous study. For both the left and RV, our findings exhibited greater EF and volumes that were higher with advancing age in both genders, which is consistent with the previous study from the UK (27). Their study showed a small increase from age 50 years between strain and strain rate. However, the age differences in EF and volume were not statistically significant in our study. The RV global and regional strain and the strain rate of the female subjects were both greater than the male subjects. The values of RV longitudinal strain and mid and basal circumferential strain grew slightly with the age increase. Our study included a larger cohort of 120 healthy subjects from each decade of life between 20 and 70 without known congenital or acquired cardiovascular disease, hypertension, diabetes, dyslipidemia, or systemic inflammatory disorders, and who underwent cardiac magnetic resonance tissue tracking (CMR-TT) assessment of RV myocardial strain and strain rate. The normal reference of the Chinese population was consistent with these two previous studies. There were also significant age and gender differences in GRS and GCS for the basal and mid-cavity segments; however, there was no difference in peak GLS, which is considered an early myocardial dysfunction parameter in most cardiac and pulmonary artery disease.

The results from our data also show that the intra-and inter-observer variability was further improved in terms of repeatability with dedicated trained radiologists. Due to significant variations in strain values obtained by different software solutions and measurement techniques, to date, these new parameters should be quantified similarly if serial assessments or follow-up acquisitions are required. Similar problems have been successfully addressed in echocardiographic speckle-tracking with efforts being directed towards consensus (31) and trying to standardize technology to enable wider interchangeability and comparisons. Therefore, more clinical trials are needed, and the technical and software specific properties in CMR imaging need to be evaluated to reliably introduce standardization and reference values for myocardial deformation assessment for widespread clinical introduction.

This study has some limitations. This is a prospective study with a limited cohort from one center. No comparison was performed between CMR-TT with myocardial tagging, SENC, or DENSE, as those sequences were not available at the time of examination. However, this data is comprehensive, advanced, and accurate, and has high clinical practicability. Furthermore, CMR examinations were not performed repeatedly on the same individuals over time. Therefore, the associations described between age and CMR parameters are not longitudinal, but instead cross-sectional. It is believed that with more research focusing on RV dysfunction and novel techniques with a promising new strain algorithm designed to handle motion discontinuities properly, this technology will be applied widely to patients with various RV diseases.

In summary, the age- and gender-related normal references of RV strain values were provided by CMR-TT using the SSFP sequence in 120 healthy Chinese volunteers with a wide age range separated by sex. These reference values can be applied widely to evaluate early myocardial dysfunction in patients with suspected RV disease, especially for Chinese populations.

Acknowledgments

Funding: This study was funded by the National Nature Science Foundation of China (81871435).

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: This study was approved by Ethics Review Board of First Affiliated Hospital of China Medical University.
