Renal cell carcinoma: preoperative evaluate the grade of histological malignancy using volumetric histogram analysis derived from magnetic resonance diffusion kurtosis imaging

Introduction

Renal cell carcinoma (RCC) is the most common pathological type of kidney cancer. Its global morbidity and mortality increased at a rate of about 2–3% per decade (1). Histologic grade of RCC affects both patient’s prognosis and surgical planning. Consequently, an accurate preoperative assessment is essential (2,3). Histologic grade is mainly based on the Fuhrman classification system, which requires a needle biopsy or postoperative pathological examination. However, a biopsy is inherently invasive with multiple possible complications. Problems such as sampling errors and observer variability limit its application (4,5). Therefore, there is a need to develop non-invasive preoperative assessment methods.

Multi-parametric magnetic resonance imaging (MRI) technology is a powerful tool for the diagnosis of renal disease benefit from its characteristics of non-invasive, no ionizing radiation, high soft tissue resolution, and multi-parameter imaging. Diffusion-weighted imaging (DWI) is a functional technology that develops image contrast based on the inhibition of migration of water molecules in tissues by tissue microstructures. As a result of the dense cellularity, malignant tissue has restricted diffusion, which is reflected by a low mean apparent diffusion coefficient (ADC). DWI is based on the Gaussian distribution of the diffusion motion of water molecules. However, the diffusion motion of water molecules in biological tissues is limited by various tissue microstructures including cell size, arrangement, distribution, which make the diffusion does not follow a Gaussian distribution.

Diffusion kurtosis imaging (DKI) is a further extension of the DWI model. It quantifies the non-Gaussian diffusion behavior of water molecules, yields a corrected ADC (D_app) and apparent kurtosis coefficient (K_app). K_app can quantify diffusion heterogeneity and assess the complexity of tissue microstructural environment (6,7). Routine parameter measurements only provide mean values without considering its potential spatial distribution. Histogram analysis is a mathematical approach to evaluate the variations of parameters of all voxels in a region of interest (ROI), it more comprehensively estimates biological characteristics of the tumor, including spatial distribution and histological heterogeneity. This method had been widely applied in neoplasms for diagnosis, grading, staging, typing, and treatment response assessment (8-15). In advanced rectal adenocarcinoma, DKI metrics with whole tumor volume histogram analysis was associated with important prognostic factors (9). In another study of glioma, DKI histogram parameters were able to improve the accuracy of glioma grading before surgery (10). However, to the best of our knowledge, the use of DKI histogram analysis as a surrogate marker of RCC histological grading has not been explored yet. This study uses a histogram analysis of DKI to differentiate high and low- grade of RCCs for the first time. The observations in histogram analysis of DKI may be a potential biomarker reflecting increased heterogeneity and asymmetric distribution of RCC. We hypothesized that DKI histogram parameters might differ between different grades of RCC. Therefore, the purpose of this study was to investigate the value of histogram parameters derived from DKI in the assessment of RCC grading before surgery.

Methods

Patients

This study was approved by the Ethics Committee of our hospital. Informed consent requirement was waived because of its retrospective nature. From May 2015 to June 2018, 109 patients who underwent preoperative MRI, including routine sequences and DKI sequence, were involved in the present study. They were all diagnosed as RCC based on the histological assessment. The exclusion criteria were: (I) patients who underwent anti-tumor therapy before MRI examination (n=15); (II) image artifacts leaded to inability of observe lesions or accurately depict the ROI (n=12) (motion artifact, n=4 cases; magnetic sensitive artifact, n=8); (III) time between operation and MRI examination exceeded 1 month (n=7); (IV) recurrent tumor patients (n=2). Finally, 73 patients composed the study population. Among the 73 patients, there were 45 male patients (mean age, 59.2 years; range, 35–80 years) and 28 female patients (mean age, 57.4 years; range, 38–71 years) with an overall mean age of 58.5 years (range, 35–80 years). The average maximum diameter of the tumors was 4.3 cm (range, 2.3–12.8 cm).

MRI protocol

All MRI examinations were performed on a 3.0T MRI system (MAGNETOM Prisma, Siemens Medical Solutions, Erlangen, Germany) using a 16-channel phased array body coil for anatomic coverage of the abdomen. All patients underwent a supine position scan. The routine MRI protocol included axial T1 weighted imaging, axial T2 fat suppression weighted imaging, and coronal T2-weighted imaging sequence. The DKI sequence was acquired using a single shot diffusion-weighted echo-plane imaging sequence with five b values of 200, 500, 1,000, 1,500 and 2,000 s/mm² in three orthogonal directions under free breathing. Imaging parameters were as follows: repetition time/echo time =4,400/86 ms, field of view =320×240 mm, section thickness =5 mm, intersection gap =1 mm, the number of average of five b value is 1, 1, 2, 3 and 4, respectively, scan matrix =128×128, number of slices =30. The acquisition time was 3 min 26 s.

Image analysis

Original digital imaging and communications in medicine (DICOM) data of DKI sequence were post-processed using an in-house program written in MATLAB (version 2013b, MathWorks, Natick, Massachusetts, USA). For the DKI model, five b value data were fitted according to the following equation [1]:

Where S_b is the DWI signal intensity at a specified b value, S₀ is the baseline signal at b=0. K_app is the apparent kurtosis coefficient, and it is a unitless parameter indicates the deviation of water motion from the Gaussian distribution. D_app is similar to ADC after the correction of Gaussian diffusion behavior of water molecules. ADC was obtained from the same data using all b values for fitting based on the mono-exponential model according to the >equation [2]:

Where S_b is the signal intensity for a given b value, S₀ is signal intensity at b=0, b is the diffusion sensitivity factor.

All parameter maps were analyzed by two abdominal radiologists with 7 and 20 years of experience, respectively, who were blinded to clinical data and pathological diagnosis. Freehand ROI were outlined around the tumor on DW b_1,000 (b=1,000 s/mm²) images and simultaneously copied to ADC, D_app and K_app maps using the in-house program written in MATLAB. ROIs of all slices that cover the whole tumor were selected in each patient and excluded the bleeding, calcifications, necrosis and cystic areas. Raw data of ADC, D_app, and K_app for each voxel in the ROI were automatically generated by the software (Figure 1).

Figure 1 A 67-year-old man with clear cell renal cell carcinoma (RCC) (Fuhrman II). (A) The lesion shows high signal intensity on the axial T2-weighted image; (B) the lesion shows low signal intensity on the axial T1-weighted image; (C) the lesion shows high signal intensity on axial T2-weighted fat suppression imaging; (D) the lesion shows high signal intensity on the coronal T2-weighted image; (E) apparent diffusion coefficient (ADC) parameter map; (F) D_app parameter map; (G) K_app parameter map; (H) the schematic of freehand region of interest (ROI) on diffusion image; (I) histograms of ADC; (J) histograms of D_app; (K) histograms of K_app; (L) pathological analysis confirmed clear cell RCC (Fuhrman II) (hematoxylin and eosin, ×200). The arrow points to the location of the tumor.

Histologic results

Pathologic characteristics were evaluated from surgical resection specimens, and assessed by a dedicated urological pathologist with 12 years of experience. He was blinded to the previous MRI findings and clinical information and reviewed all the histological slides (×200) using an optical microscope (Nikon Eclipse E600, Nikon, Osaka, Japan). Images were digitally photographed, and a nuclear grade 1–4 (G1–4) for each sample was assigned based on the Fuhrman grading system (16).

Statistical analysis

Voxel-based raw data of each ROI were used for histogram analysis, then the following parameters for each ROI were calculated: mean, standard deviation (SD), skewness (skew), kurtosis and cumulative frequency distributions of 10th, 25th, 50th, 75th, and 90th percentiles. The interobserver agreement for DKI parameters was assessed by calculating the interclass correlation coefficient (ICC). Data of G1 and G2 were combined into low-grade group and G3 and G4 were combined into high-grade group because of the small number of G1 and G4 tumors. Data were expressed as mean ± SD, or median (25th–75th percentile). The normality of variables was evaluated. Differences of all histogram parameters between the two group were evaluated using Student’s t-test or Mann-Whiney U test. Receiver operating characteristic (ROC) curve was used to assess the area under the curve (AUC) and determine the optimum threshold of each histogram metric in distinguish low- grade RCC from high-grade RCC. The best cut-off point was selected by the biggest Youden index. A two-sided P value of less than 0.05 was considered to be significantly different. All statistical analyses were performed using IBM SPSS software (version 21.0, Chicago, IL, USA).

Results

According to the histologic evaluation results, 73 specimens were classified as G1 (n=6), G2 (n=34), G3 (n=29) and G4 (n=4). G1 and G2 were classified as low- grade groups, while G3 and G4 were merged into high-grade groups. The ICC of DKI and DWI parameters of the two radiologists were all higher than 0.75, which suggest good intra-observer agreements. Therefore, our result was based on the more experienced reader’s observation.

The histogram analysis values of K_app, D_app, and ADC for all lesions were summarized in Table 1. The K_app 10th, 25th, 50th, 75th, and 90th percentile, K_app mean and K_app SD values were significantly higher in high- grade group than that in low-grade group (P<0.05). In contrast, ADC 50th percentile, mean and kurtosis values and D_app 25th percentile were significantly higher in the low-grade group than that in the high-grade group (P<0.05). D_app mean and D_app kurtosis were different in high- and low-grade groups, but the differences were not significant, their P value were 0.057 and 0.072, respectively. The Box plot also showed a comparison of different grades of RCC (Figure 2). These parameters were significantly different between high- and low-grade tumors (P<0.05).

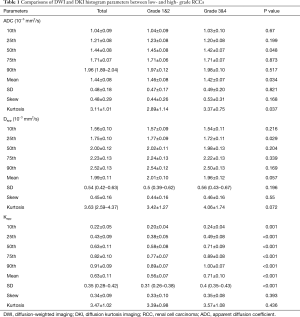

Table 1 Comparisons of DWI and DKI histogram parameters between low- and high- grade RCCs
Full table

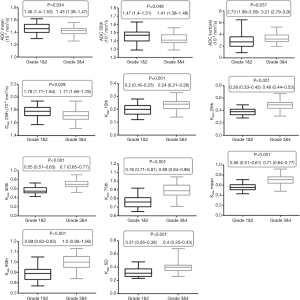

Figure 2 Boxes chart of diffusion-weighted imaging (DWI) and diffusion kurtosis imaging (DKI) metrics histogram parameters with a significant difference in low- and high-grade renal cell carcinomas (RCCs). The abscissa is different groups; ordinate is different parameters. Mean, range, and P value are above each image.

The ROC curve analysis showed that ADC 50th, ADC mean, ADC kurtosis, D_app 25th, K_app 10th, 25th, 50th, 75th, 90th percentile, K_app mean and K_app SD values could effectively distinguish between high- and low-grade RCCs. K_app mean had the highest AUC value (0.889). K_app 90th and K_app mean they had the same highest sensitivity (89.7%). K_app 25th had the highest specificity (92.5%). K_app 25th had the highest positive predictive value (PPV) (88%), and K_app mean had the highest negative predictive value (NPV) (88.9%). K_app mean and K_app 75th had the same highest diagnostic accuracy (83.6%) (Table 2, Figure 3).

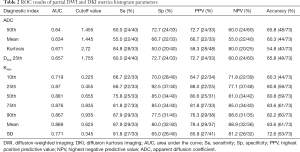

Table 2 ROC results of partial DWI and DKI metrics histogram parameters
Full table

Figure 3 Receiver operating characteristic (ROC) curve of partial diffusion-weighted imaging (DWI) and diffusion kurtosis imaging (DKI) metrics histogram parameters in differentiating low and high- grade renal cell carcinomas (RCCs). Different parameter curves are represented by different colors. The curve of K_app mean is closest to the top left corner of the image and has the largest area under the ROC curve (AUC) value (0.889) and diagnostic performance.

Discussion

In this study, we found that histogram metrics of ADC, D_app and K_app were significantly different between high- and low- grade RCCs. Furthermore, in comparison with ADC value derived from mono-exponential DWI model, K_app mean based on DKI model may yield better diagnostic accuracy and reflect the microstructural complexity of the tumor. Histogram analysis based on voxel distribution was able to provide more quantitative information about tumor heterogeneity by obtaining additional parameters to depict the distribution of signal intensity. Such as SD, kurtosis and skewness, either of them could reflect the deviation of the histogram from the normal distribution. Histogram analysis of dynamic contrast-enhanced (DCE) MRI and DWI had demonstrated their potential for RCC assessment and subtype differentiation (17,18). Wang et al. (17) showed that although the histogram method was not superior to the conventional mean value method, it could provide more information about tumor heterogeneity. Li et al. (18) demonstrated that quantitative volumetric ADC histogram analysis helped differentiate various subtypes of small solid renal tumors.

DKI could quantify the extent of diffusion restriction and the tissue microstructure complexity. The complexity of tissue structures was associated with high K_app values (7,19). Some studies showed that the mean K_app value was significantly lower in low- grade tumors than that in high- grade tumors (20,21). Our results were consistent with theirs, in the present study, the 10th, 25th, 50th, 75th, 90th percentile, mean and SD of K_app in low-grade RCC were all significantly lower than those in high-grade group. K_app mean was the best parameter of differentiating RCC grades (AUC =0.889). More complex cell structure, higher cell densities, and more nuclear atypia associated with greater angiogenesis and tissue necrosis were observed in high-grade tumors (20-22). Thus, the 10th, 25th, 50th, 75th, 90th percentile and mean of K_app of high-grade RCC were higher than those of low-grade tumors. Also, the standard deviation of the K_app value of the high-grade group was higher than that of the low-grade group, which was indicated the heterogeneity of histogram distribution, and also indicated the increase of the complexity of tumor microstructure.

Previously published studies had shown that the ADC obtained from DWI and true diffusion coefficient (D) obtained from intravoxel incoherent motion (IVIM) DWI helped differentiate the pathological grade of RCC. Several studies have also reported that the ADC and D values of high-grade RCC were significantly lower than those of low- grade RCC (20,23-26). Zhang et al. (20) showed that the 10th percentile ADC had the highest accuracy in discriminating low- from high-grade clear cell RCC. Dai et al. (26) reported that mean D_app value was significantly lower in G1 and G2 RCC than that in G3&4. Our results were similar to theirs. In the present study, the mean ADC and 50th percentile ADC values of low-grade group were significantly higher than that of high-grade group. The reason may be because these results reflect the pathological characteristics of RCCs in common. Cell density and cell composition of the tumors are key factors that determine their pathological grade (2,3,27). In high-grade tumors, the quantity and density of the tumor cells increase fast. The cells proliferate actively, arrange densely, and increased nuclear atypia, polykaryocyte, megakaryocyte, and cytoplasm ratios, restrict the diffusion of water molecules and decrease the ADC value.

Also, the present study also showed that the D_app 25th percentile and ADC 50th percentile in low-grade group were significantly higher than those in high-grade group, and the ADC kurtosis was lower than that of high- grade group. Zhang et al. (20) reported that mean, median, and 10th percentile ADC of low-grade clear cell RCC were significantly higher than those of high-grade clear cell RCC. Dai et al. (26) showed a negative correlation between mean D_app value and nuclear-to-cytoplasm (N/C) ratio of RCC, high-grade tumors had lower mean D_app value and higher N/C ratio than those of low-grade tumors. These findings provide a more detailed distribution of tumor cells of RCC, finding that high-grade tumors have a higher heterogeneity, as the density and quantity are higher. As a result, the diffusion of water molecules in high-grade tumors are more restricted, then the 25th percentile D_app and 50th percentile ADC decrease. In high-grade group, the histogram distribution of voxels is more likely to skew to the left or right, then the skewness of ADC value increases and the peak of data distribution tends to be sharper, the ADC kurtosis value increase.

Dai et al. (27) reported that mean K_app had the highest diagnostic value between normal renal parenchyma and clear cell RCC when the optimum diagnostic threshold was 0.54, but ROC analysis of different grade of RCC was not given in the study. Wu et al. (21) reported the high AUC value of mean D_app and mean K_app between the different grade of RCC. The results of our study were consistent with the previous studies. K_app mean had the highest diagnostic value. The AUC and the cut-off value of K_app mean were 0.886 and 0.625, respectively, and the sensitivity, specificity, and accuracy were 87.9%, 80%, and 83.6%, respectively. The specificity and accuracy of K_app were higher than those of ADC and D_app. Besides, the 75th percentile K_app showed high diagnostic accuracy, which was equal to K_app mean.

This study also had several limitations. Firstly, the sample size was small, especially for the G1 and G4 tumor samples, the reliability of the results should be confirmed in larger patient samples by prospective studies. Secondly, high b value DWI images had a low signal-to-noise ratio and hence impairing the fitting of DKI and DWI parameters. A multi-step weighted linear least-squares approach would be useful which could provide high performance in terms of accuracy (28). Thirdly, free breathing was used during the scan, although kidney is a retroperitoneal organ, motion artifacts may still occur, resulting in biased results. The use of 3D non-rigid registration techniques may greatly reduce the effects of motion displacement. Finally, artifacts in the body DWI sequence was also a problem. Respiratory gating techniques can be used to suppress motion artifacts, but this will significantly increase scan time. Rapid imaging techniques, such as compressed sensing, are expected to solve this problem. However, RCC patients with a large amount of bleeding, DWI and DKI maybe not applicable.

In conclusion, the present study had demonstrated that DKI histogram parameters derived from Magnetic Resonance DKI were able to distinguish between high and low-grade RCC. K_app mean was the best parameter of differentiating RCC grades. DKI is feasible for evaluating the non-Gaussian behavior of water diffusion and provides better performance than DWI in grading RCC. Further studies with larger sample sizes are warranted to explore the full potential of DKI for non-invasive imaging of RCCs.

Data availability

The data that support the findings of this study are available on request from the corresponding author (Guangyao Wu). The data are not publicly available because of the data above containing information that could compromise research participant privacy.

Acknowledgements

Funding: All the authors declare no conflict of interest. This study was supported by the National Natural Science Foundation of China (Grant no. 81227902), the National Key Basic Research Program (Grant no. 2016YFC1304702) and Shenzhen University Presidential Fund (Grant no. 85706-0000040544).

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: This study was approved by the Ethics Committee of our hospital. Informed consent requirement was waived because of its retrospective nature.
