Effects of region of interest sizes on apparent diffusion coefficient measurements of pleomorphic adenoma, Warthin tumor, and normal parotid parenchyma
Original Article

Effects of region of interest sizes on apparent diffusion coefficient measurements of pleomorphic adenoma, Warthin tumor, and normal parotid parenchyma

Qi Sun1#, Chao Ma2#, Minjun Dong1, Mengda Jiang1, Xiaofeng Tao1

1Department of Radiology, Shanghai Ninth People’s Hospital, Shanghai Jiao Tong University School of Medicine, Shanghai 200011, China;2Department of Radiology, Changhai Hospital of Shanghai, The Naval Military Medical University, Shanghai 200433, China

#These authors contributed equally to this work.

Correspondence to: Minjun Dong, MD; Xiaofeng Tao, MD. Department of Radiology, Shanghai Ninth People’s Hospital, Shanghai Jiao Tong University School of Medicine, No. 639 Zhizaoju Road, Shanghai 200011, China. Email: peter_dongmj@yeah.net; cjr.taoxiaofeng@vip.163.com.

Background: Tumor apparent diffusion coefficient (ADC) measurements may be influenced by region of interest (ROI) sizes; however, this effect has not been systematically studied in parotid tumors. Our purpose was to determine the effects of ROI size on ADC measurements for the differentiation of pleomorphic adenoma (PA), Warthin tumor (WT), and normal parotid parenchyma.

Methods: Sixty-five patients including 37 with PA (lesions, n=37) and 28 with WT (lesions, n=36) were examined with diffusion-weighted imaging (DWI). Participants with normal contralateral parenchyma of the parotid gland constituted the control group (n=56). The mean ADC values and standard deviations (SDs) of the ADC (ADCSD) of 12 concentric round ROIs (areas: 9, 28, 34, 50, 60, 82, 93, 98, 115, 130, 136, and 149 mm2) for tumors and normal tissue were measured by using custom-made software. Homogeneity index, which was defined by the ADCSD/mean ADC, was also calculated. One-way repeated analyses of variance (ANOVAs) were performed on the mean ADCs, ADCSDs, and homogeneity indices of the 12 ROIs in each group. The three parameters at different ROIs among PA, WT, and normal parotid parenchyma were compared using Kruskal-Wallis tests.

Results: There was excellent agreement for the ADC measurements with the 12 ROIs for PA [intraclass correlation coefficient (ICC), 0.98], WT (ICC, 0.99), and normal parotid parenchyma (ICC, 0.95). No significant differences were observed in the mean ADCs of the 12 ROIs for each of the three groups (P=0.744–0.990). Among the three groups, the mean ADC of normal parotid parenchyma [(0.94±0.003)×10−3 mm2/s] was significantly lower than that of both PA [(1.72±0.01)×10−3 mm2/s] and WT [(1.16±0.01)×10−3 mm2/s] in the 12 ROIs, whereas the PA group had the highest mean ADC values. No significant differences were found in the mean ADCSDs with each ROI between PA and WT (all P>0.017). PAs had lower homogeneity indices compared with WTs and normal parotid parenchyma (all P<0.01).

Conclusions: The effect of ROI size on ADC measurements could be excluded from the differentiation of PA, WT, and normal parotid parenchyma. Homogeneity index was a useful parameter in discriminating between the three groups.

Keywords: Diffusion-weighted imaging (DWI); apparent diffusion coefficient (ADC); region of interest (ROI); pleomorphic adenoma (PA); Warthin tumor (WT)

Submitted Jun 11, 2018. Accepted for publication Apr 17, 2019.

doi: 10.21037/qims.2019.04.11

Introduction

Magnetic resonance imaging (MRI) has become increasingly important in the diagnosis and evaluation of various diseases in clinical practice because of the advantages of multiple soft-tissue contrasts and absence of ionizing radiation. For parotid gland tumors, MRI is valuable for identifying tumor location and extension, and the relationship between the tumor and the facial nerve (1-14). As a functional method of MRI, diffusion-weighted imaging (DWI) with derived apparent diffusion coefficient (ADC) can provide useful information in the differentiation of various entities of parotid tumors (15). Yerli et al. reported that MRI combined with DWI seemed to have similar diagnostic potential as fine-needle biopsy in the differentiation of benign and malignant parotid masses (4).

Some studies have investigated the possibility of predicting different parotid gland tumors by using DWI with ADC (16,17). However, the reported range of ADCs for parotid masses varies dramatically across different studies [e.g., pleomorphic adenoma (PA): 1.442×10−3 to 2.09×10−3 mm2/s; Warthin tumor (WT): 0.756×10−3 to 1.85×10−3 mm2/s; malignant tumor: 1.05×10−3 to 1.51×10−3 mm2/s] (2-6,10,18-20), which may be caused by variation in sizes of the region of interest (ROI) (21–1,474 mm2) (2,3,10,17). Many contradictions and arguments inevitably arise between studies, and these issues remain unresolved. Recently, some authors have reported on the influences of ROI on ADC measurements of pancreatic cancer, rectal cancer, etc. (21,22). However, the effects of ROI size on ADC measurements in PA, WT, and normal parotid parenchyma have not been systematically studied. Therefore, the purpose of our study was to assess the influence of ROI size on ADC measurements for differentiating PA, WT, and normal parotid parenchyma.

Methods

Subjects

From June 2015 to August 2017, 37 patients (male, 16; mean age, 42.8±15.4 years; range, 12–73 years) with pathologically proven PA (37 lesions) and 28 patients (male, 27; mean age, 59.1±11.1 years; range, 36–86 years) with pathologically proven WT (36 lesions) were enrolled. Nine patients had bilateral WT. The mean lesion sizes were 25.68±9.23 mm (range, 16–46 mm) and 24.93±9.05 mm (range, 15–53 mm) for PA and WT, respectively. All of the lesions were removed surgically, and final diagnosis was performed by histopathological examination of surgical specimens. The ethics committee of our hospital approved this retrospective study, and informed consent was waived for all participants.

MRI procedure

All 65 participants preoperatively underwent MRI examinations on a 3.0-T system (Ingenia, Philips Healthcare Systems, The Netherlands) with a 20-channel phased array head and neck coil. Conventional MRI protocols including transversal single-shot echo-planar DWI (b-values of 0 and 1,000 s/mm2) were used. The main scan parameters and the scanning order of MRI sequences are presented in Table 1.

Table 1
Table 1 The main parameters of MRI protocol
Full table

Data analysis

A mono-exponential fitting model [ADC = ln (SIb0/SIb1000)/1,000] was used for the ADC map calculation on a workstation (EWS, Extended WorkStation, Ingenia, Philips Healthcare Systems). “SIb0” and “SIb1000” indicate the signal intensity of the DWI on b =0 and 1,000 s/mm2, respectively. The “ln” represents the natural logarithm. MRI data of patients were anonymous and disorganized. Custom-made software was used for the ADC measurements with defined 12 concentric round ROIs (areas: 9, 28, 34, 50, 60, 82, 93, 98, 115, 130, 136, and 149 mm2). The largest ROI was set to 149 mm2 considering the smallest lesion was 15 mm in the study to make the ROI locatable in the lesion. The ADCs of PA, WT, and normal parotid parenchyma measured twice by two observers by consensus (Figure 1). ROIs were placed on the solid part of tumors and the normal parotid parenchyma. The standard deviation (SD) of the ADC (ADCSD) of each ROI was also calculated and recorded.

Figure 1 Apparent diffusion coefficient (ADC) measurements of Warthin tumor. (A) Axial T2WI; (B) axial pre-contrast T1-weighted image (T1WI); (C) axial contrast-enhanced T1WI; (D) diffusion weighted image (b =1,000 s/mm2) with clearly demarcated hyperintensity compared with the surrounding and contralateral parotid gland tissues; (E) ADC map; (F) zoomed-in ADC map indicating the 12 concentric round regions of interest (areas: 9, 28, 34, 50, 60, 82, 93, 98, 115, 130, 136, and 149 mm2) used for mean ADC measurements.

Statistical analysis

Medcalc software (Version 13.0.0.0, MedCalc Software, Belgium) was used for statistical analyses. The intraclass correlation coefficients (ICCs) were calculated for the two ADC measurements. The homogeneity indices (defined by the SD/mean ADC within each ROI) were calculated for the tumors/tissue at each ROI (23). The mean ADCs and ADCSDs were averaged between the two measurements for further analyses. One-way repeated analysis of variance (ANOVA) was used for the comparisons of mean ADCs, ADCSDs, or homogeneity indices of 12 ROIs in each group of PA, WT, and normal parotid parenchyma. Statistically difference was defined as a P value <0.05 in a two-sided test. The comparisons of mean ADCs, ADCSDs, and homogeneity indices for each ROI size among the three groups were performed using Kruskal-Wallis tests and post-hoc analyses with Conover test. Additionally, receiver-operating characteristic (ROC) analyses were conducted to determine the diagnostic performances of the three parameters for differentiating between PA, WT, and normal parotid parenchyma.

Results

For the repeated ADC measurements, there was good or excellent agreement (ICC, 0.78–0.99) between the two measurements of PA, WT, and normal parotid parenchyma for all the 12 ROIs. For the ADC values of the 12 ROIs for PA, WT, or normal parotid parenchyma, there were excellent agreements with ICCs 0.98, 0.99 and 0.95, respectively. For mean ADCSD values, good or excellent agreements (ICC, 0.63–0.97) were found for the 12 ROIs between the two measurements of PA or WT. In the normal parotid parenchyma, similar findings (ICC, 0.66–0.87) were observed except in the ROI with an area of 9 mm2.

The mean ADCs of the PA, WT, and normal parotid parenchyma with the 12 ROIs ranged from 1.71×10−3 to 1.73×10−3 mm2/s, from 1.15×10−3 to 1.17×10−3 mm2/s, and from 0.94×10−3 to 0.95×10−3 mm2/s respectively. ANOVA results revealed that there were no significant differences in mean ADCs with the 12 ROIs for all three groups (P=0.744–0.990). Significant differences were found for the mean ADCs among the three groups with each defined ROI. The post-hoc results showed that the mean ADCs of PA were the highest in the three groups (P<0.017). In addition, the mean ADCs of WT were higher than those of normal parotid parenchyma (P<0.017) with each defined ROI. The mean ADCSDS of the PA, WT, and normal parotid parenchyma with 12 ROIs ranged from 0.09×10−3 to 0.21×10−3 mm2/s, from 0.11×10−3 to 0.23×10−3 mm2/s, and from 0.14×10−3 to 0.25×10−3 mm2/s respectively. ANOVA results revealed that the differences of mean ADCSDS obtained from the 12 ROIs were significant for all three groups (all P<0.001). No significant differences in the mean ADCSDs with each ROI between PA and WT (all P>0.017). For the homogeneity indexes, the mean homogeneity indexes of the PA, WT, and normal parotid parenchyma with 12 ROIs ranged from 0.05 to 0.13, from 0.10 to 0.19, and from 0.16 to 0.27, respectively. ANOVA results revealed that the differences of mean homogeneity indexes obtained from the 12 ROIs were significant for all three groups (all P<0.001). Significant differences were found for the mean homogeneity indices among the three groups with each defined ROI (all P<0.001). PAs had a significantly lower homogeneity index compared with WTs and normal parotid parenchyma (all P<0.01). The parameters of the three groups with the 12 ROIs are summarized in Table 2 and presented in Figure 2 with box plots.

Table 2

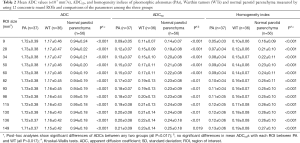

Table 2 Mean ADC values (×10−3 mm2/s), ADCSD, and homogeneity indices of pleomorphic adenomas (PAs), Warthin tumors (WTs) and normal parotid parenchyma measured by using 12 concentric round ROIs and comparisons of the parameters among the three groups
Full table
Figure 2 Box plots of the 12 regions of interest derived the mean apparent diffusion coefficient (ADC) (A), standard deviation (SD) of the ADC (ADCSD) (B), and homogeneity index (C) for normal parotid parenchyma, pleomorphic adenomas (PA), and Warthin tumors (WT). The midline within each box represents the median value. Horizontal lines within boxes represent median values, vertical lines and whiskers denote 95% CIs. ROI, region of interest; CI, confidence interval.

ROC analysis results revealed no differences in the accuracy of the ADCs in differentiating between any two groups of PA, WT, and normal parotid parenchyma (Tables 3-5) when the ROI size was ≥9 mm2. For the homogeneity index, the values of area under curve (AUC) for differentiating PA from WT, PA or WT from normal parotid parenchyma were 0.730–0.749 (Table 5), 0.915–0.955 (Table 3), and 0.723–0.793 (Table 4) respectively. There were no differences in the accuracy of the homogeneity index in differentiating between PA and WT or normal parotid parenchyma for the 12 ROIs (all P>0.05). Similar findings were observed in differentiating between WT and normal parotid parenchyma when the ROI size was above 9 mm2.

Table 3

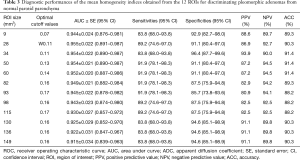

Table 3 Diagnostic performances of the mean homogeneity indices obtained from the 12 ROIs for discriminating pleomorphic adenomas from normal parotid parenchyma
Full table
Table 4

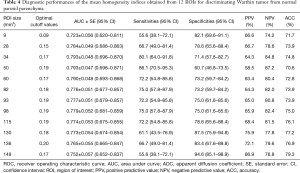

Table 4 Diagnostic performances of the mean homogeneity indices obtained from 12 ROIs for discriminating Warthin tumor from normal parotid parenchyma
Full table
Table 5

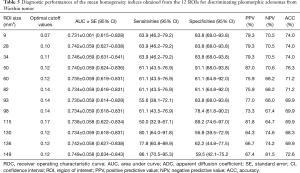

Table 5 Diagnostic performances of the mean homogeneity indices obtained from the 12 ROIs for discriminating pleomorphic adenomas from Warthin tumor
Full table

Discussion

MRI is a useful tool for discriminating between benign and malignant parotid gland tumors. As a functional MRI technique, DWI can be used to non-invasively explore the Brownian motion of water molecules in vivo. The quantified ADC can be used to measure the changes in composition of tissues (2-6,8,14-20,24,25). In parotid imaging, DWI is helpful for parotid tumor detection, and a few studies have reported that WT had lower ADCs than those in PA (3,4,10,13,18,25). In our study, the mean ADC of WT was also significantly lower than that of PA for the 12 ROIs, which is in agreement with previously reported results.

No formal recommendation has been reported for ADC measurements for parotid lesions, and few studies assessed the influence of ROI on ADC measurements in PA, WT, and normal parotid parenchyma. Previous studies using ROI sizes for ADC measurements of parotid tumors vary greatly, ranging from 21 to 1,474 mm2 (2,3,10,17). Fruehwald-Pallamar et al. reported the difference in ADC values for PA and WT by using large ROIs and a standard-size ROI (round, 0.5 cm2) respectively (20). However, the study did not report comparisons of the ADCs for the PA or WT groups using the two ROIs. Notably, the present results indicate that ROI has no significant influence on differentiating between PA, WT, and normal parotid parenchyma (P=0.744–0.990). The ADCSDs or homogeneity index increased with increasing ROI size for PA, WT, or normal parotid parenchyma. However, ROC analysis results revealed no differences in the accuracy of the homogeneity index in differentiating between any two groups for PA, WT, and normal parotid parenchyma for the 12 ROIs (all P>0.05) when the ROI size was above 9 mm2. We also found that the ICCs were increasing with the ROI sizes for the ADC measurements between the two measurements (despite good or excellent agreement with ICC, 0.78–0.99) for PA, WT, or normal parotid parenchyma. Thus, in the clinical practice, we recommend that ROI should be as large as possible according to the tumor sizes of PA and WT to reduce possible measurement errors.

Wang et al. reported that ADCSD was an independent predictor of WT in differentiating between PA and carcinomas (26). However, in the current study, no significant differences were observed in the mean ADCSD values of the 12 ROIs between PA and WT, which was inconsistent with the reports of Wang et al. The main reason for the different findings may be that the sources of patients in the two studies were different, and ROI methods used in the two studies for ADC and SD measurements were different. It was worth mentioning that homogeneity index may be a useful parameter in differentiating between PA, WT, and normal parotid parenchyma. The higher the index was, the more heterogeneous the ADC in the area was. In particular, the homogeneity index had higher accuracies in helping differential diagnosis of PA and WT than with ADCs.

Some ROI methods including the whole-volume ROI, selected-slice ROI, and small-sample ROI approaches have been applied in tumor ADC measurements (22). For the whole-volume method, ROIs cover the entire tumor area on each tumor-containing slice. For the single-slice method, ROIs cover the whole tumor on the largest observed tumor area slice. For the small-sample method, a round/oval ROI is placed on the solid portion of the tumor. The effects of ROI methods on ADC measurements have been investigated in some tumors, and each ROI method has its own advantages and disadvantages (27-29). Whole-volume ROI can reduce inter- or intra-observer variability in ADC measurements; however, it is time-consuming and its application is limited in clinical practice (21,22). Ma et al. reported that ADCs obtained from small-sample ROIs could provide greater diagnostic performance than the selected-slice or whole-volume ROI methods in the assessment of pancreatic cancer (21). The small-sample ROI method is the most commonly used in practice. In addition, it is difficult to delineate ROI when using the whole-volume or selected-slice ROI methods in WT with secondary infection because of the untidy margin of tumors (30,31). This being the case, the small-sample ROI approach was used and assessed in the current study.

This study had some limitations. First, it was carried out retrospectively, which made it difficult to control all aspects of this study. Second, the patient population was relatively small, and a larger sample size is needed to confirm the results in the future. In addition, the effects of ROI sizes on ADC measurements of malignant tumors of the parotid gland were not investigated because of the limited cases of malignant tumors of parotid gland in the data collection of this study. Third, DWI was only performed with two b-values (0 and 1,000 s/mm2) in the study; the choice of b-values may cause the large range of ADCs, because it has been shown that the lower the b-values, the higher the contribution of perfusion, and the use of higher b values may be more sensitive to reflect true diffusion (32). Ideally, multi-b-value DWI should be used for more accurate measurement of ADC (33). Fourth, we did not compare the ADCs from different ROI approaches. This might have led to bias in the results because different slices might be able to have provided various ADCs. Finally, the influence of image distortion on ADCs for parotid masses was not analyzed. Imaging distortion and signal loss having potential influences on ADCs of normal parotid parenchyma on echo-planar DWI have been reported (34,35), and this influence might have affected our results.

Our results revealed that ROI size had no significant influence on the differentiation among PA, WT, and normal parotid parenchyma. Homogeneity index was a useful parameter in differentiating between the three groups. This study suggested that the effect of ROI size on ADC measurements could be excluded from the differentiation of PA, WT, and normal parotid parenchyma.

Acknowledgements

None.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: Institutional review board approval of Shanghai Ninth People’s Hospital Ethics Committee was obtained for this study.
