Neuroanatomical substrates underlying contrast sensitivity

Introduction

Contrast sensitivity (CS), a measurement of the ability to discriminate an object from its background, is an essential domain of visual functions (1,2). CS decline or impairment indicates one’s disability to discern an object in low contrast, which has been related to poor performance in driving (3,4), face recognition (5), real-world mobility tasks (6,7), postural stability (8), reading processes (9,10), and other functions of everyday life (11). Aging or lesions in the eye (including the retina) as well as in thalamic or cortical locations are usually responsible for this decline or impairment (12,13). Previous studies in animals have suggested that lesions in medial posterior thalamus and striate cortex significantly depress CS (14,15). However, whether neuroanatomical substrates are underlying CS in humans is largely unknown. Furthermore, there is evidence that CS deficits are associated with several neurological and psychiatric disorders, such as Alzheimer’s disease (16,17), Parkinson’s disease (18) and depression (19). Thus, a better understanding of the neural mechanism of CS may have some clinical significance in understanding these brain diseases.

In this study, we aimed to explore the relationship between CS and whole-brain morphology in a cohort of healthy young participants from the Human Connectome Project (HCP) dataset (20,21). CS was assessed using the Mars Contrast Sensitivity Test, a simple portable set of contrast-calibrated charts for testing peak CS recommended by the Committee on Vision of the U.S. National Academy of Sciences and National Research Council (22-25). The scoring procedure was designed in a unified form for accuracy, simplicity, and comparability between different clinics or labs. Thus, the test has been widely and commonly used by researchers and clinicians (25). Whole-brain morphology was measured by using voxel-based morphometry (VBM) analysis (26) based on the high-resolution structural magnetic resonance imaging (MRI) data. A prior functional MRI study has demonstrated that the CS is linked to neural activity in V3A located in the hierarchy of cortical visual areas that is intermediate between lower and higher tier areas (27). Therefore, we hypothesized that variability in morphology in this area would be related to inter-individual differences in CS.

Methods

Participants

One hundred subjects (46 males) were selected from the HCP “100 Unrelated Subjects” dataset (http://www.humanconnectome.org) (21). These participants are healthy young adults without documented history of major psychiatric, neurological or physical disorders and within a restricted age range of 22–36 years, which corresponds to a period after the completion of significant neurodevelopment and before the onset of neurodegenerative changes. The full set of inclusion and exclusion criteria is detailed in prior publications (20,21). All methods were performed in accordance with the relevant guidelines and regulations by the Institutional Review Board of Washington University in St. Louis, MO, USA. Written informed consent was obtained from each participant.

CS scores

CS was assessed using the Mars Contrast Sensitivity Test (20). This test is a brief, valid and reliable measure that improves upon the traditional Pelli-Robson measure (23). The Mars test presents 48 letters of the same size, but each letter decreases in contrast by 0.04 log unit across and down the chart. The test stops when the participant makes two consecutive errors. The final score (Mars_Final) is the log CS of the last correct letter, minus 0.04 for any mistakes that precede the two consecutive errors (22). The current norms recommend by Mars Letter Contrast Sensitivity Test USER MANUAL (http://www.marsperceptrix.com) are as follows: 0.04–0.48 represents a profound loss; 0.52–1.00 a severe loss; 1.04–1.48 a moderate loss; l.52–1.76 normal (age >60 years); 1.72–1.92 normal middle/young adult (age between 18 and 60 years).

MRI data acquisition and processing

High-resolution structural images were acquired using an HCP-customized Siemens 3.0 T “Connectome Skyra” scanner with a 32-channel head coil. The imaging parameters of the structural MRI were as follows: 3D MPRAGE T1-weighted sequence, repetition time =2,400 ms, echo time =2.14 ms, inversion time =1,000 ms, flip angle =8°, field of view =224 mm × 224 mm, matrix =320 × 320, 0.7 mm isotropic voxels, and 256 sagittal slices. The total acquisition time for the structural MRI was 7 min and 40 s. Detailed descriptions of the HCP imaging procedures can be found in previous literature (18,19).

VBM analysis was performed using the CAT12 toolbox (http://www.neuro.uni-jena.de/cat) implemented in the Statistical Parametric Mapping software (SPM12, http://www.fil.ion.ucl.ac.uk/spm). First, all the structural T1-weighted images were corrected for bias-field inhomogeneities. Second, these images were segmented into gray matter (GM), white matter (WM), cerebrospinal fluid (CSF) density maps using the “new-segment” approach, an extension of the old unified segmentation algorithm (28). In contrast to the old unified segmentation, the new-segment approach has the following advantages: (I) a slightly different treatment of the mixing proportions; (II) the use of an improved registration model; (III) the ability to use multi-spectral data; (IV) an extended set of tissue probability maps, which allows a different treatment of voxels outside the brain. Third, the Diffeomorphic Anatomical Registration using Exponentiated Lie algebra (DARTEL) technique was used to generate custom, study-specific template (29). Fourth, each participant’s GM density image was warped to the customized template; then the resultant images were affine-registered to the Montreal Neurological Institute (MNI) space and resampled to a voxel size of 1 mm × 1 mm × 1mm. Fifth, the modulation was applied by multiplying the transformed GM density (per unit volume in native space) (26) maps with the non-linear components of Jacobian determinants, which resulted in the normalized GM volume (GMV) maps representing the local native-space GMV after correcting the confounding effect of variance induced by individual whole-brain size. Actually, an analysis of modulated data tests for regional differences in the absolute amount (volume) of gray matter, whereas analysis of unmodulated data tests for regional differences in density of gray matter (30). Finally, to make a balance between compensating for registration errors and reserving anatomical details, the GMV images were smoothed with a moderate full-width at half-maximum (FWHM) Gaussian kernel of 6 mm.

Statistical analysis

We used a standard, univariate approach to investigate the relationship between the CS and the GMV in a voxel-wise manner within the whole gray matter. A multiple regression model in the SPM12 software was used to identify any voxels in the GMV maps that showed a significant association with the Mars_Final scores. The total intracranial volume was considered as a nuisance variable. Correction for multiple comparisons was performed using the non-stationary cluster-level family-wise error (FWE) method (31). Initially, the group-level statistical map was set to a threshold of voxel-level P<0.001 (cluster defining threshold). Then, all reported brain regions were corrected P<0.05 at the cluster-level using the random field theory and the FWE correction, following the current standard (32).

Results

The range of Mars_Final scores for the 100 participants was from 1.08 to 1.88. Among them, one score was 1.08 (a moderate loss), 10 scores were within l.52–1.72 (normal >age 60 years), and the remaining 89 scores were within 1.72–1.92 (normal middle/young adult). In the voxel-wise whole gray matter analysis, we found significant positive correlations (cluster-level P<0.05, FWE corrected; a minimum cluster size of 1,013 voxels) between the Mars_Final scores and the GMV in the bilateral visual cortex [left: cluster size =1,109, peak MNI coordinates x/y/z = −20.5/−88.5/38.5, peak T =4.3, partial correlation coefficient (pr) =0.429, P<0.001; right: cluster size =1,699, peak MNI coordinates x/y/z =24.5/−88.5/32.5, peak T =5.0, pr =0.467, P<0.001] (Figure 1). To rule out the potential confounds due to covariates such as age, gender and visual acuity, we repeated the partial correlation analyses controlling for these additional covariates and found that the positive correlations between the Mars_Final scores and the GMV in the bilateral visual cortex remained significant (left: pr =0.434, P<0.001; right: pr =0.450, P<0.001). However, we observed an outlier in the lower left corner in the scatter plots of Figure 1. After removal of the subject corresponding to this outlier, the positive correlations were still significant (left: pr =0.294, P=0.003; right: pr =0.310, P=0.002) (Figure 2). Furthermore, Figure 3 illustrates that the significant bilateral clusters are mainly located in bilateral V3A of the visual cortex according to the Human PALS-12 atlas (33), with the superior parts extending to the bilateral posterior parietal cortex.

Figure 1 Brain regions showing significant positive correlations between gray matter volume and contrast sensitivity (cluster-level P<0.05, FWE corrected). Scatter plots show the correlations between the mean GMV of the significant clusters and the Mars_Final scores. L, left; R, right; GMV, gray matter volume; pr, partial correlation coefficient.

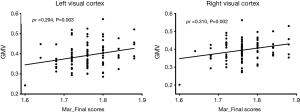

Figure 2 Scatter plots are showing the correlations between the mean GMV of the significant clusters and the Mars_Final scores after removal of the outlier. GMV, gray matter volume; pr, partial correlation coefficient.

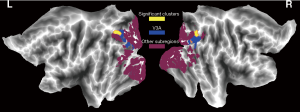

Figure 3 Locations of the significant bilateral clusters. The clusters are mainly located in bilateral V3A of the visual cortex, with the superior parts extending to the bilateral posterior parietal cortex. L, left; R, right.

Discussion

By using high-resolution structural MRI and VBM analysis, we found that an increase in CS scores was associated with increased GMV in the bilateral V3A and its superior parts extending to the bilateral posterior parietal cortex. Despite different neuroimaging techniques (structural vs. functional MRI) (34,35) and analytic methods (morphology vs. activation), our results were highly consistent with previous studies reporting an intrinsic relation between activity in area V3A and CS (27). These findings jointly underscore the central role of V3A in CS processing. In addition, the visual cortical system can be segregated into two parallel hierarchical processing pathways anatomically and functionally, that is, ventral visual pathway from V1, V2, V4 to the inferior temporal cortex representing object shape and identity (“what”) and dorsal visual pathway from V1, V3A, MT/V5 to parietal cortex representing objects location or spatial relationships (“where”) and the more updated visuomotor control (“how”) (36,37). Our results support that CS processing mainly depends on the dorsal stream compromising V3A and posterior parietal cortex.

However, there is evidence that other areas of the visual cortex are also involved in CS. For examples, Tootell et al. reported that middle temporal visual area (MT) and V3 had a much higher CS using functional MRI in human (38). Moreover, Sclar et al. found that neurons in the area MT were more sensitive to CS than any cell in other regions along the magnocellular pathway in macaque monkeys by using electrophysiological methods (39). Some possible reasons may account for these additional findings. First, the study of Tootell et al. used moving contrast stimuli while our research used stationary contrast stimuli. One may speculate that MT and V3 are more activated by moving contrast stimuli rather than stationary contrast stimuli. Second, the purpose of the present study was to identify neuroanatomical substrates responsible for inter-individual differences in CS, while the prior studies aimed to identify neural correlates engaged in CS processing. Therefore, although these relevant regions (MT and V3) may be implicated in CS processing, their morphology does not relate to individual CS levels. Our findings suggest that when focusing on stimulus-unspecific brain morphology that is considered an inherent trait and independent of states, it is more the structure of V3A, rather than other relevant visual areas, which is related to inter-individual CS differences.

In some clinical studies, CS has been linked to a variety of neurological and psychiatric disorders. For example, previous studies have demonstrated that CS is impaired in Alzheimer’s disease (16,17) and CS measure can accurately classify mild cognitive impairment versus healthy controls (40), suggesting that CS may have promise as a novel Alzheimer’s disease biomarker. In another study, Stenc Bradvica et al. found that CS dysfunction was present as the earliest symptoms of Parkinson’s disease, and could facilitate differential diagnosis between Parkinson’s disease and essential tremor (41). Besides, Fam et al. found that visual CS was significantly lower in depressed patients and poorer visual CS was related to greater severity of depressive symptoms (42). Based on these findings, we assume that the affected posterior parietal region may partially explain the relationship between CS and disease-related cognitive, motorial and psychological impairment because the posterior parietal cortex has a functional and anatomical connection to the prefrontal cortex (43) and involves various cognitive domains (44-46). Therefore, clinicians should pay more attention to CS in patients with these brain disorders and CS test may assist clinicians in the early diagnosis and effective treatment.

There are several limitations to this study. First, the HCP sample included only healthy young adults with an age range from 22 to 36 years may lead to the failure to cover a good range of the CS variable, which may limit the sensitivity of the study and generalizability of the findings. To further improve our understanding of individual variability in CS, future research is encouraged by enrolling a cohort of subjects with different degrees of CS damage and broader age range. Second, while the Mars Contrast Sensitivity Test is the most frequently used test for the assessment of CS, it also depends on other visual functions such as visual acuity, which could have influenced our interpretations to some extent. Third, the correlational nature of analyses does not resolve causality. Cortical morphological variability may contribute to individual differences in CS performance. However, we cannot rule out the possibility that different CS experience might lead to changes in cortical morphology.

In conclusion, we found an association between CS and morphology in the V3A and adjacent posterior parietal cortex, suggesting the critical role of the dorsal visual stream in CS processing. These findings may provide insights into the neuroanatomical mechanism of CS and its relation to some brain disorders.

Acknowledgements

Data were provided by the Human Connectome Project, WU-Minn Consortium (principal investigators: David Van Essen and Kamil Ugurbil; 1U54MH091657) funded by the 16 NIH Institutes and Centers that support the NIH Blueprint for Neuroscience Research; and by the McDonnell Center for Systems Neuroscience at Washington University.

Funding: The work was supported by the National Natural Science Foundation of China (grant numbers: 81801679 and 81571308).

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The study was approved by the Institutional Review Board of Washington University in St. Louis, MO, USA.
