Identifying osteoporotic vertebral endplate and cortex fractures

Yì Xiáng J. Wáng1, Fernando Ruiz Santiago2, Min Deng1, Marcello H. Nogueira-Barbosa3

1Department of Imaging and Interventional Radiology, the Chinese University of Hong Kong, Prince of Wales Hospital, Shatin, New Territories, Hong Kong SAR, China;2Department of Radiology, Hospital of Traumatology, Carretera de Jaen SN, Granada, Spain;3Department of Radiology, Ribeirão Preto Medical School, University of São Paulo, Ribeirão Preto, Brazil

Correspondence to: Dr. Yì Xiáng J. Wáng. Department of Imaging and Interventional Radiology, the Chinese University of Hong Kong, Prince of Wales Hospital, Shatin, New Territories, Hong Kong SAR, China. Email:

Abstract: Osteoporosis is the most common metabolic bone disease, and vertebral fractures (VFs) are the most common osteoporotic fracture. A single atraumatic VF may lead to the diagnosis of osteoporosis. Prevalent VFs increase the risk of future vertebral and non-vertebral osteoporotic fracture independent of bone mineral density (BMD). The accurate and clear reporting of VF is essential to ensure patients with osteoporosis receive appropriate treatment. Radiologist has a vital role in the diagnosis of this disease. Several morphometrical and radiological methods for detecting osteoporotic VF have been proposed, but there is no consensus regarding the definition of osteoporotic VF. A vertebra may fracture yet not ever result in measurable changes in radiographic height or area. To overcome these difficulties, algorithm-based qualitative approach (ABQ) was developed with a focus on the identification of change in the vertebral endplate. Evidence of endplate fracture (rather than variation in vertebral shape) is the primary indicator of osteoporotic fracture according to ABQ criteria. Other changes that may mimic osteoporotic fractures should be systemically excluded. It is also possible that vertebral cortex fracture may not initially occur in endplate. Particularly, vertebral cortex fracture can occur in anterior vertebral cortex without gross vertebral deformity (VD), or fractures deform the anterior vertebral cortex without endplate disruption. This article aims to serve as a teaching material for physicians or researchers to identify vertebral endplate/cortex fracture (ECF). Emphasis is particularly dedicated to identifying ECF which may not be associated apparent vertebral body collapse. We believe a combined approach based on standardized radiologic evaluation by experts and morphometry measurement is the most appropriate approach to detect and classify VFs.

Keywords: Bone mineral density (BMD); osteoporosis; osteoporotic fractures; spinal fractures; incidental findings; normal variants

Submitted Sep 18, 2017. Accepted for publication Oct 10, 2017.

doi: 10.21037/qims.2017.10.05

Importance of identifying vertebral fracture (VF)

Osteoporosis is the most common metabolic bone disease, estimated to affect more than 200 million people worldwide (1). Osteoporosis is characterized by low bone mass and micro-architectural deterioration, which leads to bone fragility and consequent increase in fracture risk. It is often termed the “silent epidemic” because clinical factors (age, lifestyle, family history, diet) are not very sensitive markers of the condition, and quite often bone loss becomes apparent only after a typical fracture has occurred.

VFs are the most common osteoporotic fracture. A VF, after minor trauma, is a hallmark of osteoporosis. Thirty to fifty percent of women and 20–30% of men experience a VF at some points in their life (2). A single atraumatic VF can lead to the diagnosis of osteoporosis. According to the National Osteoporosis Foundation 2013 clinical guide, ‘‘A vertebral fracture is consistent with a diagnosis of osteoporosis, even in the absence of a bone density diagnosis, and is an indication for pharmacologic treatment with osteoporosis medication to reduce fracture risk’’ (1). In one study of osteoporotic fractures, only 39% of individuals with a VF had a World Health Organization diagnosis of osteoporosis by dual energy X-ray absorptiometry (DXA) at the spine, only 25% by DXA of the total hip (3). Prevalent VFs increase the risk of future vertebral and non-vertebral osteoporotic fracture independent of bone mineral density (BMD) (2).

It had been reported that spinal fractures are associated with increased mortality which at year-5 is nearly identical to that from femoral neck fractures (4), though it is not clear if this is cause-and-effect or if the fracture is simply a marker for frailty (3). A low-energy occult VF, when recognized, is a sufficient indication to initiate medical osteoporosis therapy independent of BMD results. Appropriate management of osteoporosis can reduce future fracture risk. It is important to identify and report VFs accurately and clearly, so that appropriate investigation and treatment can be instigated (5). Theoretically, by mitigating anterior compressive loads, the number of occult VFs that become clinically apparent might be reduced.

Osteoporotic VFs are frequently asymptomatic. The majority are morphometric (75%), that is, clinically silent without an incident of back pain, rather than with clinical symptoms (25%) (6). Incidental osteoporotic VFs are usually under-reported on radiograph and CT (7-10). The sensitivity of axial CT images in detecting these fractures is poor, sagittal reformation is recommended to improve the detection rate (10).

VFs have an important influence on prognosis and morbidity in the osteoporotic patient (11,12). The accurate and clear reporting of VFs is essential to ensure that patients with osteoporosis receive appropriate treatment. Radiologist has an important role in the diagnosis of this disease. Exclusion of other causes of VF is crucial, in particular malignant disease. Once the diagnosis of osteoporosis is made and initiation of therapy is planned, additional BMD measurements may be useful (5).

Radiographic definitions of osteoporotic vertebral facture

The radiographic signs of osteoporotic VF include: (I) loss of self-similarity between adjacent vertebrae; (II) loss of parallelism between adjacent end-plates; (III) end-plate disruption as they are impacted into the vertebral body; (IV) fractures of vertebral cortex or end-plate characterized by cortical discontinuities; (V) buckling of the vertebral cortex, especially anteriorly (13). A number of morphometrical and radiological methods for detecting osteoporotic VF have been proposed, but there is no consensus regarding the definition of VFs (5,13-16). We feel a combined approach based on standardized radiologic evaluation by experts aided by quantitative measurement to ensure the consistence is the most appropriate approach to detect and classify VF.

Since vertebrae generally fail by compression in axial loading, these fractures are often called vertebral compression fractures. The semi-quantitative (SQ) criteria proposed by Genant et al. is commonly used for identifying VF (17). According to its criteria, a normal vertebra is defined as grade 0; 20–25% reduction in anterior, middle, and/or posterior vertebral height and 10–20% in area is defined as grade 1 deformity; a 26–40% reduction in any height and 20–40% in area is defined as grade 2 deformity; and a >40% reduction in any height and area is regarded as grade 3 deformity vertebra (Figures 1-3). A grade 0.5 is used to designate a borderline deformed. Genant et al.’s SQ approach is applied to vertebrae T4 to L4 on the spine radiograph. Visualizing T1–T3 is often limited due to overlying of the shoulders and L5 due to overlying pelvis. Osteoporotic VF above T4 is also very rare. Vertebra L5 is also subject to considerable morphologic variation between individuals, such that very often vertebral anterior height measurement is much larger than posterior height (Figure 4). Genant et al. described the importance of loss of end-plate integrity as a characteristic of fractures but did not make diagnosis contingent on this observation.

Figure 1 Lateral X-ray radiographs show normal appearance of thoracic vertebrae (A-C) and lumbar vertebrae (D-F). Note the continuous vertebral cortex line. (B) Overlay of inferior tip of scapular bone (long arrow). (E,F) With mild anterior osteophytes (short arrows).
Figure 2 Sagittal reconstructed CT. (A) Normal adult lumbar vertebrae. Note the continuous vertebral cortex line. The posterior cortex of the vertebral body is interrupted by the exit of basivertebral vein (arrows). (B) Adult dorsal vertebrae with mild degenerative changes (circles). Note the endplate line is not always smooth (arrow).

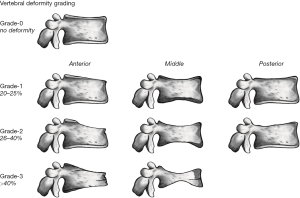

Figure 3 Classification of vertebral fractures by the Genant’s semi-quantitative method. Adapted from (17) with permission.

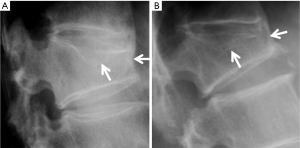

Figure 4 Radiograph (A,B) of lower lumbar spine. L5 vertebral body’s posterior height can be larger (A) or smaller (B) than anterior height.

Historically, conventional radiography is used as the reference standard to identify a VF. More recently, DXA imaging with improved image quality is also used (5). Computed tomography (CT) and magnetic resonance imaging (MRI) are used for characterization (dating and differential diagnosis). In epidemiological studies, usually only lateral radiograph is taken. Nevertheless, a baseline set of both antero-posterior and lateral images help with diagnosis and follow-up. Lateral fractures may be difficult to identify from lateral radiograph. Serial radiographs of a patient should be viewed together in temporal order to accomplish a thorough and reliable analysis of all new fractures. Worsening of a VF, e.g., progression from grade 1 to 2, is usually considered to be equivalent to an incident fracture. Because a VF can be a permanent event that is present on follow-up radiographs, temporal blinding may not be useful. Most readers can identify a temporal sequence of films by new deformities as well as by progressive disc degeneration and osteophyte formation. High quality radiographs are important for reliable VF diagnosis. Diagnostic errors may be caused by technical shortcomings of image acquisition such as poor patient positioning (Figure 5).

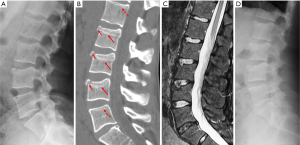

Figure 5 Lumbar lateral radiographs show scoliosis, osteophyte and spondylolisthesis leading to poor display and/or blurring morphology of endplates (arrows).

A linear correlation exists between both the number and severity of prevalent VFs and future VF risk (7). A “spinal deformity index (SDI)” can be calculated from SQ assessment as the sum of all grades assigned to the vertebrae divided by the number of the vertebrae evaluated (8). For each vertebra, a visual SQ of 0, 1, 2, or 3 is assigned for no fracture or mild, moderate, or severe fracture, respectively; and the SDI is calculated by summing the fracture grades of the 13 vertebrae from T4 to L4 (18). An increase in SDI could occur either due to a new VF or due to worsening of mild or moderate prevalent VFs.

An experienced reader may estimate the severity of fracture according to the apparent degree of vertebral height reduction; but without the aid of direct measurements, the reduction in vertebral height cannot be determined with high accuracy, particularly when it is close to the cutoff values for grading of fracture. For example, the criterion of 20% to 25% reduction of vertebral height for identification of a grade 1 fracture may not be estimated with high accuracy and consistency. Therefore, while estimation of the degree of vertebral height reduction may be used for clinical diagnostic purpose; for epidemiological study and follow-up evaluation, we feel quantitative measurement is necessary to ensure the consistency and accuracy. It is expected that quantitative software tool will aid this aspect (19).

The Genant et al.’s SQ approach may bring equivocal diagnosis for grade 1 VF. Grade 1 VDs are often either false positive or deformities related to non-osteoporotic diseases of the spine, particularly in male subjects. Variation in vertebral height may occur in developmental abnormalities with or without degenerative changes. Some height loss is expected with ageing, due to compression of the intervertebral discs and postural changes. As age-related degenerative changes occur, the vertebral wedge angle increases. This case is particularly difficult with mild wedge fractures in the mid-thoracic region. Szulc et al. (20) suggested that at the level of thoracic kyphosis (T6–T9) that a cutoff of 30% for wedge deformities from T6 to T9 and of 25% for other deformities has a high specificity and a moderate sensitivity for identifying VDs related to low BMD in men.

Vertebrae may fracture, generate fracture pain yet not result in measurable changes in radiographic configuration height or area (21). The point has been emphasized concerning the diagnosis of osteoporotic VFs as a fracture of the vertebral endplate or other cortex parts. Algorithm-Based Qualitative approach (ABQ) was developed with a focus on the identification of change in the vertebral endplate (Figures 6) (22,23). On a true lateral projection, the superior (or inferior) surface of the normal vertebra exhibits two lines; one line represents one side of the vertebral ring, and the second (more dense) line represents the central endplate superimposed on the opposite vertebral ring (22). The expected appearances of the central vertebral endplate in osteoporotic fracture are based on the assumption that because the center of the endplate within the vertebral ring is the weakest area, this will be the primary site of fracture. However, due to fan-like shape of X-ray beam, many vertebrae are not filmed with a perfect lateral projection.

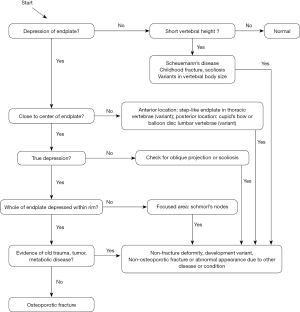

Figure 6 Flow diagram of algorithm-based qualitative identification of vertebral fracture. Modified with permission from (22).

In addition to endplate, fracture can occur in anterior cortex without VD; or fractures deform the anterior vertebral cortex without endplate disruption. Some of them are classified by radiologist as buckling, dented, swollen and projecting types of fracture (Figures 7-9).

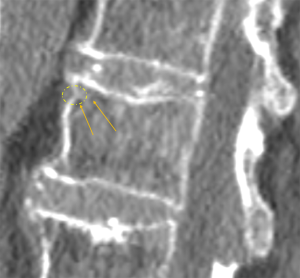

Figure 7 A sagittally reconstructed CT image shows anterior cortex fracture while without endplate fracture. Note a fracture line can be identified horizontally (arrows) with condensed trabecula or trabecula repairing.
Figure 8 Osteoporotic VF at T12 in a 72-year-old female after a fall on the floor. Sagittally (A&B at different right-left levels) and coronally (C) CT reconstructed images show anterior and posterior cortex fracture (arrows) with buckling while without endplate fracture. The vertebral height decreased. It can be seen that trabeculae are disturbed inside the vertebral body. Osteoporosis can be appreciated by overall increased radiolucency and verticalization of the trabeculae. Square indicates a chronic osteoporotic VF at L4.
Figure 9 Osteoporotic VF in a 71-year-old female feeling back pain after a fall on the floor. Sagittally (A) and coronally (B) reconstructed CT images show cortex fracture (arrows) with buckling while without evidential endplate fracture. The vacuum vertebral cleft is considered a sign of dynamic intravertebral instability.

On conventional radiographs it may be difficult to determine the age of a fracture. Cortical disruption and impaction of trabeculae with increased density adjacent to the endplate are signs of more recent, acute fractures. Subacute fractures show additional callus formation along the endplate with increasing density. However, these signs are not always reliable, in particular in osteoporotic bone where the increase in density adjacent to the endplate may be minimal. In osteoporotic fractures, medullary signal changes on MRI depend on the age of the fracture. Acute fractures usually show edema with band-like pattern in the subchondral endplate. In chronic fractures, there is reversion to normal fat signal of bone marrow.

It has been reported that although radiologically apparent VFs are more likely to show as areas of increased isotope uptake on scintigraphy than uncrushed vertebrae, this did not depend on the age of the crush fracture (24). Isotope uptake by VF depend not so much upon the age of the VF but upon the extent of new bone formation. In osteoporosis cases, new bone formation can be at a low rate over an extended duration and in some cases of severe end stage osteoporosis, new bone formation may be almost absent. Therefore some acute/sub-acute VFs do not show as areas of increased isotope uptake on scintigraphy. On the other hand, some crushed vertebrae appear to take up diphosphonate for >2 years (24).

Although many fractures of moderate and severe grades are readily recognized, inevitably there will be findings that are not clear-cut, and in respect of which even “experts” may disagree. If clinical decision-making hinges on the diagnosis of a fracture, then comparison with previous images, a radionuclide scan, computed tomography (with sagittal reformation), and/or MRI may provide clearer evidence. Osteoporotic VFs are frequently located at the thoracolumbar junction where, owing to the overlying diaphragm, visualization may be difficult. Naturally, particularly attention should be paid to the thoracolumbar conjunction region and middle thoracic spine region (around T8 level).

This article aims to serve as a teaching material for physicians or researchers to identify vertebral endplate/cortex fracture (ECF). Emphasis is particularly dedicated to identifying vertebral ECF which may not be associated apparent vertebral body collapse. This article tries to avoid overlap or repeat many excellent reviews recently published on the topic of the osteoporotic spine fracture, such as references (5,13,25-29). It is in the accurate diagnosis of asymptomatic VFs that radiologists can make the most significant contribution to osteoporotic patient care.

Identifying osteoporotic VF

A vertebral body fracture after minor trauma is a hallmark of osteoporosis. Because the damage is limited to the anterior vertebral column in most cases, the fracture is usually stable and not associated with neurologic impairment.

VF and their repair/healing occur frequently even in the absence of any appreciable radiographic change in vertebral shape (Figure 10). Microscopic fractures as shown by histology are common in radiographically normal vertebrae (31). Antonacci et al. (31) reported that of 24 adjacent vertebrae (in which fractures were not appreciated by specimen radiographs) of radiographic osteoporotic VF, 13 (54%) had histologic evidence of endplate fracture. Eight of the 24 (33%) showed evidence of anterior cortical fracture. True fractures of these bones occurred while not apparent radiographically. In the vertebra specimens with radiographic osteoporotic VF, 88% had endplate fractures histologically. And for those with endplate fracture by histologic criteria, 21% (5/24) had bone healing bridge the fracture site. In addition, in the vertebra adjacent to the radiographically fractured vertebra due to osteoporosis, the bony endplate was not continuous in 7 of the 24 (29%). Therefore we could consider microscopic trabecula fracture and repair, ECF without VD, and vertebral wedge/crush fracture a spectrum of presentations of compromised vertebral bone strength. Imaging modalities such as nuclear scintigraphy and MR are useful in identifying symptomatic VFs before diagnostic radiographic changes are seen.

Figure 10 VFs and subsequent repair/healing occur even in absence of any appreciable radiographic change in vertebral shape. (A) Reconstructed micro-CT image of a vertebral body after the mechanical testing shows micro-fracture (arrows and red square); (B) the minimum principal strain distribution analyzed by the CT/Finite Element Analysis constructed 2 mm elements at the mid-sagittal cross section (arrows: suggesting possible micro-fracture); (C) the mid-sagittal section of the undecalcified specimen of vertebral body after the mechanical testing. Direct histological observation reveals that the fracture line in the upper part consists of piled calcified trabecular bone (arrows and red square); (D) the histological examination of the midsection of another vertebral body specimen after the mechanical testing. There was no continuity of the longitudinal trabecula with less content of the bone marrow at the anterior part (arrow). Modified from reference (30) with permission.

Fracturing vertebrae with pain, particularly recently fracturing vertebrae, may not be accompanied by radiographic findings (21). Transient vertebral marrow edema events that fail to meet a radiographic threshold for fracture and remain clinically silent are common. The altered MR vertebral marrow signal is not simply “bone edema”, but contain histopathologic trabecular fracture and repair in “unfractured” osteoporotic vertebrae. In these cases, radiology service should provide quick, cost-effective protocols for recognition of occult VF in urgent care areas such as a limited, sagittal STIR sequence MR imaging of the relevant spinal region of interest (Figure 11). However, MRI may not be a sensitive method for identifying ECF, unless specific techniques such as UTE (ultrashort TE) are employed (Figure 12). Endplate and cortical bone have very short T2* and appears as a signal void on images obtained with routine clinical pulse sequences. UTE technique allows acquisition of MR signals much earlier after excitation than with conventional sequences. As a result, MR signals from previously “invisible” tissues with very short T2/T2* values such as bone can now be acquired and imaged with high signal intensity. However, UTE method remains in research setting and not clinically available yet.

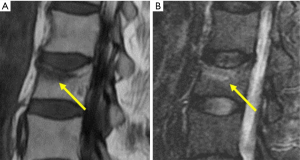

Figure 11 Sagittal MR images. (A) T1 weighted image and (B) fat suppressed T2 weighted image show an acute osteoporotic vertebral fracture with band-like pattern subchondral edema (arrow). To depict the bone marrow edema, MRI fat suppression on T2-weighted images (commonly STIR sequence) is essential. Chronic vertebral compression fractures are characterized by morphologic changes with recovery of normal signal of the bone marrow.
Figure 12 The cortex of vertebral body and endplate show dark signal, and standard MRI scans may therefore be relatively insensitive to cortex or endplate fracture. (A) a vertebra with no fracture; (B) sagittal MR images of a lumbar disc segment obtained with of Ultra-short time of echo (UTE) technology, yellow arrows indicate endplate. [modified from reference (32)]; (C,D) a vertebra has grade 2 and grade 3 fracture respectively. UTE allows the endplate showing bright signal and delineate endplate clearly.

Radiographic appearances of ECFs are shown in Figures 13-25.

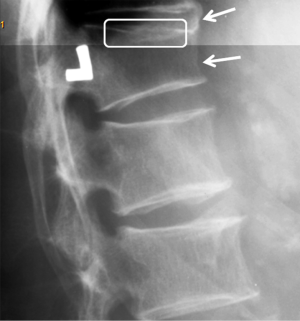

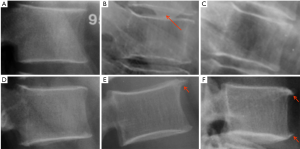

Figure 13 T12 vertebra has both endplate fracture (square ROI regions of interest) and anterior cortex fracture (arrow) with decreased anterior height. Bone healing and repair are noted (arrow pointing to T11/T12 space).
Figure 14 Chronic fracture at L2 anterior vertebral body wall, accompanied by vertebral body being wedge shaped and anterior height decreased. Note the faintly higher density around dented anterior cortex (arrow). No endplate fracture is observed.
Figure 15 Concave endplate fracture shown on lateral radiographs of spine (arrows). (A) Upper endplate fracture of a vertebra; (B) inferior endplate fracture of a vertebra; (C) biconcave fracture of both upper and lower endplates.
Figure 16 Anterior (A), central (B), and posterior (C) endplate compression fracture shown on lateral spine radiographs (arrows).
Figure 17 Spine lateral radiographs show upper endplate fracture (vertical arrows) combined with anterior wedged fracture (A,B). Vertebral anterior cortex fracture (transverse arrows) may be also involved in (A) and (B). Note anterior ligament calcification (or ossification) which may help to stabilize the spine.
Figure 18 Spine lateral radiographs show endplate fracture combined with vertebral body collapse (arrows), together with osteophytes formation with irregular morphology, bridge-forming with reactive hyperostosis, and disc space narrowing.
Figure 19 Lumbar spine lateral radiograph. Red arrow indicates endplate fracture. Blue square indicates vertebral corner degenerative changes.
Figure 20 Multiple endplate fractures (arrows) shown on lateral radiographs of thoracic spine (A,B) and lumbar spine (C,D).
Figure 21 Potential false-negative factures of upper endplate shown on lateral radiographs of spine. (A,B) slight and shallow depression of upper endplate (white arrows); (C) no distinct and intact concavity observed in fractured zone (triangles); (D,E) atypical depression of upper endplate, presenting as obtuse angle rather than smooth concavity (dashed arrows); (F) depression covering almost entire upper endplate (black arrows).

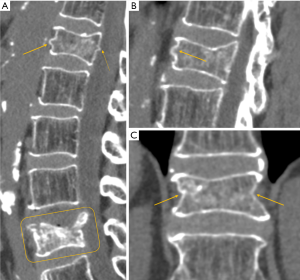

Figure 22 Sagittally (A) and coronally (B) reconstructed CT images show anterior cortex fracture (buckling, dotted arrows). Axial CT image (C) show cortex discontinuation (dotted arrows). Condensed trabeculae (sold line arrows) can be observed. No evidential endplate fracture is seen.
Figure 23 Osteoporotic VF following a minor indirect contusion of the spine in a 77 years old female. Anterior cortex fracture (circle) and a split line in the middle of the vertebra T12 (arrows).
Figure 24 A sagittally reconstructed CT image shows anterior cortex fracture (dotted circle). Note disturbed trabeculae (arrows) associated with this fracture.
Figure 25 Radiograph (A), CT (B) and T1-weighted MR image (C), T2-weighted MR image (D), and T2-weighted fat suppressed MR image (STIR, E) show osteoporotic insufficiency fractures with typical band-like pattern (arrows).

Radiographic artefacts and congenital variance, and non-fracture pathologies

Unexpected vertebral body contour with or without vertebral height loss may mimic the diagnosis of VF. When a congenital defect in vertebral formation occur, the vertebra, or part of it, does not develop properly, resulting in alterations such as agenesis, wedged vertebra, hemivertebra and butterfly vertebra. Some of these changes result in anterior wedging leading to a short vertebral height in adults. Carefully looking for fracture signs should be a critical step for VF diagnosis. Sometimes we may recognize these abnormalities as variants based on the radiograph, but sometimes CT, MRI or radiography follow-up is needed in order to reach an accurate diagnosis.

Radiographic artefacts due to X-ray beam projection

X-ray beam projection can cause many radiographic artefacts (Figure 26). These can usually be readily identified by experienced radiologists.

Figure 26 Potential false cortex facture signs on spinal lateral radiographs. (A) Arc-shaped endplates (white double arrows, commonly called ‘bean-can’ appearance) caused by oblique X-ray beam projection; (B) inferior tip of scapula (black arrows) overlaid on thoracic vertebrae; (C) osteophytes overlaid on a thoracic vertebra (triangle).

Development changes mimicking VF

Many developmental deformities or variants may mimic VF. Once a radiologist recognizes these developmental changes, usually a correct differential diagnosis can be made without many difficulties. Some common developmental deformities are listed below:

Anterior vertebral vascular groove

The anterior vertebral vascular groove is a thin, transverse linear indentation in anterior cortex, mainly seen in children, but also sometime visible in adults. Coronal CT reconstruction help to delineate the tubular structures corresponding to vessels from a linear vertebral cortex fracture (Figure 27).

Figure 27 Sagittally reconstructed CT of a case of anterior vertebral cortex fractures (thick arrow, A,B), and a case of anterior vascular grooves (thin arrow, C,D). Coronally reconstructed CT images (B,D) allow a correct diagnosis in both cases.


Mucopolysaccharidosis comprises a group of metabolic disorders related to lack or malfunctioning of lysosomal enzymes (33). The resulting abnormal storage of glycosaminoglycans affects bone and connective tissues, with thoracolumbar junction hypoplastic vertebrae and kyphosis (Figure 28) (33,34). Hurler Syndrome (mucopolysaccharidosis type I) usually presents with vertebrae showing anterior inferior beaking, and Morquio syndrome (mucopolysaccharidosis type IV) patients more frequently show anterior central vertebral body beaking and round vertebral bodies (33,34).

Figure 28 A 15-year-old male patient with mucopolysaccharidosis type 1. Lateral spine radiograph (A) and sagittal T2-weighted MRI (B) show kyphosis and multiple hypoplastic vertebral bodies at the thoracolumbar transition. These are typical imaging findings of mucopolysaccharidosis.

Spondyloepiphyseal dysplasia

Spondyloepiphyseal dysplasia is a well-defined, X-linked primary skeletal dysplasia that predominantly affects the spinal vertebral bodies and epiphyses during skeletal growth (35). These patients often develop early onset kyphoscoliosis and low back pain. Platyspondyly and vertebral hypoplasia are common radiologic findings. Imaging shows radiographic irregularity of vertebral endplates with bi-convex lower lumbar vertebral bodies (Figure 29). There is disc space narrowing and frequent calcification of the intervertebral discs.

Figure 29 Radiograph (A) and sagittal T2-weighted MRI (B) show endplate irregularity and wedging of the vertebral bodies in one case of spondyloepiphyseal dysplasia.

Limbus vertebra

Limbus vertebrae results from an anterior (or posterior) intraosseous herniation of the nucleus pulposus and was first described in details by Neidner (36). In early adolescence, before the ring apophyses ossify, there are small radiolucent defects at the anterior corners of the vertebral bodies that interrupt the vertebral endplates. The clue to differentiate it from a fracture is the preservation of the height and convexity of the rest of the vertebral endplates (37). The apophyseal rings ossification occurs around the age of 10–15. After that, the apophyseal rings fuse with vertebral body. Before the maturation of spine, if nucleus pulposus herniates between the unfused ring apophyses and the growing end plate, the fusion between both structures is prevented and the ring fragment is isolated from the rest of the vertebral body (Figures 30,31). This is known as limbus fracture and must not be confounded with fracture or inflammatory process (38)

Figure 30 Sagittal reconstructed CT image (A) and T2-weighted MR image (B) show step-deformities at anterior superior endplates of upper lumbar vertebrae in a teenager patient due to lack of ossification of apophyseal rings.
Figure 31 Sagittal reconstructed CT image (A) and radiograph (B) of limbus vertebra. The anterior ossified apophyseal ring is not fused to the rest of the vertebral body due to herniation of nucleus pulposus between the two structures during vertebral growth.

Wedge shaped vertebra

Physiologic vertebral development, being development or degenerative, may also lead to vertebral wedging and mimic VF (Figure 32). In normal children and adults, the vertebral body is anteriorly wedged from T1 through L2 (peak at T7), non-wedged at L3, and posteriorly wedged at L4 to L5 (peak at L5). For diagnosing VF, a careful search for fractured/deformed endplate and cortical line is important, though we admit to clearly identity endplate/cortex fracture may not be possible in all cases due to the inherent spatial resolution limitation of radiograph.

Figure 32 L3 wedged vertebra (triangle) on lateral radiographs of spine. L2 body anterior part is elongated, suggesting developmental nature.

Idiopathic kyphosis and scoliosis usually associate with wedging of the vertebral bodies secondary to abnormal and non-uniform mechanical load of the vertebral bodies. In both cases no structural abnormalities are found that justify the abnormal curvatures. Although in case of kyphosis some authors consider any vertebral wedging to indicate Scheuermann’s disease (39,40), when no another vertebral abnormalities are associated to wedging, such as end-plate irregularity or Schmorl nodes, it is more appropriate to consider this as idiopathic kyphosis (Figures 33,34) (41,42).

Figure 33 Radiograph (A) and CT (B) of a patient with idiopathic kyphosis. There are no vertebral abnormalities except mild wedging of discs and vertebral bodies in the apex of the kyphosis curve.
Figure 34 CT of a patient with idiopathic scoliosis (A: coronal reconstructed image; B: sagittal reconstructed image). There are no vertebral abnormalities except mild and asymmetric wedging of discs and vertebral bodies in the apex of the scoliosis curve.

Short height vertebra

Some adults have vertebrae that have short anterior height in developmentally small thoracic vertebrae. Those deformities with reduction of height but which lack visible depression of the endplate or other ECF signs represent the non-osteoporotic deformity of short height vertebra (Figure 35).

Figure 35 Radiograph of thoracic spine shows developmental short vertebrae with formation of osteophytes.

‘Stair-Step’ shaped vertebral endplate

Stair-step’ shaped vertebral endplate is a common sign seen on thoracic spine radiograph (Figure 36).

Figure 36 ‘Stair-step’ shaped vertebral endplates seen on both upper and lower endplates of adjacent vertebrae on lateral radiographs of thoracic spine (arrows).

Block vertebrae

Block vertebrae occur when there is improper segmentation of the vertebrae (Figure 37). The adjacent vertebrae fuse through their intervertebral discs and also through other intervertebral joints. It can lead to blocking or stretching of the exiting nerve roots from that segment, and can increase stress on the inferior and the superior intervertebral joints. The sacrum is a normal block vertebra. The vertebral ring apophyses of the fused vertebral endplates do not develop properly leading to thinning of the vertebral contour at the junction of both vertebrae. The antero-posterior diameter at the level of the fusion is small, leading to a concave anterior contour (the wasp’s waist sign) (Figure 38). It has been also described in congenital abnormalities of the spine, such as Klippel Feil syndrome (43).

Figure 37 Congenital vertebra deformity of block vertebra. (A) ‘Block vertebrae’ formed by T12 and L1, and L1 is a short height (triangle). Bony fusion is formed in both anterior vertebral body and posterior elements (white arrow). (B) ‘Block vertebrae’ formed by L3 and L4. The concavity of anterior surface of hypoplastic L3–L4 form an inverted ‘C’ shape, i.e., 'wasp waist' sign (black arrows). The L3–L4 disc space is rudimentary and narrow.
Figure 38 Block vertebrae with shorten anteroposterior diameter at the vertebral bodies junction (wasp’s waist sign). (A) Radiograph; (B) sagittal reconstructed CT; (C) T1-weighted MRI; (D) fat suppressed T2-weighted MRI.

Cupid’s bow

Cupid’s bow is a para-sagittal concave curvature in the inferior endplates of the vertebral bodies (some author argue that it can also be at superior and inferior endplates). Although the degree of concavity varies, the configuration of the Cupid’s bow is relatively constant and is characterized by a concavity located in the posterior third of the vertebral body with a relatively smooth curvature, which has a shallow angle anteriorly and a steep curvature posteriorly. It has been suggested that the thin layer of cartilage in the vertebral endplate is absent in the para-sagittal region, while instead a layer of calcium was found within this area (Figures 39,40). Owing to the absence of the cartilaginous plate in the parasagittal portions of the diskovertebral junction, the bone growth of the vertebral body is hindered at this particular region, resulting in the appearance of Cupid’s bow concavities (44-46). Cupid’s bow is a developmental phenomenon without pathologic implications. Cupid’s bow is usually seen at the inferior endplate at L3, L4 and L5, but it can also occur at all levels of the lumbar spine and the lower thoracic spine

Figure 39 Cupid’s bow contour presents as a smooth concavity in the posterior portion of lower endplate of lumbar vertebra on lateral radiograph (arrows, two subjects), which mimics curve of endplate compression.
Figure 40 Cupid’s bow contour presents as a smooth concavity in the posterior portion of L4 (arrows). (A) Radiograph; (B,C) the continuous cortical line shown on reconstructed CT images.

Scheuermann’s disease

Scheuermann’s disease was initially described in 1920, by Holger Scheuermann, as a rigid thoracic and thoracolumbar kyphosis associated with vertebral body wedging in late childhood (47). Scheuermann’s disease is a common cause of hyperkyphosis of the thoracic and thoracolumbar spine during adolescence. After idiopathic scoliosis, it is the most common disorder in patients with a deformed spine. This condition is characterized by vertebral body wedging, vertebral endplate irregularity, diminished anterior vertebral growth, Schmorl’s nodes, narrowing of the intervertebral disc spaces and premature disks degeneration (Figures 41,42). Sørensen described radiographic criteria for typical Scheuermann disease include anterior wedging greater than 5° in at least three adjacent vertebral bodies (48).

Figure 41 Lateral radiograph shows Scheuermann’s disease changes with mild thoracic kyphosis (white arrow). Three consecutive vertebrae (T10–T12, triangles) wedged >5 degrees, and the anterior edge of vertebrae has irregular shape (black arrows).
Figure 42 Radiological signs [(A) T2-weighted MRI; (B) radiograph] of Scheuermann’s disease, with increased dorsal Kyphosis, vertebral wedging and vertebral end-plate irregularities.

The disease starts during adolescence when the growth plates are still open and it most likely represents an osteochondrosis. The anterior vertebral body wedging is secondary to the increased anterior forces due to the first occurring kyphosis. Another radiological sign correlated with Scheuermann disease pathogenesis is the length of the sternum. A smaller length of the sternum has been associated with Scheuermann disease (49). When apophyseal changes affect the thoracolumbar or lumbar spine, especially when there is associated pain, the diagnosis of lumbar Sheuermann’s disease can be made. It is not typically associated with significant clinical kyphosis (50). The natural history of Scheuermann kyphosis remains controversial, with conflicting reports as to the severity of pain and physical disability (51).

Calvé’s disease

Calvé’s disease is a rare cause of “vertebra plana” in which the flattening of a single vertebral body shows the typical ‘‘coin on edge’’ appearance (Figure 43). In 1925 Calvé described a condition he described as ‘‘osteochondritis’’ of a vertebral body. He also laid down the criteria of the disease: (I) total collapse of only one vertebra; (II) no involvement of the intervertebral disc; (III) the intervertebral space wider than normal at least by one-third; and (IV) increased density of the involved vertebra (52). In 1927, Buchman suggested the name “vertebra plana” for this condition (53). In 1954, Compere suggested Calvé’s disease was caused by eosinophilic granuloma (54). Many later other publications and a large number of cases presented support Compere’s views (Figure 44) (55).

Figure 43 The lateral radiograph of thoracic spine in a 79-year-old female with Calvé’s disease shows following characteristics: (I) isolated collapse at only T9 segment (white arrow); (II) T9 is vertebra plana, demonstrating flattening of the anterior part of vertebral body (black arrows); (III) increased density of T9 is observed in flattening portion; (IV) no involvement of the intervertebral disc.
Figure 44 A case of eosinophilic granuloma (Calvé’s disease) evolved to a severe flattening of the vertebral body. (A) T2-weighted MRI; (B-D) radiograph; (E) sagittally reconstructed CT image.

Notochordal remnant

The notochord induces the formation of the neural plate and serves as a model on which the axial skeleton will develop. Progressive chondrification of the vertebral body displaces the notochord into the intervertebral space, where it forms the nucleus pulposus of the intervertebral disc (Figure 45). Persistence of residual notochordal tissue in the vertebral body is a rare event that may mimic a VF fracture in radiograph (56,57). Severe deformity and a lack of cortical line fracture help the differential diagnosis.

Figure 45 Notochordal remnant which can potentially mimic a vertebral compression fracture in lateral radiography (arrows). (A) Sagittal MRI; (B) axial MRI; (C) radiograph.

Butterfly vertebra

Butterfly vertebra is an uncommon congenital anomaly of the spine. Between the third and sixth weeks of gestation the mesenchymal somites become in two cartilaginous nuclei, rather than posteriorly fuse into a single vertebral body. Failure of the fusion of the two halves of the vertebral body leads to persistent remnants of the notochord in-between resulting in the butterfly VD (Figures 46,47). Symmetric may be an asymptomatic, but may be a cause of painful congenital scoliosis when asymmetric (58). Severe deformity and a lack of cortical surface fracture help the differential diagnosis.

Figure 46 Symmetric butterfly vertebra [(A) coronally reconstructed CT; (B) axial CT] with anterior wedging [shown in sagittal CT (C)].
Figure 47 Asymmetric butterfly vertebra associated with vertebral wedging and scoliosis. (A) Coronal MRI; (B) axial CT; (C) anterior-posterior view radiograph.

Degenerative changes

Radiologists are generally familiar with the degenerative changes seen on spine imaging (Figure 48). Schmorl’s node may have the potential to cause confusion with endplate fracture. A Schmorl’s node is characterized by displacement of a portion of the intervertebral disc into the vertebral body due to disruption of the cartilaginous endplate (Figure 49) (59). The Schmorl’s node forms a depression, leading to discontinuity and an irregular contour of the vertebral endplate, and can involve any portion of the vertebral endplate (Figures 50,51).

Figure 48 Lateral hyperosteogeny of lumbar vertebral body shown on lateral radiographs of spine. Arrows in (A-C) showed hyper-dense osteophytes resembling the concavity due to depressed upper endplate.
Figure 49 Schmorl’s nodes: (A,B) semi-lunar or nodular defects presenting at the lower vertebral endplates shown on lateral radiographs of lumbar spine (arrows), which are consisted of inner hypodensity area representing the focal herniated nucleolus pulposus, and surrounding hyperdense sclerosis zone; (C) Schmorl’s nodes symmetrically present in upper and lower vertebral endplates in consecutive vertebrae on lateral radiograph of thoracic spine (arrows).
Figure 50 Sagittal reconstructed CT image of thoracic spine shows multiple Schmorl’s nodes and mild wedging of vertebral bodies.

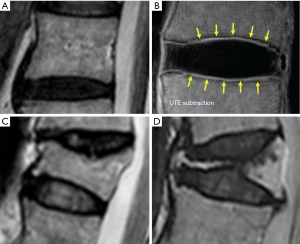

Figure 51 Sagittal ultra-short TE subtraction image of the cadaveric spine reveals multiple Schmorl’s nodes (arrows). Thinning and irregularity of the cartilaginous endplate at the site of Schmorl’s nodes are observed. Reproduced with permission from reference (60).

Posttraumatic non-osteoporotic deformity after compression fractures

A reduction in bone density, accentuated secondary or vertical trabeculations giving a striated appearance and sharply outlined cortical end-plates are radiologic signs of osteoporosis and may be helpful for the differentiation of osteoporotic fractures from non-osteoporotic fractures. If the available clinical history is inadequate then the radiographic appearance may be useful. In posttraumatic deformities, usually the diameter of the vertebrae is enlarged and there may be are substantial, secondary, degenerative changes with osteophyte formation (Figure 52). Callus formation tends to be more substantial in traumatic fracture.

Figure 52 Radiograph (A) and CT (B) in traumatic compression vertebral fractures. MR (C) and radiograph (D) 1 year later show residual deformity. Dotted arrows: L1 and L5 trabecular fracture; long arrows: L2, L3, L4 fracture; short arrows: fracture debris.

However, in some cases post-traumatic fractures are difficult to differentiate form osteoporotic collapse in absence of positive history and associated hematoma. Osteoporotic VFs also often result from minor trauma.

VFs due to malignant diseases

The most important differential diagnosis for osteoporotic VF is malignant diseases, particularly metastatic bone diseases or multiple myeloma. The differential diagnosis between osteoporotic and malignant pathologic fractures can be sometimes difficult in elderly subjects. Fractures that are located above the T7 level, present with a soft tissue mass, osseous destruction and fractures of the posterior part of the vertebral body in conventional radiograph, most likely have a malignant etiology (Figure 53). Retropulsion of the posterosuperior or inferoposterior margin of the vertebral body toward the canal is suggestive of benignancy and typical of burst fracture that affects the posterior vertebral wall of the vertebral body (Figure 54). A concave posterior border of the vertebra is more likely a sign of a benign osteoporotic fracture, in particular if there is some retropulsion of bony parts into the spinal canal, while a convex posterior border suggests malignant disease (5). Morphologic changes suggest malignancy when a convex posterior cortex of the vertebral body is seen due to a mass effect or epidural and/or paravertebral masses. Nevertheless, abnormal involvement of the pedicle in osteoporotic compression fractures has been reported (62). Therefore, when pedicle involvement is noted in VFs and when it is the only sign, the diagnosis of malignant pathologic fracture cannot be assumed.

Figure 53 Lateral radiograph of lumbar spine of a 68-year-old female shows osteolytic pathological fracture of L3 level due to malignant tumor (arrows). The lesion shows loss of integrity of bone cortex, trabecular network and connectivity at the anterior vertebral body with destructive and expansive features. The anterior upper corner of lower vertebra (L4) is also destroyed.
Figure 54 A retropulsed bone fragment (arrows in the posterior) and the presence of intra vertebral cleft (arrow in the anterior) are characteristic of benign compression fractures. Reproduced with permission from reference (61).

A sign of benign disease is the fluid sign, which is demonstrated in acute vertebral compression fractures that show bone marrow edema. It is found adjacent to the fractured endplates and exhibits signal intensity isointense to that of cerebrospinal fluid (63). This finding is reversible as fracture healing occurs. Its size remains unchanged for 2–4 months and then can gradually returns to normal. This is an additional sign of osteoporosis and rarely occurs in metastatic fractures (64). Other findings highly suggestive of acute osteoporotic vertebral collapse are ‘‘intravertebral vacuum cleft sign’’, features of vertebral osteonecrosis (Figure 55). Vertebral osteonecrosis is an infrequent condition, consequence of ischemic phenomena in the vertebral end plate and subchondral bone following compression fractures.

Figure 55 Chronic osteoporotic and unstable fracture with intravertebral cleft (kummel disease) and retropulsed posteroinferior margin. (A) T1-weighted image; (B) T2-weighted image; (C) sagittally reconstructed CT.

As a search methodology and for appreciation of the spinal tumor involvement, MRI is the diagnostic tool of choice. MRI can play an important role in this task due to its capacity to detect fractures before radiograph morphologic changes appear (65). Fat-suppression or short tau inversion recovery (STIR) sequences are often necessary and increase the detection of metastatic lesions, mainly in cases of highly fatty bone marrow. Collapsed vertebral body with normal bone marrow signal intensity indicates a lack of marrow replacement and suggests acute or subacute osteoporotic fractures. Convex vertebral margins may be present secondary to intra-vertebral tumor expansion. Asymmetric invasion of paravertebral or epidural mass are characteristic of malignancy (Figure 56). When the differential diagnosis is not possible, imaging guided biopsy may be indicated.

Figure 56 T1-weighted MR image in a case of vertebral breast metastasis showing diffuse and patchy vertebral body involvement (A). Radiograph (B), CT (C), and T1-weighted MR image (D), T2-weighted MR image (E), fat suppressed MR image (F) in a case of vertebral metastasis of lung carcinoma show the typical convex vertebral border of the pathologic fracture secondary to malignancy.

Excessive bone resorption is a characteristic feature of multiple myeloma and is responsible for bone weakening. On conventional radiograph, a diffuse osteoporosis and focal osteolytic lesions are most frequently observed, separately or in association. In typical cases of multiple myeloma, there are multiple lytic lesions along with osteopenia and VF is associated with a soft tissue component (Figure 57). VF happens in 50–70% of patients with multiple myeloma. It may lead to spinal cord compression in 15% of the patients (66,67). Many vertebral compression fractures in patients with multiple myeloma appear benign on MR imaging (Figure 58). In addition, their site distribution is similar to that of compression VFs in patients with osteoporosis. On imaging multiple myeloma’s appearance may be misleading, simulating an osteoporotic compression VF in about 67% of the cases and the fractures may present different state of evolution with 38% of the patients having only benign appearing VFs (68).

Figure 57 Three cases of myeloma. The patchy or irregular involvement of multiple vertebral bodies suggests myeloma. Multiple VFs are noted.
Figure 58 Radiograph (A), CT (B) and MRI T1-weighted MRI (C) show a case of multiple myeloma. VFs of various severities are seen. No definite differentiation can be made with osteoporotic fracture.

VFs due to other causes of skeleton general fragility

Low energy fractures can be due to other secondary causes causing general fragility of the skeleton, such as osteomalacia, osteogenesis imperfecta, hyperparathyroidism, chronic kidney disease, sickle cell anemia, thalassemia (Figure 59), Paget’s disease, etc. Recognising the features of these diseases is important for a correct diagnosis. The detailed differentiation diagnosis discussion is beyond the scope of this review.

Figure 59 Osteoporosis and vertebral compression fractures in a thalassemia patient. Both radiograph (A) and CT (B) demonstrate severe spine osteoporosis signs. Radiograph (A) shows the vertebral bodies are transparent-looking and vertical trabeculae are noted. Sagittal reconstructed CT (B) shows multiple vertebral compression fractures.


This pictorial essay illustrates the importance of endplate and cortical surface analysis for detecting VF to increase diagnostic accuracy. Future studies are necessary to evaluate how to incorporate different definitions of osteoporotic VF into practice. As opposed to the VFs with VD, the clinical predictive values of ECF without VD remain to be further validated. We hope this pictorial will aid future studies on epidemiology of mild ECF and their clinical implications.

When reporting the epidemiology of osteoporotic VF, the prevalence and new incidence rate are constrained by the methodology and criteria used. Imaging methods, such as Xtreme CT, which has resolution for bone close to histology level, if applied for spine, would certainly report high VF prevalence in subjects with osteoporotic. Same would be the case for MRI to be used to identify new osteoporotic VF incidence. The methodology applied in practice should be clinically relevant and provide evidence for clinical management.


The authors thank Professor Richard Eastell at The University of Sheffield for his encouragement during the course of preparing this paper, and his critical comments. The content of this manuscript does not necessarily reflect the viewpoints of Professor Eastell.


Conflicts of Interest: The authors have no conflicts of interest to declare.


  1. Cosman F, de Beur SJ, LeBoff MS, Lewiecki EM, Tanner B, Randall S, Lindsay R. Clinician’s guide to prevention and treatment of osteoporosis. Osteoporos Int 2014;25:2359-81. [Crossref] [PubMed]
  2. Ross PD. Clinical consequences of vertebral fractures. Am J Med 1997;103:30S-42S. [Crossref] [PubMed]
  3. Stone KL, Seeley DG, Lui LY, Cauley JA, Ensrud K, Browner WS, Nevitt MC, Cummings SR. Osteoporotic Fractures Research Group. BMD at multiple sites and risk of fracture of multiple types: long-term results from the Study of Osteoporotic Fractures. J Bone Miner Res 2003;18:1947-54. [Crossref] [PubMed]
  4. Cooper C, Atkinson EJ, Jacobsen SJ, O'Fallon WM, Melton LJ 3rd. Population based study of survival after osteoporotic fractures. Am J Epidemiol 1993;137:1001-5. [Crossref] [PubMed]
  5. Link TM, Guglielmi G, van Kuijk C, Adams JE. Radiologic assessment of osteoporotic vertebral fractures: diagnostic and prognostic implications. Eur Radiol 2005;15:1521-32. [Crossref] [PubMed]
  6. Fink HA, Milavetz DL, Palermo L, Nevitt MC, Cauley JA, Genant HK, Black DM, Ensrud KE. Fracture Intervention Trial Research Group. What proportion of incident radiographic vertebral deformities is clinically diagnosed and vice versa? J Bone Miner Res 2005;20:1216-22. [Crossref] [PubMed]
  7. Gehlbach SH, Bigelow C, Heimisdottir M, May S, Walker M, Kirkwood JR. Recognition of Vertebral Fracture in Clinical Setting. Osteoporos Int 2000;11:577-82. [Crossref] [PubMed]
  8. Kim N, Rowe BH, Raymond G, Jen H, Colman I, Jackson SA, Siminoski KG, Chahal AM, Folk D, Majumdar SR. Underreporting of vertebral fractures on routine chest radiography. AJR Am J Roentgenol 2004;182:297-300. [Crossref] [PubMed]
  9. Majumdar SR, Kim N, Colman I, Chahal AM, Raymond G, Jen H, Siminoski KG, Hanley DA, Rowe BH. Incidental vertebral fractures discovered with chest radiography in the emergency department. Arch Intern Med 2005;165:905-9. [Crossref] [PubMed]
  10. Williams AL, Al-Busaidi A, Sparrow PJ, Adams JE, Whitehouse RW. Under-reporting of osteoporotic vertebral fractures on computed tomography. Eur J Radiol 2009;69:179-83. [Crossref] [PubMed]
  11. Broy SB. The Vertebral Fracture Cascade: Etiology and Clinical Implications. J Clin Densitom 2016;19:29-34. [Crossref] [PubMed]
  12. Harrison RA, Siminoski K, Vethanayagam D, Majumdar SR. Osteoporosis-related kyphosis and impairments in pulmonary function: a systematic review. J Bone Miner Res 2007;22:447-57. [Crossref] [PubMed]
  13. Lentle B, Trollip J, Lian K. The radiology of osteoporotic vertebral fractures redux. J Clin Densitom 2016;19:40-7. [Crossref] [PubMed]
  14. Oei L, Koromani F, Rivadeneira F, Zillikens MC, Oei EH. Quantitative imaging methods in osteoporosis. Quant Imaging Med Surg 2016;6:680-98. [Crossref] [PubMed]
  15. Griffith JF. Identifying osteoporotic vertebral fracture. Quant Imaging Med Surg 2015;5:592-602. [PubMed]
  16. Oei L, Rivadeneira F, Ly F, Breda SJ, Zillikens MC, Hofman A, Uitterlinden AG, Krestin GP, Oei EH. Review of radiological scoring methods of osteoporotic vertebral fractures for clinical and research settings. Eur Radiol 2013;23:476-86. [Crossref] [PubMed]
  17. Genant HK, Wu CY, Van Kuijk C, Nevitt M. Vertebral fracture assessment using a SQ technique. J Bone Miner Res 1993;8:1137-48. [Crossref] [PubMed]
  18. Sauer P, Leidig G, Minne HW, Duckeck G, Schwarz W, Siromachkostov L, Ziegler R. Spine deformity index (SDI) versus other objective procedures of vertebral fracture identification in patients with osteoporosis: a comparative study. J Bone Miner Res 1991;6:227-38. [Crossref] [PubMed]
  19. Oei L, Ly F, El Saddy S, Makurthou AA, Hofman A, van Rooij FJ, Uitterlinden AG, Zillikens MC, Rivadeneira F, Oei EH. Multi-functionality of computer-aided quantitative vertebral fracture morphometry analyses. Quant Imaging Med Surg 2013;3:249-55. [PubMed]
  20. Szulc P, Munoz F, Marchand F, Delmas PD. Semiquantitative evaluation of prevalent vertebral deformities in men and their relationship with osteoporosis: the MINOS study. Osteoporos Int 2001;12:302-10. [Crossref] [PubMed]
  21. McKiernan FE. The broadening spectrum of osteoporotic vertebral fracture. Skeletal Radiol 2009;38:303-8. [Crossref] [PubMed]
  22. Jiang G, Eastell R, Barrington NA, Ferrar L. Comparison of methods for the visual identification of prevalent vertebral fracture in osteoporosis. Osteoporos Int 2004;15:887-96. [Crossref] [PubMed]
  23. Ferrar L, Jiang G, Clowes JA, Peel NF, Eastell R. Comparison of densitometric and radiographic vertebral fracture assessment using the algorithm-based qualitative (ABQ) method in postmenopausal women at low and high risk of fracture. J Bone Miner Res 2008;23:103-11. [Crossref] [PubMed]
  24. Hordon LD, Francis RM, Marshall DH, Smith AH, Peacock M. Are scintigrams of the spine useful in vertebral osteoporosis? Clin Radiol 1986;37:487-9. [Crossref] [PubMed]
  25. Guermazi A, Mohr A, Grigorian M, Taouli B, Genant HK. Identification of vertebral fractures in osteoporosis. Semin Musculoskelet Radiol 2002;6:241-52. [Crossref] [PubMed]
  26. Bazzocchi A, Guglielmi G. Vertebral Fracture Identification. Semin Musculoskelet Radiol 2016;20:317-29. [Crossref] [PubMed]
  27. Guglielmi G, Diacinti D, van Kuijk C, Aparisi F, Krestan C, Adams JE, Link TM. Vertebral morphometry: current methods and recent advances. Eur Radiol 2008;18:1484-96. [Crossref] [PubMed]
  28. McKiernan FE. Violet Fox: A Clinical View of Vertebral Fractures. J Clin Densitom 2016;19:35-9. [Crossref] [PubMed]
  29. Adams JE. Opportunistic Identification of Vertebral Fractures. J Clin Densitom 2016;19:54-62. [Crossref] [PubMed]
  30. Imai K. Analysis of vertebral bone strength, fracture pattern, and fracture location: a validation study using a computed tomography-based nonlinear finite element analysis. Aging Dis 2015;6:180-7. [Crossref] [PubMed]
  31. Antonacci MD, Mody DR, Rutz K, Weilbaecher D, Heggeness MH. A histologic study of fractured human vertebral bodies. J Spinal Disord Tech 2002;15:118-26. [Crossref] [PubMed]
  32. Hwang D, Kim S, Abeydeera NA, Statum S, Masuda K, Chung CB, Siriwanarangsun P, Bae WC. Quantitative magnetic resonance imaging of the lumbar intervertebral discs. Quant Imaging Med Surg 2016;6:744-55. [Crossref] [PubMed]
  33. Scaramuzzo L, Perisano C, Leone A, Graci C, Spinelli MS, Di Giacomo G, Venanzi E, Schiavone Panni A, Maccauro G. Skeletal modifications in mucopolysaccharidoses: an overview. J Biol Regul Homeost Agents 2012;26:139-44. [PubMed]
  34. Grainger RG, Allison DJ. Grainger and Allison's diagnostic radiology, a textbook of medical imaging. Churchill Livingstone (2009). ISBN:0443064326.
  35. Iceton JA, Horne G. Spondylo-epiphyseal dysplasia tarda: the X-linked variety in three brothers. J Bone Joint Surg Br 1986;68:616-9. [PubMed]
  36. Neidner F. Zur Kenntnis der normalen und pathologischen Wirbekoerperrandleisten. Fortschr Roentgenstr 1932;46:628.
  37. Jaremko JL, Siminoski K, Firth GB, Matzinger MA, Shenouda N, Konji VN, Roth J, Sbrocchi AM, Reed MH, O'Brien MK, Nadel H, McKillop S, Kloiber R, Dubois J, Coblentz C, Charron M, Ward LM. Canadian STOPP Consortium National Pediatric Bone Health Working Group. Common normal variants of pediatric vertebral development that mimic fractures: a pictorial review from a national longitudinal bone health study. Pediatr Radiol 2015;45:593-605. [Crossref] [PubMed]
  38. Ghelman B, Freiberger RH. The limbus vertebra: an anterior disc herniation demonstrated by discography. AJR Am J Roentgenol 1976;127:854-5. [Crossref] [PubMed]
  39. Bradford DS, Moe JH, Montalvo FJ, Winter RB. Scheuermann’s kyphosis and roundback deformity: Results of Milwaukee brace treatment. J Bone Joint Surg (Am) 1974;56:740-58. [Crossref] [PubMed]
  40. Taylor TC, Wenger DR, Stephen J, Gillespie R, Bobechko W. Surgical management of thoracic kyphosis in adolescents. J Bone Joint Surg (Am) 1979;61:496-503. [Crossref] [PubMed]
  41. Stagnara, P. Les deformations du rachis. Paris: Masson, 1985.
  42. Platero D, Luna JD, Pedraza V. Juvenile kyphosis: effects of different variables on conservative treatment outcome. Acta Orthop Belg 1997;63:194-201. [PubMed]
  43. Nguyen VD, Tyrrel R. Klippel-Feil syndrome: patterns of bony fusion and wasp-waist sign. Skeletal Radiol 1993;22:519-23. [Crossref] [PubMed]
  44. Dietz GW, Christensen EE. Normal “Cupid’s bow” contour of the lower lumbar vertebrae. Radiology 1976;121:577-9. [Crossref] [PubMed]
  45. Ramirez H, Navarro JE, Bennett WF. “Cupid’s bow” contour of the lumbar vertebral endplates detected by computed tomography. J Comput Assist Tomogr 1984;8:121-4. [Crossref] [PubMed]
  46. Chan KK, Sartoris DJ, Haghighi P, Sledge P, Barrett-Connor E, Trudell DT, Resnick D. Cupid's bow contour of the vertebral body: evaluation of pathogenesis with bone densitometry and imaging-histopathologic correlation. Radiology 1997;202:253-6. [Crossref] [PubMed]
  47. Scheuermann H. Kyphosis dorsalis juvenilis. Z Orthop Chir 1921;41:4.
  48. Sørensen KH. Scheuermann’s juvenile kyphosis: clinical appearances, radiography, etiology and prognosis. Copenhagen: Munksgaard, 1964.
  49. Fotiadis E, Grigoriadou A, Kapetanos G, Kenanidis E, Pigadas A, Akritopoulos P, Samoladas E. The role of sternum in the etiopathogenesis of Scheuermann disease of the thoracic spine. Spine 2008;33:E21-4. [Crossref] [PubMed]
  50. Blumenthal SL, Roach J, Herring JA. Lumbar Scheuermann’s. A clinical series and classification. Spine 1987;12:929-32. [Crossref] [PubMed]
  51. Bezalel T, Carmeli E, Been E, Kalichman L. Scheuermann's disease: current diagnosis and treatment approach. J Back Musculoskelet Rehabil 2014;27:383-90. [Crossref] [PubMed]
  52. Calvé J. A localized affection of the spine suggesting osteochondritis of the vertebral body, with the clinical aspects of Pott’s disease. J Bone Joint Surg (Am) 1925;7:41-9.
  53. Buchman J. Osteochondritis of the vertebral body. J Bone Joint Surg (Am) 1927;9:55-66.
  54. Compere EL, Johnson WE, Coventry MB. Vertebra plana (Calvé ’s disease) due to eosinophilic granuloma. J Bone Joint Surg (Am) 1954;36-A:969-80. [Crossref] [PubMed]
  55. Shisha T, Kiss S, Varga PP, Bucsi L, Pap K, Szoke G. Osteochondritis (Calvé’s disease) of a vertebral body--a rare form of vertebra plana. Eur Spine J 2006;15:377-83. [Crossref] [PubMed]
  56. Musgrove J. Persistence of the notochord in the human subject. J Anat Physiol 1891;25:386-9. [PubMed]
  57. Oner AY, Akpek S, Tokgoz N. Persistent Notochordal Canal Mimicking Compression Fracture: A Case Report. Acta Radiol 2006;47:875-7. [Crossref] [PubMed]
  58. Hopkins RM, Abbott JH. Congenital ‘butterfly vertebra’ associated with low back pain: a case report. J Man Manip Ther 2015;23:93-100. [Crossref] [PubMed]
  59. Resnick D, Niwayama C. Intravertebral disk herniations: cartilaginous (Schmorl’s) nodes. Radiology 1978;126:57-65. [Crossref] [PubMed]
  60. Siriwanarangsun P, Statum S, Biswas R, Bae WC, Chung CB. Ultrashort time to echo magnetic resonance techniques for the musculoskeletal system. Quant Imaging Med Surg 2016;6:731-43. [Crossref] [PubMed]
  61. Ruiz Santiago F, Tomás Muñoz P, Moya Sánchez E, Revelles Paniza M, Martínez Martínez A, Pérez Abela AL. Classifying thoracolumbar fractures: role of quantitative imaging. Quant Imaging Med Surg 2016;6:772-84. [Crossref] [PubMed]
  62. Ishiyama M, Fuwa S, Numaguchi Y, Kobayashi N, Saida Y. Pedicle involvement on MR imaging is common in osteoporotic compression fractures. AJNR Am J Neuroradiol 2010;31:668-73. [Crossref] [PubMed]
  63. Baur A, Stabler A, Arbogast S, Duerr HR, Bartl R, Reiser M. Acute osteoporotic and neoplastic vertebral compression fractures: fluid sign at MR imaging. Radiology 2002;225:730-5. [Crossref] [PubMed]
  64. Cicala D, Briganti F, Casale L, Rossi C, Cagini L, Cesarano E, Brunese L, Giganti M. Atraumatic vertebral compression fractures: differential diagnosis between benign osteoporotic and malignant fractures by MRI. Musculoskelet Surg 2013;97 Suppl 2:S169-79. [Crossref] [PubMed]
  65. Jung HS, Jee WH, McCauley TR, Ha KY, Choi KH. Discrimination of metastatic from acute osteoporotic compression spinal fractures with MR imaging. Radiographics 2003;23:179-87. [Crossref] [PubMed]
  66. Lecouvet FE, Vande Berg BC, Michaux L, Jamart J, Maldague BE, Malghem J. Development of vertebral fractures in patients with multiple myeloma: does MRI enable recognition of vertebrae that will collapse? J Comput assit Tomog 1998;22:430-6.
  67. Spiess JL, Adelstein DJ, Hines JD. Multiple myeloma presenting with spinal cord compression. Oncology 1988;45:88-92. [Crossref] [PubMed]
  68. Lecouvet FE, Vande Berg BC, Maldague BE, Michaux L, Laterre E, Michaux JL, Ferrant A, Malghem J. Vertebral compression fractures in Multiple Myeloma. Part I. Distribution and Appearance at MR Imaging. Radiology 1997;204:195-9. [Crossref] [PubMed]
Cite this article as: Wáng YX, Santiago FR, Deng M, Nogueira-Barbosa MH. Identifying osteoporotic vertebral endplate and cortex fractures. Quant Imaging Med Surg 2017;7(5):555-591. doi: 10.21037/qims.2017.10.05

Download Citation
