How liver pathologies contribute to T1rho contrast require more careful studies

Liver T1rho has been proposed as an imaging biomarker for liver fibrosis (1-5). In the recent study of Xie et al. (6,7), 18 healthy subjects, 18 patients with fatty liver, and 18 patients with liver fibrosis had T1rho MR imaging performed. The diagnosis of liver fibrosis was based on serologic evidence of hepatitis B or C virus infection and liver stiffness criteria by ultrasonic elastography. Mean liver T1rho values in fibrotic group (52.6±6.8 ms) were significantly higher than those of healthy subjects (44.9±2.8 ms, P<0.001) and fatty liver group (45.0±3.5 ms, P<0.001), while mean liver T1rho values were similar between healthy subjects and fatty liver group (P=0.999). However, four liver fibrosis cases (4/18, 22.2%) had liver T1rho overlapped with those of control subjects (the first figure of Xie et al.’s paper) (7). Since there was no histologic diagnosis of liver fibrosis for the patients, it is possible that these four cases actually did not have fibrosis; however, it is more likely that these patients did have liver fibrosis, but their liver T1rho was not measured higher than healthy subjects’ liver.

It is well known that liver diseases can be associated with increased liver iron deposition (8). Ludwig et al. (9) studied tissue iron in 447 cirrhotic livers, and increased hepatic iron concentration was found in 20.3% of their cases. They concluded that iron overload is common in many types of nonbiliary cirrhosis. The hemosiderosis of affected liver occur rapidly once cirrhosis has developed, and cirrhosis alone may cause iron accumulation. It is probable that in Xie et al.’s study there was increased liver iron in these four cases, and the associated liver T2* shortening complicated T1rho measurement. We have seen such phenomenon in our own unpublished clinical cases.

Among healthy subjects, our recent paper shows women have higher physiological liver T1rho than men; and younger subjects have higher physiological liver T1rho than older subjects with this trend being stronger in women than in men (10). Iron concentration in healthy subjects’ liver is also known to be higher in men than in women, and higher in older subjects compared with younger subjects (Figure 1) (11-13). Animal studies also demonstrated aging is associated with increased liver iron concentration (Figure 2) (14,15).

Figure 1 Iron concentration in liver of healthy subjects is higher in men than in women, and higher in post-menopausal women than in pre-menopausal women. (A) Distribution of subjects according to the grade of histochemically demonstrable iron in Kupffer cells (hatched squares represent menstruating women); (B) non-haemin iron concentrations in liver biopsy specimens (each bar represents a subject). Modified from (11) with permission.

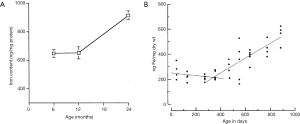

Figure 2 Animal studies show aging is associated with increased liver iron concentration. (A) Tissue total iron content (mean ± standard error of mean) in liver versus age for male Fisher 344 rats; (B) iron content in liver versus age for C57BL/6J male mice. Modified from (14,15) with permission.

Previous studies show elevated T1rho is positively correlated with the severity of liver fibrosis/cirrhosis (Figure 3) (1-5). Elevated T1rho was correlated with the amount of collagen deposition in biliary duct ligation induced liver fibrosis (1). However, fiber tissue is not necessarily associated with higher T1rho inherently (16), as shown in intervertebral disc degeneration studies (17,18). Liver fibrosis, depending on its causes, is associated with a number of complicated pathological processes, including steatosis, hepatocellular ballooning, and inflammation (19,20). Inflammation involves presence of inflammatory cells, including lymphocytes, eosinophils and neutrophils, near ballooned hepatocytes. How these processes contribute to the elevated T1rho measurement deserve careful investigation, which can be answered partially by careful animal model studies. In an imperfect rat study reported by us (21), it can be seen that acute edema of liver caused by CCl4 intoxication was not a dominant contributor of T1rho increase. After the withdrawal of CCl4 stimulus, it seems that the lowering of elevated liver T1rho was faster than the resolve of fiber tissue deposition in rat liver.

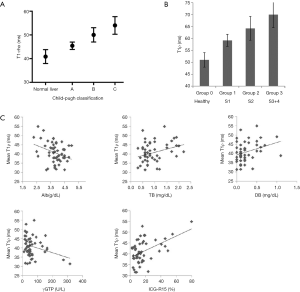

Figure 3 T1rho as a liver function biomarker. (A) Mean liver T1rho value and standard deviation of healthy volunteers and patients with Child-Pugh A, B, or C classification. A positive correlation is shown; (B) bar graph of T1ρ values corresponding to different groups based upon fibrosis stage. Group 0 contains healthy subjects, group-1 contains stage-1 fibrosis, group 2 contains stage-2 fibrosis and group 3 contains stage-3 or 4 fibrosis (however, there were limited samples in each group); (C): scatterplots of the correlation between the T1rho values of the liver and the serum levels of Alb (albumin), TB (total bilirubin), DB (direct bilirubin), gGTP (g-glutamyl transpeptidase), and ICG-R15 (indocyanine green retention rates at 15 minutes). A significant correlation was observed in all combinations. Modified from (2-4) with permission.

One note is the wide inter-subject variation of physiological T1rho, not only seen in healthy subjects (11), but also in male rats of similar age (Figure 4) (5). One potential explanation for Figure 4 is that these rats have diverse liver iron concentrations, but co-contributors of other sources are also possible and should be further investigated.

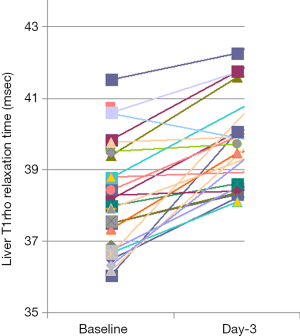

Figure 4 In 32 young male rats (200–250 gram) the physiological liver T1rho value ranged from 36.05 to 41.53 msec. Rats with higher liver T1rho at baseline also tend to have higher measurement at day-3 post-biliary duct ligation, suggesting that the higher liver T1rho measurement at baseline may be ‘intrinsic’ to individual rats. Modified from (5) with permission.

We can hypothesize that T1rho can differentiate liver steatosis (no T1rho elevation with fat suppressed sequence) from steatohepatitis (with T1rho elevation due to inflammation and fibrosis). The work of Xie et al. (6,7) suggests T1rho can differentiate simple fatty liver from liver pathologies involving inflammation and fibrosis.

With the recent progresses made in diffusion imaging (Figure 5) (22), it is possible that multi-parametric MRI approach, such as a combination of T1rho corrected with iron/T2*contribution and intravoxel incoherent motion (IVIM) imaging will allow early diagnosis of nonalcoholic steatohepatitis and liver fibrosis.

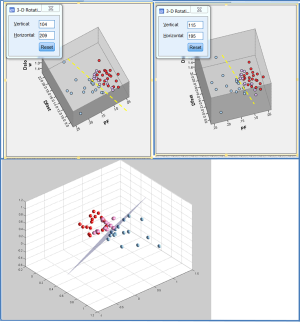

Figure 5 Three-dimensional display of healthy volunteer group (blue balls), viral hepatitis induced stage-1 fibrosis patient group (pink balls), and viral hepatitis induced stage 2–4 fibrosis patient group (red balls). Each ball represents one participant. The complete differentiation of the volunteer group and patient group is shown by dotted yellow line or purple plane. Reproduced from (22) with permission.
