Outer retinal band segmentation in healthy subjects: comparative study between human grading and deep convolutional neural networks

Introduction

Photoreceptors (PhR) are highly organized and complex light-sensitive cells that are subdivided into defined compartments with functionally related organelles (1). On spectral-domain optical coherence tomography (SD-OCT), these structures can be seen as four distinctive hyper-reflective OCT bands. The outer segments of the PhR (POS) are opposed to the retinal pigment epithelium (RPE) and form an interdigitation zone (IZ) in which the apical processes of the microvilli of the RPE envelop the POS (2). This region separates the hyperreflective Band 3 (cone phagosomes, PhaZ) from Band 2, formed by the inner segment (IS) of the ellipsoids (EZ) (3). Separating Band 2 from the outermost hyperreflective Band 1 (external limiting membrane, ELM) is the cone myoids (3) (Figure 1). This microanatomy follows an intricate system that has neurophysiological, optical and metabolic features, enabling a successful visual cycle. A detailed understanding and identification of normal and pathologic morphologic patterns of this structure has important implications for the diagnosis, treatment and progression of various retinal diseases (2,4,5). Careful assessment of these bands is clinically relevant in degenerative conditions such as age-related macular degeneration, where alterations in the ellipsoid zone (EZ) and IZ may reflect disease progression and treatment response (6,7). Similarly, disruptions in the outer retinal bands (ORBs) are key imaging features in inherited retinal dystrophies (8) and diabetic macular edema, and have increasingly been used as structural endpoints in clinical trials (9). In clinical practice, this assessment is based on OCT analysis. However, detailed measurement of these layers requires a high level of clinical expertise and can be very time consuming (4), showing variability when measured, especially in bands with thickness similar to the resolution of commercial OCT devices (10).

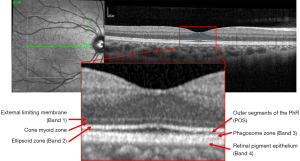

Figure 1 Visualization of the hyperreflective bands. Example of a fovea centered B-scan of a normal patient. A central patch highlighted in red shows the hyperreflective bands numbering and their locations. PhR, photoreceptors; POS, photoreceptor outer segments.

Deep learning networks (DLNs) have been used to support the identification, extraction and analysis of features difficult for human physicians to interpret (5,11,12). Recent reviews have further highlighted the rapid progress of DLN methods in ophthalmic imaging and OCT-based analysis (13,14). With promising results, these techniques can also provide consistent and reproducible measurements less susceptible to subjective differences among evaluators, as shown in different medical areas (15,16). The application of these techniques to OCT images enabled the automatic identification of specific retinal lesions, such as macular edema (17,18) and choroidal neovascularization (19), as well as the differentiation between ORBs and other anatomical structures, including the choroid (20) and cornea (21). Approaches using image filtering (22), pixel-profiling and edge enhancing (23), and OCT-specific deep convolutional neural network (dCNN) (24,25) achieved impressive results in the segmentation of different structures in the retina. Among the CNNs specifically modified for retinal layer segmentations, Two-Dimensional U-Net are used to directly segment retinal layers from individual B-scans, using a pixel-wise classification (26,27). Others use shape-based regressions to return more smooth segmentations (28), attention mechanisms that focus on relevant features (29) and also Cascaded U-Nets in cases of more severe pathologies (30). However, most studies prevent the individual characterization of ORBs given the wider retinal regions evaluated and integrated in each deep learning dataset (23,31-33), a feature that already showed clinical relevance for disease differentiation (34). Our study utilizes individual retinal labelling of each ORB, and the ability of semantic segmentation in dCNN, given their capability to classify each pixel individually (35), for the accurate characterization of relevant retinal layers.

Pretrained networks have also been used in several dCNNs, especially in medical imaging as a solution to deal with limited labelled data (28,36), improving learning of generic structures (37). Sparse masKed modeling (SparK) (38), a bidirectional encoder representation from transformers (BERT)-style self-supervised learning framework, that allows unmasked patches to be treated as sparse voxels and use sparse convolution to encode them. While making it suited for any convolutional network (Convnet), it also reports superior learning of visual representations when compared to other self-supervised transformers (39).

Hereby, we evaluated the performance of different approaches for the segmentation of ORBs, i.e., manual segmentation vs. dCNN architectures, by evaluating dCNN outputs and reproducibility of the manual annotations. We present this article in accordance with the TRIPOD+AI reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-2025-aw-2093/rc).

Methods

The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. The study was approved by the Ethics Committee of the Lisbon School of Health (ESTeSL) (CE-ESTeSL-No.59-2024). Informed consent was taken from all the patients. A cross-sectional, observational study based on foveal-centered SD-OCT B-scans of healthy subjects—was conducted at the retina clinic of ULS Almada-Seixal, Portugal from September to December 2024. Participation was voluntary, with no associated costs, payments, or rewards. Participants were informed that they could discontinue their participation at any time without any penalties or financial implications.

Anonymized SD-OCT scans (Spectralis; Heidelberg Engineering, Heidelberg, Germany) were obtained and retrospectively analyzed from a study dataset (IPL/IDI&CA2024/INSYDE_AMD_ESTeSL). Imaging consisted of high-resolution macular volume scans (20°×20°, 49 B-scans, 7 frames per scan, each containing 1,024 A-scans per B-scan, with a depth resolution of 3.9 µm). For each macular volume scan, nine horizontal B-scans were analyzed—one centered on the fovea and four located superiorly and inferiorly, each spaced 125 µm apart from the adjacent scan. Each patient was previously evaluated by an ophthalmologist.

As a recruitment strategy, following comprehensive ophthalmological evaluation, participants were selected among patients attending the clinic for cataract assessment (pre- or postoperative) or those presenting unilateral surgical conditions such as macular hole or epiretinal membrane, provided that the fellow eye showed no signs of retinal pathology. Only eyes confirmed as structurally healthy were included; additionally, the ophthalmologist confirmed that all images met the quality standards required for clinical assessment.

Exclusion criteria included any scan in which the ORBs were insufficiently distinguishable to allow a reliable definition of the hyperreflective layers, SD-OCT B-scans with an inclination greater than 10°—measured as the angle between the line connecting the outermost retinal points in each scan and the horizontal plane—and patients with myopia or hyperopia exceeding 3 dioptres.

Fifty-five subjects (50% male) contributed to this study. The mean [standard deviation (SD)] age at baseline was 63.9 (12.2) years, the mean (SD) best-corrected visual acuity (BCVA) was 79.6 (10.5) letters. Ten eyes were excluded due to insufficient differentiation between the EZ and IZ. A total of 900 OCT B-scans from 100 eyes were included in the dataset.

B-scans were analysed by two experienced graders in image segmentation that, using the investigational software (SPX 1902; Heidelberg Engineering) onboard caliper and at 400% magnification, segmented the internal and external boundaries of Band 2, the photoreceptor outer segments (POS), and Band 3+4 at the whole length of the OCT B-scan, as seen in Figure 2. Band 2 was defined as the EZ of the PhR (3). Band 3 and Band 4 were defined as respectively the contact cylinder between the RPE apical processes and the external portion of the cone OS, and the RPE (3). POS were defined as the space between the external boundary of Band 2 and the internal boundary of Band 3.

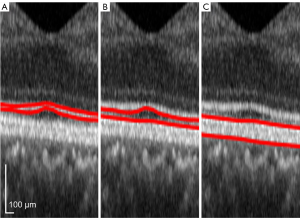

Figure 2 Manual segmentation of the three regions of interest. Example of a healthy B-OCT cropped in the center fovea with manual annotations by one of the two graders. (A) The upper and lower red lines correspond to the inner and outer boundaries of Band 2, respectively. (B) The upper and lower red lines correspond to the inner and outer boundaries of the POS region, respectively. (C) The upper and lower red lines correspond to the inner boundary of Band 3 and the outer boundary of Band 4, respectively. OCT, optical coherence tomography; POS, photoreceptor outer segments.

Manual segmentation of hyperreflective bands was performed twice, where the second measurement was performed at least two days later and masked from the first one. Each labelled image was further analysed to automatically identify the foveal center (40) and to compute the thickness value of each band at 7 specific coordinates at the x-axis: foveal center, and at 500, 750 and 1,000 µm nasal and temporal to the foveal center (Figure 3), as previously described (34). The thickness value of each band at the above-mentioned coordinates was exported as a .csv file for further analysis.

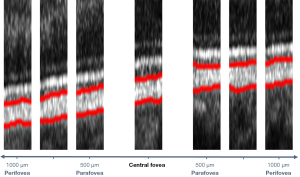

Figure 3 Sub images used to measure the repeatability in different locations of the fovea. Representation of the fovea detection algorithm in a B-OCT image, and the respective cropped images corresponding to the central fovea, parafovea, perifovea and the intermediate region between the parafovea and perifovea. OCT, optical coherence tomography.

In this study, all analyses were performed at the image level. Each OCT B-scan was treated as an independent observation because the objective was to assess segmentation performance for each individual image, both for human graders and for the deep learning models. The performance metrics used—interclass correlation coefficient (ICC), mean absolute error (MAE), pixel differences and Dice scores—quantify agreement between segmentation methods within the same image and do not involve subject-level statistical inference. Therefore, no correction for within-subject clustering (multiple images from the same eye or two eyes from the same participant) was required.

The difference between the two measurements of the same grader evaluated the intraclass correlation, or repeatability, while the difference between each independent grader evaluated the interclass correlation, or reproducibility (41). B-scans segmented by grader 1 were used as the ‘ground truth’ to test the following dCNNs from the literature: U-Net (42), U-Net++ (43), SegResNet (44) and DRUNET (45).

Each OCT B-Scan was cropped at the center of the fovea to obtain two images of a standardized 256×256 pixels. Dataset augmentation was performed through the following techniques: contrast enhancement, gaussian noise introduction, and image flipping. Images were then randomly assigned at the patient level to the training, validation, and test sets, with 70%, 15%, and 15% of the images, respectively, ensuring that scans from the same patient were not included in more than one subset.

Previously to train each individual dCNN, a SPARK framework with unlabelled data from three different public OCT databases (46-48), approved by the corresponding ethical review board, was trained for 50 epochs. The output from trained autoencoder with 53,000 OCT B-scans was dimensioned so the weights would be introduced as the first encoder layer of each individual dCNN. After 5 initial epochs, the weights were unfrozen, and the fine tuning with the labelled images was continued.

Each dCNN was run for 50 epochs, or until convergence. Each model was trained on a weighted loss with both Dice loss and binary cross entropy loss (39). The Adam Optimizer was utilized as an optimization technique and regularization techniques included early stopping and dropout in every hidden layer. Model’s performance was measured with four different performance metrics: Dice score, precision, recall, and pixel-accuracy (49). Deep learning algorithms and statistical analysis were performed in Python (version 3.11.5) using PyTorch framework, and training was performed in an Intel(R) Core (TM) i7-6700K CPU, NVIDIA Titan X GPU with a 16GB DIMM RAM. Training each model took between 6 and 8 hours and inference time on our test set was only a few hundred milliseconds, as compared with algorithms reported in the study by Tian et al. (50), ranging from 28 to 152 seconds. The framework proposed for this project is illustrated in Figure 4 The full code for this project, excluding the OCT data, is available in the GitHub repository (40).

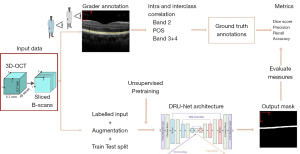

Figure 4 Pipeline of the research project. After acquiring the images from the Spectralis SD-OCT machine (input data square), two methods were tested to segment three different retinal structures, one involving manual annotations performed by two different graders (top row), and one with a DL approach, that in the end was evaluated against the ground truth annotations for various evaluation metrics. 3D-OCT, three-dimensional optical coherence tomography; DL, deep learning; POS, photoreceptor outer segments; SD-OCT, spectral-domain optical coherence tomography.

Results

A total of 100 eyes were evaluated and annotated by each grader. The intraclass correlation and interclass correlation values are summarized at Tables 1,2, respectively. Intraclass correlation values showed good repeatability for the identification of Band 3+4 and POS, while identification of Band 2 displayed moderate values. Likewise, interclass correlation values showed good reproducibility for the identification of Band 3+4 and POS, while identification of Band 2 displayed poor reliability, according to the evaluation metrics used by Koo and Li (51).

dCNNs performances are summarized in Table 3. Dice scores varied between 83.8% and 93.0%, corresponding to a mean deviation of 1.02±0.49 pixels compared to grader 1 manual segmentation. DRUNET architecture achieved the best results (Figure 5).

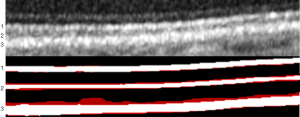

Figure 5 Comparison between a right-cropped B-OCT image (upper) and the binary annotation masks overlaid with the output of the DRUNET network for the segmentation of three retinal regions (lower), shown in red. The upper image shows a B-OCT scan from a healthy subject that was not included in the training dataset. The lower image shows the three regions of interest segmented in white, as annotated by one grader, with the corresponding DRUNET predictions overlaid in red. The numbered labels indicate the segmented layers: 1, Band 2; 2, POS; 3, Band 3+4. The segmented layers in the lower image are intentionally displayed with increased spacing for visualization purposes and do not represent their true anatomical distances in the B-OCT scan. OCT, optical coherence tomography; POS, photoreceptor outer segments.

Discussion

In this study, we addressed the challenge of OCT outer bands segmentation in healthy subjects. We observed good intra-grader repeatability for the segmentation of both the POS and Band 3+4, whereas Band 2 showed only moderate intra-grader agreement and poor agreement between different graders. Different dCNNs were able to segment all bands with high accuracy, with UNET network achieving the best results.

Some studies have shown consistent manual segmentation of 12 layers of the retina in foveal centered OCT B-scans (10,52). Ghorbel et al. showed intraclass mean squared error of 2.487±0.71, on the segmentation of the outer segments + RPE, while other studies reported ICC ranging from 0.68 to 0.99, in the regions relevant to our study, reporting lower values for the segmentation of Band 2, agreeing with our observations.

The second hyperreflective band in OCT has been considered one of the most challenging structures to accurately segment (53). The normalization of pupil entry position and enhanced depth imaging (EDI) have great impact in EZ reflectivity. In the same manner, the presentation of OCT images in either logarithmic or linear scale and the lack of consensus on a standardized normalization method may impact the comparison of EZ reflectance across different studies (54). Importantly, a low sampling rate in the transverse direction—that is, a reduced number of A-scans per B-scan for a given field of view—can diminish lateral resolution and hinder the clear differentiation of outer retinal morphology (55). Beyond challenges in image acquisition, the blurred transitions between the myoid zone and POS have also been identified in the literature as factors that make the segmentation of the EZ particularly challenging.

Additionally, our analysis confirmed that the variability observed for Band 2 was largely driven by grader-specific differences. Although both graders were trained and experienced, grader 2 showed higher intra-observer variability and a consistent positional bias when delineating this ultrathin layer, which contributed significantly to the reduced inter-grader ICC. Even for grader 1 (considered ground truth), Band 2 presented the lowest ICC, highlighting that small discrepancies in marking its inner and outer boundaries have a disproportionate impact due to its minimal thickness.

Topographic analysis showed that manual segmentation of outer bands in the foveal pit achieved the best intra and interclass correlation values in comparison with the segmentation of outer bands in perifoveal locations (see Table S1). This observation aligns with previous studies evaluating outer bands in healthy subjects. Histology studies have shown different topographic distribution of light sensitive PhR cells in the macula, the central fovea exclusively with cones, that have longer POS, and the perifoveal with a predominance of rod cells, with shorter POS (56). We conjecture that the physiologic elongation of POS at the central foveal facilitates the segmentation of this hyporeflective band in OCT at this location. As mentioned by other studies, the absence of inner retinal layers at the foveal center is associated with less light scattering and projection of retinal vessels at the outer retina (57,58). The ensemble of these observations might account for a more precise identification of POS and therefore the upper and lower boundaries of Band 2 and Band 3, with higher reproducibility values at the foveal pit compared with perifoveal measurements.

Apart from the performance metrics evaluated for each dCNN, these models were also compared with reported work on automatic segmentation of larger retinal areas, where, for example, a differentiation between the EZ and the POS was not performed (59), underscoring the importance of the individual segmentation of these regions. Other papers face the same problem, where, through U-Net-like structures, Dice scores of 95% were achieved, but failed to distinguish between the sublayers in their studies (60,61).

Pekala et al. (24) applied fully convolutional networks (FCNs) with Gaussian processes for post-processing and reported average pixel differences of 1.18 pixels between the outer plexiform layer (OPL) and the outer nuclear layer (ONL) compared to manual annotators. Fang et al. (62) achieved below 2 pixels variations for non-exudative AMD patients, in the same regions analyzed by Roy et al. (31) that further reported Dice scores of 0.92 and 0.90 when segmenting between the first and second hyperreflective bands and the POS + Band 3 + Band 4 regions, respectively. Rivas Vázquez et al. (28) also segmented nine retinal layers and the optic disc, achieving Dice scores of 83.6%. In our study, we observed smaller pixel differences and maintained similar Dice scores, even for smaller segmentation regions.

DRUNET is a dCNN widely used for segmentation of retinal structures. Kugelman et al. (20) employed DRUNET for choroidal segmentation and showed MAE under 0.5 pixels in the delimitation of the internal limiting membrane (ILM) and the RPE. Our results showed comparable performances across all networks evaluated, suggesting that the high quality of the input data allowed all architectures to converge towards a similar performance ceiling. This highlights the importance of data quality in optimizing segmentation performance and suggests that simpler architectures, when paired with high-quality data, may suffice for segmenting specific retinal structures.

Limitations addressable in future studies include the relatively small dataset, the limited resolution of the OCT device used for the image acquisition and the observer error within each measurement. Although the study utilized over 900 images for training and validation, it lacks diversity in terms of disease types, limiting the broader applicability and generalizability of the project. For future test segmentations with clinically diagnosed patients, this limitation should be addressed, and one should consider increasing the dataset, improving the dCNNs’ ability to handle unseen scenarios, reduce segmentation errors, and possibly aid disease differentiation (34).

Another limitation is the use of commercially available OCT images instead of High-Res OCT, which restricts the amount of fine structural detail available for training. Studies have reported significant differences in terms of retinal layer thickness in most of the macular sectors when comparing a commercial device to a High-Res OCT device (63). Incorporating High-Res OCT images in future work could help reduce noise and artifacts, improve annotation accuracy, and enhance the network’s performance.

Finally, the potential for inaccuracies in the manual segmentation of retinal layers must be acknowledged. Despite careful annotations, small and complex structures such as the ORBs pose challenges, and observer error cannot be entirely excluded. Additionally, grader-specific variability contributed to differences in the delineation of thinner structures, particularly Band 2. Grader 2 showed higher intra-observer variability and a consistent positional bias when marking this layer, helping explain the lower inter-grader ICC. Even with a standardised protocol and trained evaluators, manual segmentation of ORBs remains sensitive to human-dependent inconsistencies. Importantly, these inconsistencies directly affect the algorithm, as the network was trained and validated using these manual annotations. Consequently, the segmentation results for Band 2 should be interpreted with caution, and Band 2 cannot be considered a fully reliable output of the proposed model in this study. Including additional graders and adopting consensus or adjudication protocols may help reduce this source of variability in future work.

Although there are already models automatically segmenting retinal structures, these specific locations are not individually segmented and have already proven importance in disease characterization and differentiation (34).

Conclusions

In conclusion, the high repeatability observed for the POS and Band 3+4 contrasts with the reduced intra- and intergrader agreement for Band 2, emphasizing the particular difficulty of accurately segmenting this layer by hand. Our findings also highlight that grader-specific segmentation behaviour, particularly for ultrathin layers such as Band 2, contributes significantly to inter-observer variability. dCNNs particularly the DRUNET architecture, achieved high precision in segmenting these structures, highlighting their potential to reduce variability in human measurements and improve segmentation reliability. These findings support further exploration of dCNNs as a robust tool for clinical implementation in the segmentation of retinal structures.
