Single photon emission computed tomography/computed tomography clue to pulmonary metastasis in osteosarcoma: a diagnostic pitfall of technetium-99m methylene diphosphonate uptake

Introduction

Osteosarcoma (OS) is the most common primary bone malignancy in children and adolescents (1), frequently arising in the metaphyseal regions of long bones and exhibiting early metastatic potential, particularly to the lungs (2,3). Although pulmonary metastases are common (4), reports describing their detection via technetium-99m methylene diphosphonate (^99mTc-MDP) single photon emission computed tomography/computed tomography (SPECT/CT) remain limited. Given its osteogenic nature, OS often produces osteoblastic metastases, enabling visualization on ^99mTc-MDP bone scans, even within soft tissue sites (5,6). Compared with planar imaging, SPECT/CT offers superior anatomical localization and can detect early-stage metastases not yet demonstrating overt osteoid formation, thereby enhancing diagnostic accuracy.

This study, through analyzing a case of a 15-year-old female patient with pulmonary metastasis of OS, not only deepens our understanding of OS and expands the application scope of SPECT/CT, but also provides valuable experience for the diagnosis and treatment of such diseases.

Case presentation

A 15-year-old girl presented with a 3-month history of right knee pain. Needle biopsy of a lesion in the right proximal tibia confirmed conventional OS (Ki-67 labeling index: ~40%). To evaluate the extent of disease and guide treatment planning, a whole-body bone scintigraphy using ^99mTc-MDP was performed. The scan revealed intense radiotracer uptake in the right knee, corresponding to the primary tumor. Additionally, an unexpected focus of increased uptake was noted in the posterior left eighth rib region on planar imaging (Figure 1, black arrow), raising the possibility of skeletal metastasis. However, SPECT/CT localized the lesion to the lower lobe of the left lung (Figure 2A, yellow arrows), excluding osseous involvement. Another pulmonary nodule without MDP uptake was also identified (Figure 2B, yellow arrowheads). These findings suggested pulmonary metastases. The patient subsequently received one cycle of neoadjuvant chemotherapy with methotrexate and cisplatin, followed by two cycles of adjuvant chemotherapy with adriamycin and ifosfamide. Wide excision of the right tibial tumor was performed, followed by resection of the pulmonary nodules at an outside institution. Pathological analysis confirmed both lung lesions as OS metastases. At 2-year follow-up, repeat whole-body bone scintigraphy demonstrated reduced tracer activity in the right knee, consistent with postoperative changes, and no abnormal extraskeletal MDP uptake elsewhere (Figure 3, anterior and posterior views). The patient remains in good general condition and is under routine surveillance.

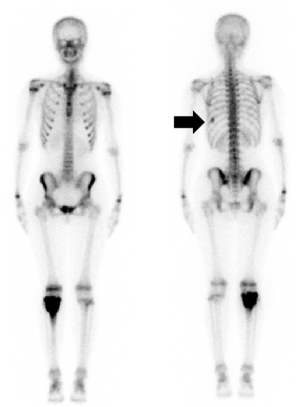

Figure 1 The ^99mTc-MDP whole-body bone scan indicated intense radiotracer uptake in the right knee and in the posterior region of the left eighth rib on planar imaging (black arrow). ^99mTc-MDP, technetium-99m methylene diphosphonate.

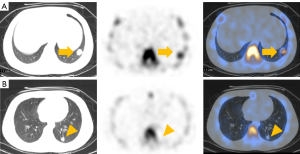

Figure 2 Axial CT, SPECT, and SPECT/CT fusion after ^99mTc-MDP administration. (A) SPECT/CT localized the lesion to the lower lobe of the left lung (yellow arrows). (B) SPECT/CT identified another pulmonary nodule without MDP uptake (yellow arrowheads). CT, computed tomography; SPECT, single photon emission computed tomography; ^99mTc-MDP, technetium-99m methylene diphosphonate.

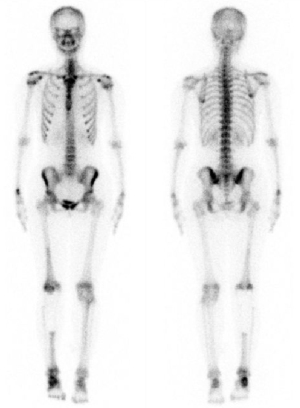

Figure 3 Two years later, repeat whole-body bone scintigraphy showed no abnormal extraskeletal uptake of MDP (anterior and posterior views). MDP, methylene diphosphonate.

All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Declaration of Helsinki and its subsequent amendments. Written informed consent was obtained from the patient’s parents for publication of this article and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

Discussion

OS is a highly malignant disease prone to lung metastasis (7). The poor prognosis of OS patients is closely related to the development of lung metastasis, which is almost the cause of death for all OS patients (8). Therefore, early detection of pulmonary metastases is critical for timely management and improved survival outcomes. Clinically, both whole-body bone scintigraphy and ¹⁸F-fluorodeoxyglucose (FDG) positron emission tomography/CT (PET/CT) are routinely used for staging. While FDG PET/CT plays a major role in systemic evaluation, bone scintigraphy remains more sensitive for detecting osteogenic metastases.

As shown in this case, whole-body bone scan is more sensitive to osteogenic metastases, and the unexpected tracer uptake in the lung was initially ambiguous on planar imaging. However, SPECT/CT precisely localized it to the pulmonary parenchyma, excluding rib involvement and prompting further clinical intervention. This case highlights the important clinical value of SPECT/CT in characterizing indeterminate extraosseous MDP-avid foci detected on routine bone scintigraphy in OS patients. Such non-specific uptake can indicate osteoblastic metastases, but differentiation based on planar imaging alone is often difficult due to limited spatial resolution. The fusion of anatomical and functional data provided by SPECT/CT enables precise lesion localization and objective characterization of potential extraosseous osteogenic foci. This enhances early detection of occult metastases and supports more accurate clinical decision-making. Consistent with previous findings (9), this case confirms the irreplaceable role of SPECT/CT in improving lesion localization and diagnostic confidence. Notably, SPECT/CT also revealed an additional pulmonary metastasis that showed no MDP uptake on planar scintigraphy, emphasizing its superior sensitivity and the added value of multimodal imaging integration in comprehensive disease evaluation.

Extraosseous uptake of ^99mTc-MDP has been reported in various conditions, including primary malignancies (10), osseous metastases (5,11), amyloidosis (12), and iatrogenic microembolism (13). This phenomenon may be influenced by factors such as extracellular fluid expansion, increased vascular permeability, and elevated local calcium concentration (14). In both benign and malignant tumors, MDP accumulation is generally associated with soft tissue calcification, hyperemia, or both. Therefore, when encountering extraosseous MDP uptake in clinical practice, a comprehensive differential diagnosis should be considered, including neoplastic lesions (e.g., OS metastasis) and non-neoplastic causes such as post-traumatic callus formation. Careful integration of imaging findings with the patient’s medical history, laboratory results, and clinical presentation is essential to accurately determine the etiology and avoid diagnostic pitfalls. In the present case, pulmonary metastases from OS demonstrated focal MDP uptake, likely due to tumor-induced calcification within the lung parenchyma. This underscores the importance of recognizing abnormal extraosseous tracer uptake as a potential indicator of metastatic disease and reinforces the utility of bone scintigraphy in the comprehensive evaluation of osteogenic tumors. The findings in this case offer valuable insights for clinical interpretation and highlight the expanded diagnostic capabilities of whole-body bone imaging in pediatric oncology.

Conclusions

In conclusion, this study, through the analysis of a case of pulmonary metastasis from OS, confirms the irreplaceable sensitivity of SPECT/CT in precisely localizing lesions, enhancing diagnostic confidence, and detecting occult metastatic lesions. It also highlights the value of multimodal imaging integration for comprehensive assessment of osteogenic tumors.
