Exploration of highly accelerated magnetic resonance elastography using high-density array coils

John C. Bosshard1, Naresh Yallapragada1, Mary P. McDougall2, Steven M. Wright1,2,3

1Department of Electrical and Computer Engineering, 2Department of Biomedical Engineering, Texas A&M University, College Station, TX, USA;3Department of Radiology, Texas A&M Health Science Center, Bryan, TX, USA

Correspondence to: Steven M. Wright, PhD. Department of Electrical and Computer Engineering, Texas A&M University, 3128 TAMU, College Station, TX 77843-3128, USA. Email: smwright@tamu.edu.

Background: Magnetic resonance elastography (MRE) measures tissue mechanical properties by applying a shear wave and capturing its propagation using magnetic resonance imaging (MRI). By using high density array coils, MRE images are acquired using single echo acquisition (SEA) and at high resolutions with significantly reduced scan times.

Methods: Sixty-four channel uniplanar and 32×32 channel biplanar receive arrays are used to acquire MRE wave image sets from agar samples containing regions of varying stiffness. A mechanical actuator triggered by a stepped delay time introduces vibrations into the sample while a motion sensitizing gradient encodes micrometer displacements into the phase. SEA imaging is used to acquire each temporal offset in a single echo, while multiple echoes from the same array are employed for highly accelerated imaging at high resolutions. Additionally, stiffness variations as a function of temperature are studied by using a localized heat source above the sample. A custom insertable gradient coil is employed for phase compensation of SEA imaging with the biplanar array to allow imaging of multiple slices.

Results: SEA MRE images show a mechanical shear wave propagating into and across agar samples. A set of 720 images was obtained in 720 echoes, plus a single reference scan for both harmonic and transient MRE. A set of 2,950 wave image frames was acquired from pairs of SEA images captured during heating, showing the change in mechanical wavelength with the change in agar properties. A set of 240 frames was acquired from two slices simultaneously using the biplanar array, with phase images processed into displacement maps. Combining the narrow sensitivity patterns and SNR advantage of the SEA array coil geometry allowed acquisition of a data set with a resolution of 156 µm × 125 µm × 1,000 µm in only 64 echoes, demonstrating high resolution and high acceleration factors.

Conclusions: MRE using high-density arrays offers the unique ability to acquire a single frame of a propagating mechanical vibration with each echo, which may be helpful in non-repeatable or destructive testing. Highly accelerated, high resolution MRE may be enabled by the use of large arrays of coils such as used for SEA, but at lower acceleration rates supporting the higher resolution than provided by SEA imaging.

Keywords: Magnetic resonance imaging (MRI); magnetic resonance elastography (MRE); parallel imaging; single echo acquisition (SEA); RF coil arrays; gradient coils

Submitted Mar 25, 2017. Accepted for publication Apr 07, 2017.

doi: 10.21037/qims.2017.04.02


For centuries, physicians have relied on palpation as a means of qualitatively assessing states of diseases, however this is not possible for internal organs. Recently, magnetic resonance elastography (MRE) has provided a non-invasive quantitative means of assessing tissue stiffness by applying a transverse shear wave to a sample or patient in the presence of a motion sensitizing gradient (1) and observing its local wavelength. This has allowed the calculation of the local shear modulus (2), often in areas inaccessible to palpation, finding applications in the liver, breast, brain, skeletal muscle, and heart (3,4). Another approach called mechanical transient-based MRE assesses tissue stiffness by monitoring the propagation of a wave front through a sample, requiring additional time steps, usually resulting in longer scan times (5). MRE has also been used in the study of dynamic processes, such as monitoring of thermal ablation (6). Several avenues have been pursued to improve the speed of MRE, such as using spatially selective excitations (7), or using one-dimensional projections for monitoring ultrasound therapy (8) and in vivo muscle stiffness (9). Additionally, alternative acquisition strategies such as fractional encoding (10), and sample interval modulation (SLIM)-MRE (11) have been investigated. There have also been a number of in vitro or other non-clinical applications, particularly using microscopic MRE (µMRE) to construct elastograms at higher resolutions, which has been used for frog oocytes (12), in tissue engineering (13), and in the study of traumatic brain injury models (14).

Parallel imaging using RF coils and gradient-based echo planar imaging have significantly improved acquisition times, extending the possibilities of functional MRI. Our group has previously used arrays of long parallel planar receive coils for highly accelerated MRI. This has enabled single echo acquisition (SEA) imaging (15), in which each MR image is acquired in one echo, as well as highly accelerated MR microscopy over an extended field of view (FOV) (16). Applications such as turbulent flow (17) and microscopy of excised brain slices have been investigated. The system was further extended to facilitate imaging of thicker volumes using a biplanar receive array and an insertable x-, y-gradient coil to compensate for the phase gradient due to the RF coil elements (18). Combined with strong and fast gradients, imaging at 1,000 frames per second has been shown (19). This paper presents some of our initial exploration of MRE using highly parallel receive array coils over a range of spatio-temporal acquisition regimes, from ultra-fast SEA to highly accelerated high resolution imaging. Applications of interest include accelerated mechanical-transient based MRE, MRE during thermal ablation or other destructive tests, and µMRE over an extended FOV.


MRE of agar phantoms was performed at 4.7T using a Varian Unity INOVA imaging spectrometer. Uniplanar and biplanar receive arrays were used, with an insertable custom phase compensation gradient coil used with the biplanar array. A 64 channel receiver system, built in-house, was used for demodulation and data acquisition for both SEA and highly accelerated, high resolution imaging. In SEA, phase encoding is completely eliminated, with spatial localization along the array elements replaced by the confined B1 patterns of the individual coil elements. RF excitation was accomplished using a custom parallel plate volume coil similar to that described by Marshall et al. (20). A sinusoidal x-gradient pulse at the same frequency as the applied vibration was added to a standard spin echo pulse sequence to provide motion sensitization. An analog output card controlled by a LabVIEW script (National Instruments, Austin, TX, USA) and triggered by the Varian spectrometer was used to generate the vibration signal, which was then amplified and connected either to an electromechanical actuator or to a speaker driving a pneumatic actuator via flexible tubing (21).

Processing of the data to extract MRE “wave images” from subtraction of phase images was performed offline using MATLAB (The MathWorks, Natick, MA, USA). Except for the heating measurements described below, phase subtractions using a single reference image acquired with the actuator disabled yielded sets of frames showing propagation of the transverse shear waves. The use of a reference phase image allowed for correction for any variations between channels due to the array coil or acquisition system. For SEA imaging, phase subtraction was done on a coil-by-coil basis, subtracting the phase angle of the 1D projection from each array element from the reference phase projection taken from the same coil. These phase difference projections were stacked in a matrix, giving a 2D wave image over the surface of the array. In high resolution imaging, the fully encoded sub-images from each array element were processed into 2D wave images via phase subtraction. Following a procedure similar to PILS (22), a rectangular window was applied to the phase subtraction image of each coil and these sub-images were stacked in a matrix covering the entire FOV of the array. For a sinusoidal motion sensitizing gradient of amplitude G0 and N periods, each of duration T, the magnitude of the phase accrued by each voxel, ϕ0, due to cyclic motion of each isochromat with peak displacement ξ0 is given by

which allows calculation of quantitative displacement maps from the phase images.

Uniplanar array

Imaging with a uniplanar receive array coil was performed in a 33-cm magnet with a GE Acustar gradient coil and Techron 8600 amplifiers, with a TR of 3 s and TE of 30 ms. The long TR allowed the vibration to die out before the next acquisition. A 13 cm × 8.1 cm array of 64 planar pair coil elements, each 2 mm wide (23) was used to acquire SEA MRE wave images of a 10.3 cm × 7.5 cm phantom consisting of two concentrations of agar placed side by side, with the stiffer agar on the top as shown in Figure 1A. An acrylic plate was embedded in the agar and attached to an electromechanical actuator by a pivoting rod, with a bipolar 200 Hz x-gradient pulse used for motion sensitization. The time delay of the actuator was stepped by 138.8 µs upon each acquisition, corresponding to 10 degrees of the 200 Hz vibration. A small volume of agar was also placed over several array elements adjacent to the sample, serving as a stationary reference for correcting phase differences between the Varian scanner and the acquisition system. For harmonic MRE, eight periods (40 ms) of a 200 Hz vibration was applied to the sample. The wavelength was estimated by the distance between crests of the shear wave in the sample, which allowed calculation of the velocity of propagation. For transient MRE, a single period of a 200 Hz sine wave was supplied to the actuator. This allowed capture of the mechanical wave front as it propagated into and throughout the sample, allowing estimation of the velocity of propagation by following the wave front through successive frames. A rough estimation of shear stiffness was computed using

Figure 1 Magnetic resonance elastography (MRE) experimental setup with the 64-channel uniplanar receive array. An electromechanical actuator vibrates in the presence of the B0 field of the MR magnet. These vibrations are applied to an agar sample as transverse shear waves, which are captured using a motion sensitizing gradient. (A) The agar concentration in the top half of the sample is twice that of the bottom half; (B) (actuator not shown) a heat source is positioned 1 cm above a uniform concentration of agar for assessment of changes in mechanical properties during and after heating.

where is the shear stiffness, is the velocity of propagation, and is the density, assumed as 1 g/cm3 (5).

Uniplanar array combined with a local heat source

An identical experimental setup was constructed with a uniform agar concentration (125 mL 0.1 g/L hydrated CuSO4 and 0.9 g of agar) for harmonic MRE measurements during heating. Thermal energy was derived from a standard 50 W/12 V halogen lamp, connected in series with two 1 Ω non-inductive resistors, needed to reduce the current and resulting force due to the magnetic field. The lamp was fixed 1 cm above the surface of the gel using a mechanical fixture, with location indicated in Figure 1B. The 200 Hz vibration source was activated 10 ms prior to the execution of the pulse sequence ensure that there were several shear waves in the gel during motion encoding, while not allowing standing waves due to reflections from the phantom walls. The vibrations were maintained for 30 ms or 6 time periods.

Because of physical changes in the phantom and its phase map due to heating, a single initial scan no longer provided an adequate phase reference for subtraction. Instead, each MRE wave image frame was constructed from a pair of phase images acquired using SEA with bipolar motion sensitizing gradient pulses of opposite amplitude. A 500 ms delay between acquisitions allowed the shear waves from the first acquisition to completely attenuate before the second acquisition began. This time was kept short to limit any heating between the acquisitions.

Biplanar array

Imaging using a biplanar or “sandwich” receive array to extend the FOV along the y direction was performed in a 40-cm magnet with a BFG 400/260 gradient coil (Resonance Research, Inc., Billerica, MA, USA) and QDCM1400 amplifiers (Performance Controls, Inc., Montgomeryville, PA, USA) with a TE of 30 ms. Two 65 mm × 70 mm arrays, each with 32 2-mm elements were employed to acquire MRE wave images from a 1% agar phantom approximately 1 cm thick and spanning the dimensions of the array, shown in Figure 2. A small “inclusion” with half the agar concentration of the surrounding material was also embedded to provide a region of slower velocity of propagation and shorter wavelength. Vibrations were supplied to the sample at 400 Hz via a pneumatic actuator, relying on mode conversion from the applied longitudinal waves to transverse shear waves (24). Motion sensitization was provided by a 400 Hz sinusoidal bipolar pulse added to the x-gradient at 11.72 G/cm. The time delay of the actuator was stepped by 125 µs upon each acquisition with a TR of 1 s. A spin echo pulse sequence, shown in Figure 3, was modified to include a custom 90º RF pulse which simultaneously excited two 0.75 mm slices separated by 7.5 mm for SEA imaging near the lower and upper surfaces of the sample. The slice selection gradient was disabled during the 180º pulse, allowing a standard sinc pulse to refocus both slices. Additional spoiling time was added to the frequency encoding gradient to mitigate the effect of stimulated echoes. The same biplanar array was used for highly accelerated high resolution MRE, with two 1-mm thick slices separated by 8.5 mm excited simultaneously and imaged using a 1.5 s TR. Five hundred twelve frequency encoding points and 64 phase encoding steps were employed for reduced FOV imaging from each array element (80 mm × 8.0 mm). These sub-images were assembled to form a high resolution image over the FOV of the entire array with voxel sizes of 156 µm × 125 µm.

Figure 2 MR elastography experimental setup with a 32×32 channel biplanar receive array placed below and above the sample in a “sandwich” configuration. A flexible tube guides the acoustic waves to the sample in the magnet, where they are applied to a small diaphragm. The applied longitudinal waves are converted to transverse waves, which are captured using a motion sensitizing gradient. The agar is not pictured, but the location of the half concentration inclusion is indicated. MR, magnetic resonance.

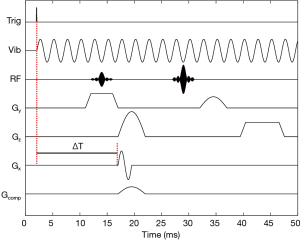

Figure 3 Pulse sequence used for MR elastography SEA imaging using a biplanar receive array. A trigger signal generated by the spectrometer with a stepped delay time ΔT initiates playback of the vibration waveform, which is amplified and provided to the actuator. A bipolar motion sensitizing gradient encodes cyclic displacements into the phase of the MR image, while a pulse from an insertable gradient coil compensates for the B1 phase gradient due to the RF coil array. A dual-band 90º pulse excites two slices simultaneously, while a standard 180º pulse without a slice selection gradient refocuses both slices. MR, magnetic resonance; SEA, single echo acquisition.

Insertable phase compensation gradient coil

Because the voxels in SEA imaging and some highly accelerated acquisition strategies are comparable to the dimension of the RF coils, the RF phase gradient due to the B1 pattern of the coil elements can result in significant signal cancellation. This can be understood as an offset in the center of k-space due to the RF coil phase gradient (25). In SEA, a “phase compensation” gradient pulse is used to impart a linear phase gradient across the voxels to counter the effect of the B1 phase gradient (15). With uniplanar arrays, this is accomplished by a brief pulse of the system gradient across the narrow dimension of the array coil elements. However, the B1 phase gradient varies with distance from the array and reverses sign depending on whether the array is placed above or below the sample, preventing SEA and highly accelerated imaging using both arrays simultaneously. To overcome this, an insertable biplanar nonlinear (x-, y-) gradient coil, shown in Figure 4, was employed to provide opposite phase compensation for both arrays (18). This coil was designed using a target field approach to produce a linear x-gradient, which also varies linearly in y. It is called a “nonlinear” gradient coil to differentiate it from the normal imaging gradients. The strength and duration of the gradient pulse are selected to achieve the desired phase gradient reversal depending on the coil element geometry and separation between the top and bottom arrays. For this biplanar array, the compensation gradient, denoted Gcomp in Figure 3, was configured for ±8.0 rad/cm over a 1 cm slab. An additional pulse may be added to the x-gradient axis to offset the location of the phase reversal plane if the sample is not centered vertically within the insertable gradient coil. Phase compensation was not necessary for the high resolution MRE images due to the smaller voxel sizes and less significant B1 phase gradient across each voxel.

Figure 4 Top view of the insertable biplanar nonlinear (x-, y-) gradient coil (A) and contour plots of the resulting phase gradient over a 1 cm thick sample in the x-y plane (B) and y-z plane (C). This coil generates a uniform x-gradient over planes parallel to the biplanar receive array surface, but with the gradient strength linearly reversing along y to provide opposite phase compensation to both sides of the array for simultaneous imaging of multiple slices.


Uniplanar array

Individual SEA MRE “wave images” from the harmonic and transient acquisitions using the uniplanar array are shown in Figures 5 and 6, respectively. In both scans, a total of 720 frames were acquired at a rate of one image per echo. In these images, a longer TR of 3 s was used to ensure damping of vibrations from the previous excitation, yielding a total scan time for each data set of 36 min. While use of a shorter TR would decrease the scan time, the use of recalled echoes could provide much greater acceleration, as discussed in the next section. The images show the wave front entering and propagating across the sample. Some bulk motion of the sample is also visible in the images. From the harmonic MRE experiment, the local wavelength in the upper half of the agar with double concentration was 2.4 cm, yielding velocity and shear stiffness estimates of 4.8 m/s and 23 kPa. In the lower region, the wavelength was 1.1 cm, yielding velocity and shear stiffness estimates of 2.2 m/s and 5 kPa. From the frames of the transient acquisition shown in Figure 6, the velocity in the upper half was approximately 4.0 m/s, while the velocity in the lower half was 2.9 m/s, yielding shear stiffness estimates of 16 and 8 kPa, respectively.

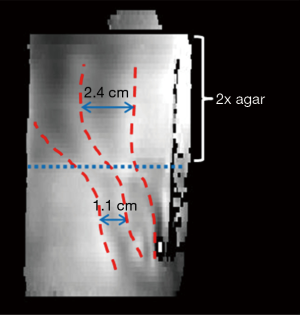

Figure 5 Frame 213 of the harmonic MRE acquisition using the uniplanar array allows determination of the regional wavelength for calculation of the shear stiffness. MRE, magnetic resonance elastography.

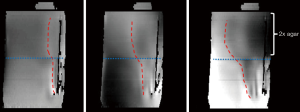

Figure 6 Frames 120, 156, and 192, spaced by 5 ms, of the transient MRE acquisition using the uniplanar receive array show the advancing transient shear wave. The velocity of the wave allows assessment of the local shear stiffness. MRE, magnetic resonance elastography.

Uniplanar array combined with a local heat source

A set of 2,950 MRE wave images (processed from 5,900 motion encoded image pairs) were obtained using SEA to capture harmonic transverse shear waves in the agar gel phantom as it was heated and subsequently cooled with each frame spaced by 2.5 s. Although the frames could have been captured at much higher temporal resolution, an interval of 2.5 s was adequate to capture changes caused by the low powered heating source. The 2,950 MRE wave images are classified into three zones. Zone I consists of the first 100 frames (250 s) obtained at room temperature. This allowed verifying the system stability and quantification of measurement errors. Zone II has 950 frames collected during heating (2,375 s), while Zone III was acquired with the warm gel cooling down, over a time period of 4,750 seconds. MRE images in Figure 7 depict the changing wavelength of the shear waves as time progressed and the gel grew warmer in Zone II and also as the gel cooled down in Zone III. Figure 8 shows the calculated wavelength of the shear waves during gel heating and cooling.

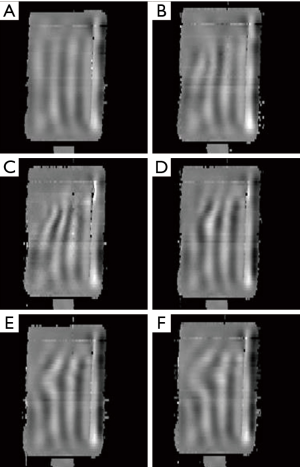

Figure 7 Shown are six images that correspond to time instances of (A) 2 min (at room temperature); (B) 23 min (warming, heat source is on); (C) 44 min (peak temperature, heat source is turned off); (D) 65 min (cooling); (E) 85 min (cooling); and (F) 106 min (cooling). The images are categorized under three zones; room temperature from t =0 to t =4.1 min (zone I), t =4.1 to t =43.8 min when the heat source is on (zone II) and t =43.8 to t =122.9 min with the heat source disabled (zone III).
Figure 8 MRE images during the warming trend are shown in (A-C), the phase profiles are shown for one particular row, the wavelength of the shear wave was obtained by measuring the spacing between the crests; (D) shows the estimated wavelength for all images collected during the warming and cooling phases. RO refers to the relative position along the frequency encoding (readout) direction. MRE, magnetic resonance elastography.

Biplanar array

SEA MRE wave image pairs acquired simultaneously from the bottom and top boundaries of the agar sample using the biplanar receive array and insertable phase compensation gradient are shown in Figure 9. The set of 240 time steps was acquired in 4 min, although this could have been reduced using a shorter TR, provided that the vibrations are allowed to decay between acquisitions. The frames were processed into quantitative displacement maps, indicating peak displacements of around ±25 µm. An emerging shear wave with notably shorter wavelength in the half-concentration agar inclusion in the upper right area of the images is visible. Because this inclusion was recessed somewhat from the top surface of the sample, there is a regional signal void in the frames captured from the top array. The same set of 240 time steps was acquired at a resolution of 156 µm × 125 µm × 1,000 µm using the same array, except with a TR of 1.5 s for a total scan time of 6.4 h. The TR was increased slightly to allow the acquisition system additional time to demodulate and store the data. Both of these limitations are discussed in the next section. While two slices were simultaneously excited and acquired for a total acceleration factor of 20, the gel had receded somewhat from the top array preventing reconstruction of the top images. While averaging is usually required for high resolution magnetic resonance imaging (MRI), the need was mitigated by the reduced noise detected by each array element. One frame of the high resolution MRE data set along with four additional sub-frames from the soft agar region is shown in Figure 10. When viewed as an animation, the emerging wave front can be discerned, while more complex wave motion in the half-concentration inclusion is apparent.

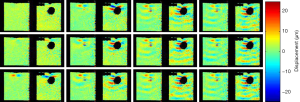

Figure 9 Quantitative displacement maps acquired using SEA MR elastography due to a 400 Hz acoustic wave entering the sample from the top as shown. Every 20th frame, representing a time step of 2.5 ms, of a set of 240 frames is shown. The left hand image within each frame was acquired by the bottom array while the right hand image was simultaneously acquired by the top array with the insertable gradient coil providing phase compensation. A region of signal void in the images acquired from the top array is due to a recession of the inclusion from the top surface of the sample. SEA, single echo acquisition; MR, magnetic resonance.
Figure 10 Frame 237 (left) of the set of 240 MRE wave images acquired from the lower half of the biplanar array at a resolution of 156 µm × 125 µm × 1,000 µm with 400 Hz vibration applied. The four sub-frames to the right show the wave images within the half-concentration agar region leading up to the large image frame, each separated by 500 µs. The shear wave emerging from the top of the sample is discernable in animations. MRE, magnetic resonance elastography.


While the acquired wave images were not processed into quantitative shear stiffness maps, a few of the possibilities of using high density receive arrays for both high speed and high resolution MRE were explored. The TR on the order of 1–3 s employed in these scans, which determines the frame rate of SEA imaging, was selected to ensure that all vibration from the previous acquisition had ceased before introducing a new vibration with the next stepped time offset. Despite this, scan times for multi-frame acquisitions were significantly reduced, which may be helpful when it is necessary to acquire many temporal offsets such as for transient MRE or in MRE of dynamic processes. As SEA has been demonstrated at one thousand frames per second using recalled echoes (19), a future area of interest is to apply this to MRE. By adjustment of the timing parameters, it has been shown that the motion sensitization inherent in the imaging gradients can also encode MRE (26). Extending this to SEA imaging would allow multiple images in each pulse train, allowing capture of several temporal offsets of a single wave front as it propagates across a sample. This will be further be enabled by a new, faster data acquisition system recently installed in the lab, which will reduce the need to use the longer TRs for data transfer and manipulation required by the system used in these studies. Together, these improvements would reduce the need for gated acquisitions with stepped temporal offsets and could be important for destructive or other non-repeatable testing. Another consideration in high speed MRE is the time required for motion encoding, resulting in temporal averaging of the shear wave position. At low frequencies, even a single bipolar gradient pulse will effectively average the wave motion over several milliseconds, which may be overcome through faster encoding. High resolution MRE presents the additional challenge that the resolution of the final elasticity maps are limited by the wavelength of the acoustic wave in the sample, and therefore by the acoustic driving frequency (27). Higher frequency acoustic waves not only require faster gradient switching, but their attenuation is also higher, limiting the FOV. It is hopeful that these and other challenges can be addressed through new acquisition strategies, in which high-channel-count and high-density arrays may play a part.


Funding: This work was partially supported by the NIH (1R21EB005695, 1R21EB007649).


Conflicts of Interest: The authors have no conflicts of interest to declare.
