Cortical morphological alterations and structural covariant network topology changes in children with acute lymphoblastic leukemia

Introduction

Acute lymphoblastic leukemia (ALL) is the most common childhood malignancy (1). Following the optimization and enhancement of treatment regimens, its 5-year survival rate now exceeds 90% (2), and children with ALL now represent the largest group of long-term survivors among pediatric cancer patients (3). To prevent the development of central nervous system (CNS) leukemia, children with ALL are treated with chemotherapeutic drugs via intrathecal injection. However, those undergoing chemotherapy are at risk of neurocognitive impairment. Previous studies have reported varying degrees of cognitive impairment, referred to as the cognitive delay effect (4) or chemotherapy-induced cognitive impairment (CICI), in adult ALL survivors (5).

ALL most commonly affects children between the ages of 1 and 5 years (6). Human brain development occurs rapidly before the age of 2 years (7), slowing after this period until adulthood (8). Exposure to various chemotherapeutic drugs during a critical developmental stage can cause neurocognitive impairment that can persist into adulthood (9). As the survival rate for children with ALL continues to improve (2), there has been a gradual increase in the number of survivors experiencing neurocognitive impairments such as attention deficits, working memory impairments, and processing speed difficulties (10). The incidence rates of neurocognitive impairments among ALL survivors are much higher than expected; approximately 17–54% of ALL survivors experience executive dysfunction affects, with attention deficit and task execution difficulties affecting up to 62% (11).

At present, there is no clear diagnostic method for CICI, which is primarily assessed by various cognitive scale scores. Cranial magnetic resonance imaging (MRI) can provide information on brain structure, metabolism, and function, offer a neuroimaging basis for its related mechanisms, and aid in the early diagnosis of CICI in ALL patients. However, the research conducted to date has some limitations. First, previous studies have largely focused on adult ALL survivors in Western countries. Due to racial, genetic, environmental, and cultural disparities, clinical data from Western populations may not be generalizable to Asian cohorts (12). Second, a common limitation of previous research on brain structure/function in ALL survivors is the prolonged interval between disease duration, treatment, and cognitive/functional imaging evaluation. Early post-chemotherapy brain changes in pediatric ALL patients may not be detected in the minimum 2-year chemotherapy course, and the effect of post-treatment confounders (e.g., education, economic, and family factors) cannot be excluded. Third, previous research has shown mild cognitive decline in pediatric ALL patients during chemotherapy remission (13); however, the focus on long-term survivors might have led to the optimal window for early detection/intervention of CICI being overlooked. Additionally, in brain development, cortical regions develop in coordinated trajectories, and regions with a common growth trajectory form a structural covariance network (SCN). The SCN is not only associated with the functional recognition system but also relates to the cognitive abilities of living organisms.

To address these limitations, this study sought to investigate cortical and SCN alterations during the early phase of chemotherapy in children with ALL, a period seldom explored in the previous literature. This study used surface-based morphometry (SBM) and SCN technology to identify the brain morphological characteristics of children with ALL, construct a SCN based on grey-matter (GM) volume, analyze characteristics of the topological structure based on human brain connect omics, and clarify changes in the brain SCN of children with ALL at the early stage of chemotherapy. Our findings provide an imaging monitoring approach for clinicians to detect CICI in children with ALL at an early stage, and an objective imaging basis for the early diagnosis and treatment of CICI in children with ALL. We present this article in accordance with the STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-24-2239/rc).

Methods

Patient population

The data of children with ALL diagnosed at Shenzhen Children’s Hospital from September 2020 to December 2022 were collected. All the children with ALL underwent two MRI examinations before chemotherapy, and achieved complete remission (CR) between days 46 and 52 of chemotherapy (a total of two times). The cranial MRI examination at post-chemotherapy days 46–52 (the induction therapy phase) was strategically timed to coincide with the CR assessment—a critical factor in deciding between consolidative therapy intensification and salvage regimens (e.g., immunotherapy regimens). The treatment regimen and drug dose were determined according to the guidelines of the Chinese Children’s Cancer Group-Acute Lymphoblastic Leukemia Multicenter Collaborative Group-2020 (CCCG-ALL-2020) (14). None of the participants received radiotherapy.

In total, 47 newly diagnosed children with ALL were enrolled in the study; eight patients were excluded under the exclusion criteria due to CNS leukemia (n=4) and abnormal signals on the baseline MRI scan (n=4). On days 46–52 of the follow-up period, 11 patients were unable to or refused to attend follow-up (e.g., severe infection and granulocytopenia). In total, 28 children with ALL were followed-up, and two children were excluded due to poor image quality. Ultimately, 26 children with ALL were included in the study (Figure 1).

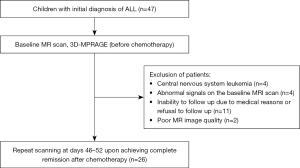

Figure 1 Flowchart of patient inclusion in the study. 3D-MPRAGE, three-dimensional magnetization-prepared rapid acquisition gradient echo sequences; ALL, acute lymphoblastic leukemia; MR, magnetic resonance; MRI, magnetic resonance imaging.

Inclusion and exclusion criteria

Children were included in the study if they met the following inclusion criteria: (I) were right-handed and aged 2–12 years; (II) had been diagnosed with ALL (confirmed by bone marrow biopsy); (III) were receiving chemotherapy according to the guidelines of the Chinese Children’s Cancer Group-Acute Lymphoblastic Leukemia Multicenter Collaborative Group-2015 (CCCG-ALL-2015) or CCCG-ALL-2020 (ClinicalTrials.gov identifier: ChiCTRIPR-14005706 and ChiCTR2000035264); and (IV) were aware of and consented to this study, as did their guardians.

Children were excluded from the study if they met any of the following exclusion criteria: (I) did not achieve CR after the first induction phase; (II) had CNS leukemia (excluding the effects of ALL itself); (III) had abnormal signals on the baseline MRI scan or neurocognitive disorders (excluding those caused by other coexisting diseases); (IV) had received drugs or radiation therapy that could affect their brain structure or function; (V) had undergone MRI enhancement examinations not less than 4 times (after accounting for the potential influence of gadolinium deposition); and/or (VI) had MRI images that did not meet the experimental requirements in terms of quality.

The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. The study was approved by the Research Ethics Committee of Shenzhen Children’s Hospital, and informed consent was obtained from all patients’ guardians.

Brain magnetic resonance (MR) protocol

Siemens MAGNETOM Skyra 3.0 Tesla MRI System was used to perform the craniocerebral scanning. Each child was positioned supine with the head fixed in an 8-channel orthogonal head and neck coil to reduce motion artifacts. All the patients and/or their guardians were informed of the main procedure of the experiment, scanning time, and precautions prior to the examination. Uncooperative patients received 10% chloral hydrate (0.5–1.0 mL/kg orally) or enema sedation 30 minutes before examination (total dose <10 mL), and were examined while sleeping. The scanning range was the entire brain, and the three-dimensional positioning method was used. Axial T1-weighted imaging (T1WI), T2-weighted imaging, T2-fluid-attenuated inversion recovery, and sagittal T1WI scans were performed. Sagittal scans were performed using T1WI three-dimensional magnetization-prepared rapid acquisition gradient echo sequences (3D-MPRAGE), with the scanning parameters as follows: pulse repetition time/echo time =14 ms/2.26 ms, field of view = 256 mm × 256 mm, flipping angle =25°, thickness =1 mm, layer spacing =0 mm, matrix =256×192, and acquisition time: 3 minutes and 48 seconds.

MRI data processing

MATLAB2018b software was used to process the 3D-MPRAGE data using the Computational Anatomy Toolbox 12 (CAT12) toolkit in the Statistical Parametric Mapping 12 software. The statistical parametric mapping processing steps included: (I) manual correction of the anterior commissure and posterior commissure; (II) spatial normalization using differential anatomical registration through exponentiated lie algebra (based on the Montreal Neurological Institute 152 template); (III) brain tissue segmentation using the Automated Anatomical Labeling 90 (AAL90) template, whereby each image was automatically segmented into GM, white matter (WM), and cerebrospinal fluid based on the Gaussian mixture model and the naive Bayes formula. The standard brain template was developed by the team of Professor Yong He (15) of the Laboratory of Cognitive Neuroscience and Learning of Beijing Normal University (https://www.nitrc.org/projects/chn-pd), and children with grade C or below segmentation quality were excluded; (IV) extraction of cortical morphology, including four cortical morphological indicators: cortical thickness, sulcus depth, gyrification index, and fractal dimension (i.e. cortical complexity); (V) resampling and smoothing in which the cortical morphological indicators were smoothed following segmentation. The cortical thickness was smoothed by 15 full widths at half maxima (FWHM), and the sulcus depth, gyrification index, and fractal dimension were smoothed by 20 FWHM [as recommended by the Computational Anatomy Toolbox-CAT12 Manual (16)]; and (VI) definition of 90 cortical and subcortical regions based on the AAL90 template. These regions were set as voxel-based morphometry regions of interest (ROIs). The GM volume and the total intracranial volume (TIV) of the 90 ROIs in the children with ALL were extracted before and after chemotherapy.

For the SCN construction, the graph analysis software Graph Analysis Toolbox (GAT) (17) was used to calculate the Pearson’s correlation coefficients between the volumes of the 90 ROIs defined by the AAL90 template to construct a 90×90 correlation matrix, and TIV was included as a covariate to account for inherent differences in brain parenchyma volume across individuals via linear regression. The minimum edge density was set to 0.1, and the maximum edge density was set to 0.5 [as an edge with a density greater than 0.5 was considered abiotic (17)]. The SCN binary matrix threshold was set within this density range (0.1–0.5, interval: 0.02).

Statistical analysis

Comparisons between the two groups were performed using the basic statistics models of the built-in SBM statistical analysis toolkit in CAT12. The paired t-test was used to compare differences in cortical thickness, sulcus depth, cortical folds, and fractal dimension. A voxel-wise threshold of P<0.001 (uncorrected) was applied, followed by cluster-level family-wise error (FWE) correction via permutation testing (cluster size ≥50 voxels, and P<0.05). This approach was employed to balance false-positive control and sensitivity to spatially extended effects. A difference between two groups was considered statistically significant when the cluster size was ≥50 and the P value was <0.05 (FWE corrected). The network metrics of the children with ALL before chemotherapy and after they achieved CR on days 46–52 of chemotherapy were compared and analyzed using the GAT toolkit. A permutation test (re-randomly ordered 1,000 times) was used to generate a virtual distribution to compare the differences in global and local network attributes between the two groups of children with ALL before and after chemotherapy. A P value <0.05 indicated a statistically significant difference. When calculating the local network attributes, the false discovery rate multiple comparison was used for correction (18).

Results

In total, 26 children with ALL were enrolled in the study. The children had an average age of 7.07±3.09 years. Of the children, 15 were male and 11 were female, and all were ethnic Chinese. All therapeutic regimens were administered according to the CCCG-ALL-2015 or the CCCG-ALL-2020 guidelines from the Chinese Children’s Cancer Group.

Cortical morphometry

Cortical thickness

The bilateral cerebral multiple cortical thickness of the patients was thinner before chemotherapy than on days 46–52 of chemotherapy. The regions with reduced cortical thickness in the left cerebral hemisphere included the superior frontal, medial orbitofrontal, paracentral, rostral middle frontal, pars opercularis, pars triangularis, caudal middle cingulate, precentral, superior parietal, supramarginal, middle temporal, inferior temporal, lateral occipital, and fusiform areas. The regions with reduced cortical thickness in the right cerebral hemisphere included the superior frontal, middle frontal rostral, paracentral, postcentral, superior parietal, supramarginal, cuneus, lateral occipital, medial orbitofrontal, anterior rostral cingulate, anterior caudal cingulate, posterior cingulate, lingual, precuneus, cuneus, and pericalcarine areas (cluster size ≥50, P<0.05, FWE corrected; Figure 2A). A line chart of the changes in the cerebral cortex in the children with ALL is detailed in Figure S1.

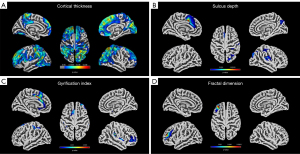

Figure 2 The brain regions with statistically significant differences in the cortical morphology between children with acute lymphoblastic leukemia before chemotherapy and on days 46–52 of chemotherapy are shown in color (A-D). Cluster size ≥50, P<0.05 (family-wise error corrected). The brain segmentation method used the AAL90 template. The standard brain template was developed by Professor Yong He’s team at Beijing Normal University (https://www.nitrc.org/projects/chn-pd); subjects with segmentation quality ≤ grade C were excluded from the study. AAL90, Automated Anatomical Labeling 90.

Sulcus depth

Compared to the depths before chemotherapy, the depths of the sulcus of the left superior frontal, caudal anterior cingulate, and rostral anterior cingulate, the right postcentral, superior parietal, supramarginal, inferior parietal, lateral occipital, precuneus, insula, and transverse temporal areas were shallower in the children with ALL who achieved CR on days 46–52 of chemotherapy (cluster size ≥50, P<0.05, FWE corrected; Figure 2B).

Gyrification index

Compared to that before chemotherapy, the gyrification index of the left superior frontal, rostral anterior cingulate, caudal anterior cingulate, postcentral, superior parietal, right supramarginal, insula, middle rostral frontal, orbitofrontal, pars triangularis areas was lower in the children with ALL who achieved CR on days 46–52 of chemotherapy (cluster size ≥50, P<0.05, FWE corrected; Figure 2C).

Fractal dimension

Compared to that before chemotherapy, the fractal dimension of the left rostral middle frontal area was smaller in the children with ALL who achieved CR on days 46–52 of chemotherapy (cluster size ≥50, P<0.05, FWE corrected; Figure 2D).

Global SCN connectivity

The SCN binary matrix was based on the GM volume before and after chemotherapy in the children with ALL (Figure S2). All the children conformed to the small world network attributes before and after chemotherapy; that is, γ (gamma) >1, λ (lambda) ≈1, σ (sigma) >1 (19). In the density range (0.1:0.02:0.5), the overall distributions of the γ, λ, and σ parameters of the children with ALL after chemotherapy were slightly lower than those before chemotherapy, but there were no statistically significant differences between the γ (P=0.655), λ (P=0.660), and σ (P=0.773) parameters (Figure 3A-3F). The overall distribution of the global attribute metrics clustering coefficient (Cp), local efficiency (Eloc), and modularity after chemotherapy were also lower than those before chemotherapy, and the coordination distribution was more irregular after chemotherapy than before chemotherapy. However, there were no statistically significant differences between other parameters, including the Cp (P=0.159), Eloc (P=0.325), characteristic path length (P=0.522), global efficiency (Eg; P=0.702), assortativity (P=0.956), transitivity (P=0.753), and modularity (P=0.628). Distribution maps and difference maps between the groups in terms of global network parameters are shown in Figure 3G-3T.

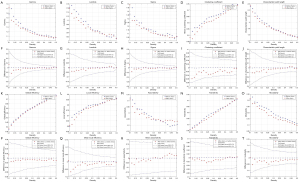

Figure 3 The distribution and intergroup differences of the small world parameters and global network parameters in children with acute lymphoblastic leukemia before and after chemotherapy (A-T). Cluster size ≥50, P<0.05, family-wise error corrected. Brain tissue segmentation was performed according to the Automated Anatomical Labeling 90 template. The standard brain template was drawn by Professor Yong He’s team at the Laboratory of Cognitive Neuroscience and Learning of Beijing Normal University (https://www.nitrc.org/projects/chn-pd); subjects with segmentation quality ≤ grade C were excluded from the study. After chemo, after chemotherapy; Before chemo, before chemotherapy; CI, confidence interval.

Local connectivity and hubs

Degree (Deg) and betweenness (Bet)

Compared with the values before chemotherapy, the Deg in the left supplementary motor area (LSMA; P=0.029) increased, and the Bet in the left precuneus (LPCUN) decreased (P=0.034) in the children with ALL on days 46–52 of chemotherapy (Figure 4). The Deg distribution of the children with ALL before chemotherapy showed peak values of 33 and 49. On days 46–52 of chemotherapy, the Deg distribution of children with ALL showed peak values of 49 and 65 (Figure S3).

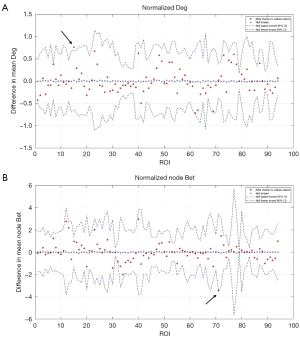

Figure 4 The difference maps of local network properties (including Deg and Bet) before and after chemotherapy in children with ALL. The arrow in (A) shows an increased Deg in the LSMA in children with ALL after chemotherapy (P=0.029). The arrow in (B) shows that Bet in the LPCUN decreased in children with ALL after chemotherapy (P=0.034). After chemo, after chemotherapy; ALL, acute lymphoblastic leukemia; Before chemo, before chemotherapy; Bet, betweenness; CI, confidence interval; Deg, degree; LPCUN, left precuneus; LSMA, left supplementary motor area; ROI, region of interest.

Hubs

The Hubs of the children with ALL before and after chemotherapy were constructed based on the Deg and Bet, respectively. In relation to the Deg, 16 core nodes were identified before and after chemotherapy, respectively, which constituted distinct sets. In relation to the Bet, there were 13 and 15 core nodes before and after chemotherapy, respectively. The specific nodes are shown in Table 1 and Figure 5.

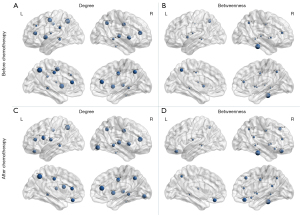

Figure 5 Brain graphs based on degree and betweenness in children with acute lymphoblastic leukemia before and after chemotherapy (A-D). ACC, anterior cingulate & paracingulate gyri; IFGoperc, inferior frontal gyrus-opercular part; INS, insula; IOG, inferior occipital gyrus; ITG, Inferior temporal gyrus; L, left; MCC, middle cingulate & paracingulate gyri; MFG, middle frontal gyrus; MTG, middle temporal gyrus; OLF, olfactory cortex; PAL, lenticular nucleus-pallidum; PCC, posterior cingulate gyrus; PCUN, precuneus; PreCG, precentral gyrus; PUT, lenticular nucleus-putamen; R, right; REC, gyrus rectus; ROL, Rolandic operculum; SFGmedial, superior frontal gyrus-medial; SMG, supra marginal gyrus; STG, superior temporal gyrus.

Discussion

During CR on days 46–52 of chemotherapy, the children with ALL exhibited morphological changes in the cerebral cortex, characterized by the widespread thinning of the bilateral cortex. The bilateral frontoparietal lobes were the most susceptible brain regions for CICI among children with ALL. In the structural network of local network properties, the children with ALL showed an increased Deg in the LSMA, and decreased Bet in the LPCUN, along with an altered distribution and number of Hubs, indicating concurrent changes in cortical morphology and topological properties on days 46–52 of chemotherapy.

The potential mechanism of CICI in children with ALL has not been fully clarified. Possible pathophysiological mechanisms include inflammation (4,20), oxidative stress (21-23), neuronal excitatory toxicity (24), and metabolic disorder of the folate pathway (20). In this study, the bilateral frontal lobe was more easily involved in the gyrification index of children with ALL. The decrease in the gyrification index suggests that the neuronal microstructure in these areas of the brain had been damaged when CR was achieved in the early stage of chemotherapy, and the local connectivity between the cortices had changed. Due to the late development of the frontal lobe, the highly metabolic frontal lobe may be more vulnerable to damage by chemotherapeutic drugs. Further, the frontal lobe is closely related to executive function, which may explain why the frontal lobe and executive function are among the most vulnerable brain regions and cognitive functions, respectively (25). In this study, cortical morphological changes were observed in multiple brain regions comprising the medial prefrontal cortex. The medial prefrontal cortex has been shown to be crucial in cognitive processes, emotional regulation, motivation, and social ability, and has been found to be impaired in a variety of diseases such as depression, anxiety, heroin addiction, and schizophrenia (26).

The children with ALL displayed the characteristics of a small world network, and no statistically significant differences in the γ, λ and σ parameters were observed before and after chemotherapy. Although there were no statistically significant differences between the parameters of the global network attributes, in terms of the overall distribution curve of the parameters, the curve distribution of Cp, Eloc, and modularization was lower after than before chemotherapy, and the overall distribution characterizing functional integration was more irregular after than before chemotherapy, which may explain why the children with ALL only showed mild cognitive impairment (13). However, by comparing 31 ALL survivors and 39 matched control subjects, Kesler et al. showed that the small world parameters and the Cp of the ALL survivors were lower (27), and the patients receiving chemotherapy exhibited potential reductions in regional connectivity and SCN efficiency (28). Zou et al. (29) also reported that the small world parameters and Cp of children with ALL were significantly lower, and the cognitive impairment of children with ALL with network damage was more serious. If the connection of brain regions cannot be effectively or fully used, it is more difficult to have a complex, highly isolated, and intensively integrated structural network. Thus, chemotherapy may lead to an imbalance in the functional integration and functional separation of the brain network in ALL survivors. No statistically significant differences were found among the parameters of the global network attributes in the early stage of chemotherapy in the children with ALL; however, this may be due to the short follow-up interval, small sample size, or threshold effect. Thus, future studies should increase the sample size and follow-up time to further monitor dynamic changes in children with ALL.

This study found that the Deg value of the LSMA increased after chemotherapy in the children with ALL. The supplementary motor area (SMA) complex is located in the posterior part of the superior frontal gyrus, and is surrounded by the cingulate gyrus, the anterior central gyrus, and the superior frontal gyrus (30). Neuroimaging has confirmed that the most obvious symptoms of SMA damage are contralateral movement and speech defects, and that the SMA is involved in the cognitive process of working memory (31), executive function, and processing speed (32). The Deg increased in the SMA, which may reflect enhanced motor planning efficiency for sequential movements. This finding aligns with the known role of the SMA in coordinating complex motor sequences, and supports the hypothesis that task difficulty modulates motor cortical recruitment (33). Recent studies have confirmed that the LSMA is related to auditory sound integration (34) and auditory motor control (35), which suggests that children with ALL may have hearing impairment after chemotherapy. Thus, future studies should not only focus on cognitive impairment, but should also examine auditory function in children with ALL. The Bet value of the LPCUN in the children with ALL after chemotherapy was significantly reduced, indicating that the LPCUN network connection was sparser after chemotherapy, the integrity of the WM was lower, and the integration of the brain network was reduced. Thus, the communication efficiency between the LPCUN and other regions was lower, and the information transmission pathway was longer.

The Deg distribution changed after chemotherapy in the children with ALL, and the maximum value of the Deg distribution increased. This may be due to the existence of a compensatory mechanism. Because the function of brain areas was damaged by chemotherapy, higher Degs (i.e., more edges between the brain areas) were needed for compensation. For example, the Rolandic operculum is a brain area composed of a variety of cells. It is widely connected to other brain regions and is involved in many complex functions, including sensory, motor, autonomic, cognitive, and language processing (36). As shown in this study in relation to both the Deg or Bet, the left Rolandic operculum (lROL) was one of the core nodes in the children with ALL. In a structural network, high node-Bet centrality indicates high connectivity and potential involvement in numerous functional interactions (28). In the children with ALL, the number of Hubs increased during the CR stage of Bet-based chemotherapy, among which the left gyrus rectus and right gyrus rectus were new Hubs. The gyrus rectus is located on the medial ventral surface of the frontal lobe, forming the prefrontal cortex area, which belongs to the Brodmann 11 area. It is involved in cognitive function, thinking, and perceptual function, together with other prefrontal cortex functions, including memory, recall, problem solving, and emotion, which is consistent with the high incidence of executive function impairment in ALL (37,38).

Similar to the speculations in this study, other scholars have conjectured that there may be some neurological compensation or reorganization in ALL survivors (22), and that the brain areas of child survivors undergo compensation and functional remodeling after chemotherapy (39). Compared with ALL control subjects with low glucocorticoid receptor expression, ALL survivors with high glucocorticoid receptor expression showed increased mean Eg in the bilateral cerebellar-thalamic-cortical network (37). Among them, ALL survivors with executive dysfunction exhibited even higher Eg in this network, suggesting that executive dysfunction in ALL survivors may be associated with a compensatory mechanism (37). Children with elevated early-life adversity exposure exhibit an accelerated brain developmental trajectory during the preschool years (40). Upon early-life adversity exposure, the brain adapts to adverse environments by accelerating its developmental pace, a process that may increase the risk of poor cognitive and mental health outcomes (40).

Notably, the SCN, which typically calculates inter-regional connections based on correlation coefficients, can only reflect the consistency of change direction between brain regions, and thus lacks directional information. Additionally, the SCN can only reflect the structural covariance relationships between brain regions at a specific time point or period, and thus cannot capture dynamic changes in brain structure and function across a temporal dimension, and thus lacks temporal information. Besides, SCN construction assumes that patterns of brain structural changes are similar among individuals; however, in reality, interindividual variations exist, which may affect the accuracy of the SCN in reflecting inter-regional relationships.

Long-term ALL survivors receiving chemotherapy alone exhibit brain structural and functional alterations, including reduced microstructural WM integrity in frontal regions and lower brain network efficiency (29,41), as well as late lifelong neurocognitive effects. However, previous studies have primarily focused on adult ALL survivors, failed to control for post-treatment confounders (e.g., educational and economic factors), and might have missed early brain changes after chemotherapy in children with ALL, thus overlooking the early treatment window for CICI. Consistent with multiple previous studies, chemotherapy-induced damage to the GM volume and morphology was observed in children with ALL. However, prior brain network research mainly focuses on resting-state functional brain network alterations and WM fiber-based network changes. By integrating cortical morphology and the GM-based SCN, this study found early cortical damage and topological property changes in the children with ALL during chemotherapy. Therefore, future research should prioritize the early chemotherapy phase in children with ALL, potentially enabling early interventions—especially for children at high risk of CICI or those with existing neurocognitive impairment—to improve their long-term quality of life.

Limitations

Because ALL primarily affects children aged 1–5 years, the participants in this study were relatively young. Although the follow-up period in this study was short (only 46–52 days post-treatment), and brain myelination develops slowly after 2 years (42), the influence of myelination cannot be completely excluded. Future research will include dynamic follow-ups of children with ALL at multiple time points. The lack of a healthy control group and the contemporaneous cognitive ability assessment of children with ALL were also limitations of this study. Although cross-sectional studies have suggested the cognitive test results of children with ALL before chemotherapy are no different from those of their peers (13,43), this study excluded children with CNS leukemia and abnormal signals on the baseline MRI examination. However, this study could not completely exclude the influence of ALL itself on the brain.

Conclusions

In children with ALL achieving CR at chemotherapy days 46–52, the bilateral frontoparietal and right insular cortices exhibited the most pronounced thinning, accompanied by an altered structural network topology (an increased LSMA Deg, reduced LPCUN Bet, and Hub redistribution). These topological alterations, which could be driven by heightened Deg distribution and Hub reorganization, may underlie compensatory neural restructuring and serve as preclinical biomarkers for CICI. Despite a lack of contemporaneous neurocognitive data, this study highlights SCN remodeling as a potential CICI mechanism. Future longitudinal investigations with comprehensive cognitive assessments need to be conducted to validate these findings.

Acknowledgments

None.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-24-2239/rc

Data Sharing Statement: Available at https://qims.amegroups.com/article/view/10.21037/qims-24-2239/dss

Funding: This work was supported by Natural Science Foundation of Shenzhen City (grant No. JCYJ20220530155607018), the Sanming Project of Medicine in Shenzhen (grant No. SZSM202011005) and Guangdong High-level Hospital Construction Fund (grant No. ynkt2021-zz13).

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-24-2239/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. The study was approved by the Research Ethics Committee of Shenzhen Children’s Hospital and informed consent was obtained from all subjects’ guardians.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
