Comparison of brain volumetry in patients with non-lesional epilepsy on 3 and 7 T MPRAGE

Introduction

Magnetic resonance imaging (MRI) is integral to the diagnosis and management of epilepsy, with a primary focus on identifying potential epileptogenic lesions. While reductions in brain volume play a comparatively minor role in diagnosis, they can nonetheless serve as indicators of structural abnormalities that may act as both a cause and a consequence of epilepsy, which is considered a network disorder (1,2).

As evidenced by previous studies, higher magnetic field strengths have been shown to enhance lesion detection (3,4). Ultra-high field MRI at 7 T offers superior signal-to-noise ratio and spatial resolution (5), which is expected to significantly enhance volumetric analysis compared to 3 T MRI. However, higher field strength also brings increased B0- and B1-inhomogeneities, altered relaxation behavior for both T1-weighted and T2-weighted images, and increased specific absorption rates (6,7), resulting in artifacts and image inhomogeneities at 7 T. In the latest generation of ultrahigh field MRI, efforts to mitigate such artifacts include the use of parallel transmission technology (8), which was not available at the beginning of our study.

FreeSurfer (9) is a standard tool for volumetric brain assessment in imaging research, especially in dementia diagnostics (10). FastSurfer (11) is a deep-learning-based alternative to FreeSurfer, capable of replacing major components of the FreeSurfer pipeline while significantly reducing runtime.

The use of toolboxes and frameworks, e.g., unified segmentation (12), from external programs like SPM12 is often preferred for pre-processing and even recommended in the 2015 FreeSurfer documentation (https://surfer.nmr.mgh.harvard.edu/fswiki/HighFieldRecon). These settings can influence volumetric results, making an inbuilt standardized process preferable. Since both FastSurfer and FreeSurfer have built-in pre-processing pipelines for skull stripping and N4 bias correction that are continuously optimized, and considering that the recommendations in the FreeSurfer documentation are nearly 10 years old, we consciously decided to forgo external pre-processing.

Our objective was to evaluate these approaches (FreeSurfer vs. FastSurfer across 3 and 7 T) in a routine clinical setting, including scans of medium quality. Since brain atrophy can often be detected in epilepsy, volumetry may provide direct and indirect clues to the origin (13) when compared to healthy controls, which are being examined in our ongoing studies. For methodological reasons, we first focused on assessing the feasibility of FreeSurfer and FastSurfer at both 3 and 7 T MRI. Since the hippocampus and amygdala also plays an important role in research, we additionally tested the FreeSurfer hippocampus scripts on the FreeSurfer as well as FastSurfer segmentations.

Figure 1 demonstrates an example of coronary T1-weighted and T2-weighted images of 3 and 7 T MRI.

Figure 1 Introduction example (FreeSurfer segmented T1-weighted MPRAGE images; ASEG, thalamus and hippocampal subfield segmentation). (A,C) 3-Tesla MRI; (B,D) 7-Tesla MRI. (A,B) Coronary and (C,D) sagittal view of the hippocampal plane.

Methods

Study design

This study is a retrospective analysis of prospectively collected data. The study was ethically approved by the institutional review board of the University of Magdeburg (Leipziger Str. 44, D-39104 Magdeburg, Germany, No. 100/24) and was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. The institutional review board waived the requirement for informed consent because of the retrospective nature of the study. Patients had previously consented to a secondary evaluation of their MRI data. All methods were performed in accordance with relevant guidelines and regulations.

Participant population

Seventeen patients with non-lesional epilepsy diagnosed via 3 T MRI were included in the study. The patients are a subgroup of a prospective study by Kukhlenko et al. (14).

The primary inclusion criterion was the availability of 3D T1-weighted MPRAGE scans at both 3 and 7 T. The exclusion criterion was the failure of segmentation using FreeSurfer or FastSurfer on the 3 T or 7 T MPRAGE data.

MRI protocol and technical details

We performed protocols optimized by MRI physicists on the PRISMA 3 T and MAGNETOM Terra 7 T (Siemens Healthineers AG, Werner-von-Siemens-Str. 1, 80333 Munich, Germany).

The 3D T1-weighted-MPRAGE with an isotropic voxel-size of 0.7 mm × 0.7 mm × 0.7 mm was performed on 3 T (TR 2,000 ms, TE 2.3 ms) and 7 T (TR 2,500 ms, TE 2 ms). The mean interval between the 3 and 7 T scans was 11.4±23.2 days (mean ± standard deviation). The acquisition times for T1-weighted-MPRAGE were 277 seconds at 3 T and 599 seconds at 7 T. GRAPPA acceleration was used for 3 T data only and B1 shimming as well as TR-FOCI for 7 T data. Additionally, a transition from Tx1/Rx32 coils to Tx8/Rx32 coils was implemented during the course of the study. Further details regarding the scan parameters can be found in Table S1.

We additionally evaluated coronal T2-weighted STIR sequences (TR 5,390 ms, TE 25 ms, 0.4 mm × 0.4 mm resolution, 1.75 mm slice thickness) on 3 T; and coronal T2-weighted TSE sequences (TR 7,500 ms, TE 88 ms, 0.4 mm × 0.4 mm resolution, 1.75 mm slice thickness) on 7 T.

Standard pre-processing

We did not also use skull stripping because our focus was on the hippocampal regions. We initially did not perform any external bias correction. We only used the standard N4 bias correction (“ANTS N4 bias correction”) of FreeSurfer or the slightly modified standard correction of FastSurfer (15).

Additional pre-processing pipeline

Finally, we aimed to assess the extent to which an additional N4 bias correction influences the results. To assess the isolated effect of our own N4 bias correction, we applied it during pre-processing without disabling the standard bias correction routines in FreeSurfer and FastSurfer. Our method was implemented as follows: Bias field estimation was performed using the N4 algorithm (16), which derives the bias field directly from the image. The correction was applied with a spline order of 3, a control point grid size of 4×4×4, a full width at half maximum (FWHM) of 0.15, and a convergence threshold of 0.00001. Following bias correction, skull-stripping was carried out using SynthStrip (17).

Volumetric assessment

We ran FreeSurfer (Version 7.4.1) as well as FastSurfer (Version 2.3.0) on T1-weighted-MPRAGE data of 3 T and 7 T MRI, and calculated Automated Segmentation (ASEG) (18) and Desikan-Killiany-Tourville (DKT) (19) atlas volumes. Additionally, we measured subvolumes of hippocampus and amygdala using a dedicated FreeSurfer script (20-22) with and without additional T2-weighted data. We used the FreeSurfer Version 7.4.1 with additional head, body, tail (FS60) parcellation (23). FS60 mimics the FreeSurfer 6.0 hippocampal module and therefore allows for improved comparability. Additionally, we volumetrically assessed the thalamic nuclei and the brain stem with the standard FreeSurfer script (24,25).

Quality assessment

We initially checked the FreeSurfer results for failed segmentations.

For the comparison of the quality of the eight hippocampal segmentations, we conducted a rating of the anatomic regions. We used the FreeSurfer segmentation of the 3 T T1-weighted-MPRAGE without T2-weighted data as the standard for visual comparison and set the quality rating to a fixed value of three. Visual assessment was performed by a neuroradiologist with 6 years of training and a research assistant using the schema in Figure 2 including criteria for manual segmentation from Iglesias et al. (20). Raters scored on a Likert scale from 1 to 5. Differences in a primary criterion were rated either 1 or 5, and in a secondary criterion either 2 or 4, depending on whether the comparative scan was worse (<3) or better (>3) than 3 T T1-weighted MPRAGE.

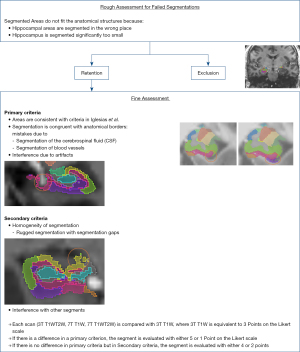

Figure 2 Schema of visual assessment.

We compared the hippocampal standard segmentation with the three remaining FreeSurfer and four FastSurfer segmentations for all patients.

Statistical analysis

We used Python3 (Version 3.9.18, Matplotlib, nibabel) for statistical programming (partially), for extracting and converting data from FastSurfer and FreeSurfer output files into Excel formats as well as the voxel-wise calculation of Dice coefficient. Basic statistical analyses were performed using R (Version 4.4.2.; Packages: lme4, lmerTest, broom.mixed, performance, emmeans). We used a mixed linear model with patient and region as random effect, setting FreeSurfer as reference. Analysis on individual region level was performed using separate linear mixed models. Additionally, we applied Bonferroni’s correction (26) for multiple testing. The significance level was set to 5%, the adjusted significance level to 0.1%.

As baseline analysis, we compared 216 regions, including ASEG, DKT, Hypothalamic, Amygdalar, and Thalamic nuclei segmentations, for both 3 and 7 T acquisition datasets.

Calculation of Dice-coefficients between ASEG+DKT segmentation in FastSurfer and FreeSurfer for both 3 T and 7 T was performed for each region using:

DSC=2×|A∩B||A|+|B|[1]

For the analysis of variance (ANOVA), the R programming language (R Core Team, version 4.2.2) was used together with relevant packages (“stats”) and the commands “aov” and “TukeyHSD” for Tukey’s Honestly Significant Difference (HSD) post hoc test. We compared the four segmentations (3 and 7 T T1-weighted only, 3 and 7 T T1-weighted plus T2-weighted) of the hippocampus with an repeated measures ANOVA using Tukey’s test (27). We calculated the intraclass correlation coefficient (ICC) and estimated the 95% confidence intervals with R as well (packages irr, readxl, lpSolve and psych).

Additionally, we used the coefficient of variation (CV) (28,29) and Cohen’s d (30) to assess inter-scanner reliability.

Results

Participants

From the original cohort of 17 patients, we had to exclude one patient due to an incomplete MR protocol and an additional three patients due to severe artifacts. FreeSurfer or FastSurfer segmentation failed in 2 out of the remaining 13 patients (one for each). In two additional patients, both segmentation methods failed. These four patients were therefore excluded due to substantial segmentation errors. Thus, 9 out of the 13 remaining patients were included in the final evaluation. The inclusion flow chart is shown in Figure 3.

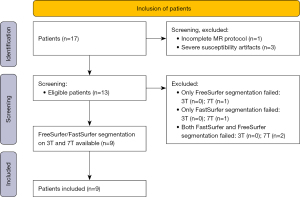

Figure 3 Inclusion flow chart.

Figure 4 demonstrates examples of both successful and failed FreeSurfer segmentations at 7 T.

Figure 4 Example of a failed segmentation of the left temporal lobe on 7 T. Yellow arrows point at small cortical fail segmentations. Orange arrows point at the hippocampal region. Green arrows point at the fail segmentation of hippocampal subfields and amygdala.

The mean age of the finally included nine patients with non-lesional epilepsy was 31.3±8.3 years. Electroencephalography (EEG) revealed a left temporal focus in three patients, a mixed left/right frontal focus with right pronunciation in one patient, a right frontal focus in two patients and a right temporal focus in three patients.

Calculation time

The mean calculation time on a standard server (Ubuntu 22, Intel Core i7-11700, 8 Cores/16 Threads, 2.5GHz, 64 GB RAM, NVIDIA GeForce RTX3090, 10496 CUDA cores) of FreeSurfer/FastSurferVINN was 167/31 min (196/42 min) on 3 T (7 T). The time for the additional scripts ranged from 6 to 20 minutes (3 T: hippocampal subfields T1-weighted: 18 min; T1-weighted + T2-weighted: 6 min; brain stem: 6 min; thalamic nuclei: 11 min; 7 T: hippocampal subfields T1-weighted: 18 min; T1-weighted + T2-weighted: 6 min; brain stem: 6 min; thalamic nuclei: 11 min). It should be noted that FastSurfer leverages GPU acceleration when available, while FreeSurfer relies entirely on CPU-based processing.

Both pipelines were executed using their default command-line settings for 3 T and with hires flag (FreeSurfer) or vox_size =0.7 flag (FastSurfer) for 7 T.

Volumetric analysis

With pre-processing

With additional pre-processing, FastSurfer was able to segment 15/17 patients for 3 T and 17/17 for 7 T. FreeSurfer was able to segment 14/17 in 3 T and 17/17 in 7 T. All failed segmentations were due to failed 3D-normalization in recon-all. For consistency, we only used the results of the nine included patients for the following results and the Dice-calculation.

Comparison of ASEG and DKT atlas volumes with and without pre-processing

For FastSurfer, the mean difference was 676.75±1,722.25 mm³ between volumes calculated with and without pre-processing on 7 T. Out of 93 regions, 39 were found to be significant different. For FreeSurfer, the mean difference was −222.93±783.51 mm³ with 9 regions showing significant differences. A detailed overview of significant regions can be found in Table 1.

The five most affected regions are displayed in Figure 5.

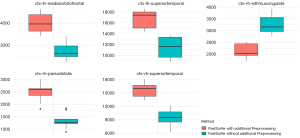

Figure 5 Top five significant regions between additional pre-processing and without additional pre-processing for both FastSurfer and FreeSurfer on 7 T.

Comparison of ASEG and DKT atlas volumes between 3 and 7 T

Comparing 3 and 7 T for FreeSurfer, we found 13 volumes to be significant different with a mean difference of 2,186.77±3,506.65 mm³. For FastSurfer we found 25 significant differing volumes presenting a mean difference of 960.57±1,706.18 mm³.

Comparison of FastSurfer vs. FreeSurfer with pre-processing on 3 T

In the mixed-effects analysis comparing FastSurfer and FreeSurfer (regions n=216 as random effects), we observed a mean volume difference of 940.4±238.6 mm³ (P<0.001), indicating that FastSurfer consistently yields significantly higher volumes than FreeSurfer.

A detailed list of significant structures is provided in Table S2, and a boxplot of the most significant differing volumes is shown in Figure 6.

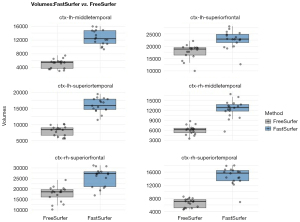

Figure 6 The box-plots (mean volumes of the patients in mm³) comparing the most significant volume differences between FastSurfer and FreeSurfer at pre-processed 3 T T1-MPRAGE.

FastSurfer vs. FreeSurfer with pre-processing on 7 T

Volumetric comparison between FastSurfer and FreeSurfer yielded an average estimate of 407.4±235.7 mm³, with a P value of 0.084, indicating no systematic difference but a trend toward higher volumes with FastSurfer.

A detailed table can be found in Table S2. A Boxplot of the most significant structure can be found in Figure 7.

Figure 7 The box-plots (mean volumes of the patients in mm³) comparing the most significant volume differences between FastSurfer and FreeSurfer at pre-processed 7 T T1-MPRAGE.

Inter-scanner reliability

Table 2 reveals the inter-scanner deviations and reliability of 3 and 7 T using CV and Cohen’s d. Due to the inhomogeneities, we observed higher standard deviations on 7 T.

Hippocampal Subfields

Comparison of hippocampal subfield volumes calculated with T1-weighted import data and T1- and T2-weighted import data

We measured all volumes as described in the methods. Table S3 reveals the segmented mean volumes and standard deviations.

We could not determine any significant differences in the measured volumes between (3 T T1-weighted and 3 T T1-weighted + T2-weighted) or between (7 T T1-weighted and 7 T T1-weighted+T2-weighted) using Tukey’s test for the left hippocampal region. However, there were significant deviations in the volumetry of the right hippocampus at 7 T. In contrast, we had to exclude patients based on incorrect segmentation of the left hippocampus at 7 T. Table S4 shows the results of the ANOVA with Tukey’s test for the segmented hippocampal regions (FreeSurfer).

Comparison of the hippocampal subfield segmentation with visual ratings

We could not detect any significant advantages between the eight different segmentations via visual ratings. Some regions, like the parasubiculum were subjectively better visualized on 7 T, but other regions like the molecular layer performed worse on 7 T compared with 3 T.

In particular, the segmentations in the 7 T with additional T2-weighted data failed noticeably. It seems that additional inhomogeneities or artifacts interfered with the script.

Figure 8 reveals the mean results of the visual ratings.

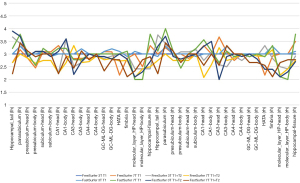

Figure 8 Detailed mean visual ratings of the two raters and the hippocampal segmentations (FreeSurfer 3 T T1-weighted only as gold standard was rated “3”, mean ratings of FreeSurfer: 7 T T1-weighted 2.96; 3 T T1-weighted + T2-weighted 2.92; 7 T T1-weighted + T2-weighted 2.74; and FastSurfer: 3 T T1-weighted 3.04; 7 T T1-weighted 3.00; 3 T T1-weighted+T2-weighted 2.88 and 7 T T1-weighted + T2-weighted 2.77).

The interrater reliability was moderate with an ICC (2, k) =0.67 (confidence interval: 0.42, 0.92).

Artifacts

Three of our 17 patients had to be excluded due to severe artifacts, primarily due to motion. Another three patients showed minor motion artifacts, and one patient had severe white-matter inhomogeneities, resulting in failed FastSurfer or FreeSurfer segmentation. Other artifacts, like pulsation artifacts of the anterior cerebral artery were observed to varying extents in both 3 and 7 T scans across all patients. However, these artifacts, affecting primarily the right hemisphere, did not affect the segmentation. Especially in 7 T MRI, inhomogeneities were observed in every patient, ranging from mild to severe, and could only be partially corrected through (n4 bias) pre-processing in FastSurfer and FreeSurfer.

Comparison with Dice-coefficient analysis

Out of 99 volumes (ASEG + DKT), the mean Dice score exceeded 0.9 in 38 volumes at 3 T and in 11 volumes at 7 T, indicating excellent overlap between FreeSurfer and FastSurfer. In 53 volumes (3 T) and 68 volumes (7 T), the mean Dice ranged between 0.8 and 0.9, suggesting good agreement. A mean Dice below 0.8 was observed in 8 volumes at 3 T and 20 volumes at 7 T. Volumes consistently showing low overlap (<0.8) across both field strengths included the left and right choroid plexus, right inferior lateral ventricle, parts of the corpus callosum, and the left and right entorhinal cortices. The distribution of Dice scores across 3 and 7 T is illustrated in Figure 9.

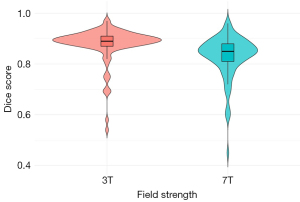

Figure 9 Distribution of Dice scores (calculated between FastSurfer and FreeSurfer segmentation) across different field strength.

Discussion

In our study of 17 patients with non-lesional epilepsy, we detected more significantly different volumes using FastSurfer (n=25) than with FreeSurfer (n=13) when comparing 3 to 7 T data. Additional pre-processing had a more pronounced impact when using FastSurfer, resulting in 39 significantly different regions, compared to only 9 with FreeSurfer. We also found tendencies of FastSurfer measuring greater volumes than FreeSurfer in both 3 and 7 T. Overall, FreeSurfer still appears to be the more valid choice at 7 T, presumably because FastSurfer was trained on 1.5 and 3 T data (11).

Results with and without external pre-processing

Volumetric analyses at 3 and 7 T including an external pre-processing were straightforward and reliably performed across both software solutions. Using the inbuilt pre-processing pipelines of FreeSurfer and FastSurfer exclusively, we observed a reduced number of patients in whom the segmentation produced satisfactory results, particularly in the right hemisphere. In patients in whom it worked in both 3 and 7 T, we could not detect significant differences between 3 and 7 T in the right hemisphere. When comparing volumes with and without pre-processing in 7 T MRI, we found that FastSurfer is particularly affected in regions with complex geometry and low intensity contrast, such as the entorhinal, temporal, and orbitofrontal cortices, as well as subcortical structures. Additionally, skull stripping can also impact segmentation quality (31).

We have observed various artifacts, including those caused by motion, pulsation of the cerebral anterior artery, and interference at the base of the skull due to air. These artifacts were sometimes so severe that FastSurfer and FreeSurfer crashed or resulted in segmentation errors without an external pre-processing.

It is well-established that 7 T MRI is associated with an increased artifact load due to several physical limitations compared to 3 T MRI (6,7). Prolonged acquisition times can exacerbate motion artifacts (32). Consequently, various strategies have been developed to mitigate artifacts in 7 T imaging, including the use of fast pulse sequences, k-space filling techniques, and parallel transmission technology combined with radiofrequency (RF) shimming (33). Additional efforts to reduce artifacts and inhomogeneities involve post-processing and co-registration techniques. Since our data evaluation was retrospective, we were unable to correct artifacts during data acquisition, which would have enhanced the comparison between 3 and 7 T MRI.

Volumetric results

FreeSurfer is widely established, and is used in everyday clinical practice, especially in dementia more frequently than FastSurfer (10). FastSurfer has some of its own pre-processing procedures and a FastSurferVINN module for higher resolution in the 7 T (34). While currently a larger number of additional scripts (subscripts) exist for FreeSurfer, they are generally compatible with FastSurfer outputs, as both tools rely on the same underlying data structure and labeling conventions (35).

Overall, we found significant evidence in 3 T and a tendency in 7 T for FastSurfer to report greater volumes than FreeSurfer.

Asymmetries between hemispheres are widespread and known to influence segmentation (36). Since artifacts were predominantly found in the right hemisphere, their influence might explain asymmetries, especially in low-contrast subcortical areas already known to be affected by programmatic limitations (24). Furthermore inhomogenities in 7 T, especially in basal regions with air-brain interfaces (37,38), can interfere with the segmentation quality.

The differences between FastSurfer and FreeSurfer can be attributed due to FastSurfer being a deep learning approach, which strongly depends on the quality and diversity of the training data (11), whereas FreeSurfer being an atlas-based segmentation tool without the integration of a deep learning algorithm.

Ultra-high field MRI has also been successful applied in psychiatric disorders (39,40). In patients with schizophrenia, 7 T MRI revealed reduced cerebellar volumes (41) as well as aberrant association fibers (42).

Visual assessment

Visual assessment of hippocampal and amygdalar subfields in 3 and 7 T MRI using FastSurfer and FreeSurfer revealed largely similar segmentation outcomes. Notably, the parasubiculum was slightly better segmented at 7 T compared to 3 T, while the molecular layer demonstrated poorer segmentation performance at 7 T. Co-registration of T2-weighted images did not enhance outcomes beyond T1-weighted image alone.

To the best of our knowledge, there are no standardized visual assessment criteria for evaluating segmentation results. As it is difficult to compare the segmentation of different patients, we decided to use a reference scan for each patient. Since 7 T volumetry is relatively new compared to 3 T volumetry and 3 T MPRAGE is known to have the best test-retest reliability (43), we chose the 3 T T1-weighted sequence as the standard. We introduced primary and secondary criteria to weight different segmentation errors, as they have varying impacts on volume.

Dice analysis

Comparing Dice scores across ASEG+DKT segmentations revealed good overlap for most regions. Eight regions at 3 T and twenty regions at 7 T exceeded a Dice coefficient of 0.8, suggesting increasing divergence between FastSurfer and FreeSurfer with higher field strength. In volumetric analysis, the mean ICC was lower at 7 T compared to 3 T, indicating less consistent measurements across patients. In addition to increased artifacts with higher field strength, differences in the algorithms may contribute to these discrepancies. FastSurfer, which relies on deep learning and has been trained predominantly on 1.5 and 3 T data, is also a plausible source of variation.

Limitations

A major limitation of our study is the small sample size. This is partly due to the rarity of patients with non-lesional focal epilepsy at our center, and partly because the manual assessment of segmentation quality for a larger number of patients would be logistically challenging. Additionally, strong motion artifacts, particularly prevalent in 7 T imaging due to longer acquisition times, further reduced the number of patients included in the study. The visual detection of epileptogenic lesions (e.g., focal cortical dysplasia), which may be better differentiated due to the higher resolution in 7 T, was not part of this study. Nor was it intended to detect a reduction in volume due to the disease. Thus, a control group was not part of this study. Without a known ground truth, the interpretation of the results becomes more challenging.

One limitation is the relatively old design of the 7 T sequences without parallel transmission, as these techniques were not available at the time the study began. Another factor worth mentioning is that our scanner parameters are not ideal identical. Since 7 T data in our facility are designed to be comparable with one another rather than necessarily with clinical 3 T scans, there are differences in several parameters that could potentially interfere with the results, which may affect the comparison between 3 and 7 T scans. Given that the data were utilized secondarily for evaluation and that the number of patients with both 3 and 7 T scans was limited, we had to accept these differences. We intentionally focused on MPRAGE to enable an objective comparison between 3 and 7 T and FreeSurfer and FastSurfer. For the subfield analysis of hippocampus and amygdala, we performed no external pre-processing, as it is recommended for MP2RAGE. This external parameter-dependent pre-processing could most likely influence the segmentation by shifting the white-gray contrast and influencing the comparison of 3 and 7 T.

An additional limitation lies in the fact that the deep learning model used by FastSurfer was not trained on 7 T MRI data (11). As a result, it remains unclear whether the model can accurately segment images acquired at this field strength. Therefore, we conducted manual quality control to verify the results.

Outlook

The image quality in the 7 T is improving slowly, but steadily, while the image quality in the 3 T already seems to have reached its peak. If the T1-weighted sequences at 7 T contain fewer artifacts and become more homogeneous, the usage of segmentation algorithms will be more promising.

The usage of MP2RAGE instead of MPRAGE was recommended on 7 T (44). MP2RAGE could improve the segmentation by providing a higher gray-white matter contrast and higher contrast-noise-ratio (45). Despite the self-bias correcting properties, we detected even more severe inhomogeneities of the frontal and temporal skull base in our 7 T-MP2RAGE images (compared with MPRAGE), which caused FreeSurfer as well as FastSurfer to crash.

In the future, time-resolved frequency offset corrected inversion (TR-FOCI) pulses, or advances in parallel transmission systems might reduce these artifacts (45). While MP2RAGE estimates the T1-mapping from two scans, other T1-mapping methods may be more accurate (46,47).

Pre-processing procedures can temporarily solve the problem, as shown for myelin segmentations (48,49). However, intensive pre-/post-processing always carries the risk of losing information or artificially generating false information.

Conclusions

Our study reveals systematic differences between two widely used automatic segmentation tools. FastSurfer consistently estimates higher volumes compared to FreeSurfer, particularly within cortical regions of the temporal and frontal lobes, across both 3 and 7 T field strengths.

The built-in pre-processing pipelines of FastSurfer and FreeSurfer seem sufficient to handle 7 T MRI scans with moderate quality and artifacts; however, in cases with heavily artifact-laden scans where the built-in pipeline fails, optimization through external programs becomes necessary. Pre-processing of the 7 T data led to a slight improvement in the FreeSurfer results, whereas the FastSurfer results showed a considerably greater deviation from the 3 T results.
