Fully automated deep learning model for the evaluation of cavum septum pellucidum development in normal fetuses using magnetic resonance imaging: a Chinese cohort study

Introduction

The cavum septum pellucidum (CSP) is an essential landmark in evaluating fetal central forebrain development (1). The CSP appears as a triangular or rectangular fluid-filled cavity, containing cerebrospinal fluid (CSF) that filters from the ventricular system through the two leaflets of the septum pellucidum (2-4). The development of the CSP begins at the gestational age (GA) of 18 weeks and it is fully structured by the GA of 37 weeks in most cases (5). The evaluation of the CSP has become integral to both routine and detailed ultrasound (US) examinations and the detection of a normal CSP in the second and third trimester prenatal US examinations of the fetal brain can provide reassurance of normal fetal brain development (6,7).

Anatomically, the CSP can be defined by the boundaries of the following brain structures: superior boundary—the body of the corpus callosum (CC); anterior boundary—the genu of the CC; inferior boundary—the anterior commissure and the rostrum of the CC; posterior boundary—the anterior limb and pillars of the fornix; and the lateral boundary—the laminae of the septum pellucidum (2). The development of the CSP is usually considered a secondary process due to the development of its adjacent tissue, the fornix, and the CC. As the growing brain develops into its mature structure, the CSP enlarges because of the separation of the CC and the fornix from each other (8).

Evaluation of the CSP is one of the necessary components of the standard second trimester screening fetal examination according to the joint practice guidelines of the American Institute of Ultrasound in Medicine, American College of Radiology, American College of Obstetricians and Gynecologists, and Society for Maternal-Fetal Medicine and Society of Radiologists in Ultrasound (9). In the second trimester, the normal CSP measures 2–10 mm in transverse diameter (10). When the CSP is not identified by the GA of 20 weeks in routine prenatal US screening, further magnetic resonance imaging (MRI) evaluation is warranted for final confirmation and diagnosis (11). Compared with US, fetal MRI can offer several advantages because it is not limited by amniotic fluid index, maternal obesity, and fetal positioning (12). MRI can provide the structural details of the CSP with higher soft tissue resolution and contrast than US (13). MRI has a much higher sensitivity and specificity in detecting fetal central nervous system (CNS) abnormalities than US and can illustrate a normal CSP not visible on fetal US in certain cases (14).

Several previous studies have provided normal values for the CSP measurements on US and MRI (15-17). However, most of those studies were based on two-dimensional (2D) images and reliant on radiologists’ experience, which may introduce observer bias, affecting the consistency and reproducibility of results. In recent years, with advancements in computer science and artificial intelligence, deep learning (DL) has been widely applied in medical image analysis (18-21). In this study, we proposed a DL model to transform 2D MRI images into three-dimensional (3D) MRI images and for further segmentation and measurements of the CSP. The aim of study was to construct reference ranges for fetal CSP in normal pregnancies of different GA in a Chinese cohort with over 1,000 pregnant participants. We present this article in accordance with the STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-2025-458/rc) (22).

Methods

Population

This retrospective single-center observational study was approved by the ethic review board of Nanjing Drum Tower Hospital (No. 2022-141-01). This study adhered to the Declaration of Helsinki and its subsequent amendments, and the Health Insurance Portability and Accountability Act. The requirement for informed consent was waived due to the retrospective nature of this study.

This research involved pregnant participants who gave birth between 1 January 2017 and 30 June 2024. The inclusion criteria were as follows: (I) pregnant women in the second or third trimesters; (II) US findings indicated suspected brain abnormalities that required further examination by MRI. The exclusion criteria were as follows: (I) contraindications for MRI; (II) obvious brain abnormalities; (III) multiple gestation. The participant selection flowchart is illustrated in Figure 1.

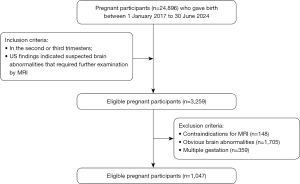

Figure 1 Pregnant participants enrollment flowchart. MRI, magnetic resonance imaging; US, ultrasound.

MRI acquisition protocol

Fetal brain MRI scans were obtained using 1.5 T and 3.0 T systems. For the 3.0 T system, single-shot fast spin echo (SSFSE) images were acquired on uMR770 (United Imaging Healthcare, Shanghai, China) with the following scanning parameters: repetition time (TR)/echo time (TE), 2,000/4.68 ms; slice thickness, 3 mm; flip angle, 140 degrees; field of view (FOV), 380 mm × 350 mm; number of slices, 35; number of signal averaged (NSA), 2; matrix, 288×80; acquisition time, 37 seconds. Balanced steady-state free precession (bSSFP) images were acquired on uMR790 (United Imaging Healthcare), with the following scanning parameters: TR/TE, 4.68/2.35 ms; slice thickness, 3 mm; flip angle, 100 degrees; FOV, 330 mm ×330 mm; number of slices, 36; NSA, 1; matrix, 256×80; acquisition time, 70 seconds. For the 1.5 T system, SSFSE images were acquired on Multiva (Philips, Best, the Netherlands), with the following scanning parameters: TR/TE, 4,500/90 ms; slice thickness, 4 mm; flip angle, 90 degrees; FOV, 300 mm × 300 mm; number of slices, 24; NSA, 1; matrix, 200×200; acquisition time, 108 seconds. bSSFP images were acquired on Ingenia Ambition (Philips), with the following scanning parameters: TR/TE, 4.2/2.1 ms; slice thickness, 7 mm; flip angle, 90 degrees; FOV, 400 mm × 400 mm; number of slices, 36; NSA, 2; matrix, 268×266; acquisition time, 77 seconds.

Image processing

All images were processed using a fetal image analysis pipeline comprising five key steps.

First, skull stripping was performed using a predefined neural network model, nnUNet (23), with default configurations to extract the fetal brain from the image.

Second, stack-to-stack registration was conducted to align brain image stacks to a common spatial reference. This step is crucial for correcting spatial inconsistencies caused by fetal motion during MRI acquisition. The registration process involves establishing spatial correspondences between adjacent slices through slice-to-volume registration techniques. By leveraging attention mechanisms within a Transformer architecture, SVoRT (24), correlations between slices were automatically detected, enabling precise alignment even in the presence of substantial fetal movement. The attention mechanism allows the model to focus on relevant feature across different slices, effectively reducing registration errors and improving reconstruction quality.

Third, high-resolution 3D volume reconstruction was achieved through the PAK-SRR method (25), which combines multi-frame super-resolution reconstruction techniques with anatomical priors derived from tissue segmentation. The super-resolution algorithm reconstructs high-resolution images by combining complementary information from multiple low-resolution images, whereas the anatomical priors ensure structural consistency with known fetal brain development patterns. This approach improved boundary consistency by incorporating spatial information from multiple low-resolution acquisitions and utilized longitudinal fetal brain atlases to guide the volume reconstruction process.

Fourth, brain parcellation was performed using an atlas to segment the brain into distinct regions, including the region consisting of the septum pellucidum and cavum vergae. Each reconstructed 3D brain image was segmented into 21 distinct anatomical regions, including cortical gray matter, fetal white matter, cerebellum, lateral ventricle, basal ganglia, thalamus, hippocampus, and others (26). The segmentation of the region containing the septum pellucidum and cavum vergae provides spatial constraints for subsequent precise CSP segmentation.

Fifth, CSP segmentation was conducted through a two-stage process. Initially, two board-certificated pediatric radiologists with 5 and 10 years of respective experience manually segmented a region of interest (ROI) of CSP based on reconstructed fetal MRI images using ITKSNAP (version 3.8.0). These expert annotations served as the ground truth for training an nnU-Net model, which was subsequently employed for automated CSP segmentation. This processing pipeline resulted in a high-resolution 3D fetal brain image for each case, along with segmented brain regions, forming the foundation for subsequent volumetric developmental analyses, as shown in Figure 2. A representative case of CSP segmentation and measurement is illustrated in Figure 3.

Figure 2 Fetal brain image analysis pipeline. The pipeline shows the key steps in the fetal brain image processing pipeline: (A) extraction of the brain out of image stacks; (B) stack-to-stack registration to form the image slices into a common space; (C) high-resolution 3D volume reconstruction from the thick-slice images; (D) brain parcellation with 21 regions. 3D, three-dimensional.

Figure 3 Representative case of CSP segmentation and measurement. The green lines, CSP length. The red lines, CSP width. The blue lines, CSP height. CSP, cavum septum pellucidum.

Evaluation of CSP segmentation and quantitative analysis

To comprehensively evaluate the performance of the DL model in CSP segmentation, 50 cases with evenly distributed range of GAs were selected. The segmentation accuracy was quantitatively assessed using two widely adopted metrics: the Dice similarity coefficient and Hausdorff distance. The Dice index measures the spatial overlap between the ROIs segmented by the radiologists (ground truth) and those generated by the DL model, whereas the Hausdorff distance quantifies the maximum surface discrepancy between the two segmentations, providing insight into boundary alignment precision.

Following segmentation, the CSP was spatially aligned to a standardized orientation to ensure consistent measurements across all cases. Three orthogonal dimensions of the CSP were measured: length (anteroposterior dimension), width (transverse dimension), and height (craniocaudal dimension). These measurements were performed on the 3D reconstructed images to capture the complete morphological characteristics of the CSP. Additionally, several derived parameters were calculated to provide a more comprehensive assessment of CSP development: CSP volume, ratio of CSP volume to whole brain volume (providing a normalized measure of CSP development), and ratio of CSP volume to cerebrum volume (offering additional insight into its developmental relationship with cerebral structures).

Statistical analysis

Statistical analysis was conducted using the software SPSS 26.0 (IBM Corp., Armonk, NY, USA). A P value <0.05 was considered statistically significant. Continuous variables were evaluated for normal distribution using Kolmogorov-Smirnov test and reported as mean and standard deviation (SD). Fleiss κ values were used to assess the intraobserver and interobserver agreement.

For each case, we calculated CSP volume, CSP length, CSP width, CSP height, ratio of CSP volume to whole brain volume, and ratio of CSP volume to cerebrum volume. We evaluated the two different models for each CSP metric and GA.

Linear regression:

y=a+b∗x[1]

Second-order polynomial regression:

y=a+b∗x+c∗x2[2]

Where a=intercept, b=week coefficient, c=coefficient of the quadratic week term. After fitting all of the models, Akaike information criterion (AIC) was utilized for model selection.

Results

Participant characteristics

A total of 1,047 normal pregnant participants were measured. The participants mean GA was 31.21±3.81 weeks. The cases were divided into nine groups according to their GA (in weeks): 22–23, 24–25, 26–27, 28–29, 30–31, 32–33, 34–35, 36–37, 38–39. The mean values and SD for each GA group are illustrated in Table 1. The 5th, 50th, and 95th percentiles for CSP measurement in normal fetal brains across different GAs are illustrated in Table 2.

Dice index and Hausdorff distance of the ROI

Intraobserver agreements for CSP measurement ranged from 0.849 to 0.936. Interobserver agreements for CSP measurement ranged from 0.801 to 0.915.

The segmentation performance of the ROI was quantitatively evaluated using the Dice index and Hausdorff distance. The results demonstrated high accuracy and precision, with a Dice index of 0.884±0.067 and a Hausdorff distance of 1.87±0.75 mm in the testing dataset. These metrics indicate excellent agreement between the manual annotations provided by the radiologists and the automated segmentations generated by the DL model. The high Dice index reflects strong spatial overlap between the ground truth and predicted segmentations, whereas the low Hausdorff distance confirms precise boundary alignment, underscoring the reliability of the proposed method for CSP segmentation.

CSP measurement trends

Age-related changes were found to be significant in CSP volume, CSP length, CSP width, CSP height, ratio of CSP volume to whole brain volume, and ratio of CSP volume to cerebrum volume (all P<0.001). CSP volume, CSP width, and CSP height exhibited U-shape trends. By contrast, CSP length, ratio of CSP volume to whole brain volume, and ratio of CSP volume to cerebrum volume exhibited linear trends, as shown in Figure 4. The fitting equations are as follows:

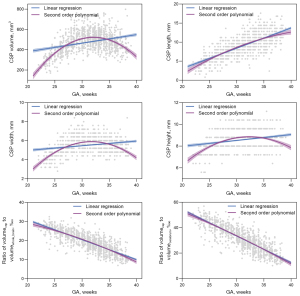

Figure 4 Changes of CSP volume, CSP length, CSP width, CSP height, ratio of CSP volume to whole brain volume, and ratio of CSP volume to cerebrum volume between 22 and 39 weeks of gestation. CSP, cavum septum pellucidum; GA, gestational age.

CSP volume (mm³):

y=−2660.033+198.241∗x−3.087∗x2[3]

CSP length (mm):

y=−7.589+0.533∗x[4]

CSP width (mm):

y=−19.249+1.585∗x−0.025∗x2[5]

CSP height (mm):

y=−9.052+1.108∗x−0.017∗x2[6]

Ratio of CSP volume to whole brain volume (‱):

y=96.012−2.086∗x[7]

Ratio of CSP volume to cerebrum volume (‱):

y=51.738−1.043∗x[8]

Discussion

In this research, we investigated the developmental patterns of the CSP in normal fetuses across different GAs using a fully automated DL model in a Chinese cohort. By analyzing 1,047 normal pregnancies in the second and third trimesters, we measured key CSP parameters, including CSP volume, length, width, height, and their ratios to whole brain and cerebrum volumes. Our findings revealed distinct developmental trajectories: CSP volume, width, and height reach a maximum between 28 and 32 weeks of gestation. CSP length displayed an upward trend after 22 weeks, whereas CSP length demonstrated a continuous upward trend after 22 weeks. Additionally, the ratios of CSP volume to whole brain volume and CSP volume to cerebrum volume showed a consistent downward trend after 22 weeks. These results provide valuable reference data for prenatal MRI diagnosis and highlight the potential of DL models in automating fetal brain assessment.

The CSP, a CSF-filled space between the two cerebral hemispheres, is a critical landmark in fetal CNS development. Its assessment is of paramount importance, as the absence of CSP may indicate primary holoprosencephaly or secondary processes leading to the destruction of the septal leaflets (27). When CSP is not visualized or appears partially or completely absent during routine mid-trimester US, the differential diagnosis can be extensive, including holoprosencephaly spectrum disorders, CC abnormalities, acquired CSP absence, septo-optic dysplasia, and isolated septal defects (28). Conversely, an enlarged CSP may necessitate follow-up to exclude CSP cysts or chromosomal anomalies (29). Thus, establishing normative values for CSP is crucial for evaluating fetal health and development.

Although US is the primary modality for prenatal CSP assessment, its results are operator-dependent and influenced by factors such as fetal position, amniotic fluid volume, and maternal abdominal thickness, leading to potential variability and subjectivity (9,30,31). In clinical practice, cases where US fails to visualize CSP but subsequent MRI confirms its presence are not uncommon (14). Compared to US, MRI offers superior resolution and accuracy in measuring CSP dimensions, making it a more reliable tool for prenatal diagnosis (32,33). SSFSE and bSSFP were the MRI sequences utilized in this study and the acquisition protocol was similar to previous fetal brain MRI research (34).

Several US studies have measured the normal parameters of CSP across different GAs. Cinar found that CSP volume and GA were positively correlated between 19 and 24 weeks of gestation (35). Jou et al. evaluated 608 normal fetuses between 19 and 42 weeks of gestation and revealed that the CSP width increases gradually from 19 to 27 weeks of gestation, plateaus from 28 to 40 weeks of gestation, and slightly decreases towards 42 weeks of gestation (7). Tao et al. evaluated 322 uncomplicated singleton pregnancies from 25 to 39 weeks of gestation and discovered that there was no significant correlation between CSP width and GA (36). Tuma et al. evaluated 161 pregnant women between 20 and 40 weeks of gestation and concluded that CSP volume had a poor correlation with GA (17). Although US studies have provided valuable insights into CSP development, their results are often inconsistent. These discrepancies may be attributed to the inherent limitations of US, such as operator dependency, variability in imaging quality, and challenges in visualizing CSP in certain fetal positions or maternal conditions.

A previous MRI study of 307 normal fetal MRI between 25 and 41 weeks of gestation by Kertes et al. revealed that the width and height of the CSP tend to decrease starting from 27 weeks of gestation onwards (16). Jarvis and Griffiths discovered that CSP length increases throughout pregnancy, whereas the CSP volume and CSP width reaches a maximum between 29 and 31 weeks of gestation (2), which is consistent with our DL-based measurement.

Our findings may assist in identifying abnormal CSP development, such as agenesis or cystic dilation, by providing objective reference values across gestation. Although prior US-based studies have suggested threshold values to indicate possible CC agenesis, these criteria remain debated and vary across populations (37,38). Moreover, differentiating between isolated CSP agenesis, CSP cysts, or more severe midline anomalies requires a comprehensive understanding of CSP morphology. Our MRI-based measurements, covering length, width, height, and volume, may provide more accurate assessments than 2D US. Compared with US, MRI is less affected by fetal position or maternal habitus and offers superior tissue contrast. Although US remains the first-line screening tool due to its cost-effectiveness and accessibility and there exists US-based clinical tool (39), automated MRI-based methods could serve as a valuable adjunct in high-risk or inconclusive cases. Combining both modalities may improve diagnostic confidence, especially when fetal CNS anomalies are suspected.

Our study has several notable strengths. First, the large sample size of over 1,000 normal fetal brain dataset provides robust statistical power and enhances the generalizability of our findings. This extensive dataset allowed for a comprehensive analysis of CSP development across a wide range of GA. Second, we reconstructed 3D standardized images from 2D data, enabling more accurate and detailed measurements of CSP parameters. This approach overcomes the limitations of traditional 2D imaging and provides a more precise representation of fetal brain anatomy. Third, the application of a DL model for automated measurements represents a significant methodological advancement. This approach ensures standardized and reproducible results, minimizing the subjective errors and biases associated with manual measurements. By leveraging DL, our study not only improves the accuracy of CSP assessment but also sets a precedent for future research in automated fetal brain imaging analysis. These strengths collectively enhance the reliability and clinical applicability of our findings, providing a valuable reference for prenatal diagnosis and fetal brain development evaluation. The data included in this study were based on a Chinese cohort with normal pregnancies. Considering that complications may arise in late pregnancy, such as fulminant viral hepatitis and human papillomavirus related issues (40-42), future investigations are needed to increase the sample size and broaden the applicability of the models.

There are several limitations in this study. Firstly, this was a single-center retrospective study. The DL model and the derived reference values need to be validated in external cohorts to ensure the reliability and applicability in different clinical settings. We will further recruit pregnant participants from other medical centers in the future. Secondly, we only provided cross-sectional MRI data without longitudinal follow-up of individual fetuses. Longitudinal data would offer more insights into the individual variability and developmental trajectories of CSP over time. Furthermore, the number of cases beyond 38 weeks of gestation was relatively limited. This reflects the clinical reality that fetal MRI is rarely performed near term, as the opportunity for prenatal intervention is minimal and most pregnancies are approaching delivery. As a result, the precision of the reference curves at the upper GA range may be reduced, but this has limited impact on the primary aim of supporting CNS evaluation and intervention during late-second and early-third trimesters. The last limitation is potential selection bias, as fetal MRI is typically performed following suspicious US findings. Therefore, the “normal cohort” was defined based on normal MRI results, not from a low-risk general population, which may limit generalizability.

Conclusions

We developed a fully automated DL model to evaluate CSP development in normal fetal brains. CSP volume, width, and height reach a maximum between 28 and 32 weeks of gestation. CSP length illustrates an upward trend after 22 weeks. The ratio of CSP volume to whole brain volume and ratio of CSP volume to cerebrum volume show a downward trend after 22 weeks.
