Simultaneous classification and delineation of seven types of histological growth patterns in lung adenocarcinomas using self-supervised learning and online hard patch mining

Introduction

According to recent global cancer statistics, lung cancer remains the leading cause of cancer-related fatalities worldwide (1), with lung adenocarcinomas (LUADs) being the most prevalent subtype in many regions. LUAD progresses through precancerous lesions such as atypical adenomatous hyperplasia (AAH) (2), which can advance to adenocarcinoma in situ (AIS), then to minimally invasive adenocarcinoma (MIA), and finally to invasive lung adenocarcinoma (INA) if untreated (3,4). Among INA cases, invasive non-mucinous adenocarcinomas (INMA) are the most common subtype. The 5th edition of the WHO classification recognizes various pattern-based subtypes within INMA, including lepidic, acinar, papillary, solid, complex gland, and micropapillary adenocarcinomas (as shown in Figure 1). These subtypes differ significantly in their differentiation and grading. Well-differentiated adenocarcinomas are lepidic predominant with less than 20% high-grade patterns, moderately differentiated adenocarcinomas are acinar/papillary predominant with less than 20% high-grade patterns, and high-grade adenocarcinomas are characterized by any predominant pattern with 20% or more high-grade patterns (5). Accurate identification of these growth patterns, normal tissue, and AIS is crucial, as AIS may coexist with INMA and serves as an essential indicator for pre-invasive lesions (6). Currently, the interpretation of histopathologic images relies heavily on pathologists, with manual analysis taking about one hour per image and being dependent on individual expertise (7,8).

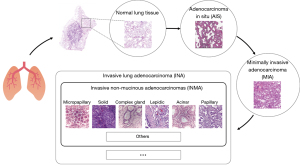

Figure 1 The developmental process of LUAD. Sections were stained with hematoxylin-eosin and scanned at 40× magnification. LUAD, lung adenocarcinoma.

The radiologic-pathologic correlation in the LUAD spectrum is primarily demonstrated through the imaging-based prediction and identification of lesions at various stages, ranging from noninvasive to minimally invasive and invasive. Imaging modalities, particularly low-dose CT scans, have significantly enhanced the detection of sub-solid nodules (SSNs), which are strongly associated with lesions across the LUAD spectrum. Based on the IASLC/ATS/ERS classification, these lesions include AAH, AIS, MIA, and invasive pulmonary adenocarcinoma (IPA). Each of these lesions exhibits distinct imaging features, such as nodule size, shape, density, and margin characteristics, which correlate closely with their pathologic aggressiveness and prognosis. Given the high prevalence of non-smoking-related lung cancer in Asian populations, low-dose computed tomography (CT) screening plays a crucial role. Accurate imaging evaluation is therefore essential for the early and precise diagnosis of LUAD, enabling timely intervention and improving patient outcomes (9).

In recent years, deep learning (DL) has been widely used for medical image processing (10,11). The analysis of whole-slide images (WSIs) using automated or computer-aided diagnosis has gained recognition in the field of pathology (12). A WSI is typically created by digitally converting glass slide tissue into a high-resolution virtual slide, assembled from multiple images (13). Tellez et al. (14) proposed a method to compress WSIs into a low-dimensional latent space for training with neural networks and WSI-level labels. However, this down-sampling process leads to a loss of detailed information, affecting interpretation accuracy. The compressed WSI file size demands substantial input/output (IO) capabilities, making clinical application challenging. To address these limitations, most studies have adopted the patch-based approach, splitting WSIs into patches of equal size during DL analysis (15-21). Subsequently, inference is performed on individual patches to generate diagnostic results at the WSI level. This approach significantly reduces computational and IO costs while preserving WSI details. Furthermore, a self-supervised method on unannotated pathology slides has been proposed, constructing a histomorphological phenotype atlas and correlating with lung cancer survival/immunophenomics (22).

Despite the advantages of patch-based methods, several challenges remain. Firstly, the sliding window operation may generate numerous background patches devoid of tissue (Figure 2), hindering model training efficiency if left unattended. Secondly, accurate labeling of all growth patterns in WSIs is challenging, resulting in sparse labeled data for patch-based DL tasks. This hampers model training to achieve high performance. In some cases, certain growth patterns may share similar textures with other growth patterns. For example, distinguishing between the lepidic growth pattern and the papillary and acinar growth patterns can be challenging (23) (Figure 2). Correctly classifying these patches during model training presents a significant challenge. To solve sparse labeled data in patch-based LUAD classification, a semi-supervised framework with dynamic confidence threshold and multi-teacher distillation achieves high accuracy (vs. supervised models/pathologists) (24).

Figure 2 Examples of background and patches with similar textures. Sections were stained with hematoxylin-eosin and scanned at 40× magnification.

To address these challenges, our study presents a patch-based DL classification model integrated with self-supervised learning (SSL) and online hard patch mining (OHPM) training strategies. The main contributions of our research are as follows:

• The proposed model can identify and delineate AIS and six INMA growth patterns in normal lung tissue. Both the number of identified subtypes/growth patterns and the classification accuracy outperformed those in the available studies.
• We introduce pseudo-labeling and consistent regularization strategies based on image augmentation to enrich training samples with unlabeled data, enhancing training efficiency and classification accuracy.
• We develop a loss-based OHPM method that can detect hard patches with similar image features, improving the extraction of the representative features as well as the ability to distinguish between hard patches.
• We introduce a novel preprocessing method based on contrastive learning to efficiently remove background patches (void of stained tissues) using the structural similarity index measure (SSIM) (25). This accelerates model training and may have broader applications for the analysis of patch-based WSIs.

We present this article in accordance with the CLEAR reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-24-2282/rc).

Methods

Dataset description

The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. The study was approved by the Ethics Committee of Affiliated Beijing Chaoyang Hospital, Capital Medical University (Beijing, China; ethics approval number: 2023-8-23-73). Informed consent was taken from all the patients. The original dataset consisted of 400 histopathological sections from the Department of Pathology at Affiliated Beijing Chaoyang Hospital, Capital Medical University. Two pathologists meticulously examined all sections and reviewed relevant medical reports to confirm the presence of targeted INMA growth patterns (acinar, complex gland, lepidic, micropapillary, papillary, solid), AIS, or normal lung tissues. The sections were scanned at 40× magnification using a KFPRO-005-EX scanner (Ningbo Konfoong Bioinformation Tech Co., Ltd., China) and a PANNORAMIC Digital Slide scanner (3DHISTECH Ltd., Hungary), with pixel sizes of 0.125 µm/pixel and 0.172 µm/pixel, respectively, and were digitized in MRXS format. Pathologists used the Automated Slide Analysis Platform to outline and annotate the contours of the six INMA growth patterns and AIS. MRXS WSIs were converted to Tagged Image File Format using SlideMaster (3DHISTECH Ltd., Hungary), with contours and annotations exported in XML format. To ensure result validity, two pathologists, each with over ten years of clinical experience, independently reviewed the annotations. Inter-observer agreement metrics were calculated and assessed before excluding any slides to ensure consistency. Ultimately, 112 WSIs with inconsistent annotations were excluded. The distribution of tissue types in the remaining 288 WSIs is shown in Figure 3. The Ethics Committee of Beijing Chaoyang Hospital, Capital Medical University (Beijing, China), approved the use of this dataset for related research.

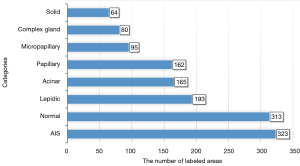

Figure 3 The number of the labeled areas for different categories in 288 WSIs. Each bar is followed by a number indicating the number of the labeled areas for each category. AIS, adenocarcinoma in situ; WSIs, whole-slide images.

Second, we utilized the Dartmouth lung cancer histology dataset provided by Wei et al. (20) as an independent test set. This dataset consisted of 143 hematoxylin and eosin (H&E)-stained formalin-fixed paraffin-embedded (FFPE) LUAD WSIs from the Department of Pathology and Laboratory Medicine at Dartmouth-Hitchcock Medical Center (DHMC). Images were scanned using an Aperio AT2 and stored in TIFF format. This dataset was used for model inference to evaluate its performance in a multi-center independent test set. During preprocessing, all patches were resized to 512×512 pixels. Patches with more than half of the total area labeled were considered validly labeled and used for subsequent training and evaluation.

Besides, we constructed the unlabeled dataset for SSL by randomly selecting 50 unlabeled patches from each WSI in the original dataset and, for the unlabeled patches, required that they must contain lung tissue.

The proposed workflow

Figure 4 illustrates the proposed workflow. The EfficientNet-B0 model (26) integrates SSL and OHPM to differentiate and delineate seven histological characteristics of LUAD alongside normal tissues. During the inference phase, the model analyzes patches containing lung tissue, with predicted probabilities aggregated into WSI level probability maps based on the upper-left coordinates of the patches. The area of each growth pattern is calculated from these probability maps to facilitate grading according to the IASLC grading system. To assess the accuracy of the segmented growth patterns, the Intersection over Union (IoU) metric was computed using binary masks of tumor regions predicted by the model and labeled by pathologists.

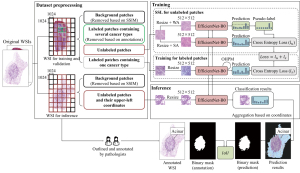

Figure 4 The workflow for the proposed network. The arrows between EfficientNet-B0 classifiers indicate that they share parameters. IoU, Intersection over Union; OHPM, online hard patch mining; SA, strong augmentation; SSIM, structural similarity index measure; SSL, self-supervised learning; WA, weak augmentation; WSI, whole-slide image.

Dataset preprocessing

During the sliding window operation (1,024 pixels × 1,024 pixels), patches containing multiple LUAD types were excluded based on annotations from the original WSI. However, removing background patches (those devoid of tissue) proved challenging due to variations in RGB values from imperfect imaging and staining. As a result, explicit thresholding was not feasible. Instead, a similarity measure was employed to eliminate background patches. Initially, two background patches were randomly selected from each WSI, resulting in a total of 576 patches. The mean values and standard deviations for each RGB channel were calculated across all selected background patches, and a centroid was determined using k-means clustering. The SSIM (25) was then utilized to measure similarity between images, guiding the removal of background patches, as shown in Eq. [1]:

S(P,I)=|(2μPμI+C1)(2σPI+C2)(μP2+μI2+C1)(σP2+σI2+C2)|[1]

where P denotes a patch extracted using a sliding window from the WSI, I is the reference image. μP and μI represent the respective mean values of P and I, σP and σI represents the standard deviations of P and I , respectively. σPI signifies the mutual covariance between P and I. C1 and C2 are hyperparameters and are set to 1e−4 and 9e−4, respectively (25). In this study, the threshold used for filtering the background patches was set to 0.9 based on two main considerations. The SSIM index ranges from −1 to 1, with values closer to 1 indicating higher similarity between images. Setting a higher threshold effectively removes background regions while preserving lung tissue areas. Our validation method, guided by pathologists’ expertise, checks whether screened patches are background or contain lung tissues, helping adjust the threshold to balance removal effectiveness and computational time. Results show that a threshold of 0.9 achieves this balance optimally.

Subsequently, we proceeded to randomly partition all the preprocessed patches into training, validation, and testing sets. This allocation was carried out with a distribution ratio of 8:1:1, as detailed in Table 1.

EfficientNet-based model for tissue classification

EfficientNet (26) is a family of image classification models designed to accommodate varying resource constraints by uniformly scaling depth, width, and resolution through a composite approach. The baseline model, EfficientNet-B0, is optimized for accuracy and efficiency using AutoML techniques. The family includes several variants, ranging from B0 to B7. We chose EfficientNet-B0 over larger variants like B3 or B4 due to its balance of computational efficiency and model performance. EfficientNet-B0 provides a good trade-off between resource usage and accuracy, making it suitable for many applications. It avoids the excessive computational demands and potential overfitting risks of larger models. Additionally, it offers solid baseline performance and can be efficiently deployed on devices with limited computational power, ensuring faster training and inference times while maintaining acceptable accuracy levels for the task. In our study, the output layer of the model is replaced with a SoftMax layer to predict the classification probabilities of eight distinct growth patterns (shown as Px in Figure 5, where x represents the corresponding growth pattern names). The MBConv layer utilizes a depth-separable convolution technique, which reduces the total number of model parameters by approximately one-third, thereby enhancing training efficiency through a shortcut mechanism.

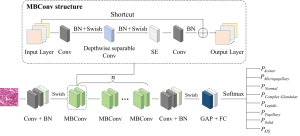

Figure 5 The EfficientNets architecture. n denotes the number of MBConv blocks, and n indicates the depth of the architecture. In this study, Efficientnet-B0 (n=30) was used as a classification model. P_x refers to the classification probability of growth pattern x. BN, batch normalization; FC, fully connected layer; GAP, global average pooling; MBConv, mobile inverted bottleneck convolution; SE, squeeze-and-excitation.

SSL method for pseudo-label generation

The FixMatch method, as proposed in reference (27), utilizes a SSL approach to enhance information in unlabeled patches by generating high-confidence pseudo-labels through consistency regularization and data augmentation. The process involves several key steps. Initially, supervised training is conducted using labeled data, where the loss value (ls) is computed using the cross entropy loss (CEL) metric. Weak augmentation is first applied to the unlabeled data, incorporating random horizontal and vertical flips. Subsequently, strong augmentation is performed, which includes random cropping, equalization, rotation, and flips, along with random adjustments to brightness, contrast, saturation, and hue with a 50% probability using a color jitter operation. The trained model then predicts growth pattern probabilities using the weakly augmented unlabeled data, generating pseudo-labels based on predictions exceeding a predefined confidence threshold (τ=0.95). These pseudo-labels are subsequently used to compute the CEL value (lu) with the strongly augmented unlabeled data in a supervised manner. A pathologist verified the pseudo-labels generated for different growth patterns to ensure their quality. Finally, the model parameters are optimized based on the combined loss ls+lu. By minimizing this loss, the model is optimized to generate consistent predictions across varying augmentations of the same image, thereby enhancing its robustness and generalization capability. The algorithm detailing this procedure is presented in Table 2.

OHPM method

As noted in the introduction, patches with similar histological features across different growth patterns can impede model convergence. To tackle this issue, we propose the OHPM method, designed to enhance the feature extraction of hard patches. This method involves dividing labeled data into batches, which are used for model training. For each batch, the training loss for each patch is calculated using CEL, and the average loss of the batch serves as a threshold. Patches with losses exceeding this threshold are identified as hard patches, which are then subjected to a strong enhancement process as detailed in Section “SSL method for pseudo-label generation”. The enhanced patches are combined with the corresponding hard patches to form new batches, aiding in model fine-tuning. Algorithm 2 outlines the OHPM method.

To validate the effectiveness of OHPM, we conduct an ablation experiment (Section “Ablation experiments”) comparing model performance with and without the OHPM method. The results demonstrate that incorporating OHPM improves the model’s ability to handle hard patches, thereby enhancing overall performance. Algorithm 2 outlines the OHPM method, and the detailed procedure of this algorithm is presented in Table 3.

Experimental configurations

The code was implemented using the PyTorch framework. Data preprocessing, model training, and inference were conducted on a server running CentOS 7 and equipped with dual NVIDIA V100 16GB Volta Graphics Processing Units (GPUs).

During the training phase, transfer learning was employed by utilizing weight trained on ImageNet. The batch size was set to 16, and the initial learning rate was 0.0001. The optimizer was AdamW. To address the issue of imbalance data for classification, we employed a weighted random sampler to resample the training data based on the number of patches for each growth pattern.

To comprehensively evaluate the performance of the proposed framework and avoid data leakage, we adopt a case-based approach for dataset partitioning. Specifically, we utilize five-fold cross-validation to train and validate the models, ensuring that patches from the same case (i.e., the same WSI) are exclusively assigned to either the training, validation, or testing set, but not shared across multiple sets. This strategy effectively mitigates the risk of overfitting, as it prevents the model from being exposed to highly similar patches from the same case during both training and validation/testing phases. In addition, both the training and validation sets were guaranteed to contain all growth patterns included in the study. The training process consisted of 30 epochs, and the model with the minimum loss on the validation set was saved.

Evaluation metrics

To assess the performance of our model, various evaluation metrics, including accuracy, precision, recall, F1 score (F1), Cohen’s kappa (k) and IoU, were calculated using Python with the scikit-learn library.

Accuracy is defined as:

Accuracy=TP+TNTP+FN+FP+TN[2]

Precision is defined as:

Precision=TPTP+FP[3]

Recall is defined as:

Recall=TPTP+FN[4]

where, TP denotes the number of correctly classified positive samples; FN denotes the number of falsely classified positive samples; TN indicates the number of correctly classified negative samples, and FP is the number of falsely classified negative samples.

F1 is defined as:

F1=2×Precision×RecallPrecision+Recall[5]

k is defined as:

k=p0−pe1−pe[6]

where, po denotes the relative observed agreement among raters for a certain metric, and pe is the hypothetical probability of chance agreement (28).

IoU is defined as:

IoU=Arealabel∩AreapredictionArealabel∪Areaprediction[7]

where Arealabel and Areaprediction represent the area of labeled and predicted regions, respectively.

95% confidence intervals (CIs) were estimated for precision, recall, F1 and IoU by bootstrapped (29) resampling the samples 100 times.

Results

Comparison with peer studies

On the dataset of this study, we trained the methods proposed by Gertych et al. (19) and Wei et al. (20) according to the same parameter settings as in this study and compared the results of the 5-fold validation. Tables 4,5 clearly demonstrate that the proposed method exhibits superior accuracy when compared to Gertych et al. across all three categories: acinar, micropapillary, and solid. The comparison results indicate that the proposed method achieved better results in all evaluation metrics. Additionally, the model’s parameter size is only 3.98 M, which is approximately only 64% of the model parameters proposed in Wei et al. (11.18 M). The suggested lightweight model can analyze a WSI in under 1 minute. Consequently, the model can be deployed on edge computing devices to improve prediction efficiency.

The performances of the best classification model

The mean and 95% CI of the precision, recall, F1, and IoU of the model with minimal loss in the 5-fold cross-validation for each growth pattern and normal category are presented in Table 6. The results reveal that the micropapillary, normal, complex gland, solid, and AIS categories exhibited precision and recall values surpassing 0.96, indicating a low incidence of false positives and false negatives. However, the acinar and papillary categories displayed relatively lower accuracy, implying that the model showed sensitivity toward these patterns and a tendency to misclassify them as other categories. The IoU for each category exceeded 0.83, except for complex gland (0.77), signifying strong agreement between the model predictions and the pathologist’s annotations for most growth patterns at the WSI level. Figure 6 illustrates some examples of delineated growth patterns at the WSI level.

Figure 6 Exemplary prediction results. Sections were stained with hematoxylin-eosin and scanned at 40× magnification. AIS, adenocarcinoma in situ; WSI, whole-slide image.

Comparison with the outlined results by pathologists

We conducted a comparison between the inference results obtained from the proposed model and those made by experienced pathologists. The arithmetic mean of Cohen’s kappa scores for 100 sample tests was 0.96 (Table 7). We then aggregated the inference results at the patch level and calculated Cohen’s kappa score at the WSI level, which reached 0.97 (Table 7). This indicates that the proposed model consistently achieved results comparable to those of experienced pathologists. Figure 7 presents result from the proposed model and the pathologists.

Figure 7 Delineation by pathologist and the proposed model. The results of AIS growth pattern are highlighted with black arrows. Sections were stained with hematoxylin-eosin and scanned at 40× magnification. AIS, adenocarcinoma in situ.

Ablation experiments

To validate the improved performance of SSL and the OHPM, three training configurations were utilized in the study. Firstly, the model was trained using labeled patches without SSL and OHPM (baseline). Secondly, unlabeled patches were employed to train the model with SSL (baseline + SSL). Lastly, the OHPM method was integrated into SSL training (baseline + SSL + OHPM). Mean precision, recall, and F1 scores, along with their 95% CIs, were presented in Figure 8.

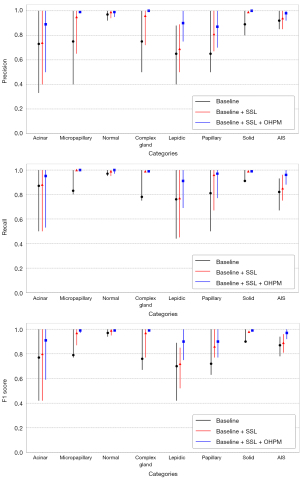

Figure 8 Mean precision, recall and F1 score and 95% CIs for 100-time sampling tests of three training configurations. The start and end of the line (from bottom to top) indicate the lower and upper bounds of CI, respectively, the length of the line indicates, and the markers on the line indicate the mean metrics in the sampling tests. AIS, adenocarcinoma in situ; CI, confidence interval; OHPM, online hard patch mining; SSL, self-supervised learning.

Impact of the SSL method

The introduction of the SSL method resulted in improved mean values of precision, recall, and F1 score for all categories when compared to Baseline and Baseline with SSL. For the micropapillary, complex gland, and papillary categories, the improvements in precision, recall, and F1 score exceeded 0.1. Consequently, the CI lengths for precision, recall, and F1 score were significantly narrowed compared to the Baseline, suggesting that the SSL method enhanced the classification precision of micropapillary, complex gland, papillary, and solid categories. The narrower CIs indicate improved stability in the model’s classification. Table 8 demonstrates the agreement between the model’s predicted labels for the unlabeled samples included in the training and the pathologist’s results for their labeling, as measured by accuracy. The results show that the agreement for each subtype is greater than or equal to 0.92, indicating that the pseudo-labels generated by the adopted SSL strategy are consistent with the pathologist’s diagnostic results and are effective in improving the model’s performance.

Impact of the OHPM method

Compared to the Baseline + SSL model, the introduction of the OHPM method further improved the mean values of precision, recall, and F1 score for all categories. Specifically, the precision and F1 score values for the acinar and lepidic categories, as well as the recall of the lepidic and AIS categories, exhibited improvements greater than 0.1. Additionally, compared to baseline + SSL, the CI lengths for precision, recall, and F1 score were reduced to varying degrees. This suggests that the introduction of the OHPM method improved acinar, lepidic, and AIS classification precision, while the narrowing of the CI indicates further enhancement in the model’s classification stability.

Figure 9 illustrates the changes in loss values and validation accuracies during the training process for models employing different training strategies. The red and green curves depict the training outcomes with and without the OHPM method, respectively. Compared to training without the OHPM method, incorporating the OHPM method does not significantly increase computational overhead or training time. Instead, it results in a smoother decrease in training loss and a more gradual increase in validation accuracy. This leads to reduced training loss and enhanced validation accuracy. These findings suggest that the OHPM method not only optimizes the model’s training process but also boosts its overall performance.

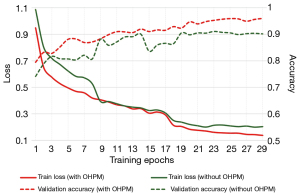

Figure 9 Training loss and accuracy variation curves for SSL classification models with/without OHPM method. OHPM, online hard patch mining; SSL, self-supervised learning.

Comparison of different backbone networks

As shown in Table 9, the proposed model achieves an overall classification accuracy of 95%, a precision of 95%, a recall of 96%, and an F1 score of 95%. These results are significantly better than ResNet-50 (30), DenseNet-169 (31), and ViT-B models (32). For example, compared to ResNet-50, our model improves 4% in accuracy, 3% in precision, 9% in recall, and 3% in F1 score. Compared to DenseNet-169, our model improves 4% in accuracy, 4% in precision, 4% in recall, and 4% in F1 score. Compared to ViT-B, our model improves 2% in accuracy, 2% in precision, 3% in recall, and 2% in F1 score.

Impact of each component in the SSL method

Table 10 compares how different component compositions in the SSL approach affect the model’s classification results. The combination of pseudo-labeling and consistency regularization achieves the highest accuracy (95.54%), precision (95.18%), recall (87.56%), and F1 score (94.89%). In comparison, using only pseudo-labeling results in an accuracy of 85.23%, precision of 70.65%, recall of 72.33%, and F1 score of 71.48%. When only consistency regularization is applied, the accuracy is 86.50%, precision is 74.20%, recall is 73.38%, and F1 score is 73.79%. These results indicate that integrating both pseudo-labeling and consistency regularization substantially improves the model’s ability to classify various growth patterns of LUADs. The findings emphasize the importance of combining these strategies to maximize their individual strengths. This integration not only enhances the model’s accuracy but also achieves a better balance between precision and recall, as evidenced by the higher F1 score.

ANOVA

We performed a statistical analysis employing ANOVA to evaluate and compare the performance of three distinct models—baseline, baseline + SSL, and baseline + SSL + OHPM—across multiple categories in the classification of LUAD. The metrics under scrutiny included precision, recall, and the F1 score. The ANOVA outcomes revealed substantial performance disparities among the models for the majority of the categories examined. Notably, the baseline + SSL + OHPM model exhibited superior performance, consistently achieving higher precision, recall, and F1 scores across the majority of categories when compared to its counterparts. The enhanced performance of this model implies that the incorporation of SSL and OHPM methodologies significantly refines the training process, culminating in more precise and dependable classification results. The statistical significance of these disparities highlights the potential of these sophisticated approaches to augment diagnostic precision within the realm of histopathological image analysis.

Test results on public datasets

In this study, the efficacy of the proposed method was rigorously evaluated using the Dartmouth lung cancer histology dataset. The performance of our method was compared with that of DiPalma et al. (33) and
Sheikh et al. (34), utilizing the same evaluation metrics employed in the present study. The detailed comparison of results is presented in Table 11, with all values directly extracted from the respective publications. The results demonstrate that our method achieved superior performance across all evaluation metrics for the various subtypes. Specifically, our method exhibited performance enhancements of 1.44%, 19.34%, 6.78%, and 19.16% over DiPalma et al. (33), and 0.99%, 1.04%, and 0.84% over Sheikh et al. (34). These improvements not only underscore the superiority of our method but also validate its robust generalization capability.

Discussion

The present model exhibits better performances

Compared to the available studies, our model consistently outperformed them across the evaluation metrics employed. This improvement can be attributed to several factors, including our model selection and the utilization of SSL and OHPM integrated into our study.

Firstly, we used the EfficientNet model architecture, which concurrently optimizes resolution, depth, and width, circumventing the limitations of optimizing each individually (26). As a result, it achieves better classification performance in several medical image classification tasks (35,36). Given the large size of WSIs, it is crucial to employ lightweight yet highly accurate classification models for sliding window-based WSI analysis methods. We chose EfficientNet-B0 as our classification network, with a model parameter size not exceeding 3.98 M, meeting the requirements for timely clinical analysis.

Secondly, the application of SSL was instrumental in augmenting the efficiency of supervised training by capitalizing on a significant volume of unlabeled data in tandem with a smaller labeled dataset. The critical aspect lies in enhancing the model’s accuracy in generating pseudo-labels for unlabeled data. In this study, we employed a consistency regularization scheme to achieve SSL for unlabeled data by integrating the disparity between predicted values of two forms of augmented images derived from the same source image into the objective function.

Lastly, our study revealed that certain morphological similarities among histological growth patterns in LUAD could yield inaccurate classification outcomes. The OHPM method led to a 2% improvement in classification precision for acinar and papillary categories (Figure 8). This outcome underscored the effectiveness of this approach, consistent with findings of Xu et al. (37). The method emulated a human learning approach, where repetitive learning of complex events resulted in the establishment of more connections among diverse neurons in the brain. Consequently, an increased number of conditioned reflex circuits formed, activating previously dormant synapses, which ultimately enhanced synaptic activity and facilitated a wider range of information transfer (38).

SSL and OPHM are effective solutions to improve model performance

Ablation experiments demonstrated that the incorporation of SSL and OHPM had a positive impact on precision, recall, F1 score, and model stability. Additionally, a comparison was made to measure classification accuracy before and after the adoption of SSL and OHPM (Figure 10). Figure 10A depicted the confusion matrix for the Baseline model, revealing classification errors exceeding 0.1, indicated by solid red squares. These misclassifications included the model’s tendency to classify acinar as lepidic, complex gland as acinar, and papillary as lepidic, resulting in lower classification accuracy for these three categories. In contrast, the Baseline + SSL + OHPM model achieved accuracy exceeding 0.9 for each category (Figure 10B). This approach reduced the probability of the model misclassifying acinar, complex gland, and papillary as lepidic by 7%, 9%, and 12%, as shown by the red dashed squares in Figure 10B. Simultaneously, classification accuracy for acinar, complex gland, and papillary increased by 9%, 16%, and 16%. However, challenges persisted for acinar, complex gland, lepidic, and AIS classification due to the histological feature similarities among these growth patterns (24,39).

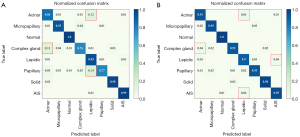

Figure 10 Confusion matrices for the model with/without the proposed method. (A) Baseline. (B) Baseline + SSL + OHPM. AIS, adenocarcinoma in situ; OHPM, online hard patch mining; SSL, self-supervised learning.

Clinical applicability in terms of different imaging devices

Although our study employed an internal dataset for training and testing, our proposed method for classifying LUAD growth patterns holds promise for clinical applications for two key reasons. Firstly, the hematoxylin-eosin staining method, used in the study, is also commonly used in most clinical practices of similar purposes (40). It indicates the proposed model can be used for most current clinical histopathology diagnosis. Furthermore, morphological characteristics play a central role in the WSI-based interpretation of LUAD growth patterns. The faithful reproduction of colors in WSI images relies on the precision of microscopes and digital scanners. The U.S. Food and Drug Administration has issued guidance emphasizing the importance of consistent and reliable display of digital microscope images (41). In addition, the International Color Consortium recommends regular color calibration and compliance checks for all medical-grade displays, with a suggested interval of every 50 days, as these displays can undergo changes over time (42). These standardizations have been applied by most of the manufacturers and would ensure the stability of the proposed model when dealing with images acquired from various imaging devices. Consequently, this method can be broadly applied in various clinical scenarios for LUAD staging.

Limitation and future work

The average IoU values over 100-sample tests for acinar, micropapillary, complex gland, lepidic, and papillary were below 0.9. This can be attributed to the relatively small, labeled regions of these subtypes in our dataset. As a result, the computation of IoU was more sensitive to the accuracy of segmentation in these regions. Patches located at the boundaries of labeled regions covered only a fraction of the labeled area, leading to smaller numerator values for IoU calculations. This inevitably resulted in lower IoU values compared to the patches including the complete labeled region. Given the small size of the labeled regions for these subtypes, the number of patches at the boundary did not significantly differ from those covering the complete labeled region. Consequently, IoU for boundary patches had a substantial impact on the overall IoU of the region. In future work, we plan to explore multi-scale learning to address the challenge of poor IoU for boundary patches by fusing features at different scales through methods such as pyramid pooling.

The similarity in histological features among acinar, complex gland, lepidic, and AIS categories contributes to a misclassification probability in these categories. ViT (32) has demonstrated superior performance compared to convolutional neural network (CNN) networks in certain image refinement classification tasks, primarily owing to its adaptive attention unit for filtering (43,44). In our future research, we intend to explore the fusion of CNN with ViT to enhance classification accuracy while keeping the model parameters in check (45,46). Furthermore, the patch-based classification method poses some challenges in accurately delineating the boundaries of growth patterns, leading to slightly inaccuracy in calculating the area of the specific growth pattern. We will develop the pixel-level segmentation model which allows calculating precisely the area and, ultimately, improving the accuracy of LUAD staging.

Conclusions

In this study, we developed a SSL framework to identify and delineate seven lung tumor growth patterns and normal lung tissue in WSIs. By leveraging weak data augmentation, we generated high-confidence pseudo-labels for unlabeled samples, thereby maximizing the use of unlabeled data. To address the challenge of feature extraction in complex patches, we integrated an OHPM strategy. Extensive experiments confirmed the effectiveness of our approach. Our model achieved performance comparable to pathologists, with an overall classification accuracy of 95.3%±5.5% and a recall rate of 96.8%±2.9%. Furthermore, the method’s ability to delineate growth areas contributed significantly to the diagnostic process, with an overall IoU of 87.5%±6.9%, which is particularly beneficial for assessing IPAs. As an automated solution, our model analyzes WSIs in approximately 1 minute using a standard workstation, approximately 60 times faster than manual interpretation. This approach not only reduces the workload for pathologists but also enhances diagnostic accuracy and advances computer-aided histological image analysis. The integration of SSL and OHPM enhances model performance and shows promise for deployment in diverse clinical settings with varying resource constraints.

Acknowledgments

None.

Footnote

Reporting Checklist: The authors have completed the CLEAR reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-24-2282/rc

Data Sharing Statement: Available at https://qims.amegroups.com/article/view/10.21037/qims-24-2282/dss

Funding: This work was supported by the National Natural Science Foundation of China (grant No. 62271508).

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-24-2282/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. The study was approved by the Ethics Committee of Affiliated Beijing Chaoyang Hospital, Capital Medical University (Beijing, China; ethics approval number: 2023-8-23-73). Informed consent was taken from all the patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
