Acute stroke diagnosis: diagnostic efficacy of dual-layer spectral computed tomography for non-contrast ischemic sign detection

Introduction

Stroke is the second leading cause of death worldwide, and a major contributor to disability (1,2). Ischemic strokes account for 87% of all strokes and require prompt and effective treatment, as they can lead to fatal outcomes or prolonged incapacitation, resulting in societal and economic repercussions (1-3).

Following an acute stroke, the process of ischemia continues to develop over time. Diffusion-weighted imaging (DWI) is the most precise and sensitive method for identifying the ischemic core during an acute ischemic stroke (AIS). However, magnetic resonance imaging (MRI) faces a number of issues (e.g., lengthy procedures and specific scan restrictions) that significantly limit its widespread application. For patients suspected of AIS, non-contrast computed tomography (NCCT) is the primary imaging technique due to its rapid execution, affordability, and effectiveness in detecting conditions that prevent the use of reperfusion therapies, including recent bleeding, significant existing infarcts, or conditions mimicking a stroke (1,4).

Currently, innovative dual-layer spectral computed tomography (DLCT), which uses distinct layers that are attuned to low- and high-energy photons, respectively, facilitates the analysis of two fundamental physical phenomena that contribute to X-ray attenuation: the photoelectric effect and Compton scattering (5,6). Various spectral images can be produced, including virtual monoenergetic images (VMIs), iodine density maps, effective atomic number (Zeff) representations, and electron density (ED) maps. The use of these spectral images has been shown to enhance contrast, reduce artifacts, and provide a more accurate characterization of various tissues (7-9).

Research on the use of DLCT in the identification of AIS lesions is limited. Thus, this study aimed to quantitatively assess how well spectral imaging can identify early ischemic changes (EICs) compared to conventional imaging techniques. We present this article in accordance with the STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-2025-1005/rc).

Methods

Study population

The Ethics Committee of the Civil Aviation General Hospital approved this retrospective study (No. 2024-L-K-122) on September 23, 2024. All participants provided written informed consent before their inclusion in the study. The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments.

The Picture Archiving and Communication System (PACS) was used to locate patients who had undergone NCCT of the brain with a Hawk Spectral computed tomography (CT; Spectral CT 7500, Philips Healthcare, Best, The Netherlands) from June 21, 2024, to November 30, 2024. Non-contrast brain MRI (SIGNA Pioneer, GE Healthcare, Tokyo, Japan) scans were conducted at our institution either on the same day of NCCT or within 24 hours. The CT and MRI examinations were all performed within a 7-day window. Patients with hemorrhage based on CT and MRI findings were excluded from the study. Figure 1 provides a flowchart detailing the participant recruitment process for the study. Two neuroradiologists, with 10 and 30 years of experience, respectively, analyzed the brain MRI and NCCT spectral images of the patients.

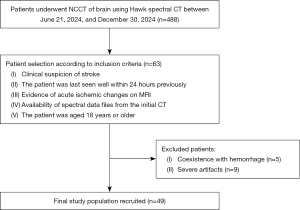

Figure 1 Flowchart of patient recruitment process. CT, computed tomography; MRI, magnetic resonance imaging; NCCT, non-contrast computed tomography.

Parameters related to the acquisition and reconstruction of images

All the scans were performed using the Hawk Spectral CT system (Spectral CT 7500, Philips Healthcare) using the following scanning parameters: tube voltage: 120 kV; tube current: 250 mAs; collimation: 64 mm × 0.625 mm; pitch: 0.3; and rotation time: 0.33 s. The images were saved in the PACS and then transferred to the IntelliSpace Portal (ISP) (version 10.1.4.21403) software (Philips Healthcare), where images with a slice thickness of 1.0 mm were reconstructed, and the quantitative data retrieval was performed.

All the patients underwent 3.0-T MRI (SIGNA Pioneer, GE Healthcare). The standard brain MRI protocols included DWI, T1-weighted imaging, and T2-weighted imaging. DWI was performed with b values of 0 and 1,000 s/mm², and an apparent diffusion coefficient map was generated.

Analysis of numerical data

Using conventional images from the initial CT scans (see Figure 2), regions of interest (ROIs) were manually defined at the sites of ischemic lesions and the corresponding normal brain on the opposite side, with one ROI assigned to each site.

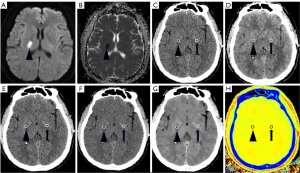

Figure 2 Illustration of ROI placement. AIS defined by (A) DWI and (B) ADC mapping. Example of placement of ROIs in (C) conventional CT image, (D) virtual MonoE 40 keV image, (E) MonoE 70 keV image, (F) MonoE 100 keV image, (G) ED image, and (H) Zeff image. The arrowheads indicate the ROI of early ischemic lesion; the arrows indicate the identically sized mirrored ROI of the contralateral normal region; the circles indicate the ROI. ADC, apparent diffusion coefficient; AIS, acute ischemic stroke; CT, computed tomography; DWI, diffusion-weighted imaging; ED, electron density; MonoE, monoenergetic; ROI, region of interest; Zeff, effective atomic number.

An attending radiologist evaluated the ROIs. Any issues as to the positioning of measurements were resolved through discussions with a senior radiologist. For each ROI, the mean and standard deviation attenuation figures, noted in Hounsfield units (HU), were documented in both the conventional images and VMIs across the range of 40–200 keV in 10 keV increments in the ISP workstation. Additionally, the Zeff and ED relative to water (EDW) values were also documented. An ED image represents the ED for each voxel in comparison to that of water, indicated as a percentage. The EDW values were displayed by default when measured on the ED map. DWI was used as the gold standard for confirming AIS lesions.

The ROIs designated as areas of acute cerebral infarction from the DWI images were assessed quantitatively during the DLCT examination. An analysis was performed to compare various metrics, such as the CT values from conventional images, CT values from VMIs from 40 to 200 keV at
10 keV intervals, and the Zeff and EDW values, between the ischemic stroke area and the corresponding healthy region on the opposite side.

Statistical analysis

The numerical data are presented as the median with the interquartile range, while the categorical data are presented as the count and percentage. The Mann-Whitney U test was used for comparisons, while a receiver operating characteristic (ROC) curve analysis was conducted to evaluate the area under the curve (AUC) values to distinguish between cases of AIS. The statistical analysis was conducted using SPSS Statistics for Windows version 25.0 (IBM Corp., Armonk, NY, USA). The calculated metrics for the assessment included sensitivity and specificity across all parameters. The Delong test was used to assess the differences between the ROC curves for the various parameters, and MedCalc version 19.3.1 software (Ostend, Belgium) was used for this analysis. A P value less than 0.05 was considered statistically significant.

Results

Table 1 sets out the demographic characteristics of the patients included in the study. In total, 49 AIS patients with 65 lesions were included in the study. Figure 3 shows boxplots that illustrate the median attenuation values for conventional images alongside the VMIs, in addition to the Zeff and EDW values of the ischemic lesions compared with the corresponding normal regions on the contralateral side. The median attenuation values of the ischemic lesions were significantly lower than those in the normal regions in both the conventional images and VMIs at 50–200 keV (all P<0.01). A similar difference was observed in the EDW values (P<0.01). However, no significant difference was observed in the virtual monoenergetic (MonoE) 40 keV and Zeff values between the ischemic regions and normal regions (P>0.05).

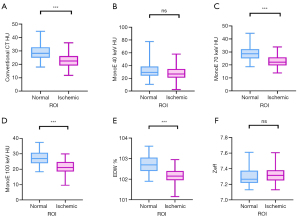

Figure 3 Comparison of different parameters between the ischemic stroke region and the contralateral normal region. (A) Comparison of conventional CT value (HU) between the ischemic stroke region and the contralateral normal region. (B) Comparison of MonoE 40 keV CT value (HU) between the ischemic stroke region and the contralateral normal region. (C) Comparison of MonoE 70 keV CT value (HU) between the ischemic stroke region and the contralateral normal region. (D) Comparison of MonoE 100 keV CT value (HU) between the ischemic stroke region and the contralateral normal region. (E) Comparison of EDW (%) between the ischemic stroke region and the contralateral normal region. (F) Comparison of Zeff between the ischemic stroke region and the contralateral normal region. ***, P<0.001; ns, not significant, P>0.05. CT, computed tomography; EDW, electron density relative to water; HU, Hounsfield units; MonoE, monoenergetic; ROI, region of interest; Zeff, effective atomic number.

The results of the ROC curve and comparative analysis between the conventional images and various spectral metrics are shown in Table 2 and Figure 4. Notably, EDW achieved the highest AUC at 0.859 [95% confidence interval (CI): 0.787–0.914], which was similar to the measurement obtained from MonoE 100 keV (0.830; 95% CI: 0.754–0.890; P=0.22). Conversely, MonoE 40 keV had the lowest AUC (0.577; 95% CI: 0.478–0.675). As hypothesized, the AUC (with value of 0.791) for MonoE 70 keV was similar to that of the conventional images (with value of 0.757, P>0.05). There were significant differences between the AUC values of the conventional images and other spectral parameters, especially MonoE 100 keV and EDW (all P<0.05). However, there was no difference between the AUC of the MonoE 100 keV and EDW (P>0.05). The sensitivity and specificity of EDW (cut-off: 102.33%) were 0.831 and 0.692, respectively, which were both higher than those of conventional CT (0.754 vs. 0.662).

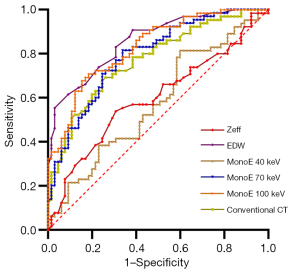

Figure 4 ROC curves of conventional CT, MonoE 100 keV, MonoE 70 keV, MonoE 40 keV, EDW, and Zeff values for identifying AIS lesions. AIS, acute ischemic stroke; CT, computed tomography; EDW, electron density relative to water; MonoE, monoenergetic; ROC, receiver operator characteristic; Zeff, effective atomic number.

Figure 5 illustrates a clinical case of a patient with AIS, providing a comparison between traditional images and spectral images.

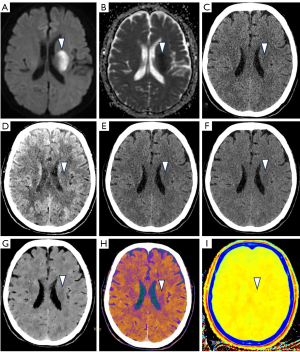

Figure 5 Example of a left-sided basal ganglia acute ischemic lesion (as indicated by the arrowheads) in a 70-year-old female patient with dizziness, dysphonia, right limb weakness for 6 hours. (A) DWI indicated a high intensity signal on the left-sided basal ganglia (as indicated by the arrowhead), and the ADC value decreased with a low intensity signal (as indicated by the arrowhead) on (B) ADC mapping. The HU value of the lesion on the left-sided basal ganglia (as indicated by the arrowhead) was slightly decreased (24.4±4.8 vs. 31.7±4.7 HU) on the conventional CT image (C), the edge was blurred, and it was difficult to detect. The difference in the CT values (21.93±5.79 vs. 29.35±5.22 HU) between the left-sided basal ganglia lesion (as indicated by the arrowhead) and the normal side was smaller on the virtual MonoE 40 keV image (D), with the noise increasing, and the lesion could not be detected. The HU value (23.26±4.48 vs. 31.54±4.22 HU) on the MonoE 70 keV CT image (E) was similar to that of the conventional CT, but the noise was decreased; the lesion (as indicated by the arrowhead) was faintly visible. The difference in the CT values (23.28±4.38 vs. 32.02±4.10 HU) between the lesion (as indicated by the arrowhead) and the normal region was increased, and the noise was further reduced on the MonoE 100 keV CT image (F); thus, the EICs were clearer. Difference in the EDW values (102.5%±0% vs. 103.3%±0.1%) between the lesion (as indicated by the arrowhead) and the normal region could be easily identified, and there was a notable reduction in noise, which was evident from the clarity and smoothness of the ED image. (G) The visualization of the lesion (as indicated by the arrowhead) was better in the fusion image (H) of the conventional CT image and ED image (general pattern). The difference in the Zeff value between the EICs (as indicated by the arrowhead) and the normal region (7.25±0 vs. 7.24±0.1) was too small to detect (I). The arrowhead indicates the early ischemic lesion. ADC, apparent diffusion coefficient; CT, computed tomography; DWI, diffusion-weighted imaging; EDW, electron density relative to water; EIC, early ischemic change; HU, Hounsfield units; MonoE, monoenergetic; Zeff, effective atomic number.

Discussion

DLCT is a promising examination modality that provides many quantitative parameters that have shown special advantages in detecting different disorders. DLCT can overcome the limitations of tissue characterization encountered by conventional CT. We found that the virtual MonoE 100 keV and ED images from DLCT significantly improved the detection of EICs compared to conventional NCCT imaging, which could in turn improve the diagnosis of AIS by CT.

DWI is the most reliable and precise technique for identifying the ischemic core (10). In cases involving large core infarction, the application of endovascular therapy (EVT) may lead to complications such as reperfusion injury, unfavorable functional recovery, and even mortality. Patients with smaller core infarcts generally benefit the most from EVT (11,12). However, the use of MRI is often limited by its time-consuming nature and contraindications.

NCCT scans are still frequently employed to detect and assess patients with suspected or confirmed AIS (13). However, variations in the HU values on conventional CT are often minor, making changes subtle and challenging to detect (10,14,15).

An ED image represents the ED for each voxel in comparison to that of water, indicated as a percentage (7,16). The use of a dual-layer detector system in the CT scanner leads to a notable reduction in noise, which is evident in the clarity and smoothness of the resultant ED images. This could play a role in the enhanced visibility of EICs observed in the current research. The contrast between EICs and normal brain parenchyma is more pronounced in DLCT images. Among the CT parameters examined in this study, the AUC for identifying EIC compared to normal brain tissue was at its peak at 0.859 (95% CI: 0.787–0.914). With a threshold set at 102.33%, the sensitivity and specificity of EDW were 0.831 and 0.692, respectively, which were both higher than those of the conventional images. Unfortunately, there was no significant difference in the Zeff values between the EICs and normal brain matter (P>0.05).

In addition, we aimed to determine if a set of spectral VMI reconstructions could enhance the detection of acute ischemic lesions more effectively than traditional images. Previous research has shown that the signal-to-noise ratio (SNR) and contrast-to-noise ratio (CNR) are typically superior in VMIs than conventional images (17). The increased SNR and CNR are theoretically attributed to lower image noise and/or elevated attenuation values, potentially due to reduced artifacts from the effects of beam hardening and Compton scattering. These findings align with earlier research conducted by Neuhaus et al. and Pomerantz et al. (18,19). In this research, we observed that lesions caused by ischemia could be detected more readily using VMI in the energy range of 70–100 keV. The ability of MonoE 100 keV to detect EICs was strong (AUC: 0.830; 95% CI: 0.754–0.890), matching that of EDW. MonoE
100 keV achieved a high specificity of 0.846, with a threshold set at 25.83 HU.

Recently, van Ommen et al. examined the use of unenhanced spectral brain CT in the diagnosis of stroke and found that MonoE 80 keV and MonoE 90 keV showed slight improvements in infarct detection and localization (20). We found that the most effective VMI was 100 keV, which was similar to that reported by Yoshida et al., who found that 99 keV could better detect supratentorial cerebral infarction (21). An image at 100 keV achieves a good balance between the CNR and spatial resolution, which not only reduces the noise in low-energy images, but also avoids the problem of insufficient contrast in high-energy images. In cranial CT scans, MonoE 100 keV can obtain a high SNR image and reduce the artifacts related to beam hardening caused by the skull. We showed that MonoE 100 keV had the best diagnostic accuracy.

One notable advantage of this research lies in its application of quantitative methods rather than qualitative methods, which can help minimize biases among various evaluators. However, the study had a number of limitations. First, it had a relatively small sample size. Second, the imaging manifestations with different onset times were not analyzed separately. Third, in this study, the patients included in the analysis had a wide age range (36–91 years), which might have influenced the results, particularly in the detection of EICs using DLCT. Consequently, subsequent investigations should focus on increasing the sample size, while also examining distinctions based on the size or location of the lesions. To better understand the effect of age on ischemic stroke detection, future studies should stratify patients into age groups to assess whether spectral CT sensitivity and accuracy were influenced by age-related changes in brain tissue. Moreover, adopting a prospective methodology may provide access to more comprehensive clinical data.

Conclusions

This study found that as a critical component in the diagnosis and treatment of acute stroke, the use of non-contrast DLCT images, especially ED images and MonoE 100 keV images, improves the accurate evaluation of acute strokes, and thus could serve as an important complement to MRI.
