Detection of radiolucent wooden foreign bodies: diagnostic insights for computed tomography imaging

Introduction

Foreign bodies retained in the body are commonly encountered in the emergency department (ED). Kudo et al. reported a case in which a wooden stick had penetrated a boy’s right nasal cavity, highlighting the difficulty of detecting wooden foreign bodies on imaging (1). A foreign body in the soft tissue is difficult to detect due to being radiolucent but may be identified via sonography (2-6). Another method for detection is the direct regulation of the window levels (Hounsfield units), after which the wooden material may become visible (7). Ingraham et al. noted the value of computed tomography (CT) window adjustments and were the first to propose an optimal Hounsfield unit range for enabling consistent detection (3).

Here, we present a case that highlights the diagnostic difficulty caused by the radiolucency of wood rather than the anatomical location of the foreign body. The solution to detection lies in adjusting the CT window settings toward lung window parameters.

Case presentation

A 42-year-old male arrived at the ED in MacKay Memorial Hospital, Taipei, seeking assistance for the removal of a wooden object retained in his rectum. He admitted to inserting the object, described as a Y-shaped wooden massager typically used for shoulder and neck massage, for sexual stimulation approximately 8 hours prior to his ED visit. The object measured approximately 10 cm × 4.5 cm and weighed 35 g, as per the product description on a shopping website. The patient denied experiencing fever, nausea, vomiting, abdominal pain, diarrhea, or bloody stool. Initial imaging with kidney-ureter-bladder (KUB) X-ray revealed only nonspecific findings of bowel gas and stool collection (Figure 1). All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Declaration of Helsinki and its subsequent amendments. Written informed consent was obtained from the patient for publication of this article and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

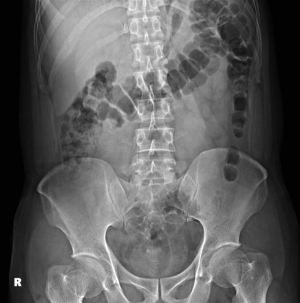

Figure 1 Plain abdominal radiograph (KUB) showing nonspecific findings of bowel gas and stool collection. No obvious foreign body is visible on initial X-ray imaging. KUB, kidney-ureter-bladder.

Laboratory investigations indicated mild leukocytosis (11,000/µL), and subsequent abdominal CT revealed no evidence of bowel wall thickening, pericolonic fat stranding, or fluid collection, suggesting no acute inflammation or perforation was present (Figure 2A). An abnormal low-absorption image (air-like image) was observed, although the foreign body could not be clearly identified within the colon.

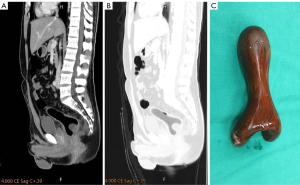

Figure 2 Standard abdominal CT showed no free air or detectable foreign body. After adjusting the lung window (−270 to −300 HU), a radiolucent object ~10 cm long was identified in the rectum and sigmoid colon. Emergent sigmoidoscopy confirmed a foreign body measuring 11.5 cm. (A) Abdominal CT yielded no evidence of free air in the abdomen and no obvious foreign body within the colon. (B) Upon adjustment of the lung window to a window level of −270 to −300 Hounsfield units, a radiolucent hypodense foreign body measuring nearly 10 cm in length was identified in the rectum and sigmoid colon. (C) After detection of the foreign body, a proctologist was consulted, and an emergent flexible sigmoidoscopy was performed, revealing the foreign body measuring 11.5 cm in the greatest dimension. CT, computed tomography.

However, upon adjustment to lung window settings, a radiolucent hypodense foreign body measuring nearly 10 cm in length was identified in the rectum and sigmoid colon with a window level ranging from −270 to −300 Hounsfield units (Figure 2B).

Consequently, a proctologist was consulted, and an emergent flexible sigmoidoscopy was performed, in which the foreign body was grasped with a flexible sigmoidoscope and a large endoscopic retrieval snare and extracted transanally. The foreign body measured 11.5 cm in the greatest dimension (Figure 2C). Successful removal of the object was achieved without complications.

Discussion

This case indicates that a CT window level range of −270 to −300 Hounsfield units may be optimal for the visualization of wooden foreign bodies—a quantitative parameter that has not previously been proposed. Several reports have described wooden material as a foreign body involved in various conditions such as chest trauma (8) and perforated Meckel’s diverticulum (9) and located in the renal pelvis (10), thigh (11), head (12), knee (13), and nasal cavity (14). A foreign body in the head can sometimes be difficult to visualize, if there is no neurological deficit, as the wood material may not be detectable on plain X-ray (15). In some reports, the wooden foreign bodies were found via surgical exploration after initial negative findings on X-ray (16-18). The most common locations of foreign bodies are the limbs, with 31% of these cases involving a wood material (5), and the second most common site is the feet (19). The surgeon should maintain a high index to detect radiolucent foreign bodies even if the initial X-ray is a negative (20). Another option is the direct regulation of the window levels so that the wooden material appears on CT. Suggested protocol: if a foreign body is suspected but not clearly visualized in the standard abdominal window, a secondary review using the lung window should be performed.

Our findings confirmed that visibility is dependent on Hounsfield level adjustments regardless of the anatomical location. Table 1 summarizes and compares the findings of the relevant literature.

Conclusions

A wooden foreign body is easily misdiagnosed by plain film X-ray CT unless the Hounsfield unit is appropriately downregulated for detection. We recommend adjusting CT window levels between −270 and −300 Hounsfield units when a radiolucent foreign body is suspected.
