A three-classification machine learning model for non-invasive prediction of molecular subtypes in diffuse glioma: a two-center study

Introduction

Adult-type diffuse glioma is one of the most prevalent types of adult primary brain tumors with high heterogeneous and poor prognosis (1). According to the updated 2021 World Health Organization classification of tumors of the central nervous system 5^th edition (WHO CNS 5), molecular characteristics constitute an essential part of the diagnostic process of gliomas and provide an integrated phenotypic and genotypic diagnosis (2). Distinguishing the three main molecular subtypes of diffuse gliomas—astrocytoma, isocitrate dehydrogenase (IDH)-mutant (IDHmut); oligodendroglioma, IDH-mutant and 1p/19q-codeleted (IDHmut-codel); and glioblastoma, IDH-wildtype (IDHwt)—is of paramount importance, as each subtype exhibits distinct biological behavior, prognosis, and response to therapy (3,4). For instance, IDH-mutant gliomas respond better to alkylating agents, whereas 1p/19q-codeleted oligodendrogliomas exhibit prolonged survival with combined chemoradiotherapy (5,6), which underscores the necessity of an accurate and precise molecular diagnosis for guiding treatment strategies and predicting outcomes. Using this new glioma genotype-based classification system not only enhances our understanding of the biological diversity of gliomas but also facilitates the development of more personalized medicine, in order to uncover novel therapeutic targets within these molecular subtypes (3,4,7,8). Despite these advances, current clinical workflows rely heavily on invasive tissue sampling by surgery or biopsy for molecular profiling, which carries the risk of postoperative complications and sampling bias due to tumor heterogeneity and is impractical for inoperable patients and delays treatment planning. Newly non-invasive and convenient biomarkers are needed to classify molecular subtypes to improve clinical treatment strategies and prognostic prediction.

Preoperative magnetic resonance imaging (MRI) evaluation plays a crucial role in the management of gliomas. In the recent decade, machine learning (ML) and deep learning (DL) methods have emerged as promising tools for decoding glioma heterogeneity. Many studies have shown that integrating ML methods with MRI and clinical data can improve the performance of non-invasive prediction of molecular markers of glioma (9-11). For example, in Wu et al.’s study, a hybrid model integrating age and tumor location features as well as DL features from MRI yielded improved performance [area under the receiver operating characteristic (ROC) curve (AUC) =0.878] for predicting IDH mutation status of gliomas (12). Lu et al. used an ML model based on multimodal MRI radiomics to classify subtypes of gliomas, and demonstrated that the combination of MRI phenotypes and histological information could improve the classification of molecular subtypes (13). However, previous studies have primarily focused on binary classification for simplex prediction of IDH mutation or 1p/19q co-deletion status, which, although useful, do not fully capture the heterogeneity of gliomas and have not covered the updated WHO CNS 5 molecular typing. In addition, limited data and external validation or explanation of models hinders clinical reliability (14). Specifically, the ability to differentiate among the three molecular subtypes (IDHmut, IDHmut-codel, and IDHwt) of adult-type diffuse glioma according to WHO CNS 5 criteria in a common clinical setting is still limited. The complexity of gliomas, particularly in their molecular diversity, necessitates a more nuanced approach. This limitation underscores the need for a more precise diagnostic tool that can accurately classify gliomas into these three distinct subtypes, which holds greater clinical value and practicality, thereby providing more precise prognostic information and guiding targeted therapy decisions.

Recently, a DL neural network based on the Transformer architecture has emerged as a powerful class, and it has achieved great success in gliomas segmentation and classification (12,15-18). The Vision Transformer (ViT) integrates the self-attention mechanism (the cornerstone of the Transformer model) with convolutional neural networks (CNNs), allowing the capture of global dependencies in image data, which is particularly useful in medical imaging where context is crucial for accurate diagnosis and analysis (19,20). In addition, the Swin Transformer, which introduces a hierarchical structure and shiftable window approach to the Transformer architecture, has been shown to be effective in capturing long-range spatial dependencies within images, making it valuable for the analysis of medical images where regional details can be significant (21). Recently, Xu et al. developed a multitask framework based on the ViT to predict molecular expressions (including IDH, MGMT, Ki67, and P53) of glioma using MRI, and they achieved high accuracy (AUCs =0.976–0.984), outperforming CNN-based models (17). Notably, a recent study showed that the Swin Transformer outperformed the CNN-based ResNet model in predicting IDH-mutation status of glioma (12). However, these studies did not directly address the WHO CNS 5 classification requiring integrated genotypic diagnosis (IDH and 1p/19q status) for diffuse glioma.

In light of this, in order to further improve the prediction accuracy of the three molecular subtypes in alignment with the WHO CNS 5 criteria of adult-type diffuse gliomas in clinical applications, our study aimed to develop a hybrid three-classification ML model by combining demographic variables, conventional MRI (CM) features, and radiomics and Swin Transformer-based DL (RSTD) features. We employed the SHapley Additive explanations (SHAP) (22) and gradient-weighted class activation mapping (Grad-CAM) (23) methods to interpret the ML model. This approach aligns with the calls for “explainable artificial intelligence (AI)” in neuro-oncology (24), in order to improve the interpretability and clinical trust of the prediction model. We present this article in accordance with the TRIPOD+AI reporting checklist (25,26) (available at https://qims.amegroups.com/article/view/10.21037/qims-24-2461/rc).

Methods

Study design

This study was registered at the Chinese Clinical Trials Registry (ChiCTR2400082552). The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. The study was approved by the Institutional Review Board of Huashan Hospital (No. KY2024-013) and the requirement for individual consent for this retrospective analysis was waived. The First Affiliated Hospital of Anhui Medical University was also informed of and approved the study. Consecutive patients with pathological verified adult-type diffuse glioma at the Huashan Hospital (Center 1) between January 2021 and July 2023 were retrospectively collected, constituting the primary cohort. The external validation cohort came from The First Affiliated Hospital of Anhui Medical University (Center 2) from January 2018 to July 2023. Patients in Center 1 were randomly divided into training (n=180) and internal validation (n=78) sets in a ratio of 7:3. The detailed flow diagram of the patient selection process is presented in Figure 1.

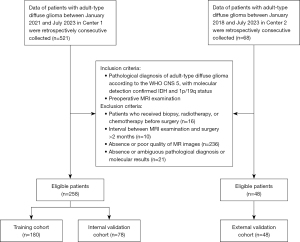

Figure 1 Patient selection flowchart. Center 1, Huashan Hospital; Center 2, The First Affiliated Hospital of Anhui Medical University. IDH, isocitrate dehydrogenase; MR, magnetic resonance; MRI, magnetic resonance imaging; WHO CNS 5, World Health Organization classification of tumors of the central nervous system 5^th edition.

MRI acquisition protocols

In Center 1, MRI examinations involved four 3.0-T magnetic resonance (MR) scanners (Discovery MR750 and MR750w, GE Healthcare, Chicago, IL, USA; Verio and Prisma, Siemens Healthcare, Erlangen, Germany). In Center 2, two 3.0-T MR scanners (Signa HDxt and Discovery MR750w, GE Healthcare) and one 1.5-T MR scanner (Ingenia, Philips Medical Systems, Amsterdam, Netherlands) were used. Details of the MRI protocol are presented in Tables S1,S2. Two MRI sequences including T2-fluid-attenuated inversion recovery (T2-FLAIR) and three-dimensional T1-weighted contrast-enhanced (3D T1C) were acquired and analyzed in this study (17,27).

Histopathological characteristics

Tumor grade was retrospectively classified based on pathological and molecular detection reports according to the 2021 WHO CNS 5 classification criteria (2). The final diagnosis was made by integrating histopathological and genetic detection results. IDH1/2 mutation was tested using Sanger sequencing for codon 132 of IDH1 and codons 140 and 172 of IDH2. The chromosome 1p/19q status was determined using fluorescence in situ hybridization (FISH).

Image preprocessing and tumor segmentation

To improve the reproducibility of radiomics analysis, the N4 bias field correction and z normalization of all MR images were conducted by using PyRadiomics (28). The T2-FLAIR images were registered to T1C images, with linear interpolation being used. A radiologist (M.Z., with 5 years of experience in radiology) manually segmented tumors of all cases on the axial 3D T1C images by using the open-source ITK-SNAP software (version 3.8.0) (http://www.itksnap.org). For each case, the entire tumor region, comprising contrast-enhancing, non-enhancing, and necrotic areas, was manually delineated on each slice [T1-weighted (T1W), T2-weighted (T2W), FLAIR, diffusion-weighted imaging (DWI), and apparent diffusion coefficient (ADC) images were referenced], and a volume of interest (VOI) was then generated. Subsequently, another senior radiologist (HF, with 14 years of experience in radiology) individually re-checked and validated the VOIs to improve the reproducibility and accuracy. Both radiologists were blinded to the clinical, molecular, and pathological data of patients. The modeling workflow is shown in Figure 2.

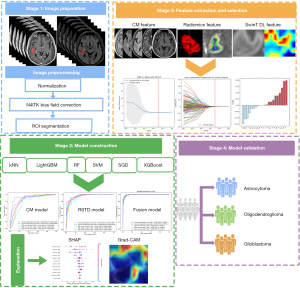

Figure 2 Study design and workflow. Stage 1: image preprocessing and tumor segmentation were conducted on MRI sequences. Stage 2: CM features were assessed by two radiologists; and RSTD features were extracted respectively; then variance analysis and LASSO regression were used for feature selection. Stage 3: three types of prediction models: CM model, RSTD model, and combined model, were respectively trained using six ML classifiers. The best-performing classifier was chosen as our algorithm for model construction. And the models were explained via the SHAP and Grad-CAM methods. Stage 4: the models were validated in an independently external validation cohort to demonstrate their robustness and repeatability. CM, conventional MRI; DL, deep learning; Grad-CAM, gradient-weighted class activation mapping; kNN, k-nearest neighbor; LASSO, least absolute shrinkage and selection operator; LightGBM, light gradient-boosting machine; ML, machine learning; MRI, magnetic resonance imaging; RF, random forest; ROI, region of interest; RSTD, radiomics and Swin Transformer-based deep learning; SGD, stochastic gradient descent; SHAP, Shapley Additive explanations; SVM, support vector machine; SwinT, Swin Transformer; XGBoost, extreme gradient boosting.

CM features assessment and selection

The Visually Accessible Rembrandt Images (VASARI) features [defined on clinical MRI including T1W image (T1WI), T2W image (T1WI), T2-FLAIR, 3D T1C, and DWI sequences] (29), which have been demonstrated as meaningful and reproducible non-invasive MRI biomarkers of gliomas molecular profile and survival (30), were assessed by the two radiologists (M.Z. and F.H.). Disagreements were resolved by a third senior neuroradiologist (J.Z.; with 30 years of experience in radiology). The details of the VASARI features are listed in Table S3. All three radiologists were blind to the clinical, molecular, and pathological data of patients. The variance analysis and least absolute shrinkage and selection operator (LASSO) regression analysis were used to select VASARI features associated with molecular subtypes. The threshold of P<0.05 was used for variance analysis. The 10-fold cross-validation was used to find the optimal regularization parameter for LASSO.

Radiomic features extraction and selection

The open source “PyRadiomics” package (28) was used for extraction of radiomics features from T2-FLAIR and 3D T1C images. Grayscale discretization employed a fixed bin width of 25 to ensure consistency and reproducibility of radiomic features, and images were resampled to a uniform voxel size of 1×1×1 mm³. Radiomics features were extracted from the VOI for each patient, including shape, first order, texture, gray-level co-occurrence matrix, gray-level run-length matrix, gray-level size zone matrix, gray-level dependence matrix, and neighboring gray tone difference matrix. A total of 386 radiomic features were extracted for each patient. Volume and shape features were extracted only once from the original image (T1C). The z-score method was used to normalize the features from the training set, and the same normalization parameters were applied to the internal and external validation sets.

Feature selection was performed in the training cohort. The variance analysis and LASSO regression with 10-fold cross-validation were employed for radiomic features selection.

Swin Transformer network development and features extraction

The T1C and T2-FLAIR sequences were separately processed as single-channel using the Swin Transformer architecture, and the model was trained from scratch on the training set. The Swin Transformer architecture uses a hierarchical design containing four stages (21), summarized in Figure 3. Firstly, the input region of interest (ROI) is converted into slices and then batch inputted (matrix 224×224), through a Patch Partition layer to be subdivided into non-overlapping 4×4 patches; the partitioned patches are processed by a linear embedding layer to project their feature dimension to C, followed by Swin Transformer blocks. Stage 2 conducted a downsampling via a patch merging layer, combining adjacent 2×2 patches into one. As the network deepens, hierarchical representations akin to those in CNNs were extracted by the Swin Transformer block. This four-stage process was used to generate the final representation. A global average pooling layer was applied to the output feature map in the last stage, then a linear classifier output the prediction features.

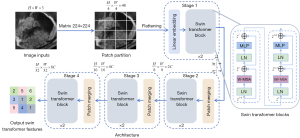

Figure 3 The architecture of the Swin Transformer. Firstly, the input ROIs are converted into slices and then batch inputted (matrix 224×224) through a Patch Partition layer to be subdivided into non-overlapping 4×4 patches; the partitioned patches are processed by a linear embedding layer to project their feature dimension to C, followed by Swin Transformer blocks. Stage 2 conducts a downsampling via a patch merging layer, combining adjacent 2×2 patches into one. As the network deepens, hierarchical representations akin to those in CNNs are extracted by the Swin Transformer block; each stage decreases the resolution of the input feature map and expands the perceptual field layer by layer. This four-stage process was used to generate the final representation. A global average pooling layer was applied to the output feature map in the last stage, then a linear classifier output the prediction features. CNN, convolutional neural network; LN, layer normalization; MLP, multilayer perceptron; ROI, region of interest; SW-MSA, shifted-window multi-head self-attention; W-MSA, window multi-head self-attention.

For our Swin Transformer model development, the epoch was 200 (when training and testing performance plateaued and with sufficient training iterations) and the batch size was 32. The variance analysis and LASSO regression were also used for selecting Swin Transformer DL features which associated with molecular subtypes of diffuse glioma, and 10-fold cross-validation was used to find the optimal regularization parameter for LASSO.

ML implementation and model construction

To select the best performance of the model for our three-classification task, we used six ML classifiers, including k-nearest neighbor (kNN), light gradient-boosting machine (LightGBM), random forest (RF), support vector machine (SVM), stochastic gradient descent (SGD), and extreme gradient boosting (XGBoost). They cover a wide range of methodological properties including integrated learning (XGBoost and LightGBM), tree-based models (RF), linear models (SGD), kernel methods (SVM), and distance-based models (kNN), and have been widely adopted in the fields of medical image analysis of glioma (31). ML models were implemented using Python 3.11 (https://www.python.org). Further, 10-fold cross-validation was used for model training to avoid overfitting. For each ML classifier, hyperparameters were tuned using cross-validation diagnostic performance as the primary metric; the classifier with the highest mean accuracy was selected for final model construction. The internal/external validation sets were not used for parameter tuning or model training; the internal validation set was solely reserved for final model evaluation, whereas the external validation set was used to test model generalizability. The hyperparameter optimization of ML algorithms is presented in Table S4. The accuracy, precision, recall, and F1-score were calculated to evaluate the classification performance of the models.

Three types of prediction models: CM, RSTD, and combined model (combining CM features, RSTD features, as well as age and gender), were respectively trained using the above six ML classifiers. Then, the best-performing ML classifier was chosen as our algorithm for final model construction and validated in the external validation set. To explain the ML model, the SHAP method was used to interpret the feature contribution (22). In addition, the Grad-CAM (23) was generated to visualize and interpret the Swin Transformer model.

Statistical analysis

Statistical analyses were performed using Python 3.11 (https://www.python.org) or RStudio software (R-4.2.3; R Foundation for Statistical Computing, Vienna, Austria). One-way analysis of variance (ANOVA) or Kruskal-Wallis tests were used to compare continuous variables in the training, internal, and external validation datasets using SPSS 26.0 (IBM Corp., Armonk, NY, USA), whereas the Chi-squared test was used to compare categorical variables. All statistical analyses were two-sided, with statistical significance set at P<0.05. The overall performance of the three-classification model was evaluated by ROC curve analysis and the calculation of micro- and macro-AUC (32). Moreover, accuracy, sensitivity, and specificity were calculated to measure the classification performance of models. The “roc.test” function of the “pROC” package was used to perform the DeLong test to compare ROC curves and calculate the corresponding P values.

Results

Patient demographics

A total of 306 patients, 258 from Center 1 and 48 from Center 2, were finally included (Figure 1). The baseline characteristics among the cohorts are shown in Table 1. The whole cohort included 116 females and 190 males, with a mean age of 50.6 years (range, 23–82 years); among them, there were 78 (25.5%) patients with IDHmut, 45 (14.7%) patients with IDHmut-codel, and 183 (59.8%) patients with IDHwt. There were no significant variations in patients baseline characteristics among the training, internal validation, and external validation cohorts (all P>0.05).

Feature selection

For each patient, a total of 20 CM features were assessed by the two radiologists, and a total of 386 radiomics and 1,024 Swin Transformer DL features were extracted from the T1C and T2-FLAIR images. After the variance analysis and 10-fold cross-validation LASSO analysis, six CM features were selected for constructing the CM model, and 28 RSTD features (including 19 radiomics features and 9 Swin Transformer DL features) were selected for the RSTD model, the details of which are shown in Figure S1 and Table S5. These selected features were then used to develop a model using different ML algorithms. The combined model was constructed using all of the 36 selected features (6 CM features, 28 RSTD features, as well as age and gender).

Model performance

The model performance for training and internal validation are presented in Table 2. For the three-classification task of molecular subtypes of gliomas in the internal validation set, the CM model reached an average accuracy of 0.792, 0.729, 0.708, 0.705, 0.750, and 0.771 for kNN, LightGBM, RF, SVM, SGD, and XGBoost, respectively; the RSTD model reached an average accuracy of 0.750, 0.791, 0.769, 0.771, 0.756, and 0.813 for kNN, LightGBM, RF, SVM, SGD, and XGBoost, respectively; the combined model reached an average accuracy of 0.781, 0.822, 0.809, 0.787, 0.796, and 0.853 for kNN, LightGBM, RF, SVM, SGD, and XGBoost, respectively. It was shown that the XGBoost had improvements in most measurement metrics compared to the other ML classifiers. The Wilcoxon tests demonstrated these significant improvements. XGBoost can effectively integrate heterogeneous features by optimizing complex, non-linear relationships through gradient-boosted trees. It inherently supports class-weighted loss functions and integrates synthetic minority over-sampling technique (SMOTE)-augmented samples, ensuring balanced gradient updates across minority subtypes.

Validation results

Among the six ML classifiers, we chose XGBoost as our algorithm for model construction due to its superior performance in the training and internal validation cohorts. The ROC curves of the three model types using XGBoost are presented in Figure 4. In the internal validation set, the micro-AUCs of the CM model, RSTD model, and combined model were 0.822, 0.874, and 0.905, respectively; and the macro-AUCs were 0.788, 0.846, and 0.878, respectively. In the external validation set, the micro-AUCs of the CM model, RSTD model, and combined model were 0.733, 0.844, and 0.911, respectively, and the macro-AUCs were 0.689, 0.818, and 0.891, respectively. Additionally, the AUCs, accuracies, sensitivities, and specificities of the three models in predicting IDHmut, IDHmut-codel, and IDHwt were evaluated, respectively (Table 3).

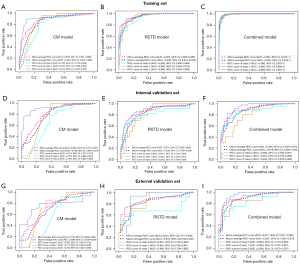

Figure 4 The performance of the three prediction models using XGBoost classifier. ROC curves of (A) CM model, (B) RSTD model, and (C) combined model in training set. And the ROC curves of (D) CM model, (E) RSTD model, and (F) combined model in internal validation set. And the ROC curves of (G) CM model, (H) RSTD model, and (I) the combined model in external validation set. Class 0, IDHmut; class 1, IDHmut-codel; class 2, IDHwt. AUC, area under the ROC curve; CI, confidence interval; CM, conventional MRI; IDH, isocitrate dehydrogenase; IDHmut, astrocytoma, IDH-mutant; IDHmut-codel, oligodendroglioma, IDH-mutant and 1p/19q-codeleted; IDHwt, glioblastoma, IDH-wildtype; MRI, magnetic resonance imaging; ROC, receiver operating characteristic; RSTD, radiomics and Swin Transformer-based deep learning; XGBoost, extreme gradient boosting.

The comparative results between the combined model and the CM or RSTD model are presented in Table 4. In the training and validation sets, the combined model showed higher AUCs than that of the CM model in most classification tasks (P<0.05). In addition, in the internal validation set, the combined model showed a higher AUC than that of the RSTD model for predicting glioblastoma (P=0.037); in the external validation set, the combined model showed a higher AUC than that of the RSTD model for predicting astrocytoma (P=0.028).

Model explanation

The SHAP approach was used to interpret the contribution of each feature to the prediction models using XGBoost. The summary plot of SHAP values of the top 20 features for the combined model is shown in Figure 5. The average SHAP values were used to assess each feature’s contribution to the model, which was exhibited in descending order. To visualize and interpret the significance of different regions in the tumor classification process of the model, Figure 6 presents the Grad-CAM of T1C images of representative patients from internal and external validation sets, respectively. The Grad-CAM revealed distinct attention patterns for each molecular subtype, highlighted in red regions which contributed most to the classification task. Specifically, for IDHwt, the model prioritized contrast-enhancing tumor substantial compositions (red), which are histologically associated with microvascular proliferation and cell proliferation. In contrast, IDHmut and IDHmut-codel exhibited high attention (red) in non-enhancing hypointense tumor substantial regions. It was shown that the morphological characteristics of tumors are also focused by the model. These readable results by Grad-CAM of T1C images revealed that the classification of the model concerned tumor morphology and enhancement pattern, which are in accordance with radiologists’ visual evaluation and biological behavior of gliomas.

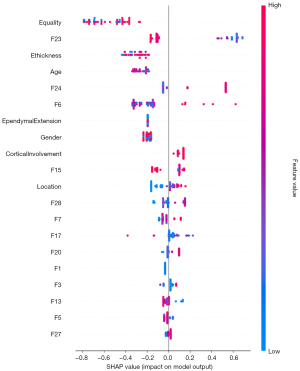

Figure 5 SHAP summary dot plot. Representation of the SHAP summary dot plots of the combined model. The contributions of the top 20 features of the model were evaluated using the average SHAP values and exhibited in descending order. A dot is made for each feature attribution value in the model for each single patient. A high positive SHAP value indicated a high likelihood of a prediction of the IDHmut-codel. IDHmut-codel, oligodendroglioma, IDH-mutant and 1p/19q-codeleted; SHAP, SHapley Additive explanations.

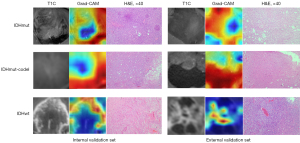

Figure 6 Visualization of Grad-CAM maps of T1C. Examples of the Grad-CAM visualizations of T1C images for the Swin Transformer model in validation sets. Regions of warm colors (red) in Grad-CAM maps refer to the areas on which the model is focused on for the corresponding class. Grad-CAM, gradient-weighted class activation mapping; H&E, hematoxylin and eosin; IDH, isocitrate dehydrogenase; IDHmut, astrocytoma, IDH-mutant; IDHmut-codel, oligodendroglioma, IDH-mutant and 1p/19q-codeleted; IDHwt, glioblastoma, IDH-wildtype; T1C, contrast-enhanced T1-weighted.

The Pearson correlation analysis showed that the correlation between RSTD features was lower than 0.5 (P<0.05, Figure S2A). The heatmap showed the distribution of the selected RSTD features within the three molecular subtype groups in Center 1 and Center 2, respectively (Figure S2B,S2C).

Discussion

To the best of our knowledge, this is the first study to integrate CM features, RSTD features, and demographic characteristics into a three-class ML model for noninvasively predicting the adult-type diffuse glioma molecular subtypes under the 2021 WHO CNS 5 criteria. This directly addresses a critical diagnostic need in neuro-oncology and simplifies the clinical workflows. Our combined model synergized demographic data, morphological features, and radiomic local details with the global information of Swin Transformer model, achieving robust diagnostic performance in validation sets (AUCs =0.878–0.911). This strategy could improve the traditional diagnostic pattern of radiologists which is based on subjective visual assessment, and reduce diagnostic uncertainty. These findings also confirmed the hypothesis that the hybrid method, by combining ML and radiomics DL, can obtain high performance (33). Importantly, for nonsurgical patients (e.g., frail patients or tumors in unresectable areas), the model can provide actionable molecular insights to guide targeted therapies. By aligning with WHO CNS 5’s genotype-driven framework, our approach is expected to optimize treatment personalization and prognostication, demonstrating tangible clinical utility in precision neuro-oncology.

Accurate preoperative molecular classification for glioma is crucial for making patient treatment strategies and assessing prognosis. Previous studies in this field have predominantly been focused on binary classification tasks, such as identification of IDH mutation or 1p/19q codeletion status (34,35). However, it is difficult to identify the subtypes using a single molecular status due to the heterogeneity of glioma. Our study introduced a three-classification ML model that aligns with the more nuanced WHO CNS 5 classification system for adult-type diffuse gliomas. The capability of this model to conduct tasks based on commonly used clinical MRI sequences streamlines workflow and diminishes dependency on additional procedures, making the model readily applicable for a variety of clinical settings where MRI is routinely performed. Our model provides a more precise preoperative non-invasive molecular marker of adult-type diffuse gliomas, which can guide neurosurgeons in planning the extent of resection and the administration of targeted therapies. This granular level of molecular classification is crucial for personalized medicine, as each subtype may respond differently to various treatments and has distinct prognostic implications (36).

ML is a powerful computational approach that excels at managing complex and voluminous data, as it can process datasets with substantial variability and discern intricate connections among variables with adaptability and thorough training. To date, numerous studies have concentrated on the molecular prediction of gliomas (31,37,38). However, the results of previous studies have lacked generalizability and interpretability (31), which may have limited their use by clinicians. Another advantage of our study is that we applied the SHAP method to explain the “black-box” nature of the ML model. The model is elucidated through a global model explanation that describes its overall functionality, as well as a local explanation that specifies how individual prediction is generated for the individual patient by inputting personalized data. From the SHAP summary dot plot in our results, the features such as tumor enhancement quality, enhancing margin thickness, age, and some RSTD features contributed high impact for the specific classification task of the model. In addition, the Grad-CAM on T1C indicates that the non-enhancing tumor parenchyma in astrocytoma and oligodendroglioma, as well as the enhancing tumor parenchyma in glioblastoma, are considered the most significant (red) in the classification task. These areas received more attention from the model than the necrosis components and adjacent extruded normal brain tissue. Our findings supported that non-enhancing tumors were activated when the tumor had no enhancement and can be recognized by a DL model (39). Through these interpretations, we demonstrated that our ML model attentions are consistent with tumor morphology and enhancement patterns; these characteristics accord with the biological behavior of gliomas, and are well recognized by radiologists. This explainable, straightforward, and convenient ML-based prediction tool could improve clinical trust, and is promising for use to support clinical decision-making for glioma classification.

Recently, Pei et al. constructed a three-class RF model by integrating MRI-based radiomic features and perfusion parameters, and successfully discriminated the three molecular subtypes (IDHmut, IDHwt, and IDHmut-codel), with AUCs of 0.778–0.861 (40). Their study provided an important reference for the three-classification problem of gliomas; however, it was limited by single-center data, lacking external validation and model explanation. In addition, Cheng et al. used a hybrid CNN-ViT model for both glioma segmentation and IDH status prediction, and demonstrated promising performance for IDH-mutation prediction (AUC =90.37–91.04%), outperforming single-task learning counterparts and existing state-of-the-art methods (15). Their study demonstrated the successful application of the Transformer-based hybrid model in IDH prediction of gliomas. Although lacking the focus on both IDH and 1p/19q gene status concurrently, a commonality with our study, is that both harnessed the power of a hybrid model to address molecular prediction of gliomas, aiming to use non-invasive methods to identify molecular subtypes of glioma, ultimately to aid clinical decision making.

A recent study that utilized Swin Transformer and ResNet networks to extract DL features from single T2WI sequence demonstrated that the Swin Transformer model outperformed the ResNet model in predicting IDH mutation in gliomas (12). In contrast, we extracted the Swin Transformer-based DL features from T1C and T2-FLAIR sequences, which also demonstrated good performance. T2WI is sensitive in depicting the extent of brain edema and differentiating between tumor and peritumoral regions (41). However, T1C imaging offers superior contrast between different tissue types, including the blood-brain barrier, which is often compromised in gliomas, leading to enhancement patterns that can be indicative of specific molecular subtypes (42). The combination of the T1C and T2-FLAIR sequences in our study allows for a more nuanced understanding of the tumor’s structural and vascular characteristics, and is sensitive for detecting edema and infiltration of tumor cells, which are integral for the accurate classification of glioma subtypes. Moreover, our study incorporated the complex image features with detailed spatial hierarchies from the Swin Transformer and high-dimensional quantitative features from radiomics; this fusion of the two complementary methodologies results in a more comprehensive representation of the tumor’s characteristics and can capture the intricate details of the tumor microenvironment, which enhances the model’s predictive accuracy, as evidenced by the improved AUC values in both internal and external validation sets.

Limitations

Firstly, the retrospective nature of the study and the relatively limited sample size may restrict the generalizability of our findings to diverse populations. Second, the reliance on manual ROI annotation may introduce inter-reader variability. Third, although we performed the standard pre-processing of the images and features standardization, the protocol heterogeneity across institutions (e.g., slice thickness, contrast timing) remains a barrier to clinical adoption, as evidenced by reduced validation performance. Additionally, although the results of the correlation analysis in our study demonstrated the weak intercorrelations between the selected features, and the internal and external validations exhibited comparable performance, overfitting remains a significant challenge that may occur during model development. Moreover, in-house software support is needed to simplify the implementation process of the model for clinical practice. Thus, future prospective studies incorporating multicenter and histological data will be necessary to validate and optimize the model in real-world clinical workflows, ensuring robustness across diverse settings. In addition, domain adaptation techniques, such as adversarial training or style transfer, will be helpful to mitigate cross-site distribution shifts.

Conclusions

Our study presented a three-classification ML model that integrated CM features and RSTD features as well as demographic characteristics for the molecular prediction of adult-type diffuse gliomas, and achieved promising performance. This successful application of an ML algorithm in conjunction with the radiomics and DL features highlights the potential for further exploration and development of hybrid models in preoperative noninvasive prediction for molecular subtypes of glioma. Such a model could reduce the reliance on invasive biopsy procedures by providing a non-invasive means for obtaining critical molecular diagnostic information, especially for patients who cannot be treated surgically. Before it can be a practical tool for supporting clinical decision making, further validation in larger, multicentric studies is necessary to establish their effectiveness and reliability across diverse patient populations.

Acknowledgments

None.

Footnote

Reporting Checklist: The authors have completed the TRIPOD+AI reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-24-2461/rc

Funding: This work was supported by the Fudan University Scientific Intelligence Special Fund Project (No. IDF151077), and the National Natural Science Foundation of China (No. 82071877).

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-24-2461/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. The study was approved by the Institutional Review Board of Huashan Hospital (No. KY2024-013) and the requirement for individual consent for this retrospective analysis was waived. The First Affiliated Hospital of Anhui Medical University was also informed of and agreed to the study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
