Development of a nomogram for predicting the risk of lymph node metastasis in non-small cell lung cancer

Introduction

Lung cancer is one of the leading causes of cancer-related death worldwide (1,2). Approximately 80% of lung cancers are non-small cell lung cancers (NSCLCs) (3), and lymph node metastasis (LNM) is an important factor for determining patient prognosis and treatment strategy. LNM indicates that the disease is in an advanced stage, and is associated with a higher risk of recurrence and a lower survival rate. LNM portends a poor prognosis for patients with NSCLC (4).

With the widespread use of low-dose spiral computed tomography (CT) in health examinations and disease diagnosis, the incidence of NSCLC is on the rise (5). Segmentectomy is becoming increasingly popular in the treatment of early-stage NSCLC (6). However, in some case reports of NSCLC, the predictive accuracy of preoperative lymph node (LN) staging by CT scan is only 78.7% (7). The thorough removal of metastatic LNs during surgery is crucial for improving patient survival rates. Therefore, the accurate prediction of LN status is essential for the formulation of personalized treatment plans and the improvement of patient prognosis.

Significant advancements have been made in the study of LNM in NSCLC. Wang et al. found that NSCLC with ground-glass opacity (GGO) nodules of 10 mm or less in diameter do not exhibit LNM and may not require systematic LN dissection (8). Therefore, this study incorporated indicators such as mixed ground-glass opacity (mGGO) and the shortest diameter of the mass for research. Ma et al. and Shimada et al. used deep-learning methods to identify LNM in NSCLC; however, their models did not also include the patient’s underlying lung diseases, and difficulties arose in their clinical application (9,10). Thus, developing a non-invasive tool with strong clinical applicability that can predict LN status preoperatively is of the utmost importance.

In this study, we comprehensively analyzed the clinical, laboratory, and imaging characteristics of NSCLC patients to explore the risk factors for LNM in NSCLC patients. Using binary logistic regression, we created a nomogram model to develop and validate a diagnostic model with high accuracy and clinical applicability for predicting LNM in NSCLC patients. We present this article in accordance with the TRIPOD+AI reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-24-2016/rc).

Methods

The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. The study was approved by the Ethics Committees of Tongde Hospital of Zhejiang Province Afflicted to Zhejiang Chinese Medical University (Tongde Hospital of Zhejiang Province) (No. 2022-012-JY, center 1), The First Affiliated Hospital of Bengbu Medical University (No. LWSL202300145, center 2), and Shaoxing People’s Hospital (No. 2015-118, center 3). As this was a retrospective study, the requirement of informed consent was waived.

We conducted a retrospective analysis of NSCLC patients from Centers 1 and 2 (January 2014 to October 2023) and validated the results externally with patients from center 3 (January 2023 to December 2024).

Patients were included in the study if they met the following inclusion criteria: (I) had NSCLC confirmed by surgical pathology and had had their LNM status determined; (II) complete clinical and pathological data available; (III) had not received neoadjuvant chemotherapy or radiotherapy before surgery; and (IV) had no atelectasis or active pulmonary inflammation. Patients were excluded from the study if they met any of the following exclusion criteria: (I) had blurred CT imaging or the presence of artifacts; (II) had adenocarcinoma in situ; (III) had atypical adenomatous hyperplasia; and/or (IV) had a time interval exceeding one month between the imaging examination and pathological results. The study flowchart is provided in Figure 1.

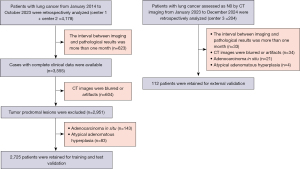

Figure 1 Enrollment flow chart showing the inclusion and exclusion criteria for the study patients. CT, computed tomography.

Clinical data

The clinical data and laboratory test results of the patients selected for inclusion in the study were retrieved from the respective information systems of the three central hospitals, including age, gender, smoking history, high blood pressure, diabetes mellitus, cardiovascular and cerebrovascular diseases, hepatitis/cirrhosis, and tumor markers.

CT scanning protocol

CT imaging was conducted using the following equipment: Optima CT540, Optima CT680 (GE Healthcare, Chicago, IL, USA), Lightspeed 16 (GE), SOMATOM Definition Flash (Siemens Healthineers, Forchheim, Germany), and Incisive CT Power (Philips Healthcare, Best, Netherlands). Post-processing reconstruction produced CT images with slice thicknesses ranging from 0.625–1.5 mm. The CT scanning parameters were as follows: tube voltage: 100–120 kV, tube current: 250–300 mA, slice thickness: 1.0–7.5 mm, and matrix size: 512×512.

Image analysis

Two radiologists with five years of experience each assessed the CT images of each patient. The morphological characteristics of the enrolled patients included emphysema or bullae, heterogeneous ventilation or perfusion (HVP), interstitial lung disease, bronchiectasis, multiple lung comorbidity, mGGO, location, morphology, lobulation, spiculation, airspace, air bronchogram, pleural tags, obstructive inflammation, calcification, and pleural effusion. They also measured each lesion’s long diameter and short diameter (SD), and determined the maximum attenuation, minimum attenuation, mean attenuation, and standard deviation of attenuation. If any discrepancies arose, a senior radiologist with 19 years of experience re-evaluated the CT images.

Emphysema or bullae refers to the abnormal and persistent dilatation of the distal parts of the respiratory bronchioles, accompanied by the destruction of alveolar walls and small bronchioles, which manifests on CT as cystic lucencies without lung markings (11,12). HPV refers to uneven lung tissue density, presenting as mottled areas with alternating high and low attenuation. mGGO refers to nodules with mixed patterns/subsolid nodules that include areas of GGO interspersed with solid components. The air bronchogram sign refers to the presence of dilated bronchi filled with air within the lesion.

Statistical analysis

The statistical analysis was conducted using SPSS 26 (IBM, USA) and R statistical software (R 4.3.3). The categorical variables were compared using the Pearson Chi-squared or Fisher’s exact test, and are represented as the number (percentage). The normally distributed continuous variables were compared using the independent samples t-test, while those not normally distributed were assessed using the Mann-Whitney U test. The CT imaging, laboratory tests, and clinical data were compared with the pathological results. A univariate analysis was performed initially to identify significant predictors (P<0.05). Feature selection was then performed using recursive feature elimination with cross-validation in Python (3.9) and the scikit-learn package was used to further reduce the number of predictors. Predictors with a P value less than 0.05 in the univariate analysis were included in the multivariate regression analysis; a P less than 0.05 indicated statistical significance. Multivariate logistic regression analyses were performed to estimate the strength of association using the odds ratios (ORs) and their 95% confidence intervals (CIs) (Figure S1).

Predictive model development and validation

Construction of nomogram

A binary logistic regression analysis was used to identify independent risk factors, and a nomogram was constructed using R statistical software. The receiver operating characteristic (ROC) curve was plotted to determine the area under the curve (AUC). Each independent risk factor was assigned a score based on the regression model, and the sum of all these scores was calculated to estimate the predictive probability of LN positivity in patients with NSCLC.

Nomogram performance

Calibration curve, clinical decision, and clinical impact curve (CIC) analyses were conducted to assess the predictive performance of the nomogram. The ROC curve was employed to evaluate the model’s discriminative ability. Calibration, which measures the agreement between predicted probabilities and actual outcomes, was performed. The Hosmer-Lemeshow test was used to assess the calibration capability, and a Brier score of less than 0.25 indicated statistical significance (13). Internal validation was conducted using a bootstrap method with 1,000 repetitions, and a calibration plot was ultimately generated. The clinical effectiveness of the predictive nomogram was evaluated using a decision curve analysis (DCA) based on the net benefit at various threshold probabilities. The total benefit to the population was assessed using the CIC (14).

Graph plot

All figures in this article were created using Adobe Illustrator 2024, Prism 8.0, and FIGDRAW 2.0. The “rms” package in R software was used to plot the nomogram and calibration curves, while the “rmda” package was used to generate the DCA and CIC results.

Results

Patient characteristics

A total of 2,725 patients (1,153 male and 1,572 female with an average age of 61.57±10.55 years) from centers 1 and 2 were enrolled in the study. Of the patients, 467 (17.14%) had emphysema/bullae, 347 (12.73%) had HVP, and 364 (13.36%) had obstructive inflammation. Among the patients with LN positivity, 804 (29.5%) had an mGGO score of 5, and the average SD of tumor size on the CT images was 17.32±10.53 mm. Additionally, a total of 112 patients [65 male and 47 female with an average age of 62.70±10.25 years, n (LN–) =97, n (LN+) =15] from center 3 were enrolled in the study. The training dataset included 2,180 (80%) patients [n (LN–) =1,854, n (LN+) =326], and the test dataset included 545 patients (20%) [n (LN–) =470, n (LN+) =75].

Of the 2,837 patients included in the study, there were 2,174 patients in tumor stage 1 (T1), 468 in tumor stage 2 (T2), 147 in tumor stage 3 (T3), and 48 in tumor stage 4 (T4); 2,421 in node stage 0 (N0), 175 in node stage 1 (N1), 60 in node stage 1–2 (N1–2), and 181 in node stage 2 (N2); and 2,805 in metastasis stage 0 (M0), and 32 in metastasis stage X (Mx). The demographic characteristics and imaging feature data of the patients are presented in Table 1. LNM was the most common in zones 10–14, occurring in 37.4% of cases, followed by zones 2–4 (31.9%), and zones 7–9 (21.2%), and was least frequent in zones 5–6 (9.8%) (Figure 2A,2B).

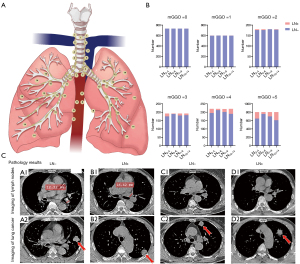

Figure 2 Association between mGGO grading and LNM in lung cancer. (A) The figure illustrates the lymphatic divisions and their distribution. It should be noted that lymph zones 5 and 6, situated at the aortic arch, are not marked. (B) LNM was most prevalent in the zone 10–14 group (37.4%, 241/645), followed by the zone 2–4 group (31.9%, 206/645), the zone 7–9 group (21.1%, 136/645), and the zone 5–6 group (9.8%, 62/645). (C) Patient A (a 56-year-old male) had positive LNs on CT but a negative pathology result. Patient B (a 79-year-old male) had positive LNs on both CT and pathology. Patient C (a 71-year-old female) had negative LNs on both CT and pathology. Patient D (a 69-year-old male) had negative LNs on CT but a positive pathology result. The red line represents the maximum short diameter of the positive LNs. The numbers on A1 and B1 respectively represent the specific data of the maximum short diameter of the LNs. The red arrows pointing to A2–D2 refer to the lesions. CT, computed tomography; LN, lymph node; LNM, lymph node metastasis; mGGO, mixed ground-glass opacity.

Figure 2C provides the results of four patients: patient A had a pathological LN-negative result but a CT imaging LN-positive result; patient B had a pathological LN-positive result and a CT imaging LN-positive result; patient C had a pathological LN-negative result and a CT imaging LN-negative result; patient D had a pathological LN-positive result but a CT imaging LN-negative result.

The AUC of the ROC curve for the training dataset was 0.893 (95% CI: 0.873–0.914), and the AUC for the test dataset was 0.907 (95% CI: 0.879–0.935) (Figure 3A). The accuracy, sensitivity, and specificity of the test dataset were 86.2%, 89.3%, and 80.9%, respectively. The accuracy, sensitivity, and specificity of the training dataset were 76.8%, 91.6%, and 74.2%, respectively (Table 2).

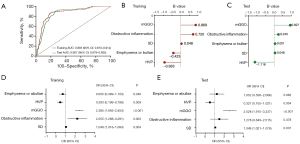

Figure 3 Evaluation of the efficacy of different variables in disease prediction in the training and test datasets. (A) The ROC curve showed the AUC values and 95% CIs of the training and test datasets. (B,C) The B value plot shows that mGGO and obstructive inflammation were high-risk factors for lymph node positivity in the training dataset, and emphysema or bullae and HVP were protective factors for lymph node positivity. (D,E) The forest map showed that mGGO remained a risk factor for lymphatic positivity in the test dataset. AUC, area under the curve; CI, confidence interval; HVP, heterogeneous ventilation or perfusion; mGGO, mixed ground-glass opacity; OR, odds ratio; ROC, receiver operating characteristic; SD, short diameter.

A total of 15 factors were included in the multivariate logistic regression analysis, and it was ultimately determined that mGGO (OR =2.385, 95% CI: 1.993–2.854; P<0.001; B value =0.869), obstructive inflammation (OR =2.055, 95 % CI: 1.288–3.281; P=0.003; B value =0.720), SD (OR =1.049, 95% CI: 1.016–1.084; P=0.004; B value =0.048), HVP (OR =0.393, 95% CI: 0.196–0.789; P=0.009; B value =–0.933), and emphysema or bullae (OR =0.655, 95% CI: 0.389–1.103; P=0.049; B value =–0.423) were independent risk factors for LNM (Figure 3B-3E).

The nomogram for predicting the probability of LNM in lung cancer was plotted using R statistical software (Figure 4A,4B). The Brier scores were 0.092 for the training dataset, and 0.081 for the test dataset, both of which were less than 0.25, indicating good model calibration. The concordance index (C-index) values for the model were 0.887 for the training dataset and 0.907 for the test dataset. The R-squared values were 0.431 (95% CI: 0.244–0.520) and 0.465 (95% CI: 0.249–0.553) for the training and test datasets, respectively (Table 2).

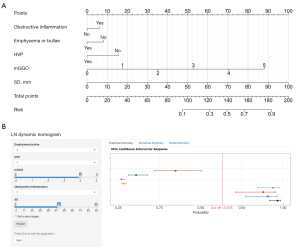

Figure 4 Disease risk assessment model based on LN dynamic nomogram. (A) The nomogram has eight axes, with axes 2–6 representing the five variables of the prediction model, axis 1 representing the scores of individual factors, axis 7 representing the total score, and axis 8 representing the predicted probability. (B) Online LN dynamic nomogram (accessible at https://xiaohuanghua66.shinyapps.io/dynnomapp/). HVP, heterogeneous ventilation or perfusion; LN, lymph node; mGGO, mix ground-glass opacity; SD, short diameter.

In both the training and test datasets, the calibration curve showed great stability (Figure 5), and the DCA results showed that within the threshold probability range of 0.01 to 0.60, the nomogram provided a more significant net benefit than the “treat all” or “no treatment” strategies (Figure 6) (15).

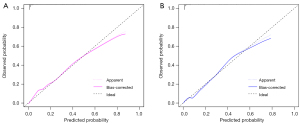

Figure 5 Calibration curves of the predictive nomogram in the training (A) and test (B) datasets. In these figures, the 45° ideal lines serve as reference standards, and the “apparent” lines in each figure reflect the fit between the predicted values and the actual values for their respective datasets. The bias-corrected lines demonstrate how well the corrected predicted values fit the actual values in each case. In all figures, the bias-corrected lines or the apparent lines are very close to their respective Ideal lines, indicating a good agreement between the predicted and actual values across the datasets.

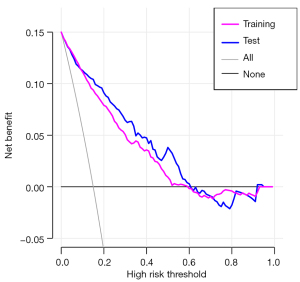

Figure 6 Decision curve analysis. The x-axis displays the threshold probability. The y-axis displays the standardized net benefit. The oblique grey line indicates that all patients received the intervention, and the black horizontal line indicates that no patient received the intervention.

The CIC results showed the clinical effectiveness of the nomogram (Figure 7). The number of patients at high risk closely matched those with high-risk outcomes (when the probability was more significant than 0.4).

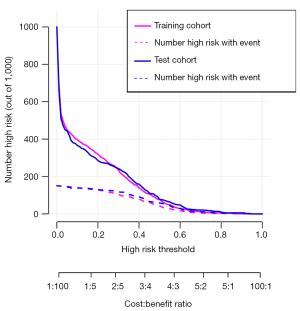

Figure 7 Clinical impact curve for the predictive model in the training dataset. The red curve shows the number of people identified as positive (high risk) by the model at each threshold probability. The blue curve shows the number of true positives at each threshold probability.

In the Exvad set, the model had an AUC of 0.923 (95% CI: 0.870–0.976), an accuracy of 83.0%, a sensitivity of 93.3%, a specificity of 81.4%, a Brier score of 0.074, a C-index of 0.923, and an R-squared value of 0.528 (95% CI: 0.255–0.571) (Figure S2).

Discussion

This study conducted a retrospective analysis of a large dataset of lung cancer patients and developed a predictive model to predict lung cancer patients’ LNM status accurately. The results indicated that the model in this study had a high AUC and high accuracy. The calibration curve, DCA, and CIC results also showed the clinical applicability of the model. The model had excellent predictive performance and satisfactory calibration.

As a predictive tool, a nomogram provides a visual representation of the probability of an event occurring to assist in clinical decision making (16). Its principle involves integrating multiple variables into a simple and user-friendly scoring system, which is why it is widely applied in clinical practice.

In 2020, Wang et al. identified mGGO, the tumor diameter, serum carcinoembryonic antigen levels, and visceral invasion as risk factors for predicting LNM in lung cancer (17). Xue et al. identified age, tumor diameter, and Ki-67 as risk factors for LNM (18). The present study found that mGGO, obstructive inflammation, emphysema or bullae, SD, and HVP are independent risk factors for LNM. Notably, mGGO and SD are common high-risk factors; however, our identification of pulmonary disease-related factors (i.e., obstructive inflammation, emphysema or bullae, and HVP) represents a novel contribution. These findings provide significant prognostic information for the treatment strategy of early-stage lung cancer patients.

The clinical significance of mGGO lies in its potential to indicate tumors’ invasiveness and growth characteristics. In our study, the degree of solid components within the nodules was significantly associated with the risk of LNM, which is consistent with previous research findings that emphasize the importance of mGGO in assessing early LNM in lung cancer (19).

Additionally, the presence of obstructive inflammation and emphysema or bullae often suggests chronic obstructive pulmonary disease, which provides a favorable microenvironment for tumor invasion and metastasis. This finding suggests that in clinical practice, more attention should be paid to the effects of these chronic inflammatory conditions on LNM in lung cancer.

The correlation between LNM and SD, as an indicator of tumor size, was validated in this study. Tumor size is a significant factor affecting is metastatic potential, with smaller tumors potentially carrying a lower risk of lymphatic spread (16,19,20).

HVP is commonly used to assess lung function and diagnose pneumonia. In terms of tumor prediction, it reflects the unevenness of blood flow and ventilation within the lung lobes caused by tumor compression. In our model, HVP was negatively correlated with the risk of LNM, suggesting that it may play a protective role in tumor development.

The correlation between pathological T and N staging with risk factors like tumor size (SD), emphysema/bullae, obstructive inflammation, and mGGO was significant. Higher T and N stages were correlated with larger tumors, more emphysema, increased obstructive inflammation, and higher mGGO expression. No significant correlation was found between T staging and HVP. The patients with squamous cell carcinoma had larger tumor sizes, more emphysema, higher obstructive inflammation, and stronger mGGO 5 expression, while those with invasive adenocarcinoma had smaller tumors and lower mGGO expression. These findings underscore the relevance of staging and risk factors in understanding tumor behavior and prognosis (see Appendix 1).

Our predictive model demonstrated high accuracy, sensitivity, and specificity in the training and test datasets. The high AUC of the ROC curve confirmed the model’s predictive power. Additionally, through DCA and CIC, we showed the clinical application value of the model, which could provide strong support for clinical decision making (15).

This study provides valuable insights into the risk factors and prediction of LNM, and it established a predictive tool; however, it also had some limitations. First, as a retrospective study, there is the potential of selection bias and issues with data integrity. Second, our study population did not undergo follow-up observation, which limits the accuracy of our model’s long-term predictions. Finally, with the continuous advancement of medical imaging technology and biomarker detection, future studies may identify additional factors related to LNM, such as hematological tests and pathological and genetic examinations (21-24), necessitating updates and improvements to the existing model.

Conclusions

Our study provides a robust tool for predicting LNM in lung cancer that could aid in guiding clinical treatment decisions and improving patient outcomes. In our future research, we will continue to explore and refine this predictive model to achieve more accurate results.

Acknowledgments

None.

Footnote

Reporting Checklist: The authors have completed the TRIPOD+AI reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-24-2016/rc

Funding: This work was supported by the Medical Health Science and Technology Project of Zhejiang Province, China (No. 2022KY702 to J.W.); the Scientific Research Project of Anhui Higher Education Institutions, China (No. 2023AH050608 to H.S.); and the Key Research and Development Program of Anhui Province, China (No. 2022e07020033 to Z.X.).

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-24-2016/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. The study was approved by the Ethics Committees of Tongde Hospital of Zhejiang Province Afflicted to Zhejiang Chinese Medical University (Tongde hospital of Zhejiang Province) (No. 2022-012-JY, center 1), The First Affiliated Hospital of Bengbu Medical University (No. LWSL202300145, center 2), and Shaoxing People’s Hospital (No. 2015-118, center 3). As this was a retrospective study, the requirement of informed consent was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
