Comparative study of electrocardiogram-gated computed tomography (CT) and respiratory four-dimensional CT for radiotherapy in breast cancer patients

Introduction

Postoperative radiotherapy for breast cancer patients has been shown to be effective in reducing both recurrence and mortality (1). However, radiotherapy to the chest wall, especially to the left-sided breast cancer, increases the risk of heart disease (2). To further reduce the cardiac dose, deep-inspiration breath-hold (DIBH) has been implemented for left-sided breast cancer (3). However, implementing the DIBH technique requires additional equipment and patient coaching, resulting in a longer treatment duration and a greater need for patient compliance (4). Hence, motion analysis of the cardiac substructure (5) for left-sided breast cancer can aid in evaluating the risk of heart disease (2,6) when DIBH is not indicated. Furthermore, free-breathing respiratory gating is a promising alternative to reducing left anterior descending (LAD) artery dose (7). Therefore, evaluating the motion of the cardiac substructures is essential to identify the subset of patients that will benefit the most from gating technology.

Recently, researchers have explored the potential of the motion evaluation of cardiac substructures via electrocardiogram-gated computed tomography (ECG-CT) (5,8-10). Theoretically, ECG-CT can provide a more accurate depiction of the beating heart movement. However, the patient’s heart motion encompasses cardiac and respiratory pulsation. ECG-CT is a snapshot over a shorter period of a few cardiac cycles, omitting respiratory motion (5), which is not a routine clinical scenario in breast cancer radiotherapy. Furthermore, cardiac radiation ablation technology is becoming more prevalent in clinical practice (11). Respiratory-gated 4D CT is more commonly used (4,7,12-16) than ECG-CT to evaluate cardiac motion and cone beam computed tomography (CBCT) image registration in cardiac radiation ablation, cardiac-gated radiotherapy is too technically demanding and cannot be implemented at present.

Therefore, the objectives of this work were as follows: (I) to compare the cardiac substructure motion between ECG-CT and 4D CT; (II) to investigate the feasibility of 4D CT instead of ECG-CT for assessing cardiac substructure motion; (III) to evaluate the dosimetric benefit of the gating treatment in postoperative radiotherapy for left-sided breast cancer patients, to explore the feasibility of using a gating plan as an alternative to the DIBH plan; and (IV) to determine which cardiac substructure can be regarded as a reference for CBCT image registration in cardiac radiation ablation. We present this article in accordance with the STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-24-1579/rc).

Methods

Study population and image acquisition

The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. The Ethics Committee of West China Hospital of Sichuan University approved this study (No. 2020-312). Informed consent was provided by all individual participants included in the study. From January 2021 to May 2024, 20 patients with left-sided breast cancer receiving postoperative radiotherapy (including 11 patients who underwent mastectomy and 9 patients who received breast-conserving surgery) underwent ECG-CT scanning and respiratory 4D CT scanning. Among these patients, ages ranged from 28 to 62 years, heights ranged from 146 to 169 cm, and weights ranged from 49 to 68 kg. ECG-CT images were acquired using a GE Revolution^TM CT (256 slices, with the ECG-CT package; GE Healthcare, Chicago, IL, USA) while the patients were breathing freely, with intravenous contrast administered (60 mL of iodine contrast followed by a mixture of 15 mL/15 mL of iodine and saline at a flow rate of 4.5 mL/s). ECG-CT data acquisition was triggered using a bolus-tracking program (SmartPrep, GE Healthcare), which was delayed 7.6 seconds after the CT value in the descending aorta (DAo) and was higher than the triggering threshold of 80 Hounsfield units (HU). The tube current was Smart-mA with a range from 400 to 680 mA, and the voltage was 100 kV. ECG-CT (0–90%, interval 10%) images were reconstructed according to ECG curves (thickness of 2.5 mm). The 4D CT scan mode commenced immediately after the patient completed the ECG-CT scan (thickness of 2.5 mm), and 4D images (0–90% phases, interval 10%) were reconstructed utilizing the breathing curve collected by the Varian Respiratory Gating for Scanners (RGSC).

Definition of cardiac substructures

A 7-year experienced physicist and a 10-year experienced radiation oncologist delineated and reviewed the contours of cardiac substructures under ECG-CT and 4D CT images at each phase in the MIM system (MIM Software Inc., Cleveland, OH, USA), including ascending aorta (AAo), DAo, left ventricle + ventricular wall (LV_S), right atrium + right ventricle (RA + RV), left atrium (LA), LAD, pulmonary artery (PA), and superior vena cava (SVC) (see Figure 1).

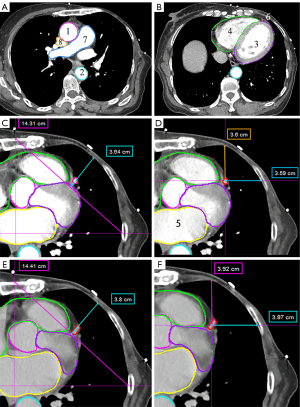

Figure 1 Illustration of cardiac substructure, and measurement of distance between LAD and chest wall. (A,B,D) Illustration of cardiac substructure. [1] Ascending aorta; [2] descending aorta; [3] left ventricle + ventricular wall; [4] right atrium + right ventricle; [5] left atrium; [6] left anterior descending artery; [7] pulmonary artery; [8] superior vena cava. (C,D) The chest wall motion in the AP direction, and LAD motion in RL and AP directions on ECG-CT images. Drawing a vertical line from the midline and a horizontal line from the midaxillary line. Then, draw a tangent line where the two lines intersect with the chest wall. Measure the distance from the chest wall perpendicular to the tangent line. (E,F) The chest wall motion in the AP direction, and LAD motion in RL and AP directions on 4D CT images. 4D CT, four-dimensional computed tomography; AP, anterior-posterior; ECG-CT, electrocardiogram-gated computed tomography; LAD, left anterior descending artery; RL, right-left.

Motion evaluation of cardiac substructures

The following metrics were defined and calculated to compare the motion of cardiac substructures obtained from the ECG-CT and 4D CT. Before comparison, the spinal bone registration between the ECG-CT and 4D CT was performed to eliminate setup errors.

• The absolute motion: the absolute difference from the centroid position in each phase to the average position of all ten phases in each direction.

  $Absolutemotio{n}_{D\text{\_}n}=\left|C{P}_{D\text{\_}n}-C{P}_{D\text{\_}a}\right|$[1] Where D represents the motion direction, D = superior-inferior (SI), anterior-posterior (AP), right-left (RL). n stands for the nth phase, n =0, 1, ..., 9, CP_{D_a} is the centroid position of the nth phase in D direction and CP_{D_a} is the average of centroid positions for all ten phases. The three-dimensional (3D) coordinates of the centroid position of the cardiac substructure are obtained in the MIM system. Then, the mean absolute motion of all phases was compared between ECG-CT and 4D CT. Additionally, motion ranges were defined as the differences between the maximum and minimum centroid positional coordinates among all phases.

• The vector distance: the vector distance to the average position of all phases.

  $$d_k=\sqrt{{\left(C{P}_{SI\text{\_}k}-C{P}_{SI\text{\_}a}\right)}^2+{\left(C{P}_{RL\text{\_}k}-C{P}_{RL\text{\_}a}\right)}^2+{\left(C{P}_{AP\text{\_}k}-C{P}_{AP\text{\_}a}\right)}^2}$$[2] Where k is the number of phases, a is the average of all phases, and CP is the same as in Eq. [1].

• The Dice similarity coefficient (DSC) and Hausdorff distance (HD) (17): similarity evaluation between the internal target volume (ITV) of ECG-CT and 4D CT was performed by fusing all phases on the average density projection for similarity comparison; DSC and HD were calculated in the MIM system.
• The volume increment ratios:

  $$V_{increment}=\left[{\displaystyle \sum }_{\text{k}=0}^{\text{N}}\left(IT{V}_{all}-GT{V}_k\right)/GT{V}_k\right]/10\text{*}100\text{\%,\hspace{0.17em}N=}9$$[3] Where GTV_K is the gross tumor volume (GTV) in the Kth phase. ITV_all is the volume of a single substructure fused with the contour expansion of ten temporal phases.

• Centroid position difference: calculate the spatial distance of the coordinate system of the fusion and expansion structure contour in ten phases of 4D CT and ECG-CT.

The higher DSC, smaller HD, and small volume increment ratio suggest that the two structures are more similar and have smaller position displacements when searching for which cardiac substructures can serve as matching structures for cardiac radiation ablation.

Left breast cancer program design

For left-sided breast cancer patients, the target volume is generated by combining the clinical target volume (CTV) delineated in the three gating phases. The treatment regimen for coplanar volumetric-modulated arc therapy (VMAT) consists of two partial arcs: clockwise (CW) with gantry angles ranging from 290° to 140°±10°, and counterclockwise (CCW) with gantry angles ranging from 140° to 290°±10°. The specific angles should be adjusted according to the patient’s situation. The prescription dose delivered to planning target volume (PTV) was 5,000 cGy (200 cGy per fraction ×25). The dose limitations for organs at risk were as follows: stomach mean dose (D_mean) <4,000 cGy, lung right V₅ <20%, breast right D_mean <500 cGy, LAD D_mean <2,500 cGy, heart V₅ (volume receiving 5 Gy) <40%, heart D_mean <600 cGy, lung left V₅ <50%, lung left D_mean <1,400 cGy, lung left V₂ <25%, humerus head left maximum dose (D_max) <4,000 cGy, V₃₀ <35%, cord planning organ at risk volume (PRV) D_max <2,500 cGy, cord D_max <2,000 cGy.

The quantitative evaluation of dosimetric advantages in the gating plan based on 4D CT

To select the optimal phases for the gating plan, as well as to compare the capability of chest wall motion description between 4D CT and ECG-CT, the distance between LAD and chest wall in RL and AP directions, chest wall motion in AP directions, and diaphragm motion in SI direction were measured and compared between 4D CT and ECG-CT at each phase. Among all phases, we calculated the maximum distance between LAD and chest wall in the RL and AP directions. The distance between LAD and chest wall in RL and AP directions was measured at the plane 1 and 2 (15 and 30 mm below the coronary artery outlet, respectively), as shown in Figure 1D,1F. Vertical lines from the midline and horizontal lines from the midaxillary line were drawn for the chest wall motion in the AP direction. The two lines intersect with the chest wall were connected as tangent lines. Then, we measured the distance from the chest wall perpendicular to the tangent line at planes 1, 2, and 3 (located at the heart base) (7). It is defined as the chest wall motion in the AP direction.

Due to the superior motion description of the chest wall and diaphragm and the inherent gating capability of 4D CT, it was selected for the gating plan rather than ECG-CT in this study. In the 4D CT scan mode, between 0% and 90% of the structure delineated by the imaging is projected onto the average intensity projection (AIP) (18) image, fused into a new structure, and subsequently utilized for developing the radiotherapy plan. Second, AIP images (19) reconstructed from 4D CT are widely adopted as reference images for CBCT registration. According to these literature reports and actual clinical application, AIP images from 4D CT were used for treatment planning. Therefore, based on the distance between the LAD and the chest wall in RL and AP directions, three optimal phases where the LAD is farthest from the chest wall were selected to design the gating plan. To demonstrate the dosimetric advantage of the gating plan, we transferred the contours of LAD delineated under AIP images (LAD_AIP) to the gating plan for dose evaluation. Then, we compared the LAD and LAD_AIP doses in the gating plan and the LAD and heart doses in the AIP and gating plan.

Results

For the 20 patients, as illustrated in Figure 2 and Table 1, we observed the maximum absolute motion and motion range for the LAD. There were no statistically significant differences in the SI and RL directions of the LAD’s mean absolute motion and motion ranges between ECG-CT and 4D CT. A statistically significant difference was observed in the AP direction. The motion range of LAD measured in 4D CT and ECG-CT was 8.52±4.35 mm (range, 2.57–17.57 mm) vs. 6.46±2.58 mm (range, 2.63–11.71 mm) in the AP direction. In the SI direction, except for LAD, there were statistically significant differences in the mean absolute motion measured between ECG-CT and 4D CT for other substructures. The LAD had maximum vector distances of 3.83±2.68 and 3.39±2.06 mm measured by 4D CT and ECG-CT, respectively. The heart had smaller vector distances of 1.59±0.86 and 0.80±0.36 mm, and the DAo had the smallest vector distances of 1.43±1.03 and 0.61±0.52 mm. The vector distances of the LAD, LV_S, and SVC were not statistically significant, whereas other substructural vector differences were statistically significant. The heart had minimum mean absolute motion in the AP direction (0.26±0.22 mm) and minor motion in SI (1.37±0.89 mm) and RL (0.57±0.41mm) directions in 4D CT.

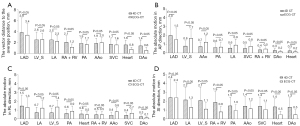

Figure 2 The absolute motion of substructures in SI, AP, and RL directions, and the vector distance of substructures. 4D CT, four-dimensional computed tomography; AAo, ascending aorta; AP, anterior-posterior; DAo, descending aorta; ECG-CT, electrocardiogram-gated computed tomography; LA, left atrium; LAD, left anterior descending artery; LV_S, left ventricle + ventricular wall; PA, pulmonary artery; RA + RV, right atrium + right ventricle; RL, right-left; SI, superior-inferior; SVC, superior vena cava.

When comparing the structure delineation based on ECG-CT and 4D CT (see Figure 3), the higher DSC coefficients were observed for the heart (0.95), LV_S (0.92), RA + RV (0.91), and DAo (0.90), whereas the lower was for LAD (0.59). The heart (7.96 mm), DAo (7.21 mm), and SVC (6.64 mm) had smaller HD, whereas the largest was for LAD (10.67 mm). The centroid difference of cardiac substructures measured by ECG-CT and 4D CT were the most pronounced for the LAD (4.25±2.46 mm), with the minor difference observed for the DAo (1.26±0.68), followed by the heart (1.52±0.52 mm) and RA + RV (1.97±1.06 mm). For the volume increment ratio, LAD had the maximum value with 237.69%±64.90% for ECG-CT and 286.84%±105.22% for 4D CT, whereas the minimum was for the heart, with 7.75%±2.85% for ECG-CT and 11.71%±2.99% for 4D CT. DAo showed a smaller volume increment ratio of 9.97%±4.64% for ECG-CT and 13.14%±4.95% for 4D CT. The results suggest that RA + RV, DAo, and heart can serve as reference structures for cardiac radiation ablation matching.

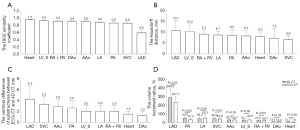

Figure 3 The Dice similarity coefficients, Hausdorff distance, the centroid difference, and the volume increment ratio. 4D CT, four-dimensional computed tomography; AAo, ascending aorta; DAo, descending aorta; ECG-CT, electrocardiogram-gated computed tomography; LA, left atrium; LAD, left anterior descending artery; LV_S, left ventricle + ventricular wall; PA, pulmonary artery; RA + RV, right atrium + right ventricle; RL, right-left; SVC, superior vena cava.

The maximum distance between LAD and chest wall in RL and AP directions, the chest wall motion in the AP direction, and the diaphragmatic motion in the SI direction (see Table 2) measured based on 4D CT were significantly larger than those of ECG-CT. The mean diaphragmatic motion in the SI direction was 4.83±3.38 and 17.82±3.87 mm for ECG-CT and 4D CT, respectively. The AP direction motion of the chest wall was minimal in both ECG-CT and 4D CT, with 0.22±0.38/1.56±1.90 mm, 0.25±0.41/1.17±0.83 mm, and 0.10±0.30/1.16±0.77 mm in planes 1, 2, and 3, respectively.

For the dose comparison between the gating and AIP plans (see Table 3), there were no statistically significant differences in the average dose of LAD, the heart and V_{500 cGy}. In contrast, the LAD volume based on gating plans was significantly smaller than those of AIP images (3.07±1.09 vs. 5.71±1.53 cc, P<0.01). The average dose for LAD_AIP in the gating plan was markedly lower than that of the LAD in the AIP plan (1,685.85±355.99 vs. 1,844.05±394.43 cGy, P<0.01) and gating plan (1,685.85±355.99 vs. 1,827.30±411.13 cGy, P<0.01).

Discussion

Qi et al. reported that heart-induced motion in LAD and the max heart depth (MHD) varied up to 9 and 11 mm, respectively (7). Tan et al. demonstrated that the average motion of the coronary arteries was 2.8–5.9, 3.5–6.6, and 3.8–5.3 mm in the AP, LR, and SI directions, respectively (20). Li et al. reported that the motion of the caudal portion of the LAD was 4.6±2.4 (1.2–13.2) mm (AP direction), 6.4±3.4 (2.4–17.0) mm (RL direction), and 7.7±3.0 (3.4–15.5) mm (SI direction) (8). Ouyang et al. reported that the maximum motion of the LAD related to its average position was 5.45 mm (5).

However, studies conducted by Ouyang et al. (5), Li et al. (8), and Su et al. (9) all performed ECG-CT scans under breath-holding, which eliminated the influence of respiratory motion and were inconsistent with clinical treatment scenarios. Therefore, the LAD motion in these studies is smaller than ours [the maximum motion ranges of LAD obtained from 4D CT and ECG-CT were 18.32 mm (SI), 11.11 mm (RL), and 17.57 mm (AP) vs. 17.18 mm (SI), 13.04 mm (RL), and 11.71 mm (AP), respectively; see Table 1]. Meanwhile, Qi et al. (7) and Vasquez Osorio et al. (21) utilized 4D CT to analyze the cardiac motion without a direct comparison with ECG-CT. Our results revealed that absolute motion and motion range evaluation in the SI direction based on 4D CT were larger than those of ECG-CT for all cardiac substructures except LAD. This difference was primarily attributed to the predominance of respiratory motion in the SI direction. ECG-CT scans eliminate the effect of respiratory motion, so the motion range evaluated by the ECG-CT in the SI direction is smaller than that of the 4D CT. The contrasting results of LAD may mainly be attributed to the longer length of LAD in the SI direction, resulting in respiratory motion-induced changes being overshadowed. According to these findings, we can conclude that 4D CT is a better way to evaluate the motion of cardiac substructures than ECG-CT in the SI direction.

Meanwhile, in the RL and AP directions, the motion of substructures such as LA, LV_S, AAo, SVC, and PA assessed by ECG-CT was larger than that of 4D CT. We speculate that cardiac pulsation mainly affects these substructure motions, and respiratory motion has a marginal impact. Therefore, 4D CT may not effectively reflect these motions. For RA + RV, there were no differences in absolute motion and motion range assessed by ECG-CT and 4D CT. Although there were differences between DAo and the heart in these two directions, the magnitudes of motion were small. Regarding LAD, the motion assessed by 4D CT in the AP direction was greater than that assessed by ECG-CT, whereas there was no statistically significant difference in the RL direction. We speculate that this may be because the AP direction is mainly influenced by respiratory motion, whereas the RL direction is primarily influenced by cardiac contraction. Prusator et al. (22) reported that cardiac motion alone, as captured by ECG-CT, was similar to the combined cardiac and respiratory motion obtained from 4D CT due to using abdominal compression to reduce respiratory motion. Based on the above results, we believe that compared to 4D CT, ECG-CT has advantages in assessing the motion of structures for AAo, LA, LV_S, and SVC in the AP and RL directions and PA in the RL direction.

In our study, the heart, LV_S, RA + RV, and DAo demonstrated higher DSC coefficients, indicating greater contour similarity between the two scanning modes. Small centroid differences were observed for RA + RV (1.97 mm), heart (1.52 mm), and DAo (1.26 mm). This was smaller than the results reported by Qi et al. [the heart’s maximum centroid movement ranged from 0.8 to 7.7 mm (14)]. The low cardiac volume increment ratio further suggests negligible differences in overall cardiac contour volumes between modalities, demonstrating high consistency. In addition, some studies have utilized ECG-gated magnetic resonance imaging (MRI) to investigate the motion or volume change of cardiac substructures at different phases (23,24). The study by Yan et al. calculated the cardiac volume changes between the end-systole and end-diastole phases based on MRI, with a mean volume difference of 99.5 cm³ (approximately a 14.38% change). The differences compared to our study may be due to variations in the calculation methods and the populations enrolled (25). The heart (7.96 mm), DAo (7.21 mm), and SVC (6.64 mm) had smaller HD, indicating that these three substructures have better shape similarity between 4D CT and ECG-CT. Thus, our study evaluated these parameters to help image registration and PTV margin calculation in cardiac ablation treatment.

To ensure treatment accuracy in cardiac ablation (11), AIP images (19) reconstructed from 4D CT are widely adopted as reference images for CBCT registration. The heart’s movement is influenced by respiratory motion and cardiac pulsation. 4D CT captures multiple complete respiratory cycles, thereby accurately representing respiratory motion. In contrast, ECG-CT provides higher temporal resolution, effectively capturing cardiac systolic and diastolic motion while ignoring the respiratory motion. If the results of DSC, HD, centroid distance, and volume increment ratio for cardiac substructures obtained from 4D CT and ECG-CT are comparable, this suggests minimal differences in motion characterization between the two imaging modalities. Given that the SVC is poorly visualized on CBCT, RA + RV, DAo, and heart contours may serve as reliable landmarks for aligning planning AIP images, thereby ensuring treatment accuracy in cardiac ablation procedures. Meanwhile, there are discrepancies in the volume and centroid of the target area in AIP images compared to those based on reconstructions from ten phases combined (representing the entire range of respiratory motion). Therefore, we calculated the centroid differences of the heart based on the AIP image and the combined image of all ten phases. The centroid differences of the heart were −0.73±0.86, 1.07±0.53, and −0.20±0.39 mm in the SI, RL, and AP directions, respectively.

It is worth noting that cardiac radiation ablation is primarily used for treating ventricular tachycardia, with the most common target located in the left ventricle (LV). To accurately define the target of cardiac radiation ablation, the American Heart Association (AHA) has standardized the LV into 17 segments (26). Additionally, Poon et al. (27) quantified the motion for 17 different LV segments. However, their study used MRI for analysis, and patients underwent MRI during breath-hold. Based on the data from Poon et al. (27), segments 5 (basal inferolateral) and 6 show the largest epicardial and endocardial motion amplitudes, approaching 10 mm. When using the 0.45× (28) formula to calculate the ITV margin, these two segments require an ITV margin close to 5 mm. Considering setup errors in different radiation departments and the centroid differences of the heart based on the AIP image and the combined image of all ten phases, an additional 3–5 mm PTV margin is needed, making the total margin exceed 10 mm (27).

According to the maximum distance between LAD and chest wall in the RL and AP directions, as well as in the AP direction of chest wall motion, 4D CT is more suitable for a gating plan. Meanwhile, the cardiac gating treatment (22,29) is currently not available for clinical use. El-Sherif et al. (13) suggested using 4D CT to estimate the dose for the LAD. In our study, we selected three phases with the farthest RL and AP distances between LAD and the chest wall for a gating plan in 4D CT and compared it with the AIP plan. The volume of LAD in the gating plan was significantly smaller than that of the AIP plan, and there were no statistically significant differences in LAD mean dose, heart mean dose, and heart V₅ between the AIP plan and gating plan. We transferred the delineated contour of the LAD from AIP to the gating plan and re-evaluated the dose to the LAD and heart. The results showed that All patients had smaller doses of LAD in the gating plan than in the AIP plan, as shown in Table 3. Meanwhile, we noticed that some patients exhibited small motion ranges of LAD (2.57 and 2.34 mm, see Table 1) and a small distance between the LAD and the chest wall in the AP and RL directions (1.2 and 2.0 mm, respectively, at plane 2; see Table 2). However, the doses of LAD in these patients in the gating plan were still smaller than those in the AIP plan. Furthermore, our study employed three phases for the gating plan, which appears more clinically feasible compared to the single-phase approach used by Qi et al. (7). These results suggested that a gating plan based on three phases is a valid way to reduce LAD dose regardless of LAD motion in the RL and AP directions for left-sided breast cancer patients if DIBH is unavailable.

This study focuses on a dosimetric comparison of inspiratory phase gating therapy, which has not been implemented in clinical practice. The selected inspiratory phase for gating therapy results in a treatment duration that is at least 3.3 times longer than that under free breathing (FB) conditions. Therefore, the extended treatment duration may introduce uncertainties in treatment accuracy, posing potential challenges for clinical application. Based on our experience and findings from relevant literature (30), respiratory training can ensure a more predictable and consistent breathing pattern, which may help mitigate the uncertainties associated with prolonged treatment durations, thereby improving treatment accuracy and feasibility.

The motion of the chest wall was minimal (1.56±1.90, 1.17±0.83, and 1.16±0.77 mm in plane 1, plane 2, and plane 3, respectively), consistent with a previous study result (31). Simultaneously, Qi et al. found that the maximum centroid movement of the ipsilateral breast ranged from 1.1 to 3.9 mm (14). Negligible chest movement was observed between FB exhale and FB inhale (median: 0.1 cm, range: 0.2 cm) (32). Bedi et al. (12) pointed out that as the motion of the whole breast was generally small throughout the respiratory cycle, the radiation treatment plan based on 3D CT scans reflected the dose distributions in 4D CT-derived datasets well. Therefore, we proposed that for patients with right-sided breast cancer, who have minimal chest wall respiratory motion, and for whom there is no need to consider the radiation dose to the heart, 3D free-breathing helical CT (3D FH-CT) can be an alternative to 4D CT for simulation. For patients with left-sided breast cancer, we recommended the use of 4D CT scans to evaluate the motion of the LAD in the AP and RL directions. This assessment can aid in determining whether a gating plan should be implemented to minimize the radiation dose to the LAD. Future studies should focus on developing an automatic deep-learning method for the segmentation of cardiac substructures (33) and evaluating the clinical efficiency of the gating treatment.

Conclusions

4D CT is a superior method to ECG-CT for evaluating the motion of cardiac substructures in the SI direction. The evaluation of motion for AAo, LA, LV_S, and SVC in RL and AP directions and PA in RL direction based on ECG-CT is better than that of 4D CT. 4D CT-based gating provides a viable alternative to reducing the LAD dose when DIBH is unavailable. Furthermore, the heart, DAo, and RA + RV can be employed as reference structures for cardiac radiation ablation.
