Detecting pseudo versus true progression of glioblastoma via accurate quantitative DCE-MRI using point-of-care portable perfusion phantoms: a pilot study

Introduction

Glioblastoma remains the primary malignant brain tumor in adults, necessitating a treatment regimen involving surgical tumor resection along with chemoradiation therapy (1,2). Despite these measures, patient prognosis remains bleak, with a median survival period of only 15 months (3). A significant obstacle in managing glioblastoma is accurately distinguishing between pseudo and true progression, which complicates timely therapeutic interventions (4). Pseudoprogression arises from localized inflammation triggered by irradiation and worsened by concurrent chemotherapy, causing a transient increase in the blood-brain barrier permeability (5). It is challenging to distinguish pseudoprogression from true progression using contrast-enhanced brain magnetic resonance imaging (MRI) because both often exhibit increased contrast enhancement (6).

Currently, no definitive methods exist to differentiate between these appearances reliably. It is widely recognized that pseudoprogression is often associated with more favorable clinical outcomes (7). Therefore, misidentifying pseudoprogression as true progression can prematurely halt effective therapy (8), while mistaking true progression for pseudoprogression may lead to the inadvertent continuation of ineffective treatment and unnecessary adverse effects (9).

Dynamic contrast-enhanced magnetic resonance imaging (DCE-MRI) holds promise in distinguishing between pseudo and true progression in glioblastoma (10). True progression typically displays higher perfusion levels than pseudoprogression (11). The ability of DCE-MRI to assess blood perfusion with minimal susceptibility artifacts (12) helps ameliorate interpretative challenges associated with post-surgical changes and highlights its potential in refining glioblastoma diagnostics (13).

However, concerns persist regarding the intra/inter-scanner variability of quantitative DCE-MRI measurements due to the variations in hardware configurations, post-image-processing schemes, reconstruction algorithms, and pulse sequences (14). One possible approach entails utilizing an external phantom with a predetermined contrast-agent concentration to identify and compensate for variations. To tackle the challenges associated with quantitative DCE-MRI, an initial proposal suggested a static phantom consisting of multiple objects with different contrast-agent concentrations (15). However, a static phantom is suboptimal because it cannot mimic living tissues, where the in vivo movement of the contrast agent leads to additional MRI signal reduction (16). A portable perfusion phantom (P4) designed to mimic human tissue contrast concentration dynamics emerged as a superior reference for quantitative DCE-MRI (16-19). However, the original P4 design was unsuitable for brain scans due to its excessive size.

In this study, we developed a new P4 designed to fit inside a conventional brain coil during human subject scans. We hypothesized that employing quantitative DCE-MRI analysis with this phantom could reduce the measurement variability in quantitative DCE-MRI and subsequently improve the accuracy in differentiating between pseudo and true glioblastoma progression regardless of pharmacokinetic (PK) models. This manuscript presents the results of validating the hypothesis through a pilot clinical study conducted at a single center. We present this article in accordance with the CLEAR reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-2024-2566/rc).

Methods

This study received approval from the institutional review board of the University of Alabama at Birmingham (No. 300006446) and was conducted in accordance with the Declaration of Helsinki and its subsequent amendments, and the International Conference on Harmonization Good Clinical Practice guidelines. All participants provided informed consent to undergo imaging with the P4 during DCE-MRI.

Patients

Prior to enrollment, all patients provided informed consent and were thoroughly informed about the investigational nature of the study. Compliance with Health Insurance Portability and Accountability Act (HIPAA) regulations was strictly upheld. This study followed the WHO 2016 classification of glioblastoma, encompassing both isocitrate dehydrogenase (IDH) wild-type and mutant variants. From March 28, 2022 to July 12, 2023, we prospectively recruited twelve patients from the University of Alabama at Birmingham who had contrast enhancement in a follow-up MRI scan, suspicious as the recurrence of glioblastoma, after adjuvant chemoradiation therapy. All patients received radiation therapy (40–60 Gy) concurrently with chemotherapy [temozolomide or an investigational drug, BAL101553 (20)], followed by chemotherapy (temozolomide; n=7), immunotherapy [pembrolizumab (21); n=1], kinase inhibitor [trametinib (22); n=1], or anti-angiogenic agent [bevacizumab (23); n=1]. Two patients did not undergo follow-up treatment before our DCE-MRI exams due to toxicity. Patients were excluded from recruitment if they had safety contraindications for MRI, as identified through standard clinical screening, or if they were undergoing hemodialysis or had acute or chronic renal failure. The clinical characteristics of the 12 participants are summarized in Table 1. One patient was an IDH1 R132H mutant, while the others were IDH wild type. Ten subjects were white males, one subject was a Hispanic male, and one patient was a white female (median age 62 years; age range 41–76 years). The O⁶-methylguanine-DNA-methyltransferase (MGMT) status of each tumor was included (M: methylated, UM: unmethylated). The boundaries of pseudo or true progression on the fat-suppressed T1-weighted MRI after contrast agent (gadoteridol) injection were determined by a neuroradiologist with more than 10 years of professional experience. Two DCE-MRI scans were conducted within 1 week. The interquartile range for the time between tumor resection and the first DCE-MRI scan was 6 to 15 months, with a median of 10 months. Pseudo or true glioblastoma progression was determined according to the Response Assessment in Neuro-Oncology (RANO) criteria about 5 months after DCE-MRI exams.

Perfusion phantom

Figure 1A presents a photograph and an exploded computer-aided design (CAD) view of the point-of-care P4 specifically designed for brain DCE-MRI. The P4 was designed using CAD software, SolidWorks (Dassault Systèmes American Corp., Waltham, MA, USA), and 3D printed with VeroClear material on a Stratasys Objet30 Pro (Eden Prairie, MN, USA). It consists of top and bottom chambers separated by a semi-permeable membrane with a pore size of 12–14 kD (SpectrumLabs, Rancho Dominguez, CA, USA). Prior to use, both chambers were filled with degassed and deionized water. At 30 seconds after the start of DCE-MRI, a contrast agent (gadoteridol; 50 mM) was infused into the top chamber (1 mm × 10 mm × 75 mm in height, width, and length) at a constant rate of 0.16 mL/s (total volume: 1.3 mL) using a syringe pump (NE-1600, New Era Pump Systems, Inc., Farmingdale, NY, USA), displacing the water within the top chamber. The displaced water moves into the waste chamber, while the contrast agent gradually diffuses from the top chamber into the bottom chamber, which measures 7.5 mm × 10 mm × 75 mm in height, width, and length, respectively. Independent measurements conducted using liquid chromatography with tandem mass spectrometry (LC-MS) verified a linear increase in contrast concentration within the bottom chamber over 10 minutes at a rate of 0.11 mM per minute. Figure 1B showcases a photograph and an exploded CAD view of the phantom cassette capable of accommodating two P4s. Sorbothane material is employed to mitigate vibrations transmitted from the scanner. Figure 1C illustrates the cassette positioned beneath the brain coil using a hanger, with a bubble level ensuring parallel alignment with the ground. Each P4 is wrapped in water-resistant paper to prevent potential leakage. The inclusion of multiple phantom components improves the signal-to-noise ratio and aids in identifying any functional errors that may occur. Figure 1D illustrates the schematic placement of a P4 above a patient, and Figure 1E shows the T1-weighted image of a human subject with a P4.

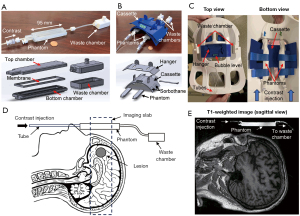

Figure 1 Point-of-care portable perfusion phantom (P4) for brain MRI. (A) A photograph and a 3D exploded view of the P4. A penny is included for scale reference. The P4 consists of two chambers, a top and a bottom, separated by a semi-permeable membrane. Deionized water fills the phantom initially, which will later be displaced by the MRI contrast agent introduced through the inlet. Water is transferred to the waste chamber as the contrast agent enters the top chamber. Subsequently, the MRI contrast agent diffuses through the membrane from the top chamber into the bottom chamber. (B) A photograph and a 3D exploded view of the phantom cassette designed to hold two phantoms. Sorbothane material is employed to minimize vibrations from the scanner. (C) The cassette’s top and bottom perspectives on a brain coil. A bubble level ensures the phantoms are parallel to the ground. Additionally, to prevent leakage, the phantoms are wrapped in water-resistant paper as a precaution. (D) Illustration and (E) T1-weighted image of the phantom placed with a patient inside a brain coil. 3D, 3-dimensional; MRI, magnetic resonance imaging.

Clinical MRI protocol

This study utilized a single 3T MRI scanner (GE Signa) equipped with a dual-channel transmit RF coil. Prior to imaging, B0/B1 shimming was conducted, followed by B1 mapping using the manufacturer’s software (24). DCE-MRI was performed using a 3D fast spoiled gradient echo (SPGE) sequence. Preceding DCE-MRI, conventional MRI examinations, including 3D T1-weighted (T1W) imaging and T2-weighted (T2W) fluid-attenuated inversion recovery (FLAIR) imaging, were conducted. For T1 mapping, T1W images with varying flip angles (2°, 15°, and 30°) were acquired (25). The imaging parameters for DCE-MRI were as follows: field of view (FOV) =260 mm × 260 mm, phase/frequency encoding =154/192, number of slices =12, matrix size =256×256, slice thickness/gap =5/0 mm, flip angle =30°, repetition time (TR)/echo time (TE) =6.1/2.1 ms, number of excitations =1, SENSE factor =2, and temporal resolution =4.82 s. Gadoteridol (0.1 mmol/kg) was injected intravenously into each subject 30 seconds after the start of DCE-MRI, followed by a saline injection (20 mL) at a constant rate of 2 mL/s, using Medrad Spectris Solaris EP injector (Bayer USA, Whippany, NJ, USA). DCE-MRI acquisition lasted for 9 minutes.

Image processing

Image processing was conducted through a series of eight sequential procedures. Initially, DCE-MRI images were co-registered using the expiration-phase B-spline method (26). Subsequently, the assessment of local flip-angle (FA) variation was executed via B1 mapping (24). Following this, T1 maps were derived utilizing the various flip angle (VFA) technique (25). Contrast maps were then generated employing the method proposed by Bokacheva et al. (27). Throughout the processes of T1 and contrast mapping, adjustments were made for FA variation across the FOV using B1 maps. A lookup table was created to correlate the reference contrast enhancement curve (CEC) obtained through LC-MS with the curves measured via MRI. The population-based arterial input function (AIF) (28) was utilized to deduce the plasma input function [PIF = AIF/(1 − HCT)], with HCT representing the hematocrit measured prior to the DCE-MRI examination. Corrections were applied to the contrast maps using the aforementioned lookup table. A non-linear curve, m=α(1−exp(−βr)), was created to best fit the look-up table. In this equation, m represents the contrast agent concentration measured via MRI, r is the contrast concentration determined using the LC-MS method, and α and β are constants specific to each look-up table. These constants are determined during the fitting process. Using this curve, the contrast agent concentration corrected for MRI scanner-dependent errors was calculated using the equation, r=−(1/β)ln(1−(m/α)) [refer to Appendix B of a prior manuscript for detailed elucidation (16)]. Finally, a total of eleven PK maps were extracted using the Tofts model (TM) (K^trans, k_ep, and v_e) (29), extended Tofts model (ETM) (K^trans, k_ep, v_e, and v_p) (30), and shutter speed model (SSM) (K^trans, k_ep, v_e, and τ_i) (31), where τ_i is mean intracellular water lifetime, v_p is fractional plasma volume, v_e is extravascular extracellular space, k_ep is flux rate constant, and K^trans is volume transfer constant. Due to the extended time required for calculating SSM PK maps compared to TM and ETM, SSM PK maps were exclusively obtained near the region of interest (ROI). Within the ROI, the values of each PK parameter were averaged, and the k_ep was computed using the equation k_ep=K^trans/v_e. The image processing procedures were carried out using a custom software package developed in LabVIEW v17.0, with the sub-function for SSM-based PK mapping programmed in MATLAB v2020a (Mathworks, Natick, MA, USA). Validation of T1 mapping and TM/ETM-based PK mapping was performed using digital reference objects (DROs) created by Dr. Barboriak’s group (Duke University, Durham, NC, USA) and the Quantitative Imaging Biomarker Alliance. The SSM-based PK mapping was validated using the DROs developed by Dr. Yankeelov’s group (University of Texas, Austin, TX, USA).

Statistical analysis

The data consistency of the P4 CEC was assessed using the intra-class correlation coefficient (ICC). The within-subject coefficient of variation (wCV) was calculated to evaluate the consistency of the PK parameter measurements before and after P4-based error correction. Two measurements from each patient were treated as individual data points to demonstrate the classification inaccuracy caused by intra-scanner variability. The sensitivity, specificity, and accuracy of each PK parameter in distinguishing between pseudo and true progression were determined through receiver-operation characteristic curve analysis (32), with the optimal thresholds identified based on the Youden index (33). A one-way ANOVA was conducted to compare PK parameters in glioblastoma with pseudo and true progression. A P value less than 0.05 was regarded as statistically significant. All statistical analyses were conducted using SAS, version 9.4 (SAS Institute Inc., Cary, NC, USA).

Results

Figure 2A exhibits DCE-MRI images of a representative subject with recurrent glioblastoma alongside two P4s (P1 and P2) before (baseline) and at 3 and 8 minutes after contrast injection, presented in an arbitrary scale. Figure 2B displays the CECs in millimoles per liter (mM) of the two P4s depicted in Figure 2A, along with their mean. The ICC represents the concordance of the two CECs.

Figure 2 DCE-MRI of a patient with P4 phantoms. (A) T1-weighted image before, 3, and 8 minutes after contrast agent injection. (B) Contrast enhancement in two phantoms together with the mean value, where CAC and ICC stand for contrast-agent concentration and intra-class correlation coefficient, respectively. CAC, contrast agent concentration; DCE-MRI, dynamic contrast-enhanced magnetic resonance imaging; ICC, intra-class correlation coefficient.

Employing P4-based error correction yielded enhancements in the repeatability of K^trans measurements. Table 2 summarizes the wCV for each PK parameter before and after P4-based error correction. The wCV of K^trans measurement displayed approximately 20% variability across PK models before error correction, which was markedly reduced by approximately threefold post-P4-based error correction. Notably, the wCV of k_ep measurement exhibited the lowest variability among all PK parameters pre-correction and experienced minimal alteration post-correction. Conversely, the wCV of v_p measurement demonstrated the highest variability, attributed presumably to low signal-to-noise ratio, consistent with previous literature (17), and remained unaffected by P4-based error correction. The wCV of τ_i was modestly reduced following error correction.

P4-based error correction improved accuracy in distinguishing between pseudo and true glioblastoma progression. Among the participants, five exhibited true progression, while seven displayed pseudoprogression. Figure 3 presents conventional MR images alongside ETM-based K^trans and v_e maps, as well as SSM-based τ_i maps of two representative patients with pseudo and true progression, respectively, after P4-based error correction. All participants’ K^trans and τ_i maps before and after P4-based error correction are in Figures S1-S8. Figure 4 presents box plots illustrating all eleven PK parameters of pseudo and true progression, with corresponding accuracy in differentiation for each PK parameter. Notably, TM or ETM-based K^trans and SSM-based τ_i demonstrated 100% accuracy after P4-based error correction. Table 3 summarizes the sensitivity, specificity, and accuracy of each PK parameter in discerning pseudo and true progression, with optimal thresholds established based on the Youden index (33).

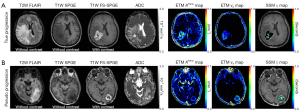

Figure 3 Representative MRI images of pseudo and true glioblastoma progression. (A,B) T2-weighted FLAIR, T1-weighted SPGE before contrast agent injection, T1-weighted FS SPGE MRI images about 9 minutes after contrast agent injection, and ADC map together with ETM based K^trans and v_e maps and SSM based τ_imap of two representative patients with (A) true and (B) pseudoprogression. K^trans, volume transfer constant; v_e, extravascular extracellular space; τ_i, mean intracellular water lifetime. ADC, apparent diffusion coefficient; ETM, extended Tofts model; FLAIR, fluid-attenuated inversion recovery; FS, fat-suppressed; MRI, magnetic resonance imaging; SPGE, spoiled gradient echo; SSM, shutter speed model.

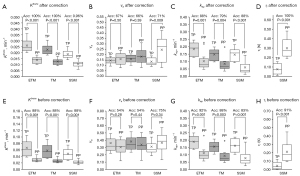

Figure 4 K^trans, v_e, k_ep, and τ_iof pseudo and true glioblastoma progression. (A,E) K^trans, (B,F) v_e, (C,G) k_ep, and (D,H) τ_i of TP and PP of glioblastoma before or after P4-based error correction based on ETM, TM, and SSM. The Acc for distinguishing between TP and PP, along with the P value indicating statistical significance, is displayed in each sub-figure. k_ep, flux rate constant; K^trans, volume transfer constant; v_e, extravascular extracellular space; τ_i, mean intracellular water lifetime. Acc, accuracy; ETM, extended Tofts model; PP, pseudoprogression; SSM, shutter speed model; TM, Tofts model; TP, true progression.

Discussion

We demonstrated that the P4 can be effectively employed within a brain coil during human subject studies to minimize scanner-dependent errors in quantitative DCE-MRI measurements. This led to enhanced accuracy in distinguishing between pseudo and true glioblastoma progression and holds significant clinical benefits, as clinicians can make more informed decisions regarding treatment strategies. The earlier diagnosis of true progression would be helpful by allowing patients to be treated when the tumor burden is smaller and patients are healthier and better at tolerating experimental treatments. We enrolled patients, irrespective of the specific follow-up therapy employed, but further investigation would be required to evaluate the changes in PK parameters associated with each therapeutic mechanism in an expanded patient cohort. In addition, on average, about one-third of glioblastoma patients exhibit pseudoprogression, while two-thirds show true progression (34). However, the patients in this study displayed approximately the opposite pattern. Our recruitment criteria included patients who exhibited contrast enhancement in follow-up MRI scans and were suspected of glioblastoma recurrence. As no recruitment bias should have been introduced, we believe this discrepancy is likely due to the small sample size.

The accuracy of TM-based K^trans was 88% in differentiating pseudo and true progression even before error correction, surpassing the findings of Yun et al. by 12% (11). Moreover, our study identified an optimal threshold value for TM-based K^trans, approximately 0.03 min^-1, which was substantially lower than the threshold reported by Yun et al. (11). This discrepancy could be attributed to differences in methodology, specifically in the AIF measurement. While Yun et al. relied on semi-automatic AIF measurements from intracranial tumor-supplying arteries proximal to the tumor (11), we opted for a population-based AIF (28). The utilization of intracranial arteries, which are approximately 1 mm in size for AIF measurement, may introduce partial volume effects, thereby potentially diminishing AIF magnitude and subsequently overestimating K^trans. Besides, Shalom et al. presented the higher reproducibility of glioblastoma K^trans quantified using population-based AIF compared to those quantified with measured AIF (35). This possibly explains the higher accuracy of K^trans observed in our findings than that reported by Yun et al. (11).

The true progression showed lower τ_i than the pseudoprogression even before P4-based error correction, suggesting τ_icould be a useful imaging biomarker for differentiating pseudo and true glioblastoma progression. The τ_i is an SSM-exclusive parameter accounting for trans-cell membrane water exchange kinetics in PK modeling of DCE-MRI. Recent studies have demonstrated that τ_i is an imaging biomarker for cellular metabolic activity, exhibiting an inverse relationship with the Na⁺-K⁺-ATPase (NKA) pumping. This pumping is activated by a phosphate produced through the ATP cycle and plays a crucial role in maintaining the K⁺ and Na⁺ gradient in vivo (36-38). Our findings support the hypothesis that recurring glioblastoma (i.e., true progression) consumes more ATP than inflammation (i.e., pseudoprogression), increasing NKA pumping and reducing τ_i. Tudorica et al. showed in a DCE-MRI study that changes in tumor τ_i provided an accurate prediction of breast cancer response to neoadjuvant chemotherapy after only the first cycle of chemotherapy, with more significant increases of τ_i in responding patients (39). Chawla et al. also demonstrated that pre-treatment τ_i of head and neck cancer was an independent predictor of overall survival following chemoradiotherapy, with higher τ_i corresponding to more prolonged survival (40).

Before P4-based error correction, the wCV of k_ep measurement was lower than that of K^trans, consistent with findings reported by Huang et al. (41,42). This is likely because k_ep is the contrast-agent intravasation rate constant, mainly determined by the wash-out phase where the range of contrast-agent concentration changes is relatively small. Conversely, K^trans is the contrast-agent extravasation rate constant, predominantly characterized by the uptake phase where the range of contrast-agent concentration changes is more extensive, leading to a larger error in quantitating contrast-agent concentration, particularly in a high-field MRI scanner. The P4-based error correction mitigated this variability, enhancing the measurement repeatability of K^trans.

In this study, the patient’s discomfort with the P4s remains a concern. While all twelve participants were successfully fitted with P4s within the brain coil, instances occurred where the P4s inadvertently made contact with the face of the participant. Consequently, the cushion positioned at the base of the coil had to be removed sometimes, leading to discomfort among the participants. The dimensions of the P4 bottom chamber were initially 10 mm × 7.5 mm (width × height), but this could be reduced to 4 mm × 4 mm without inducing a partial volume effect, given the spatial image resolution of 1 mm. Additionally, considerations were made to place two P4s on the left and right sides of the brain coil, allowing a human subject to see the outside of the MRI bore via a mirror and potentially alleviate claustrophobia if it occurs.

Conclusions

Quantitative DCE-MRI accurately differentiated pseudo and true progression, achieving 100% accuracy with P4-based error correction. However, multi-institutional validation is necessary to confirm its robustness across diverse clinical settings. Additionally, due to variations in brain coil designs among vendors, developing a universal P4 hanger adaptable to different coil shapes is essential for broader clinical implementation.

Acknowledgments

The authors thank Ms. Nicole Haynes and Mr. Nicholas Hatfield for their assistance with phantom evaluation and patient imaging. All experiments comply with current regulatory requirements (including ethics requirements) and laws of the United States of America.

Footnote

Reporting Checklist: The authors have completed the CLEAR reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-2024-2566/rc

Funding: This study was supported by NCI R03CA245986.

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-2024-2566/coif). H.K. reports that this study was funded by an NCI grant (R03CA245986). D.B. reports that he is the National Study Chair for the NCI funded ECOG-ACRIN trial EA223/GABLE. He serves as Imaging Co-Chair for ECOG-ACRIN’s Brain Tumor Working Group and as Chair of ECOG-ACRIN’s Imaging Diagnostics and Biomarker Committee. He has been a consultant for Servier about imaging in a different group of patients, those with low-grade glioma. Sevier reimbursed his travel and paid for meals for a trip to their headquarters in Boston, where he gave a presentation and participated in the discussion. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study received approval from the institutional review board of the University of Alabama at Birmingham (No. 300006446) and was conducted in accordance with the Declaration of Helsinki and its subsequent amendments, and the International Conference on Harmonization Good Clinical Practice guidelines. All participants provided informed consent to undergo imaging with the P4 during DCE-MRI.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
