Segmentation of hippocampal subregion via 5-Tesla magnetic resonance imaging: a comparative study

Introduction

The hippocampus is composed of several interacting subfields with different cytoarchitectures and functions (1) and plays a crucial role in memory formation (2,3), learning processes (4), and spatial navigation (5). It can be affected by a broad range of neuropsychiatric disorders (6-10), such as Alzheimer disease, temporal lobe epilepsy, hippocampal sclerosis, and psychosis. In particular, alternations in hippocampal subfields are selectively linked to subtypes of diseases (10-12), suggesting that subfield analysis may provide critical biomarkers for understanding cognitive process and their disruption in neurological disorders.

Numerous in vivo studies have assessed subfield volumes of the hippocampal formation through magnetic resonance imaging (MRI) (13-15). Manual segmentation is the gold standard for identifying hippocampal subfields in MRI, offering precise delineation based on the geometric relationships between substructures (16). However, this approach is labor-intensive and time-consuming, prompting the adoption of automated segmentation tools (17-21), such as FreeSurfer (20) and HippUnfold (21). These tools facilitate efficient and reproducible hippocampal subfield segmentation; however, despite their advantages, there are discrepancies in the segmentation outcomes across different tools (22), highlighting the need for standardized subregional definitions and protocols (23). In the Alzheimer’s Disease Neuroimaging Initiative 2 (ADNI2) study, high-resolution T2-weighted hippocampal images outperformed T1-weighted imaging in subfield segmentation (22). Additionally, it has been reported that the stratum radiatum, lacunosum, and moleculare (SRLM), a thin structural feature visible as a hypointense band on T2-weighted imaging, can serve as a crucial boundary for hippocampal subfield segmentation (24,25).

The bulk of studies on the hippocampus have used two-dimensional (2D) T2-weighted imaging with high in-plane resolution, typically 0.4 mm × 0.4 mm (25-27). However, the slice thickness (or through-plane resolution) of 2D T2-weighted imaging, a parameter critical for the precise segmentation of the subtle hippocampal subarchitectures such as the SRLM, has not been extensively examined in the context of hippocampal subfield segmentation. This is partly due to the insufficient signal-to-noise ratio (SNR) of conventional 3-Tesla (T) MRI. Ultrahigh magnetic fields, such as 5 T and beyond, provide superior SNR, potentially enhancing hippocampal subfield segmentation by improving spatial resolution and tissue contrast. An increased SNR facilitates higher image quality and spatial resolution (28), enabling precise delineation of hippocampal subfields. Meanwhile, enhanced tissue contrast improves effective differentiation, offering greater segmentation accuracy and reliability. Although the increased magnetic field strength of 5 T may provide higher image quality, the benefits of hippocampal subfield segmentation remain worth exploring, as the risks associated with a higher field, such as B1 inhomogeneity and T2 shortening effect, remain uncertain.

In this study, we first compared 5-T MRI and 3-T MRI in their ability to improve the image quality of structures near the hippocampus, with a focus on parameters such as SNR, contrast-to-noise ratio (CNR), and the visual clarity of hippocampal structures. Subsequently, the effectiveness of FreeSurfer and HippUnfold in segmenting the SRLM was evaluated under different slice thicknesses of T2-weighted imaging at 5 T. We present this article in accordance with the STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-24-2169/rc).

Methods

Participants

This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and approved by the institutional ethics committee of Shenzhen Institute of Advanced Technology, Chinese Academy of Sciences (No. SIAT-IRB-230928-H0673). Written informed consent was obtained from all participants. A total of 28 healthy participants (14 females; mean age 31.8±8.96 years) were recruited from 2023 to 2024 for experiments conducted on a 5-T scanner. Among them, five (two females; mean age 26.6±3.65 years) also underwent additional imaging on a 3-T scanner for image quality comparison with 5-T images. The inclusion criteria for healthy volunteers included (I) age >18 years old, (II) no contraindications to MRI scans, and (III) no history of cardiovascular diseases, head injury, brain surgery, or psychiatric diseases.

Data acquisition

All MRI scans were performed on a 5-T MR scanner (uMR Jupiter, United Imaging Healthcare, Shanghai, China) with a 2-channel transmit and a 48-channel receive head coil or on a 3-T MR scanner (uMR790, United Imaging Healthcare) with a 32-channel head-and-neck receive-only coil. The MRI protocols consisted of 3D whole-brain T1-weighted imaging and 2D high-resolution T2-weighted imaging. The T1-weighted images were acquired in the sagittal plane with the 3D magnetization-prepared rapid acquisition of gradient echo (MPRAGE) sequence; meanwhile, the T2-weighted images were acquired in an oblique coronal plane orthogonal to the long axis of the hippocampus using a fast-spin-echo (FSE) sequence with three slice thicknesses: 2 mm (T2_L), 1 mm (T2_M), and 0.7 mm (T2_H). The scanning parameters are listed on Table 1.

Hippocampal subregion segmentation

Hippocampal subregions were segmented using two methods: the open-source toolbox FreeSurfer 7.2.0 (https://surfer.nmr.mgh.harvard.edu) and the HippUnfold segmentation method (21). For FreeSurfer, each participant was scanned at 5 T, and T1-weighted and T2-weighted images were used as input for subregion segmentation; meanwhile, the use of HippUnfold relied solely on T2-weighted images. To provide a reference for the evaluation of the segmentation results, the SRLM (also known as the molecular layer) was also manually delineated by a toolbox (FSLeyes https://open.win.ox.ac.uk/pages/fsl/fsleyes/fsleyes/userdoc/install.html) based on FSL (FMRIB Software Library) (https://fsl.fmrib.ox.ac.uk/fsl/docs/#/). Specifically, manual segmentation was performed on 0.7-mm T2-weighted images due to their capacity to capture the complex curvatures of the hippocampus. The segmentation process began with the identification of the hippocampal contour in the sagittal plane. Subsequently, the slice with the anterior edge of the hippocampus was designated as the starting point, and the slice containing the posterior edge was designated as the end point. Finally, the SRLM, known as the low-signal “dark band”, was manually delineated in the short-axis view via FSLeyes.

Evaluation metrics

The image quality of the T2-weighted FSE sequence was visually assessed by scoring the visualization of the hippocampal internal architecture on T2-weighted images (T2_L, T2_M, and T2_H), which is crucial for hippocampal subregion segmentation. A total of 30 T2-weighted images, scanned on 3-T and 5-T MRI at three slice thicknesses among 5 participants, were initially randomized and evaluated using FreeView (FreeSurfer toolkit) by three independent raters: two experienced neuroradiologists (>3 years of experience) and one neuroradiologist (1 year of experience). Assessment prioritized two anatomical features critical for subregion segmentation: continuity of the molecular layer’s hypointense band and boundary sharpness between hippocampal subfields. A validated four-point rating scale (29,30) was employed as follows: a score of 4 indicated complete continuity and clarity of the molecular layer, 3 indicated predominantly continuous visualization of the hypointense band with minor discontinuities, 2 indicated partial visualization of the hypointense band; and 1 indicated little or no discernible molecular layer. The in-plane (coronal) and through-plane (sagittal) image qualities were each scored. Figure 1 presents examples of the rating scores. The interrater reliability of three readers was evaluated, and for cases with scoring discrepancies, final visual scores were determined via discussion.

Figure 1 Description of the hippocampus rating criteria. The images show examples of each of the four scoring levels.

The SNR and CNR of T2-weighted images were compared between 3- and 5-T images in the five participants. Given that parallel imaging acceleration in T2-weighted acquisitions fundamentally modifies background noise characteristics (31,32), SNR and CNR (14) of the hippocampus were qualitatively calculated with following formulae:

SNR=Signalhipp¯σwm¯[1]

CNR=|Signalhipp¯−Signalwm¯|σhipp2+σwm2[2]

where Signalhipp¯ and Signalwm¯ are the mean signal intensities in hippocampal gray matter and uniform white-matter region near the hippocampus, respectively; and σwm and σhipp are the standard deviation of the white matter and hippocampus, respectively.

Manual segmentation of the SRLM served as the reference standard for evaluating the automated segmentation outcomes. Segmentation accuracy was evaluated via the Dice coefficient. All images and segmentation results were registered to T2-weighted images with a 0.7-mm slice thickness. Subsequently, the Dice coefficient was calculated as follows:

DICEauto,manual=|SRLMauto∩SRLMmanual|(|SRLMauto|+|SRLMmanual|)/2[3]

where SRLMauto and SRLMmanual are the binary masks of the SRLM from the automated segmentation method (FreeSurfer or HippUnfold) and manual segmentation, respectively. The Dice coefficient would be 1 if the SRLM was ideally positioned, <1 if the overlap was less than ideal, and 0 if there is no overlap at all.

Statistical analysis

Statistical analyses were performed in Python 3.2 (https://www.python.org; Python Software Foundation, Wilmington, DE, USA) and SPSS software (IBM Corp., Armonk, NY, USA). The Wilcoxon signed-rank test was used to compare CNR, SNR and image qualities between the 3- and 5-T images for each slice thickness. For comparisons across three slice thicknesses within each magnetic field strength, Kruskal-Wallis with Bonferroni-corrected pairwise analyses were implemented. Interrater reliability of three readers was evaluated via Fleiss’s kappa. The Dice coefficients for SRLM between automated segmentation methods and among the three different slice thickness were compared using the Wilcoxon signed-rank test and the Kruskal-Wallis test with Bonferroni correction, respectively. A two-sided P value of <0.05 was considered significant.

Results

Superior visualization of hippocampal internal architecture was consistently achieved at 5 T across all slice thicknesses, with significant improvements in anatomical delineation being particularly evident in thinner slices (Figure 2). Results of visual image quality assessment on T2-weighted images with three different thicknesses are shown in Figure 3. Notably, no rating score of 1 was found in any of the 5-T images with interrater agreement reaching substantial reliability (Fleiss’ κ: in-plane left =0.757, in-plane right =0.695, through-plane left =0.745, in-plane right =0.818). Compared to thicker slices, thinner slices demonstrated enhanced through-plane continuity due to lower partial volume effects, as illustrated in Figure 4.

Figure 2 Illustration of differences in image quality and internal architecture clarity between images with different thicknesses at 3 and 5 T in a single participant. The two panels show that the image quality improves with the increasing intensity of the magnetic field, especially at a submillimeter slice thickness.

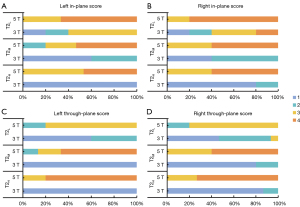

Figure 3 Image quality comparison between different slice thicknesses of T2-weighted images on 3 and 5 T. (A,B) In-plane visualization scores for the left and right hippocampi. (C,D) Through-plane visualization scores for bilateral hippocampi. Visual scores were rated by three readers for all five participants. 4-point scale: 4= excellent molecular layer continuity/clarity, 3= good, 2= limited, and 1= nondiagnostic. T2_H, T2_M, and T2_L: T2-weighted images with a slice thickness of 0.7, 1, and 2 mm, respectively.

Figure 4 Partial volume effect in the slice direction. (A-C) Coronal plane comparison: 2-mm single slice (A) versus composite 1- (B) and 0.7-mm (C) acquisitions spanning equivalent 2-mm volumes. The white arrows show that the contour of the SRLM varied significantly from slice to slice in the inferolateral aspect of the hippocampus, which resulted in blurring in that portion of the SRLM in (A) due to volume averaging. (D-F) Sagittal plane counterparts reveal thickness-dependent SRLM definition preservation (red arrows indicate the microstructural transitions in 0.7-mm slices and the smoothing artifacts in 2-mm slices). T2_H, T2_M, and T2_L: T2-weighted images with a slice thickness of 0.7, 1, and 2 mm, respectively. SRLM, stratum radiatum, lacunosum, and moleculare.

Quantitative analyses revealed significant field strength advantages despite SNR and CNR reductions with decreasing slice thickness in T2-weighted images, with the CNR and SNR on 5 T being much higher than that on 3T (P=0.043) (Figure 5 and Table 2). Specifically, CNR of images with a 0.7-mm slice thickness on 5 T was comparable to those of images with a 2-mm thickness; meanwhile, the SNR of images with a 1-mm slick thickness on 5 T were comparable to those with a 2-mm thickness on 3 T. The Kruskal-Wallis test confirmed strong slice thickness dependence for SNR at 3 T (left: P=0.004; right: P=0.002) and 5 T (left: P=0.004; right: P=0.004) and for CNR at 3 T (left P=0.005; right P=0.002) and 5 T (left P=0.006; right P=0.002). Additionally, pairwise comparisons with the Bonferroni correction demonstrated a significant difference between the T2_H and T2_L slice thicknesses in terms of CNR on 3 T (left: P=0.001; right: P=0.001) and 5 T (CNR: left: P=0.006; right: P=0.004) and SNR at 3 T (left: P=0.003, right: P=0.001) and 5T (SNR: left: P=0.003, right: P=0.003).

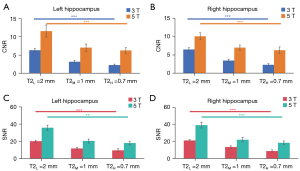

Figure 5 Comparison of CNR and SNR of T2-weighted images with different slice thicknesses on 3 and 5 T. Error bars represent a standard deviation above and below the mean. **, P<0.01; ***, P<0.005. CNR, contrast-to-noise ratio; SNR, signal-to-noise ratio.

Comparative analysis of SRLM segmentation performance across the automation pipelines (HippUnfold vs. FreeSurfer) and manual labeling indicated protocol-dependent variations in a representative 5-T scan (n=28 participants; Figure 6). Both automated tools performed well in segmenting the hippocampal body but did less well in the hippocampal head as compared to manual labeling. Visual segmentation improvements occurred with a thinner slice thickness. For FreeSurfer versus manual delineation, the DICEFS,manual for T2_L, T2_M, and T2_H were 0.59, 0.54, and 0.52 in the left hippocampus, respectively, while in the right hippocampus, they were 0.64, 0.59, and 0.58, respectively (Figure 7). The Dice coefficients between HippUnfold and manual segmentation (DICEHU,manual) for T2_L, T2_M, and T2_H were 0.72, 074, and 0.78 on the left side, respectively, while they were 0.70, 0.73, and 0.76 on the right side, respectively.

Figure 6 Comparison of the SRLM between HippUnfold, FreeSurfer, and manual demarcation on 5 T. Sagittal and coronal slices are shown for one representative participant. (A) A representative slice of T2-weighted images with a 0.7-mm slice thickness from coronal and sagittal views. These are the base images for (B-H). (B) Manual SRLM delineation: expert-annotated ground truth. (C-E) SRLM in T2_L, T2_M, and T2_H from FreeSurfer (green). (F-H) SRLM in T2_L, T2_M, and T2_H from HippUnfold (red). T2_H, T2_M, and T2_L: T2-weighted images with a slice thickness of 0.7, 1, and 2 mm, respectively. SRLM, stratum radiatum, lacunosum, and moleculare.

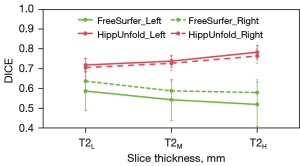

Figure 7 Dice coefficients of the SRLM between the automated and manual segmentation. Error bars represent a standard deviation above and below the mean. T2_H, T2_M, and T2_L: T2-weighted images with slice thickness of 0.7, 1, and 2 mm, respectively. SRLM, stratum radiatum, lacunosum, and moleculare.

The Kruskal-Wallis test showed significant differences between the three T2 series on both DICEFS,manual (left: P=0.025; right: P=0.001) and DICEHU,manual (left: P<0.001; right: P<0.001). As indicated in Table 3, pairwise comparisons with Bonferroni correction indicated significant differences between the T2_H and T2_L slice thicknesses for both FreeSurfer (left: P=0.023; right: P=0.001) and HippUnfold (left: P<0.001; right: P<0.001). Additionally, significant differences were also found between T2_M and T2_L at DICEFS,manual of the right hippocampus (P=0.007) and between T2_M and T2_H at DICEHU,manual (left: P<0.001; right: P=0.004). Figure 8 illustrates the different hippocampal subregions segmented with FreeSurfer and HippUnfold in the same participant.

Figure 8 Subregion segmentation of the hippocampus from FreeSurfer (green box) and HippUnfold (red box) in a single participant. CA2 was included in CA3 in the FreeSurfer results. Hippocampal subfields were segmented with hippocampal tail in HippUnfold, while the hippocampal tail was a subfield part in FreeSurfer. T2_H, T2_M, and T2_L: T2-weighted images with slice thickness of 0.7, 1, and 2 mm, respectively. CA, cornu ammonis; DG, dentate gyrus; SRLM, stratum radiatum, lacunosum, and moleculare.

Discussion

This study examined the enhancement of hippocampal image quality on 5-T MRI as compared to that on 3-T MRI while assessing the performance of FreeSurfer and HippUnfold in SRLM segmentation across varying slice thicknesses of T2-weighted imaging at 5 T. The results indicate that higher magnetic fields significantly improve image quality, enabling acquisition of thinner T2-weighted slices. However, thinner slices do not necessarily imply that all the results from autosegmentation tools will be superior. These findings provide valuable insights for tool improvement and guidance for future research, underlining the significance of thin slices in accurately segmenting hippocampal substructures.

Comparative analysis showed that 5-T T2-weighted imaging exhibited higher SNR, CNR, and visual image quality as compared to 3-T imaging. The improved SNR facilitates the attainment of thinner slice thicknesses in T2-weighted imaging. In our study, we successfully obtained high-resolution T2-weighted images with an outstanding 0.7-mm slice thickness on 5 T, enabling clear visualization of the SRLM of the hippocampus, particularly from the through-plane direction. However, this slice thickness at 3 T yielded a no-diagnostic delineation for the SRLM. To visualize the SRLM on 3 T with such a thin slice thickness, methods to mitigate its relatively lower SNR, such as via multiacquisition averaging (30), high-performance coils (33,34), and advanced reconstruction algorithms including artificial intelligence (AI)-assisted compressed sensing (35), could be used at the cost of longer imaging time or greater expense. Moreover, 3D imaging techniques such as sampling perfection with application optimized contrasts using different flip-angle evolutions (SPACE) (14) can provide enhanced resolution in all three dimensions, which might be advantageous for more precise visualization and segmentation of hippocampal subfields.

The discrimination of hippocampal structures demands a small voxel size of images due to the thin structure of the hippocampus. The molecular layer, an internal region of the hippocampus easily recognized on T2-weighted images, serves as a critical anatomical landmark for manual subfield demarcation. Although the in-plane resolution of 2D T2-weighted images can reach up to 0.4 mm, the majority of T2 slice thicknesses are thick, usually 2 mm. Thick slices may obscure fine details, causing segmentation errors via signal averaging. Our results indicated that the enhanced SNR and CNR at 5 T allow for clearer visualization of the internal hippocampal structures, especially the SRLM, even at a 0.7-mm slice thickness. Thinner slices mitigate partial volume effects, augment the visibility of in-plane subfield boundaries, and enhance through-plane SRLM continuity, thus aligning more closely with the integrity of the hippocampal anatomy and facilitating SRLM delineation (30). Hence, we propose acquiring high-resolution images with thinner slice thickness when image quality meets the clinical diagnostic standards. In our study, the SRLM was distinctly visible even at 0.7 mm, indicating that a slice thickness range of 0.7–1 mm can be used for 5 T.

The comparative analysis of FreeSurfer and HippUnfold highlighted differences in SRLM segmentation efficacy (the hypointense region within the hippocampus in images). Regarding the variation of Dice coefficients of SRLM with slice thickness, FreeSurfer and HippUnfold exhibited opposing tendencies. HippUnfold exhibited progressive Dice coefficient improvement with reduced thickness while FreeSurfer exhibited significant performance degradation. These findings suggest that HippUnfold, despite only using T2-weighted images for hippocampal subregion segmentation, may be better equipped to manage thinner-slice images. This could potentially be due to HippUnfold’s employment of a deep convolutional neural network based on the U-Net architecture for tissue classification in T2-weighted images, wherein the SRLM plays a role in defining the unfolding coordinate boundaries. Additionally, thinner slices of T2-weighted images enhance slice coherence, enabling more accurate boundary definition and thus more precise tissue segmentation.

Although the integration of T2-weighted with T1-weighted images in FreeSurfer (version 6.0 and above) has been reported to outperform isolated high-resolution T1-weighted images for segmentation, our data indicated certain limitations in its performance with high-resolution images, as indicated by the variability in Dice coefficient for the SRLM. This deterioration in performance likely stems from the predefined Gaussian distribution parameters in FreeSurfer, which in turn affects the accuracy of computing voxel label probabilities via T2 contrast information. In other words, the results of FreeSurfer imply that better image quality and thinner slice thickness do not necessarily provide better segmentation results since they also depend on the algorithms of autosegmentation tools.

Notably, in this study, our primary focus was placed on analyzing the performance of the two automatic tools in segmenting the SRLM. Moreover, it should be emphasized that both HippUnfold and FreeSurfer might possess other potential sources of inaccuracy in different anatomical regions or for other structures that are not related to the SRLM.

Limitations

Three limitations of the present study warrant consideration. First, manual segmentation does not delineate all subregions, primarily because it is extremely time-consuming (requiring up to 50 hours per subject) and relies heavily on the understanding of the geometric relationships of hippocampal subregions with only the Dice coefficients of the SRLM being compared. Additionally, the relatively small sample size, especially for 3-T data, and the lack of scan–rescan analysis might have adversely impacted the statistical power. Further studies with larger samples and reliability testing are needed to validate these observations and provide additional insights into ultrahigh-field hippocampal studies.

Conclusions

The 5-T MRI system presents a promising high-resolution platform for detailed SRLM segmentation. However, the automated segmentation tools evaluated in this study demonstrated certain limitations, particularly when applied to high-resolution imaging. Future research should focus on optimizing these tools to fully leverage the benefits of high-field MRI and enhance the precision and reliability of hippocampal subregion segmentation. Moreover, establishing standardized definitions for hippocampal subregions is crucial for enabling accurate comparisons between segmentation methods and deepening insights into hippocampal pathology.

Acknowledgments

The authors would like to thank the Molecular Imaging platform, Medical Research Center, and Peking Union Medical College Hospital, for supporting of this study. The authors would also like to thank Yuyan Chen, Hualu Han, and Simin Liu for their assistance in data acquisition and processing.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-24-2169/rc

Funding: This work was supported by the National Natural Science Foundation of China (No. 82302177), the National High Level Hospital Clinical Research Funding (No. 2022-PUMCH-B-027), the National Key R&D Program of China (Nos. 2021YFF0501500, 2022YFA1004203, and 2023YFC2411103), and the Key Laboratory for Magnetic Resonance and Multimodality Imaging of Guangdong Province (No. 2023B1212060052).

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-24-2169/coif). D.L. serves as an unpaid editorial board member of Quantitative Imaging in Medicine and Surgery. S.C. is a current employee of United Imaging Healthcare. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the institutional ethics committee of Shenzhen Institute of Advanced Technology, Chinese Academy of Sciences (No. SIAT-IRB-230928-H0673). Informed consent was obtained from all individual participants.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
