Evaluation of low-dose chest scans for coronary artery calcium scoring using photon-counting computed tomography with different slice thicknesses and iterative reconstruction levels
Introduction
Coronary atherosclerotic heart disease is a major contributor to cardiovascular morbidity and mortality globally (1). Vascular calcification is a common pathological feature of atherosclerosis. The coronary artery calcium scoring (CACS) is a useful, noninvasive tool for diagnosing coronary heart disease. It is also a valuable prognostic marker that can facilitate risk stratification and treatment decision-making in patients with coronary heart disease (2). Traditionally, determining the CACS using a dedicated electrocardiograph (ECG)-triggered computed tomography (CT) scanning protocol, known as standard CACS CT (CAC-CT) scan, has served as a reference standard for noninvasive detection and quantification of coronary artery calcification. Recent studies (3,4) have demonstrated that low-dose (LD) chest CT (LD-CT) scans with a non-ECG trigger can also be used to evaluate CACS. Although there is good agreement regarding CACS between LD-CT images and standard ECG-triggered CT from energy-integrating detector CT, studies have shown a relatively high mean difference and wide limits of agreement, limiting the clinical application of this approach (5,6).
In contrast to conventional energy-integrating detector CT, which combines the electrical signal of multiple X-ray photons into a single intensity value, photon-counting detector CT (PCD-CT) individually measures the number and energy of X-ray photons, enhancing tissue contrast, stabilizing Hounsfield units (HU), suppressing electronic noise, and reducing noise-aliasing artifacts (7,8). These advancements have enabled the use of PCD-CT as an innovative technique, opening new possibilities for low-dose imaging, particularly for screening. A previous study demonstrated that the CACS obtained with PCD-CT is more accurate than is energy-integrating detector CT when the CAC-CT scan is used and that LD lung cancer screening with PCD-CT provides better image quality while using a considerably lower radiation dose than energy-integrating detector-CT scans (9). If LD lung cancer screening with PCD-CT can accurately quantify CACS, it may serve as a comprehensive tool for both lung cancer screening and cardiovascular risk assessment with reduced radiation dose exposure as compared to energy-integrating detector CT scans.
No studies on the accuracy CACS using photon-counting CT chest scans have been conducted. Additionally, the Agatston score, a commonly used method for CACS calculation, is greatly affected by acquisition parameters (such as tube voltage) and reconstruction parameters (such as slice thickness and kernel) (10). The aim of this study was thus to identify the differences in CACS obtained through LD-CT scan using PCD-CT with tin filtration (Sn 100 kVp) under various reconstruction parameters in comparison to those of standard CACS. We present this article in accordance with the STARD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-24-1244/rc).
Methods
Study design and patients
This prospective study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the ethics board of the Geriatric Hospital of Nanjing Medical University (No. 044-1). Informed consent was obtained from all participants prior to enrollment. A total of 112 patients who required lung cancer screening and cardiovascular risk assessment were recruited consecutively at the Geriatric Hospital of Nanjing Medical University between December 2023 and March 2024. The LD-CT and CAC-CT were performed on the same day. Patients with a history of coronary artery bypass grafting, stenting surgery, or cardiac metal implantation were excluded. The study flowchart can be found in Figure 1.

Data acquisition and reconstruction parameters
Scans were acquired using a first-generation clinical dual-source PCD-CT system (NAEOTOM Alpha with syngo.CT VA50; Siemens Healthineers, Erlangen, Germany). Initially, an LD-CT was performed, followed by a CAC-CT. The LD-CT scan covered the entire lungs from the apex to base, while the CAC-CT scan covered the entire heart from the tracheal carina to the heart apex. All CT acquisitions were performed in the craniocaudal direction. We did not use the circulatory agonists such as beta blockers during in the study.
The scan and reconstruction parameters are presented in Table 1. Axial images from the CAC-CT were used as reference images. For CAC-CT, the reconstruction parameters for CACS images were based on the manufacturer’s recommended protocol and involved monoenergetic reconstruction at 70 keV, kernel at Qr36, and quantum iterative reconstruction (QIR) at the intermediate level (QIR 2) (11). For LD-CT, the reconstruction parameters were performed using different combinations of two different slice thicknesses/increments (3/1.5 mm and 1.5/1 mm) (5) and five QIR levels (QIR 0–4). A total of 11 groups were generated, including CAC-CT (as the reference group), LD3 mm-QIR0 to LD3 mm-QIR4, and LD1.5 mm-QIR0 to LD1.5mm-QIR4. The CACS from 10 LD-CT groups were assessed to identify the closest match with the CAC-CT group. All 11 groups of images were performed under soft tissue window settings (width 400 HU; level 40 HU).
Table 1
Parameter | LD-CT | CAC-CT |
---|---|---|
Acquisition parameter | ||
ECG triggered | Non-ECG triggered | ECG triggered |
Acquisition mode | Spiral | Prospective sequential |
Tube voltage (kVp) | Sn 100 | 120 |
Collimation (mm) | 144×0.4 | 144×0.4 |
Image quality level | 19 | 19 |
Pitch | 3.2 | NA |
Rotation time (s) | 0.25 | 0.25 |
Scan range | Lung apex to lung base | Tracheal carina to heart apex |
Reconstruction parameter | ||
Monoenergetic level (keV) | 70 | 70 |
Iterative reconstruction | QIR 0–4 | QIR 2 |
Kernel | Qr36 | Qr36 |
Slice thickness (mm) | 3, 1.5 | 3 |
Increment (mm) | 1.5, 1.0 | 1.5 |
Matrix size | 512×512 | 512×512 |
CAC-CT, standard coronary artery calcium scoring computed tomography; ECG, electrocardiograph; LD-CT, low-dose chest computed tomography; QIR, quantum iterative reconstruction.
CAC quantification and risk categorization
One experienced researcher with over 10 years of experience in cardiovascular radiology (Y.E.Z.) analyzed the presence and score of CAC in the 11 groups. Calcification was defined as a lesion area of ≥1.03 mm2 with an attenuation value of >130 HU (12). The CACS was determined using the Agatston method (12). For CAC detection, a CACS >0 was considered indicative of the presence of CAC, and a CACS score of 0 indicated the absence of CAC. Discordant cases (in which CAC was present on only one scan) were analyzed together with another expert reader with over 15 years of experience in cardiovascular radiology (S.L.) to confirm the discrepancy in CAC presence. CAC was automatically quantified using software (CT CaScoring, syngo.via VB60, Siemens Healthineers) (12). The reader then decided whether it was truly a coronary calcification and included or excluded it. Agatston scores were recorded with one decimal place. Risk categories based on the Agatston score were defined as follows: very low risk (0), low risk (>0–10), moderate risk (>10–100), moderately high risk (>100–400), and severe risk (>400) (13).
Objective image quality assessment
To select images of sufficient quality for quantifying coronary artery calcium (CAC), we measured the noise and signal-to-noise ratio (SNR) of the 11 image groups. Quantitative image assessment was performed by a single reader on a dedicated workstation (syngo.via VB60B, Siemens Healthineers), placing a region of interest (approximately 1.0 cm2 in size) in the ascending aortic root. CT attenuation and standard deviation, which served as noise, were documented. The SNR was calculated by dividing the CT attenuation by the noise.
Radiation dose
To compare the radiation doses of the two different scan methods, the volume CT dose index (CTDIvol) and dose-length product (DLP) values documented were recorded. The effective dose (ED) in millisieverts (mSv) was calculated using the following formulas (5) and two conversion factors (14):
- EDCAC-CT (mSv) = DLP (mGy × cm) × 0.026 (mSv × mGy−1 × cm−1).
- EDLD-CT (mSv) = DLP (mGy × cm) × 0.014 (mSv × mGy−1 × cm−1).
Statistical analysis
Statistical analyses were performed using SPSS software version 24 (IBM Corporation, Armonk, NY, USA). The normality of the distribution of continuous variables was assessed using the Kolmogorov-Smirnov test. Normally distributed continuous variables are presented as the mean ± standard deviation, and nonnormally distributed continuous variables are presented as the median with interquartile range. Categorical variables are presented as the frequency (percentage). P<0.05 was considered to indicate statistical significance.
The sensitivity, specificity, and accuracy of the LD-CT groups for detecting CAC were calculated using the CAC-CT group as a reference. Differences in CACS between the LD-CT groups and CAC-CT were compared using one-way analysis of variance or the Friedman test with Bonferroni correction, depending on the distribution. The Pearson or Spearman correlation coefficient was used to assess the correlation between CACS derived from LD-CT and CAC-CT acquisitions, depending on the distribution. Agreement was assessed using Bland-Altman analysis (mean bias, upper and lower limits of agreement) and the intraclass correlation coefficient (ICC) with two-way mixed effects and absolute agreement. ICC values <0.5, between 0.5 and 0.75, between 0.75 and 0.9, and >0.90, indicated poor, moderate, good, and excellent reliability, respectively (15). The limits of agreement were determined using Bland-Altman analysis. The agreement in risk categorization between the LD-CT groups and CAC-CT was evaluated using weighted kappa (from 0 to 1.00, with 0.81–1.00 indicating excellent agreement) (15). The image quality (in terms of noise and SNR) was compared using one-way analysis of variance or the Friedman test with Bonferroni correction, depending on the distribution. The difference in the radiation dose between LD-CT and CAC-CT was assessed using the paired t-test or Wilcoxon signed-rank test based on the distribution.
Results
Patient characteristics

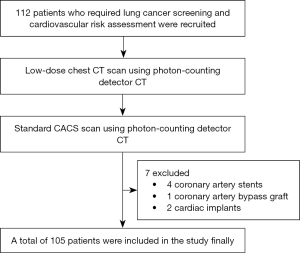

According to the inclusion criteria, a total of 112 patients were enrolled, all of whom successfully underwent LD-CT scans and CAC-CT scans on the same day. Subsequently, based on the exclusion criteria, 7 patients were excluded, 4 due to coronary artery stents, 1 due to a coronary artery bypass graft, and 2 due to cardiac implants. Finally, a total of 105 patients were included in the study. The baseline characteristics of study participants are summarized in Table 2.
Table 2
Variables | Value (n=105) |
---|---|
Age (years) | 64.6±11.5 |
Male | 75 (71.4) |
Height (cm) | 165.2±25.5 |
Weight (kg) | 74.1±13 |
BMI (kg/m2) | 26.7±3.5 |
Heart rate (bpm) | 74.6±15 |
Hypertension | 42 (40.0) |
Diabetes | 36 (34.3) |
Dyslipidemia | 22 (21) |
Tobacco abuse | 12 (11.4) |
CAD family history | 18 (17.1) |
Total Agatston score* | 117.4 (34.4, 392.1) |
Values are expressed as mean ± standard deviation, median (interquartile range), or n (%). *, obtained from standard coronary artery calcium scoring scan (12). BMI, body mass index; CAD, coronary artery disease.
CAC score quantification and risk categorization
CAC was detected in 73.3% (77/105) of patients in the CAC-CT group. With the CAC-CT group serving as the reference, for all the LD-CT groups, there was high sensitivity, specificity, and accuracy in CAC detection with no false-positive results in any of the LD-CT groups. CAC was accurately detected in all patients in the LD1.5mm-QIR0 and LD1.5mm-QIR1 groups. The detailed results of CAC detection for the 10 LD-CT groups are listed in Table 3.
Table 3
Group | SE (%) | SP (%) | Accuracy (%) | Misdiagnosis (n) |
---|---|---|---|---|
LD3mm-QIR0 | 98.7 | 100 | 99.5 | 1 |
LD3mm-QIR1 | 97.4 | 100 | 98.1 | 2 |
LD3mm-QIR2 | 97.4 | 100 | 98.1 | 2 |
LD3mm-QIR3 | 96.1 | 100 | 97.1 | 3 |
LD3mm-QIR4 | 96.1 | 100 | 97.1 | 3 |
LD1.5mm-QIR0 | 100 | 100 | 100 | 0 |
LD1.5mm-QIR1 | 100 | 100 | 100 | 0 |
LD1.5mm-QIR2 | 98.7 | 100 | 99.5 | 1 |
LD1.5mm-QIR3 | 98.7 | 100 | 99.5 | 1 |
LD1.5mm-QIR4 | 97.4 | 100 | 98.1 | 2 |
CAC-CT, standard coronary artery calcium scoring computed tomography; LD, low dose; LD-CT, low-dose chest computed tomography; n, are the number of patients; QIR, quantum iterative reconstruction; SE, sensitivity; SP, specificity.
The CACS was not normally distributed (Figure S1); therefore, the differences in CACS between the LD-CT groups and CAC-CT were compared using the Friedman test and Wilcoxon signed-rank test with Bonferroni correction used for pairwise group comparisons. The Friedman test revealed a significant difference in the distribution of CACS between the groups (P<0.001). The CACS of the LD1.5mm-QIR1, LD1.5mm-QIR2, and LD1.5mm-QIR3 groups (median CACS of 130.7, 130.1, and 129.3, respectively) did not significantly differ to that of the CAC-CT group (median 117.4; P>0.05). The Spearman correlation coefficients and ICCs between the LD-CT groups and CAC-CT group ranged from 0.987 to 0.99 (all P<0.001) and from 0.983 to 0.993 (all P<0.001), respectively. The absolute mean bias calculated using the Bland-Altman method ranged from 1.5 to 30. Among the groups, LD1.5mm-QIR1 showed the lowest absolute mean bias. An illustrative example is provided in Figure 2. The limits of agreement, also calculated using the Bland-Altman method, ranged from 173.3 to 224.8. Notably, among the LD-CT groups, LD1.5mm-QIR2 and LD1.5mm-QIR1 exhibited a narrower limit of agreement (173.3 and 174, respectively). The detailed results are presented in Table 4.

Table 4
Group | Agatston score | P* | r* | ICC* | Bias* | LOA* |
---|---|---|---|---|---|---|
CAC-CT | 117.4 (34.4, 392.1) | – | – | – | – | – |
LD3mm-QIR0 | 107 (32, 377.6) | 0.001 | 0.99 | 0.988 (0.978, 0.993) | −21.2 | −124.8/82.5 |
LD3mm-QIR1 | 105.4 (28.9, 376.4) | <0.001 | 0.991 | 0.986 (0.971, 0.992) | −26.3 | −136.6/84.1 |
LD3mm-QIR2 | 99.9 (30, 370.6) | <0.001 | 0.988 | 0.985 (0.968, 0.992) | −27.8 | −140.2/84.6 |
LD3mm-QIR3 | 101.4 (29.4, 371.9) | <0.001 | 0.988 | 0.984 (0.967, 0.992) | −29.6 | −145.1/85.9 |
LD3mm-QIR4 | 104.6 (29.6, 364) | <0.001 | 0.988 | 0.983 (0.965, 0.991) | −30 | −146.9/86.9 |
LD1.5mm-QIR0 | 137.2 (48.5, 409.1) | <0.001 | 0.988 | 0.992 (0.986, 0.995) | 15.6 | −73.8/105.1 |
LD1.5mm-QIR1 | 130.7 (43.8, 389.2) | 0.5 | 0.989 | 0.993 (0.989, 0.996) | 1.5 | −85.5/88.5 |
LD1.5mm-QIR2 | 130.1 (41.3, 385.3) | 1.0 | 0.99 | 0.993 (0.989, 0.996) | −4.2 | −90.9/82.4 |
LD1.5mm-QIR3 | 129.3 (37.3, 377.9) | 0.3 | 0.988 | 0.984 (0.967, 0.992) | −8.4 | −96.1/79.3 |
LD1.5mm-QIR4 | 129.7 (33.8, 376.9) | 0.002 | 0.987 | 0.983 (0.965, 0.991) | −13.5 | −106.9/79.8 |
Values are expressed as median (interquartile range). *, comparison of Agatston score derived from LD-CT and CAC-CT acquisitions. CAC-CT, standard coronary artery calcium scoring computed tomography; ICC, intraclass correlation coefficient; LD, low dose; LD-CT, low-dose chest computed tomography; LOA, limit of agreement; QIR, quantum iterative reconstruction.
The weighted kappa values indicating the agreement in CACS risk categorization between the LD-CT groups and the CAC-CT group ranged from 0.84 to 0.9, with the LD1.5mm-QIR3 group showing the highest level of agreement. The reclassification rate for the LD-CT groups ranged from 7.6% to 12.4%. Underestimated severity classifications in LD-CT groups ranged from 2.8% to 9.5%, while overestimated severity classifications in LD-CT groups ranged from 1% to 9.5%. The detailed results are presented in Table 5.
Table 5
Group | CACS risk categorization | Rate (%) | Kappa | ||||
---|---|---|---|---|---|---|---|
Very low risk | Low risk | Moderate risk | Moderately high risk | Severe risk | |||
CAC-CT | 28 | 8 | 27 | 23 | 19 | – | – |
LD3mm-QIR0 | 29 | 7 | 29 | 23 | 17 | 8.6 (7↓, 2↑) | 0.889 |
LD3mm-QIR1 | 30 | 7 | 28 | 23 | 17 | 9.5 (8↓, 2↑) | 0.887 |
LD3mm-QIR2 | 30 | 8 | 29 | 21 | 17 | 10.5 (10↓, 1↑) | 0.865 |
LD3mm-QIR3 | 31 | 8 | 26 | 23 | 17 | 9.5 (9↓, 1↑) | 0.877 |
LD3mm-QIR4 | 31 | 8 | 27 | 22 | 17 | 9.5 (9↓, 1↑) | 0.865 |
LD1.5mm-QIR0 | 28 | 5 | 27 | 25 | 20 | 12.4 (3↓, 10↑) | 0.840 |
LD1.5mm-QIR1 | 28 | 6 | 29 | 23 | 19 | 9.5 (4↓, 6↑) | 0.877 |
LD1.5mm-QIR2 | 29 | 5 | 29 | 23 | 19 | 9.5 (4↓, 6↑) | 0.877 |
LD1.5mm-QIR3 | 29 | 6 | 30 | 22 | 18 | 7.6 (5↓, 3↑) | 0.900 |
LD1.5mm-QIR4 | 30 | 5 | 29 | 23 | 18 | 8.6 (5↓, 4↑) | 0.889 |
Data are expressed as the numbers of patients. ↓, number of underestimated severity classifications; ↑, number of overestimated severity classifications; %, reclassification rate. CAC-CT, standard coronary artery calcium scoring computed tomography; CACS, coronary artery calcium scoring; LD, low dose; LD-CT, low-dose chest computed tomography; QIR, quantum iterative reconstruction.
Objective image quality and radiation dose
The noise, SNR, CTDIvol, and ED did not follow a normal distribution. There were significant differences in noise and SNR between the 11 groups (Table 6). LD3mm-QIR3, LD3mm-QIR4, and LD1.5mm-QIR4 exhibited superior objective image quality as compared to the other reconstruction groups, showing similar objective image quality to that of CAC-CT (all P values >0.05). Except for that in the LD1.5mm-QIR0 group, the noise level in all the groups was <23 HU, meeting the image noise requirement for assessing CACS (16). The detailed results are presented in Table 6.
Table 6
Group | CT attenuation (HU) | Noise (HU) | P | SNR | P |
---|---|---|---|---|---|
CAC-CT | 47 (44, 50) | 13 (11, 15) | 3.7 (3.1, 4.1) | ||
LD3mm-QIR0 | 44 (40, 49) | 23 (21, 26) | <0.001 | 2.0 (1.7, 2.1) | <0.001 |
LD3mm-QIR1 | 44 (40, 49) | 18.5 (17, 20) | <0.001 | 2.5 (2.1, 2.7) | <0.001 |
LD3mm-QIR2 | 44 (40, 49) | 16 (15, 18) | <0.001 | 2.8 (2.4, 3.1) | 0.01 |
LD3mm-QIR3 | 44 (40, 49) | 14 (12, 15) | 1.0 | 3.1 (2.8, 3.7) | 1.0 |
LD3mm-QIR4 | 44 (41, 49) | 11 (10, 13) | 0.558 | 3.9 (3.3, 4.6) | 1.0 |
LD1.5mm-QIR0 | 44 (39, 49) | 31.5 (28, 34) | <0.001 | 1.5 (1.3, 1.6) | <0.001 |
LD1.5mm-QIR1 | 44 (40, 49) | 22 (20, 26.3) | <0.001 | 2.0 (1.6, 2.1) | <0.001 |
LD1.5mm-QIR2 | 44 (40, 49) | 21 (19, 23) | <0.001 | 2.1 (1.9, 2.4) | <0.001 |
LD1.5mm-QIR3 | 44 (40, 49) | 17 (16, 19) | <0.001 | 2.6 (2.3, 2.8) | <0.001 |
LD1.5mm-QIR4 | 44 (41, 49) | 14 (13, 18) | 1.0 | 3.2 (2.7, 3.6) | 1.0 |
Values are expressed as median (interquartile range). CAC-CT, standard coronary artery calcium scoring computed tomography; HU, Hounsfield unit; LD, low dose; LD-CT, low-dose chest computed tomography; QIR, quantum iterative reconstruction; SNR, signal-to-noise ratio.
In terms of radiation dose, the CTDIvol and ED of LD-CT scan were significantly lower than those of CAC-CT (Table 7).
Table 7
Variable | CAC-CT | LD-CT | P |
---|---|---|---|
CTDIvol (mGy) | 2.3 (1.9, 2.7) | 1.0 (0.9, 1.1) | <0.001 |
ED (mSv) | 0.7 (0.6, 0.9) | 0.5 (0.4, 0.5) | <0.001 |
Values are expressed as median (interquartile range). CAC-CT, standard coronary artery calcium scoring computed tomography; CTDIvol, CT dose-index volume; ED, effective dose; LD-CT, low-dose chest computed tomography.
Discussion
Our principal finding is that in comparison to CAC-CT, LD-CT demonstrated high accuracy in CAC detection and excellent agreement in CAC quantification and risk categorization under a reconstruction parameter of 1.5-mm slice thickness and a QIR level of 1. Additionally, LD-CT scans exhibited a remarkable 56.6% reduction in CTDIvol compared to CAC-CT.
In LD-CT performed with PCD-CT, the reconstruction parameters influence not only the detection of CAC but also the accuracy of quantification and risk categorization of CACS. In CAC detection, a thinner slice thickness (1.5 mm) combined with lower-level iterative algorithms (QIR 0–1) improves the accuracy of CAC detection as compared to other reconstruction parameter combinations. This explains how a thicker slice thickness can lead to the CT value for calcifications dropping below 130 HU due to the partial volume effect, resulting in missed diagnoses (12). Additionally, higher levels of iterative reconstruction may misidentify small calcification foci as noise, leading to their subsequent removal. In the CACS quantification and risk categorization, under a 1.5-mm slice thickness, low and moderate QIR levels produced a similar CACS to that of CAC-CT, while the highest QIR level significantly underestimated the CACS. This underestimation is likely due to the misclassification of small calcifications as being noise at the highest QIR level, resulting in their removal. Therefore, appropriate settings must be selected to balance the advantages and drawbacks of each examination and achieve accurate quantification of CACS at the lowest possible radiation dose. The relevant guidelines recommended maintaining the noise level below 23 HU for the evaluation of CACS (15). In our study, except for the LD1.5mm-QIR0 group, all the groups had noise levels below 23 HU, meeting the requirements for CACS assessment. Therefore, considering image noise and balancing the accuracy of coronary artery calcification detection, quantification, and risk stratification, we recommend a 1.5-mm slice thickness and a QIR level of 1 as the optimal parameters for evaluating CAC via LD-CT.
Despite there being good agreement in CACS between LD-CT and CAC-CT under the energy-integrating detector CT, previous studies have reported relatively high mean differences and wide limits of agreement, potentially limiting clinical application. In our study, the correlation and agreement of LD1.5mm-QIR1 were similar to those produced by Sn 100 kVp chest CT reported by Xiao et al. (r=0.993; ICC =0.99) (5) and Vingiani et al. (r=0.99; ICC not mentioned) (17). Moreover, LD1.5mm-QIR1 did not significantly differ from CAC-CT but showed smaller mean bias and narrower limits of agreement as compared to those of previous studies (6). These findings suggest that LD-CT using PCD-CT has excellent agreement with standard CACS scan in terms of CACS and reduces the mean bias between the two methods. This improvement can be attributed to enhanced tissue contrast, no electronic noise, and reduced noise-aliasing artifacts afforded by the PCD-CT system. Additionally, the LD1.5mm-QIR1 group showed similar agreement in risk categorization (weighted kappa =0.9) to that reported by Xiao et al. (5), who used a third-generation dual-source CT scanner with different CACS categories and a higher weighted kappa of 0.54 than that of Liu et al. (3), who employed a third-generation dual-source CT scanner at the Sn 100 kVp in the chest scans with the same CACS categories.
In terms of radiation dose, we observed a significant reduction in CTDIvol with LD-CT as compared with CAC-CT. The CTDIvol values in our study were notably lower than those reported in a previous study on low-dose CT lung cancer screening (18), aligning with the American College of Radiology’s recommendations for low-dose lung screening (9). Regarding the anatomical region-specific weighting factors, the ED for LD-CT was significantly reduced in our study, which is in line with findings from previous studies using PCD-CT at Sn 100 kVp for LD lung screening (19).
Certain limitations to our study should be acknowledged. First, we employed a single-center design, and prospective, multicenter studies are required to obtain more robust evidence. Second, our results are limited to PCD-CT technology and may not be applicable to other CT systems. Third, we did not evaluate the impact of body mass index (BMI) on CACS derived from LD-CT. A previous study demonstrated the impact of BMI on calcium quantification (20); thus, appropriate patient BMI cutoff values need to be determined in future studies.
Conclusions
LD-CT scan with PCD-CT can accurately quantify CACS, and reconstruction protocols using a 1.5-mm slice thickness and QIR level 1 can improve the detection and quantification of CAC, as well as cardiovascular risk categorization. This approach could serve as serve as a comprehensive tool for both lung cancer screening and cardiovascular risk assessment with reduced radiation dose as compared to standard CAC-CT.
Acknowledgments
None.
Footnote
Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-24-1244/rc
Funding: This study was supported by
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-24-1244/coif). J.C. is an employee of Siemens Healthineers. The other authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the ethics board of Geriatric Hospital of Nanjing Medical University (No. 044-1). Informed consent was obtained from all participants.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
