MVASA-HGN: multi-view adaptive semantic-aware heterogeneous graph network for KRAS mutation status prediction

Introduction

As one of the most prevalent malignant tumors worldwide, lung cancer, with its persistently high morbidity and mortality rates, remains an urgent challenge in global health (1,2). Despite modern medicine’s innovation in treatment strategies, the 5-year survival rate of lung cancer patients is still not optimistic (3). More notably, there are significant differences in treatment response and prognostic outcomes among patients with the same type of lung cancer, highlighting the importance of personalized treatment strategies. In light of this, a deeper exploration of the molecular biology of lung cancer, especially the mutation status of oncogenic driver genes, has become crucial to enhance the therapeutic efficacy (4). Among them, Kirsten rat sarcoma virus oncogene homolog (KRAS), as one of the most commonly mutated genes in non-small cell lung cancer (NSCLC) (5,6), can activate the RAS/MAPK signaling pathway through the conversion of its amino acid residue at position 12 from glycine (G) to cysteine (C) (7), which then promotes the proliferation and metastasis of tumor cells (8). Therefore, accurate detection of KRAS gene mutation status is significant in guiding the development of personalized lung cancer treatment regimens.

In recent years, immune checkpoint inhibitors (ICIs) have opened new avenues for NSCLC treatment (9). Studies have shown that tumors carrying KRAS mutations exhibit higher sensitivity to ICIs due to their higher tumor mutational burden (TMB) (10) and abundance of tumor-infiltrating lymphocytes (TILs) (11), providing a solid theoretical basis for immunotherapy (12). Specifically, the KEYNOTE-042 study showed (13) that pembrolizumab significantly prolonged progression-free survival (PFS) in patients with KRAS mutations and was significantly more efficacious than non-mutated patients (15 vs. 6 months), emphasizing the critical guiding role of precise detection of KRAS mutation status in the development of treatment strategies. This strategy enables more effective screening of patient populations that respond better to ICIs while avoiding unnecessary treatments and their potential toxic responses (4,14). Although biopsy tissue sequencing is the gold standard for genetic testing, its limitations are the difficulty of obtaining adequate specimens for some patients and the fact that biopsies may increase the risk of cancer metastasis under certain circumstances (15,16). Therefore, the development of a novel, noninvasive, and easily accessible method to accurately identify the KRAS gene mutation status in NSCLC patients is essential to promote the process of personalization of lung cancer treatment.

Computed tomography (CT), as a noninvasive diagnostic technique, plays a crucial role in routine clinical practice tasks in lung cancer, such as screening, staging, assessing response to treatment, and monitoring recurrence, owing to its ability to capture rich pathophysiologic information (17,18). The correlation between lung CT image features and gene mutation status has recently received extensive attention (19,20). For example, Nair et al. (21) developed a multivariate logistic regression model based on texture features in CT and fluorodeoxyglucose (FDG) positron emission tomography (PET)-CT images of NSCLC patients, which effectively predicted the mutation status of epidermal growth factor receptor (EGFR). Meanwhile, Wang et al. (22) proposed an innovative adaptive model that significantly improves the accuracy of EGFR mutation prediction by sequentially learning local and global features from different lobes of the lungs through a segmentation network and using a domain adaptive strategy to learn robust features in CT images of different thicknesses. In addition, the decision tree algorithm model designed by Luo et al. (23) and the random forest model designed by Jia et al. (24) both achieved noninvasive prediction of the EGFR mutation status of lung adenocarcinoma based on the radiomics features of CT images. The study by Morgado et al. (25) extended the field of view to the entire lung region of interest, explored the relationship between image phenotype and EGFR mutation status deeply, and achieved superior prediction performance compared with localized nodal analysis. For multi-task learning research on gene mutation prediction, Moreno et al. (26) proposed a new selective category average voting (SCAV) scheme with an integrated approach to improve the performance of EGFR and KRAS mutation prediction in small sample data. In contrast, Sun et al. (27) introduced deep learning (DL) to combine multi-task learning to simultaneously predict EGFR and KRAS mutation status using the ResNet network and attention mechanism, demonstrating the great potential of DL in predicting gene mutation status. Furthermore, Zhang et al. (28) innovatively combined serum tumor markers and CT imaging features to improve the accuracy of EGFR mutation prediction by logistic regression prediction model, which provided more comprehensive information support for clinical decision-making.

However, medical data is inherently multimodal, and this heterogeneity provides patients with complementary diagnostic perspectives. Multiple forms of medical data complement each other and can provide physicians with multidimensional information that helps them make more accurate clinical decisions. Existing studies have shown that combining imaging features with patients’ clinical characteristics can enhance the model’s performance to a certain extent (29-32). For example, Yang et al. (29) constructed a nomogram model that can be applied to different types of CT based on radiomics features and clinical features, which can accurately identify the EGFR mutation status of NSCLC patients. Its prediction performance was significantly improved after combining clinical features, demonstrating multimodal data fusion’s advantages. Similarly, Gao et al. (30) extracted radiomics features from PET/CT images of lung adenocarcinoma patients and constructed nine joint radiomics models by combining clinical parameters. The experimental results showed that combining clinical parameters could significantly improve the performance of predicting EGFR mutation status. Kim et al. (31) used a DL model to predict EGFR mutations by combining radiological features, deep features, and clinical data from pre-treatment CTs of NSCLC patients. Recently, Chen et al. (32) first proposed an EGFR prediction model based on stacked DL, which integrates information extracted from PET/CT and clinical data and shows the powerful prediction capability of stacked DL. Although these studies have achieved great results in combining imaging and clinical features to predict gene mutation status, these methods are often limited to simple feature splicing and analyzed only from an individual perspective without considering the deeper interconnections between patients and the correlations or complementary relationships between different modalities. Therefore, how to effectively integrate multimodal medical data into a unified framework to fully capture the interconnections between patients in this context has become an urgent and challenging problem to be solved.

In recent years, graph neural networks (GNNs) have made significant progress in capturing complex associations. Compared with convolutional neural networks (CNNs), GNNs focus more on local feature aggregation of graph topology, which provides greater flexibility in parsing deep relationships between heterogeneous features in cross-modal data (33). In order to deal with diverse relationship types in graph networks, multi-view graph networks provide a solution idea that has been explored in the medical field. For example, Zhang et al. (34) proposed a multi-view GNN, which combines information from functional connectivity (FC) and resting-state functional magnetic resonance imaging (rs-fMRI). They constructed a multi-view model using self-attention graph pooling and graph CNNs to identify major depressive disorder (MDD) effectively. Al-Sabri et al. (35) developed an automatic multi-view GNN framework designed to automatically extract biomedical entities and relationships, which captures the embedding of multi-relationship nodes through automatic multi-view representation learning, which in turn enhances the representation capability of the graph network. In addition, Xiao et al. (36) designed an end-to-end learning framework in combination with comparative learning to effectively integrate multiple prior knowledge into a GNN for analyzing multi-omics data deeply. Fan et al. (37) then combined five biological graph features and multi-omics data to predict individual cancer cells’ synthetic lethality (SL) using a multi-view graph convolutional network (GCN) model. They integrated graph-specific representations obtained from GCN models through a max pooling layer and accurately predicted SL interactions using a deep neural network. Meanwhile, Zhang et al. (38) constructed a multi-view multimodal feature fusion network by considering the multidimensional nature of clinical information in prognosis prediction. This network enhanced the fine-grained feature interactions between patient time series and clinical information through a co-attention module, then constructed a patient correlation graph using structural information from clinical records, and finally fused the multimodal features of patients using a GNN. However, despite the progress of these studies in processing multiple types of associations in multi-view graph networks, most of these studies have mainly focused on biological entity and brain image analysis, which is difficult to directly apply to CT images to predict KRAS gene mutation status in NSCLC patients. In addition, these studies still need to delve further into the heterogeneity of relationship types between different views, especially in modelling node attribute semantics and heterogeneous relationship semantics, to obtain a more comprehensive node embedding.

And in contrast to homogeneous GNNs, heterogeneous graphs can more realistically show the structural associations between data and rich semantic information by introducing different types of nodes and edges. In order to accurately capture this heterogeneous information, current heterogeneous graph representation learning methods generally rely on meta-paths to extract critical semantic information. For example, Han et al. (39) proposed a multi-relational knowledge graph embedding representation learning method by introducing an attention mechanism. They utilized meta-path guiding to form heterogeneous awareness nodes, decomposed the knowledge graph embedding into two parts: structural embedding and multi-relational embedding, and efficiently characterized the entities and relations through joint learning, thus improving the accuracy of knowledge reasoning. However, in medical scenarios, relying on meta-paths alone may not fully reflect the complex patient relationships. To overcome this challenge, Yang et al. (40) proposed an intelligent diagnostic model based on a heterogeneous GCN, which focuses on the intrinsic attributes of the symptoms as well as the multiple hidden relationships between symptoms and attributes. However, this approach is still limited by predefined meta-paths, which restricts the model’s generalization ability. Dai et al. (41) further designed a multi-relational graph attention network (GAT), significantly improving the model’s performance by adapting the importance of different neighboring nodes through the self-attention layer. Peng et al. (42) proposed a flexible neighbor selection-guided multi-relational GNN architecture with a label-aware similarity metric and an enhanced relation-aware neighbor selection mechanism, improving the model’s generalization ability and robustness. Baek et al. (43) took a different perspective, in which they considered that patients with similar illnesses may be treated similarly. Based on this point of view, they used GNNs to mine multi-contextual information to predict emerging health risks, providing personalized health risk assessments for patients with chronic diseases. However, these studies are still deficient in fusing multimodal information, which is especially critical in medical research because patient data usually contains multiple modalities from different sources and forms. Therefore, how to effectively fuse multimodal information in heterogeneous graph structures has become an urgent direction to be explored. To this end, D’souza et al. (44) proposed a novel multiplex GNN, which tracks the information flow in a multiplex graph through a message-passing walking system to effectively capture the complex cross-modal dependencies among features, providing the necessary flexibility for mining multimodal data. In addition, Jia et al. (45) also proposed a new multimodal heterogeneous GAT, which adaptively captures the heterogeneity information of the graph through edge-level aggregation and uses a modality-level attention mechanism to obtain multimodal fusion information. This further improves the model’s ability to process multimodal data and overall performance. In summary, although the heterogeneous graph network approach has been shown to be beneficial, there are still some issues that need further study on a deeper level: how to reduce the dependence on domain knowledge? How to efficiently pass multiple semantic information of patients? How to distinguish the importance of neighboring nodes under different relationship semantics during information aggregation?

Therefore, this study proposes a graph framework for heterogeneous semantic-aware in multiple views (MVASA-HGN) to predict KRAS gene mutation status in NSCLC patients. The framework constructs heterogeneous GNNs under multiple views based on multimodal medical data to comprehensively model semantic information in nodes and relationships. Specifically, we divide different views based on the clustering results of clinical features to effectively model the local structure under different heterogeneous relationships. Given the heterogeneity of relationship types among different views, we design two complementary attention mechanisms to capture node attribute semantics and heterogeneous relationship semantics, respectively, and adaptively fuse the node’s own enhanced embedding to obtain the final representation of the node on this basis. The experimental results fully demonstrate the effectiveness of MVASA-HGN.

The main contributions of this work are as follows:

• An MVASA-HGN modeling inter-patient relationships is constructed for predicting the KRAS gene mutation status of NSCLC patients. This framework can effectively fuse information from multimodal medical data to provide personalized medication guidance for patients.
• A multi-level joint attention mechanism is proposed to jointly model multi-view heterogeneous information from two perspectives: node attribute semantics and heterogeneous relationship semantics, and adaptively inductively learn the discriminative features in the complex associations between patients, thus avoiding over-reliance on predefined meta-paths and domain knowledge, improving the generalization ability of the model.
• The model’s effectiveness was fully evaluated in both the collaborative hospital and the public datasets. The experimental results show that our model outperforms existing methods and models complex associations between patients from a novel perspective, which helps to identify underlying disease patterns and influencing factors, providing a powerful practical tool for personalized lung cancer treatment.

Methods

Overview

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by Shanxi Provincial People’s Hospital Ethics Committee (No. 2023.299) and the requirement for individual consent for this retrospective analysis was waived. This paper proposes an MVASA-HGN approach, for which the procedure is shown in Figure 1. The method aims to analyze the complex node and relationship semantics in heterogeneous graphs from a multi-view perspective and contains three core steps. First, image features are extracted by a pre-trained encoder, and clinical information is semantically grouped using clustering methods. The heterogeneous graph is constructed based on these images and clinical features. Second, the heterogeneous graph is split into relational subgraphs under multiple views based on the relational semantics, and a view-specific adjacency representation is generated in each view by aggregating the information of neighboring nodes. Finally, the inherent associations between nodes and relational semantics are explored profoundly while preserving the complete semantic information. Based on obtaining enhanced node embeddings, complex heterogeneous knowledge, and semantic information from different views are adaptively fused to construct comprehensive and rich node representations for the target nodes. Finally, the fused embeddings are fed into the fully connected layer to yield the final classification results.

Figure 1 Overview of the MVASA-HGN. Firstly, image features are extracted while clustering clinical features to construct a heterogeneous graph network using their similarity, and then split it into multiple views based on heterogeneous semantics. Within each view, enhance the node’s own embedding and construct the neighbor embedding of homogeneous relation types. Then in the multi-view fusion stage, two attention mechanisms are introduced to capture the semantics preserved in the nodes and heterogeneous relations, respectively, to adaptively aggregate the information from different views and the enhanced node embeddings to obtain comprehensive node representations and realize the prediction of gene states. VOI, volume of interest; MVASA-HGN, multi-view adaptive semantics-aware heterogeneous graph network.

Heterogeneous graph construction

Problem definition

This study involves two types of heterogeneous data: structured data (patient age, gender, smoking history, etc.) and unstructured data (imaging data). Given multimodal medical data Data={I,C,Y}, where I∈ ℝN represents CT image data, X∈ ℝN×Dimage is the image feature matrix containing ND-dimensional feature vectors, C∈ℝN×Dclinical is the corresponding clinical data containing numerical values and categorical features, Y∈ℝN×2 is the label matrix indicating whether the KRAS gene is mutated, and N represents the total number of patients.

In this study, we consider the KRAS gene mutation prediction task as a node classification problem for heterogeneous graphs in a multi-view framework, where the diversity of edge types mainly represents heterogeneity. Formally, define the heterogeneous graph G=(V,E,R), where ν,ε represent the set of nodes and the set of edges, respectively, and R represents the set of relation types. Each edge e∈ε is associated with their mapping function φ(e):E→R. Meanwhile, A={A1,A2,…,A|R|} represents the set of adjacency matrices corresponding to each relation. In the multi-view setting, we define the corresponding relational subgraph Gr=(Vr,Er) for each view r. The feature matrix and adjacency matrix of each view are defined as Zr∈ℝN×Dr and Ar∈ℝN×N.

Heterogeneous graph node construction

Specifically, in this study, the patient is regarded as a node in the heterogeneous graph, fusing CT image data and clinical data. Inception-ResNet v2 is used as the backbone architecture (46) to extract its feature representation for the patient’s image data. Eventually, the initial node attribute Z∈ℝN×D is obtained by concatenating the image feature representation X∈ℝN×Dimage and the clinical feature representation C∈ℝN×Dclinical.

Z=[X,C][1]

Heterogeneous graph relationship construction

Clinical data contain many aspects of patient information, providing physicians with a multidimensional perspective about patients and helping them understand the conditions more comprehensively (47,48). Therefore, inspired by (49), when constructing the edges of the heterogeneous graph, we fully consider the similarities between patients regarding imaging and clinical data to reflect their complex associations. In order to fully explore this association, we first use K-prototype clustering (50) to partition the clinical data C and obtain |R| categories of non-overlapping feature combinations, which represent different multi-relational semantics, as shown in Figure 2, and are denoted as T={T1,T2,…,T|R|}. Then, different views are built based on these relational semantics. In other words, according to different clinical feature types, we split heterogeneous graphs with multiple relational semantics into a set of relational subgraphs G={G1,G2,…,GR} under multiple views, in order to achieve effective decoupling of multiple semantic relations. The advantage of doing so is that it can retain more complete information under each relationship semantics and exhibit stronger representational capabilities, ensuring that each view contains only a single semantic type of relationship. Specifically, given Gr=(Vr,Er), its adjacency matrix Ar can be represented as:

Ar(i,j)=φ(e)=s(xi,xj)∑m=1Md(ci,mr,cj,m′r)[2]

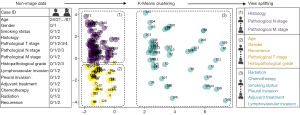

Figure 2 Decoupling of multiple relational semantics. T, tumor; N, node; M, metastasis.

where s(⋅) represents the image feature similarity between two patients, d(⋅) shows the phenotypic distance between the clinical features of the patients, xi represents the ith row in X, c(r) represents the clinical features in each view r, and M represents the number of clinical feature types contained under the relational semantics of each view. s(⋅) is defined as follows:

s(xi,xj)=exp(−u2(xi,xj)2σ2)[3]

where σ is the kernel parameter and u(⋅) is the correlation distance function, and the second half is the Pearson correlation coefficient (51), defined as follows:

u(xi,xj)=1−cov(xi,xj)σ(xi)σ(xj)[4]

where cov(⋅) is the covariance and σ(⋅) is the standard deviation.

The clinical features C∈ℝN×Dclinical contain both numerical and categorical features. For numerical type features, d(⋅) is defined as a unit step function:

d(ci,mr,cj,m′r)={1,if|ci,mr−cj,m′r|<θ0,otherwise.[5]

where θ is an adjustable parameter. For categorical features, define d(⋅) as the Kronecker function:

d(ci,mr,cj,m′r)={1,ifci,mr=cj,m′r0,otherwise.[6]

Thereby, we construct Gr(r=1,2,3) under the multi-view relationship semantics and use them as inputs to the subsequent network.

Single-view graph representation learning

After completing the heterogeneous graph construction, this section details the specific process of MVASA-HGN for graph representation learning within a single view. First, we enrich the representation of patient nodes by enhancing the embedding of central nodes. In addition, we introduce a node embedding attention mechanism to consider the differential contribution of different nodes’ own features in updating the embedding. Then, for each relational type, we assign an aggregation module to perform aggregation operations in each relational subgraph using GCNs to generate neighborhood information specific to each view, which is crucial for the effectiveness and robustness of the model. Figure 3 illustrates the procedure.

Figure 3 Decoupling of multiple relational semantics.

Central node embedding attention (CNE)

Node embedding enhancement aims to enhance the representation of a node by transforming the patient node’s own features into a new feature space that captures the inherent information of the node. Node embedding is enhanced through the following process:

Zic,l˜=σ(IiZil−1Wc,l−1)[7]

where Zic,l˜ is the learned node embedding of the center node vi at layer l, Wc,l−1 is the learnable parameter matrix for the feature transformation of the center node, and I is the unit matrix. In particular, at l=1, information aggregation is performed in conjunction with the initial attribute zi0 of the patient node.

At the same time, we consider the importance of the center node’s own embedding in the updating process, so we need to calculate its contribution. According to Zl∈ℝN×DL, let Zic,l˜ be the enhanced embedding of the ith patient node in Zl, and calculate the weight of the own embedding of each patient node through the softmax function; the specific process is as follows:

aic,l=softmax(λT⋅tanh(Wc,lZic,l˜+bc,l))=exp(λT⋅tanh(Wc,lZic,l˜+bc,l))∑n∈ℜiexp(λT⋅tanh(Wc,lZic,l˜+bc,l))[8]

where Wc,l and bc,l are the training weights and bias, respectively. tanh(⋅) is used to adjust the network output to the range (−1, 1) to prevent saturation during training. λ is a trainable weight vector.

Neighborhood node aggregation

The goal of node-level aggregation representation is to capture the neighborhood information of the target node. For the relational subgraph under each semantics, we capture the knowledge of the same edge semantics and generate adjacency embedding through information aggregation to reduce redundant information. In each view r, the following aggregation process is implemented based on the adjacency matrix Ar:

Zi,ra,l=σ(D˜−12(A˜r)iD˜−12Zrl−1Wra,l−1)[9]

where Zi,ra,l is the neighborhood information embedding learned by node vi in the l-layer r view. A˜r is the normalized adjacency matrix with the self-connections removed, D is the diagonal matrix, Dii˜=∑jA˜ij, Wra,l−1 is the adjacency weight matrix of the l−1 layer, and σ(⋅) is the activation function.

Multi-view heterogeneous information fusion

After completing the graph representation learning within a single view, it is necessary to aggregate the neighborhood embeddings of different semantic relations to learn a comprehensive representation of the nodes. However, simply performing an average or summation operation on the neighborhood embeddings of all views may ignore the deep semantic information contained in the nodes and relations in heterogeneous graphs. Therefore, it becomes essential to integrate this semantic information effectively. To address this challenge, we propose a novel attention mechanism that comprehensively captures the heterogeneity information of specific semantic neighborhood structures and heterogeneous relation types. Specifically, we design two complementary attention mechanisms, node attribute semantic-aware attention (NASA) and heterogeneous relationship semantic-aware attention (HRSA). NASA focuses on the node’s own feature performance under different views, whereas HRSA concentrates on the interaction effects among nodes due to different relationship types. This dual attention mechanism provides a new perspective for understanding complex inter-patient relationships, and an effective solution for multi-view information fusion in gene mutation prediction tasks. Figure 4 illustrates the specific flow of information fusion among multiple views.

Figure 4 Specific process of heterogeneous information fusion between multiple views.

NASA

Node semantics itself is differentially affected by neighboring nodes under different relationship semantics. To quantify this influence, we introduce the node semantics-aware attention mechanism. This mechanism can measure the impact of neighborhood embedding on the target node and is defined using contextual information about the neighborhood information:

ai,rl,Se=exp(LeakyReLU(aSel[l2(Zi,rc,l)‖l2(Zi,ra,l)]))∑n∈ℜiexp(LeakyReLU(aSel[l2(Zi,rc,l)‖l2(Zi,na,l)]))[10]

where ai,rl,Se represents the node semantic-aware attention score of node vi in the l-layer r-view, aSel is the vector of semantic-aware attention of the node that needs to be learned, and l2 stands for the L2 normalization for rescaling the distance between Zi,rc,l and Zi,ra,l. Ri stands for the relation set that is connected to the target node vi. With NASA, we effectively capture the semantic dependencies retained in the nodes themselves.

HRSA

For different heterogeneous relationships, nodes are surrounded by nodes of multiple relationship types, and the contribution of each relationship to a node varies. Therefore, it is necessary to construct a metric that can change with nodes and relationship types. Unlike the node attribute semantics-aware attention mechanism, the heterogeneous relationship semantics-aware attention should be orthogonal to the context of the neighborhood embedding. To achieve this goal, we assign a learnable vector kr∈ℝN×Dr to each relationship semantic r∈R at each layer, which is computed as follows:

ai,rl,Re=exp(LeakyReLU(aRel⋅krl))∑n∈ℜiexp(LeakyReLU(an,Rel⋅krl))[11]

where ai,rl,Re represents the heterogeneous relation-aware attention score of node vi in the l-layer r-view and aRel represents the heterogeneous relation-aware attention vector. In this way, the association between each heterogeneous relation and neighborhood embedding is decoupled, and edge heterogeneous dependencies are effectively captured.

Inter-view adjacent embedding attention

After obtaining the NASA and HRSA under each view, they are effectively combined as each view-specific attention score. In this process, the rich semantic and heterogeneous relational information contained in each node in its local structure is deeply analyzed, aiming to comprehensively capture and utilize this information to more accurately depict the semantic features and relational dependencies of the nodes. To achieve this goal, we introduce a balance coefficient ω that dynamically adjusts and balances the weights of NASA and heterogeneous relational semantic-aware attention in the learning process of node representations, so that the node attribute semantic information and heterogeneous relational semantic information can be appropriately fused. Finally, the specific calculation process of view weights for each patient is as follows:

ai,rc,l=ω⋅ai,rl,Se+(1−ω)⋅ai,rl,Re[12]

where the balance coefficient is a learnable parameter.

Multi-view fusion module

In this section, we illustrate the implementation details of the multi-view fusion module. The module introduces the CNE mechanism and the inter-view adjacent embedding attention mechanism. Based on the patient node ’s own embedding in different relational semantics, its semantic representation and heterogeneous information under multiple views are effectively aggregated, by which a richer and more comprehensive node representation is constructed, in addition, in order to facilitate the training and reduce the interference of the node degree, the L2 normalization technique is used. Finally, we obtain the node representation based on the fusion output of the attention mechanism:

Zil+1=l2(σ(aic,l⋅Zic,l+∑r∈ℜiai,rc,l⋅Zi,rc,l))[13]

Zil+1 is the final node representation learned at layer l+1, Zic,l is the CNE, and Zi,ra,l is the adjacent information embedding. σ is the activation function and l2 denotes the normalization operation.

Loss function

In Algorithm 1, the training process of the proposed MVASA-HGN model is elaborated. The multi-view fusion module can obtain the output embedding Z∈ℝN×DL. For the final node classification task, we introduce the cross-entropy loss function. Denote Zi∈ℝN×DL to represent the node embedding of the ith patient in Z. A fully connected layer with a softmax activation function is used to obtain the predicted classification result yi^. The definition is as follows:

yi^=softmax(wiTZi+bi)[14]

where wiT∈ℝN×DL and bi are the weights and biases in the fully connected layer. For the training process containing N patients, the loss function is defined as follows:

Lclass=−∑i=1N(−yilogyi^−(1−yi)log(1−yi^))[15]

yi is the label of the KRAS gene mutation of the ith patient.

Results

Data acquisition

This study used data from 363 patients with information on KRAS gene mutations collected from cooperative hospitals in Shanxi Province as training and validation sets. Testing data was obtained from the public dataset NSCLC Radiogenomics (52) available on The Cancer Imaging Archive (TCIA) website (https://wiki.cancerimagingarchive.net), which contains imaging data, genetic data, and clinically informative data from 211 patients with NSCLC. After screening, a total of 168 cases were included to construct the testing dataset, and the demographic and clinical information of these patients is shown in Table 1, where data in parentheses are percentages unless otherwise stated. Patients were further categorized into KRAS mutant (1, mutant) and KRAS wild type (0, wild) based on clinical information, and some examples are shown in Figure 5.

Figure 5 Examples of KRAS mutant and KRAS wild-type samples. Orange boxes represent KRAS mutant tumor regions and blue boxes represent KRAS wild-type tumor regions.

Tumor regions of interest in CT images were manually outlined by a radiologist with 10 years of experience in chest imaging at the cooperative hospital and reviewed by a radiologist with 15 years of experience. In case of disagreement, the final result was determined by the agreement of the two radiologists.

Implementation details

The experiments in this study were all implemented using the Pytorch framework on a workstation equipped with NVIDIA RTX A6000 GPUs (NVIDIA, Santa Clara, CA, USA). The Adam optimizer was used to adjust the learning rate with the initial learning rate set to 0.0001, dropout rate to 0.5, and epoch to 400. θ was set to 2.

In order to efficiently process the clinical data, the following strategy was adopted. For numerical features in structured data, the features were scaled to the range of 0 to 1 using the Z-score normalization method. One-hot coding was used to convert classification features into binary vectors for subsequent data analysis. For the CT image data, in order to eliminate the ray differences between different CT scanners, 168 case images were resampled to obtain 1×1×1 mm³ isotropic voxels, and a 64×64×64 VOI region was cropped to obtain a 64×64×64 VOI region based on the labeled lesion area.

In addition, to assess the performance of the model, we calculated accuracy (ACC), sensitivity (SEN), specificity (SPE), precision (PRE), and F1 scores, as well as the area under the receiver operating characteristic curves (AUCs) of the cases, which are defined as:

SEN=TPTP+FN[16]

SPE=TNTN+FP[17]

ACC=TP+TNTP+FP+TN+PN[18]

PRE=TPTP+FP[19]

F1score=2×PRE×SENPRE+SEN[20]

where TP, TN, FP, and FN stand for true positive, true negative, false positive, and false negative, respectively.

Ablation experiment

Effectiveness of multiple views

In this paper, we decompose the heterogeneous graph into multiple views from the perspective of clinical information types and learn the node representations in each relational subgraph, ultimately integrating the synthesized representations from all the views to predict the mutation status of patients’ KRAS genes. To validate the effectiveness of the joint multi-view heterogeneous relationship prediction framework, the following network components are implemented:

• Three single-view models are developed based on imaging and clinical features, each focusing on only one relationship type. Each model is classified using a three-layer graph convolutional layer and a fully connected layer with an activation function.
• Combining two single-view models with information fusion using attention, each view is classified using three graph convolution layers and fully connected layers with activation functions.
• MVASA-HGN, proposed in this paper, adaptively aggregates heterogeneous information from the three views for node classification.

As shown in Table 2, the experimental results indicate that combining all types of clinical features to construct an MVASA-HGN achieves the best results compared to single-view and combined two-view heterogeneous graph networks. We also observed that the performance of the view 3 alone, as well as the classification performance when combining view 3 with other views, is superior to other network components. This indirectly suggests that the clinical features in view 3 are instructive for the prediction of the KRAS gene mutation status. Our method significantly outperforms other network components in terms of ACC, SEN, SPE, PRE, and F1 scores, which fully demonstrates the validity of the proposed multi-view heterogeneous relationship.

Effectiveness of attention mechanisms

In Sections “Ablation experiment” and “Hyperparameter sensitivity”, we presented three attention mechanisms: CNE, NASA, and HRSA. CNE evaluates the importance of a node’s own features. Meanwhile, NASA and HRSA collaboratively capture the heterogeneity information preserved in the graph structure in terms of both node and relation semantics, effectively weighing the contribution of adjacent embeddings across different views. To assess the effectiveness of these attention components, we devised the following experimental setup:

• Removing CNE, where the output node features from the last layer are directly and adaptively integrated with aggregated adjacent embedding from various views as the updated node representation; other parts remain unchanged.
• Removing NASA, where the adjacent embeddings from different views are aggregated using only HRSA; other parts remain unchanged.
• Removing HRSA, where the adjacent embeddings of different views are aggregated using only NASA; other parts remain unchanged.

The experimental results are shown in Table 3. We can see that each of the designed attention components positively affect the model performance, and the model achieves optimal classification accuracy when adaptively combining adjacent embedding and the node’s own embedding under different views through the three attention mechanisms. Notably, we observed that node embedding attention significantly impacted model performance, demonstrating the importance of effectively combining the node’s own features with neighbor features in constructing node representations. In addition, compared to using only NASA, using only heterogeneous relational semantic-aware attention had better performance, suggesting that heterogeneous relational semantic is more effective than node semantic in identifying discriminative features. However, MVASA-HGN achieved the best performance when two complementary attentions collaborated.

Hyperparameter sensitivity

In this section, the effects of three hyperparameters in the model, which are the number of clusters R, the balance coefficient ω, and the number of graph convolution layers l, were mainly analyzed to demonstrate the effectiveness and robustness of the proposed MVASA-HGN.

Cluster number R

The clustering number R represents the number of relationship types in the heterogeneous graph and directly determines the complexity of inter-patient associations. To obtain the optimal number of relationship types, we varied the value of R and observed the model’s performance. Figure 6 shows the performance metrics with different R. The experimental results indicated that the optimal performance is achieved when |R|=3. When R is too small or too large, the model’s performance degrades. This is because the model cannot model complex relationships when R is too small. Meanwhile, if R is too large, it results in redundancy of information between multiple relations, bringing meaningless noise to the network and leading to performance degradation. Therefore, in this paper, |R|=3 is adopted as the number of relationship types.

Figure 6 Effect of clustering number R. AUC, area under the curve.

The balance coefficient ω

The balance coefficient quantifies the relative contribution of NASA and HRSA in the model. As seen in Figure 7, the model achieved the best performance at ω=0.3. It is worth noting that a larger ω represents a higher weight of the node’s semantic-aware attention. Correspondingly, the weight of heterogeneous semantic-aware attention is lower. The optimal value of ω reveals from another perspective that heterogeneous relationship semantic may be more discriminative for predicting the KRAS gene mutation status.

Figure 7 Effect of balance coefficient ω. AUC, area under the curve.

Number of graph convolution layers l

To evaluate the impact of the number of graph convolution layers on model performance, we tested the performance of the model by changing the number of layers. The experimental results are shown in Figure 8. The results indicate that as the number of layers increases, the model can capture more information, leading to a gradual enhancement in performance. However, as the number of layers increases further, the performance fluctuates and tends to decline, possibly due to over-smoothing caused by an excess of layers. Therefore, in this paper, l=4 is chosen as the number of layers for graph convolution.

Figure 8 Effect of the number of graph convolution layers l. AUC, area under the curve.

Comparison experiments

Existing mutation prediction methods

In this section, we compared our model to three recently published DL methods (53-55) for predicting gene mutation status in lung cancer. The effectiveness of our proposed method was evaluated, and the experimental results are shown in Table 4. The results show that our method outperforms these methods, achieving at least 3.71% higher ACC, 6.77% higher SPE, and 5.69% higher SEN. This suggests that our method is highly effective in accurately determining the KRAS gene mutation status. It is worth noting that Xiong et al. (54) improved the AUC from 77.6% to 83.8% after adding the clinical information, which further supports our point that the inclusion of clinical information is crucial for enhancing the predictive performance of the model.

Comparison with existing GNN-based approaches

To further assess the classification performance of the models, in this section, we compared the performance of two existing heterogeneous GNN classification methods (56,57) and three multi-view GCN classification methods (58-60) in predicting the mutation status of KRAS genes for NSCLC patients. The specific methods are described below:

• Heterogeneous graph transformer (HGT) (56): an HGT architecture designed with node and edge type-related parameters to characterize the heterogeneous attention of each edge.
• SimpleHGN (57): a heterogeneous GNN built on the GAT backbone, improving the HGNN with learnable relational embeddings and residual connections.
• SpectralGCN (58): in this study, it is extended to three branches, each comprising a SpectralGCN with three graph convolutional layers. The outputs from these branches are fused through an average pooling layer and classified using a fully connected layer.
• Co-GCN (59): a multi-view GCN model capable of adaptively extracts graph information from multiple views by employing the combined Laplace operator.
• MSGFN (60): a multi-stage graph fusion GCN model. In this study, MSGFN is used to realize the classification task by fusing information from relational subgraphs under multiple views.

The experimental results are shown in Table 5. The results show that compared with the multi-view methods (56-58), our method shows significant advantages in all the metrics, which fully verified the rationality and effectiveness of our constructed view and multi-view information fusion strategy. Similarly, compared with heterogeneous graph methods (56,57), our method also achieves good performance, showing that the hierarchical processing strategy combining the multi-view idea can effectively utilize these complex heterogeneous relationships. In summary, our MVASA-HGN method outperforms existing GNN-based methods and achieves good performance in ACC, SEN, SPE, PRE, and F1 score.

Discussion

Rationalization of the graphical representation

In clinical medication decision-making, CT images and patients’ baseline clinical characteristics form a crucial basis for physicians’ decisions (48,61). These two types of heterogeneous information reveal the patient’s health status from different and complementary perspectives, with CT images providing a full range of information about the lesion area. At the same time, the clinical characteristics reflect the patient’s overall condition. Notably, inter-patient correlations also provide valuable clues for patient stratification (62,63), and existing studies have shown that patients with similar clinical characteristics tend to show similarity in treatment response (49,64). Especially when the sample size is limited, fully considering such inter-patient correlations can significantly improve the predictive performance of the model.

KRAS mutation is one of the most frequently reported functionally acquired oncogenic driver mutations in NSCLC patients, present in 25–30% of lung adenocarcinoma cases (65,66). According to the recommendations of the National Comprehensive Cancer Network (NCCN) guidelines (67), pre-treatment detection of oncogenic driver mutations in patients with advanced NSCLC can more effectively guide the development of treatment strategies. Therefore, in this paper, we formulated a prediction of the KRAS mutation status of NSCLC patients as a heterogeneous graph node classification problem, and innovatively proposed a graph structure to fuse multimodal data to characterize the relationships among patients naturally. Specifically, patients’ imaging and clinical features were taken as node attributes, whereas similarities between patients in imaging and clinical features form the edges of the graph network, and the complex heterogeneous relationships were hierarchically handled by constructing multiple views. Within each view, we further utilized the GCN to construct adjacent embedding of the same relationship types and augmented embedding of the nodes. Then, by adaptively fusing information from multiple views, the network can focus on both node semantics and heterogeneous relationship semantics to generate a comprehensive representation of the nodes. This approach effectively combines the patient’s image and clinical data, and deeply explores the potential relationships between patients, providing robust support for clinical decision-making.

Validity of heterogeneous graph construction

In this section, we investigated the effectiveness of heterogeneous graph construction, mainly analyzing two aspects: node construction and edge construction. Regarding node features, we fused the multimodal features of patient images and clinical information as the node features. In order to verify the rationality of this node feature construction, ablation experiments were performed on these two features. In terms of edge construction, we comprehensively considered two dimensions, similarity of image features and phenotypic distance between clinical features, to assess the similarity between nodes. The rationality and robustness of the edge construction were also demonstrated through the ablation experiments to ensure the reliability and validity of the whole heterogeneous graph construction process. The experimental results are shown in Table 6.

Based on the experimental results, we observed that combining both imaging and clinical features plays a crucial role in both the node and edge construction process, and this cross-modal information fusion strategy not only significantly improves the performance of the model, but also effectively enhances the accurate description of the complex heterogeneity among patient nodes by complementing each other. This construction method effectively improves the quality of the heterogeneous graph and provides a more accurate and solid foundation for subsequent data analysis and prediction.

Interpretability

Since the attention mechanism in MVASA-HGN captures the importance of each relational semantics for KRAS gene mutation prediction, it enables MVASA-HGN to explain which combination of features represents the type of relationship that plays a key role in decision-making. We calculated the average attention scores for all patients under each view during training and plotted the changes in attention scores in Figure 9. As the training progressed, the attention values of the three views were changing. Eventually, the attention weights were concentrated in view 3, which indicated the leading role of radiation, chemotherapy, smoking status, pleural invasion, adjuvant treatment, and lymphovascular invasion information in the KRAS mutation status prediction. Comparatively, the attentional weights of the view 1 and views 2 decreased as the training phase progressed. This result not only demonstrates the effectiveness of the attentional mechanism in the MVASA-HGN model, but also further confirms that the mechanism can adaptively adjust the allocation of attention among different views during the training process to optimize the overall performance of the model.

Figure 9 Importance of different relationship semantics. Three views represent relational subgraphs under different heterogeneous relationships.

Visualization

In order to visually evaluate the performance of different methods, we used t-distributed Stochastic Neighbor Embedding (t-SNE) (68) to project the node embedding vectors into a two-dimensional space and color them according to the type of KRAS gene mutation. We compared the proposed method with the existing GNN-based approaches; the results are shown in Figure 10. There was no clear distinction between the two types using SpectralGCN, with a high degree of overlap between the two categories. Co-GCN also showed a high category overlap, presenting fuzzy boundaries between the categories, which makes it challenging to distinguish KRAS mutation status. Compared to these two methods, HGT, MSGFN, and SimpleHGN improved, with SimpleHGN performing better under the guidance of learnable relationships. However, SimpleHGN had closer node distances between the two categories, suggesting that it had lost heterogeneous information to some extent. In contrast, our proposed MVASA-HGN presents a significant separation between the two categories and can successfully classify nodes into different categories with almost no overlapping data points, which fully validates the effectiveness of our model.

Figure 10 Visualization of different GNN methods. Red dots represent patients with KRAS gene mutations, and grey dots represent patients without KRAS gene mutations. SpectralGCN, graph neural networks processing data by convolutional operations in the spectral domain; HGT, heterogeneous graph transformer network; Co-GCN, co-training graph convolutional network; SimpleHGN, improved heterogeneous graphs based on graph attention networks; MSGFN, a multi-stage graph fusion graph convolutional network; MVASA-HGN, multi-view adaptive semantics-aware heterogeneous graph network; GNN, graph neural network.

Clinical applications

In this study, we used a graph structure-based multimodal information fusion approach to model the decision-making process of physicians in clinical practice, for similar cases, the similarity (relationship) with previous cases is naturally taken into account during decision-making. The model presented in this paper offers potential clinical applications:

• Non-invasive prediction of KRAS gene mutation status: provides a non-invasive means of predicting KRAS gene mutation status from easily accessible CT images, and can be reused as a validation tool in clinical practice. This property is significant for clinical medication guidance and is expected to replace the traditional invasive biopsy and cytology.
• Real-time update and prediction: In actual clinical practice, when a new test sample appears, the imaging and clinical features of the new sample are first extracted and integrated into the trained graph structure and the adjacency matrix $A_r$ and feature matrix $Z_r$ in ${\mathcal{G}}_r=\left(r=1,\dots ,\mathcal{R}\right)$ can be updated in real-time, and the trained MVASA-HGN model will give the prediction results of the new sample, providing timely and effective support for clinical decision-making.

Conclusions

In this paper, a new MVASA-HGN is introduced for fusing multimodal medical data that allows deep modeling of the complex associations among NSCLC patients. Unlike approaches relying on predefined meta-paths, MVASA-HGN fully explores the rich semantic information preserved in the nodes and heterogeneous relations through a designed attention mechanism to effectively handle the heterogeneity of edges. This approach not only provides a new perspective for the fusion of image and non-image information, but also creates a new way to explore the potential connection between images and genes. More importantly, it provides a non-invasive and cost-effective solution for identifying KRAS mutation status, which provides strong support for subsequent treatment.
