AI-assisted compressed sensing MRI improves imaging quality in rectal cancer: a comparative study with conventional acceleration techniques

Introduction

Colorectal cancer is one of the most common digestive tumors and the leading cause of cancer mortality worldwide, with rectal cancer (RC) accounting for one-third of these cases (1). Timely screening, diagnosis, and treatment measures can effectively reduce its morbidity and mortality and improve the quality of life of patients (2). The appropriate treatment plan for RC depends on the tumor-node-metastasis (TNM) staging system, extramural venous invasion (EMVI), and mesorectal fascia (MRF) involvement (3,4). Magnetic resonance imaging (MRI) has the advantages of good tissue resolution, no ionizing radiation and non-invasiveness, and can provide high-resolution images, especially high-resolution T2-weighted imaging (T2WI), which is crucial for showing the details of tumor, lymph nodes, EMVI, and MRF (3,5,6). Therefore, it is the first choice for T and N staging, EMVI, and MRF of RC.

MRI acquisition is limited by long duration and related artifacts, which require high tolerance and compliance from patients. Currently, some acceleration methods by K-space undersampling such as partial Fourier (PF), parallel imaging (PI), and compressed sensing (CS) have been widely used in MRI acquisition to accelerate the scanning process to the duration that patients can tolerate (7). However, if the acceleration factor of these acceleration techniques is too large, noise, aliasing artifacts, and signal degradation will be unavoidable, resulting in the degradation of image quality and the reduced visibility of rectal wall, small lymph nodes, and vessels, which will affect the accuracy of T and N staging of RC patients (8,9). Therefore, improving the spatial resolution of the image at the appropriate scanning time to increase the visibility of the above structures is vital for the diagnosis and staging of RC.

As a branch of artificial intelligence (AI), deep learning (DL) has been widely used in the diagnosis and treatment of RC, but its application in the process of RC MRI acquisition is not common (10-16). The most commonly used neural network in medical imaging, the convolutional neural network (CNN), plays a key role in accelerating imaging by detecting more complex feature levels (17). Although CNN-based methods demonstrate exceptional reconstruction quality, their application in clinical environments is often hindered by unpredictability, attributed to the networks’ opaque, “black-box” nature. The AI-assisted compressed sensing (ACS) used in this study effectively mitigates this uncertainty by incorporating the output from the AI module as a supplementary constraint within the CS framework. This is achieved through the introduction of a regularization term that addresses the divergence between images reconstructed via traditional methods and those predicted by AI (18).

ACS developed by United Imaging (Shanghai, China) is a technology that introduces a DL algorithm combined with conventional acceleration techniques such as PI and CS into an MRI reconstruction algorithm. Previous studies have shown that this kind of technology can effectively shorten the scanning time and suppress noise, and it has been widely used in the lumbar spine, breast, joint, abdomen, heart, and other areas (7,8,19-22). However, there have been few studies about this technique in RC. This study aimed to evaluate the image quality and diagnostic performance of super-resolution (SR) T2WI based on the ACS, which enables the use of a larger acquisition matrix within the same scanning time, compared to CS and PI. We present this article in accordance with the GRRAS reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-24-1317/rc).

Methods

Patients

This study was approved by Medical Ethics Committee of The First Affiliated Hospital of Shandong First Medical University (No. YXLL-KY-073). The study was conducted in accordance with the ethical standards of the Declaration of Helsinki (as revised in 2013) and all participants from The First Affiliated Hospital of Shandong First Medical University in this study signed written informed consent. Initially, 64 patients with suspected RC were prospectively and continuously enrolled from June 2023 to January 2024. The inclusion criteria were as follows: (I) patients had rectal masses confirmed either clinically or by colonoscopy; (II) patients were diagnosed for the first time and did not receive any treatment (neoadjuvant treatment and surgery); (III) patients underwent surgery within two weeks of the MRI examination; and (IV) patients had no MRI contraindications. The exclusion criteria were as follows: (I) lesions were not visible on MRI, or lesions were too large to scan with the current scanning parameters; (II) severe image artifacts; (III) without postoperative pathological staging results; (IV) pathological types were non-adenocarcinoma or mucinous adenocarcinoma; and (V) patients with circumferential lesions where normal intestinal wall signals cannot be measured. Finally, 29 patients were included; the flowchart for the enrolment process is shown in Figure 1.

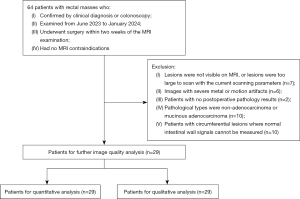

Figure 1 Flowchart of the enrolled patients. MRI, magnetic resonance imaging.

MRI acquisition

All MRI examinations were performed on a 3 T magnetic resonance (MR) scanner, using a 12-channel phased-array body coil (uMR790; United Imaging Healthcare, Shanghai, China), with the patient in the supine position. A glycerin enema was administered 2 hours before the examination to clean the intestinal tract. At 30 minutes before the MRI scan, 10 mg of anisodamine was injected to reduce intestinal peristalsis. Before the MRI scan, the patient’s rectal lumen was filled with ultrasound transmission gel (60–100 mL, determined by lesion location, ultrasonic coupling agent mixed with water at 1:1), and the abdomen was pressurized with a sandbag to reduce respiratory movement artifacts. The MRI protocol included sagittal T2WI, coronal T2WI, axial T2WI, axial T1-weighted imaging (T1WI), axial diffusion-weighted imaging (DWI), and three oblique axial SR T2WI which are based on interpolation technology. The main imaging sequences and parameters of the MRI protocol are listed in Table 1.

Image analysis

Qualitative image analysis

All image post-processing was performed on an uWS-MrR005 workstation (United Imaging). The images were independently evaluated by two radiologists (reader 1, reader 2) with 16 years and 2 years of experience in abdominal imaging diagnosis, respectively, who were blinded to patient information and the specific imaging sequence data to ensure unbiased analysis. The two readers analyzed images from ACS-T2WI, CS-T2WI, and PI-T2WI by using a five-point Likert scale, including visibility of structures, tissue edge sharpness, image artifacts, overall image quality, and confidence in N staging; the results of each sequence score were expressed as the average of two readers. The scale criteria were as follows (23-25):

• Visibility of structures (rectum, lymph nodes, tumor, vasculature): 0: completely invisible; 1: visible but very faint; 2: visible and slightly blurred; 3: visible and barely blurred; and 4: clearly visible.
• Tissue edges sharpness (stratification of rectal wall, margin of lesion): 0: completely invisible; 1: blurry and difficult to identify; 2: blurry but identifiable; 3: barely blurry and identifiable; and 4: clear and sharp.
• Image artifacts: 0: many but still diagnosable; 1: moderate; 2: few, 3: almost non-existent; 4: absent.
• Overall image quality: 0: very poor; 1: poor, 2: fair; 3: good; and 4: excellent.
• Confidence in N staging: 0: non-diagnostic; 1: difficult to diagnose; 2: barely diagnosable; 3: diagnosable; and 4: easily diagnosable.

Quantitative image analysis

The image sharpness method proposed by Xin et al. (26) was used to calculate the sharpness of each group of images though the use of MATLAB 2016b (MathWorks, Natick, MA, USA). The range of sharpness is 0–1, with higher sharpness values indicating clearer images, and vice versa, more blurred images. The regions of interest on the lesion (ROI_lesion, about 5 mm²) were delineated at layers where lesions and normal bowel walls coexisted on the three groups of images; the same location and size on three sets of images and three consecutive layers were outlined for each patient. The signal intensity of the ROI_lesion (SI_lesion) in these three layers was measured, then the average value was calculated as the SI_lesion of the patient. An identical method was used to delineate another ROI on the same layer of normal intestinal wall (ROI_normal, about 1 mm²) and calculate its average signal intensity (SI_normal). Image noise was defined as the standard deviation (SD) for image background from the same area ROI as that used for SI_lesion. The formulas for signal-to-noise ratio (SNR) and contrast-to-noise ratio (CNR) were as follows (8,27):

SNR=SIlesionSDlesion[1]

CNR= |SIlesion−SInormal|SDlesion2+SDnormal2[2]

The agreement of T staging based on MRI (mrT staging) and pathological T staging (PT staging)

The two readers used the T staging standard of RC in TNM of American Joint Committee on Cancer 8^th edition staging system as a reference standard, and used ACS-T2WI, CS-T2WI, and PI-T2WI combined with other scanning sequences to perform mrT staging respectively. Then, the accuracy of T staging of the three SR T2WI sequences and the consistency between the readers’ mrT staging and PT staging were compared according to postoperative pathology results.

Statistical analysis

All statistical analyses were performed using SPSS 26.0 (IBM Corp., Armonk, NY, USA) and GraphPad Prism 9.5.0 (GraphPad Software, San Diego, CA, USA). Shapiro-Wilk test was used to test for normality of continuous variables. Continuous variables were expressed as means and SDs or medians and quartiles depending on whether the data were normally distributed; categorical variables were expressed as percentages. The Friedman M test was used for group differences in Likert scores; post hoc analysis for Friedman’s test was used to assess differences between each two groups. Agreement of Likert scores between two readers, the readers’ mrT staging, and PT staging, were assessed with two-way mixed model absolute agreement intraclass correlation coefficient (ICC, 0.00–0.20, poor agreement; 0.21–0.40, fair agreement; 0.41–0.60, moderate agreement; 0.61–0.80, good agreement; and 0.81–1.00, excellent agreement). The accuracy of T staging was compared by Chi-squared test or Fisher’s exact test. For quantitative analysis of data, sharpness, SNR, and CNR, if the error variances satisfied normality, randomized complete block design was used, otherwise, Friedman’s test was used. Post hoc analysis for Bonferroni test or Friedman’s test was used to assess differences between the two groups. A P value <0.05 indicated statistical significance.

Results

Patient characteristics

A total of 29 patients were enrolled in the study, including 19 males (65.5%) and 10 females (34.5%), aged 3–86 years with an average age of 65.79±13.09 years. Detailed patient characteristics including T-staging results are shown in Table 2.

Qualitative image analysis

The results of Likert scores assessed by two radiologists are shown in Table 3 and Figure 2. All scores in Table 3 are the average of two readers. For the visibility of structures, the scores of ACS-T2WI [median score, 4, interquartile range (IQR, 4, 4)] were higher than those of CS-T2WI [median score, 4 (IQR, 3, 4)] and PI T2WI [median score, 3.5 (IQR, 3, 4)], P<0.001; for the tissue edges sharpness, the scores of ACS-T2WI [median score, 3.5 (IQR, 3.5, 4)] were higher than those of CS-T2WI [median score, 3 (IQR, 2.5, 3)] and PI T2WI [median score, 3 (IQR, 2.5, 3)], P<0.001; for the overall image quality, the scores of ACS-T2WI [median score, 3.5 (IQR, 3.5, 4)] were higher than those of CS-T2WI [median score, 3 (IQR, 2.5, 3)] and PI T2WI [median score, 3 (IQR, 3, 3.5)], P<0.001; for confidence in N staging, the scores of ACS-T2WI [median score, 4 (IQR, 3.5, 4)] were higher than those of CS-T2WI [median score, 3 (IQR, 3, 3.75)] and PI T2WI [median score, 3 (IQR, 2.5, 3.5)], P<0.001; for image artifacts, there was no statistically significant difference among the three groups (P=0.18). The scores of visibility of structures, tissue edges sharpness, image artifacts, and confidence in N staging had good interobserver agreement, with ICC values of 0.73 [95% confidence interval (CI): 0.58–0.83], 0.71 (95% CI: 0.49–0.83), 0.68 (95% CI: 0.51–0.80), and 0.70 (95% CI: 0.55–0.81), respectively. The overall image quality scores had excellent interobserver agreement, 0.84 (95% CI: 0.76–0.90).

Figure 2 The stacked bar charts show the distribution of Likert scale scores used to assess qualitative image quality by sequence type. The score for each sequence is the average of the two readers. ACS, artificial intelligence-assisted compressed sensing (the Likert scale scores of ACS-T2WI); CS, compressed sensing (the Likert scale scores of CS-T2WI); PI, parallel imaging (the Likert scale scores of PI-T2WI); T2WI, T2-weighted imaging;

Quantitative analysis

The statistical results of sharpness, SNR, and CNR are shown in Table 4 and Figure 3. The image sharpness of ACS-T2WI (0.093±0.019) was obviously higher than that of CS-T2WI (0.061±0.007) and PI-T2WI (0.067±0.008), and there was no statistical difference between CS-T2WI and PI-T2WI. The SNR of CS-T2WI (17.33±5.28) was higher than ACS-T2WI and PI-T2WI [median score, 13.71 (IQR, 12.27, 15.51), 14.91±3.66, respectively; P=0.004]. The CNR of ACS-T2WI (5.57±3.04) was slightly higher than that of CS-T2WI (5.18±2.89) and PI-T2WI (5.39±3.61), but the difference was not statistically significant (P=0.425).

Figure 3 Box-and-Whisker plots for quantitative parameters. (A) Sharpness of ACS-T2WI, CS-T2WI, and PI-T2WI; (B) SNR of ACS-T2WI, CS-T2WI, and PI-T2WI; (C) CNR of ACS-T2WI, CS-T2WI, and PI-T2WI. The three horizontal lines in the Box-and-Whisker plots represent the 25^th percentile, the 50^th percentile, and the 75^th percentile from top to bottom. T2WI, T2-weighted imaging; ACS, artificial intelligence-assisted compressed sensing; CS, compressed sensing; PI, parallel imaging; SNR, signal-to-noise ratio; CNR, contrast-to-noise ratio.

mrT staging and pathological T stage agreement

Tables 5,6 show the results of comparison between every reader’s mrT staging and PT staging of each sequence. For reader 1, the agreement between the T staging of the ACS-T2WI, CS-T2WI, and PI-T2WI and the PT staging were 0.85, 0.71, and 0.67, respectively. For reader 2, these values were 0.80, 0.63, and 0.59, respectively. Readers had a higher diagnostic accuracy of ACS-T2WI (89.66%) than they did of CS-T2WI (79.31%) and PI-T2WI (75.86%), but the difference was not statistically significant (P=0.47).

Discussion

In this study, SR T2WI rectal images based on ACS were evaluated by comparing them with images based on CS and PI. The results showed that ACS-T2WI performed better than CS-T2WI and PI-T2WI in qualitative image assessment such as structure visibility, edge sharpness, overall image quality, and confidence in N staging (inter-reader agreement was good or excellent). ACS-T2WI showed better sharpness than CS-T2WI and PI-T2WI in quantitative image quality comparison. The SNR of ACS-T2WI was slightly lower than that of CS-T2WI, but comparable to that of PI-T2WI. ACS-T2WI mrT staging is more consistent with PT staging than CS-T2WI and PI-T2WI. Therefore, we conclude that SR T2WI based on ACS is helpful for T and N staging of RC patients with the reasonable scanning time, which has potential to improve the performance of RC diagnosis and has a good application prospect in RC MRI.

Balancing the spatial resolution, contrast resolution, and temporal resolution of MRI has always been a major difficulty. The matrix in MRI is closely related to the image resolution. The larger the matrix is, the smaller the pixels are, and the clearer the image details are. If only increasing the image matrix, the scan time will multiply, which cannot be tolerated by many patients. Previous studies have shown that MRI technology based on DL reconstruction can shorten the scan time while maintaining image quality, and can also provide SR images for some diseases when required (28,29). At present, ACS is often used to shorten the examination time of various parts of MRI, avoid the repeated examination caused by patient intolerance, and reduce the examination cost, so as to increase the flow of patients (7,25). However, for some diseases, SR images need to be acquired for accurate diagnosis and quantitative analysis (30). Chaudhari et al. (31) found that MRI images of osteoarthritis based on DL were superior to conventional SR images based on interpolation techniques in image sharpness, image blur measurement, and cartilage detection, and the image quality could be improved without bias to quantitative biomarkers. When Zhou et al. (32) studied SR brain tumor MRI based on DL, they found that the SR T2-fluid attenuated inversion recovery (FLAIR) images had an improved Dice coefficient compared to the original low-resolution T2-FLAIR images; MRI-based brain tumor SR generative adversarial network modified from enhanced SR generative adversarial network architecture had great potential in early detection and accurate evaluation of brain tumor recurrence and prognosis. Almansour et al. (33) combined DL-based SR with a PF reconstruction technique for abdominal gradient echo sequence, which can shorten the breath-holding time and improve the image clarity and lesion significance.

For RC patients, previous studies have shown that T2WI with smaller voxels has advantages in lesion detection, can reduce the occurrence of partial volume effect, and clearly show the edge of the lesion and the depth of extramural invasion, which is crucial for the T and N staging of RC (27,34). Hou et al. (35) used three-dimensional (3D) SR images based on DL for radiomics analysis for the first time and found that the SR radiomics model showed a more favorable ability to help clinicians evaluate the invasion depth of RC before surgery. In this study, we observed a slightly lower SNR for ACS-T2WI compared to CS-T2WI, likely due to the substantial increase in the image matrix size from 512×512 to 704×704, which directly enhances spatial resolution. This improvement in resolution is a key objective of our approach, demonstrating the effectiveness of ACS technology in achieving higher resolution images without increasing scan time. So, ACS-T2WI can improve the success rate of examination with the same scanning time (168 s). It can use a higher matrix to increase the image resolution, and the contrast between the lesion edge and the normal bowel wall is sharper, which is helpful to accurately distinguish the structures (Figure 4) of the rectum and T stage. The T staging consistency of ACS-T2WI was higher than that of CS-T2WI and PI-T2WI, and the T staging of ACS-T2WI had the potential to be better than the other two sequences, but the results were not statistically significant. The staging of lymph node metastasis is crucial for the selection of treatment methods for RC. A total of 29 patients with RC who met the inclusion and exclusion criteria were collected. The exclusion of patients without lymph node metastasis would have reduced the number of eligible patients even further if the results of lymph node metastasis evaluation in the three sequences were matched with the histopathological results one-to-one, and there is concern that the statistical results may have been due to substantial chance. Therefore, the diagnostic confidence of N staging in the qualitative evaluation was specifically designed. The results showed that the diagnostic confidence of N staging on ACS-T2WI was higher than that on CS-T2WI and PI-T2WI (Figure 5). The two readers’ image quality assessment indicated that ACS-T2WI can provide more evidence of lymph node metastasis than CS-T2WI and PI-T2WI, thereby improving diagnostic confidence. However, this increased confidence was not matched with histopathology, so the accuracy of ACS-T2WI remains uncertain. At present, even experienced radiologists are not accurate in the diagnosis of lymph node metastasis in RC (36). The potential for ACS-T2WI to provide improved diagnosis of lymph node metastasis less than 5 mm will be explored in future studies.

Figure 4 MRI of a 68-year-old male patient with pathologically diagnosed T3 rectal cancer. (A) The sagittal image; (B,C) the images of ACS-T2WI; (D,E) the images of CS-T2WI; (F,G) the images of PI-T2WI. Where (B,D,F) are the original images and (C,E,G) are the magnified images, the magnification is 2.2. The black arrows represent rectal cancer lesions, the white arrows represent the rectal wall and the selected part in the red box is the enlarged part. The visualization of intestinal wall on ACS-T2WI images are better than that on CS-T2WI and PI-T2WI images. MRI, magnetic resonance imaging; T2WI, T2-weighted imaging; ACS, artificial intelligence-assisted compressed sensing; CS, compressed sensing; PI, parallel imaging.

Figure 5 MRI of another 68-year-old male patient with pathologically diagnosed T3 rectal cancer. (A,B) The picture of ACS-T2WI; (C,D) the picture of CS-T2WI; (E,F) the picture of PI-T2WI. Where (A,C,E) are the original images and (B,D,F) are the magnified images, the magnification is 2. White arrows point to lymph node, the selected part in the red box is the enlarged part. On the ACS-T2WI images, the margins of lymph nodes were irregular, suggesting a higher suspicion of lymph node metastasis of rectal cancer. However, on the CS-T2WI and PI-T2WI images, the blurred margins made it difficult to assess lymph node metastasis. MRI, magnetic resonance imaging; T2WI, T2-weighted imaging; ACS, artificial intelligence assisted compressed sensing; CS, compressed sensing; PI, parallel imaging.

This study has some limitations. First, it was a single-center study. Due to the need for quantitative data measurement, only a relatively small number of patients with rectal adenocarcinoma were included in this study, and further prospective studies with a large number of patients in multi-centers are needed. Second, other acceleration factors and combinations of other matrix sizes were not compared, given patient tolerance and acquisition time.

Conclusions

By using ACS to increase the resolution through a larger matrix size, higher quality images can be obtained within the same scanning time as traditional acceleration techniques. This technique is superior to CS-T2WI and PI-T2WI in image sharpness, lesion structure visibility, and N staging of RC. It has a good application prospect in clinical MRI scanning of RC.

Acknowledgments

Thanks to the Department of Radiology, The First Affiliated Hospital of Shandong First Medical University for supporting this study.

Footnote

Reporting Checklist: The authors have completed the GRRAS reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-24-1317/rc

Funding: This work was supported by Shandong First Medical University (Shandong Academy of Medical Sciences) Youth Science Foundation Cultivation Grant Program (No. 202201-080), Technology Development Plan of Shandong Province (No. 2014GSF118091), and the Shandong Medical and Health Science and Technology Development Plan (No. 2017WS715).

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-24-1317/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The prospective study from June 2023 to January 2024 was approved by Medical Ethics Committee of The First Affiliated Hospital of Shandong First Medical University (No. YXLL-KY-073), and all participants signed written informed consent.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
