A streamlined U-Net convolution network for medical image processing

Introduction

Image segmentation is a crucial step in medical image analysis, aimed at identifying and marking tissue lesions to aid physicians in diagnosing diseases (1). Successful segmentation cases include polyps, cells, blood vessels, and brain tumors. The rapid development of artificial intelligence, particularly in deep learning and convolutional neural networks (CNNs), has led to significant advancements in this field. Notable CNN models include VGGNet (2), Inception (3-6), ResNet (7), AlexNet (8), DenseNet (9), and MobileNet (10,11). As these CNN networks evolve, deep learning models can more accurately extract features for segmentation and classification.

Ronneberger et al. (12) introduced the U-Net model, incorporating a decoder architecture into the CNN framework, which is widely used in medical image segmentation. Many studies (13,14) have extended the U-Net model to provide more accurate segmentation results in various cases. However, the U-Net model has limitations in preserving global semantic information and multi-scale pathological information (such as cell arrangement and tumor boundaries) in medical images. Additionally, the accumulation of parameters from multiple convolution and pooling layer operations can impact the speed and performance of computer calculations, leading to overfitting and the loss of important pathological features, ultimately reducing the accuracy of image segmentation. Enhancing the accuracy of pathological feature information while balancing model complexity and parameter count remains a significant challenge.

Dosovitskiy et al. (15) designed the Vision Transformers (ViT) model, which applies the technology of self-attention mechanisms and multi-layer perceptrons (16) to computer vision. The ViT model and its extensions, such as Swin Transformer (17) and ShiftViT (18), have shown better segmentation results than traditional CNN in image recognition tasks. Recently, researchers have combined the advantages of Transformer (16) global features and U-Net (12) local feature extraction, using parallel computing and position embedding technologies in conjunction with CNN model architecture. For example, the ConvNeXt (19) model combines the ResNet (7) architecture and Swin Transformer (17) design, using depth-separable convolution to extract global feature information more effectively than pure convolution operation. Additionally, Han et al. (20) designed an efficient CNN, ConvUNeXt, based on the U-Net (12) architecture and ConvNeXt (19) modules, which reduces parameters and improves medical image segmentation capabilities. These combined methods have become popular choices for target detection and image segmentation in recent years.

Based on the inspiration from combining the above methods, the ConvUNeXt (20) module uses a 7×7 depth separable convolution layer, which increases the number of floating-point operations (FLOPs) and complexity of calculations in the entire model architecture. This study introduces the LUNeXt model, integrating U-Net and ConvUNeXt with redesigned convolution block structures. The model adjusts the depth-separable convolution layer size, removes the control channel number, and adds a 1×1 convolution layer to reduce computational load. To extract more accurate pathological features, we set the convolution block operation to occur twice before each upsampling and downsampling. The proposed LUNeXt model significantly reduces the number of parameters and FLOPs while maintaining segmentation performance. Finally, we compare the LUNeXt model with U-Net, U-Net++, U-Net3+, ConvUNeXt, and other representative medical image segmentation models. In summary, the contributions of this study are as follows:

• Redesigned the architecture of ConvUNeXt and combined it with the encoder-decoder structure of U-Net to propose the LUNeXt model. This model can separate and remove convolutional layers by adjusting the depth, significantly reducing the number of parameters and FLOPs.
• Proposed LUNeXt to perform two convolution block operations before each upsampling and downsampling to extract more accurate pathological features. Additionally, its lightweight design speeds up model training, improves computational efficiency, and enables training on devices with limited hardware performance.
• During the verification process, we collected four different medical image datasets for experiments. This study uses FLOPs and parameter count metrics to measure computational efficiency (algorithm/model complexity) and applies five performance metrics to evaluate performance, demonstrating the effectiveness of the proposed LUNeXt model.

Additionally, recent advancements in CNNs have led to the development of ConvUNeXt, a model that has shown significant promise in the field of biomedical image segmentation due to its lightweight architecture. The TriConvUNeXt model, for instance, is a pure CNN-based lightweight symmetrical network designed to efficiently handle biomedical image segmentation tasks (21). Furthermore, research presented at the 2023 Asia Pacific Signal and Information Processing Association Annual Summit and Conference (APSIPA ASC) highlights that even models with as few as one million parameters can achieve effective medical image segmentation (22). These studies underscore the potential of integrating advanced attention mechanisms with skip connections to enhance the accuracy and efficiency of segmentation results.

In traditional CNN models, convolution kernels convolve input feature maps, but excessive convolution increases the number of parameters significantly. Models like U-Net, U-Net++, and U-Net3+ have many parameters, slowing down training. In the U-Net model, two 3×3 convolution kernels perform local convolution on the input feature map, using rectified linear unit (ReLU) activation and normalization to adjust features.

In the convolution operations of most current neural network (NN) models, activation functions are used to enable the model to learn complex features in the input data and at the same time alleviate the vanishing gradient problem of the NNs caused by over-fitting. The output of the ReLU function is to change inputs that are less than zero to zero, otherwise keep the original input. Although this method has a lower computational cost, in certain tasks, it is easy for the output to always be zero in some convolutional layers. In order to solve this problem, many different activation functions have been proposed one after another, such as Leaky ReLU and Gaussian error linear unit (GELU). GELU is an activation function widely used in the NN fields and natural language processing in recent years. Compared to the piecewise linear properties of ReLU, GELU adds to each input data and allows non-zero weights to train features more accurately, albeit with higher computational cost.

In image segmentation, the attention gate mechanism usually adjusts the feature weights output by different layers to retain more important features. In recent years, many models have used the attention gate mechanism with the skip connection used in the U-Net model. Traditional skip connections directly add decoder features and corresponding encoder features and combine primary and high-level semantic features so that each layer can learn feature information from different levels. The skip connections of integrating different attention gate mechanisms first divide the current features into different gates, and use different activation functions or other operations to adjust the feature weights in different gates; and add it to the features of the previous layer, determine which features are more important based on the weight, and finally add all the processed gates to obtain a more accurate segmentation result.

Methods

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This section introduces the LUNeXt model and its evaluation metrics.

Proposed LUNeXt model

The proposed model is based on the encoder and decoder mechanism of the U-Net model, and we use the ConvUNeXt model, depthwise separable convolution, residual connection, and attention mechanism to improve the efficiency of the medical image segmentation model. The improved model is named a lightweight LUNeXt model, as shown in Figure 1. The reasons for improvement according to the used methods in this study are explained as follows.

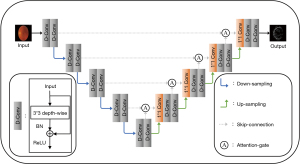

Figure 1 Proposed model. BN, batch normalization; ReLU, rectified linear unit.

Depthwise separable convolution blocks

In the U-Net model, two 3×3 convolution kernels perform local convolution on the input feature map, using ReLU (23) and normalization to adjust features, as shown in Figure 2. The ConvUNeXt model uses a 7×7 depth-separable convolution layer and several 1×1 convolution layers to adjust channel numbers, replacing ReLU with GELU (24), significantly reducing parameters compared to traditional operations, as shown in Figure 2. Our proposed model further optimizes this by using a 3×3 depth-separable convolution and removing 1×1 convolution layers, allowing direct normalization and residual connection, and employing GELU and ReLU activation functions to maintain performance while reducing parameters.

Figure 2 The difference of the proposed LUNeXt with different models. BN, batch normalization; ReLU, rectified linear unit; GELU, Gaussian error linear unit.

Application of activation functions in the LUNeXt model

This study experiments with both ReLU and GELU activation functions to determine which is more suitable for medical datasets in the proposed LUNeXt model. The basic function graphs of ReLU and GELU are shown in Figure 3.

Figure 3 The ReLU and GELU function graphs. ReLU, rectified linear unit; GELU, Gaussian error linear unit.

Proposed model’s attention and skip connections

The proposed model uses the attention gate mechanism of ConvUNeXt and transformer architecture, and there will be two inputs in the attention gate mechanism, which are primary features (corresponding encoder features) and high-level features (current features). First, after normalizing and upsampling the input high-level features, the feature map is divided into three gates. The first gate is combined with the primary features and uses the sigmoid function to predict the pixel classification, and the result is then added to the primary features to obtain the result R_1 of the first gate. The second gate directly uses the sigmoid function to predict the pixel classification. The third gate uses the Tanh function to predict it, and then the second gate and the third gate are multiplied to obtain the combined weight R_2 of the two gates. Finally, the result of adding R_1 and R_2 is output to a 1×1 convolution layer. This operation method successfully combines different levels of feature information, as shown in Figure 4.

Figure 4 Proposed skip connections of integrating different attention mechanisms. “+” represents pixel-wise addition between two feature maps; and “X” represents pixel-wise multiplication between two feature maps. BN, batch normalization.

Proposed research procedure

The proposed research procedure includes six steps, as shown in Figure 5. The six steps are introduced as follows.

Figure 5 Proposed research procedure. FLOPs, floating-point operations; IoU, intersection over union.

Step 1: input training datasets

This step inputs the public medical image segmentation dataset, which includes original images and label images of pathological features. First, the training and test data are randomly distributed, and the number of training and test images is shown in Table 1, and then input into the research environment.

Step 2: image preprocessing

This step pre-processes the input image by adjusting them to the same size to reduce the burden on the model, normalizing the images so that each pixel value is between 0 and 1, and adjusting the color depth to ensure the image dataset meets the conditions for model training.

Step 3: data argumentation

After pre-processing the image dataset to enhance the model’s segmentation performance, this study applied data augmentation to all training images. Techniques included random horizontal and vertical flipping, adjusting brightness, contrast, and saturation, Gaussian blur, random rotation, and cropping and zooming. These techniques increased the dataset’s samples, enabling the model to predict pathological characteristics more accurately.

Step 4: proposed LUNeXt model

Based on the encoder and decoder of the U-Net, this study uses the ConvUNeXt, depthwise separable convolution, residual connection, and attention mechanism to design the LUNeXt model for improving the efficiency of image segmentation. For generality, we propose a pseudocode of the LUNeXt model algorithm, as shown in Table 2.

Step 5: train model

We used the Pytorch suite in the Python environment to implement the models to be trained, and the models for this study are U-Net, U-Net++, U-Net3+, ConvUNeXt, and the proposed LUNeXt model. First set the hyperparameters in the model environment, such as optimizer, loss function, batch, number of iterations, and learning rate. This study uses the root mean square propagation (RMSprop) optimizer under all models to automatically adjust the learning rate based on the gradient update of each parameter. The loss function uses a combination of Dice loss and cross-entropy loss (29). In addition, the batches, number of iterations, and learning rates vary according to different datasets.

Step 6: visual result and evaluation

After the training is completed, the test data is fed into the weights stored in the model, and the prediction image is generated and stored to facilitate analysis and performance comparison with the label image. Then, the visual segmentation results are compared with the label image. In the evaluation metrics, this study uses the number of parameters, FLOPs, Dice coefficient (DC), intersection over union (IoU), accuracy, precision, and recall to compare the listed models with the proposed model.

Measure metrics

This study employs the number of parameters and the number of FLOPs to measure the computational efficiency (algorithm/model complexity), where FLOPs per second, and we use five evaluation metrics to evaluate the performance of image segmentation for the listing models in this study. These metrics include four common metrics, including accuracy, recall, precision, and specificity (30), and two always used in image segmentation, including the DC (31) and IoU (32). Next, we introduce the five performance metrics as follows.

Accuracy

Accuracy (shown in the equation as Acc) in image segmentation is the ratio of correctly segmented pixels and actual pixels in the predicted segmentation image to the actual segmentation image. First, we compute the true positive (TP), true negative (TN), false positive (FP), and false negative (FN) values, and then its calculation method is shown in Eq. [1].

Acc=TP+TNTP+TN+FP+FN[1]

Precision

The precision (shown in the equation as Prc) indicates how many of all pixels predicted as segmented areas are actually segmented areas, as shown in Eq. [2].

Prc=TPTP+FP[2]

Recall

Recall (shown in the equation as Rec), also called sensitivity or TP rate, is defined as the ratio of TPs to the total number of positive data points in a given dataset. In image segmentation, the recall indicates how many areas are segmented among all the pixels that are actually segmented areas, as shown in Eq. [3].

Rec=TPTP+FN[3]

DC

The DC (23) frequently appears in the evaluation of image segmentation and target detection. The DC is used to calculate the similarity between the pixels of the predicted segmented and the pixels of the actual segmented image, and Its equation is just like F1, as shown in Eq. [4]. The range of the DC value is between 0 and 1. The closer to 1, the closer the predicted segmentation map is to the actual segmentation map. That is, the segmentation results of the model are more accurate.

DC=2∗Precision∗RecallPrecision∗Recall=2∗TP(TP+FN)+(TP+FP)[4]

IoU

The IoU is an important indicator in the field of image segmentation used to measure the similarity between the predicted segmentation and the actual segmentation image (32). The IoU is also called the Jaccard coefficient, as shown in Eq. [5]. The larger the IoU value is, the larger the overlap area between the actual segmentation result and the label image is, indicating that the segmentation result is more accurate.

IoU=TPTP+FP+FN[5]

Dataset

This study collected four public medical image segmentation datasets to verify the proposed method and make comparisons. A brief description of the four datasets is shown in Table 1. Next, these datasets are detailed as follows.

International Skin Imaging Collaboration (ISIC) 2018

The public ISIC 2018 dataset (25) is collected from the ISIC, which is mainly used for the diagnosis and research of skin diseases in medical images. This dataset includes a large number of skin disease images, covering various types of skin diseases and lesions, including melanoma, squamous cell carcinoma, basal cell carcinoma, and other different skin cases. In this study, the training and test data of ISIC 2018 are 2,549 and 1,000 images respectively. Each image is adjusted to 128×128, the batch size is set to 16, the iteration is set to 100, and the learning rate is preset to 0.00015. In addition, this study uses the RMSprop optimizer to automatically adjust the learning rate based on the gradient update of each parameter.

Diabetic Retinopathy, Hypertension, Age-Related Macular Degeneration, and Glaucoma Images (DR HAGIS) dataset

The DR HAGIS dataset (26) collected images of diabetic retinopathy patients in the UK with 40 color fundus images of different image sizes and resolutions. In this study, the training and test data of the DR HAGIS dataset are 30 and 10 images respectively, each image is adjusted to 512×512, the batch size is set to 1, the iteration is set to 100, and the learning rate is preset to 0.001. Further, we use the RMSprop optimizer to automatically adjust the learning rate based on the gradient update of each parameter. This dataset is a small sample of data, we expect to achieve higher performance based on this dataset with the larger image size and smaller batch size.

Gland segmentation (GlaS) dataset

The GlaS dataset (27) collected hematoxylin-eosin (H&E) stained slides of T3 and T42 colorectal cancer, with each section representing a different patient. In this study, the training and test data of the GlaS dataset are 85 and 80 images respectively, each image is adjusted to 512×512, the batch size is set to 1, the iteration is set to 100, and the learning rate is preset to 0.00015. Furthermore, we use the RMSprop optimizer to automatically adjust the learning rate based on the gradient update of each parameter.

CVC-ClinicDB

CVC-ClinicDB (28) is a database of frames extracted from colonoscopy videos. The CVC-ClinicDB dataset is a set of 612 images cropped from 31 colorectal endoscopy images, including the location of each polyp and the corresponding segmentation image. This study uses the training and test data of CVC-ClinicDB with 500 and 112 images respectively. Each image is adjusted to 384×288, the batch size is set to 8, the iterations are set to 100, and the learning rate is preset to 0.00015. Then, we use the RMSprop optimizer to automatically adjust the learning rate based on the gradient update of each parameter.

Results

This section first introduces the experimental environment and parameters setting, then the experimental results are detailed as follows.

Experimental environment and parameters setting

This study uses the Anaconda integrated development environment for this research. The programming language software is 3.9 Python, 9.3.0 Pillow suite, 2.0.0 PyTorch framework, Nvidia’s 11.7 Cuda, and 8.4.0 cuDNN versions. The operating system is Windows 10, the CPU is Intel i7-13700; in addition, the GPU is Nvidia RTX 3060. We used the Pillow package to pre-process the original images and label images of the medical image dataset and applied the PyTorch framework for data enhancement. Next, this experiment used U-Net, U-Net++, U-Net3+, ConvUNeXt, and the proposed LUNeXt model to train the collected datasets based on the PyTorch framework. At last, the parameter settings of each model are shown in Table 3.

Experimental results

Based on the proposed research procedure with six steps, we employ four public medical segmentation datasets to implement the experiments. Then, we compare the computational efficiency and performance of the proposed LUNeXT with the listing models as follows.

Computational efficiency

In this study, the DR HAGIS and GlaS datasets consist of high-resolution images with dimensions 3×512×512. We use these images to implement U-Net (12), U-Net++ (33), U-Net3+ (34), ConvUNeXt (20), and the proposed LUNeXt (with GELU and ReLU) to determine the parameter numbers and average FLOPs per image, as shown in Table 4. The results show that the parameter numbers and FLOPs of the LUNeXt model are much smaller than the listing models, and the proposed model achieves a significantly lighter model.

Performance metrics

Similarly, we use four public medical datasets to run U-Net (14), U-Net++ (33), U-Net3+ (34), ConvUNeXt (20), and the proposed LUNeXt (GELU and ReLU), and this study compares the performance of the six models based on the five commonly metrics. The experimental results are shown in Table 5. The results show that the proposed LUNeXt model has the best performance in the DR HAGIS and CVC-ClinicDB datasets but the performance of ISIC 2018 and GlaS datasets is acceptable range.

In summary, this study introduces the LUNeXt model, which improves computational efficiency by reducing parameters and FLOPs while maintaining segmentation performance, as shown in Table 4. The experimental goal has been achieved: the lightweight LUNeXt model allows medical image segmentation to be performed on general computer hardware with an acceptable performance level, thereby lowering the learning threshold.

Discussion

After experiment and comparison, there are some findings and discussions as follows.

Pros and cons for U-Net family

While implementing the experiment, the authors encountered difficulties with different models. We summarize the advantages and disadvantages of these models based on previous studies and our experimental findings, as shown in Table 6.

Model performance

From the parameter numbers and FLOPs, the LUNeXt model is the best computational efficiency in the listing models, and the proposed model achieves an acceptable performance, as shown in Tables 3,4. The following explains the performance of different models in each dataset and finds out the reasons.

• In the DR HAGIS and CVC-ClinicDB datasets, we see that the proposed LUNeXt model is better than other models in the five-evaluation metrics, and the ReLU activation function is the better selection. Furthermore, the computational efficiency is significantly reducing the number of parameters and FLOPs in this experiment. We can confirm that the proposed LUNeXt model is useful in image segmentation. However, U-Net++ and U-Net3+ (CVC-ClinicDB dataset only U-Net3+) were unable to learn features in this dataset, and the models ran out results close to 0 in the test for five metrics, except accuracy. The reasons are that disadvantages of U-Net++ and U-Net3+ are the training difficulty, model complexity, too many skip connections, and poor performance in smaller samples, as Table 6. It causes the two models to overfit when it does not learn any features; even if data augmentation is used to increase the number of samples, it cannot be compensated. It once again confirms the usability of the proposed LUNeXt model in medical image segmentation.
• In the International Skin Imaging Collaboration 2018 dataset, we see that the U-Net model is better in most evaluation indicators. The segmentation results of ConvUNeXt and the proposed LUNeXt are both lower than other models. The reasons that using multiple ordinary convolution operations can learn features better, and U-Net advantages are modularity, versatility, and powerful feature learning, as shown in Table 6. However, the ConvUNeXt and proposed LUNeXt use depth-separable convolution blocks with fewer parameters, which results in the inability to adapt to the complex segmentation pixels of the image and output feature images without fully learning the pathological features.
• In the result of the GLAS dataset, we find that the ConvUNeXt model is the best in the five-evaluation metrics because the advantages of the ConvUNeXt model are more efficient convolution and the combined self-attention with the hopping connection. However, the proposed LUNeXt model has better segmentation results than the traditional U-Net, U-Net++, and U-Net3+ models, and the results of the proposed LUNeXt model with the GELU activation function are better than ReLU. In sum, although the proposed model exhibits suboptimal performance on this dataset, the proposed lightweight model successfully achieves acceptable segmentation performance and the computational efficiency of the proposed LUNeXt model is significantly reducing the number of parameters and FLOPs in this dataset.

Explainable artificial intelligence (XAI)

XAI promotes the formation of new artificial intelligence research fields. The XAI (35) refers to all methods and approaches that enable human users to understand artificial intelligence models. In essence, the goal of XAI is to provide contemporary artificial intelligence models with the ability to explain their predictions, decisions, and actions. This can be achieved mainly in two different ways (36):

• Design models that are inherently interpretable, i.e., their architecture allows the extraction of key insights about how decisions are made and value is calculated. One of the most popular examples in this category is decision trees for classification tasks.
• Generate explanations “after the fact”, which has become very popular in computer vision and image analysis tasks.

The XAI in this study is based on the second way for the work of Ali et al. (36) to present the visual image segmentations of the four datasets under the original, mask, and five models used, as shown in Figure 6. We observed that U-Net++ failed to learn features from the DR HAGIS and CVC-ClinicDB datasets, resulting in near-zero scores in five metrics, except for accuracy. Similarly, U-Net3+ performed poorly, with results close to zero in the CVC-ClinicDB dataset. Consequently, the visual images appear empty in (row 5, column 3), (row 5, column 5), and (row 6, column 3) of Figure 6. In summary, we found that the proposed LUNeXt model performs better when the original image and mask are clearer. Today’s medical images have reached at least 512×512 pixels, and more pixels result in clearer images. The proposed LUNeXt model aligns with modern needs and enhances computational efficiency.

Figure 6 Visual image segmentations for the four datasets under the five models. GlaS (row 1): H&E stain. ISIC, International Skin Imaging Collaboration; DR HAGIS, Diabetic Retinopathy, Hypertension, Age-Related Macular Degeneration, and Glaucoma Images; GlaS, Gland Segmentation; H&E, hematoxylin-eosin.

Conclusions

This study presented a proposed LUNeXt model for lighting the U-Net family to increase computing efficiency and maintain acceptable performance metrics in image segmentation. In the experiment, we collected four medical image segmentation datasets to implement and compare the proposed LUNeXt model with the listing models. The experimental results show that the proposed LUNeXt model has good performance and effectively reduces computing resources (decreasing the number of parameters and FLOPs). Due to the proposed lightweight LUNeXt model is based on the ConvUNeXt, depthwise separable convolution, residual connection, and attention mechanism to design the model for improving the computing efficiency in image segmentation. Based on our experimental results and discussion, this study presents several novelties and contributions:

• Redesigned the architecture of ConvNeXt and combined it with U-Net to propose the LUNeXt model, significantly reducing the number of parameters and FLOPs.
• Implemented two convolution block operations before each upsampling and downsampling in the proposed LUNeXt model to extract more accurate pathological features, which accelerates model training, enhances computational efficiency, and allows for training on devices with limited hardware capabilities.
• Described the advantages and disadvantages of the U-Net family based on previous studies and our experimental findings.

For future work, we plan to design a lighter model for the U-Net family by incorporating elements such as ConvUNeXt, depthwise separable convolution, residual connections, and attention mechanisms. Additionally, we aim to enhance the performance of the improved model to further innovate the U-Net family design.
