SPW-TransUNet: three-dimensional computed tomography-cone beam computed tomography image registration with spatial perpendicular window Transformer

Introduction

Medical image registration aims to find the deformation vector field and establish a spatial correspondence between two images (1,2). In cancer radiotherapy (3), radiation therapy technologist or physicians rely on computed tomography (CT) images to make treatment plans and verify patient positions in the treatment room using cone beam CT (CBCT) images. However, rigid registration alone to align the gross position is not sufficient for accurate radiotherapy. Non-rigid registration is essential due to anatomical changes like positional offset, breathing or organ movement during treatment. It can dynamically adjust to these movements, ensuring accurate target localization throughout the treatment process (4,5). Moreover, the ability to perform these adjustments in real-time is critical especially in the context of online adaptive radiotherapy, as it allows for immediate corrections in response to patient movement, enhancing both the efficacy and safety of the therapy. However, as shown in Figure 1, CBCT images suffer from artifacts, inadequate spatial resolution, and low signal-to-noise ratio (SNR) due to a lack of projection data and low doses of radiation (6,7). These factors cause significant local intensity differences in the corresponding anatomical structure between CT and CBCT images, challenging CT-CBCT image registration.

Figure 1 Sample images of CT and CBCT. The two images on the right are enlarged patches in red boxes on the left. CT, computed tomography; CBCT, cone beam computed tomography.

Traditional image registration algorithms usually perform iterative optimization by maximizing the similarity measure between fixed and moving images and penalizing deformations that do not conform to physical rules (8,9). For CT-CBCT images, some researchers propose to match them from local intensities of image-sliced cubes and slices (10). Other methods use global matching algorithms to achieve both intensity correction and intensity matching, such as DEMONS (11) and optical flow (12). However, in these methods, the computing process of iterative optimization to maximize the energy function is time-consuming. The integration of intensity correction and intensity matching further increases the computational complexity. As a result, traditional methods cannot fully meet the real-time demands required for three-dimensional (3D) medical image registration in clinical settings, impacting procedures such as surgical navigation and adaptive radiotherapy. These scenarios require immediate image processing to ensure precise patient treatment (5,13).

With the advancement of deep learning technology, the UNet (14) based models have been widely adopted in medical image processing and shown promising results (15). For medical image registration, due to the time-intensive process of obtaining medical labels from professionals, some methods opt for a training registration network. These methods do not require labels and instead utilize the similarity metrics between the fixed and deformed moving images to guide network training. Some methods adopt UNet to predict the deformation vector field directly from fixed and moving image without the iterative optimization process (13,14) to meet real-time clinical needs. To address the intensity differences between CT and CBCT, some researches (15-17) further incorporate additional attention modules based on the UNet registration network. These registration algorithms mostly rely on convolutional structures in their models (18), which suffer from limited receptive fields that hinder their ability to capture long-distance spatial relationships between pixels (19). In cases where there is a significant difference between images being registered, due to disease progression, image quality differences or natural anatomical variations, the networks do not perform optimally (4).

The recently emergent Transformer-based networks can be a promising solution for medical image registration with sizeable local intensity differences and significant differences in anatomical structure shapes (20,21). Owing to its inherent advantage in the receptive field, the Transformer provides enough interaction space to model the relationships between features. It has also been applied in CT-CBCT image registration and has shown superior to convolution-based networks (22,23).

The original Transformer-based method calculates self-attention across the entire input image, forming a large receptive field. However, its computational cost is prohibitively high for clinical applications (24). To reduce computational complexity, several Transformer-based networks have explored local self-attention mechanisms. As shown in Figure 2, in the Swin-Transformer (25), attention is limited to non-overlapping local windows, and a shifting window operation is introduced to enable communication between adjacent windows. However, this approach has limited efficiency in expanding the receptive field, requiring many blocks to achieve global self-attention. Other effective self-attention mechanisms include sequential axial self-attention (26) and dilated window self-attention (27). The former applies local windows in a horizontal and vertical sequence, while the latter expands local windows to achieve a global attention representation. Additionally, the orthogonal Transformer (28) computes self-attention by projecting the data onto an orthogonal space to reduce computation. This method uses dimensionality reduction to lessen the computational burden. However, some information is lost when projecting features onto a low-dimensional space. The original feature vector v undergoes a Householder transformation (R1 and R2 represent the reflection matrices), obtaining the transition vector ω and the dimensionality-reduced vector u. This loss of information during the transformation process is represented by the vector d in Figure 2.

Figure 2 Illustration of the feature interaction space of Transformer with different self-attention methods. (A) Global self-attention Transformer. (B) Local self-attention Transformer variants. (C) Feature interaction in 3D medical image registration. H denotes the number of attention heads. X, Y, and Z correspond to the length, width, and height dimensions, respectively, illustrating the volumetric expanse of the feature interaction zone. SPW, spatial perpendicular window; 3D, three-dimensional.

The Transformer-based networks mentioned above compute local self-attention to increase computational efficiency, but they inevitably sacrifice some information regarding visual details. Current Transformer-based models cannot dynamically adjust the mapping from feature vectors to probability vectors during training, limiting the model’s ability to explore potential correlations between various features fully. Furthermore, previous methods are primarily designed for two-dimensional (2D) image processing. Against the backdrop of significant computational demands in 3D medical image registration, it is imperative to employ these techniques with greater efficacy.

This paper introduces a novel spatial perpendicular window (SPW)-Transformer for efficient 3D image representation, and further develops a model combining the SPW-Transformer with the UNet, named SPW-TransUNet, specifically for image registration. In the attention computing of SPW-Transformer, we divide the representation space of multi-head attention into three perpendicular groups and perform a self-attention operation on each group. The operating window size k of the three groups is adjustable and can gradually increase as the dimensionality increases, which better handles high-dimensional information. It is worth noting that these three groups of attention compute in parallel. As shown in the box in Figure 2C, the blue boxes represent the feature interaction space volumes of the three mainstream local window self-attention methods. The red box represents the feature interaction space volume of the proposed SPW-Transformer. Therefore, it expands the feature interaction space of Transformer effectively. The width of the operation window is adjustable to obtain a better feature interaction space during network training. To enhance the functionality of the SPW-Transformer, we implement a miniature convolutional neural network (CNN) model designed to adaptively learn and adjust the fixed “temperature” parameter (29). This adjustment optimizes the process within the Transformer that the mapping of feature vectors can be adjusted to probability vectors. In summary, the main contributions of this paper are as follows:

• A novel Transformer architecture for 3D medical image registration named SPW-Transformer is designed to perform self-attention operations in parallel within SPW with adjustable sizes. It promotes efficient extension of feature interaction space, avoiding a significant increase in computational cost.
• A novel unsupervised CT-CBCT image registration method is proposed, combining SPW-Transformer and UNet, which can handle the significant local intensity differences between the image pair and the significant shape changes. To control the mapping process of the SPW-Transformer, a miniature CNN model is adopted to dynamically adjust the mapping process from the feature vector to probability vector transformation.
• We extensively evaluate the proposed method on two benchmark 3D medical image datasets for lung CT-CBCT and liver CT image registration. The proposed method shows state-of-the-art performance, and the SPW-Transformer is more efficient than previous Transformers.

Methods

Formulation and framework

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). We formulate the image registration problem as Gθ(IF,IM)=ϕ, where IF is a fixed image and IM is a moving image, ϕ is the deformation field generated by the network. We aim to obtain the optimal parameter θ by minimizing the expected loss function L on the training set so that the two images register in space. The formula is as follows:

θ^=argminθ[N(IF,IM)(L(IF,IM,Gθ(IF,IM)))][1]

Overall structure

The proposed unsupervised registration network comprises two stages, as illustrated in Figure 3. In the first stage, we use an affine registration network to rigidly register the overall position of the raw data of the inputted images, providing the foundation for the subsequent non-rigid network. As depicted in Figure 4, we employ a multi-layer convolutional network to build an affine registration network that down-samples the input data and produces 12 transformation parameters, consisting of a 3×3 affine vector matrix α and a 3D displacement vector β (30). The number of channels per layer is marked in Figure 4. Subsequently, we utilize these transformation parameters to warp the input image I, and the entire process can be expressed as f(I)=αI+β.

Figure 3 Overall structure of the proposed method. In the first stage, the data is affine registered. The second stage is the proposed SPW-TransUNet for more refined deformable registration. SPW, spatial perpendicular window.

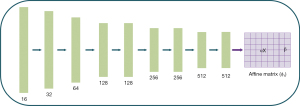

Figure 4 The overall structure of affine network used in the first stage registration.

After obtaining the warped image from the first stage, we input it into the second stage, SPW-TransUNet, a specialized model to tackle the complex deformable registration tasks. Finally, the loss function L is calculated. The back-propagation loss updates the gradient information of the model. The entire registration process is end-to-end. The trained model takes the fixed and moving images that need to be registered as input during inference, and then directly generates the deformation vector field as output.

SPW-TransUNet

The structure of SPW-TransUNet is illustrated in Figure 5 and consists primarily of SPW-Transformer and convolutional-block (Conv-Block). The Conv-Block incorporates convolution, 3D-funnel rectified linear unit (FReLU), and Group Normalization (Group Norm). To facilitate preliminary feature extraction from the original data, a scale-invariant convolutional layer with a kernel size of 3×3 is employed. The activation layer extends 2D-FReLU (31) to the 3D space, enabling a nonlinear transformation of image features to simulate the spatial context of each pixel.

Figure 5 The overall structure of the SPW-TransUNet. F represents a fixed image; M represents a moving image; N represents the number of SPW-Transformer blocks contained in SPW-Transformer; and K represents the width of the SPW. MLOI, multi-level original information; Conv Block, convolutional block; SPW, spatial perpendicular window; DVF, deformation vector field.

In the normalization layer, for 3D medical registration task, the batch size during model training is often constrained by graphics processing unit (GPU) memory limitations. Consequently, the mean and variance calculated by standard batch normalization may not accurately reflect the data variations when using small batch sizes. To address this issue, Group Norm demonstrates superior performance when a small batch size is selected. The operations are repeated twice, and the resulting features are concatenated with the input features to form a Conv-Block (32).

Through the Conv-Block, the overall low-dimensional information of the input image is preliminarily extracted (33). Then, the extracted features are sent to the SPW-Transformer, which models the dense nonlinear relationship between these features. Each layer of the SPW-Transformer uses different window widths to achieve information exchange between internal features in different ranges. SPW-Transformer contains the core of the SPW multi-head self-attention (SPW-MSA) and self-learning mapping control (SLMC). Also, to minimize the information loss, we pool the original information into multi-level original information (MLOI) and embed them into the corresponding layers separately. SPW-Transformer is the proposed model’s core component and will be detailed in the following.

SPW-Transformer

Due to the high computational cost of processing 3D medical images, designing effective self-attention mechanisms in the Transformer model is crucial. Some recent works compute attention locally with sequential mechanisms such as shift windows (34), dilated windows (27), axial stripes (26), and orthogonal windows (28). As introduced before, previous methods may neglect some details and hinder the performance of 3D image registration. A SPW-MSA mechanism is proposed here, which computes self-attention in parallel in spatial mutually perpendicular directions. This design can expand the self-attention area and achieve self-attention more effectively while controlling computational costs. The structure of the SPW-Transformer is shown in Figure 6, and the input is noted as Fe. SPW-Transformer comprises four components, which are multi-layer perceptron (MLP), layer normalization (LN), the SPW-MSA, and the residual structure. Given the input Fe, the calculation process of the SPW-Transformer can be expressed by the following equations:

Fl=SPW-MSA[LN(Fe)]+Fe[2]

Fd=MLP[LN(Fl)]+Fl[3]

Figure 6 Schematic diagram of SPW-Transformer block. The structure in the rightmost box has two scenarios, where the encoder uses Conv Block, and the decoder uses up-sampling. LN, layer normalization; SPW, spatial perpendicular window; MSA, multi-head self-attention; MLP, multi-layer perceptron; Conv Block, convolutional block.

where Fl and Fd are the outputs of the residual block. It is worth noting that the proposed SPW-TransUNet in the forward propagation order contains [2, 2, 6, 2, 2] SPW-Transformer blocks.

SPW-MSA

SPW-MSA is the core part of SPW-Transformer. To balance the computational efficiency and receptive field range, the multi-head attention is divided into three groups, and each group performs self-attention in parallel in a window of one direction. These windows contain the most relevant positions of the feature centers, and the directions are perpendicular. Additionally, the window width parameter of the network is dynamically adjustable in training. As the network layer deepens and the feature dimension increases, the window width proportionally expands, allowing for a broader range of deep layer feature interactions.

Denote the input feature as I∈R(s×w×h)×c, which is first linearly projected to the C head. In each head, the self-attention in the sagittal, frontal, and horizontal planes are performed separately. The implementation process is shown in Figure 7. For self-attention in the sagittal plane, we divide I into windows [I1,…,Im,…,IM] of equal width non-overlapping and each of them contains s×k×h tokens, where I∈R(s×w×h)×c, k is the width, and M=w/k. After that, we use WQ∈RC×d, WK∈RC×d, and WV∈RC×d to represent the projection matrices of Q, K, and V. The output of the sagittal plane self-attention of each head can be expressed as:

SAtt(I)=[Att(I1WQ,I1WK,I1WV),…,Att(ImWQ,ImWK,ImWV),…,Att(IMWQ,IMWK,IMWV)][4]

Figure 7 A schematic of SPW-MSA performing self-attention. k represents the width of the feature interaction window. SPW, spatial perpendicular window; MSA, multi-head self-attention.

Similarly, the frontal and horizontal plane self-attention outputs FAtt(I) and HAtt(I) of each head can be inferred. As shown in Figure 7, H is a multiple of 3. In each group, the sagittal, frontal, and horizontal planes are performed, respectively. Finally, the attention results obtained from the three cross-sections are concatenated to generate the output of all heads:

ALLAtt(I)=[FAtt(I)⊕HAtt(I)⊕SAtt(I)]WO[5]

where ⊕ is the connection operation, and WO∈RC×C.

SLMC

Calculation of each head’s self-attention output ALLAtt(I) is a crucial step in the Transformer structure. In the previous methods, the attention mapping is computed with the softmax function which transforms the feature vector into the probability vector by exponentiating each feature vector and normalizing these values by the sum of all exponentials. In addition, softmax has a fixed “temperature”, i.e., a fixed denominator in the activation function softmax. It makes the attention mapping process inflexible (34). However, the temperature parameter significantly influences converting feature vectors into probability vectors. When the temperature parameter is too large, the difficulty of network convergence increases, while the network tends to fall into a local optimum when the temperature parameter is small. To adaptively control the sharpness of feature matching in image registration, in our SPW-Transformer, we attempt to adjust the attention mapping according to the adaptive information of the image pair.

As shown in Figure 8, a miniature CNN is introduced that adaptively learns the temperature parameters λ In the early stage of the registration iteration, the miniature CNN can adjust λ to register the image for the preliminary approximate matching. Afterward, the features are finely matched through the λ control attention mapping. This mapping method can approximate the probability distribution represented by the network output and increase the model-to-feature correlation search space. Furthermore, to maximize the accuracy of the feature mapping, we use Gumbel-Softmax (35) instead of the normal softmax function. The specific operation method that uses Gumbel-Softmax to sample a matching matrix. Then, uses the CNN network to learn the appropriate temperature parameters from the feature itself, as shown in the following equation:

Gumbel-Softmax(QKT)=onehot[argmaxSoftmax(QKT+Gλ)][6]

Figure 8 The mapping control method of SPW-Transformer. CNN, convolutional neural network; DW-Conv, depth-wise convolution; SPW, spatial perpendicular window.

where G is a randomly sampled independent identically distributed sample from Gumbel Noise [0, 1], it is expected to approximate the probability distribution represented by the network output and increase the model-to-feature correlation search space (34).

In the above equation, when λ is large, the mapping process becomes smooth and suitable for precise registration, and when λ is close to 0, the mapping becomes sharp, suitable for coarse registration. In the Transformer’s position encoding step, we use the depth-wise convolution (Dw-Conv) operator (36) to operate on the value matrix V, which reduces the computational cost of Token position encoding. It can effectively save Token position information during the attention calculation by directly applying the most crucial local neighborhood position information to the linear projection value.

Loss function

The loss part of the entire network consists of four parts. In the first stage, the similarity loss Lsim1 is used. In the second stage, the similarity loss Lsim2, the Jacobian regularization loss LJdet (30), and the smoothness constraint loss Lreg (37) are used. It should be noted that the similarity functions in the first and second stages both use correlation coefficient (CC) (36). The fixed image is denoted as IF. The moving image IM deformed by the deformation vector field is denoted as IS. Lsim1 and Lsim2 use CC to calculate the similarity between IF and IS, which expressed by the following formula:

CC(IF,IS)=∑p∈Ω{∑pi[IF(pi)−I^F(pi)][IS(pi)−I^S(pi)]}2∑pi[IF(pi)−I^F(pi)]∑pi[IS(pi)−I^S(pi)][7]

where I^F(pi) and I^S(pi) represent the volume IF(pi) and IS(pi) minus its average intensity, pi respectively. represents the iteration on the n3 volume around point p. Ω is the total volume. The n=12 is used in this paper. When the CC index is larger, the average local similarity between the two images is higher. The calculation method of CC adopts a windowing operation similar to convolution.

It is worth noting that the second stage of registration is non-rigid. Lreg and LJdet ensure the deformation vector field conforms to the natural physical deformation in the second stage. LJdet penalizes local collapse in the deformation vector field. LJdet is expressed as:

L1V∑p∈Ωσ[−|Jϕ(p)|]Jdet[8]

where V represents the total number of elements in |Jϕ(p)|, σ represents an activation function, here select rectified linear unit (ReLU), and |Jϕ(p)| represents the Jacobian matrix determinant of the deformation field ϕ at position p We encourage employ Lreg to further enhance the smoothness of the deformation vector field, as:

Lreg=∑p∈Ω‖∇ϕ(p)‖[9]

The total loss function L used in the network can be written as,

L=Lsim1+Lsim2+λ1LJdet+λ2LJdet[10]

where λ1=400 and λ2=0.8. All the parameters are tuned by grid search. We design experiments in the “Experimental” section to verify the impact of parameters on the results.

Experimental

Dataset and preprocessing

This paper uses two public benchmark datasets containing lung and liver medical images to verify the effectiveness of the proposed unsupervised medical image registration method. For the CT-CBCT registration task, the four-dimensional (4D)-Lung dataset (38) is adopted. The datasets consist of images from 20 patients with locally-advanced, non-small cell lung cancer including seven women and 13 men. All are treated at the same institution. The 4D-fan beam CT (FBCT) images are acquired using a 16-slice helical CT scanner, and the 4D-CBCT images are obtained with a commercial CBCT scanner. CT and CBCT images both include 10 breathing phases. The number of paired CT and CBCT images for all patients is 124 pairs. In addition, due to the limited number of patients in the data, to ensure the method’s applicability, we divide the data into 2:1:1. In four-fold cross-validation, ten patients are used for training, five patients are used for validating, and five patients are used for testing. Each CT and CBCT scan in the 4D-Lung dataset consists of approximately 50 slices, with each slice having a thickness of 3 mm. For isotropy, the images and anatomical labels are resampled to 1 mm using trilinear interpolation and nearest neighbor interpolation, respectively. To maintain consistency of the network input, the image size is center cropped to 128×256×256 for training with each inputting containing 128 slices In four-fold cross-validation, ten patients are used for training, five patients are used for validating, and five patients are used for testing.

Morphological differences in lung images from the same patient are often minimal and may not fully test a registration algorithm’s performance against significant morphological variations. Therefore, to better evaluate our algorithm, we use liver images from different patients, which present greater morphological disparities. The publicly available Liver Tumor Segmentation Challenge (LITS) (39), Medical Segmentation Decathlon (MSD) (40), and the Segmentation of the Liver Competition (SLIVER) (41) datasets as the liver datasets are used together in the CT image registration task. The MSD contains 513 liver-related scans, with slice thickness between 0.8 and 8 mm. The LITS contain 130 scans, with slice thickness between 0.7 and 5 mm. The SLIVER contains 20 scans, voxel spacing varied from 0.55 to 0.8 mm in the x/y direction, and slice spacing varied from 1 to 3 mm. All data have liver segmentation labels. To maintain consistency of the network input, the data is first sampled to 1 mm voxel size using the same sampling method as the lung data. Then the image size is center cropped to 128×128×128 according to the liver anatomical structure label for traning. Subsequently, each CT image is randomly paired with other CT images in the dataset. The data are assigned, and we use MSD for the training, SLIVER for validating, and LITS for testing.

Evaluation indicators

Following previous research (30,42), we use four metrics to evaluate the image registration effect quantitatively:

• Structural similarity index measure (SSIM): to reflect the overall effect of registration, calculate the structure similarity between the fixed image and the moving image after the deformation vector field deformation.
• Dice similarity coefficient (DICE) score: to calculate the percentage of overlap in the corresponding anatomical label as follows:

  $$\text{DICE}\left(F_i,M_i\right)=2\frac{\left|F_i\cap M_i\right|}{\left|F_i\right|\cup \left|M_i\right|}$$[11]

  where $F_i$ and $M_i$ are the anatomical structures labeled corresponding to the fixed and moving images, respectively.
• Target registration error (TRE): TRE is the average distance between warped landmarks and the fixed image landmarks in CT-CBCT registration.
• $\left|J_{\varphi }\right|\le 0$ is a voxel with a negative Jacobian coefficient in the deformation vector field, and we calculate its percentage in the total deformation vector field.

Experimental setup

Two essential packages are used to deploy the model: version 3.6 of Python and version 1.6 of the PyTorch framework. We chose to train the model using the Adam optimizer. In addition, the learning rate is set to 0.0002 and the batch size to 2. All experiments are done on a cluster with NVIDIA TASLE V100 with 32 G of GPU memory.

To rigorously assess the efficacy of our network, we conduct comparative analyses with two well-established traditional algorithms and three cutting-edge deep learning-based algorithms. We employ advanced normalization tools (ANTs) (42), renowned for its robust image normalization capabilities; deedsBCV (43), which excels in discrete voxel-based image registration; TransMorph (20), which utilizes a Transformer framework for deformable registration; Volume Tweening Network (VTN) (29), which incorporates volumetric transformations for enhanced spatial accuracy; and VoxelMorph (37), a deep CNN approach tailored for efficient and scalable application in clinical settings. The experimental results on the liver and lung datasets are shown in Tables 1,2, respectively.

Ablation experiments are performed in the liver datasets to verify the effectiveness of the designed network components. Table 3 shows the five sets of ablation experiments: (I) Swin-TransUNet: we replace the attention method in SPW-MSA with the shift windows local self-attention used in Swin-Transformer (25); (II) Cross-TransUNet: we replace the attention method in SPW-MSA with the dilated windows local self-attention used in CrossFormer (27); (III) Orthogonal-TransUNet: we replace the attention method in SPW-MSA with alternately computed attention in the dimensionally reduced orthogonal space and local windows in Orthogonal-Transformer (28); (IV) ViT-TransUNet: We replace the attention method of SPW-MSA with ViT’s global self-attention (24); (V) without SLMC (w/o SLMC): we remove the SLMC structure, and adopt a fixed temperature parameter D instead λ; (VI) complete structure, i.e., SPW-TransUNet. Finally, as shown in Table 4, the parameters of the proposed SPW-TransUNet and other deep learning-based methods are calculated. In addition, to evaluate the hyperparameter settings of the loss function, the comparative experiments with different hyperparameter settings are added, as shown in Table 5. It can be seen that the selected hyperparameters obtain the optimal results.

Results

In inter-patient lung CT-CBCT image registration, the quantitative evaluation of the experiment results is shown in Table 1. The proposed method SPW-TransUNet obtains the highest DICE score, SSIM index, and the lowest TRE. Although the folding degree of the deformation field generated by our method is slightly higher than that of ANTs, it is still superior to other registration algorithms based on deep learning. In addition, our method is superior to traditional iterative algorithms in other indicators. It is worth noting that even if the traditional iterative algorithm is close to our method in quantitative indicators, it is challenging to meet the real-time clinical requirements due to its need for iterative optimization. Meanwhile, our method achieved a 0.88% DICE score value higher than the Transformer-based TransMorph. It proved that our SPW-Transformer architecture is superior to the previous methods. In Figure 9, we show sample data pairs with significant local intensity differences, and the labels generated by our method are close to the labels of fixed images. The overall registration effect is better than the comparative methods.

Figure 9 Lung experimental results sample. (c) and (d) are the liver segmentation labels of (a) and (b) images, respectively. The columns on the right side of the original image label show examples of the comparative algorithms, including the images and the lung label are warped by the deformation vector field. ANTs, advanced normalization tools; VTN, Volume Tweening Network; SPW, spatial perpendicular window.

The quantitative experiment results are shown in Table 2 in liver CT image registration. Unlike lung registration, the liver registration data pair comprises different patients. The target anatomical structure has an enormous shape difference, which requires a higher processing ability of the network for large displacement. In this scenario, our algorithm is still ahead of other algorithms. In Table 2, SPW-TransUNet obtained the highest SSIM index and DICE score. Compared with other methods, the proposed method improves the SSIM score more than the DICE score. It shows that SPW-TransUNet can well register the overall anatomical structure of the image pair. We conducted comprehensive statistical analyses using paired two-tailed t-tests to evaluate the significance of the differences in performance metrics between our proposed SPW-TransUNet and the best-performing baseline method, TransMorph. The analyses were performed using R statistical software (44).

For the lung dataset, using four-fold cross-validation, we calculated the mean performance metrics for each fold. Our method showed statistically significant improvements over the best-performing baseline (TransMorph) in DICE with t[3]=3.7, P=0.034, SSIM with t[3]=4.12, P=0.026 and TRE with t[3]=−2.20, P=0.113. The negative t value for TRE indicates a reduction in error, which is desirable. Although the P value for TRE is above the conventional 0.05 threshold, the trend suggests an improvement. Similarly, for the liver dataset, our method demonstrated statistically significant improvements in DICE with t[149]=2.45, P=0.015, and SSIM with t[149]=3.89, P=0.0002. All P values are below the 0.05 significance threshold, confirming the enhanced effectiveness and reliability of our approach for both medical image registration tasks.

It should be noted that the average time for our method to complete an inference on the liver data is 0.427 seconds. In comparison, the TransMorph algorithm has the closest performance to our algorithm, which takes 2.619 seconds. The difference between our algorithm and the best-performing algorithm on the Jacobian fold percentage is less than 0.5%, and the value is within an acceptable range. The results of various algorithms are shown in Figure 10. The liver label of the warped image generated by our method is more similar to that of the fixed image. Meanwhile, the edges of the labels are smoother.

Figure 10 Liver experimental results sample. (c) and (d) are the liver segmentation labels of (a) and (b) images, respectively. The columns on the right side of the original image label show examples of the comparison algorithm method, including the images and the liver label that the deformation vector field warps. ANTs, advanced normalization tools; VTN, Volume Tweening Network; SPW, spatial perpendicular window.

The results of the ablation experiments are shown in Table 3. From the aspect of the self-attention method, we conducted the experiments with representative global and local self-attention methods, respectively. The proposed approach achieves the best DICE score and the lowest Jacobian folding percentage. The advantage of the SPW-Transformer in terms of accuracy is demonstrated. In addition, the SLMC is removed, i.e., the fixed temperature parameter is used. The experimental results show that the fixed temperature parameter cannot be adaptively adjusted to the mapping process. It limits the model’s adaptability to deal with different features, eventually leading to a decline in registration accuracy.

Table 4 shows the parameter quantities of our model and the other deep learning methods in Tables 2,3. Under our experimental conditions, the proposed model’s parameters are less than those of other models based on deep learning. In addition, the proposed model can be easily adapted to different tasks by adjusting the model’s hyperparameters, such as the parameters of the attention head in each converter, the number of blocks, and the window’s width.

Discussion

This paper proposes an unsupervised medical image registration network called SPW-TransUNet, which integrates a SPW-Transformer into the UNet framework (14). Compared with other mainstream medical image registration algorithms, our method achieves optimal registration results on datasets involving lung CT-CBCT image registration and liver CT image registration tasks. In SPW-TransUNet, instead of directly using down-sampling, we utilize modified Conv-Blocks to handle low-dimensional features effectively. This strategy reduces the loss of feature information and enhances registration accuracy. The essence of the Transformer lies in its self-attention mechanism for computing connections between features, which is appropriate for registration tasks that require modeling dense nonlinear relationships between moving and fixed images. Based on this, the SPW-Transformer is designed to handle long-range dependencies in high-dimensional features by computing SPW.

In SPW-TransUNet, we employ modified Conv-Blocks instead of direct down-sampling to process low-dimensional features. This strategy effectively reduces the loss of feature information and enhances registration accuracy. The SPW-Transformer expands the receptive field by computing self-attention within SPW, allowing for better modeling of long-range dependencies without incurring prohibitive computational costs. More importantly, the size of the SPW can be adjusted for different data types, enabling the network to adapt to various medical imaging scenarios. Additionally, introducing a miniature CNN for adaptive computation of the temperature parameter in the attention mapping process referred to as SLMC enhances the flexibility and robustness of feature matching.

Despite the promising results, there are areas for improvement in our current research. One limitation is the types of registration data currently available; the effectiveness of registration on modalities and organs other than the lungs and liver remains to be explored. Unsupervised medical image registration relies heavily on the assumption that intensity similarities correspond to anatomical correspondences. This assumption may not hold in cases of pathology (e.g., tumors, lesions) where the anatomy is altered. Consequently, the registration effect may not be ideal for images with significant intensity differences or without anatomical labels. This challenge could be better addressed by exploring new similarity functions or incorporating semi-supervised or weakly supervised approaches that include anatomical priors or segmentation labels to enhance performance in such scenarios (45,46).

Additionally, although our method is more efficient than some Transformer-based models, the computational demands are still significant, especially for higher-resolution images or when scaling to whole-body scans. Future work could focus on optimizing the network architecture for better resource utilization, potentially through model compression techniques or more efficient algorithm designs (47). When GPU memory is plentiful, transitioning to a cascading architecture could theoretically improve performance by utilizing multiple layers of deformable registration models to achieve more significant registration accuracy (30).

Furthermore, Figures 9,10 illustrate that the performance on edge information registration does not surpass the overall registration effect as measured by the DICE score. This result may be because the network places a higher emphasis on high-intensity anatomical structures during registration, potentially neglecting finer details at the edges. To address this phenomenon, we intend to investigate edge-preserving techniques or edge-aware loss functions and validate our approach to different imaging modalities in future work.

Conclusions

This paper proposes SPW-TransUNet, an unsupervised medical image registration network with a SPW-Transformer. This method improves the network’s receptive field by computing self-attention within SPW in parallel without significantly increasing the computational cost, enhancing the network’s ability to model positional relationships between features over long distances and having significant local intensity differences. Additionally, a novel SLMC is designed to adaptively adjust the attention map through a miniature CNN network to control the self-attention mapping process. The proposed method shows significant advantages over the existing mainstream methods. It provides a practical reference solution to automatic CT and CBCT image registration in conventional clinics.

Acknowledgments

Funding: This work was supported by the National Key Research and Development Program of China (No. 2019YFE120100), the National Natural Science Foundation (NSF) of China (No. 11975312), and the 2020 Major Scientific Research Problems and Medical Technology Program of China Medical Education Association (No. 2020KTZ003).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-24-1138/coif). All authors report that this work was supported by the National Key Research and Development Program of China (No. 2019YFE120100), the National Natural Science Foundation (NSF) of China (No. 11975312), and the 2020 Major Scientific Research Problems and Medical Technology Program of China Medical Education Association (No. 2020KTZ003). The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
