Potential of PET-MRI for imaging of non-oncologic musculoskeletal disease
Review Article

Potential of PET-MRI for imaging of non-oncologic musculoskeletal disease

Feliks Kogan1, Audrey P. Fan1, Garry E. Gold1,2,3

1Department of Radiology, 2Department of Bioengineering, 3Department of Orthopaedic Surgery, Stanford University, Stanford, California, USA

Correspondence to: Feliks Kogan, PhD. Department of Radiology, Stanford University,1201 Welch Rd Stanford, CA 94305, USA. Email: fkogan@stanford.edu.

Abstract: Early detection of musculoskeletal disease leads to improved therapies and patient outcomes, and would benefit greatly from imaging at the cellular and molecular level. As it becomes clear that assessment of multiple tissues and functional processes are often necessary to study the complex pathogenesis of musculoskeletal disorders, the role of multi-modality molecular imaging becomes increasingly important. New positron emission tomography-magnetic resonance imaging (PET-MRI) systems offer to combine high-resolution MRI with simultaneous molecular information from PET to study the multifaceted processes involved in numerous musculoskeletal disorders. In this article, we aim to outline the potential clinical utility of hybrid PET-MRI to these non-oncologic musculoskeletal diseases. We summarize current applications of PET molecular imaging in osteoarthritis (OA), rheumatoid arthritis (RA), metabolic bone diseases and neuropathic peripheral pain. Advanced MRI approaches that reveal biochemical and functional information offer complementary assessment in soft tissues. Additionally, we discuss technical considerations for hybrid PET-MR imaging including MR attenuation correction, workflow, radiation dose, and quantification.

Keywords: Positron emission tomography-magnetic resonance imaging (PET-MRI); musculoskeletal imaging; nuclear medicine; arthritis; osteoporosis

Submitted Nov 01, 2016. Accepted for publication Dec 12, 2016.

doi: 10.21037/qims.2016.12.16


Imaging of the musculoskeletal system has benefited greatly from new technologies to image morphology and function in many tissues (1,2). This has included significant advancements in radiographic, computed tomography (CT), magnetic resonance (MRI), ultrasound, and positron emission tomography (PET) imaging methods. However, assessment of multiple tissues and functional processes are often necessary to study the complex processes in many musculoskeletal diseases, such that any one modality may not be optimal for diagnosis. To combine the strengths and overcome the limitations of various imaging modalities, hybrid imaging systems have been developed and introduced into clinical medicine. The most prominent of these are PET-CT scanners, which utilize high-resolution CT to better localize molecular information from PET imaging (3,4). More recently, hybrid PET-MRI systems have been introduced which may be an appropriate alternative to study many musculoskeletal disorders (5,6). In addition to a lack of ionizing radiation, MRI offers superior soft tissue contrast to CT, such as in cartilage and muscle. MRI can also provide additional information regarding tissue biochemistry, diffusion, and perfusion. For these reasons, MRI is the preferred imaging modality over standalone CT for many musculoskeletal disorders.

Emerging PET-MRI systems offer an exciting new modality to simultaneously acquire numerous functional information as well as high-resolution morphology to study the complex pathogenesis in musculoskeletal disorders. In this review, we summarize PET imaging of molecular processes in non-oncologic musculoskeletal diseases and outline the potential of hybrid PET-MR imaging for these applications. A background to PET-MRI systems and technical considerations is included.


New PET-MRI systems promise to combine high-resolution morphologic MR imaging with simultaneous functional information from PET to study the complex processes involved in numerous musculoskeletal disorders. PET has incomparable abilities to provide quantitative information about the molecular and metabolic activity of tissues but needs the assistance of higher-resolution, anatomic information to localize these physiologic processes. In musculoskeletal imaging, many disorders are now being recognized as affecting the multiple tissues, and can take advantage of the unique features of hybrid PET-MRI.

Molecular imaging of early disease processes

PET is the only molecular imaging modality with high sensitivity to several processes that precede these structural and biochemical changes at the tissue level (6). The molecular imaging capabilities of PET can provide vital information about the earliest metabolic changes in musculoskeletal disorders. This information is highly complementary to qualitative and quantitative information from established MRI metrics of tissue health.

Several commercially available PET tracers have already been applied to study musculoskeletal disease. The two most widely applied radiotracers for musculoskeletal imaging are 18F-fluorodeoxyglucose (18F-FDG) and 18F-sodium fluoride (18F-NaF). 18F-FDG PET is a widely used marker for glucose metabolism and is sensitive to areas of acute phase cellular response (neutrophils or PMNs) such as inflammation and infection (7). 18F-NaF is a long recognized bone-seeking agent that is able to probe bony remodeling (8-10).


18F-FDG, an analog of glucose, is the most widely used PET radiotracer in clinical practice (11,12). FDG is taken up by cells through glucose transporters and then phosphorylated by hexokinase under kinetics similar to those of glucose. However, the chemistry of the FDG prevents the metabolism or catabolism of the phosphorylated FDG, effectively trapping the molecule in the cell. This results in a buildup of 18F-FDG in highly metabolic tissues that consume more glucose in order to sustain their metabolic activity. Because many tumors are hyperglycemic, FDG PET is extensively used in oncologic imaging for tumor staging and grading of several cancers. Additionally, the increased glucose utilization by activated inflammatory cells makes 18F-FDG PET a useful tool to identify musculoskeletal inflammation and infection (13). 18F-FDG also has some limitations. High glucose metabolism and consequent high 18F-FDG uptake are not unique phenomena. As such, differentiation of the source of high glucose metabolism, e.g., between inflammation and bone remodeling, may be difficult and results in false-positive results (14).


18F-NaF was first recognized as a bone-seeking agent in 1962 (8) and has been approved for PET imaging by the Food and Drug Administration (FDA) since 1972. The mechanism of skeletal uptake of 18F-NaF is based on ion exchange (15). Bone tissue is continuously renewing itself through remodeling at the bone surface. 18F ions exchange with hydroxyl ions (-OH) on the surface of the hydroxyapatite to form fluoroapatite (16). This exchange occurs at a rapid rate; however, the actual incorporation of 18F ions into the crystalline matrix of bone may take days or weeks. Uptake of 18F-NaF is a function of osseous blood flow and bone remodeling. 18F-NaF uptake on PET images are interpreted as processes that increase exposure of the surface of bone and provide a higher availability of binding sites, such as osteolytic and osteoblastic processes (17).

High resolution and functional imaging of soft tissue

MRI is able to provide multiple different structural and functional contrasts in soft tissue that are unavailable with any other imaging modality. In the clinical setting, MRI is the primary imaging system used to diagnose injuries in soft tissues such as intervertebral disc injuries; tears in the menisci, ligaments and tendons; as well as occult bone injuries. Additionally, MRI is also widely used to study pathogenesis of many musculoskeletal disorders using advanced MRI techniques that provide unique functional information (18,19). T2 and T1rho relaxometry as well as magnetization transfer techniques provide information about cartilage biochemistry and have been shown to have significant prognostic value (20,21). Further, arterial spin labeling (ASL) (22) and chemical exchange saturation transfer (CEST) (23,24) techniques are able to assess muscle perfusion and energetics, respectively. Although MRI is not typically associated with bone imaging, tissue diffusion (25) and ultra-short echo time (uTE) (26,27) methods are able to provide important information about bone strength and fracture risk. These methods as well as many other MRI applications in musculoskeletal imaging are discussed in numerous review papers on the topic (28-30). Because MRI can offer novel functional contrasts, its combination with PET offers powerful observations of distinct physiological processes occurring in bone and cartilage at the same time.

Radiation dose reduction

PET-MRI offers reduced radiation dose compared to PET-CT. Minimizing radiation exposure to patients is critical to widespread application of nuclear medicine techniques to musculoskeletal imaging. As MRI does not produce any ionizing radiation, replacing CT with MRI can reduce the radiation dose to patients undergoing hybrid PET imaging by up to 80% (31). Further, MRI protocols (20–60 minutes) are often longer than the data collection time in one patient bed position in clinical PET-CT (3–5 minutes). As current PET-MR hybrid systems allow all of the MR scan time to be used to collect PET data, the injected dose of radiotracer can be significantly reduced. The ability to minimize radiation dose is vital for imaging of pediatric patients as well as in reproducibility and longitudinal studies.

PET-MRI systems and technical considerations

Recent advancements have overcome many technical challenges, including interference between imaging modalities, to make integrated PET-MR systems possible (Figure 1) (32,33). The main challenges revolve around space constraints when merging the hardware into a single device, and that photomultiplier tubes (PMTs) used in conventional PET detectors do not operate properly in the presence of a magnetic field. The first attempts to solve this problem used a technically relatively simple approach to place the MRI and shielded PET components in line with a similar configuration to PET-CT (34). Unfortunately, this solution results in long scan times, as it does not allow for simultaneous acquisitions. While this may be a viable solution for small-animal imaging, a system capable of performing simultaneous PET and MRI acquisitions is optimal. Fortunately, the emergence of robust MRI-compatible solid state photodetectors such as avalanche photodiodes (APDs) (35) and more recently silicon photomultipliers (SiPMs) (36) has made truly simultaneous PET-MRI possible. These detectors are essentially insensitive to large magnetic fields, which has allowed for the integrated PET-MRI systems. Further, these devices have other desirable resolution properties compared with PMTs, which has allowed these integrated PET-MRI systems to feature the most advanced PET acquisitions.

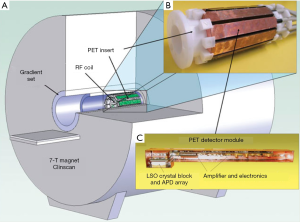

Figure 1 Schematic of integrated PET-MRI systems. (A) Concept for integration of PET and MRI: PET insert placed inside the MRI scanner, matching the centers of both fields of view. This is made possible by an (B) MRI-compatible PET insert based on APD detectors which can be positioned inside the magnet. Each (C) detector module consists of a scintillator block, APD array and preamplifier surrounded by MRI-compatible copper shielding. This model has been expanded using silicon photomultipliers (SiPMs) into 3T whole-body systems which are now commercially available from several venders. Reprinted by permission from Macmillan Publishers Ltd: Nature Medicine (5) 2008. PET, positron emission tomography; MRI, magnetic resonance; APD, avalanche photodiode.

In addition to the integration of hardware components, there are also several technical considerations for simultaneous PET-MRI imaging that need to be addressed. The most pressing of these is how to account for attenuation of PET photons using MR images, and is discussed below.

PET attenuation correction (AC)

Besides the complexity to integrate hardware for multiple imaging modalities, PET-MRI faces challenges with AC compared to PET-CT. In order to obtain accurate PET uptake quantification, emission data recorded during a PET scan must be corrected for tissue and hardware attenuation. This is performed during reconstruction using an attenuation map (µ-map). Because the mechanism for image formation in CT is similar to that of PET, high-resolution CT images in a PET-CT can be easily transformed to linear attenuation maps.

However, as MR images are based on proton density, MR-based correction of PET photon attenuation (MRAC) is less established. This is an active area of study and several methods have been developed for AC based on MR acquired information (37,38). Most commercial systems use a segmentation approach to account for PET attenuation from fat and water tissue using Dixon fat-water separated images and known AC coefficients. However, this segmentation approach does not account for attenuation due to bone. Cortical bone, which is an important area of study in musculoskeletal disease, has higher attenuation of PET photons than soft tissue, but it is difficult to account for on MRAC due to its lack of signal on conventional MR images. Methods utilizing fast MRI acquisition techniques such as uTE and zero echo time (zTE) have been proposed to characterize and correct for cortical bone attenuation.

AC for MRI radiofrequency (RF) coils is another challenge in simultaneous PET-MR imaging systems (39,40). AC of these hardware components is required as their presence leads to considerable attenuation of the PET signal (37). Rigid and stationary MR hardware components, such as the patient table, are corrected for by integrating CT-based attenuation templates of these parts at a fixed position in the µ-map used for AC in PET image reconstruction (38). However, flexible RF coils, which are popular for PET-MR imaging due to their reduced attenuation of PET photons, are currently disregarded in MRAC since their position and individual geometry are unknown in patient scans. Investigations are ongoing to account for the presence of these coils on MRAC maps.

Workflow considerations for PET-MRI

An important first consideration in PET-MRI workflow is the time of tracer injection and subsequent time of imaging. Fluorine-18 (18F) labeled radiotracers such as 18F-FDG and 18F-NaF have advantageous tracer kinetics, which have aided in its widespread application. Fluorine-18 has a favorable half-life of approximately 110 minutes, which does not require an on-site cyclotron (it can be manufactured commercially and shipped to imaging centers) but is short enough to minimize the effective radiation dose to the subject. 18F-FDG PET is typically imaged 60–75 minutes after tracer injection (41). On the other hand, several unique characteristics of 18F-NaF make it a desirable radiotracer for imaging of bone. 18F-NaF has minimal binding to serum proteins, which allows a rapid single-pass extraction and fast clearance from the soft tissues. This high bone uptake and faster soft-tissue clearance lead to a higher quality of images with high bone-to-background ratio and allow for shorter imaging times. 18F-NaF PET imaging can be performed less than 1 hour after injection (15).

The total PET-MRI scan time is often limited by MRI acquisition times and will depend on which areas need to be imaged. Whole-body protocols, e.g., to study musculoskeletal pain, have been proposed that acquire 5–6 “bed” positions, each 3–5 minutes that include a combination of anatomical and functional MRI scans (42,43). Designated protocols where the anatomy of interest is contained in one PET bed, e.g., for the knee, permit longer MRI protocols and the duration of scan time to be used to acquire PET data. This allows for higher SNR PET images as well as a reduction in radiotracer dose as discussed before. All PET-MRI bed positions that are scanned need an accompanying scan for MR-based attenuation correction, and different correction techniques may be applied to different parts of the body.

Quantification and interpretation of PET signal

PET imaging offers high sensitivity to molecular contrasts, which can greatly benefit musculoskeletal imaging. However, proper interpretation of PET signal requires an understanding of the tracer uptake mechanisms. The most common way to quantify PET tracer accumulation is by standardized uptake values (SUV), the tissue activity concentration normalized by the fraction of the injected dose/unit weight. SUV provides a semi-quantitative measure of PET radiotracer uptake. While this method has been shown to be reproducible and reliable, it can be affected by several biologic and physical factors (44,45). Caution should be taken when comparing SUV between different patient cohorts or in longitudinal evaluation of musculoskeletal disease.

Kinetic modeling

A more quantitative approach to PET image analysis is available by imaging during the tracer administration and reconstructing dynamic frames of the PET acquisition. Through pharmacokinetic modeling, the dynamic PET scans can then be used to quantify rate parameters that describe the movement of tracer between blood, extracellular and intracellular compartments. These rate constants can provide more quantitative measures of tissue uptake as well as additional information about underlying processes (blood flow versus bone mineralization) that drive tracer uptake. The tracer rate constants are quantitative and can be compared between patient populations. The use of kinetic modeling for 18F-FDG and 18F-NaF in musculoskeletal systems has been previously reviewed in several publications (46-48).

The PET-MRI system may better enable kinetic modeling through more accurate quantification of the arterial input function (AIF), e.g., the amount of tracer input in arterial blood. Although some studies have derived input functions from large regions of interest such as the aorta, more targeted vessels are arguably more accurate (e.g., the popliteal artery for the knee). These vessels may also be the only ones in the field of view for some PET-MRI applications. While AIF curves from dynamic PET images alone may suffer from partial volume problems, more accurate quantification is available if the vessel volume is known (e.g., from high-resolution MRI angiograms) (49). Estimation of an accurate AIF is necessary for quantification of rate parameters.


While hybrid PET-MRI musculoskeletal imaging is in its nascent stages, there are many applications that could benefit from this multimodal approach. The following review was compiled to present a broad overview of novel clinical and basic science applications of MRI and PET to several, widely prevalent musculoskeletal disorders. A high-level PubMed search was used to determine both widely applied techniques as well as novel emerging methods and applications. Any early applications of hybrid PET-MRI musculoskeletal imaging were included. As hybrid PET-MRI is a new and emerging field, we focused on the potential applications of this multimodal approach without any biases to specific methods or tracers.

Osteoarthritis (OA)

OA is a chronic degenerative disease affecting all tissues in the joint. OA remains a leading cause of disability, affecting more than half the population over the age of 65. Despite its prevalence, pathogenesis in OA is still poorly understood. There is great need for imaging biomarkers of early changes in OA in order to better understand the disease process as well as to develop new therapies (50,51).

MRI has long been utilized to non-invasively study and understand many of the complex disease processes involved in OA (52). MRI provides excellent high-resolution morphologic information of joint tissue. This, along with its ability to produce multiple different contrasts, has made MRI an invaluable tool to study tissue changes associated with OA. Various endogenous contrast methods can be used to assess soft tissue health (e.g., cartilage morphology, menisci and major ligaments, and joint effusion) and even changes in bone [e.g., subchondral bone marrow lesions (BMLs) and cysts, osteophytes, and bone attrition]. Further, delayed-contrast enhanced MR imaging (DCE-MRI) can be used to assess synovitis (53). Semi-quantitative scoring systems that characterize OA pathological features based on MRI have been shown to predict OA disease progression (54,55).

However, structural degenerative changes observed on MRI are likely at a late stage in the disease process when tissue loss has already occurred and treatments are unlikely to be effective. Anatomical MRI contrasts are unable to assess the underlying mechanisms that trigger the disease. As an alternative, advanced quantitative MRI techniques, such as T2 (56,57) or T (58,59) relaxation times, delayed gadolinium-enhanced MRI of cartilage (dGEMRIC) (60,61), and CEST of glycosaminoglycans (gagCEST) (62,63) can provide biochemical tissue information about collagen matrix organization, glycosaminoglycan (GAG) content, and hydration. The application of these techniques has largely been limited to articular cartilage. However, bone is difficult to study with MRI due to the extremely short lifetimes (T2) of the protons (tightly bound water and collagen), which makes it ordinarily invisible in MR images. While bone structure can be inferred from the signal of the surrounding soft tissues, its lack of signal makes functional imaging of bone structures infeasible with MRI.

18F-NaF PET can assess the metabolic activity of subchondral bone remodeling. Increased bone remodeling has been implicated as a mechanism of OA progression that leads to changes in bone as well as in adjacent cartilage (64,65). This makes 18F-NaF an intriguing marker to study the role of subchondral bone changes in OA pathogenesis. High 18F-NaF uptake has often been observed in degenerative and arthritic knees during evaluation of osseous metastatic disease. 18F-NaF PET may also be useful in the detection of bone remodeling in early stage OA of the temporomandibular and hip joints (17,66). SUVmax was significantly higher in hip joints with an abnormal finding in bone on MRI (67). Additionally, 18F-NaF has been used as a marker of pain. Increasing severity of hip pain was shown to correlate with increasing SUVmax (67). Furthermore, subjects with patellofemoral pain exhibited elevated bone metabolic activity at the patellofemoral joint (68). Bone abnormalities (edema, cysts, etc.) on MRI tended to coincide with regions of increased tracer uptake on the 18F-NaF PET scans (Figure 2) (69). However, increased bone activity on 18F-NaF PET did not always correspond to structural damage in the bone or cartilage as seen on MRI, suggesting that 18F-NaF imaging provides distinct information in patellofemoral pain patients (69).

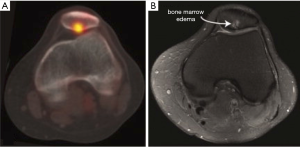

Figure 2 Concordance between bone abnormalities on MRI and increased 18F-NaF uptake on PET. (A) Fused 18F-NaF PET/CT and (B) MRI image of the patellofemoral joint a subject with patellofemoral pain. Bone marrow edema identified on MRI in the apex of the patella corresponded to increased 18F-NaF PET uptake. Simultaneous PET/MRI systems present an opportunity to study the role metabolic activity in structural MRI findings widely used to assess OA progression. From reference (69), with permission. 18F-NaF, 18F-sodium fluoride; PET, positron emission tomography; CT, computed tomography; MRI, magnetic resonance; OA, osteoarthritis.

18F-FDG offers a different metabolic contrast to study the role of inflammation in OA disease progression. Synovitis, inflammation of the synovial membrane, is increasingly recognized as an important feature of the pathophysiology of OA (70,71). Previous studies using FDG-PET evaluated patients with clinically diagnosed shoulder and knee OA (72,73). A diffuse increase in FDG uptake was observed in patients compared to healthy volunteers, which the authors interpreted as the presence of synovitis. BMLs also play a role in the progression of OA and are usually identified on MRI. While the etiology of BMLs is likely multifactorial, they are thought to have an inflammatory component (74). FDG-PET may offer a marker to study the inflammatory mechanisms that underlie these lesions.

Hybrid PET-MRI systems allow for comprehensive imaging of the whole joint, including soft tissues and bone, which is necessary to study complex disease processes in OA. PET imaging with 18F-fluoride and 18F-FDG offers metabolic information regarding bone remodeling and inflammatory processes. This information can be used in combination with biochemical and structural information from soft tissues on MRI to assess spatial relationships between tissues during OA disease pathogenesis. Initial experiences with hybrid PET/MR systems have shown that metabolic activity varies between different types of subchondral bone pathology identified on MRI. This can enhance our understanding of semi-quantitative MRI scoring systems, which are widely used. Furthermore, 18F-fluoride may identify abnormalities in subchondral bone metabolic activity before structural changes are seen on MRI (75,76).

Rheumatoid arthritis (RA)

RA is a systemic inflammatory autoimmune disorder, which affects both large and small joints. Although heterogeneous, RA is primarily characterized by symmetric, erosive synovitis, which leads to the destruction of cartilage and, eventually, underlying bone. In comparison with OA, RA typically progresses more rapidly. Radiographs have long been used for diagnosis of RA but rely on detection of late stage disease processes such as bone erosions or joint space narrowing. Optimal patient outcomes depend on aggressive treatment with anti-inflammatory drugs early in the disease process. Thus, novel methods to image RA have revolved around early-detection methods and monitoring of treatment response.

As inflammation is a key component to RA pathogenesis, FDG-PET is a logical molecular imaging marker to study the disease (77). In fact, FDG has been applied to studying RA in all segments of the disease cycle. Strong correlations have been cited between PET observations (e.g., number of PET positive joints and cumulative SUV) and underlying disease activity (Figure 3A,B) (78). Further, it has been shown that early changes in regional FDG uptake in RA patients undergoing anti-TNF-α (infliximab) treatment were related to global disease activity in later clinical assessment. Animal models of RA have also been used to show that areas of increased FDG uptake correlated with future bone destruction and pannus formation seen on histology (80). While these preliminary studies suggest that FDG is highly predictive of early disease activity, larger studies are needed to confirm that these findings predict clinical outcomes.

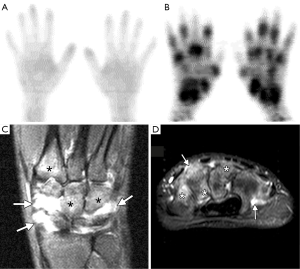

Figure 3 PET and MRI imaging of rheumatoid arthritis in the hand. (A,B) 3D projection image of 18F-FDG uptake in a (A) healthy subject and (B) a subject with rheumatoid arthritis of the hand and wrist (78) [This research was originally published in JNM. Beckers C, Ribbens C, André B, Marcelis S, Kaye O, Mathy L, Kaiser MJ, Hustinx R, Foidart J, Malaise MG. Assessment of disease activity in rheumatoid arthritis with (18)F-FDG PET. J Nucl Med 2004;45:956-64. © by the Society of Nuclear Medicine and Molecular Imaging, Inc.]. 18F-FDG PET can assess the metabolic activity of synovitis and has been correlated with underlying disease activity. (C,D) MRI. (C) Coronal STIR and (D) axial fat-suppressed T2-weighted images of a subject with early rheumatoid arthritis of the wrist and normal radiographic findings. Synovitis can be observed as high signal intensity (arrows) as can bone marrow edema (asterisks) [Narváez JA, Narváez J, De Lama E, De Albert M. MR imaging of early rheumatoid arthritis. Radiographics 2010;30:143-63. (79) with permission]. MRI provides high-resolution anatomical images to assess structural changes for diagnosis and staging of RA disease. Hybrid PET-MRI systems offer to combine high-resolution morphologic images with early molecular markers to enhance the study of RA. 18F-FDG, 18F-fluorodeoxyglucose; PET, positron emission tomography; MRI, magnetic resonance; RA, rheumatoid arthritis.

One limitation with FDG PET is that the tracer detects glucose metabolism but may not be specific to inflammation. Alternatively, other PET radiotracers can track different processes such as cellular proliferation (i.e., by 11C-Choline). Previous work has evaluated PET scans with 11C-Choline and FDG in relation to synovial volume to characterize RA changes (81). A direct marker of inflammation, such as 11C-(R)-PK11195 that tags macrophages in the inflammatory pathway, may offer more specific molecular targets to study RA (82,83).

MRI has similarly been developed for early detection of RA and to assess disease severity. Unlike PET, MRI provides high-resolution anatomical images to assess structural changes (e.g., peri-articular erosions, BMLs and synovial thickening) for diagnosis and staging of RA disease (Figure 3C,D) (79). Contrast enhancement following injection of gadolinium can further differentiate active inflammation from synovitis. Compared with radiographs, MRI offers tomographic information of various contrast methods to provide better visualization and differentiation of soft tissue. Further, MRI’s advanced capabilities for early identification of bone erosions are important considerations for choice of treatment (84). For patients undergoing treatment, scoring systems that evaluate the features of RA from MRI show great potential for monitoring response to therapy (85). Lastly, new MRI methods, such measurement of apparent diffusion coefficient (ADC) and pharmacokinetic modeling of Gadolinium enhancement and washout, offer quantitative metrics to more precisely study RA pathogenesis (86).

Hybrid PET imaging offers the potential to enhance the utility of nuclear medicine techniques to study RA. Studies with PET/CT have shown the importance of FDG uptake in differentiating enteropathies from synovitis in RA conditions (82). The use of FDG reveals clinical inflammation in a majority of RA-affected joints and with greater FDG uptake than comparable OA regions (87). Hybrid PET-MRI systems additionally offer high-resolution morphologic images and multiple contrasts in soft tissue to enhance the study of RA (88). In a recent study, true hybrid PET/MRI was performed in early hand RA; FDG uptake corresponded to sites of synovitis and tenovaginitis as identified on contrast-enhanced MRI, demonstrating the feasibility of PET-MRI to image inflammation in RA (89).

Metabolic bone disorders

Metabolic bone diseases include many hereditary and acquired conditions of diverse etiology that affect bone strength, and can lead to fragility fractures, bone deformities and serious disability if untreated. These diseases are usually caused by abnormalities of vitamins or minerals, bone mass or bone structure. The most common of these disorders include osteoporosis, osteomalacia, Paget’s disease and parathyroid disorders. Clinical imaging of metabolic bone disorders aims to assess bone structure and bone mass in order to gage fracture risk. Conventional radiographs are most commonly used to evaluate bone structure. Bone mass is also commonly measured using digital X-ray radiogrammetry (DXR) and dual energy X-ray absorptiometry (DEXA). However, bone strength not only depends on its mass but also on trabecular bone architecture, bone quality and bone geometry. Non-invasive imaging methods that can measure these bone properties are necessary to better determine future fracture risk.

The metabolic imbalance of catabolic (removal of old or damaged bone) and anabolic (growth of new bone) processes may underlie many metabolic bone diseases. Regional assessment of bone metabolism with 18F-NaF PET is thus attractive (90). Small animal studies on estrogen deficiency in mice showed a strong correlation between 18F-NaF PET and histomorphometric measurements, indicating that bone microdamage was significantly increased after estrogen depletion (91). Cumulative microdamage is a key component in osteoporosis pathogenesis and 18F-NaF PET may be a noninvasive means to detect bone microdamage in vivo. For instance, quantitative dynamic 18F-NaF PET has also been used to study age-related changes in bone turnover in pre- and postmenopausal women (16,92). Bone metabolism and fluoride binding to bone mineral were both significantly reduced in osteoporosis, whereas at the same time biochemical markers of bone turnover (bone-specific alkaline phosphatase) were increased. This somewhat surprising result highlights the importance of regional measurements of bone turnover (from imaging) to improve the understanding of metabolic bone diseases.

PET imaging with 18F-FDG has shown potential in differentiating traumatic fractures from pathologic fractures due to malignancies. Interestingly, several studies have shown acute osteoporotic or traumatic fractures do not show elevated uptake of 18F-FDG (93,94). On the other hand, the increased glucose utilization of macrophages and other active inflammatory cells results in increased FDG uptake in fractures driven by malignant or infectious bone processes. Thus, 18F-FDG could potentially be used to differentiate facture etiology throughout the entire skeletal system.

MRI has been applied to high-resolution imaging of bone structure as well as quantitative measures of bone quality and strength (95,96). Unlike most methods that image bone structure, trabecular and cortical bone is mostly visualized with negative contrast on MRI. The trabecular network can be visualized as signal void surrounded by high-signal-intensity fatty bone marrow (30). This signal void is due to the low water content and very short T2 relaxation time of bone as well as susceptibility effects at the bone–bone marrow interface. In addition to providing high-resolution morphological images, MR is able to characterize bone quality through measures of cortical bone water and bone marrow composition. uTE MRI methods use radial sampling strategies to achieve <1 ms echo times to directly image the short-T2 water content of cortical bone as a surrogate of bone porosity (97,98). uTE scans have been shown to correspond to measures of bone quality and strength in bone specimens (98). Further, studies have shown that pore water increases in populations with increased fracture risk, including post-menopausal women and patients undergoing dialysis (99,100).

By combining structural, functional and metabolic information, PET-MRI has the ability to improve the quantitative assessment of bone strength and fracture risk. Currently, finite element (FE) analysis models are being developed to improve accuracy of bone strength estimates (101,102). MRI-based FE models use high-resolution MRI images to acquire tissue structure along with element material definitions derived from experimental tests of mechanical properties (103,104). The FE model is then virtually compressed under various simulated loads to determine measures of strength and stiffness. Metabolic information from PET about bone remodeling has the potential to improve MRI-based FE models and better quantify bone strength.

Pain generators and peripheral nerve imaging

Pain, both acute and chronic, is the most common reason patients seek medical attention. However, diagnosis and characterization of pain is challenging. Clinical assessment of pain is usually dependent on a patient’s self-analysis, which is highly subjective. Current clinical imaging of pain relies on identifying anatomic abnormalities that may be producing a patient’s clinical symptoms. However, structural abnormalities are often non-specific and are often present in asymptomatic patients with a similar prevalence (105,106). There is a great need for imaging tools that can identify pain-related nociceptive activity.

Molecular imaging of abnormal biological processes associated with pain has been promising to identify pain-generating pathology. FDG PET imaging can image the increased glucose metabolism utilized by inflamed or overactive neurons as a marker of neural activity. Studies in a rat model that used unilateral injury to induce neuropathic limb pain showed increased FDG uptake in injured nerves, but no increase in FDG uptake in the contralateral limb or in control asymptomatic animals (Figure 4) (107). Additionally, in a human subject presenting with progressive difficulty walking, increased FDG uptake was observed in his lower spinal cord and sciatic nerves (108). Biopsy of the tissues confirmed the pathologic signs of neuropathy. In addition to FDG, several other molecular PET tracers are being evaluated to image pain-related nociceptive activity. These include 11C-PK11195 to image activated microglia and macrophages in neuroinflammation (109), and 18F-FTC-146, a new marker of sigma 1 receptors to directly assess signaling pathways involved in pain (110).

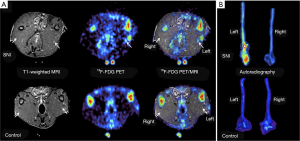

Figure 4 FDG uptake in rat model of neuropathic limb pain. (A) Representative spared-nerve injury (SNI) (top row) and control (bottom row) animals on transaxial MRI, PET, and PET/MRI with labelled sciatic nerves (arrows). Significantly increased 18F-FDG uptake is seen on the side with spared-nerve injury (left) compared with the control side (right). No significant differences between sides are observed in control animal sciatic nerves. (B) Autoradiography of sciatic nerve specimens from spared-nerve injury animals showed that normalized radiotracer uptake is higher in the injured sciatic nerve (left) than in the control sciatic nerve (right). PET/MRI offers to combine molecular information to localize neuropathic pain with MRI which is able to provide high-resolution visualization of anatomical abnormalities (107). [This research was originally published in JNM. Behera D, Jacobs KE, Behera S, Rosenberg J, Biswal S. (18)F-FDG PET/MRI can be used to identify injured peripheral nerves in a model of neuropathic pain. J Nucl Med 2011;52:1308-12. © by the Society of Nuclear Medicine and Molecular Imaging, Inc.]. MRI, magnetic resonance; PET, positron emission tomography; 18F-FDG, 18F-fluorodeoxyglucose.

Direct MR imaging of pain has relied on tracking of macrophages with small particles of iron oxide (SPIO). Tagged with SPIOs, macrophages have been shown to traffic to a site of nerve injury in animal models. However, these have yet to be applied in humans (111). In addition, MRI has long been used for high-resolution imaging of peripheral nerves. Clinical evaluation usually involves identification of inflammation around nerves as high signal on fat-suppressed T2-weighted images. Fat-suppressed T1-weighted can also be used for morphology and to differentiate injured nerves from blood vessels. MRI has been used to identify entrapment neuropathies, plexus lesions and nerve compression syndromes (112,113). However, while MRI can provide high resolution imaging of peripheral nerve abnormalities, it has low specificity to identify the inciting nerve inflammation or injury.

Hybrid PET-MRI systems offer to combine the strength of each individual imaging modality and overcome the weakness of the other. PET offers molecular information to localize neuropathic pain while MRI is able to provide high-resolution to visualize anatomical abnormalities. Early experiences with hybrid PET-MR imaging in patients suffering from chronic lower extremity neuropathic pain showed FDG uptake could be localized to affected nerves and impacted clinical management of their pain (114).

Challenges and alternative imaging methods

This review has focused on the potential for hybrid PET-MRI in non-oncologic musculoskeletal applications. Many of the challenges of simultaneous PET-MRI, including quantification, attenuation correction, and workflow considerations, are discussed in the technical considerations above. The standalone PET and MRI techniques discussed in the applications section above also have challenges, such as sensitivity to field inhomogeneities or the need for motion correction, which would feature into PET-MRI studies that utilize these methods. Additionally, there are many other imaging methods that have shown potential for solving some of the complex problems discussed above that were not discussed (2). This includes single-photon emission computed tomography (SPECT) for imaging of infection or bone turnover (115), high-resolution peripheral quantitative computed tomography (pQCT) for assessment of bone mineral density (116), as well as ultrasound (117) and optical methods (118).


Together, hybrid PET-MRI systems offer the potential to obtain metabolic, morphologic and functional information from all tissues to aid the study of musculoskeletal disease diagnosis and pathogenesis as well as determine targets for disease modifying therapies.


Funding:This work was supported by a National Institute of Health (NIH) (Grant R01EB002524, K24AR062068) and research support from GE Healthcare.


Conflicts of Interest: The authors receive research support from GE Healthcare.
