Multiparameter computed tomography (CT) radiomics signature fusion-based model for the preoperative prediction of clear cell renal cell carcinoma nuclear grade: a multicenter development and external validation study

Introduction

Renal cell carcinoma (RCC) is the sixth and tenth most commonly diagnosed cancer among men and women worldwide, respectively (1,2). Over 70% of RCC cases are clear cell renal cell carcinoma (CCRCC), which contributes to the majority of fatalities among RCC patients (3). The pathological nuclear grade is a key prognostic factor for CCRCC. High-grade (grades III and IV) patients tend to have a lower five-year survival rate and overall survival time than those with low-grade (grades I and II) CCRCC (4-6). Additionally, the heterogeneity in tumor progression between high- and low-grade CCRCC affects the available treatment options (7). Currently, the only way to determine the nuclear grade is through biopsy, which is invasive and labor intensive. Thus, there is a pressing need for non-invasive, accurate, and labor-free tools to predict the grading level of CCRCC preoperatively.

Two systems have been used to estimate the nuclear grade of CCRCC: the Fuhrman grading system, and the 2016 World Health Organization/International Society of Urological Pathology (WHO/ISUP) system (8). Recently, the use of the WHO/ISUP system in practice has surpassed that of the Fuhrman grading system due to its advantages in applicability, repeatability, and clinical interrelation (8-10). The preoperative prediction of WHO/ISUP grades for CCRCC patients has more clinical management benefits than the Fuhrman grading system.

Computed tomography (CT) is the most common diagnostic tool for patients with CCRCC, due to its ability to stage tumors and evaluate invasiveness (11,12). However, the ability of CT to predict the nuclear grades of CCRCC is unsatisfactory, as the accuracy of CT image-based assessments depends on the subjective judgments of radiologists, which are empirically and manually dependent, and have low repeatability (13,14).

A radiomics approach enables high-throughput feature extraction from medical images, transforming imaging data into high-resolution mining data that reveals the spatial and temporal heterogeneity of tumors (15,16). Several studies have shown that CT image-based radiomics methods can assist in assessing the clinical progression of multiple cancers, including CCRCC, by differentiating between benign and malignant tumors, predicting the pathological subtypes of neoplasms and patient prognosis, and so on (14,17-24). However, most previous studies have largely relied on radiomics features from one or two CT phases to predict the CCRCC grade, and few have adopted more than one external set to validate their findings, resulting in reduced predictive performance and generalizability (21,25,26). To address this issue, this study sought to develop a multiparameter CT radiomics-based model that combines three-phase CT-rooted radiomics signatures (RSs) with clinical parameters to preoperatively predict the WHO/ISUP grades of CCRCC, and validate our findings using two external datasets. We present this article in accordance with the TRIPOD reporting checklist (27,28) (available at https://qims.amegroups.com/article/view/10.21037/qims-24-35/rc).

Methods

Study cohorts

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This retrospective study was approved by the Institutional Ethics Review Board of The First Affiliated Hospital of Chongqing Medical University (approval number: 2022-KY508), and the requirement of informed consent was waived due to the retrospective nature of this multicenter study. All the participating hospitals were informed of and agreed to participate in the study.

Patients who underwent nephrectomies at The First Affiliated Hospital of Chongqing Medical University (FAHCQMU) between January 2016 to May 2022 and had a pathologically confirmed diagnosis of CCRCC were recruited for the study. A total of 690 patients were enrolled in the study. Patients were excluded from the study if they met any of the following exclusion criteria: (I) had incomplete clinical or pathological data (n=113); (II) had their pathological nuclear grade evaluated according to the Fuhrman grading system (n=92); (III) had incomplete clear plain scan, corticomedullary phase (CMP), or nephrographic phase (NP) CT images (n=92); (IV) had undergone preoperative therapies (n=7); and/or (V) had multiple tumors on one kidney (n=3). It should be noted that the patients with multiple tumors on one kidney were excluded to ensure the internal and external validity of our study. Ultimately, 383 patients were included in this study. These patients were randomly divided into the training (n=268) and internal testing (n=115) sets at a ratio of 7:3. Patients from The Second Affiliated Hospital of Chongqing Medical University and Yongchuan Hospital of Chongqing Medical University were recruited between January 2018 to May 2022 using the same inclusion and exclusion criteria set out above, and were included as the external testing set 1 (n=62) and the external testing set 2 (n=55). The patient enrolment flowchart is shown in Figure 1.

Figure 1 Flowchart of patient recruitment. Center 1 (FAHCQMU), The First Affiliated Hospital of Chongqing Medical University; Center 2 (SAHCQMU), The Second Affiliated Hospital of Chongqing Medical University; Center 3 (YCHCQMU), Yongchuan Hospital of Chongqing Medical University; CCRCC, clear cell renal cell carcinoma; CT, computed tomography.

Clinical variables, such as age, sex, tumor size (which was defined as the maximum diameter of the tumor), intratumoral necrosis [which was defined as the non-enhancement regions within the tumor during both the corticomedullary and NPs (29)], body mass index (BMI), clinical tumor-node-metastasis (TNM) stage [according to the standard TNM criteria, which were developed jointly by the Union for International Cancer Control and American Joint Committee on Cancer (30)], and the WHO/ISUP grades, were collected from the respective institutional electronic medical record systems of the hospitals. Under the two-tiered CCRCC classification system used in this study, grades I and II were designated as low-grade tumors, and grades III and IV as high-grade tumors. Previous research has shown that this system provides comparable survival information to the WHO/ISUP grading system (31).

CT examinations

Contrast-enhanced CT examinations were conducted within two weeks before the nephrectomy operations. The CT acquisition parameters are set out in Table S1. Iodinated nonionic contrast agent (dose: 1 mL/kg of body weight) was administered via an electric power injector into the antecubital vein at a rate of 2.5–3.0 mL/s. A non-contrast phase (NCP) CT scan of the abdomen was performed, followed by three post-contrast CT scans acquired at different phases; that is, the CMP, which was obtained 30 seconds after contrast administration; the NP, which was acquired 80 seconds after contrast administration; and the excretory phase (EP), which was obtained 180 seconds after contrast administration. Two independent radiologists (both with 10 years of experience in assessing abdominal and urological CT images) reported the radiological features, such as intratumoral necrosis and tumor size, based on the contrast-enhanced CT images, and any discrepancies were re-evaluated by a third senior radiologist (with over 20 years of experience in evaluating abdominal and urological CT images). As a large number of the patients lacked EP images, only NPC, CMP, and NP images were downloaded in Digital Imaging and Communications in Medicine format, and selected for the subsequent radiomics analysis. The overall workflow for the feature selection and model building procedures are shown in Figure 2.

Figure 2 The overall workflow of the feature selection and model building procedures. NCP, non-contrast phase; NP, nephrographic phase; CMP, corticomedullary phase; CT, computed tomography; ROIs, regions of interest; 2D, two-dimensional; 3D, three-dimensional; RS, radiomics signature; BMI, body mass index; WHO/ISUP, World Health Organization/International Society of Urological Pathology; ROC, receiver operator characteristic; DCA, decision curve analysis.

Segmentation of tumor regions and extraction of radiomics features

An independent radiologist (Reader 1, who had 5 years of experience in abdominal imaging diagnosis) manually segmented the tumor regions and delineated the regions of interest (ROIs) using ITK-SNAP software (version 3.8.0). The ROIs were first delineated on the CMP images, followed by the NP images, and then the NCP images. To evaluate the reproducibility radiomics features, 30 patients were randomly selected for ROI re-segmentation by Reader 1 and another radiologist (Reader 2, who had 5 years of experience in abdominal imaging diagnosis). Each patient’s images from all three phases were included, resulting in a total of 90 images (30 images per phase). The intra-class and inter-class correlation coefficients were calculated. Features with both intra-class and inter-class correlation coefficients >0.80 were included in the subsequent analysis.

The CT images were re-sampled to a voxel of 1×1×1 mm³ via B-spline interference, and underwent gray-level discretization. Next, using the “Pyradiomics” (32) package in Python (version 3.7.1), the radiomics features were extracted and separately standardized via z-scores. The mean and standard deviation (SD) of the training set were used to normalize the internal and external testing cohorts, resulting in standardized features to ensure an accurate and reliable analysis. The types of radiomics features extracted in this study are listed in Table S2.

To address the imbalance in patient numbers between the high-grade (n=59) and low-grade (n=209) CCRCCs, we applied the synthetic minority oversampling technique to the training set. This technique involved generating synthetic samples in the minority class to achieve a more balanced representation of the classes, improving the model’s performance in predicting high-grade CCRCCs that were underrepresented in the data (33).

Selection of radiomics features

First, a t-test was performed to identify significant differences in radiomics features between the low- and high-grade CCRCCs in the training cohort. Next, these features were processed by five-fold cross-validation least absolute shrinkage and selection operator (LASSO) regression to identify the subset of features with the best predictive ability for distinguishing between high- and low-grade CCRCC. Radiomics scores were calculated according to the weight coefficients of the features selected by LASSO regression, and four RSs; that is, RS-Triphasic, RS-CMP, RS-NP, and RS-NCP, were established.

Model construction

The RS-Triphasic, RS-CMP, RS-NP, RS-NCP, and clinical variables were integrated, and multivariate logistic and forward-backward stepwise regression analyses were conducted. A final reduced multivariate logistic regression analysis was conducted to identify the factors that could predict high-grade CCRCC, and a combined model was constructed and visualized via a user-friendly nomogram. Employing clinical parameters only, a clinical model was built using the same method described above.

Performance evaluation

The predictive performance of the established models was evaluated via a receiver operating characteristic (ROC) curve analysis using the area under the curve (AUC) values. The accuracy, sensitivity, specificity, positive predictive value, and negative predictive value were determined using the cut-off values. To assess the discrimination ability of the radiomics nomogram, calibration curves were created using bootstrapping with 1,000 re-samples. The clinical utility of the established models was evaluated by decision curve analysis (DCA).

Quality control

This study followed the guidelines provided by the Image Biomarker Standardization Initiative to ensure standardization (34). Additionally, the reliability of the research was assessed using the radiomics quality score (RQS; version 1.0) (35). The RQS for this study was 19, which represents a score of 52.8%. Detailed information on the scoring can be found in Appendix 1.

Statistical analysis

The normality of the continuous variables was evaluated using the Shapiro-Wilk test. The normally distributed continuous variables are reported as the mean (SD), and were compared using the Student’s t-test. The categorical variables were compared using the chi-square or Fisher’s exact test. All the data analyses were conducted using R software (version 4.1.2) and SPSS software (version 23.0). A two-tailed P value <0.05 was considered statistically significant.

Results

Clinical characteristics

A total of 500 patients (male to female ratio: 298:202; low- to high-grade ratio: 373:127; average age: 57.86±11.95 years) who met the inclusion and exclusion criteria were included in this study. Among them, 383 patients were recruited from the FAHCQMU and divided into a training set (n=268) and an internal testing set (n=115), while the remaining patients were assigned to external testing sets 1 (n=62) and 2 (n=55). Table 1 provides a summary of the baseline clinical characteristics of the whole study cohort.

The differences in the clinical variables between the patients with low- and high-grade CCRCCs are summarized in Table 2 for the training, internal, and external validation sets. In the training cohort, patients with high-grade CCRCCs had larger tumor sizes (P<0.0001), a higher incidence of intratumoral necrosis (P<0.0001), and were at higher clinical T (P<0.0001), N (P<0.0001), and M (P=0.001) stages than the low-grade CCRCC patients.

Selection of radiomics features

A total of 1,743 radiomics features were extracted from the CT images of each phase (i.e., CMP, NP, and NCP). A total of 1,312 features extracted from the CMP with both the inter- and intra-observer correlation coefficients >0.80 were fed into the t-test and LASSO algorithm, and 16 features were found to have a superior discriminatory ability to assess nuclear grade (Figure 3A,3B). The weighting coefficients of the selected features are shown in Figure 3C. Similar selection methods were applied to the NP and NCP radiomics features, leading to the identification of 14 and 11 selected features, respectively (Figure 3D-3I).

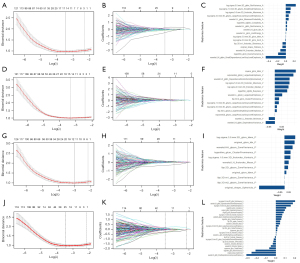

Figure 3 The radiomics feature selection results using the LASSO algorithm. Based on minimum criteria, LASSO regression selected 16, 14, 11, and 25 radiomics features from the (A) CMP, (D) NP, (G) NCP, and (J) Triphasic CT images, respectively, with Tuning parameter (λ) values of 0.0309, 0.0362, 0.0489, and 0.0309, respectively. The coefficient profile plots of the identified non-zero coefficients for (B) CMP, (E) NP, (H) NCP, and (K) Triphasic radiomics features were generated against the selected log λ values. The names and corresponding weighting coefficients of the selected (C) CMP, (F) NP, (I) NCP, and (L) Triphasic radiomics features. LASSO, least absolute shrinkage and selection operator; CMP, corticomedullary phase; NP, nephrographic phase; NCP, non-contrast phase; CT, computed tomography.

The radiomics features from the three phases were combined. Of the 3,519 features that exhibited good repeatability, the t-test analysis and LASSO screening resulted in 25 features, comprising 9 features from the CMP images, 4 from the NP images, and 12 from the NCP images (Figure 3J-3L). The correlation heatmaps of the selected radiomics features are shown in Figures S1-S4.

Radiomics model construction

Four RSs (i.e., RS-CMP, RS-NP, RS-NCP, and RS-Triphasic) were established according to the formulas detailed in Appendix 2. As Table 3 shows, RS-Triphasic had the best predictive performance with AUCs of 0.88 [95% confidence interval (CI): 0.85–0.91] and 0.84 (95% CI: 0.74–0.95) in the training and internal testing set, respectively, and 0.82 (95% CI: 0.72–0.93) and 0.82 (95% CI: 0.71–0.93) in external testing sets 1 and 2 (Figure 4A), followed by RS-CMP with AUCs of 0.84 (95% CI: 0.81–0.88), 0.83 (95% CI: 0.71–0.95), 0.80 (95% CI: 0.68–0.91), and 0.80 (95% CI: 0.69–0.92) in the training, internal testing, and external testing sets 1 and 2, respectively (Figure 4B). RS-NP ranked third in terms of its performance, and RS-NCP was the worst-performing RS (Figure 4C,4D).

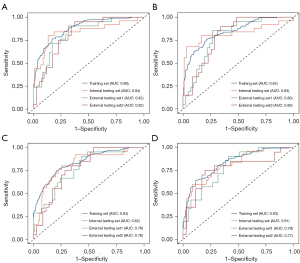

Figure 4 The ROC curves of the (A) RS-Triphasic, (B) RS-CMP, (C) RS-NP, and (D) RS-NCP in the training, internal testing, and external testing sets 1 and 2. AUC, area under the curve; ROC, receiver operator characteristic; RS, radiomics signature; CMP, corticomedullary phase; NP, nephrographic phase; NCP, non-contrast phase.

Clinical model building

Based on the results of the multivariate logistic regression analysis, age [odds ratio (OR): 0.98, 95% CI: 0.97–1.00], sex (OR: 0.68, 95% CI: 0.45–1.03), intratumoral necrosis (OR: 0.54, 95% CI: 0.33–0.88), and tumor size (OR: 1.40, 95% CI: 1.26–1.55) were included in the clinical model (Table S3). The clinical model had AUCs of 0.76 (95% CI: 0.72–0.81), 0.74 (95% CI: 0.62–0.87), 0.73 (95% CI: 0.58–0.87), and 0.70 (95% CI: 0.54–0.85) in the training, internal testing, and external testing sets 1 and 2, respectively (Table 3). The ROC curves of the clinical model for the four study sets are shown in Figure S5.

Establishment of the combined model

RS-Triphasic, RS-CMP, RS-NP, and RS-NCP were integrated with clinical factors, and the multivariate logistic regression analysis was conducted. RS-Triphasic (OR: 4.98, 95% CI: 3.08–8.06), RS-CMP (OR: 2.11, 95% CI: 1.07–4.14), RS-NP (OR: 2.74, 95% CI: 1.03–7.29), RS-NCP (OR: 3.59, 95% CI: 1.46–8.82), age (OR: 0.97, 95% CI: 0.95–1.00), and intratumoral necrosis (OR: 0.26, 95% CI: 0.14–0.49) were found to be independent risk factors for patients with high-grade CCRCC (Table 4). A combined model was thus established with AUCs of 0.92 (95% CI: 0.89–0.94), 0.86 (95% CI: 0.76–0.95), 0.84 (95% CI: 0.73–0.95), and 0.82 (95% CI: 0.70–0.94) in the training, internal testing, and two external testing sets, respectively, with accuracies of 0.84, 0.79, and 0.73, and sensitivities of 0.64, 0.76, and 0.91 in the internal and two external testing sets, respectively (Figure 5A,5B). A user-friendly nomogram was plotted (Figure 5A). Table 3 details the predictive performance of the nomogram in the four study cohorts.

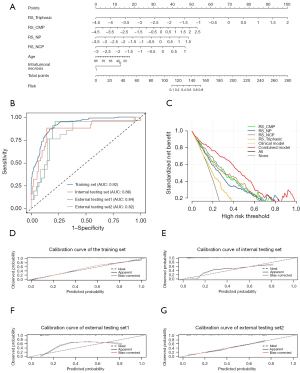

Figure 5 The establishment and performance evaluation of the nomogram. (A) The multivariate logistic regression indicated that RS-Triphasic, RS-CMP, RS-NP, RS-NCP, age, and intratumoral necrosis were independent risk factors for patients with high-grade CCRCC. A combined model was then constructed and visualized via a nomogram. (B) The ROC analysis of the combined model. (C) The DCA result showed that the combined model provides more benefits to patients with CCRCC across most thresholds. The calibration curve analysis of the combined model in the (D) training, (E) internal testing, and external testing sets (F) 1 and (G) 2. AUC, area under the curve; RS, radiomics signature; CMP, corticomedullary phase; NP, nephrographic phase; NCP, non-contrast phase; CCRCC, clear cell renal cell carcinoma; ROC, receiver operator characteristic; DCA, decision curve analysis.

In terms of predicting the pathological nuclear grades of CCRCC, the DCA results showed that the combined model performed better across most threshold probabilities than the clinical and radiomics models (Figure 5C). The calibration curves of the nomogram in the different study cohorts are presented in Figure 5D-5G.

Discussion

This study developed and externally validated four RSs for the preoperative prediction of WHO/ISUP grades based on the data of 500 patients from three independent centers. A combined model that incorporated the RSs with clinical features was also established. The combined model showed excellent predictive performance in both the training, internal testing and external testing sets, and outperformed the clinical model and RSs. Due to the large-scale and multicenter design of this study, the established multiparameter CT radiomics-based model is more reliable than other models and easily applicable to clinical settings. Our findings indicated that the contrast-enhanced CT image-based radiomics method can reveal the differences in the pathological nuclear grades of CCRCC and may aid in personalized treatment planning for patients with different WHO/ISUP grading levels.

Several studies have explored the potential of radiomics methods to predict the WHO/ISUP grades of CCRCC, and these methods have presented with AUCs ranging from 0.810–0.910 in the testing sets (26,36-39). Our model showed comparable predictive performance. Unlike most previous studies that have employed single-center cohorts and have had limited sample sizes, we recruited a large study cohort from three independent medical centers (n=500); thus, our established models are more reliable and easier to generalize. We also used multiparameter CT imaging based radiomics features to capture comprehensive tumor characteristics from different CT phases, and constructed a more accurate triphasic model (the RS-Triphasic) using a post-fusion method.

The RS-Triphasic showed the best predictive performance among the four RSs with AUCs of 0.88 (95% CI: 0.85–0.91) and 0.84 (95% CI: 0.74–0.95) in the training and testing sets, respectively, and 0.82 (95% CI: 0.72–0.93) and 0.82 (95% CI: 0.71–0.93) in external testing sets 1 and 2. To further improve the predictive performance of the radiomics model, we also incorporated clinical factors. The results of the multivariate logistic regression analysis indicated that age (OR: 0.97, 95% CI: 0.95–1.00), intratumoral necrosis (OR: 0.26, 95% CI: 0.14–0.49), RS-Triphasic (OR: 4.98, 95% CI: 3.08–8.06), RS-CMP (OR: 2.11, 95% CI: 1.07–4.14), RS-NP (OR: 2.74, 95% CI: 1.03–7.29), and RS-NCP (OR: 3.59, 95% CI: 1.46–8.82) were independent diagnostic factors for high-grade CCRCC. A combined model was then built including these factors. The combined model had AUC values of 0.92 (95% CI: 0.90–0.94), 0.86 (95% CI: 0.76–0.95), 0.84 (95% CI: 0.73–0.95), and 0.82 (95% CI: 0.70–0.94) in the training, internal testing, and two external testing sets, respectively.

It should be noted that, age has been found to be a risk factor for high-grade CCRCC in previous studies (40); however, the results of the current study contradict this finding. The OR value for age was 0.97, which suggests that the promotability of this factor is very weak. The inconsistencies in these results may be due to selection bias. Moreover, while significant differences in tumor size distributions across the datasets were found, these discrepancies did not significantly affect our results. This is primarily because tumor size was excluded from the combined model for subgroup differentiation following the multivariate logistic regression analysis.

Additionally, while the RS-Triphasic included radiomics features from three CT imaging phases, its integration with individual RSs in the combined model served several critical purposes. First, variations in feature selection between the RS-Triphasic and individual RSs arose from differences in statistical properties and contributions to the predictive model. Second, the inclusion of the RS-Triphasic alongside the individual RSs captured a comprehensive range of radiomics features associated with CCRCC pathology, enhancing predictive accuracy. Additionally, this integration ensured a robust assessment of CCRCC pathology, considering potential variations in feature importance across imaging phases. Overall, the current study represents a significant advancement in the field of radiomics-based prediction of CCRCC grade. The multicenter design, the use of a multi-phase CT imaging protocol, and the incorporation of clinical factors all contribute to the increased accuracy and clinical utility of the predictive model.

This multiparameter CT RS fusion-based model has several advantages over traditional diagnostic tools, such as CT and percutaneous needle renal biopsy. One significant advantage of the radiomics model is its non-invasive nature; it does not require an invasive procedure like biopsy, which can be associated with a risk of complications, such as bleeding or infection (41-43). Moreover, the accurate grading of CCRCC can provide information about the aggressiveness of the cancer, and can aid in determining the optimal treatment strategy for each patient. For example, patients with low-grade CCRCC may be candidates for active surveillance or partial nephrectomy, while patients with high-grade CCRCC may require more aggressive treatments, such as radical nephrectomy or systemic therapy (44). The accurate preoperative prediction of CCRCC grades can also help clinicians determine the extent of surgery needed and guide the choice of the surgical approach (44,45). In addition, the nomogram can improve the accuracy of preoperative diagnosis and reduce the risk of underestimating the grade of CCRCC. CT or percutaneous needle renal biopsy can be limited by sampling errors or tumor heterogeneity, which can result in an inaccurate diagnosis (13). Conversely, the combined model uses radiomics features derived from multi-phase CT images and thus provides a more comprehensive assessment of tumor characteristics.

This study had several limitations. First, this study was retrospective; thus, selection bias is inevitable, and prospective validation is needed to confirm the generalizability of the findings. Second, the study focused on the preoperative prediction of CCRCC grade and did not evaluate the prognostic value of the radiomics-based model in predicting patient outcomes, such as survival or recurrence. Third, the study only included patients with CCRCC; thus, the performance of the radiomics-based nomogram in other types of RCC needs to be evaluated.

Conclusions

This study developed and externally validated a multi-phase CT radiomics-based model for the preoperative prediction of WHO/ISUP grades of CCRCC. This combined model integrated RSs with clinical factors, and showed high accuracy and outperformed clinical model and radiomics models alone. Thus, it may provide a more comprehensive approach for predicting the WHO/ISUP grade of CCRCC and may assist in the development of clinical and management strategies.

Acknowledgments

The authors would like to thank all the clinicians and technicians at the Radiology, Urology, and Pathology Departments at The First Affiliated Hospital of Chongqing Medical University who provided us with professional advice and guidance.

Funding: This research was supported by the Chongqing Talents and Famous Teachers Project (No. CQYC202003) and the Chongqing Municipal Education Commission’s 14th Five-Year Key Discipline Support Project (No. 20240101).

Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-24-35/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-24-35/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Institutional Ethics Review Board of The First Affiliated Hospital of Chongqing Medical University (approval number: 2022-KY508), and the requirement of informed consent was waived due to the retrospective nature of this multicenter study. All the participating hospitals were informed of and agreed to participate in the study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
