Interactive effect of hemodynamics in transverse sigmoid sinus and bone morphology on venous pulsatile tinnitus: a four-dimensional (4D) flow magnetic resonance imaging (MRI) study

Introduction

Pulsatile tinnitus (PT) is a chronic and rare form of tinnitus with a sensation of hearing rhythmic noise with the same frequency of the heartbeat and pulse (1). PT is caused by vascular abnormalities with venous pulsatile tinnitus (VPT) being a common presentation (2). In recent years, the VPT has been increasingly seen, causing emotional and behavioral impacts, thus affecting the quality of life of people, and some severe cases end up in life-threatening complications (3,4).

Changes in blood flow and bone changes around the sigmoid sinuses are common imaging manifestations of VPT patients. Previous studies on computed tomography (CT) evaluation of the structure found that there were abnormalities in the transverse sigmoid sinus (TSS), such as diverticulum and dehiscence (5-7), resulting in venous pulsations which were captured by the cochlea and produced VPT. Sigmoid sinus bone dehiscence (BD), which is one of the common causes of VPT, can be detected by high-resolution CT (HRCT) (8,9). The VPT is always accompanied by abnormal venous blood flow (10). Some recent studies found that the blood flow in the TSS in patients with VPT was with faster flow velocity, higher flow rate, and presence of turbulence (11-14). However, these observations varied between individuals (11). These analyses were primarily focused on the blood flow volume and velocity (9,13), but a few previous studies focused on the stress parameters acting on the venous wall and perivenous bone, as well as the energy consumption parameters of the blood flow (14). Additionally, further research like mediation effect analysis on the relationship between hemodynamics, bone morphology, and tinnitus occurrence and development is rare.

With the rapid development of three-dimensional (3D) phase contrast magnetic resonance imaging (MRI) technology (15), four-dimensional (4D) flow MRI (when 3D spatial encoding and three-directional time-varying velocity phase contrast MRI are combined) is increasingly used in diagnosing cerebrovascular diseases, such as aneurysms, atherosclerosis, and arteriovenous malformations (16-19). Furthermore, it has been used in VPT research. The 4D flow MRI can simultaneously collect multiple parameters such as velocity, wall shear stress, and energy loss (15). However, the information on the interaction between the abnormal blood flow and BD specific to the severity of VPT is presently lacking. Therefore, we aimed to comprehensively elucidate the location of abnormal blood flow in VPT patients using 4D flow MRI. Additionally, we planned to determine the risk factors contributing to VPT. Subsequently, the interaction between hemodynamic changes of TSS detected by 4D flow MRI and BD detected by HRCT will be investigated, their contributions to the severity of VPT will also be studied using the mediation effect analysis. We present this article in accordance with the STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-24-610/rc).

Methods

The retrospective study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional ethics board of Tianjin First Central Hospital (No. 2017N002KY) and individual consent for this retrospective analysis was waived.

Participants

Forty-nine patients with clinically confirmed unilateral VPT were included in this study and the VPT was diagnosed according to the criteria from the previous studies (10,13). They were as follows: (I) patients who had rhythmic sounds consistent with the heartbeat, which were relieved or absent when the internal jugular vein was compressed on the side of symptoms; (II) otoscopy and imaging examination excluded other causes such as glomus tympanicum tumors and glomus jugular tumors that could have caused PT. Twenty-six patients with clinically confirmed non-pulsatile subjective tinnitus were included in the subjective tinnitus (ST) group and 36 healthy controls without tinnitus symptoms were included in the healthy controls (HCs) group. The diagnostic criteria of the ST are in the Appendix 1. The clinical characteristics of the subjects were gender, age, side of the symptoms, duration of disease, body mass index (BMI), and presence of dominant drainage (DD) in the transverse-sigmoid sinus and high jugular bulb (HJB), and the diagnostic criteria can be seen in Figure S1 (17,18).

Assessment of tinnitus severity

Tinnitus Handicap Inventory (THI) was used to assess the severity of tinnitus in VPT and ST patients. It is a comprehensive scale and can simultaneously assess the function, mood, and patients’ response to symptoms, with high internal consistencies (19). The scale consisted of 25 questions with a full score of 100, and a higher score indicated that the tinnitus was more severe.

Imaging protocol

The HRCT on the temporal bone was carried out using a Somatom force CT scanner (Siemens Healthineers, Marburg, Germany). The parameters used for scanning were slice thickness of 0.75 mm and tube current of 150 mAs and tube voltage of 120 kVp per slice. The MRI was performed on all subjects using a 3.0T magnetic resonance scanner (Philips Ingenia, 3.0T, Amsterdam, the Netherlands) and 4D flow MRI data were acquired using a free-breathing, peripheral pulse-gated, and multi-shot turbo field echo sequence (Appendix 1), with 3-direction velocity encoding on a 4-point velocity encoding scheme. The velocity encoding was set to 75 cm/s in all directions. The phase-encoding steps per segment resulted in a temporal resolution of 49–51 ms, which was interpolated to 14–16 cardiac phases per cardiac cycle. The 3D-PC-MRV scan was also performed in this study.

Imaging analysis

The HRCT and MR images were independently assessed for each patient by two trained neuroradiologists with 2 and 8 years of neuroradiological experience, respectively, who were blinded to the clinical information of all subjects. The standard HRCT images were carefully evaluated to ensure that all transverse sigmoid dehiscence could be found. The two neuroradiologists determined the presence of dehiscence and subsequently counted the amount of dehiscence. After multiple plane reconstruction of HRCT, the maximum diameter of each fissure was measured. If a patient had multiple defects, the sum of the maximum diameter line of each defect represented the diameter of the BD in a patient (Figure 1).

Figure 1 Schematic diagram of the bone defect and hemodynamic measurement. (A) The measurement of maximum diameter of sigmoid sinus’ dehiscence. (B,C) Multiple plane reconstruction technology was used to find the plane with the largest range of dehiscence for measurement. (D-I) Hemodynamic measurement steps and the measurement planes. (D) Manually outlined region of interests. (E) Manually segmented vessels of interest. (F) The tracked centerline of the vessels of interest. (G) The vessels of interest that were analyzed and calculated. (H) The observed streamline and placed free plane. (I) The six measurement planes.

Hemodynamic analysis

The commercially available software CVI-42 (Circle Cardiovascular Imaging, Inc., Calgary, AB, Canada) was used for post-processing analysis of the hemodynamic 4D flow MRI data from all subjects (20). Post-processing methods were reported in the consensus recommendations (21) and a previous study (22). The specific measurement process is shown in Figure 1 and Appendix 1.

Six measurement planes were set to assess the hemodynamics of each subject. When setting the free planes, we ensured the same position of the measurement plane setting using the three-dimensional display function per subject, and it also should be noted that the plane was set in the direction perpendicular to the blood flow. All vessels were included based on the following criteria: (I) vessels were clear enough for the accurate measurement, (II) no vascular malformations or arteriovenous fistulas significantly affected the hemodynamics. Since all patients with VPT included in our study had unilateral tinnitus, we performed unilateral measurements each time. For subjects in the ST group, we included the vessels on the symptomatic side. For the HCs, we included the bilateral vessels if they met the above criteria.

The following hemodynamic parameters selected for the analysis were total blood flow volume (TV) (mL); peak velocity (PV) (cm/s); maximum wall shear stress (MWSS) (Pa); in all six planes and maximum energy loss (MEL) (mW) between plane 1 and plane 6. The calculation method for wall shear stress (WSS) was reported in a previous study (14). In 4D flow MRI, WSS could be calculated from two-dimensional (3D) analysis planes perpendicular to the vascular lumen or, as more recently demonstrated, by 3D techniques. Images were corrected for background offset errors and velocity aliasing artifacts. WSS represented the tangential force displayed by a layer of fluid on the endothelial surface, mathematically defined as the product of shear rate and shear stress (23). The calculation formula for WSS was as follows:

τ¯=2μ[∂vx∂x12(∂vy∂x+∂vy∂y)12(∂vz∂x+∂vx∂z)12(∂vx∂y+∂vy∂x)∂vy∂y12(∂vz∂y+∂vy∂z)12(∂vx∂z+∂vz∂x)12(∂vy∂z+∂vz∂y)∂vz∂z]n¯[1]

Energy loss (EL) was calculated within a predefined segmentation from sinus confluence to internal jugular vein. Peak systolic and average EL per cardiac cycle were sampled per considered tract. Barker et al. (24) theoretically deduced and described the EL dissipation caused by viscous energy loss, in which the viscous dissipation was calculated by the viscous component of the Navier Stokes flow energy equation of incompressible fluid according to a single prime basis in a predefined region of interest. The centerline through our vascular segmentation of interest helped depict EL within a predetermined volume range (25). The calculation formula for EL was as follows (14):

ΦV=12∑i∑j[(∂vi∂xj+∂vj∂xj−23(∇⋅v)δij)]2[2]

where δij=1fori=j and δij=0fori≠j

EL=μ∑i=1numvoxelsΦvVi[3]

Statistical analysis

Statistical analysis was performed using SPSS version 25.0 (IBM Corp., Armonk, NY, USA). The Kolmogorov-Smirnov test was used to determine the normal distribution of the data. The categorical data were expressed as the frequency with percentages. The continuous data were presented as median and interquartile range (IQR) (the range between the 25th and 75th percentiles). The Chi-square test was used to compare the differences of the categorical variables including gender, side of symptoms, DD, and HJB. The nonparametric test was used to compare continuous variables including BMI, PT duration, THI score, and hemodynamic parameters. Stepwise linear regression analysis was employed to explore the risk factors of the BD and the severity of the VPT. Mediation effect analysis was performed to explore the relationship between hemodynamic factors, BD, and PT severity. The P value of <0.05 was considered statistically significant.

Results

Demographics

Demographic and clinical characteristics of all participants are shown in the Table 1. The study included 49 patients (49 veins) with clinically confirmed unilateral VPT. In the control groups, 26 ST patients (32 veins) and 36 HCs (51 veins) were included. The majority of patients with VPT were young and middle-aged (mean age, 38±9 years) with a predilection of female (41/49, 83.7%). Compared with the ST group (53.8%) and HCs group (30.6%), the patients in the VPT group often had HJB (69.4%) with a P value of 0.013.

In the VPT group, the median duration of symptoms was 32 [12–96] weeks. Twenty-seven patients with VPT had tinnitus symptoms on the right side. The median THI scores were 40 [31–52] points. Forty-two (85.7%) patients showed different degrees of BD (5.77, 2.25–12.16 mm). In the ST group, the median duration of symptoms was 49 [11–81] weeks. The median THI score was 28 [20–42] points. No abnormal BD of the sigmoid sinus wall was found in patients with ST (Table 2).

Hemodynamic abnormalities in the venous sinus of patients with VPT

There was no significant difference in the TV of the six planes among the three groups, but there were significant differences in the PV and MWSS of the six planes among the three groups (Table S1). The MWSS in plane 2 of the VPT patients was statistically higher than that in other planes, and the PV in plane 3 was statistically higher than that in the other planes (Figure 2). Combined with the visual evaluation (Figure 3), planes 2 and 3 were identified as segments with abnormal hemodynamics in the VPT patients.

Figure 2 Hemodynamic parameters in the six measurement planes of transverse-sigmoid sinus. Measurement planes with abnormal blood flow in the transverse-sigmoid sinus of patients with VPT were mainly distributed in the middle plane of the transverse sinus to the middle plane of the sigmoid sinus. *, P<0.05; **, P<0.001. VPT, venous pulsatile tinnitus.

Figure 3 Visualization of 4D flow MRI hemodynamic changes of representative cases among three groups. Compared with the ST patient (F-J) and HCs participant (K-O), the blood flow in the VPT patient (A-E) was more complex. The flow velocity was faster [(C,H,M) shown as the higher flow velocity of the red line, (D,I,N) shown as the higher velocity of red color] and the wall shear stress was greater [(E,J,O) shown as the red pressure area of the cross-section]. 4D, four-dimensional; MRI, magnetic resonance imaging; ST, subjective tinnitus; HCs, healthy controls; VPT, venous pulsatile tinnitus.

Hemodynamic differences in plane 2 and plane 3 of transverse-sigmoid sinus among the three groups

Compared with the ST group (Figure 3F-3J) and HCs group (Figure 3K-3O), the venous morphology of patients in the VPT group was more irregular (manifested as uneven signal and irregular shape on the PC-MRV) (Figure 3A,3B). Patients with VPT showed faster blood flow velocity (red streamline in Figure 3C,3D) and larger WSS (redder color in Figure 3E).

The TV, PV, and MWSS in plane 2 and plane 3 among these three groups, as well as MEL of the whole venous segment among the three groups, were compared. There was no evidence of a difference in the TV values on these two planes among the three groups. Compared with the ST group and HCs group, the PV on plane 2 and plane 3 in the patients with VPT was significantly higher, and the MWSS on plane 3 in the patients with VPT was significantly higher. Moreover, the MEL of patients with VPT was also significantly higher than those of the other two groups (Table 3, Figure 4).

Figure 4 Hemodynamic parameters in the three groups. PV values in Planes 2 (A) and 3 (B) were higher in patients with VPT compared with ST patients and HC participants. MWSS values in Plane 3 were significantly higher in patients with VPT compared with ST patients and HC participants (C). MEL values were significantly higher in the VPT group compared with the ST and HC groups (D). HC, healthy control; VPT, venous pulsatile tinnitus; ST, subjective tinnitus; PV, peak velocity; MWSS, maximum wall shear stress.

Relationship among hemodynamic factors, BD, and severity of tinnitus

Plane 3 with the largest variability of blood flow was selected as the appropriate measurement plane to explore the relationship between hemodynamic parameters and the BD in patients with VPT. The TV (r=0.313, P=0.028), PV (r=0.620, P<0.001), MWSS (r=0.493, P<0.001), and MEL (r=0.535, P<0.001) were positively related to the size of BD as shown in Figures S2,S3. Additionally, a stepwise linear regression model was established to explore the hemodynamic risk factors for BD (Table 4, Model 1), and found that PV (P=0.003) and MWSS (P=0.018) can be independent risk factors of BD.

THI scale was used to evaluate the severity of tinnitus symptoms in patients with VPT. The TV (r=0.381, P=0.007), PV (r=0.631, P<0.001), MWSS (r=0.367, P=0.010), and MEL (r=0.567, P<0.001) on plane 3 were positively correlated with the THI scores. The size of BD in patients with VPT was also positively correlated with the THI score (r=0.473, P=0.002) (Figures S2,S4).

THI scale was used to evaluate the severity of tinnitus symptoms in patients with ST. Results showed that there were no statistically significant correlation between THI and TV (r=0.320, P=0.074), PV (r=−0.058, P=0.753), MWSS (r=0.009, P=0.960), and MEL (r=−0.108, P=0.556) on plane 3 in ST group (as shown in Figure S5).

Risk factors of severity of tinnitus in patients with VPT

A stepwise linear regression model was established to evaluate the risk factors of the severity of tinnitus in patients with VPT. Age, duration of symptoms, TV, PV, MWSS, MEL, and BD size were used as independent variables and the THI was used as the dependent variable. The model was statistically significant (F=23.107, P<0.001). The MEL (P=0.041) and PV (P=0.001) were the independent factors for the severity of tinnitus (Table 4, Model 2).

The effect of BD on PT severity is mediated by hemodynamic factors

Two sets of mediation effect models were established to explore the relationship among the hemodynamic factors, BD, and VPT severity.

In the first model, the MEL, TV, PV, and MWSS were considered mediation variables, BD was taken as the independent variable, and THI was taken as the dependent variable. MEL [indirect effect =0.692, P<0.005, 95% confidence interval (CI): 0.201–1.377] and PV (indirect effect =0.899, P<0.005, 95% CI: 0.406–1.582) demonstrated the complete mediation effect between the BD and VPT, as shown in Figure 5A,5B and Table S2. However, when the TV and MWSS were used as mediation variables, the model was invalid (Figure S6).

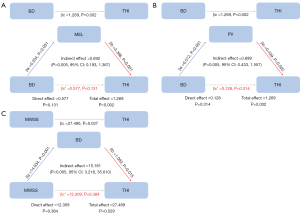

Figure 5 Mediation effect analysis results. The effect of bone dehiscence on the severity of PT mediated by hemodynamic factors (A,B). The MEL (A) and PV (B) mediated the relationship between bone dehiscence and THI. The bone dehiscence (C) exhibited a complete mediation effect between MWSS and THI. BD, bone dehiscence; THI, Tinnitus Handicap Inventory; MEL, maximum energy loss; MWSS, maximum wall shear stress; PV, peak velocity; CI, confidence interval; PT, pulsatile tinnitus.

In the second model, BD was considered a mediation variable, the MEL, TV, PV, and MWSS were taken as independent variables, and THI was considered a dependent variable. BD showed a complete mediation effect between the WSS and VPT (indirect effect =15.181, P<0.005, 95% CI: 3.448–35.493), as shown in Figure 5C and Table S3. However, no significant mediation effect existed between the TV, PV, MEL and THI when the BD was used as a mediation variable (Figure S7).

Discussion

In this study, we focused on the mechanism of occurrence and development of VPT in hemodynamic and bone morphological changes. A detailed analysis of TSS in VPT patients, ST patients, and HC participants was conducted using the 4D flow MRI method. The abnormal blood flow segments of VPT patients were determined, valuable hemodynamic indicators were identified, and further regression analysis and mediation effect analysis were used to determine the impact of hemodynamic indicators and BD on the severity of VPT.

The presence of abnormal flow in patients with VPT at the midpoint of the transverse sinus to the midpoint of the sigmoid sinus was consistent with the presence of abnormalities in the sigmoid sinus wall from previous studies (26,27). This vessel segment was located at the TSS transition, relevant to the congenital physiological curvature (27). Due to the great individual variation in the vein structure, the structure often seems to have some abnormalities. In previous study, transverse sinus stenosis mostly occurred in the lower segment of the transverse sinus (12). Our study further confirmed that the blood flow was more complex, the PV was faster, the WSS was greater, and the EL was greater in patients with VPT when compared with HCs and ST groups. These were consistent with the results of previous studies (10,13). But our study was the first study to observe the changes in WSS and EL in VPT, which further explained the occurrence of VPT from the perspective of mechanics and energy.

Our study confirmed that PV and EL were the risk factors for the severity of VPT. The effect of PV in patients with VPT was evidenced in many previous studies, and similar results were obtained in this study (10-12). The EL was relevant to the kinetic energy consumed by blood as it flowed through a defined vessel. A previous study illustrated the mechanism by which helical features increased the overall energy loss from the system (25). The TSS in our study also exhibited innate morphological curvature and functional variations (28). Other vascular abnormalities, such as stenosis, vestibule, and abnormal vascular position, were the factors affecting the blood flow trajectory (29,30). The presence of these abnormalities explained why EL was significantly increased in patients with VPT and might have been a risk factor for the severity of tinnitus.

Our study proposed two possible mechanisms of VPT. (I) BD might have caused the abnormal hemodynamic changes, resulting in severe VPT. (II) The abnormal hemodynamic changes might have caused the BD, leading to severe VPT. To explain the first mechanism, all patients with VPT included in this study had BD, and abnormal blood flow was found in the area of BD, indicating that BD may have occurred before the blood flow changes. The abnormality of bone structure led to the increase in blood flow energy consumption and the generation of flow turbulence (8,31). According to a previous study, not all patients with BD exhibited symptoms of PT (32), but VPT resulted when BD and abnormal blood flow co-occurred. In relevant to the second mechanism, there are studies that suggested BD as one of the risk factors for the occurrence of VPT (32,33). The PV and WSS can affect the intensity of BD. When the blood flows at a higher velocity through the curved blood vessel, the vessel wall bears more pressure to change the direction of the blood flow (32). Elevated WSS can cause the destruction, degradation, and turnover of vascular endothelial cells, increase the production of matrix metalloproteinase by mural cells (33,34), and lead to vascular wall remodeling. With constant pressure, the surrounding bone gradually resorbs and thins, and the protective effect of vasculature is gradually reduced, resulting in BD. Regardless of the presence of BD, the blood flow changes can produce large pulsating sounds, which can be captured by the cochlea. In addition, relevant studies on surgical treatment like sandwich surgical technique and transient sigmoid sinus decompression surgery of VPT patients also point out that appropriate surgical treatment can effectively alleviate the symptoms and enable patients to achieve a good prognosis (35,36). This also confirms from the perspective of surgical treatment the important impact of hemodynamic and morphological changes on the occurrence and development of VPT.

Our study also had limitations. (I) The number of patients with the presence of the diverticulum was small. Next step will be increasing the sample size and following up timely. (II) Given the area of BD was irregular, our study only measured the maximum diameter of the BD, rather than the area. Although we adopted a strict measurement method, the area should have more accurately reflected the size of BD. (III) There was no golden standard for the in vivo EL measurement, but previous hydrodynamics studies found that the results measured by the in vitro mechanical EL were consistent with those measured by the 4D flow MRI. (IV) This study did not focus on the clinical treatment methods and outcomes of VPT patients. (V) Gender, as a nuisance variable, was not analyzed in detail in this study. Further research is needed to explore the mechanism of gender in the onset and progression of VPT in the future.

Conclusions

Complex and aggressive blood flow status causes the pathogenesis of VPT. Abnormal hemodynamic changes can lead to BD and then affect the clinical symptoms of VPT. BD can also reversely cause abnormal hemodynamic changes, further leading to clinical symptoms of VPT and reflecting the possible interactive effect of hemodynamics in TSS and bone morphology on VPT.

Acknowledgments

The authors thank all the participants in the study.

Funding: This study was supported by the Natural Scientific Foundation of China (Nos. 82171916, 81871342 and 81901728), Tianjin Health High Level Talent Selection and Training Project (No. TJSQNYXXR-D2-143), the Natural Scientific Foundation of Tianjin (Nos. 21CYBJC01580 and 21JCQNJC01480), Tianjin Health Science and Technology Project (Specific Projects of Key Disciplines) (No. TJWJ2022XK019), Tianjin Health Research Project (No. TJWJ2023QN031), Tianjin Key Medical Discipline (Specialty) Construction Project (No. TJYXZDXK-041A), and Open Fund of Key Laboratory of Bioactive Materials of Ministry of Education of Nankai University (No. SWHX-202201).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-24-610/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-24-610/coif). Z.S. is an employee of Philips healthcare company. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The retrospective study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional ethics board of Tianjin First Central Hospital (No. 2017N002KY) and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
