Integrating myocardial metabolic imaging and stress myocardial contrast echocardiography to improve the diagnosis of coronary microvascular diseases in rabbits
Original Article

Integrating myocardial metabolic imaging and stress myocardial contrast echocardiography to improve the diagnosis of coronary microvascular diseases in rabbits

Guodong Wang1#, Xiaohong Li2#, Jiaxin Zhao1, Shangke Chen1, Yongde Qin2, Lina Guan1, Yuming Mu1

1Department of Echocardiography, The First Affiliated Hospital of Xinjiang Medical University, Xinjiang Key Laboratory of Ultrasound Medicine, Urumqi, China; 2Department of Nuclear Medicine, The First Affiliated Hospital of Xinjiang Medical University, Urumqi, China

Contributions: (I) Conception and design: G Wang, X Li, Y Mu; (II) Administrative support: Y Qin, L Guan, Y Mu; (III) Provision of study materials or patients: G Wang, X Li, J Zhao, L Guan; (IV) Collection and assembly of data: G Wang, X Li, J Zhao; (V) Data analysis and interpretation: G Wang, X Li, J Zhao, S Chen, Y Mu; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Yuming Mu, PhD. Department of Echocardiography, The First Affiliated Hospital of Xinjiang Medical University, Xinjiang Key Laboratory of Ultrasound Medicine, No, 137, Liyushan South Road, Urumqi 830000, China. Email: mym1234@126.com.

Background: Persistent challenges associated with misdiagnosis and underdiagnosis of coronary microvascular disease (CMVD) necessitate the exploration of noninvasive imaging techniques to enhance diagnostic accuracy. Therefore, we aimed to integrate multimodal imaging approaches to achieve a higher diagnostic rate for CMVD using high-quality myocardial metabolism imaging (MMI) and myocardial contrast echocardiography (MCE). This combination diagnostic strategy may help address the urgent need for improved CMVD diagnosis.

Methods: In this study, we established five distinct pretreatment groups, each consisting of nine male rabbit: a fasted group, a nonfasted group, a sugar load group, an acipimox group, and a combination group of nonfasted rabbits administered insulin. Moreover, positron emission tomography-computed tomography (PET/CT) scan windows were established at 30-, 60-, and 90-minute intervals. We developed 10 CMVD models and conducted a diagnosis of CMVD through an integrated analysis of MMI and MCE, including image acquisition and processing. For each heart segment, we calculated the standardized uptake value (SUV) based on body weight (SUVbw), as well as certain ratios of SUV including SUV of the heart (SUVheart) to that of the liver (SUVliver) and SUVheart to SUV of the lung (SUVlung). Additionally, we obtained three coronary SUVbw uptake values. To clarify the relationship between SUVbw uptake values and echocardiographic parameters of the myocardial contrast agent more thoroughly, we conducted a comprehensive analysis across different pretreatment protocols. Receiver operating characteristic (ROC) curve analysis was employed to evaluate the diagnostic accuracy of each parameter in the context of CMVD.

Results: In the context of MMI, the nonfasted-plus-insulin group, as observed during the 60-minute examination, exhibited a noteworthy total 18F-fluorodeoxyglucose (18F-FDG) uptake of 47.44±6.53 g/mL, which was found to be statistically different from the other groups. To ascertain the reliability of the results, two double-blind investigators independently assessed the data and achieved a good level of agreement, according to the intraclass correlation coefficient (ICC) (0.957). The SUVbw of the nonfasted-plus-insulin group exhibited a moderate correlation with the microvascular blood flow reserve (MBFR) parameters derived from the MCE examination, as evidenced by a r value of 0.686. For the diagnosis of CMVD disease, the diagnostic accuracy of the combined diagnostic method [area under the curve (AUC) =0.789; 95% confidence interval (CI): 0.705–0.873] was significantly higher than that of the MBFR (AUC =0.697; 95% CI: 0.597–0.797) and SUVbw (AUC =0.715; 95% CI: 0.622–0.807) methods (P<0.05).

Conclusions: Our study demonstrated the feasibility of a simple premedication approach involving free feeding and intravenous insulin in producing high-quality gated heart 18F-FDG PET/CT images in adult male New Zealand white rabbits. This technique holds considerable potential for ischemic heart disease research in rabbits and can enhance CMVD diagnosis via the comprehensive assessment of myocardial metabolism and perfusion.

Keywords: Coronary microvascular disease (CMVD); myocardial contrast echocardiography (MCE); positron emission tomography-computed tomography (PET/CT); 18F-fluorodeoxyglucose (18F-FDG); rabbit


Submitted Nov 16, 2023. Accepted for publication Jul 10, 2024. Published online Jul 30, 2024.

doi: 10.21037/qims-23-1630


Introduction

The timely identification of coronary microvascular disease (CMVD) is a crucial endeavor in disease prevention and management (1,2). Recent research in this field has primarily focused on multimodal imaging techniques (3,4), with positron emission tomography-computed tomography (PET/CT) being recognized as the gold standard for noninvasive myocardial ischemia diagnosis and providing unparalleled insights (5,6). Additionally, myocardial metabolism imaging (MMI) plays a vital role in evaluating cardiomyocyte functionality in the context of myocardial ischemia diagnosis. This approach offers an objective assessment of the extent and severity of myocardial ischemia (7). Interestingly, the impact of glucose metabolism on image fidelity is a key determinant of imaging quality. Stress myocardial contrast echocardiography (MCE) has emerged as an invaluable technique, as it can monitor and qualitatively and quantitatively assess microvascular hemodynamic parameters (8). Among these parameters, myocardial blood flow (MBF) and microvascular blood flow reserve (MBFR) fraction are of paramount importance (9). As diagnosis of CMVD is marred by a high prevalence of underdiagnosis and misdiagnosis (10), a combined diagnosis approach incorporating MMI and MME has the potential to improve diagnostic accuracy by providing a comprehensive characterization of myocardial structure, microvascular reserve function, and tissue metabolic abnormalities (7).

The quality of the PET/CT image has a significant impact on the assessment of myocardial survival outcomes when 18F-fluorodeoxyglucose (18F-FDG) PET/CT MMI is being performed. Fatty acids, amino acids, glucose, pyruvate, and lactate are all used as energy substrates in the metabolism of human cardiomyocytes, and insulin is the primary regulatory hormone in the use of blood glucose by cardiomyocytes. Clinical studies suggest that myocardial 18F-FDG uptake can be enhanced through an approach combining glycemic load and insulin (7). However, there is a dearth of preclinical research on the quality of cardiac PET/CT imaging. In this study, we focused on metabolic and perfusion functions in CMVD. We chose rabbits for this study because their coronary system closely resembles that of humans and their large size facilitates the acquisition of high-resolution images. Although mice and rats are the most commonly used small-animal imaging models, their small size and rapid heart rate require more technically demanding and sophisticated imaging equipment to achieve similar results. Furthermore, while pigs and dogs are easier to handle and image, they are expensive and difficult to transport. With consideration to cost-effectiveness, coronary structure, the acquisition of high-resolution images, and ease of experimental manipulation, rabbits are ideal for multimodal imaging studies of CMVD. After conducting our experiments, we observed that it was not possible to achieve stable MMI using the standard preprocessing protocols. Therefore, in order to effectively obtain MMI in rabbits, it is crucial to consider their specific metabolic profile. These herbivorous animals consume diets rich in carbohydrates, proteins, and fatty acids, leading to intricate changes in gastrointestinal hormone signaling that influences processes ranging from nutrient assimilation to satiety regulation (11). The myocardial metabolism in rabbits is still a relatively underexplored subject (12), and we thus aimed to improve myocardial uptake in rabbits, obtain high-quality images, and establish a model examination protocol. This work may provide solutions to the persistent diagnostic and therapeutic challenges in experimental cardiology.

The principal aim of this study was to diagnose CMVDs by integrating stable MMI with stress MCE. Additionally, we sought to examine the correlation between 18F-FDG uptake parameters and myocardial perfusion under various pretreatment protocols. A dual-modality assessment of myocardial viability and perfusion is proposed to enhance the precision of diagnosing CMVD and lay the groundwork for accurate CMVD diagnosis using molecular imaging techniques. We present this article in accordance with the ARRIVE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-23-1630/rc).


Methods

Animal model and experimental protocol

In this experiment, healthy male New Zealand white rabbits were obtained from the Animal Research Center of Xinjiang Medical University. Experiments were performed under a project license (No. IACUC-20210725-15) granted by the Experimental Animal Ethics Committee of Xinjiang Medical University and in compliance with institutional guidelines for the care and use of animals. All procedures involving animals adhered to the institutional guidelines for the care and use of laboratory animals. A protocol was prepared before the study without registration.

This study includes five pretreatment group groups and three-time windows, with nine male rabbits being required for each two-way analysis of variance (ANOVA). We used G*Power software to calculate the sample size required for two-way ANOVA.

Nine healthy male rabbits were carefully selected for the study to ensure good cardiac health and optimal function throughout echocardiography. All the New Zealand white rabbits enrolled in the study demonstrated sustained normoglycemia and systolic function throughout a continuous three-day period prior to the initiation of experimental procedures. The experiment was organized into five intervention cohorts as described below (see also Figure 1A):

  • Fasted group (n=9): rabbits in this category were fasted for 6–8 hours, with without access to food or water.
  • Nonfasted group (n=9): rabbits in this group had unrestricted access to food.
  • Sugar load group (n=9): following a fasting period of 6–8 hours, rabbits received a glucose solution at a dose of 3 g/kg. An intravenous injection of 18F-FDG was administered when their blood glucose levels reached 7.9 to 8.8 mmol/L.
  • Acipimox group (n=9): these rabbits were administered a gavage of 50 mg/kg of acipimox, followed by an intravenous injection of 18F-FDG.
  • Nonfasted + insulin group (n=9): rabbits received an intravenous injection of insulin at a dose of 0.1 IU/kg via the ear margin. Blood glucose levels were closely monitored, and the injection of 18F-FDG was administered when a 20% reduction in blood glucose levels was observed. Notably, blood glucose levels were measured twice before the intervention, both before and after the PET/CT examination.
Figure 1 Experimental design, examination process, and diagram of myocardial metabolism phenomenon for the various pretreatment methods. (A) The pretreatment conditions and examination time windows of the different experimental protocols. (B) Procedure for stress MCE. MCE, myocardial contrast echocardiography.

The rabbits were anesthetized using a freshly prepared 0.7% sodium pentobarbital solution administered intravenously through the ear margin. PET/CT scans were carried out in all specified groups at 30, 60, and 90 minutes after the intravenous injection of 18F-FDG. The rabbits were positioned in a supine posture and securely immobilized. PET/CT examinations were conducted with continuous ECG monitoring. It is essential to emphasize that a one-day interval was observed between each group of rabbits and their respective experimental sessions, as depicted in Figure 1A. A one-day interval was implemented between scans to allow sufficient recovery time for the animals, facilitating the metabolism of pentobarbital sodium and 18F-FDG radiotracer. The Xeleris functional imaging workstation (GE HealthCare, Chicago, IL, USA) was employed to extract the standardized uptake value (SUV) based on body weight (SUVbw), a pivotal metric for evaluating myocardial metabolic activity in each segment.

Time window for 18F-FDG PET/CT examination

This precise quantification enabled a detailed analysis of the PET/CT examination at specific time intervals after administration. These examination intervals were established at 30, 60, and 90 minutes, aligning with the experimental group that produced the highest image quality. The purpose of selecting these specific time intervals for the PET/CT examination was to investigate the relationship between the visual quality of MMI and the timeframes following administration. This systematic analysis provided a comprehensive understanding of how the temporal window of the PET/CT examination influences the resulting quality of MMI.

18F-FDG PET/CT examination parameters

A Discovery PET/CT system (GE HealthCare) was used for the PET/CT scan. A precise dose of 1 mCi/kg of 18F-FDG was intravenously administered and allowed to circulate for 60 minutes before imaging. An eight-minute static scan was conducted using a gated acquisition protocol, capturing comprehensive three-dimensional images. The acquisition parameters included a 40-mm detector coverage and a 2.5-mm helical thickness, ensuring detailed imaging.

Further precision was achieved with a pitch speed of 0.984, specific values of 139.37 mm/rotation, and a rotation time of 0.5 mm. The collected scan data underwent robust reconstruction with a 35-cm diameter, 128×128 transverse matrix. The ordered subset expectation maximization algorithm, integrated into the 3D VUE software (GE HealthCare), was applied. CT attenuation correction was an integral component of the reconstruction process and used an iterative approach of four iterations and eight subsets. This comprehensive procedure resulted in essential imaging views, including left ventricular short axis, main longitudinal, and main horizontal tomographic images.

Consistency was critical to the experiment, with the same parameters being carefully maintained for each scan and subsequent reconstruction. This commitment to precision, coupled with advanced technology, yielded comprehensive and informative results.

Quantitative analysis of 18F-FDG PET/CT imaging

The Xeleris functional imaging workstation was used for the precise measurement of 18F-FDG uptake SUVbw values in heart 17 segments, including coronal, sagittal, and axial views, to assess myocardial metabolic activity. SUVbw values of liver and lung tissues were also evaluated to calculate the ratio of SUV of the heart (SUVheart) to the SUV of the liver (SUVliver) and that of SUVheart to the SUV of the lung (SUVlung), enabling a comprehensive assessment of cardiometabolic parameters. To ensure accuracy, measurements were repeated three times for each image set. Data analyses were conducted under a single-blind method with two independent observers.

MCE examination parameters

Following anesthesia, intravenous access was established via the ear vein. A specialized contrast agent (SonoVue, Bracco, Italy) was employed to enhance ultrasound imaging. MCE was conducted to evaluate myocardial perfusion both at rest and during stress using a EPIQ 7C ultrasound diagnostic instrument (Philips, Amsterdam, the Netherlands) (Figure 1B). The contrast mode parameters were standardized, including an image depth of 50 mm, a gain setting at 55 dB, a focal point alignment at the level of the mitral valve, a dynamic range of 50 dB, and a mechanical index (MI) of 0.18. A syringe pump (LD-P2020, Shanghai Rande Medical Instrument Co., Shanghai, China) was connected, facilitating the continuous administration of the contrast agent through the auricular venous channel at a rate of 0.5 mL/min. Dynamic short-axis images of the left ventricle were captured with a 10-second data acquisition time per dataset and saved in Digital Imaging and Communications in Medicine (DICOM) format for subsequent offline analysis. The stress MCE examination was conducted in the fourth minute, mirroring the procedures used in the resting MCE examination. Adenosine (Aiduo, Shenyang, China) was infused at a rate of 0.19 mL/min, with a dosage of 140 µg/(kg·min) over three minutes. These settings were consistently applied across all parameters.

Quantitative analysis of MCE

Microvascular perfusion was assessed using QLAB version 9.0 software (Philips). The analysis focused on defining a specific region of interest (ROI) within myocardial segments during the end-systolic phase. This excluded structures such as the left ventricular cavity and pericardium for precise examination. Through an exponential curve fitting equation, the software computed two parameters for each ROI. The plots of myocardial video (contrast) intensity and pulse interval are fit to an exponential function: VI = A (1 − e−βt), where VI is the video intensity at PI t, A is the video intensity at the plateau, and β is the rate of increase of the video intensity after the destruction of the bubble. MBF is estimated by the product of A×β, where A (plateau video intensity) reflects microvascular cross-sectional area and β (video intensity rise rate) represents microbubble or MBF velocity. Measurements were repeated three times for precision. To calculate reserve function, A reserve (Astress/Arest) and β reserve (βstressrest) were determined, as was local myocardial microvascular reserve function (MBF reserve: MBFstress/MBFrest). This advanced method allowed for precise microvascular perfusion analysis, providing insights into the cardiac dynamics during the end-systolic phase.

Our study focused on correlation analyses and specifically examined the relationships between the A, β, MBF, MBFR, and SUVbw measurements.

Construction of a rabbit model of coronary microvascular dysfunction

In a cohort of 10 healthy male New Zealand large white rabbits, the right common carotid artery was surgically isolated. With the aid of a diagnostic ultrasound device (Philips EPIQ 7C), we carefully tracked the position of the balloon catheter and monitored its echoes within the ascending aorta. Under the guidance of ultrasound, a 28-gauge fine needle was precisely inserted into the left ventricle in alignment with the ultrasound beam. Subsequently, the balloon catheter was infused with saline to temporarily halt blood flow in the ascending aorta for approximately 20 seconds. A solution of sodium lauryl sulfate (dosage: 2.8 mg/kg; concentration: 40 mg/mL) was promptly injected into the left ventricular cavity, followed by the rapid deflation of the balloon. Throughout the procedure, vital signs were continuously monitored, and sutures were tightly secured to complete the surgical intervention.

On the third postoperative day, sequential 18F-FDG PET/CT imaging and MCE were conducted under the same parameters and protocols as those used in the previous procedures. Following the examination, myocardial specimens were collected and preserved for histopathological hematoxylin and eosin (HE) staining analysis and for immunofluorescence staining of CD31.

HE and immunofluorescence

HE staining was used to identify pathologic changes, and immunofluorescent staining was used to identify vascular endothelial cells (CD31) in frozen sections of cardiac tissue. CD31 antibody (GTX20218, GeneTex, Irvine, CA, USA) was diluted at 1:500 in phosphate-buffered saline and allowed to incubate at room temperature for two hours. The secondary antibody (CY5; ab52061, Abcam, Cambridge, UK) was then added to the samples at a 1:1,000 dilution in phosphate-buffered saline for 50 minutes in the dark at 37 ℃. This was followed by the application of a solution of 4’6-diamidino-2-phenylindole for 10 minutes for nuclear staining. After the samples were mounted, the slides were processed and evaluated by fluorescence microscopy. Positive expression appeared as red fluorescent staining with fluorescein.

Dual-modality imaging diagnosis

The myocardial HE staining results were employed as the reference standard, and a combination of myocardial segmental parameters, including SUVheart, SUVheart/SUVliver ratio, SUVheart/SUVlung ration, and MCE imaging parameters (A, β, A×β, and MBFR), was used for the diagnosis of CMVD. Receiver operating characteristic (ROC) curves were constructed, and the AUC was calculated.

Statistical analysis

Data analysis was executed employing SPSS 25.0 (IBM Corp., Armonk, NY, USA). The data were succinctly summarized using the mean ± standard deviation. Single-factor ANOVA is used to compare the performance of one factor (or one treatment group) across different levels or treatment conditions. Two-factor ANOVA is used to analyze the effects of two factors (two treatment combinations) on experimental results, including whether their interaction is significant. Three-factor ANOVA is used to simultaneously analyze the effects of three factors on experimental results, including their main effects and interactions. Bonferroni analysis for multiple comparisons was used to further differentiate the groups. A P value <0.05 was considered to indicate a statistically significant difference. The relationship between the two methods was explored through Pearson correlation analysis. Reliability analysis was facilitated by employing the ICC. The AUC between models was compared using the Delong test.


Results

Basic information

The rabbits had a stable blood glucose level of 5.51±0.87 mmol/L, an ejection fraction (EF) of 74.64%±6.69%, and a shortening rate of 40.31%±5.77%.

MMI under different protocols

In the total SUVbw of the heart, two-way ANOVA indicated the significant effects of pretreatment (F=43.30; P<0.001, η2=0.591) and timepoint (F=10.77; P<0.001; η2=0.152) but not for the interaction of pretreatment and timepoint (F=0.705; P=0.687; η2=0.045). Furthermore, the simple effect of pretreatment was significant in the 30-minute examination (F=13.672; P<0.001; η2=0.313), the 60-minute examination, (F=20.937; P<0.001; η2=0.411), and the 90-minute examination (F=10.104; P<0.001; η2=0.252). In the insulin group, the simple effect of timepoint was significant (F=6.715; P<0.01; η2=0.101), while for the other four pretreatment groups, the simple effects were not significant, as illustrated in Figure 2A, Figures S1,S2.

Figure 2 Analysis of the different pretreatment groups and different timepoints for MMI. (A-E) Quantitative analysis of the myocardial metabolism imaging parameters. (F) Blood glucose levels in each group at the time of injection of the FDG agent. (G) Triglyceride levels before and after acipimox administration. *, P<0.05; **, P<0.01; ***, P<0.001; ##, P<0.01. SUVbw, standardized uptake value based on body weight; TG, triglyceride; FDG, fluorodeoxyglucose; MMI, myocardial metabolism imaging.

For the average SUVbw of liver, the main effects of pretreatment (F=4.138; P<0.01; η2=0.121) and of timepoint (F=1.476; P<0.05; η2=0.069) were significant, but the interaction effect between pretreatment and timepoint was not significant (F=0.059; P=1.00; η2=0.004). Further comparisons of simple effects were made, and none of the simple effects were significant for any of the groups, as illustrated in Figure 2B.

For the average SUVbw of the lung, the main effect of pretreatment was not significant (F=0.986; P=0.418; η2=0.032), the main effect of timepoint was significant (F=11.192; P<0.001; η2=0.157), and statistically significant differences were found between the 30-, 60-, and 90-minute examinations, with SUVlung values becoming smaller as the examination time increased. The interaction effect between pretreatment and timepoint was not significant (F=0.07; P=1.00; η2=0.005). In the insulin group, the simple effect of timepoint was significant (F=3.495, P=0.033, η2=0.055), as illustrated in Figure 2C.

Two key parameters, the SUVheart/SUVliver and SUVheart/SUVlung ratios, were used to evaluate MMI. For the SUVheart/SUVliver ratio, the main effect of pretreatment was significant (F=18.84; P<0.001; η2=0.386), but the main effect of timepoint was not significant (F=1.262; P=0.287; η2=0.021), nor was the interaction effect between pretreatment and timepoint (F=0.303; P=0.964; η2=0.020). For the 30-minute examination, the simple effect of pretreatment was significant (F=5.226; P<0.001; η2=0.148); for the 60-minute examination, the simple effect of pretreatment was significant (F=9.679; P<0.001; η2=0.244); and for the 90-minute examination, the simple effect of pretreatment was significant (F=4.538; P<0.01; η2=0.1312) (Figure 2D).

For SUVheart/SUVlung ratio, the main effect of pretreatment was significant (F=11.784; P<0.001; η2=0.282) as was that of timepoint (F=6.772; P<0.01; η2=0.101), but the interaction effect between pretreatment and timepoint was not significant (F=0.450; P=0.888; η2=0.029). For the 60-minute examination, the simple effect of pretreatment was significant (F=6.621; P<0.001; η2=0.181), as was that for the 90-minute examination (F=4.151; P<0.01; η2=0.122). In the insulin group, the simple effect of timepoint was significant (F=5.025; P<0.01; η2=0.077), but the simple effects in the other four groups were not significant, as illustrated in Figure 2E.

Following the administration of the 18F-FDG injection, the blood glucose levels in the fasted group, nonfasted group, sugar load group, acipimox group, and nonfasted-plus-insulin group were 5.98±0.45, 6.69±4.04, 8.37±0.69, 6.2±0.80, and 5.69±0.56 mmol/L, respectively. Notably, the group with a high glycemic load exhibited a significant difference in glucose levels when compared to the other four groups (P<0.01), as illustrated in Figure 2F; however, despite this, MMI did not yield satisfactory results, including SUVbw of heart, SUVbw of liver, and SUVbw of lung.

For the acipimox-treated group, we closely examined the pre- and postintervention triglyceride (TG) levels, which had values of 0.69±0.22 and 0.38±0.10 mmol/L, respectively. The paired t-test produced a t score of 5.718, indicating a significant reduction in TG levels due to acipimox intervention. However, it is important to note that this intervention did not produce the desired outcomes in cardiac metabolic angiography, as shown in Figure 2G.

The main effects of pretreatment, timepoint, and coronary segment were all significant (P<0.001). There was an interaction between pretreatment and timepoint (P<0.05). There was an interaction between pretreatment and segment (P<0.01); however, the interaction between the three factors was not significant, as shown in Figure 3.

Figure 3 Three-way analysis of variance of the pretreatment conditions, timepoints, and regions of coronary blood supply. +, the same timepoint for the fasted group, nonfasted group, sugar load group, acipimox group, and nonfasted + insulin group; #, the same pretreatment group for the 30-, 60-, and 90-minute timepoints. &, the same pretreatment group for the LAD, LCX, and RCA; +++, P<0.001; #, P<0.05; ##, P<0.01; ###, P<0.001; &&&, P<0.001. LAD, left anterior descending artery; LCX, left circumflex artery; RCA, right coronary artery.

In conclusion, the nonfasted-plus-insulin group had the best image quality in the 60-minute examination, demonstrating the highest total heart uptake and the highest SUVheart/SUVlung ratio. Representative images are shown in Figures 4,5.

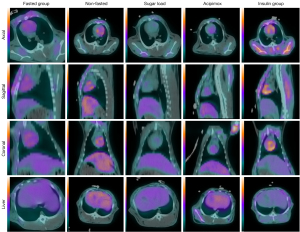

Figure 4 Myocardial metabolism images of the heart and liver in the five experimental groups. The insulin group exhibited the highest myocardial signal-to-background ratio and the lowest liver uptake.
Figure 5 Myocardial metabolism images across the various scanning time windows. (A) Examinations at 60 minutes demonstrated elevated myocardial uptake and diminished liver uptake. (B) Images distinctly illustrating the uptake within each myocardial segment.

To confirm the robustness of our results, an interreader correlation analysis was conducted, which produced a strong ICC of 0.957 among the data assessors, as presented in Figure 6A.

Figure 6 The correlation between myocardial SUVbw uptake and MBFR in in the five groups. (A) Remarkable consensus between the two reviewers. (B-F) The correlation between myocardial SUVbw uptake and MBFR was analyzed in the five groups. SD, standard deviation; MBFR, microvascular blood flow reserve; SUVbw, standardized uptake value based on body weight.

Correlation between metabolic activity and perfusion parameters

MCE is essential for studying cardiac blood perfusion. Our study collected data and images related to key parameters: blood volume (A), flow velocity (β), and resultant blood flow (MBF =A×β). Myocardial metabolic images were reconstructed using Xeleris functional imaging workstation software, including the horizontal long axis, vertical long axis, and short axis (as seen in Figure 5B).

These analyses were conducted within different groups as categorized by various preconditioning regimens (outlined in Table 1). The results showed a moderate correlation of MBFR with SUVbw (r=0.686), as depicted in Figure 6B-6F.

Table 1

Correlation between the seven MCE parameters and myocardial SUVbw in the five treatment groups

Group βrest Arest βstress Astress MBFrest MBFstress MBFR
Fasted −0.002 −0.038 −0.065 −0.269 −0.032 −0.301** −0.313*
Nonfasted 0.119 −0.301* 0.389** −0.430** −0.093 0.131 0.316*
Sugar load 0.014 −0.142 0.174 −0.305* −0.082 −0.042 0.103
Acipimox 0.187 −0.220 0.337* −0.224 0.092 0.193 0.121
Nonfasted + insulin 0.115 −0.03 0.320* −0.006 −0.162 0.394** 0.686**

*, P<0.05; **, P<0.01. MCE, myocardial contrast echocardiography; SUVbw, standardized uptake value based on body weight; β, blood flow velocity; A, blood volume; MBF, myocardial blood flow; MBFR, microvascular blood flow reserve.

A quantitative analysis model for coronary microvascular dysfunction

Based on the analysis of HE results in the 10 CMVD models, there were 44 segments in the normal group and 116 segments in the CMVD group. Both groups showed statistically significant differences in βrest, βstress, MBFrest, MBFR, and SUVbw (P<0.05). Meanwhile, the metabolic and perfusion measures decreased in the CMVD group (Table 2).

Table 2

Analysis of image data in the normal and CMVD groups

Parameter Normal (n=44) CMVD (n=116) t P
Arest 2.74±1.06 2.95±1.61 −0.948 0.345
βrest 9.67±1.71 10.59±2.69 −2.567 0.011*
Astress 3.42±1.65 3.12±1.57 1.100 0.273
βstress 11.73±3.16 10.31±3.75 2.231 0.027*
MBFrest 32.87±23.96 26.59±11.17 −2.251 0.026*
MBFstress 42.04±26.59 34.57±25.67 1.628 0.106
MBFR 1.70±1.02 1.14±0.62 3.371 <0.001***
SUVbw 2.58±0.76 2.00±0.67 4.701 <0.001***
SUVheart/SUVliver 2.0±0.75 1.83±0.59 1.626 0.109
SUVheart/SUVlung 4.28±1.49 3.95±1.50 1.244 0.215

Data are presented as mean ± standard deviation. *, P<0.05; ***, P<0.001. CMVD, coronary microvascular disease; A, blood volume; β, blood flow velocity; MBF, myocardial blood flow; MBFR, microvascular blood flow reserve; SUVbw, standardized uptake value based on body weight; SUVheart, SUV of the heart; SUVliver, SUV of the liver; SUVlung, SUV of the lung; SUV, standardized uptake value.

HE staining revealed the presence of inflammatory cell aggregation and mild subendocardial myocardial fibrosis in the CMVD group (Figure 7A,7B). In Figure 7C, the green arrow indicates mild myocardial fibrosis. CD31 staining showed a lower number of microvessels in the CMVD group compared to the normal group (Figure 7D,7E).

Figure 7 Pathological and imaging analyses. Normal myocardial segments are in the first column, abnormal CMVD segments are in the second column, and semiquantitative data graphs are in the third column. (A,B) Typical and atypical HE staining patterns, with blue arrow indicating subendocardial myocardial microemboli. (D,E) Microvascular analyses revealing a reduction in mean fluorescence intensity within abnormal segments. (G,H) PET/CT MMI results indicating both normal and abnormal conditions. (J,K,M,N) MCE results for both the normal and abnormal conditions depicted in (G) and (H). (C,H,K,N) Abnormal segments of the basal segment of the interventricular septum as visualized through HE staining, MCErest, MCEstress, and PET/CT, with the area of defect indicated by a green arrow. (F,I,L,O) Quantitative analysis of CD31, SUVbw, MBF, and MBFR. (A,B) HE staining of myocardial tissue (original magnification 20×). (C) HE staining of myocardial tissue (original magnification 0.44×). (D,E) Immunofluorescence staining of myocardial tissue with CD31 (original magnification 20×). *, P<0.05; ***, P<0.001. CMVD, coronary microvascular disease; DAPI, 4',6-diamidino-2-phenylindole; PET/CT, positron emission tomography/computed tomography; SUVbw, standardized uptake value based on body weight; MCE, myocardial contrast echocardiography; MBF, myocardial blood flow; MBFR, microvascular blood flow reserve; HE, hematoxylin and eosin; MMI, myocardial metabolism imaging.

Both pathological histology and noninvasive imaging techniques revealed perfusion defects and a reduction of metabolic activity in the basal segment of the left ventricular septum (Figure 7F-7I). Representative normal and abnormal images from PET/CT MMI and MCE, along with the quantitative analysis, are shown in Figure 7D-7O.

ROC curve for the SUVbw and MCE parameters

The ROC analysis indicated that dual diagnosis was the most effective echocardiographic predictor for identifying individuals with CMVD who would go on to develop left ventricular myocardial dysfunction (Figure 8). The optimal cutoff value for MBFR was 1.83, while the optimal cutoff value for SUVbw was 2.42 (Table 3).

Figure 8 ROC curve of the diagnostic accuracy of SUVbw, MBFR, and the combined diagnosis. Notably, the ROC curve representing combined diagnosis exhibited the highest AUC value. *, P<0.05. SUVbw, standardized uptake value based on body weight; AUC, area under the curve; MBFR, microvascular blood flow reserve; ROC, receiver operating characteristic.

Table 3

The ROC curve of CMVD diagnosis

Parameter AUC (95% CI) Sensitivity% (95% CI) Specificity% (95% CI) +LR −LR Youden index J Cutoff
MBFR 0.697 (0.597–0.797) 93.1 (86.9–97.0) 45.45 (30.4–61.2) 1.71 0.15 0.3856 ≤1.83
SUVbw 0.715 (0.622–0.807) 74.14 (65.2–81.8) 65.91 (50.1–79.5) 2.17 0.39 0.4005 ≤2.42
Combined diagnosis 0.789* (0.705–0.873) 87.93 (80.6–93.2) 59.09 (43.2–73.7) 2.15 0.20 0.4702 ­–

AUC: 0.5–0.7, low accuracy; 0.7–0.9, moderate accuracy; >0.9, high accuracy. *, P<0.05. ROC, receiver operating characteristic; CMVD, coronary microvascular disease; AUC, area under the curve; CI, confidence interval; +LR, positive likelihood ratio; −LR, negative likelihood ratio; MBFR, microvascular blood flow reserve; SUVbw, standardized uptake value based on body weight.


Discussion

The significant results obtained in this study suggest that the diagnosis of CMVD can be improved by the combined use of MMI and stress MCE imaging. Our principal results were as follows: (I) rabbits received intravenous insulin at a dose of 0.1 IU/kg without dietary restrictions. Subsequently, 18F-FDG was introduced under 20% hypoglycemic conditions, and precise PET scanning was performed 60 minutes after injection, resulting in high-quality 18F-FDG PET images of rabbit hearts. (II) The insulin injection group exhibited a moderate correlation between SUVbw and the MCE perfusion parameter of MBFR. (III) The ROC curves demonstrated that the multimodal diagnosis yield a higher prediction accuracy compared to that of the single modes.

The SUVbw values in the insulin group were notably higher than those of the other groups, and this was accompanied by a decrease in hepatic uptake. The signal-to-noise ratios for the SUVheart/SUVliver and SUVheart/SUVlung ratios exhibited heightened diagnostic precision, effectively mitigating the influence of neighboring tissues, especially in the liver and lungs. Cardiomyocytes have a variety of energy sources to ensure ample energy production. Previous research has indicated that under conditions of fasting, the myocardium chiefly relies on free fatty acids as the primary energy source (13,14). However, the New Zealand White rabbit, being an herbivore with unique digestive attributes, exhibits heart and respiratory rates that are significantly higher than those of humans. Notably, conventional protocols used for enhancing myocardial metabolism imaging in humans and other animals have proven ill-suited for rabbits. The typical approach of fasting followed by glucose administration (15,16) alters the energy substrate preference of human cardiomyocytes from fatty acids to glucose, making it challenging to pinpoint the optimal time for transition and the subsequent injection of 18F-FDG. Moreover, it is essential to allow cardiomyocytes a specific duration of effective glucose metabolism. We examined how fasted and unrestricted diet influence MMI. As is widely known, fasting results in a significantly lower signal-to-background ratio (SBR), indicating cardiomyocytes reliance on fatty acids for energy and their limited glucose usage (17). Aday et al. (18) used acipimox for lipid reduction, while Poussier et al. (19) improved MMI in rats with a similar acipimox treatment. However, our study found no enhanced metabolic imaging with acipimox pretreatment. Recognizing the benefits of free feeding, we aimed to elevate rabbit plasma glucose levels using a glucose-loading regimen (20), targeting concentrations in the 7.9–8 mmol/L range. The aim of this was stimulate insulin release and create a favorable glucose gradient across cardiomyocytes. Unfortunately, these efforts did not yield the anticipated results in myocardial metabolism imaging. Thus, we concluded that rabbit blood glucose levels might not singularly dictate cardiomyocyte glucose uptake. Remarkably, by pharmacologically reducing plasma free fatty acids and TG levels using acipimox, we observed an increase in glucose utilization. To achieve this aim, enhancing the density of glucose transporter 4 on cardiomyocyte surfaces is pivotal. This hinges on boosting insulin binding to cardiomyocyte insulin receptors, thereby triggering the intracellular movement of glucose transporter 4 to the cell membrane via the PI3k pathway. This complex process amplifies glucose uptake (21-23).

This study refined the protocol for obtaining high-quality 18F-FDG PET images of rabbit hearts, as it better aligns with their distinctive physiological traits. Previous literature has advised waiting at least 45 minutes after 18F-FDG administration before conducting a static scan (7). In this study, due to rabbits’ faster metabolism, we adapted this standard. We scanned at 30 minutes, observing early 18F-FDG uptake by cardiomyocytes although blood pool activity remained. At 60 minutes, our second scan displayed optimal myocardial uptake and blood pool clearance, achieving the highest SUVbw and SBR, with lower liver SUVbw compared to the 30-minute scan. Over 90 minutes, myocardial SUVbw declined, while liver SUVbw uptake gradually decreased.

Our study links MMI with MCE outcomes, indicating the potential for a combination diagnosis for cardiac ischemia. MCE angiography is widely used for noninvasive microvascular perfusion assessment (24-26), while 18F-FDG metabolism imaging can accurately reflect cardiomyocyte viability (27). Combining 18F-FDG metabolism imaging and MCE is crucial for assessing myocardial vitality. Our findings included a moderate correlation between myocardial viability SUVbw and perfusion reserve fraction (r=0.686). Interpreting the concordance between myocardial viability and perfusion may offer key insights (28): normal perfusion and viability may indicate a healthy myocardium, and a mismatch between perfusion and metabolism (increased perfusion, reduced 18F-FDG uptake in defects) may indicate viable ischemic tissue. Common agents for perfusion imaging, such as 13N-NH3, 201TI, are challenging to prepare and use. In contrast, MCE, being radiation free and easily applied, suits myocardial blood perfusion evaluation. Reant et al. (29) reported that an MCE method for a diagnosing for coronary stenosis had an AUC value of 0.66, which aligns with the findings of our study. Furthermore, we identified a cutoff value of <1.83 for MBFR in diagnosing CMVD. In Lautamäki et al.’s (30) study on myocardial microcirculation postinfarction in pigs, FDG PET/CT yielded a diagnostic rate of 0.68, which is consistent with our study, in which we used a corresponding cutoff value for SUVbw of <2.42 in CMVD diagnosis. Notably, we observed a significant improvement in CMVD diagnosis through the combined assessment of SUVbw and MBFR.

Overall, our study highlights the viability of using a simple premedication approach with free feeding and intravenous insulin to produce high-quality gated heart FDG-PET images in adult New Zealand white rabbits. The achieved signal-to-noise ratio rivals that observed for humans. This insulin-augmented PET technique holds great application potential for ischemic heart disease research involving rabbits. Comprehensive analysis of myocardial metabolism and perfusion levels improves the diagnosis of CMVD disease.

In addition to the inherent limitations of using animal models for studying human diseases, our research has its own specific constraints. The first is the relatively small sample size. The second is the cost of small-animal PET/CT imaging and the clinical equipment used in this experiment. In future studies, we are committed to achieving the precise diagnosis of CMVD at the molecular imaging level.


Conclusions

This study demonstrated the feasibility of a simple premedication approach using free feeding and intravenous insulin, which produced high-quality gated heart 18FDG PET/CT images in adult male New Zealand white rabbits. This technique may be productively applied in ischemic heart disease research in rabbits and may improve CMVD diagnosis through the comprehensive assessment of myocardial metabolism and perfusion.


Acknowledgments

This work was supported by the Xinjiang Key Laboratory of Ultrasound Medicine and the Department of Nuclear Medicine at The First Affiliated Hospital of Xinjiang Medical University.

Funding: This research was supported by the Natural Science Foundation of China (grant No. 32071459).


Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-23-1630/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-23-1630/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Experiments were performed under a project license (No. IACUC-20210725-15) granted by the Experimental Animal Ethics Committee of Xinjiang Medical University and in compliance with institutional guidelines for the care and use of animals.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
