Performance assessment of an artificial intelligence-based coronary artery calcium scoring algorithm in non-gated chest CT scans of different slice thickness

Introduction

Cardiovascular diseases are the leading cause of death globally, ranking first in the global disease burden (1). Among cardiovascular diseases, coronary artery disease (CAD) is the “number one killer” (2,3). Coronary artery atherosclerosis is the fundamental pathological basis of CAD and coronary artery calcium (CAC) is an early sign of coronary atherosclerosis and is closely associated with the incidence rate of CAD (3,4).

The coronary artery calcium score (CACS) is a quantitative index of CAC. The CACS has been shown to be an independent predictor of cardiovascular events, particularly in asymptomatic middle-risk populations (5). The early and accurate assessment of CAC is crucial for mitigating increased risk of CAD (6). The Agatston score, which was originally proposed by Agatston et al. (7) and is obtained from electrocardiogram (ECG)-gated computed tomography (CT), remains the most widely used method for measuring the CACS. The categorization of patients into CAD risk categories based on the CACS can be used to guide treatment (8).

Public awareness of health examinations is increasing and non-gated low-dose computed tomography (LDCT) of the chest has become a widely used screening method for lung diseases (9,10); however, ECG-gated CT is not typically included as part of routine health examinations. Due to the presence of cardiac motion artifacts, traditional methods for calculating the CACS of non-gated chest CT may not be accurate (11). The traditional CACS algorithm has been optimized for ECG-gated images, which are acquired with specific settings and timing. However, some studies have reported a high correlation between ECG-gated CT and non-gated LDCT scans of the chest in the Agatston score (12-14). Therefore, if the CACS could be calculated from a LDCT examination of the chest, it could be valuable in assessing the risk of CAD in advance, and it could potentially reduce the occurrence of cardiovascular events in patients.

With continued advances in science and technology, artificial intelligence (AI) has been applied to an increasing number of medical fields. Through the use of deep-learning algorithms on computers, AI has the potential to significantly enhance work efficiency while substantially reducing the workload of humans (6,14-17). The integration of AI technology has the potential to appropriately mitigate the impact of cardiac motion artifacts on the calculation of the CACS from non-gated chest CT scans. Artificial intelligence-based coronary artery calcium score (AI-CACS) algorithms on ECG-gated cardiac CT (18,19) and non-gated chest CT (13,20-24) have been both developed, enabling the rapid evaluation of the CACS for a large number of patients.

Thus, this study sought to assess the consistency of the CACS calculated from ECG-gated and non-gated CT scans from routine health examinations and to evaluate the feasibility of assessing CAD risk using the CACS from LDCT with an AI-CACS algorithm. We present this article in accordance with the STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-24-247/rc).

Methods

Patients

This prospective study was approved by the Institutional Ethics Committee of the Drum Tower Hospital, Medical School of Nanjing University (No. 2022-547-01), and informed consent was obtained from all the patients. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). From July 2022 to March 2023, patients suspected of CAD were enrolled in this study. These patients underwent sequential non-gated LDCT of the chest and ECG-gated non-enhanced cardiac CT scans. Patients were excluded from the study if they met any of the following exclusion criteria: (I) had a history of transluminal percutaneous coronary intervention, coronary artery bypass grafting, or insertion of other metal implants; and/or (II) their images from the non-gated chest CT scans had serious artifacts due to cardiac motions. For more details about patient selection, see Figure 1.

Figure 1 Flow chart of patient selection. CT, computed tomography; CACS, coronary artery calcium score; PCI, percutaneous coronary intervention; CABG, coronary artery bypass grafting; AI, artificial intelligence.

CT scanning and CACS calculations

All the CT datasets were acquired using a third-generation dual-source CT system (SOMATOM Force, Siemens Healthineers, Forchheim, Germany). Participants underwent three types of scans; that is, a non-gated LDCT of the chest, followed by an ECG-gated non-contrast cardiac CT, and coronary computed tomography angiography (CTA). For details of scan parameters, see Table 1.

The volume computed tomography dose index (CTDI_vol) and dose length product (DLP) of chest CT and ECG-gated non-contrast cardiac CT scans were recorded. The effective dose (ED) was calculated using the following formula: ED (mSv) = DLP × k, where k was the chest (heart) ED conversion factor, with k = 0.014 mSv∙mGy⁻¹∙cm⁻¹ (25).

Following the Agatston convention, the CACS was calculated when the CT value was ≥130 Hounsfield units (HU) and the area was >1 mm² (7,26). The ECG-gated non-enhanced cardiac images were transferred to an advanced workstation (Intellispace Portal V9; Philips Healthcare, Best, The Netherlands) for the semi-automated CACS calculation. The coronary calcification analysis was performed by an experienced radiologist with 5 years of experience in cardiac CT imaging. The calculated CACS for each patient was considered as the reference in this study.

AI-CACS software (CACScoreDoc version 6.11, ShuKun Technology, Beijing, China) was developed and implemented to automatically calculate the CACS based on the chest CT images. In our process, the three-dimensional Retina-Unet deep convolutional neural network was used to segment the calcified lesions in the coronary area. Similar to other segmentation networks, the main structure was a fully convolutional feature pyramid network. Next, a detection branch and a segmentation branch were applied as the whole supervision function (Figure 2). A description of the AI-CACS model is provided in the Appendix 1. The non-gated chest CT images were uploaded to the AI-CACS software for CACS calculation with slice thicknesses of 1, 3, and 5 mm, respectively.

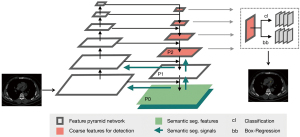

Figure 2 In our process, the three-dimensional Retina-Unet deep convolutional neural network was used to segment calcified lesions in the coronary area. Similar to other segmentation networks, the main structure was a fully convolutional feature pyramid network. ThNexten, a detection branch and a segmentation branch were applied as the whole supervision function.

Risk category performance of the AI-CACS software

The correlations between the CACS (1-mm AI-CACS, 3-mm AI-CACS, 5-mm AI-CACS, and ECG-CT AI-CACS) obtained by the AI-CACS software and the ECG-CT CACS were studied, respectively. Based on the CACS, the patients were stratified into the following four different risk categories: CACS 0, very low risk of CAD; CACS 1–100, low risk of CAD; CACS 101–400, moderate risk of CAD; and CACS >400, high risk of CAD (22).

Statistical analysis

The statistical analysis was performed with SPSS software (version 27, IBM, Armonk, NY, USA) and MedCalc software (version 22.013, Ostend, Belgium). The continuous data are presented as the mean ± standard deviation, and the categorical variables are presented as the frequency and percentage. Because not all data adheres to a normal distribution or exhibits squared deviations, Wilcoxon tests were employed to compare the CACSs obtained by the AI-CACS software (1-mm AI-CACS, 3-mm AI-CACS, 5-mm AI-CACS) and the ECG-CT CACSs. A Bland-Altman analysis and Spearman correlation coefficients were used to evaluate agreement and correlation. The consistency of risk stratification was assessed with Kappa tests. A Kappa value (κ) of <0.4, 0.4–0.6, 0.6–0.8, and >0.8, indicated poor, moderate, good, and excellent agreement, respectively. A P value <0.05 was considered statistically significant.

Results

General information

A total of 112 patients were included in the study, of whom 74 were male and 38 were female. The patients had a mean age of 58.49±9.52 years (range, 37–78 years). Table 2 shows the radiation dose of the three types of CT scans.

CACS

There were no statistically significant differences between the 1-mm AI-CACS and ECG-CT CACS (107.24±205.46 vs. 100.40±200.95, P=0.085). Conversely, both the 3-mm AI-CACS and 5-mm AI-CACS were significantly lower than the reference ECG-CT CACS (85.33±174.73, 47.57±113.64; both P<0.001). For further details, see Figure 3 and Table 3.

Figure 3 Box-and-Whisker plot showing the distribution of the coronary artery calcium scores of 1-mm AI-CACS, 3-mm AI-CACS, 5-mm AI-CACS, and ECG-CT CACS (data with a CACS of 0 were removed from the ECG-CT CACS group). The points, squares, crosses, or asterisks in the figure represent the CACS of the corresponding group of patients. AI, artificial intelligence; CACS, coronary artery calcium score; CT, computed tomography; ECG, electrocardiogram.

The correlations between the 1-mm AI-CACS, 3-mm AI-CACS, and 5-mm AI-CACS with ECG-CT CACS were strong (ρ=0.973 ,0.941, and 0.834; all P<0.001). The Bland-Altman plot revealed that the difference between the 1-mm AI-CACS and ECG-CT CACS was small [mean difference: −6.5, 95% confidence interval (CI): −95.0 to 81.9]. However, the difference between the 3-mm AI-CACS and ECG-CT CACS, as well as that between the 5-mm AI-CACS and ECG-CT CACS, were 15.4 (95% CI: −96.6 to 127.4), and 53.1 (95% CI: −187.8 to 294.0), respectively (Figure 4).

Figure 4 Bland-Altman plots showing the bias and 95% limits of agreement of red area. (A) 1-mm AI-CACS vs. ECG-CT CACS; (B) 3-mm AI-CACS vs. ECG-CT CACS; (C) 5-mm AI-CACS vs. ECG-CT CACS. AI, artificial intelligence; CACS, coronary artery calcium score; CT, computed tomography; ECG, electrocardiogram.

Agreement of risk categorization

In comparison with the ECG-CT CACS, the agreement of risk categories was excellent for the 1-mm AI-CACS group (κ=0.868), good for the 3-mm AI-CACS group (κ=0.772), and moderate for the 5-mm AI-CACS group (κ=0.412) (all P<0.001). More specifically, 91%, 84.8%, and 62.5% of the patients in the 1-mm AI-CACS, 3-mm AI-CACS and 5-mm AI-CACS groups were placed in the same category as they had been using the ECG-CT CACS, which served as the reference (Tables 4-6). Additionally, in comparison with the 1-mm AI-CACS, the agreement of risk categories was excellent for the 3-mm AI-CACS group (κ=0.769; P<0.001). Additionally, 85.6% of the patients in the 3-mm AI-CACS group were placed in the same category as they had been using the 1-mm AI-CACS (Table 7). In the three AI-CACS groups, the CACSs were more likely to be underestimated or overestimated when the patients were evaluated as low-risk [1–100] CAD patients (Figures 5,6). However, the CACSs of very few patients were overestimated in the 1 mm–AI-CACS groups (Figure 7).

Figure 5 The CACS of a 59-year-old male. The ECG-CT CACS (D) was 4.03 with a low risk of CAD, and all the AI-CACSs of the chest CT scans with three different thicknesses (A: 1-mm AI-CACS, B: 3-mm AI-CACS, C: 5-mm AI-CACS) were 0 with a very low risk of CAD. (D) The red area of bone is not recorded in the CACS. CACS, coronary artery calcium score; ECG, electrocardiogram; CT, computed tomography; CAD, coronary artery disease; AI, artificial intelligence.

Figure 6 The CACS of a 61-year-old male. The ECG-CT CACS (D,H) was 20.25 and the 1-mm AI-CACS (A,E) was 48.91 with a low risk of CAD. However, the 3-mm AI-CACS (B,F) and 5-mm AI-CACS (C,G) were 0 with a very low risk of CAD. (D,H) The red area of bone is not recorded in the CACS. CACS, coronary artery calcium score; ECG, electrocardiogram; CT, computed tomography; CAD, coronary artery disease; AI, artificial intelligence.

Figure 7 The CACS of a 54-year-old male. The ECG-CT CACS (B) was 0 with a very low risk of CAD, and the 1-mm AI-CACS (A) was 10.91 with a low risk of CAD. The CACS of a 60-year-old male (C,D). The ECG-CT CACS (D) was 68.02 with a low risk of CAD, and the 1-mm AI-CACS (C) was 137.13 with a moderate risk of CAD. The CACS of a 54-year-old male (E,F). The ECG-CT CACS (F) was 230.81 with a moderate risk of CAD, and the 1-mm AI-CACS (E) was 404.26 with a high risk of CAD. (B,D,F) The red area of bone is not recorded in the CACS. CACS, coronary artery calcium score; ECG, electrocardiogram; CT, computed tomography; CAD, coronary artery disease; AI, artificial intelligence.

Discussion

Numerous studies have suggested that CACS screening in asymptomatic populations could significantly reduce the incidence of adverse cardiovascular events (27-29). Our study showed the feasibility of calculating the CACS from chest CT scans of routine health examinations for individuals using an AI-based algorithm. The proposed deep-learning method in this study is feasible for the automatic quantification of the CACS in non-gated chest CT images of routine health examinations for individuals. The main findings from this study are as follows: (I) the automatic quantification of the CACS exhibited excellent correlation, consistency, and risk classification performance in non-gated chest CT images with slice thicknesses of 1.0 and 3.0 mm; (II) the CACS calculated from the 1-mm slice width images derived from chest CT scans exhibited better performance the those calculated with 3- or 5-mm slice width images; and (III) The CACSs in the non-gated chest CT images were more likely to be underestimated or overestimated when the patients were evaluated as low-risk [1–100] CAD patients.

The Agatston score, which has been the most widely used method for quantifying CAC for more than three decades, remains a valuable tool in cardiovascular risk assessment. It aids in the early detection, risk stratification, treatment decision making, and monitoring of CAD progression in the current clinical landscape (7,30,31). To calculate the Agatston score precisely, the ECG-gated non-contrast enhanced cardiac CT scan procedure was developed to acquire images of the coronary arteries synchronized with the patient’s heartbeat (32). However, our study showed that the CACS calculated from the chest CT scan using an AI-based algorithm had a good correlation with that of the standard ECG-gated cardiac CT scan, which supports the findings of previous studies (33,34).

Some studies (24,35) have calculated the CACSs using non-gated chest CT, but the studies did not further subdivide the image slice thickness, and were retrospective in nature. One study (36) analyzed the CACSs of chest CT scans with thicknesses of 1 and 3 mm, and found that the chest CT scans with a slice thickness of 3 mm were slightly more accurate in CAC detection and risk classification, which is inconsistent with our findings; however, our Kappa values for the risk classification of chest CT scans with a thicknesses of 1 mm were higher. A previous study (37) analyzed the CACSs of different slice thicknesses of electrocardiographic-gated cardiac CT scans. Unlike previous studies, the patients in our study were prospectively enrolled and underwent chest and ECG-gated CT scans sequentially. This approach allowed us to minimize the impact of factors introduced by variations in patients’ conditions on different dates. Our study revealed that the CACSs calculated from images with a slice thickness of 1.0 mm, derived from chest CT scans showed no statistically significant differences and had the highest correlation of 0.973 when compared to the reference CACSs. However, the CACSs calculated from the other two slice thicknesses (3.0 and 5.0 mm) had significantly lower values.

The ECG-gated CT scan allowed us to acquire data during the diastolic phase of the cardiac cycle, which enabled us to measure calcium plaque accurately. However, the chest CT scan was not synchronized with ECG, which could potentially introduce calculation bias caused by cardiac motion. Further, the images with the thicker slice widths might be more affected by the volume effect, as a threshold of 130 HU was applied during the Agatston score calculation. Therefore, the 1.0-mm slice width images performed better for CACS measurements than the 3.0- and 5.0-mm slice width images, all of which were reconstructed from the same chest CT scan.

In a multi-center, multi-vendor retrospective study conducted by Xu et al., the AI-CACS method from chest CT was compared with the manual method from cardiac CT. The study reported excellent correlation (ρ=0.893) and good agreement in risk categorization with a concordance rate of 80.6% (19). However, it should be noted that the chest CT images in that study had different slice widths, ranging from 0.625 to 5.0 mm, and the impact of image slice width on CACS results was not investigated. Our study showed that the AI-based CACS algorithm could provide more accurate results from chest CT images with a slice width of 1.0 mm. This shows the feasibility of calculating the CACSs for patients undergoing lung screening CT scans to predict the risk of CAD. However, our study also raised a concern that the AI-based algorithm may underestimate the risk of CAD, particularly in cases involving thick-slice chest CT images.

In terms of Agatston score-based risk categorization, the 1-mm AI-CACS group showed the highest accuracy at 91.0%, followed by the 3-mm AI-CACS group, which achieved an accuracy of 84.8%, using the ECG-CT CACS group as the reference. However, in the 5-mm AI-CACS group, only 62.5% of patients were categorized in the same risk category as the reference. The 5-mm AI-CACS group significantly underestimated the risk with 77.8% (28/36) of patients categorized in group 1–100 being reclassified into group 0, 45.5% (10/22) of patients from group 101–400 being recategorized into group 1–100, and 57.1% (4/7) of patients in group >400 being reclassified into group 101–400 (Table 6).

It is well known that while a CAC score of 0 is associated with a very low prevalence of obstructive epicardial CAD and low event rates, it can also create a false sense of reassurance; therefore, the risk of CAD should not be completely ruled out (38). Further, the estimations from the 5-mm AI-CACS group could yield more false-negative results. The 3-mm AI-CACS group also exhibited this underestimation issue with 36.1% (13/36) of patients categorized in group 1–100 being reclassified into group 0. For the 1-mm AI-CACS group, only 11.1% (4/36) of the patients were reclassified into group 0. Our study also showed that 1-mm AI-CACS tended to overestimate the risk compared to the ECG-gated CACS group. Specifically, 2.1% (1/47) of patients categorized in group 0 were reclassified into group 1–100, 8.3% (3/36) of patients categorized in group 1–100 were reclassified into group 101–400, and 4.5% (1/22) of patients categorized in group 101–400 were reclassified into group >400 (Figure 7). Our study revealed that AI-CACS calculated from chest CT images with thinner slice widths (1.0 and 3 mm) were higher than those calculated from images with a slice width of 5 mm. Overall, the 1-mm AI-CACS group underestimated 4.4% (5/112) of patients and overestimated 4.4% (5/112) of patients, which closely aligned with the reference ECG-gated CACS group. Most of the underestimated cases belonged to the very low-risk group (CACS 0), while the overestimated cases were mainly distributed in the very low- to moderate-risk group (CACS 1–400). Of all the three AI-CACS groups, an underestimation or overestimation was most likely to occur in the evaluation of low-risk (CACS 1–100) CAD patients.

Our study had several limitations. First, the small sample size might have introduced selection bias. Second, we did not conduct separate statistical analyses on the CACSs of coronary artery branches. Third, all images were obtained from the same scanner at our hospital. Ultimately, we did not consider the potential impacts of varying tube voltages and patient heart rates on CACSs from non-gated chest CT scans. Therefore, we suggest that a larger multi-center, multi-vendor cohort study be conducted to address these limitations.

Conclusions

This prospective study showed the feasibility of using the proposed deep-learning method to automatically quantify the CACS from non-gated chest CT images. Our findings suggest that chest CT images with a slice width of 1 mm are suitable for CACS calculation and CAD risk stratification in patients undergoing lung screening.

Acknowledgments

The authors would like to thank the technicians and nursing teams at the Department of Radiology, Nanjing Drum Tower Hospital, The Affiliated Hospital of Nanjing University Medical School.

Funding: This study was supported by the National Natural Science Foundation of China (No. 82272065), the Medical Research Project of Jiangsu Health Commission in 2022 (No. M2022066), the Nanjing Medical Science and Technique Development Foundation (Nos. ZKX32019 and ZKX19018), the 15th Special Supported Project of China Postdoctoral Science Foundation (No. 2022T150317), the Nanjing Gulou Hospital New Technology Development Fund (Nos. XJSFZJJ202026 and XJSFZLX202114), and the Characteristic Project of Combined TCM and West Medicine Nanjing Drum Tower Hospital (No. CZXM2022106).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-24-247/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-24-247/coif). X.C. is an employee of Philips Healthcare. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved the Institutional Ethics Committee of the Drum Tower Hospital, Medical School of Nanjing University (No. 2022-547-01), and informed consent was obtained from all the patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
