Cortical microstructural abnormalities in amyotrophic lateral sclerosis: a gray matter-based spatial statistics study

Introduction

Amyotrophic lateral sclerosis (ALS) is a fatal neurodegenerative disease, which is characterized by a progressive loss of the upper and lower motor neurons. It causes a deterioration in motor abilities, including muscle atrophy and weakness, respiratory insufficiency, and dysphagia (1). Death related to ALS often occurs three to five years after the onset of symptoms, with respiratory failure being the chief cause (2). For early intervention and improved prognosis, it is widely believed that a timely diagnosis of ALS is essential (3). Therefore, it is crucial to clarify brain structural changes in individuals who are suspected to have ALS, as these changes may serve as neuroimaging biomarkers for the diagnosis and monitoring of disease progression.

A postmortem study reported widespread neuronal loss and axonal degeneration in patients with ALS (4). Magnetic resonance imaging (MRI) studies have identified different patterns of cortical morphology in vivo in patients with ALS, such as reduced gyrification (5), density (6), and cortical thickness (7). The brain regions implicated in ALS pathologies include motor-related areas (i.e., precentral gyrus) and extra-motor areas (e.g., cingulate gyrus, temporal lobe, thalamus, and caudate nucleus (8). Notably, the cortical abnormalities [such as macrostructural atrophy (9) and microstructural impairment (10)] are associated with disease severity and illness duration.

A promising tool for imaging of the brain microstructure is diffusion MRI (dMRI). Because it is sensitive to water molecule motion, dMRI can be used to probe the microstructure of the tissue (11). As the most popular dMRI method, diffusion tensor imaging (DTI) has consistently detected impaired white-matter (WM) microstructure in patients with ALS, mainly along the corticospinal tract (CST) and the body of the corpus callosum (12). The majority of existing DTI studies have focused on ALS-related WM microstructural abnormalities; however, the gray-matter (GM) abnormalities have not been extensively investigated (13). In fact, DTI is not a favored approach for characterizing the GM microstructure (which consists primarily of neuron cells and dendrites) due to its inability to quantify non-Gaussian diffusion arising from biological barriers (e.g., axonal sheaths, cellular membranes, and organelles) (14). Furthermore, the application of DTI for GM evaluation is limited by the partial volume effect of the WM and the cerebrospinal fluid (CSF) adjacent to the cortex. Neurite orientation dispersion and density imaging (NODDI), an advanced multicompartment diffusion model, can be used to characterize changes in the cortical microstructure, not only mitigating these DTI limitations but also ensuring higher tissue specificity (14). NODDI can estimate the biologically relevant parameters according to a “tissue model” (15). Such parameters include the orientation dispersion index (ODI), which quantifies the angular variation of neurites, and the neurite density index (NDI), which quantifies the density of neurites (14). Additionally, NODDI can account for partial volume effects by separating out the CSF component of the diffusion signal (16).

NODDI has been proven to provide better results than conventional DTI in ALS-related studies (17). For example, earlier NODDI studies on ALS demonstrated that NDI is more sensitive than DTI metrics in identifying WM microstructure abnormalities (reflected by reduced NDI) that involve the corpus callosum, frontotemporal-related tracts, and bilateral CST (18,19). In addition to WM abnormalities, ALS-related GM alterations (as shown by decreased NDI and ODI) in the right precentral gyrus were correlated with disease duration in another NODDI study that used voxel-based analysis (VBA) (18). Notably, VBA has been demonstrated to be largely affected by partial volume effects due to the spatial smoothing that excludes individual brain structure differences (20). Therefore, VBA does not quite provide a perfect fitting of the individual brain images to a common template. To address these limitations, GM-based spatial statistics (GBSS) has been proposed, which is a statistical technique that adapts the tract-based spatial statistics framework for voxel-wise analysis of NODDI metrics in GM (21). GBSS leverages NODDI to enable the GM-specific statistical analysis of cortical microstructure in an unbiased, voxel-wise manner. Unlike VBA, GBSS can reduce partial volume contamination and improve the sensitivity of NODDI measures for GM microstructural evaluation (21).

GBSS has been widely applied in the investigation of cortical GM microstructure changes related to neuropsychological disorders, such as Alzheimer disease (22), Parkinson disease (23), and schizophrenia (24). We thus hypothesized that ALS-related GM microstructural abnormalities could also be quantified by GBSS. To this end, we combined GBSS and NODDI to evaluate the cortical microstructural abnormalities in patients with ALS and to determine their association with disease severity.

Methods

Subjects

This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the Research Ethics Committee of Fujian Medical University Union Hospital (No. 2022WSJK022). Informed consent was obtained from all the participants. This study included 64 participants, including 30 healthy controls (HCs) and 34 patients with ALS. In the outpatient and inpatient departments of neurology, patients with ALS were recruited, while HCs were recruited from the local community through our study advertisements. All participants were examined and screened by an experienced neurologist. The diagnosis of ALS was established according to the El Escorial criteria (25), and the severity of disease was assessed using the revised ALS Functional Rating Scale (ALSFRS-R) (26). We calculated the rate of disease progression as follows: (48 − ALSFRS-R)/disease duration. Table 1 summarizes the participants’ clinical characteristics and demographics. Participants were excluded for the following reasons: (I) other neuropsychiatric disorders, such as Alzheimer disease, Parkinson disease, epilepsy, or depression; (II) intake of psychotropic medications; (III) presence of other serious disorders, such as respiratory failure, angiocardiopathy, and cancer; and (IV) contraindications to MRI examination.

MRI data acquisition

We used a Prisma 3-T MRI scanner (Siemens Healthineers, Erlangen, Germany) for data acquisition. We used a multishell spin-echo echo-planar imaging sequence for the diffusion-weighted image collection, and each nonzero b value (b values =1,000, 2,000, and 3,000 s/mm²) had 64 gradient directions. We also obtained ten non-diffusion-weighted (b value =0 s/mm²) images. The additional acquisition parameters were as follows: repetition time (TR) =2,500 msec, echo time (TE) =81 msec, number of averages =1, slice thickness =2 mm, field of view (FOV) =260×260 mm, matrix =130×130, flip angle =90°, number of slices =72, the voxel spatial resolution =2.0×2.0 mm², and multiband factor =4.

Data preprocessing

We conducted preprocessing on diffusion data using the Functional Magnetic Resonance Imaging of the Brain (FMRIB) Software Library (FSL) (27), including eddy current and head motion correction. Subsequently, the corrected data with a b value of 1,000 s/mm² were applied to fit the diffusion tensor model (28) with an open-source package in Python (DIPY). We employed the weighted linear least squares method (29) for the calculation of fractional anisotropy (FA). Additionally, the corrected data with all b values were fitted to the three-compartment NODDI tissue model (14) with the Accelerated Microstructure Imaging via Convex Optimization (AMICO) (30), from which we derived quantitative maps of the intracellular volume fraction (FICVF) of neurites, ODI, and isotropic volume fraction (ISOVF). In this context, we considered FICVF to be the NDI and ISOVF to be the CSF fraction.

GBSS analysis

We performed GBSS to analyze the microstructural changes of GM using scripts available online (https://github.com/arash-n/GBSS) (24). As illustrated in Figure 1, FA maps were segmented into two-tissue classes to obtain a WM fraction map via Atropos (31). We then calculated the GM fraction by subtracting the WM fraction and CSF fraction from 1. Pseudo-T1-weighted images were then generated by combining the GM fraction and WM fraction based on their corresponding weights. A study-wise template was constructed using participants’ pseudo-T1-weighted images through Advanced Normalization Tools (ANTs; http://stnava.github.io/ANTs) (32). Subsequently, we warped the GM fraction and NODDI metrics in the native space to the template using warp parameters. The mean GM fraction map in the study-wise space was used to generate the GM skeleton via the tbss_skeleton tool in FSL (33). Finally, we projected the NODDI metrics onto the skeleton with the assistance of the distancemap program in FSL (33). Notably, the GM skeleton encompassed voxels meeting the criterion of GM fraction >0.65 in >75% of the participants, while the remaining voxels were filled with the surrounding voxels (24).

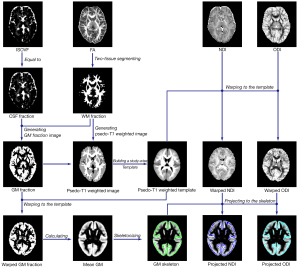

Figure 1 Data processing pipeline. First, metrics were reconstructed using DTI and NODDI models, including FA, ISOVF, ODI, and NDI. Second, GM fraction images were obtained using WM fraction and CSF fraction. Third, native pseudo-T1 images were generated by adding the weighted WM fraction and GM fraction. Fourth, a study-wise template was created using ANTs, and metrics were warped to the template. Finally, NDI and ODI were projected onto the skeleton represented in green after the GM skeleton was generated using the mean GM fraction map. ISOVF, isotropic volume fraction; CSF, cerebrospinal fluid; GM, gray matter; FA, fractional anisotropy; WM, white matter; NDI, neurite density index; ODI, orientation dispersion index; DTI, diffusion tensor imaging; NODDI, neurite orientation dispersion and density imaging; ANTs, Advanced Normalization Tools.

Statistical analysis

We investigated the cortical microstructural distinctions between the HCs and individuals with ALS based on NDI and ODI metrics. Additionally, the associations between NODDI metrics and clinical information, including ALSFRS-R score, disease duration at the scan date, and progression rate were evaluated. These evaluations were limited to areas with significant intergroup differences. A nonparametric permutation test was conducted for these analyses using the Randomise tool in FSL with 5,000 permutations, with adjustments being made for age, sex, and years of education. Threshold free cluster enhancement (TFCE) (34) was applied to identify significant regions, with no arbitrary cluster-forming threshold being defined. Family-wise error (FWE) correction was performed to address multiple comparisons, with a significant threshold set at P_FWE<0.05. To pinpoint significant regions, we aligned the Brainnetome Atlas (35) and probabilistic cerebellar atlas (36) to the study-wise space using ANTs.

Results

In patients with ALS, a significantly decreased NDI was found in several regions of the GM, primarily the left precentral gyrus, left postcentral gyrus, bilateral temporal cortex (including the bilateral superior temporal gyrus, middle temporal gyrus, inferior temporal gyrus, fusiform gyrus, hippocampus, and parahippocampal gyrus), left prefrontal cortex (including the left middle frontal gyrus, inferior frontal gyrus, and anterior cingulate gyrus), bilateral occipital cortex (including the right medioventral occipital cortex and bilateral lateral occipital cortex), bilateral posterior parietal cortex (including the bilateral inferior parietal lobule, precuneus, and posterior cingulate gyrus), and bilateral cerebellum (FWE-corrected P<0.05; see Figure 2, Table 2).

Figure 2 Comparison of NDI between the healthy controls and patients with ALS. Significant regions in red and yellow are reported for P values <0.05 with FWE correction. The gray-matter skeleton is shown in green, and the mean gray matter is shown in gray. NDI, neurite density index; FWE, family-wise error; HC, healthy control; ALS, amyotrophic lateral sclerosis; R, right; L, left; Z, z-axis of coordinates.

In patients with ALS, a significantly decreased ODI was found in relatively few components of the cortical GM, primarily left precentral gyrus, left postcentral gyrus, left prefrontal cortex (including the left inferior frontal gyrus, middle frontal gyrus, superior frontal gyrus, and orbital gyrus), and left inferior parietal lobule (FWE-corrected P<0.05; see Figure 3, Table 3).

Figure 3 Group difference in the ODI between the healthy controls and patients with ALS. Significant regions in red and yellow are reported for P values <0.05 with FWE correction. Significant regions are displayed on the GM skeleton, which is shown in green. The underlay in gray is the mean gray matter. ODI, orientation dispersion index; FWE, family-wise error; HC, healthy control; ALS, amyotrophic lateral sclerosis; R, right; L, left; Z, z-axis of coordinates; GM, gray-matter.

The NDI value in the left precentral and postcentral gyrus was positively correlated with the ALSFRS-R score (FWE-corrected P<0.05; see Figure 4, Table 4). We did not observe any correlation, however, between ODI and the ALSFRS-R score or between the diffusion metrics and disease duration or progression rate.

Figure 4 Voxel-wise relationship between NDI and the revised ALSFRS-R. Significant regions in red and yellow are reported for P values <0.05 with FWE correction. Voxels in yellow and red are the significantly positive relationships, voxels in green represent the GM skeleton, and voxels in gray are the mean gray matter. NDI, neurite density index; FWE, family-wise error; R, right; L, left; Z, z-axis of coordinates; ALSFRS-R, the Revised Amyotrophic Lateral Sclerosis Functional Rating Scale; GM, gray matter.

Discussion

This study was the first to investigate the microstructural changes in the GM of patients with ALS using the NODDI and GBSS. The primary results of this study were as follows: (I) The NDI reductions involved several cortical GM (primarily the precentral gyrus, postcentral gyrus, temporal cortex, prefrontal cortex, occipital cortex, and posterior parietal cortex) in patients with ALS. (II) Patients with ALS demonstrated ODI reductions in relatively few cortical regions (including the precentral gyrus, postcentral gyrus, prefrontal cortex, and inferior parietal lobule). (III) The NDI value in the left precentral and postcentral gyrus showed a positive correlation with the ALS disease severity. NODDI measurements may provide more detailed information regarding specific GM microstructural changes, which would further shed light on the neuropathological mechanisms of ALS.

As ALS is a neurodegenerative disease, several DTI studies have reported GM microstructural abnormalities in patients with this condition (37,38). NODDI can better characterize the microstructural properties of the GM microstructure as a more advanced diffusion model. ODI can reveal the arrangement of the neurite fibers, which may reflect complexity of dendritic angular variation in GM, and NDI can capture the density of myelinated dendrites in GM (17). Thus, the observed NDI and ODI reductions in GM can reflect dendrite loss and a reduction in spines, respectively (39). In line with our results, previous in vivo studies using MRI reported dendritic degeneration in the motor cortex in patients with ALS (18), which may be related to the C9orf72 mutation (19). In addition, an ex vivo study suggested that the pathological TDP-43 (neuropathological hallmark protein of ALS) can decrease deacetylase activity, resulting in impairment of neurite growth (40).

The most obvious neuroimaging feature in patients with ALS is the impairment of the motor cortex microstructure (41). We consistently observed NDI and ODI reductions in the precentral gyrus (the primary motor cortex) in patients with ALS. In line with our results, the NDI and ODI reductions in the precentral gyrus of patients with ALS were also demonstrated in a previous NODDI study using VBA (18). In addition, we observed NDI and ODI reductions in the postcentral gyrus (primary somatosensory cortex) in patients with ALS. This finding aligns closely with previous studies on ALS, which report morphological atrophy (7) and hypometabolism (42) in the postcentral gyrus. Taken together, these findings further suggest that the impairment in precentral and postcentral gyrus are key underlying causes of motor and sensory disturbances in patients with ALS (43). This conclusion is supported by the observed association between NDI in left precentral and postcentral gyrus and ALS disease severity.

A significant amount of research has shown the temporal regions to have extensive involvement in ALS (8,44,45). Similarly, we observed microstructural impairments in the bilateral temporal cortex of patients with ALS, which was reflected by the decreases of NDI and ODI. Consistent with the results of this study, previous MRI studies have reported morphological atrophy (44) and microstructural changes (45) in the temporal cortex of patients with ALS, with about 40% of these patients exhibiting pathological accumulations of the TDP-43 protein inclusion in the temporal cortex. These inclusions could be related to neurodegeneration in patients with ALS (46). Specifically, we found microstructural impairments in the hippocampus, parahippocampal gyrus, and fusiform gyrus in patients with ALS. Research has shown that the hippocampus and the surrounding parahippocampal, perirhinal, and fusiform gyrus are essential for semantic and memory processing (47). Consistently, memory deficit and language domain impairment have been confirmed in patients with ALS (48). In this study, we also observed GM microstructural impairment in the inferior temporal gyrus and the middle temporal gyrus, which are involved in cognitive processes (49). The superior temporal gyrus, a region with decreased NDI and ODI, is a key structure for language and spatial awareness and exploration (50). Thus, our findings suggest that ALS involved multiple temporal regions, providing further evidence for the heterogeneity in the clinical symptoms of ALS.

We observed the GM microstructural impairment in the prefrontal cortex (revealed by NDI and ODI reduction) in patients with ALS. This is in line with a previous ALS study that reported a decrease in FA in the prefrontal cortex (51), which is known to be involved in cognitive control (52). Functional and structural imaging studies also have supported the presence of prefrontal deficits, which are related to dysfunction of cognitive profile in patients with ALS (53,54). Therefore, we speculate that GM microstructural impairments in the prefrontal cortex may be responsible for the cognitive impairments that have been observed in patients with ALS (1).

Our results also revealed NDI and ODI reductions in the inferior parietal lobule in patients with ALS. Other abnormalities related to ALS have been identified in this region, such as surface area reduction (55) and volume decrease (7). The inferior parietal lobule is involved in motor planning and spatial and nonspatial attention (56). Thus, it could be speculated that microstructural abnormalities in the inferior parietal lobule may be associated with the motor dysfunction and cognitive deficit that have been reported in ALS (1). In addition, we detected the microstructural impairment in the precuneus, which was reflected by a reduction in the NDI. In line with our results, a previous study revealed significant GM volume reduction in the precuneus of patients with ALS (57). Given that the precuneus is known to be the hub for processing and integrating multisensory information from the frontal and temporal inputs (58), the GM microstructural impairment in the precuneus may contribute to the sensory disturbances observed in patients with ALS (43).

The anterior and posterior cingulate gyri, regions with deceased NDI, are important hubs implicated in modulating executive control (59) and retrieval of previously learned data (60), respectively. The altered microstructures in these regions may be responsible for the cognitive dysfunction in patients with ALS (61). In addition, we observed a decreased NDI in the occipital cortex of patients with ALS. In keeping with this finding, ALS-related alterations within the occipital cortex have also been observed, including cortical thinning (62) and metabolic abnormalities (42), which may give rise to dysfunction to the integration of visuomotor information (63).

The NDI decreased in the bilateral cerebellum of patients with ALS. This finding was consistent with previous reports on cerebellar macrostructural atrophy and microstructural impairment in ALS (64,65). The role of the cerebellum in the ALS pathology has already been demonstrated, and its dysfunction can exacerbate patients’ motor and cognitive deficits (64). As the cerebellum is involved in various functions such as motor control and cognition (66), microstructural damage (reflected by decreased NDI) in the cerebellum might be the one of underlying mechanisms for motor and cognitive impairment observed in patients with ALS.

This study has four principal limitations. First, the relatively small sample size might have limited the statistical power and restricted our ability to perform a subgroup analysis. Second, we regrettably did not conduct cognitive measurements on the patients with ALS, which prevented us from examining the association between NODDI measures and cognition level. Third, the well-developed GBSS method can mitigate the impact of complex cortical structures on spatial registration and reduce partial volume effects, but it also is associated with certain drawbacks. Specifically, it requires high spatial registration accuracy, and each change in cortex caused by lesions can affect the extraction of the skeleton, potentially leading to inaccurate skeleton positioning and a subsequent increase in the likelihood of false-positive or false-negative results. Moreover, GBSS employs a skeletonized cortical ribbon to capture diffusion metrics along its trajectories. However, because GM skeletonization is extracted along highly overlapped regions, GBSS also yielded low sensitivity for between-group differences around the cortical sulci (67). Fourth, we failed to consider the cause-and-effect relationship between disease progression and GM microstructural changes due to the study’s cross-sectional nature. In this regard, longitudinal data would better reveal trends in damage to the GM microstructure over time in patients with ALS.

Conclusions

In this study, we revealed that abnormalities in the GM microstructure involving motor-related areas and extramotor regions in patients ALS. The correlation between NDI and disease severity suggested that the NODDI measurements may serve as neuroimaging biomarkers for monitoring the development of the ALS. Additionally, GBSS has demonstrated its feasibility for in the detection of GM microstructural abnormalities in ALS.

Acknowledgments

Funding: This study was supported by grants from the Fujian Provincial Health Technology Project (Nos. 2022QNA022 and 2023CXA009) and the Fujian Medical University Startup Fund for Scientific Research (No. 2022QH1030).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-24-236/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the Research Ethics Committee of Fujian Medical University Union Hospital (No. 2022WSJK022). Informed consent was obtained from all participants.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.

References

1. Feldman EL, Goutman SA, Petri S, Mazzini L, Savelieff MG, Shaw PJ, Sobue G. Amyotrophic lateral sclerosis. Lancet 2022;400:1363-80. [Crossref] [PubMed]
2. Hardiman O, van den Berg LH, Kiernan MC. Clinical diagnosis and management of amyotrophic lateral sclerosis. Nat Rev Neurol 2011;7:639-49. [Crossref] [PubMed]
3. Andersen PM, Abrahams S, Borasio GD, de Carvalho M, Chio A, Van Damme P, Hardiman O, Kollewe K, Morrison KE, Petri S, Pradat PF, Silani V, Tomik B, Wasner M, Weber M. EFNS guidelines on the clinical management of amyotrophic lateral sclerosis (MALS)--revised report of an EFNS task force. Eur J Neurol 2012;19:360-75. [Crossref] [PubMed]
4. Traiffort E, Morisset-Lopez S, Moussaed M, Zahaf A. Defective Oligodendroglial Lineage and Demyelination in Amyotrophic Lateral Sclerosis. Int J Mol Sci 2021;22:3426. [Crossref] [PubMed]
5. Zhang Y, Fang T, Wang Y, Guo X, Alarefi A, Wang J, Jiang T, Zhang J. Occipital cortical gyrification reductions associate with decreased functional connectivity in amyotrophic lateral sclerosis. Brain Imaging Behav 2017;11:1-7. [Crossref] [PubMed]
6. Steinbach R, Batyrbekova M, Gaur N, Voss A, Stubendorff B, Mayer TE, Gaser C, Witte OW, Prell T, Grosskreutz J. Applying the D50 disease progression model to gray and white matter pathology in amyotrophic lateral sclerosis. Neuroimage Clin 2020;25:102094. [Crossref] [PubMed]
7. Grosskreutz J, Kaufmann J, Frädrich J, Dengler R, Heinze HJ, Peschel T. Widespread sensorimotor and frontal cortical atrophy in Amyotrophic Lateral Sclerosis. BMC Neurol 2006;6:17. [Crossref] [PubMed]
8. Senda J, Atsuta N, Watanabe H, Bagarinao E, Imai K, Yokoi D, Riku Y, Masuda M, Nakamura R, Watanabe H, Ito M, Katsuno M, Naganawa S, Sobue G. Structural MRI correlates of amyotrophic lateral sclerosis progression. J Neurol Neurosurg Psychiatry 2017;88:901-7. [Crossref] [PubMed]
9. Shen D, Cui L, Fang J, Cui B, Li D, Tai H. Voxel-Wise Meta-Analysis of Gray Matter Changes in Amyotrophic Lateral Sclerosis. Front Aging Neurosci 2016;8:64. [Crossref] [PubMed]
10. Huang NX, Zou ZY, Xue YJ, Chen HJ. Abnormal cerebral microstructures revealed by diffusion kurtosis imaging in amyotrophic lateral sclerosis. J Magn Reson Imaging 2020;51:554-62. [Crossref] [PubMed]
11. Tournier JD. Diffusion MRI in the brain - Theory and concepts. Prog Nucl Magn Reson Spectrosc 2019;112-113:1-16. [Crossref] [PubMed]
12. Bao Y, Yang L, Chen Y, Zhang B, Li H, Tang W, Geng D, Li Y. Radial diffusivity as an imaging biomarker for early diagnosis of non-demented amyotrophic lateral sclerosis. Eur Radiol 2018;28:4940-8. [Crossref] [PubMed]
13. Zhang F, Chen G, He M, Dai J, Shang H, Gong Q, Jia Z. Altered white matter microarchitecture in amyotrophic lateral sclerosis: A voxel-based meta-analysis of diffusion tensor imaging. Neuroimage Clin 2018;19:122-9. [Crossref] [PubMed]
14. Zhang H, Schneider T, Wheeler-Kingshott CA, Alexander DC. NODDI: practical in vivo neurite orientation dispersion and density imaging of the human brain. Neuroimage 2012;61:1000-16. [Crossref] [PubMed]
15. Sepehrband F, Clark KA, Ullmann JF, Kurniawan ND, Leanage G, Reutens DC, Yang Z. Brain tissue compartment density estimated using diffusion-weighted MRI yields tissue parameters consistent with histology. Hum Brain Mapp 2015;36:3687-702. [Crossref] [PubMed]
16. Ball G, Srinivasan L, Aljabar P, Counsell SJ, Durighel G, Hajnal JV, Rutherford MA, Edwards AD. Development of cortical microstructure in the preterm human brain. Proc Natl Acad Sci U S A 2013;110:9541-6. [Crossref] [PubMed]
17. Kamiya K, Hori M, Aoki S. NODDI in clinical research. J Neurosci Methods 2020;346:108908. [Crossref] [PubMed]
18. Broad RJ, Gabel MC, Dowell NG, Schwartzman DJ, Seth AK, Zhang H, Alexander DC, Cercignani M, Leigh PN. Neurite orientation and dispersion density imaging (NODDI) detects cortical and corticospinal tract degeneration in ALS. J Neurol Neurosurg Psychiatry 2019;90:404-11. [Crossref] [PubMed]
19. Wen J, Zhang H, Alexander DC, Durrleman S, Routier A, Rinaldi D, Houot M, Couratier P, Hannequin D, Pasquier F, Zhang J, Colliot O, Le Ber I, Bertrand APredict to Prevent Frontotemporal Lobar Degeneration and Amyotrophic Lateral Sclerosis (PREV-DEMALS) Study Group. Neurite density is reduced in the presymptomatic phase of C9orf72 disease. J Neurol Neurosurg Psychiatry 2019;90:387-94. [Crossref] [PubMed]
20. Arai T, Kamagata K, Uchida W, Andica C, Takabayashi K, Saito Y, Tuerxun R, Mahemuti Z, Morita Y, Irie R, Kirino E, Aoki S. Reduced neurite density index in the prefrontal cortex of adults with autism assessed using neurite orientation dispersion and density imaging. Front Neurol 2023;14:1110883. [Crossref] [PubMed]
21. Nazeri A, Chakravarty MM, Rotenberg DJ, Rajji TK, Rathi Y, Michailovich OV, Voineskos AN. Functional consequences of neurite orientation dispersion and density in humans across the adult lifespan. J Neurosci 2015;35:1753-62. [Crossref] [PubMed]
22. Vogt NM, Hunt JF, Adluru N, Dean DC, Johnson SC, Asthana S, Yu JJ, Alexander AL, Bendlin BB. Cortical Microstructural Alterations in Mild Cognitive Impairment and Alzheimer's Disease Dementia. Cereb Cortex 2020;30:2948-60. [Crossref] [PubMed]
23. Bai X, Guo T, Chen J, Guan X, Zhou C, Wu J, Liu X, Wu H, Wen J, Gu L, Gao T, Xuan M, Huang P, Zhang B, Xu X, Zhang M. Microstructural but not macrostructural cortical degeneration occurs in Parkinson's disease with mild cognitive impairment. NPJ Parkinsons Dis 2022;8:151. [Crossref] [PubMed]
24. Nazeri A, Mulsant BH, Rajji TK, Levesque ML, Pipitone J, Stefanik L, Shahab S, Roostaei T, Wheeler AL, Chavez S, Voineskos AN. Gray Matter Neuritic Microstructure Deficits in Schizophrenia and Bipolar Disorder. Biol Psychiatry 2017;82:726-36. [Crossref] [PubMed]
25. Brooks BR, Miller RG, Swash M, Munsat TLWorld Federation of Neurology Research Group on Motor Neuron Diseases. El Escorial revisited: revised criteria for the diagnosis of amyotrophic lateral sclerosis. Amyotroph Lateral Scler Other Motor Neuron Disord 2000;1:293-9. [Crossref] [PubMed]
26. Cedarbaum JM, Stambler N, Malta E, Fuller C, Hilt D, Thurmond B, Nakanishi A. The ALSFRS-R: a revised ALS functional rating scale that incorporates assessments of respiratory function. BDNF ALS Study Group (Phase III). J Neurol Sci 1999;169:13-21. [Crossref] [PubMed]
27. Jenkinson M, Beckmann CF, Behrens TE, Woolrich MW, Smith SM. FSL. Neuroimage 2012;62:782-90. [Crossref] [PubMed]
28. Basser PJ, Pierpaoli C. Microstructural and physiological features of tissues elucidated by quantitative-diffusion-tensor MRI. J Magn Reson B 1996;111:209-19. [Crossref] [PubMed]
29. Garyfallidis E, Brett M, Amirbekian B, Rokem A, van der Walt S, Descoteaux M, Nimmo-Smith I. Dipy Contributors. Dipy, a library for the analysis of diffusion MRI data. Front Neuroinform 2014;8:8. [Crossref] [PubMed]
30. Daducci A, Canales-Rodríguez EJ, Zhang H, Dyrby TB, Alexander DC, Thiran JP. Accelerated Microstructure Imaging via Convex Optimization (AMICO) from diffusion MRI data. Neuroimage 2015;105:32-44. [Crossref] [PubMed]
31. Avants BB, Tustison NJ, Wu J, Cook PA, Gee JC. An open source multivariate framework for n-tissue segmentation with evaluation on public data. Neuroinformatics 2011;9:381-400. [Crossref] [PubMed]
32. Avants BB, Epstein CL, Grossman M, Gee JC. Symmetric diffeomorphic image registration with cross-correlation: evaluating automated labeling of elderly and neurodegenerative brain. Med Image Anal 2008;12:26-41. [Crossref] [PubMed]
33. Smith SM, Jenkinson M, Johansen-Berg H, Rueckert D, Nichols TE, Mackay CE, Watkins KE, Ciccarelli O, Cader MZ, Matthews PM, Behrens TE. Tract-based spatial statistics: voxelwise analysis of multi-subject diffusion data. Neuroimage 2006;31:1487-505. [Crossref] [PubMed]
34. Smith SM, Nichols TE. Threshold-free cluster enhancement: addressing problems of smoothing, threshold dependence and localisation in cluster inference. Neuroimage 2009;44:83-98. [Crossref] [PubMed]
35. Fan L, Li H, Zhuo J, Zhang Y, Wang J, Chen L, Yang Z, Chu C, Xie S, Laird AR, Fox PT, Eickhoff SB, Yu C, Jiang T. The Human Brainnetome Atlas: A New Brain Atlas Based on Connectional Architecture. Cereb Cortex 2016;26:3508-26. [Crossref] [PubMed]
36. Diedrichsen J, Balsters JH, Flavell J, Cussans E, Ramnani N. A probabilistic MR atlas of the human cerebellum. Neuroimage 2009;46:39-46. [Crossref] [PubMed]
37. Menke RAL, Proudfoot M, Talbot K, Turner MR. The two-year progression of structural and functional cerebral MRI in amyotrophic lateral sclerosis. Neuroimage Clin 2018;17:953-61. [Crossref] [PubMed]
38. Cardenas-Blanco A, Machts J, Acosta-Cabronero J, Kaufmann J, Abdulla S, Kollewe K, Petri S, Schreiber S, Heinze HJ, Dengler R, Vielhaber S, Nestor PJ. Structural and diffusion imaging versus clinical assessment to monitor amyotrophic lateral sclerosis. Neuroimage Clin 2016;11:408-14. [Crossref] [PubMed]
39. Kamagata K, Hatano T, Okuzumi A, Motoi Y, Abe O, Shimoji K, Kamiya K, Suzuki M, Hori M, Kumamaru KK, Hattori N, Aoki S. Neurite orientation dispersion and density imaging in the substantia nigra in idiopathic Parkinson disease. Eur Radiol 2016;26:2567-77. [Crossref] [PubMed]
40. Fiesel FC, Schurr C, Weber SS, Kahle PJ. TDP-43 knockdown impairs neurite outgrowth dependent on its target histone deacetylase 6. Mol Neurodegener 2011;6:64. [Crossref] [PubMed]
41. Dey A, Luk CC, Ishaque A, Ta D, Srivastava O, Krebs D, Seres P, Hanstock C, Beaulieu C, Korngut L, Frayne R, Zinman L, Graham S, Genge A, Briemberg H, Kalra SCanadian ALS Neuroimaging Consortium (CALSNIC). Motor cortex functional connectivity is associated with underlying neurochemistry in ALS. J Neurol Neurosurg Psychiatry 2023;94:193-200. [Crossref] [PubMed]
42. Liu P, Tang Y, Li W, Liu Z, Zhou M, Li J, Yuan Y, Fang L, Guo J, Shen L, Jiang H, Tang B, Hu S, Wang J. Brain metabolic signatures in patients with genetic and nongenetic amyotrophic lateral sclerosis. CNS Neurosci Ther 2023;29:2530-9. [Crossref] [PubMed]
43. Rubio MA, Herrando-Grabulosa M, Navarro X. Sensory Involvement in Amyotrophic Lateral Sclerosis. Int J Mol Sci 2022;23:15521. [Crossref] [PubMed]
44. Mori H, Yagishita A, Takeda T, Mizutani T. Symmetric temporal abnormalities on MR imaging in amyotrophic lateral sclerosis with dementia. AJNR Am J Neuroradiol 2007;28:1511-6. [Crossref] [PubMed]
45. Canu E, Agosta F, Riva N, Sala S, Prelle A, Caputo D, Perini M, Comi G, Filippi M. The topography of brain microstructural damage in amyotrophic lateral sclerosis assessed using diffusion tensor MR imaging. AJNR Am J Neuroradiol 2011;32:1307-14. [Crossref] [PubMed]
46. Geser F, Brandmeir NJ, Kwong LK, Martinez-Lage M, Elman L, McCluskey L, Xie SX, Lee VM, Trojanowski JQ. Evidence of multisystem disorder in whole-brain map of pathological TDP-43 in amyotrophic lateral sclerosis. Arch Neurol 2008;65:636-41. [Crossref] [PubMed]
47. Hoenig K, Scheef L. Mediotemporal contributions to semantic processing: fMRI evidence from ambiguity processing during semantic context verification. Hippocampus 2005;15:597-609. [Crossref] [PubMed]
48. Leslie FV, Hsieh S, Caga J, Savage SA, Mioshi E, Hornberger M, Kiernan MC, Hodges JR, Burrell JR. Semantic deficits in amyotrophic lateral sclerosis. Amyotroph Lateral Scler Frontotemporal Degener 2015;16:46-53. [Crossref] [PubMed]
49. Cabeza R, Nyberg L. Imaging cognition II: An empirical review of 275 PET and fMRI studies. J Cogn Neurosci 2000;12:1-47. [Crossref] [PubMed]
50. Karnath HO. New insights into the functions of the superior temporal cortex. Nat Rev Neurosci 2001;2:568-76. [Crossref] [PubMed]
51. Sage CA, Peeters RR, Görner A, Robberecht W, Sunaert S. Quantitative diffusion tensor imaging in amyotrophic lateral sclerosis. Neuroimage 2007;34:486-99. [Crossref] [PubMed]
52. Friedman NP, Robbins TW. The role of prefrontal cortex in cognitive control and executive function. Neuropsychopharmacology 2022;47:72-89. [Crossref] [PubMed]
53. Canosa A, Pagani M, Cistaro A, Montuschi A, Iazzolino B, Fania P, Cammarosano S, Ilardi A, Moglia C, Calvo A, Chiò A. 18F-FDG-PET correlates of cognitive impairment in ALS. Neurology 2016;86:44-9. [Crossref] [PubMed]
54. Illán-Gala I, Montal V, Pegueroles J, Vilaplana E, Alcolea D, Dols-Icardo O, et al. Cortical microstructure in the amyotrophic lateral sclerosis-frontotemporal dementia continuum. Neurology 2020;95:e2565-76. [Crossref] [PubMed]
55. Verstraete E, Veldink JH, Hendrikse J, Schelhaas HJ, van den Heuvel MP, van den Berg LH. Structural MRI reveals cortical thinning in amyotrophic lateral sclerosis. J Neurol Neurosurg Psychiatry 2012;83:383-8. [Crossref] [PubMed]
56. Caspers S, Schleicher A, Bacha-Trams M, Palomero-Gallagher N, Amunts K, Zilles K. Organization of the human inferior parietal lobule based on receptor architectonics. Cereb Cortex 2013;23:615-28. [Crossref] [PubMed]
57. Spinelli EG, Ghirelli A, Riva N, Canu E, Castelnovo V, Domi T, Pozzi L, Carrera P, Silani V, Chiò A, Filippi M, Agosta F. Profiling morphologic MRI features of motor neuron disease caused by TARDBP mutations. Front Neurol 2022;13:931006. [Crossref] [PubMed]
58. Xu J, Kemeny S, Park G, Frattali C, Braun A. Language in context: emergent features of word, sentence, and narrative comprehension. Neuroimage 2005;25:1002-15. [Crossref] [PubMed]
59. Carter CS, Braver TS, Barch DM, Botvinick MM, Noll D, Cohen JD. Anterior cingulate cortex, error detection, and the online monitoring of performance. Science 1998;280:747-9. [Crossref] [PubMed]
60. Maguire EA, Mummery CJ. Differential modulation of a common memory retrieval network revealed by positron emission tomography. Hippocampus 1999;9:54-61. [Crossref] [PubMed]
61. Phukan J, Pender NP, Hardiman O. Cognitive impairment in amyotrophic lateral sclerosis. Lancet Neurol 2007;6:994-1003. [Crossref] [PubMed]
62. Mezzapesa DM, D'Errico E, Tortelli R, Distaso E, Cortese R, Tursi M, Federico F, Zoccolella S, Logroscino G, Dicuonzo F, Simone IL. Cortical thinning and clinical heterogeneity in amyotrophic lateral sclerosis. PLoS One 2013;8:e80748. [Crossref] [PubMed]
63. Goodale MA. Transforming vision into action. Vision Res 2011;51:1567-87. [Crossref] [PubMed]
64. Bede P, Chipika RH, Christidi F, Hengeveld JC, Karavasilis E, Argyropoulos GD, Lope J, Li Hi Shing S, Velonakis G, Dupuis L, Doherty MA, Vajda A, McLaughlin RL, Hardiman O. Genotype-associated cerebellar profiles in ALS: focal cerebellar pathology and cerebro-cerebellar connectivity alterations. J Neurol Neurosurg Psychiatry 2021;92:1197-205. [Crossref] [PubMed]
65. Pizzarotti B, Palesi F, Vitali P, Castellazzi G, Anzalone N, Alvisi E, Martinelli D, Bernini S, Cotta Ramusino M, Ceroni M, Micieli G, Sinforiani E, D'Angelo E, Costa A, Gandini Wheeler-Kingshott CAM. Frontal and Cerebellar Atrophy Supports FTSD-ALS Clinical Continuum. Front Aging Neurosci 2020;12:593526. [Crossref] [PubMed]
66. Iskusnykh IY, Zakharova AA, Kryl'skii ED, Popova TN. Aging, Neurodegenerative Disorders, and Cerebellum. Int J Mol Sci 2024;25:1018. [Crossref] [PubMed]
67. Parvathaneni P, Lyu I, Huo Y, Rogers BP, Schilling KG, Nath V, Blaber JA, Hainline AE, Anderson AW, Woodward ND, Landman BA. Improved gray matter surface based spatial statistics in neuroimaging studies. Magn Reson Imaging 2019;61:285-95. [Crossref] [PubMed]
