Integrating a deep neural network and Transformer architecture for the automatic segmentation and survival prediction in cervical cancer

Introduction

Cervical cancer (CC) is a leading cause of female cancer mortality worldwide, particularly in medically underserved countries (1). Medical imaging plays an essential role in oncology treatment, with conventional radiomics allowing for the extraction of tumor features and quantitative imaging information from magnetic resonance imaging (MRI) (2,3). Studies indicate that imaging features are valuable for prognostic analysis, clinical classification, and the diagnosis of various cancers (4-6). The imaging features of CC are widely used for grading, diagnosis (7,8), and prognostic analysis (9,10).

Accurate tumor segmentation is essential for precise radiomics analysis. Traditional methods rely on manual delineation by experts, which is both time-consuming and subjective. Over the past few years, deep-learning models have evolved considerably in their ability to segment the tumor lesions of various cancers (11-14). The most common approach involves employing the U-Net architecture for segmentation (15), which consists of a convolutional neural network (CNN) with a classical encoder-decoder structure. Although CNNs are widely adopted, their reliance on local focusing involve limitations that make it challenging to capture global contextual information (16-18).

Transformer is a sequence-to-sequence prediction architecture with a self-attention mechanism that dynamically adjusts the receptive field according to the input content, thus outperforming convolutional operations in long-range dependency (19). Transformer has demonstrated excellent performance in image-processing tasks, with significant advantages over traditional CNNs (20,21). The integration of CNN with Transformer is better adapted to the characteristics of medical images (16,17,22,23). According to certain reports (24,25), tumor segmentation tasks can capture prognostically relevant image features and combine them with clinical information to analyze survival prognosis.

Proportional hazard regression models have been used to estimate survival rates. However, these models assume linear relationships and fail to capture the nonlinear relationships that may exist in real life (26,27). Therefore, Katzman et al. (28) developed a deep-learning model, DeepSurv, which combines deep neural networks with the Cox proportional hazard (CPH) (29), and demonstrated that this deep-learning model is comparable to other traditional survival models.

In this study, we aimed to determine whether the Transformer structure can improve the segmentation performance of CNN models in CC and extract multiscale image features in the segmentation task to predict survival of patients with CC. We present this article in accordance with the TRIPOD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-24-560/rc).

Methods

Patients

This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the Ethics Committee of Fujian Cancer Hospital (No. SQ2022-191). Individual consent for this retrospective analysis was waived.

This study included 406 patients diagnosed with CC at Fujian Cancer Hospital between 2009 and 2016 who underwent preoperative MRI treatment. Patients had complete clinical information, MRI, pathology diagnosis, and prognostic data, with the survival endpoint being overall survival (OS). The inclusion criteria for adult patients were (I) confirmation of visible tumors on pelvic MRI by experienced oncologists, (II) willingness to accept chemotherapy as standard treatment, and (III) availability of MRI and clinical information. The exclusion criteria were noncompliance with treatment and unavailability for follow-up.

Data preprocessing

The MRI data were acquired in the initial DICOM (Digital Imaging and Communications in Medicine) format with 1.5- or 3.0-T scanners and preprocessed. Detailed imaging parameters and preprocessing procedures can be found in Appendix 1. Two experienced radiologists (J.L. and L.L., each with over 6 years of experience in pelvic MRI reading) manually delineated three-dimensional (3D) tumor contours on axial slices using ITK-SNAP (version 4.0.0 software; www.itksnap.org) (30). The segmentation results were confirmed by another gynecological oncologist (Q.X., with 20 years of clinical experience). All physicians were blinded to the patient’s clinical information but could ensure the tumor location using diffusion-weighted imaging (DWI). Interobserver variability between the 2 radiologists was assessed using MRI scans from 30 patients.

Deep-learning network

We use a hybrid CNN-Transformer 3D segmentation model called CoTr, designed and proposed by Xie et al. (16). As illustrated in Figure 1A, the CoTr incorporates a hybrid structure of a CNN and Transformer architecture, consisting of three modules: CNN encoder, Transformer, and decoder. The CNN encoder includes a convolution batch normalization leaky rectified linear unit (CBL) block and three 3D residual blocks, with the CBL and the first residual block connected to the decoder through a residual connection. To accommodate the sequential input format of the Transformer, the model flattens the output features of the last two residual blocks. Positional encoding is applied to supplement 3D spatial information into the input sequence to preserve spatial information. Following Transformer processing, the output sequence is reshaped into feature maps. Segmentation outcomes are derived by upsampling the feature maps through three deconvolution layers and integrating residual inputs. The visualization of feature maps is achieved through the learning weights of the CNN encoder using an improved structure based on gradient-weighted class activation mapping (Grad-CAM) (31). Details of the segmentation model architecture and parameters can be found in Appendix 2.

Figure 1 Deep-learning model architecture for segmentation and survival prediction. (A) The improved fundamental architecture is based on the CoTr model. Gray rectangles denote convolutional blocks, and yellow rectangles indicate 3D deformable Transformer layers. (B) Deep neural network prognostic model. CNN, convolutional neural network; GELU, Gaussian Error Linear Unit; CoTr, combined convolutional network and transformer model; 3D, three-dimensional.

As depicted in Figure 1B, we used the lightweight CNN architecture ConvMixer (32) for feature extraction in the prognostic task. In precisely determining the location of the tumor region more accurately, ConvMixer takes the concatenation of the image and the segmentation results as input. Subsequently, the extracted multiscale features from the segmentation model are integrated with clinical information and input into the deep-learning prognostic network, which primarily comprises four fully connected layers, ultimately producing a prediction score for each patient. The specific network structure and details are available in Appendix 3.

Model training

During the training phase of the network, we employed a series of preprocessing steps on the data using the MONAI library (version 1.1.0). “NormalizeIntensityd” was used to normalize the image intensities, which reduced the computational overhead during training. The following enhancement operations were then performed with a probability of 0.3 for each batch of training cohort: random offset field transformation, the addition of Gibbs noise (α=0.3), random contrast adjustment (γ∊[1.5, 2]), random affine transformation, and random scaling with nearest-neighbor interpolation in the range of (0.9–1.1). For the deep-learning model, clinical information was transformed into trainable data by the one-hot coding method and combined with multiscale image features extracted by the segmentation model as inputs to the network.

Training for all segmentation models consisted of 100 epochs with a batch size of 16. The AdamW optimizer had an initial learning rate of 0.001, and the weight decay parameter was set to 0.1, decaying every 15 epochs. The total training epochs for the prognostic model were 500, and the entire cohort was processed in each batch: the AdamW was used as the optimizer at an initial learning rate of 0.001; the weight decay parameter was 0.5, decaying every 50 epochs; and the number of early-stopping rounds was 50. All experiments were conducted on a local server equipped with 8 RTX T4 16 GB GPUs (Nvidia Corp., Santa Clara, CA, USA). The code is available online (https://github.com/khuanging/seg-surv-CC).

Performance evaluation

We employed the Dice similarity coefficient (DSC) and 95% Hausdorff distance (HD95) as quantitative evaluation metrics for the independent test cohort (33,34). DSC measures accuracy by evaluating the overlap between predicted contours and manual segmentations. In contrast, HD95 measures the maximum distance between two segmentation contours, representing the largest surface-to-surface distance among the closest 95% surface voxels. The specific formula for the metrics are provided in Appendix 4. For the deep-learning survival models, performance was assessed using the concordance index, which ranges from 0 to 1, with 0 indicating random prediction and 1 indicating perfect prediction. The “survivalROC” package in R software (The Foundation for Statistical Computing) was used to determine the optimal cutoff value for the prediction value of the training cohort. Patients were then divided into groups of low and high risk for disease progression. Kaplan-Meier curves were used to assess the reliability of this risk stratification system. Inter-reader agreement was also evaluated for 30 lesions using the DSC.

Statistical analysis

To compare patient characteristics between the training and independent test cohort, the t-test was applied for continuous variables, while the chi-square test (n>5 in either cohort) or the Yates correction test (n<5 in either cohort) were used for categorical variables, with P>0.05 indicating no significant difference between groups (10,35). The Wilcoxon rank test was employed to assess differences in medians across the model evaluation results. The differences between DSCs and tumor histology were evaluated using the Mann-Whitney test. All results with a P value <0.05 were considered to be statistically significant.

Results

Patient characteristics

Table 1 presents the clinical and demographic characteristics of the training cohort (n=243) and the independent test cohort (n=82). The mean patient age was 47±8 years, and the median follow-up time of surviving patients was 103 months and 110 months for the training and independent test cohort, respectively. The results indicate no significant statistical differences in the clinical characteristics of between the two groups of patients. The inter-observer agreement for the 30-lesion volumetric segmentation analysis showed a mean DSC of 0.896 for contrast-enhanced T1-weighted (ceT1W) images and 0.867 for T2-weighted (T2W) images.

Segmentation performance in the independent test cohort

Figure 2 displays the partial results of each model’s automatic segmentation of tumors in the ceT1W and T2W images. Table 2 provides the DSC and HD95 for each model on the independent test cohort for both sequences. In the ceT1W sequence, the CoTr model exhibited superior performance in overall tumor segmentation and tumor contour segmentation, with a DSC of 0.827 and an HD95 of 0.854 cm. This performance was significantly better than that of the other traditional CNN models (all P values <0.01; Figure S3). In the T2W sequence, the CoTr model achieved the best DSC (0.820). However, its performance in tumor contour segmentation was unsatisfactory, with an HD95 value of 1.519 cm, which was only slightly higher than the value of 1.821 cm yielded by U-Net. The V-Net model performed relatively well in the contour boundary segmentation of both sequences, with HD95 values of 0.915 and 1.009 cm, respectively. In the comparison of model performance metrics for different sequences, CoTr outperformed the other CNN models, as shown in Figure 2.

Figure 2 Example of well-performed tumor segmentation on axial slices at the middle of ceT1W and T2W images for three patients with cervical cancer. The manually segmented tumors are highlighted in red, while the model predictions are indicated in dark blue. Numerical values represent the scores of the DSC. ceT1W, contrast-enhanced T1-weighted; T2W, T2-weighted; CoTr, combined convolutional network and transformer model; DL, deep learning; DSC, Dice similarity coefficient.

Error analysis of the independent test cohort

As seen in Figure 3, the deep-learning model erroneously identified the cervix in the ceT1W images as a tumor region and had difficulty identifying larger or smaller tumor regions in the T2W images. An in-depth analysis of each 3D model’s performance revealed that around 12% to 23% (n=10 to 19) of the independent test cohort had results showing a DSC below 0.750. Figure 4 shows the relationship between the DSC and manually segmented tumor volume in the independent test cohort. There was a strong correlation between the DSC and tumor volume in all models (all R values>0.35; P<0.05). In the ceT1W images, all models performed poorly in small-volume tumors, but CoTr had a better DSC compare to the other models. The DSC of lymph node metastasis was significantly lower than the nonmetastatic score in ceT1W images (0.816 vs. 0.857; P=0.023), and there was a nonsignificant difference in the DSC for the T2W images (0.810 vs. 0.848; P=0.085). No significant correlation was observed between the DSC and other clinical characteristics (P>0.05).

Figure 3 Example of poorly performed tumor segmentation on axial slices at the middle of ceT1W and T2W images for three patients with cervical cancer. The manually segmented tumors are highlighted in red, while the model predictions are indicated in dark blue. Numerical values represent the scores of the DSC. ceT1W, contrast-enhanced T1-weighted; T2W, T2-weighted; CoTr, combined convolutional network and transformer model; DL, deep learning; DSC, Dice similarity coefficient.

Figure 4 Scatter plot of the DSC and manually segmented tumor volumes of patients in the independent test cohort for different sequences. (A) ceT1W imaging. (B) T2W imaging. R: Spearman rank correlation coefficient, the absolute value represents the degree of correlation (weak correlation: 0.3–0.5; moderate correlation: 0.5–0.8). P<0.05 indicates statistical significance. ceT1W, contrast-enhanced T1-weighted; T2W, T2-weighted; CoTr, combined convolutional network and transformer model; DSC, Dice similarity coefficient.

Interpretability of the deep-learning model

Figure 5 intuitively shows the feature activation maps of the CNN encoder in the CoTr model for the feature extraction phase in the ceT1W and T2W images. Initially, the model focuses uniformly on features at all locations. As the model is updated, it progressively suppresses the unrelated regions and intensifies its attention on local tumor regions, gradually approximating the tumor contour.

Figure 5 Class activation maps for the CoTr model’s encoder section. (A) Axial plane of ceT1W images. (B) Axial plane of T2W images. The 3D convolutional layer, layer 1, layer 2, and layer 3 of the CNN encoder are shown from left to right, where red indicates the regions the model focused on. ceT1W, contrast-enhanced T1-weighted; T2W, T2-weighted; CoTr, combined convolutional network and transformer model; 3D, three-dimensional; CNN, convolutional neural network.

Prognostic model performance

Table 3 displays the outcomes of the traditional survival analysis methods with the deep-learning survival prediction model. Due to model structure limitations, the validation cohort was merged into the training cohort while the independent test cohort was left unchanged, and the CPH used only clinical data. With only clinical information, the concordance index of the CPH and random survival forest (RSF) were 0.692 and 0.707, respectively. Subsequently, we fused the multiscale features extracted from the ceT1W and T2W images and validated them in the RSF model, resulting in an improved concordance index of 0.713. Meanwhile, our deep-learning model integrated image features and clinical information, yielding an average concordance index of 0.733, which was significantly better than that of the other models. The cutoff value (0.171) from the training cohort was applied to both the validation cohort and the independent test cohort, yielding a statistically significant patient risk stratification (validation: log-rank P=0.0097; test: log-rank P=0.0048; Figure 6).

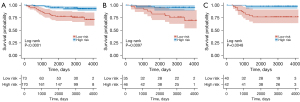

Figure 6 Kaplan-Meier analysis of OS prediction for the training cohort (A), validation cohort (B), and independent test cohort (C) based on risk scores predicted by the deep-learning model. OS, overall survival.

Discussion

MRI is essential for diagnosing and treating CC, aiding physicians in assessing the extent of the primary tumor, local staging, and lymph node invasion (7,10). However, accurate primary lesion delineation is often time-consuming and demands specialized expertise (36). Although deep-learning models have found widespread application in automating tumor segmentation, the prevalent architectures have predominantly relied on traditional CNNs such as U-Net (11,37,38). However, recent research suggests that networks combining CNNs and Transformer architecture exhibit superior performance in medical image segmentation (16,17,23). In this study, we collected MRI scans from 406 patients with confirmed CC to evaluate the segmentation results of different models on ceT1W and T2W imaging. Meanwhile, we used the trained segmentation model to extract multiscale features and combined them with clinical information to conduct survival prediction with the deep-learning model. Our results show that the CNN-Transformer model outperformed the CNN models in segmentation, and the deep-learning survival prediction network was superior to the traditional methods.

CNN faces challenges in capturing the long-range dependency in images due to the limitations of the convolution sensory field. Integrating the self-attention mechanism in Transformer with CNNs has demonstrated efficacy in the extraction of 3D contextual information from images (23). In our study, the hybrid network (CoTr) achieved the best DSC on the independent test cohort for both ceT1W and T2W images (0.827 and 0.820, respectively), significantly outperforming the other CNN models (all P values <0.05).

Several studies have examined the automatic segmentation of MRI scans for CC. Lin et al. (39) reported a maximum DSC of 0.820 (on multiparametric MRI) (n=25) using the U-Net model. Similarly, Hodneland et al. (10) used the U-Net model to segment T2W images, yielding an adjusted DSC of only 0.780 (n=26). In contrast, other studies (40,41) have reported higher DSCs (all >0.80); however, these studies employed k-fold cross-validation without the inclusion of an independent test cohort and thus are not directly comparable to our study.

Previous reports have indicated there to be a correlation between the segmentation accuracy of deep-learning models and tumor size, with relatively larger tumor volumes being more easily segmented (10,35). In this study, all models encountered challenges in segmenting tumors of different sizes, including oversized and small tumors with unclear boundaries. Meanwhile, as can be seen from the scatter plot in Figure 4, the tumor segmentation performance was positively correlated with tumor volume.

Deep-learning models are being increasingly applied to cancer survival prediction and have shown superiority over traditional methods (24,26,28). Matsuo et al. (26) achieved a concordance index of 0.616 (n=768) in predicting the OS of those with CC using a deep-learning model, which represents a slight improvement over the CPH model (concordance index =0.607). In our study, the concordance index of the deep-learning model combining multiscale image features with clinical characteristics was 0.733, while the concordance index values of the traditional CPH and RSF methods were 0.692 and 0.707, respectively. This indicates that deep learning is a feasible method for CC survival prediction and outperforms conventional methods.

There were several limitations in our study that should be acknowledged. First, despite examining a relatively large cohort, we employed a single-center, retrospective design, which involves inherent biases and lacks generalizability. Second, we did not consider the fusion training of multiparametric MRI, and further exploration is needed to reduce outliers in the results through multisequence fusion and multimodel voting. Third, the CoTr model remains limited in some regards, and there is a need for further improvements in the Transformer structure to balance model performance and computational overhead.

Conclusions

Our study indicates that the CoTr model outperforms the CNN models in the segmentation of tumors in CC. In addition, the deep-learning model provides superior performance in the survival prediction of patients with CC compared to traditional methods.
