Preoperative computed tomography semantic features in predicting lymph node metastasis of part-solid nodules in non-small cell lung cancer: a multicenter retrospective study

Introduction

Lung cancer remains the malignant tumor type with the highest morbidity and mortality in the world, of which non-small cell lung cancer (NSCLC) accounts for about 85% of all afflicted patients (1-4). Lymph node metastasis (LNM) is a common route of metastasis in lung cancer, and it is an independent risk factor for long-term survival and recurrence of patients with NSCLC: the 5-year survival rate is 49% for N1 disease, 36% for N2 disease, and 20% for N3 disease (5-7). Preoperative prediction of LNM directly informs the method of intraoperative lymph node dissection that is selected. These methods include systematic lymph node dissection, specific lymph node dissection, systematic lymph node sampling, and lymph node sampling, among others (8,9). The appropriate selection of method according to accurate the tumor node metastasis (TNM) staging of lymph node dissection can maximize the removal of tumor cells and avoid excessive dissection.

Computed tomography (CT), as a noninvasive and repeatable imaging examination method, is the most widely applied and commonly used lymph node assessment tool in clinical practice. With the popularization of low-dose CT screening technology, early lung cancer is being discovered in patients with increasing frequency, allowing for timely treatment by surgery (10,11). Pulmonary nodules are classified as solid, pure ground-glass, and part-solid nodules (PSNs) based on CT phenotyping (12). PSNs are defined as nodules containing both ground-glass opacity (GGO) and a solid portion (13). The Fleischner Society indicated in its 2017 report that from a therapeutic point of view, pure and part-solid ground-glass nodules should be considered as a category separate from purely solid lesions (14).

Pathological examination is the gold standard for the diagnosis of LNM in NSCLC, but its reproducibility is quite different, and invasive operation may induce adverse effects, such as tumor cell spread, bleeding, infection, etc. (15-17). The metastasis rate of lymph nodes in PSNs has been known to be low, which makes the intraoperative evaluation of lymph nodes a controversial issue (18). Therefore, a noninvasive method to accurately determine the status of lymph nodes before operation is necessary and urgently needed. Therefore, the purpose of this study was to identify the risk factors of LNM among the preoperative CT semantic features of patients with NSCLC manifesting as PSNs and to establish a predictive model with application value. We present this article in accordance with the STARD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-23-1631/rc).

Methods

Patients

This retrospective study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the respective ethics committees of Tongde Hospital of Zhejiang Province (approval No. 2022-029-JY), Taizhou Municipal Hospital (approval No. LWYJ2023059), and The First Affiliated Hospital of Bengbu Medical University (approval No. 2021-292). The requirement for individual informed consent for this retrospective analysis was waived.

On the premise that the diagnosis and treatment practices are generally consistent across centers, we used the hospital electronic medical record systems from three centers (Tongde Hospital of Zhejiang Province, Taizhou Municipal Hospital and The First Affiliated Hospital of Bengbu Medical University) and retrieved the files of all consecutive patients with a pathologic diagnosis of primary NSCLC surgically resected from January 2019 to March 2023. A total of 955 patients were enrolled according to the following inclusion criteria: (I) radical surgery and lymph node dissection were performed, and NSCLC was confirmed via postoperative pathology; (II) patients underwent unenhanced chest CT scan within 2 weeks before operation; (III) CT images were satisfactory for analysis; and (IV) the lesion appeared as a PSN. Meanwhile, the exclusion criteria were as follows: (I) patients received radiotherapy or chemotherapy before surgery, (II) the CT scan thickness was more than 2 mm, (III) clinical and pathological data could not be found or were incomplete, and (IV) patients had a history of malignant tumor. According to the presence or absence of LNM, the patients were divided into an LNM group and non-LNM (N-LNM) group (Figure 1). Clinical information including age, gender, smoking history, surgery history, and clinical basic disease was obtained through a search of the medical records.

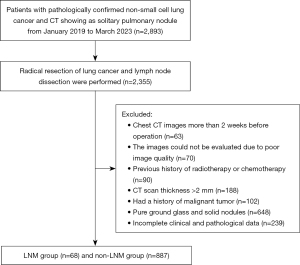

Figure 1 Flowchart of patient selection. CT, computed tomography; LNM, lymph node metastasis.

CT image acquisition

Nonenhanced chest CT scans were performed with seven CT scanners (SOMATOM Definition Flash, FORCE CT, Sensation 16, Definition AS 40, Siemens Healthineers, Erlangen, Germany; Revolution, Optima 680, LightSpeed VCT XT, GE Healthcare, Chicago, IL, USA), and all images were reconstructed with a slice thickness of 0.625–2 mm. All patients were scanned in the supine position, held their arms up and head advanced, performed breath-holding at the end of a deep inhalation, and were scanned from the level of the thoracic entrance to that of the adrenal gland. The scanning parameters are as follows: tube voltage; 120 kV; automatic tube current modulation technology; collimation, 0.625 mm; pitch, 0.98; helical scanning speed, 0.6–0.8 s/r; image matrix, 512×512; and field of view (FOV) under 400 mm × 400 mm. The width of the lung window was 1,500 Hounsfield units (HU), the window level was −400 HU, the width of the mediastinal window was 400 HU, and the window level was 40 HU. After scanning, the data were transmitted to the workstation of the picture archiving and communication system (PACS) system.

Imaging evaluation

Blinded to the clinicopathologic data, two senior thoracic imaging diagnostic physicians independently interpreted the following CT features: the location, shape, and solid component proportion of the nodules; lobulation; spiculation; air cavity; pulmonary disease; air bronchogram type; and pleural contact type. Lobulation involves the irregular undulation of the nodule margin (19). Spiculation is defined as linear strands extending from the nodule surface into the lung parenchyma without reaching a pleural surface (20) that is caused by the contraction and traction of the surrounding interlobular septum when the tumor cells invade and extend outward. In this study, according to the shape and size of the air cavity appearing inside the nodule, the air cavity was classified into three types: vacuole, cavity, and cavum. A bubble small than 5 mm was considered to be a vacuole, while a thin-walled air cavity with a diameter ≥5 mm was considered to be a cavity. The cavum was the thick-walled air cavity. Pulmonary disease included emphysema, bullae, and ventilation-perfusion imbalance. Air bronchogram types were classified into bronchial nondeformation, bronchial deformation, and adjacent bronchiectasis. Pleural contact types included direct contact and pleural traction by tags with indentation or not. A pleural tag was defined as a line or lines extending from a nodule to the pleural surface due to thickening of the interlobular septum (21). Mean diameter was measured with the average of the long and short diameters. To avoid areas of blood vessels, calcification, or cystic degeneration, we delineated the region of interest (ROI) on the highest visible attenuation of lesions and measured the mean of CT attenuation as the CT_mean value. All measurements of lesions in this study were performed in the axial plane, and any disagreement in describing semantic features was resolved by a consensus read (Figure 2).

Figure 2 Cases of image evaluation. (A) Image from a 58-year-old male patient with lung adenocarcinoma, with the pathological results indicating no lymph node metastasis. The axial CT scans show an irregular part-solid nodule (long diameter of 19 mm, short diameter of 15 mm) located in the left upper lung. The nodule has superficial lobulation and spiculation at the margin and is pulling the pleura without indentation. A total of 20 negative lymph nodes were detected during the operation, including 2 at stations 2–4, 4 at stations 5–6, 1 at stations 7–9, and 13 at stations 10–14. (B) Image from a 67-year-old male patient with lung adenocarcinoma, with pathological results indicating lymph node metastasis. The axial CT scans show an irregular part-solid nodule (long diameter of 42 mm, short diameter of 34 mm) located in the left upper lung directly in contact with the interlobar fissure pleura; the patient also had emphysema. A total of 30 lymph nodes were detected during the operation (7 at stations 2–4, 5 at stations 7–9, and 18 at stations 10–14), among which 1 cancerous lymph node was located at stations 2–4. CT, computed tomography.

Training and validation of the prediction model

The included patients were divided into a training group and validation group via random10-fold cross-validation. The data of the in the LNM group and N-LNM group were then analyzed and compared to ascertain if there were any significant differences. Combined Model 1 was developed based on factors that were significantly different in the results of univariate analysis. Combined Model 2 included all the independent risk factors from multivariate analysis, and the imaging predictors among the independent factors were separately fused into another model, the image predictor model. Each independent imaging factor was also used in an individual model, which was then compared to the three combined models.

Statistical analysis

All statistical analyses were performed using the SPSS version 25.0.0 software (64-bit; IBM Corp., Armonk, NY, USA) and R software version 4.2.2 (The R Foundation for Statistical Computing; https://www.r-project.org). The normality of data was determined using the Kolmogorov-Smirnov test. In the univariate difference analysis, the quantitative data conforming to a normal distribution are expressed as the mean ± standard deviation and were compared using the independent samples t-test; the quantitative data not conforming to a normal distribution are expressed as the median with interquartile range and were compared using the Mann-Whitney test; the Chi-square test and Fisher exact probability test were used to compare the differences of the qualitative data. Multivariate logistic regression was used to adjust the variables with differences in the univariate difference analysis to eliminate confounding factors, the independent risk factors were then screened out, and different prediction models were established. Ten-fold cross-validation was used for model training and validation. The efficacy of each model was evaluated using receiver operating characteristic (ROC) curves, and the area under the curve (AUC) was also calculated. The Delong test was used to compare the differences between the models. A P value of less than 0.05 was considered to indicate statistical significance.

Results

Clinical characteristics of patients in the training group

Among the 799 cases patients in the training group, 58 (7.3%) had pathological LNM (mean age 60.9±9.4 years; age range 41–91 years; 34 females and 24 males), including 56 cases of adenocarcinoma and 2 cases of squamous carcinoma; the remaining 741 cases (92.7%) had N-LNM (mean age 60.7±9.7 years; age range 18–86 years; 476 females and 265 males), including 738 cases of adenocarcinoma and 3 cases of adenosquamous carcinoma. A total of 9,702 lymph nodes were detected in postoperative samples from the 799 patients, including 9,478 (97.7%) negative lymph nodes and 224 (2.3%) cancerous lymph nodes (Figure 3).

Figure 3 Lymph nodal status of patients in training group. (A) Schematic representation of pulmonary lymph nodes. (B) Distribution of detected lymph nodes in patients with and without lymph node metastasis. (C) The number of lymph nodes at each station. LN, lymph node.

In the univariate difference analysis, there was a significant difference in the distribution of smoking status between the two groups (P=0.021), and it was found to be an independent risk factor for LNM after multivariate logistic regression (P=0.049). There was no significant difference in the distribution of gender, age, surgical history, or clinical basic disease between the LNM group and N-LNM group (P>0.05). The analytical results of clinical data for all patients are summarized in Table 1.

CT semantic features of patients

In the univariate analysis of CT semantic features, there were differences pulmonary disease, solid component proportion, spiculation, air cavity, air bronchogram type, pleural contact type, mean diameter, and CT_mean value between the LNM group and N-LNM group (P<0.05); however, there were no differences in location, shape, or lobulation between the two groups (P>0.05). After adjustment for confounding factors were made via multivariate logistic regression, pulmonary disease (P=0.011), solid component proportion (P<0.001), pleural contact type (P=0.026), and mean diameter (P<0.001) were found to be independent predictors of LNM (Table 2).

Development and comparison of the prediction models

Combined model 1 was established based on the 9 risk factors that were statistically different in the univariate analysis, while combined model 2 included all independent risk factors. Pulmonary disease, solid component proportion, pleural contact type, and mean diameter were incorporated as CT semantic features among the independent predictors into the third combined model, named the image predictor model. Regarding the performance of the three combined models and individual models (Table 3), in the training group, the combined model 1 yielded an AUC of 0.880 [95% confidence interval (CI): 0.777–0.891], with a sensitivity of 81.2%, a specificity of 78.5%, and an accuracy of 78.7%; combined model 2 had an AUC of 0.876 (95% CI: 0.796–0.892), with a sensitivity of 77.0%, a specificity of 77.6% ,and an accuracy of 77.5%; the image predictor model yielded an AUC of 0.868 (95% CI: 0.807–0.889), with a sensitivity of 80.4%, a specificity of 78.4%, and an accuracy of 78.6%. Solid component proportion was the single-feature model with the best ROC among the four individual models, with an AUC of 0.815 (95% CI: 0.734–0.844), and a sensitivity, specificity, and accuracy of 80.9%, 72.7%, and 73.3%, respectively; in the validation group, combined model 1 yielded an AUC of 0.853 (95% CI: 0.777–0.891), and a sensitivity, specificity, and accuracy of 72.9%, 77.8%, and 77.5%, respectively; combined model 2 had an AUC of 0.861 (95% CI: 0.796–0.893), with a sensitivity of 76.0% and a specificity and accuracy of 77.2%; the image predictor model yielded an AUC of 0.857 (95% CI: 0.807–0.888), and the sensitivity, specificity, and accuracy were all 77.6%. The results of the Delong test showed that there was no significant difference in diagnostic efficacy between the three combined models (all P values >0.05), but the solid component proportion had a significantly different performance to those of the three combined models (all P values <0.01). The ROC curves of the seven models in the training and validation groups are displayed in Figure 4.

Figure 4 Graph of the area under the receiver operating characteristic curve of different models in the training and validation groups.

Discussion

In this retrospective study, we analyzed the risk factors of LNM in 955 patients with NSCLC from multiple centers whose disease manifest as PSNs on CT findings. Of all the lymph nodes detected [9,702] in the training group, only 224 (2.3%) were cancerous, indicating a low incidence of LNM in part-solid NSCLC. According to the distribution of the examined lymph nodes in each station, we found that LNM occurred at stations 2–4 (superior mediastinal) with the highest probability, followed by the lung parenchyma, and no LNM occurred in the supraclavicular region in station 1; for N-LNM, the lymph nodes were mainly located in the N1 region, followed by the superior mediastinal region, and few lymph nodes were detected in the supraclavicular region and aortic region.

Regarding CT semantic features, the solid component proportion was an independent risk factor for LNM. The ratio of solid component of nodule to tumor in the LNM group was usually higher than 60% (32/53); therefore, the solid component of nodule was an adverse factor for LNM, which also been confirmed in other studies (22,23). Moreover, the CT_mean in the LNM group (50.6±26.1) was significantly higher than that in the N-LNM group (19.3±98.3), and this may be related to the solid component proportion of nodules; there was a positive correlation between the solid component and CT attenuation value, and most nodules in the LNM group had a larger proportion of solid component. Perhaps, this was one of reasons why the mean value of CT lost its significance in multivariate logistic regression. Regarding pleural contact type, a study of 478 patients peripheral solid NSCLC with a largest short diameter >5 mm found that type II pleural involvement (a linear or cord-like pleural tag or tumor abutting to the pleura with a broad base observed on both lung and mediastinal window images) was an independent predictor of occult LNM (24). Similarly, in our study, nodules were more likely to come into direct contact with the pleural than show no contact, both in patients with LNM and N-LNM. However, for patients with LNM, pleural tags were more likely to cause indentation, and the probability of direct contact with the pleural concomitant with pleural tags was also higher than that in patients with N-LNM (27.6% vs. 8.9%). There are abundant lymphatic vessels on the surface of the subpleural lymphatic plexus (25); we can thus infer that when the lesion is in contact with the pleura, the tumor cells first enter the lymphatic vessels, proliferate with lymph fluid in the lymphatic circulation, and enter the lymph node station to complete the invasion.

Emphysema is characterized pathologically by the presence of diffuse chronic inflammation of the lung parenchyma, oxidative stress, and lung destruction (26). A previous study reported (27) emphysema to be an independent risk factor for lung cancer, with a greater severity of emphysema being associated with a higher incidence of lung cancer; our study also examined the correlation between emphysema and LNM and found that as it pertains to pulmonary disease, the patients with LNM were more likely experience concomitant emphysema or bullae than were patients with N-LNM. Some studies have reported (28,29) that a longer mean diameter is an independent risk factor for LNM. DuComb et al. retrospectively studied 332 patients with T1 NSCLC and found that among patients with LNM, the most common pathological type is adenocarcinoma, which is consistent with the results of our study (56/58). In addition, they found that neither tumor diameter nor location was a risk factor for LNM (30). In our study, location was also not found to be a significant factor for metastases, while mean diameter was found to be an independent risk factor for the occurrence of LNM, which is possibly due to the different inclusion and exclusion criteria applied: our study included no restriction on tumor size, while that by DuComb et al. enrolled patients with T1 (8–30 mm).

Research also indicates that model-based schemes can make better utilize radiographic information to predict lymph node diseases (31-33). Das et al. integrated clinical parameters and radiomics features extracted from three ROIs of gross tumor volume (GTV), peritumoral volume (PTV), and LNs using different methods to create a variety of nomograms for predicting preoperative LNM in adenocarcinoma, and the compared the predictive efficacy of each model (34). The results showed that the AUC of radiological features based on GTV, PTV, and LN in the external verification cohort were 0.74,0.72, and 0.64, respectively, while the AUC of the integrated GTV and PTV (GPTV) was 0.75 in the external validation cohort. GPTV combined with LN yielded an AUC of 0.76, and the strongest predictive power was achieved by the integrated nomogram of clinical parameters and CT radiomics information from GTV, PTV, and LN, with an AUC of 0.79 (95% CI: 0.66–0.93). Our study evaluated the predictive ability of three combined models in identifying LNM. The results showed that compared with combined model 1 (including 9 risk factors) and combined model 2 (including all independent factors), the image predictor model incorporating pulmonary disease, solid component proportion, pleural contact type, and mean diameter had the highest diagnostic accuracy in validation group; moreover, its efficacy was better than that of any of the single-feature models. The image predictor model only incorporated the CT semantic features among the significant independent factors identified via multivariate logistic regression; this model included fewer fusion factors but demonstrated higher predictive ability, which may have profound implications: CT semantic features have a good ability to predict LNM in patients with NSCLC and can provide preoperative guidance for clinical practice. Due to the poor image quality caused by respiratory movement and heartbeat, the prediction of LNM is limited in lung magnetic resonance imaging (35). Positron emission tomography (PET) is another imaging method for mediastinal staging, but its high cost, relatively low rate of lymph node involvement, and high false-negative rate have hinder its routine implementation (36). Martinez-Zayas et al. conducted a multicenter prospective validation of two retrospectively developed diagnostic models, called HAL and HOMER. In their study, they included 1,799 patients with NSCLC who underwent endobronchial ultrasound-guided transbronchial fine needle aspiration staging and PET-CT scans. HOMER was used to predict N0, N1, or N2–3 (three classifier), while HAL was used to predict N2/3 or N0/1 (two classifier). Their results showed that HAL and HOMER had good multicenter discrimination: HAL had an AUC of 0.873, while HOMER yielded an AUC of 0.837 for predicting N1–3 and AUC of 0.876 for predicting N2–3 (37).

Several potential limitations of this study merit comment. (I) Given the retrospective design of this study, potential selection bias may hinder the comparability and reproducibility of the results. (II) In the evaluation of CT image features, this study mainly focused on the characteristics of nodules. The image evaluation of lymph nodes may be considered in subsequent research for more in-depth exploration. (III) As we analyzed image features based on subjective description and measurement, there might have been inconsistency in the models related to the semantic features. In addition, these models were only preliminarily evaluated and validated in this study, and the performance of the models will be further improved and externally validated in future research. The development of radiomics has made it possible to transform images into image quantitative feature data, and this may allow for tumor characteristics to be more objectively and quantitatively described. Therefore, studies examining the prognostic prediction and survival analysis of patients with LNM via radiomics are anticipated.

Conclusions

Smoking history, pulmonary disease, solid component proportion, pleural contact type, and mean diameter were found to be independent risk factors for LNM in patients with NSLCLC consisting of PSNs. Furthermore, the image predictor model proposed in this study demonstrated encouraging diagnostic efficacy for LNM, indicating that CT semantic features can guide clinical practice to some extent before operation and has promising application value.

Acknowledgments

Funding: This study was supported by the Medical Health Science and Technology Project of Zhejiang Province (Nos. 2023KY1321 and 2022KY702), Key Research and Development Program of Anhui Province (No. 2022e07020033).

Footnote

Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-23-1631/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-23-1631/coif). The authors report that this study was supported by the Medical Health Science and Technology Project of Zhejiang Province (Nos. 2023KY1321 and 2022KY702), the Key Research and Development Program of Anhui Province (No. 2022e07020033). The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This retrospective study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the respective ethics committees of Tongde Hospital of Zhejiang Province (approval No. 2022-029-JY), Taizhou Municipal Hospital (approval No. LWYJ2023059), and The First Affiliated Hospital of Bengbu Medical University (approval No. 2021-292). The requirement for individual informed consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
