A nomogram for risk stratification of central cervical lymph node metastasis in patients with papillary thyroid carcinoma

Introduction

Thyroid cancer is the sixth most common cancer among women according to the American Cancer Society’s 2023 American Cancer Data Statistics (1). The incidence of central lymph node metastasis (CLNM, level VI) ranges from 12% to 64% (2,3) when first diagnosed with thyroid cancer. Whether to perform prophylactic central lymph node dissection (CLND) for cN0 thyroid cancer is still controversial (4-6), which might lead to overtreatment.

Ultrasound is still the primary method for imaging evaluation of thyroid cancer (7,8). However, due to the influence of gas in the trachea and esophagus (9,10), ultrasound is significantly limited in the evaluation of the central cervical lymph node (11,12). Moreover, several recent studies (13-19) have indicated that the potential complementary role of computed tomography (CT) in assessing lymph node metastasis. Compared to CT, dual-energy CT (DECT) has many advantages, such as low radiation dose, high image quality, multiparameter imaging, quantitative measurement, and so on (20). On the other hand, Appendix 1 detailed that the use of iodine contrast agents did not affect postoperative radioactive iodine therapy.

In recent years, the use of prediction model has been widely recognized by clinicians, which is recommended in clinical practice guidelines (21) and have been applied to predict lymph node metastasis in patients with colorectal cancer (22), endometrial cancer (23), breast cancer (24), gastric cancer (25), and lung adenocarcinoma (26).

In the current study, we hypothesized that first, combined ultrasound and DECT features of the solitary primary thyroid nodule were potentially associated with CLNM. Second, the prediction model would achieve improved performance and risk stratification. Third, the nomogram could guide the formulation of individual treatment plans. The purpose of this study was first to identify independent risk factors for CLNM combining ultrasound and DECT. Second, to develop and validate the prediction model for CLNM and compare it to the model based on ultrasound only. Third, the risk stratification was further verified through a retrospective cohort study to provide information for the clinical transition from prophylactic CLND to therapeutic CLND. We present this article in accordance with the TRIPOD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-24-284/rc).

Methods

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional ethics boards of Tianjin First Central Hospital (No. 2020N220KY) and Binzhou Medical University Hospital (No. LW-24), and individual consent for this retrospective analysis was waived.

Subjects

A total of 5,773 patients with papillary thyroid carcinoma (PTC) who visited Tianjin First Central Hospital (Hospital A) between 2017 and 2019 were retrospectively analyzed. Patients included in this study met the following criteria: first diagnosed with thyroid cancer, met ultrasound-guided fine-needle aspiration biopsy criteria, underwent thyroid surgery with complete postoperative pathological data, complete ultrasound and DECT data and clear images to make a definite diagnosis. Exclusion criteria included: patients with a history of neck radiotherapy or other tumors; patients considered to have multiple lesions on ultrasound examination; patients confirmed to be medullary thyroid carcinoma, follicular thyroid carcinoma, or anaplastic thyroid carcinoma by postoperative pathology. A total of 525 consecutive patients were enrolled to develop the training cohort and were subjected to internal validation (Figure 1).

Figure 1 Flowchart of inclusion and exclusion in the current study. Hospital A is Tianjin First Central Hospital, School of Medicine, Nankai University; Hospital B is Binzhou Medical University Hospital. CLNM, central lymph node metastasis; DECT, dual-energy computed tomography; FTC, follicular thyroid carcinoma; MTC, medullary thyroid carcinoma; PACS, picture archiving and communication systems; TR, thyroid imaging reporting and data system for ultrasonography; US, ultrasound; US-FNAB, ultrasound-guided fine needle aspiration biopsy.

The patients were treated with near-total thyroidectomy or lobectomy accompanied by CLND according to the American Thyroid Association guidelines (27) (see Appendix 2 for the specific principles of operation). The postoperative pathological results were used as the gold standard. In order to ensure the independence of the measured data and the accuracy of the constructed model, all patients included in this study were with a single lesion. The solitary primary thyroid nodule’s ultrasound and DECT parameters were evaluated.

After model development, we used the same criteria to retrospectively analyze medical cases of inpatients who visited Hospital A in 2020 for temporal validation (external validation cohort I). To further validate the prediction model, we conducted a retrospective cohort study of 107 patients admitted to Binzhou Medical University Hospital (Hospital B) in 2020, who were included for geographic validation (external validation cohort II).

Image acquisition

In Hospital A, all data was first scanned with five different Doppler ultrasonic diagnostic apparatuses, then examined by a 64 multidetector row CT scanner (SOMATOM Definition Flash, Siemens Healthcare) using dual-phase contrast-enhanced CT. In Hospital B, the data was scanned with other four different Doppler ultrasonic diagnostic apparatuses. The CT scanner was the same as Hospital A. The specific ultrasound and DECT protocols were detailed in Appendix 3. Ultrasound images parameters from the primary thyroid lesion included: location, diameter, composition, margin, echogenicity, shape, calcification, and ratio of capsular abutment over the lesion perimeter (A/P). In DECT images, we collected the following quantitative parameters from the solitary primary thyroid nodule: iodine concentration (IC) and normalized IC (NIC) of thyroid nodules in the arterial and venous phases. All quantitative parameters were measured independently three times and averaged as results. Measurement methods of related ultrasound and DECT data were introduced in Appendices 4,5 and Figure S1.

Development of the prediction model

The candidate variables with P<0.05 in the univariate analysis were input into the multivariate binary logistic backward stepwise regression analysis to select the independent predictors. A nomogram was constructed based on the results. The specific category description was detailed in Appendix 6.

Additionally, a locally weighted regression (LOESS) curve was drawn according to the total score calculated from the nomogram among the training cohort. Then, based on the inflection point of the LOESS curve to classify all patients into low-risk, intermediate-risk, and high-risk groups.

Validation of the prediction model

The 1,000 bootstrap technique was used for internal validation. Temporal and geographic validation methods were applied for external validation. The nomogram score of the included patients in the external validation cohort II was calculated to predict the probability of CLNM, blinded to the pathological results.

Power calculation

A power calculation was performed to ensure that the external validation cohort was of sufficient size to evaluate the area under the curve (AUC) estimated from the training cohort.

Clinical utility of the prediction model

Decision curve analysis (DCA) was conducted to evaluate the nomogram net benefits with different threshold probabilities in the validation cohorts (28). The predicted probability of CLNM in each patient was calculated based on the nomogram, and risk stratification was performed to assist the clinical decision.

Statistical analysis

All statistical analyses were performed using SPSS 25.0 and R software 4.0.1. R software, OriginPro 9.1, GraphPad Prism 9.0.0, and MedCalc 18.2.1 were used to draw the figures. It was considered that P<0.05 was statistically significant. Multivariate logistic regression was performed to calculate the odds ratio (OR) of the 95% confidence interval (CI) to screen out the independent risk predictors of CLNM. A nomogram was built based on the independent risk predictors. The risk stratification system was established according to the inflection point of the LOESS curve using R software. The performance of the nomogram was estimated using the receiver operating characteristic (ROC) curve and the calibration curve (“rms” package). The DeLong method was used to compare the AUCs of the two constructed models using ultrasound alone and ultrasound combined with DECT. The integrated discrimination improvement index (IDII) and net reclassification index (NRI) were calculated using R software (Predict ABEL package). PASS 15.0 was used to perform the power calculation. DCA was performed by the “dca. R” (decisioncurveanalysis.org).

Results

Patient characteristics

A total of 525 consecutive PTC patients from 2017 to 2019 in Hospital A were included in the training cohort, including 122 males and 403 females. A total of 204 consecutive patients, including 58 males and 146 females in Hospital A in 2020, were collected to form external validation cohort I. Another 107 independent patients, including 38 males and 69 females in Hospital B in 2020, were collected to form external validation cohort II. Baseline information of the training and two external validation cohorts were shown in Table 1 and Tables S1-S3. The distribution of continuous variables in the training cohort was shown in the form of histogram (Figure S2). Heat map of data distribution in the three cohorts was shown in Figure S3. The results of the consistency analysis were shown in Table S4. The cutoff value of each DECT quantitative parameter was displayed in Table S5, and these parameters were converted from continuous variables to categorical variables accordingly.

Prediction model development

Univariate analysis was performed for each variable in the training cohort. Diameter, shape, calcification, A/P, IC in the arterial phase, IC in the venous phase, NIC in the arterial phase, and NIC in the venous phase were statistically associated with CLNM in PTC patients (Table 2).

Table 2

Multivariate logistic regression analysis of risk factors associated with CLNM in PTC patients in the training cohort

Variables	Univariate analysis				Multivariate analysis
	OR	95% CI	P		OR	95% CI	P
Sex	0.672	0.447–1.010	0.056
Age	0.879	0.573–1.349	0.555
Location	1.247	0.949–1.640	0.114
Diameter	2.156	1.652–2.814	<0.001		2.113	1.431–3.121	<0.001
Composition	1.255	0.728–2.164	0.413
Margin	1.035	1.134–2.324	0.823
Echogenicity	0.691	0.411–1.161	0.163
Shape	1.897	1.329–2.707	<0.001		3.802	2.248–6.430	<0.001
Calcification	2.636	2.235–3.109	<0.001		2.898	2.366–3.549	<0.001
A/P	3.727	2.228–6.234	<0.001		2.622	1.290–5.330	0.008
IC IAP >2.4 mg/mL	3.738	2.595–5.383	<0.001		2.354	1.440–3.846	0.001
IC IVP >3.2 mg/mL	3.761	2.590–5.461	<0.001		2.352	1.428–3.874	0.001
NIC IAP >0.21	4.797	3.068–7.502	<0.001
NIC IVP >0.55	3.301	2.297–4.743	<0.001

A/P, the ratio of capsular abutment over the lesion perimeter; CI, confidence interval; CLNM, central lymph node metastasis; IAP, in the arterial phase; IC, iodine concentration; IVP, in the venous phase; NIC, normalized iodine concentration; OR, odds ratio; PTC, papillary thyroid carcinoma.

Furthermore, a multivariate binary logistic regression analysis identified that diameter (OR, 2.113; 95% CI: 1.431–3.121; P<0.001), shape (OR, 3.802; 95% CI: 2.248–6.430; P<0.001), calcification (OR, 2.898; 95% CI: 2.366–3.549; P<0.001), A/P (OR, 2.622; 95% CI: 1.290–5.330; P=0.008), IC in the arterial phase (OR 2.354; 95% CI: 1.440–3.846; P=0.001), and IC in the venous phase (OR 2.352; 95% CI: 1.428–3.874; P=0.001) were independent risk predictors of CLNM (Table 2). The Hosmer-Lemeshow test showed that the P value was 0.954, indicating that the model had an increased goodness of fit. The results of multiple linear regression showed that the tolerance of all variables was greater than 0.2 and the variance inflation factor was less than 10, so it is considered that there was no multicollinearity among these predictors (Figure S4 and Table S6) (29).

The above six independent predictors were incorporated to produce the nomogram (Figure 2). It showed good discrimination with an AUC of 0.922 (95% CI: 0.895–0.943) (Table 3 and Figure 3A). The good agreement between the nomogram-estimated probability of CLNM and the actual CLNM rate in the training cohort was showed by the calibration curve, with a mean absolute error of 0.015 (Figure 3B and Table S7).

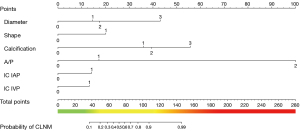

Figure 2 The nomogram for predicting CLNM in patients with PTC. According to the 8^th AJCC staging systems, the diameter was classified into four categories according to the definition of diameter as follows: T1a: ≤1 cm, T1b: 1–2 cm, T2: 2–4 cm, ≥ T3: >4 cm, which corresponded to 0, 1, 2, and 3 in “Diameter” in the nomogram. Refer to American College of Radiology Thyroid Imaging, Reporting, and Data for grouping criteria, the shape of the thyroid nodule included wider-than-tall and taller-than-wide, which corresponded to 0 and 1 in “Shape” in the nomogram. Refer to American College of Radiology Thyroid Imaging, Reporting, and Data for grouping criteria, the calcification of the thyroid nodule included none or large comet-tail, macrocalcification, rim calcification, and microcalcification, which corresponded to 0, 1, 2, and 3 in “Calcification” in the nomogram. A/P was graded by values of <25%, 25–50%, or >50%, proven by a previous study, which corresponded to 0, 1, and 2 in “A/P” in the nomogram. The cutoff value of each DECT quantitative parameter was displayed in Table S5, and these parameters were converted from continuous variables to categorical variables accordingly, which corresponded to 0 and 1 in “IC IAP and IC IVP” in the nomogram. The cutoff value of IC IAP and IC IVP were 2.4 mg/mL and 3.2 mg/mL, respectively. AJCC, American Joint Committee on Cancer; A/P, the ratio of capsular abutment over the lesion perimeter; CLNM, central lymph node metastasis; DECT, dual-energy computed tomography; IAP, in the arterial phase; IC, iodine concentration; IVP, in the venous phase; PTC, papillary thyroid carcinoma.

Figure 3 The ROC curves and calibration curves of the three cohorts. The ROC curves and calibration curves of the nomogram for the probability of CLNM in the training (A,B), external validation cohort I (C,D), and external validation cohort II (E,F). AUC, area under the curve; CLNM, central lymph node metastasis; ROC, receiver operating characteristic.

In addition, in the training cohort, the cutoff value of 0.82 was selected to distinguish the presence of CLNM, with a sensitivity of 84.75%, specificity of 87.09%, positive predictive value (PPV) of 82.9%, negative predictive value (NPV) of 88.6%, positive likelihood ratio (PLR) of 6.56, and negative likelihood ratio (NLR) of 0.18 (Table 3).

The Sankey plot showed that the patients in the training cohort had gone through the six risk factors and finally divided into CLNM (−) and CLNM (+) (Figure S5).

Risk stratification system according to the prediction model

A risk stratification system based on the inflection point of the LOESS curve was developed in the training cohort. All patients were divided into low-risk (total points: 0–50), intermediate-risk (total points: 51–100), and high-risk (total points: >100) groups (Figure S6). In the temporal validation cohort, the confusion matrix revealed that the potential utility of CLNM was 9.3%, 34.7%, and 87.9% in the low-risk, intermediate-risk, and high-risk groups, respectively. In the geographic validation cohort, the confusion matrix revealed that the potential utility of CLNM was 17.6%, 28.8%, and 94.7% in the low-risk, intermediate-risk, and high-risk groups, respectively (Figure S7).

Prediction model validation

Good discrimination with an AUC of 0.912 (95% CI: 0.864–0.947) and good calibration with a mean absolute error of 0.033 were both achieved in external validation cohort I (Table 3, Table S7, Figure 3C,3D). A Hosmer-Lemeshow test demonstrated no departure from a good fit, with a P value of 0.829.

In external validation cohort II, the AUC, sensitivity, specificity, PPV, NPV, PLR, and NLR were 0.861 (95% CI: 0.781–0.920), 88.89% (95% CI: 77.4–95.8%), 81.13% (95% CI: 68.0–90.6%), 82.8% (95% CI: 73.2–89.4%), 87.7% (95% CI: 76.9–93.9%), 4.71% (95% CI: 2.7–8.3%), and 0.14% (95% CI: 0.06–0.3%), respectively (Table 3 and Figure 3E). Good calibration was also confirmed, with a mean absolute error of 0.051 (Figure 3F and Table S7).

The predictive performance of the new nomogram was superior to that of the model based on ultrasound only in the external validation cohorts I and II, with AUCs of 0.912 (95% CI: 0.864–0.947) vs. 0.892 (95% CI: 0.841–0.931) and 0.861 (95% CI: 0.781–0.920) vs. 0.741 (95% CI: 0.648–0.821), respectively (Figure 4). In cohort II, the AUC increased by 12%, further demonstrating that DECT complemented ultrasound. Meanwhile, utilization of the DECT parameters improved the predictive value for CLNM in terms of NRI and IDII compared to the prediction model incorporating only the independent ultrasound risk factors (Table S8).

Figure 4 Compare the AUCs of the two models constructed using US alone and combined US and DECT in the external validation cohorts Ⅰ and Ⅱ. AUC, area under the curve; CI, confidence interval; DECT, dual-energy computed tomography; US, ultrasound.

The power calculation

The AUC0 and AUC1 were set at 0.93 and 0.91 according to the AUCs of the training cohort (0.922) and external validation cohorts (0.912 and 0.861). Meanwhile, α was set as 0.05 and false positive rate limited 0.01–0.20. The result showed that the sample size of the validation cohorts needed to be greater than 106 when the target power was 0.90. Therefore, both the sample sizes of the external validation cohorts I and II were sufficient in the current study.

Clinical utility of the prediction model

The decision curve revealed that using nomogram to predict the probability of CLNM in PTC patients would be advantageous if the threshold probability was more significant than 6% (Figure 5).

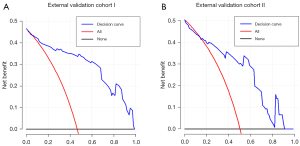

Figure 5 Decision curve analysis of the nomogram in the two external validation cohorts. The X-axis is the threshold probability, which represents the expected benefit of intervention equal to that of avoiding intervention. If the probability of a patient developing CLNM exceeds the threshold probability, it is considered that the PTC patient should undergo preventive CLND, and vice versa. The Y-axis is the net benefit, which is equal to the proportion of patients with true positives minus the proportion of patients with false positives, that is, weighted by the relative harm of abandoning the intervention versus the adverse effects of unnecessary interventions. The blue line represents the nomogram. The red line and black line represent the assumption of all patients with and without CLNM, respectively. CLND, central lymph node dissection; CLNM, central lymph node metastasis; PTC, papillary thyroid carcinoma.

In the external validation cohort II, the patients were scored and risk stratified without knowing the pathological results. Three patients were underestimated in the low-risk group, and two patients were overestimated in the high-risk group (Figure 6, and Figures S8,S9). The possible reasons for the wrong prediction were analyzed in the Discussion section.

Figure 6 An example of using the nomogram to illustrate the correct evaluation of individual risk of CLNM in patients with PTC. A 29-year-old female was incidentally found a thyroid lesion in the left lobe during a cervical spine CT examination outside the hospital. Ultrasound manifestation: hypo-echo in the middle of the inferior pole of the thyroid, the diameter was 3.0 cm (A, red line), irregular shape, A/P =0.18 (B), with microcalcification (C, yellow arrow), taller-than-wide (D). On the iodine map of dual-energy CT, the IC in the arterial (E-G) and venous (H) phases of the measured lesion were 3.7 and 3.4 mg/mL, respectively. A vertical line of each variable was drawn. The values on the “Points” scale intersected by the lines were added to obtain total points (18+20+55+0+14+13=120). The total points >100 points, considered as a high-risk patient. The graph revealed that the risk of CLNM was over 82% by drawing a vertical line on the “Total points” scale. Postoperative pathological results showed that (left lobe) PTC, the diameter was 3.0 cm, metastatic carcinoma was found in the central cervical region (3/7). This image is published with the patient’s consent. (B) The blue line represented the capsular abutment, which was defined as a lack of intervening tissue between PTC lesions and normal thyroid capsules; the red line represented the capsular protrusion, which was defined as the disruption of the perithyroidal echogenic line between the primary site of PTC and the normal thyroid capsule on sonography. (D) Taller-than-wide was defined as the anteroposterior diameter of the nodule (blue line) that was larger than its transverse diameter (red line) on a transverse plane. The yellow arrows in (E-H) pointed to the thyroid primary lesions in the iodine maps of the arterial (E-G) and the venous (H) phases. Combining the axial (E), sagittal (F), and coronal (G) images, the primary lesion with the largest cross-sectional area was selected to measure. The region of interest was placed on the substantial part as large as possible, pay attention to avoid cystic degeneration, necrosis, or calcification, and not involve adjacent blood vessels. According to the 8^th AJCC staging systems, the diameter was classified into four categories according to the definition of diameter as follows: T1a: ≤1 cm, T1b: 1–2 cm, T2: 2–4 cm, ≥ T3: >4 cm, which corresponded to 0, 1, 2, and 3 in “Diameter” in the nomogram. Refer to American College of Radiology Thyroid Imaging, Reporting, and Data for grouping criteria, the shape of the thyroid nodule included wider-than tall and taller-than wide, which corresponded to 0 and 1 in “Shape” in the nomogram. Refer to American College of Radiology Thyroid Imaging, Reporting, and Data for grouping criteria, the calcification of the thyroid nodule included none or large comet-tail, macrocalcification, rim calcification, and microcalcification, which corresponded to 0, 1, 2, and 3 in “Calcification” in the nomogram. A/P was graded by values of <25%, 25–50%, or >50%, proven by a previous study, which corresponded to 0, 1, and 2 in “A/P” in the nomogram. The cutoff value of each DECT quantitative parameter was displayed in Table S5, and these parameters were converted from continuous variables to categorical variables accordingly, which corresponded to 0 and 1 in “IC IAP and IC IVP” in the nomogram. The cutoff value of IC IAP and IC IVP were 2.4 mg/mL and 3.2 mg/mL, respectively. AJCC, American Joint Committee on Cancer; A/P, the ratio of capsular abutment over the lesion perimeter; CLNM, central lymph node metastasis; CT, computed tomography; DECT, dual-energy computed tomography; IAP, in the arterial phase; IC, iodine concentration; IVP, in the venous phase; PTC, papillary thyroid carcinoma.

Discussion

There were three significant findings in the current study. First, diameter, shape, calcification, A/P, and IC in the arterial and venous phases were independent risk predictors of CLNM. Second, the new nomogram facilitated the prediction risk of CLNM using a cutoff value of 0.82 (approximately 96 points), with an AUC of 0.922. Based on the LOESS curve, the risk stratification system divided PTC patients into low-risk (0–50 points), intermediate-risk (51–100 points), and high-risk (>100 points) groups. Third, the prediction result of the retrospective cohort study was highly consistent with the three risk groups. These findings might assist in clinical realization of the transition from prophylactic CLND to therapeutic CLND to a greater extent.

A/P was used instead of the extrathyroidal extension to achieve quantitative measurement, consistent with a previous study (30). Diameter was recognized as another independent risk predictor for CLNM, and we considered that the more extensive the PTC lesion, the more aggressive it was (9). Taller-than-wide was an independent risk factor because benign nodules grew parallel to regular tissue planes, whereas malignant nodules grew across normal tissue planes (31,32). Microcalcification appeared as hyperechoic spots ≤1 mm in diameter on ultrasound image and can be named as psammoma bodies (PBs) histologically. Some studies (33-37) have shown that bone morphogenetic protein (BMP)-1 was overexpressed in PBs. BMP-1 may function through the osteopontin-CD44v6 axis, regulating cell matrix interactions and signal transduction, to promote tumor cell adhesion and migration and promote lymph node metastasis (34). Therefore, we speculated that microcalcification was significant for predicting CLNM.

When PTC entered the vascular phase of rapid neovascularization from the slow-growing pre-vascular phase, it indicated that the growth rate of the tumor was accelerated, and the neovascularization of the tumor was significantly increased, but the basement membrane development of the neovascularization was not perfect, making the vascular endothelial gap larger (38). High permeability, which also increased the possibility of tumor cell metastasis and spread (39,40). The IC obtained by DECT could directly reflect the tumor blood flow and was affected by the number of blood vessels (41). It was a highly sensitive parameter for identifying benign and malignant thyroid nodules (42,43). Therefore, we hypothesized that differences in iodine intake might result in different ability of lymph node metastasis. In short, thyroid primary lesion with the above independent risk factors were more likely to cause CLNM in PTC patients; and whether it would cause further transmission needed to be further studied.

One study (44) suggested considering fine needle aspiration as a first step in the evaluation of thyroid nodules. Whether DECT parameters in the results of this study can be correlated with fine needle aspiration to a certain extent remains to be further studied. The correlation between digital pathology (45) and DECT will be a research hotspot in the future. Of course, the pathophysiological mechanism of lymph node metastasis in thyroid cancer is very complex. Previous study (46) has found that image analysis and artificial intelligence have considerable potential in thyroid pathology. Perhaps we can further combine IC and artificial intelligence in the future. On the other hand, whether newly discovered thyroid nodules in deceased donors may cause cancer transmission is an interesting topic (44); whether DECT can be used to distinguish deceased donors’ benign and malignant thyroid nodules remains to be further studied.

In the current study, to improve the reliability and accuracy of the prediction model, we performed temporal and geographic validations. We observed that the AUC of external validation cohort II was lower than that of cohort I and that the risk stratification probabilities of cohorts I and II were different. We analyzed the specific reasons for this. First, we chose patients from another hospital as the test subjects, and individual differences among patients in different cities, such as whether the patient’s residence place was a coastal city, eating habits, living habits, etc., was one aspect we need to consider. Second, we performed a retrospective cohort study. In this part, the radiologists completed the data extraction and total score evaluation without knowing the pathological results, resulting in a higher probability of actual occurrence of CLNM in cohort II than cohort I. Therefore, there was no selection bias or subjective tendency. Even so, the AUC of cohort II reached up to 0.861. The prediction model was adequate for basic clinical decisions.

Of note, there were five cases of overestimation or underestimation of CLNM in the retrospective cohort study. For cases with underestimation of CLNM risk, we found that IC in the arterial and venous phases was high in most of them; however, these patients did not have typical ultrasound features, such as microcalcification. Therefore, we believed that DECT was a powerful supplement but not a substitute for ultrasound, so the two image methods should be closely combined in the diagnosis process. For cases with overestimation of CLNM risk, we found that most were due to an excessive emphasis on ultrasound features. When DECT characteristics were not apparent, the total scores might have exceeded 100 points and be included in the high-risk group. For such patients, we should pay much more attention to DECT images, weigh the image evaluation of ultrasound and DECT, and then make the final diagnosis.

There are some limitations to the current study. First, due to its retrospective nature, potential selection bias may exist. However, we conducted a retrospective cohort study and obtained a higher AUC, which also demonstrated the reliability of our model to a certain extent. Of course, we still need to conduct a large sample prospective study to verify the accuracy and reliability of the nomogram in the future. Second, this study was cross-sectional, and we should pay more attention to patients who have undergone CLND and postoperative pathology confirmed cN0 stage. The recurrence rate in these patients will be the focus of the next research. Third, only the patients with a single lesion were included, whether the constructed nomogram was suitable for patients with multiple lesions still needed to be verified by prospective study. Although there were some limitations listed above, the nomogram and risk stratification system constructed in this study were expected to assist clinicians to predict the occurrence probability of CLNM before surgery accurately, so as to update the surgical plan. To maximize the benefit for patients, we look forward to providing additional accurate analysis for future individualized treatment.

Conclusions

Six important parameters from ultrasound and DECT images, including diameter, shape, calcification, A/P, and IC in the arterial and venous phases, were independent risk predictors of CLNM in PTC patients. In the preoperative diagnosis of CLNM, DECT was a useful supplement to ultrasound. This new nomogram facilitated the CLNM prediction and included risk stratification, assisting the formulation of individualized treatment plans.

Acknowledgments

The authors thank Shuang Xia, MD, PhD, Department of Radiology, Tianjin First Central Hospital for the guidance of research content and image acquisition; Jianhua Gu, MD, PhD, Department of General Surgery, Tianjin First Central Hospital for patient recruitment and guidance of clinical work; Wen Shen, MD, PhD, Department of Radiology, Tianjin First Central Hospital for image acquisition; Fang Sun, MD, Department of Ultrasonography, Binzhou Medical University Hospital for patient recruitment and image acquisition; Xi Zhao, Senior engineer, Siemens for his support for dual-energy CT image post-processing.

Funding: This work was supported by Tianjin Education Commission Scientific Research Project (grant number: 2023KJ165).

Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-24-284/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-24-284/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional ethics boards of Tianjin First Central Hospital (No. 2020N220KY) and Binzhou Medical University Hospital (No. LW-24), and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
