Multiparametric simultaneous hybrid ¹⁸F-fluorodeoxyglucose positron emission tomography/magnetic resonance imaging (¹⁸F-FDG PET/MRI) incorporating intratumoral and peritumoral regions for grading of glioma

Introduction

Optimized management of glioma, the most common primary brain tumor, remains a major global concern (1). According to the 2021 World Health Organization (WHO) classification of central nervous system tumors (2), the diagnosis of gliomas should be an overall “integrated” diagnosis that is reached according to the histopathological denomination, grade, and molecular information. The imaging and neuroradiologist play pivotal roles in glioma diagnosis; the neuroradiologist raises an initial diagnosis of glioma, and the results are confirmed further by histopathological exam, whereas the imaging provides the information of lesion localization, disease extent, and aids tumor grading and surgical planning (3). Patient survival varies greatly depending on tumor grade, with high-grade glioma (HGG, grade 3+4) having a very high mortality rate (e.g., 5-year survival rate <5%), nevertheless, low-grade glioma (LGG, grade 1+2) achieves a survival rate as high as 80% (4). Additionally, the treatment regimens including the degree of resection, postsurgical radiation, or temozolomide combined with radiation are also implemented according to the glioma’s grade. Therefore, accurate pre-operative grading of glioma is critical for clinical decision-making in order to maximize prognosis and patient-tailored precision medicine; however, post-operative histopathological assessment remains the standard for grading gliomas (5). Some patients cannot tolerate surgery or biopsy, in addition, the pathological diagnosis from stereotactic biopsy or surgical resection may be inaccurate due to the tissue heterogeneity and sampling bias (6).

Conventional or advanced magnetic resonance imaging (MRI) have been used to grade gliomas for decades. However, its performance in clinical practice remains unsatisfactory (7). As pathophysiological alterations in tumors are closely associated with aberrant vascularization, hemodynamic imaging, particularly arterial spin labelling (ASL), has been employed to grade glioma due to its advantage of not requiring a tracer (8). Recently, ASL was promoted for employment as a routine clinical setting for glioma (9). Diffusion-weighted imaging (DWI) is a classical and well-known technology for glioma evaluation, but there are no reliable and uniformly accepted threshold values to properly establish grades. Therefore, the value of single imaging techniques remains limited for identifying HGG. Combination of DWI-derived apparent diffusion coefficient (ADC) and ASL has been recommended to simultaneously assess the cellular and vascular properties of gliomas and are viewed as useful biomarkers for grading (10-12). Multiparametric MRI show greater potential in determination of HGGs than does single parameter, but the metabolic behavior of tumors was considered as another valuable biomarker for glioma evaluation.

Positron emission tomography (PET) can visualize biological processes such as cell proliferation, membrane biosynthesis, and glucose consumption by employing various tracers, and thus it has been recommended as standard framework in clinical practice to assist in the management of gliomas (13,14). PET can identify highly metabolically active tissue by measuring uptake of fluorodeoxyglucose (FDG) or other radiotracers, and provide additional insight beyond MRI into the biology of gliomas which may facilitate noninvasive grading of glioma (15). Combining PET and MRI can help procure structural, functional, and metabolic information for glioma in a single examination (16-18), showing additional value to each technique employed alone, especially with the hybrid PET/MRI systems. ¹⁸F-fluorodeoxyglucose (¹⁸F-FDG), a radiopharmaceutical that is most commonly used as PET tracer for its higher glucose metabolism that tumor cells exhibit compared to healthy tissues (19), shows superior specificity for grading glioma (20,21). Although ¹⁸F-fluoro-ethyl-L-tyrosine (FET) has demonstrated higher diagnostic performance for the diagnosis of brain tumor and glioma, it has shown similar performance for distinguishing LGG and HGG in comparison with ¹⁸F-FDG (22). Additionally, as ¹⁸F-FDG can be applied at all PET sites, we must concede the major convenience of tracer supply in clinical practice. Theoretically, combined parameters from ¹⁸F-FDG hybrid PET/MRI may provide sufficient complementary information to improve the grading of gliomas.

Recent studies have found that the peritumoral region (PTR), a region that appears radiologically and macroscopically normal, is crucial for tumor classification (23). Reports have shown that tumor cell infiltration can extend several centimeters beyond the tumor margin (24), thus, a thorough understanding of the actual extent of the region beyond MRI-defined abnormalities is crucial for improving the management of glioma, such as to help determine new therapeutic targets (25). DWI (26) and perfusion imaging (27) have been used to detect alterations in PTR. Combination of ASL, DWI, and ¹⁸F-FDG PET parameters from the enhancing tumors and PTR has shown good performance to differentiate HGGs from lymphomas (28). However, multiple parameters derived from the solid component and PTR have not been used for grading gliomas. We hypothesized that multiple parameters derived from ¹⁸F-FDG PET/MRI of multiple tumoral regions would improve the grading performance.

Therefore, we combined multiparameters derived from hybrid ¹⁸F-FDG PET/MRI of the solid component and PTR to differentiate LGG from HGG, and expected to provide comprehensive physiological and biochemical information that can potentially improve the accuracy of glioma grading. We present this article in accordance with the TRIPOD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-24-280/rc).

Methods

Patients

The ¹⁸F-FDG PET/MRI examination was approved by the Institutional Review Board of Guangzhou Universal Medical Imaging Diagnostic Center (No. 003/2019) and conducted in accordance with the Declaration of Helsinki (as revised in 2013). All patients signed an informed consent form for the ¹⁸F-FDG PET/MRI examination. Patients with histologically confirmed gliomas and who had undergone pre-treatment brain ¹⁸F-FDG PET/MRI between May 2019 and March 2023 at Guangzhou Universal Medical Imaging Diagnostic Center were retrospectively enrolled. The data applied in this study were exempted from ethical review due to the retrospective nature.

Totally, 131 patients were initially enrolled. The inclusion criteria were as follows: (I) complete ¹⁸F-FDG PET/MRI data including T1-weighted imaging (T1WI), T2-weighted imaging (T2WI), T2-weighted fluid-attenuated inversion recovery (T2-FLAIR), DWI, ASL, and ¹⁸F-FDG PET before surgery; (II) histopathologically-confirmed glioma without other brain tumors; and (III) no history of treatment, including steroid treatment, radiotherapy, or chemotherapy. The exclusion criteria were as follows: (I) ambiguous grade, especially between grade II and III; (II) incomplete exam or poor image quality (such as motion artifacts); (III) unusual glioma location (e.g., pineal gland, close to the lateral ventricle which may be contaminated by cerebrospinal fluid) that could influence data analysis; (IV) lesions below 5–10 mm; and (V) obvious hemorrhage or large amount of calcification. Tumor grading was based on the 2016 World Health Organization classification, ascertained during operation or via stereotactic brain biopsy. Grades I and II were grouped together as LGG, whereas grade III and IV were grouped together as HGG.

The flowchart for patient enrollment is shown in Figure 1. The participants’ clinical and conventional imaging features, including age, sex, location, cystic degeneration/necrosis, range of involvement, mass effect, and the detailed histopathology were collected from the hospital electronic system. Finally, 41 patients with HGGs [mean age, 51.54 years (range, 29–79 years)] and 35 patients with LGGs [mean age, 45.06 years (range, 23–69 years)] met the inclusion criteria.

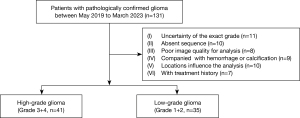

Figure 1 The flowchart of the patient recruitment process.

PET/MRI image acquisition

PET/MRI images were obtained on an integrated 3T PET/MRI system (Biograph mMRI; Siemens Healthcare, Erlangen, Germany) with a 12-channel, PET-compatible receiver head coil. All patients had fasting blood glucose level <8.3 mmol/L (150 mg/dL) and had fasted for at least 6 hours prior to examination. Before imaging, FDG was administered intravenously according to the patient’s weight, with a standard of 3.70–5.55 MBq/kg. After 40 minutes of uptake in a dimly lit room with eyes open, the patient was positioned for brain imaging.

The comprehensive protocol included the following MRI sequences acquired simultaneously during PET:

• 3D-T1WI-magnetization-prepared rapid gradient echo (MPRAGE): repetition time/echo time (TR/TE), 2,000/2.3 ms; slice thickness/gap, 5/1.5 mm; field of view (FOV), 250×250 mm²; matrix, 256×256;
• T2WI: TR/TE, 5,000/91 ms; slice thickness/gap, 5/1.5 mm; FOV, 230×201 mm²; matrix, 384×307;
• T2-FLAIR: TR/TE, 9,000/102 ms; slice thickness/gap, 5/1.5 mm; FOV, 230×201 mm²; matrix, 256×230;
• Single-shot echo-planar DWI (b=0 and 1,000 s/mm²): TR/TE, 5,900/85 ms; slice thickness/gap, 5/1.5 mm; FOV, 230×201 mm²; matrix, 146×146;
• ASL: TR/TE, 2,500/13 ms; slice thickness/gap, 8/2 mm; FOV, 256×256 mm²; matrix, 64×64. The CBF maps were automatically generated after the scan.

Brain PET images were simultaneously acquired with the MRI acquisition without re-positioning. The attenuation correction method of tissue segmentation and iterative reconstruction algorithm with 21 subsets, 3 iterations, and 4 mm (full width at half maximum) post-filtering was used.

Image analysis

Images were transferred to a postprocessing workstation (Syngovia 3.0, Siemens Healthcare, Germany) and independently interpreted by 2 experienced radiologists (P.L. and G.H.J. with 15 and 20 years of experience in neuroradiology, respectively) who were blinded to tumor grade and patient identity. Location, necrosis, and cystic degeneration were qualitatively assessed on conventional MRI. As the relative values, obtained by normalizing the ROI to the normal appearing (contralateral) tissue using mirrored ROI, may help improve accuracy in tumor grading (29). Thus, we used the relative values (the values of ROI divided by the value of the mirrored ROI from the contralateral normal-appearing brain regions) of PET, CBF, and ADC for quantitative assessment. The delineation of the margin was performed by the previous 2 neuroradiologists; any disagreements about the placement of ROIs within each lesion and the definition of the solid component of the glioma were resolved by consensus or with the assistance of a senior radiologist with over 30 years of experience in brain tumor diagnosis. The pipeline of the process of the measurements of multiple parameters in our study are shown in Figure 2 and as follows:

• The cross-section with the largest tumor area and best demarcation of the lesions was chosen, and the T2-FLAIR and T2WI images were used as visual aid.
• The solid component of glioma was first identified, on combination of the T2-FLAIR (a slightly higher signal intensity than normal brain tissue but lower than edema) and PET images, PTR with 5, 10, 15, and 20 mm adjacent to the margin of the solid region were defined (Figure 2A), 5 round ROIs with a diameter of 5 mm were placed in the solid part without overlap, and the average values were recorded for analysis. Areas adjacent to hemorrhage, vessels, and cystic components were carefully avoided and excluded. Another 4 ROIs were then copy-and-pasted onto the PTR at different distances with 5, 10, 15, and 20 mm adjacent to the margin of the solid region. Additionally, the ROIs were copied into the contralateral normal-appearing tissue as mirrored ROI (Figure 2B).
• ROIs were copied onto maps of ADC maps (Figure 2C), and CBF maps (Figure 2D).
• The maximum standardized uptake value (SUV_max), CBF, and minimum apparent diffusion coefficient (ADC_min) were recorded for each ROI. The relative values of these multiparameters, including relative maximum standardized uptake value (rSUV_max), relative cerebral blood flow (rCBF), and relative minimum apparent diffusion coefficient (rADC_min), which were generated by the values of an ROI from the tumor divided by the value of the mirrored ROI, were measured for analysis. Additionally, in order to be interpreted conveniently, rSUV_max values from ROIs at distinct locations was recorded as follows: rSUV_max-solid, rSUV_max-5, rSUV_max-10, rSUV_max-15, and rSUV_max-20. Similarly, the rCBF and minimum ADC values were recorded: rCBF_solid, rCBF₅, rCBF₁₀, rCBF₁₅ and rCBF₂₀; rADC_min-solid, rADC_min-5, rADC_min-10, rADC_min-15, and rADC_min-20.

Figure 2 The pipeline of the process of the measurements of multiple parameters from multiple regions. (A) Illustration of the definition of the solid component and PTR with 5, 10, 15, and 20 mm adjacent to the margin of the solid region. (B) The delineation of ROI of the solid component, PTR, and the contralateral region of those ROIs on PET maps. A total of 5 round ROIs with an area of 25 mm² are placed in the solid part of the tumor on PET image. The ROIs were copied onto maps of ADC (C), and CBF (D). PTR, peritumoral region; ROI, region of interest; PET, positron emission tomography; ADC, apparent diffusion coefficient; CBF, cerebral blood flow.

Statistical analysis

Statistical analysis was performed on SPSS software (version 26, IBM Corp., Armonk, NY, USA). A P value <0.05 was considered statistically significant.

Continuous variables were expressed as mean ± standard deviation (SD) and compared using independent-sample t-tests. Categorical data were expressed as numbers and percentages (%). The interclass correlation coefficient (ICC) was calculated to assess measurement consistency between the 2 radiologists. ICC ≤0.40 indicated poor consistency, 0.40< ICC ≤0.75 medium consistency, and ICC >0.75 high consistency. Kolmogorov-Smirnov tests were used to assess the normality of quantitative data. Imaging parameters across HGG and LGG groups were compared using the 2-sample t-test or the Mann-Whitney U test. Receiver operating characteristic (ROC) curves for parameters (single or combined) were used to evaluate their efficiency in discriminating HGGs form LGGs.

An individualized nomogram prediction model was constructed to predict the probability of HGG. The nomogram performance was evaluated by discrimination and calibration. The discriminative ability of the prediction model was determined by concordance index (C-index). A visual calibration plot, comparing the predicted and actual probability of HGG, was performed to calibrate the prediction model. The nomogram was subjected to 1,000 bootstrap resamples for internal validation to assess predictive accuracy (30).

The overall workflow of this study is shown in Figure 3.

Figure 3 The overall workflow of this study. PET/MRI, positron emission tomography/magnetic resonance imaging; ROI, region of interest; HGG, high-grade glioma; LGG, low-grade glioma; ROC, receiver operating characteristic; rSUV_max, relative maximum standardized uptake; rCBF, relative cerebral blood flow; rADC_min, relative minimum apparent diffusion coefficient; PTR, peritumoral region.

Results

Demographic characteristics and conventional MRI features

Of the 41 HGGs, 21 had glioblastomas, 13 anaplastic astrocytoma, and 7 anaplastic oligodendroglioma. Among 35 LGGs, 23 had astrocytoma and 12 had oligodendrogliomas. Demographic characteristics and conventional MRI features are summarized in Table 1. Age and sex were comparable across groups.

Interobserver agreement of the multiparametric measurements

The degree of interobserver agreement between the 2 operators for measuring all hybrid PET/MRI parameters were good to excellent (ICC >0.785) (Table S1).

Differences in rSUV_max, rCBF, and rADC_min between HGG and LGG

Detailed and visualized differences in multiparametric measurements between the HGG and LGG groups are presented in Table S2 and Figure 4. The HGG group showed a tendency for higher rSUV_max, lower rADC_min, and higher rCBF values than did the LGG group, no matter whether there was a statistical difference. Significant inter-group differences were observed mainly in the solid component (all P<0.000, respectively), PTR₅ (P<0.000 for rSUV_max and rCBF, P<0.001 for rADC_min), and PTR₁₀ (P<0.000 for rSUV_max, P=0.011 for rADC_min, and P=0.002 for rCBF). Examples of patients with HGG and LGG are shown in Figure 5.

Figure 4 Violin plot of the group differences for the PET, ASL, and DWI parameters. (A) Group differences in rSUV_max values. (B) Group differences in rCBF values. (C) Group differences in rADC_min values. HGG, high grade glioma; LGG, low grade glioma; rSUV_max, relative maximum standardized uptake; rCBF, relative cerebral blood flow; rADC_min, relative minimum apparent diffusion coefficient; PTR, peritumoral region; PET, positron emission tomography; ASL, arterial spin labelling; DWI, diffusion-weighted imaging.

Figure 5 Representative images of the ¹⁸F-FDG PET/MRI in patients with HGG and LGG. The first row shows a 34-year-old male patient with HGG. Axial T2-FLAIR image shows a hyperintense mass in the right frontal lobe, with peritumoral edema. The DWI and ADC map demonstrate restricted diffusion both in the solid (rADC_min =0.76) of tumor and PTR. The CBF map showed an irregular hyper-perfusion ring (solid, relative cerebral blood flow, rCBF =1.35) but similar CBF in the PTR. The corresponding PET image shows an obvious accumulation of FDG in the solid region (relative maximum standardized uptake, rSUV_max =1.26), but decreased uptake in the PTR. The second row shows a 48-year-old female patient with LGG. Axial T2-FLAIR image shows a hyperintense mass located with mild peritumoral edema in left frontal lobe. On the DWI and ADC map, slightly restricted diffusion is observed in the solid of tumor (rADC_min =0.98), but not observed in the PTR. The CBF map showed an isoperfusion (rCBF =1.05). The corresponding PET images showed marked decreased uptake of FDG both in the solid (rSUV_max =0.85) of tumor and PTR. T2-FLAIR, T2-fuid attenuated inversion recovery; CBF, cerebral blood flow; DWI, diffusion-weighted imaging; ADC, apparent diffusion coefficient; FDG, fluorodeoxyglucose; PET, positron emission tomography; ¹⁸F-FDG PET/MRI, ¹⁸F-fluorodeoxy glucose positron emission tomography/magnetic resonance imaging; HGG, high-grade glioma; LGG, low-grade glioma; rSUV_max, relative maximum standardized uptake; rCBF, relative cerebral blood flow; rADC_min, relative minimum apparent diffusion coefficient; PTR, peritumoral region.

Diagnostic performance analysis

Diagnostic performance of single parameters

ROC curve analysis indicated that rSUV_max-solid performed the best for grading as a single parameter, with the largest area under the curve (AUC) value of 0.884, followed by rADC_min-solid (0.835) and rCBF_solid (0.748). The optimal cut-off value of rSUV_max-solid was 1.388, with a sensitivity and specificity of 87.8% and 85.14%, respectively. The optimal cutoff values, AUC, sensitivity, and specificity are summarized in Table 2, whereas the visualized ROC curves are displayed in Figure 6A.

Figure 6 ROC curves of intratumoral solid component and peritumoral regions PET, ASL and DWI parameters for differentiating HGG and LGG. (A) ROC for the rSUV_max, rCBF and rADC_min value as a single parameter for different regions. (B) ROC for the rSUV_max, rCBF, and rADC_min value when combined the solid component and PTR with different distances adjacent to the margin of the solid region. (C) ROC curves for the combination of single, 2 or 3 parameters of rSUV_max, rCBF, and rADC_min, and the combination of the solid region with different PTR. rSUV_max, relative maximum standardized uptake; rCBF, relative cerebral blood flow; rADC_min, relative minimum apparent diffusion coefficient; PTR, peritumoral region; ROC, receiver operating characteristic; PET, positron emission tomography; ASL, arterial spin labelling; DWI, diffusion-weighted imaging; HGG, high grade glioma; LGG, low grade glioma.

Diagnostic performance of combined parameters at different regions

As shown in Table 3, when combining the multiparametric indices for the center of the solid component and PTR at distinct distances, the AUC values gradually increased, indicating that the diagnostic performance improved when values for PTR at increased distances were combined. The combination of the rSUV_max for the solid component and PTR₂₀ showed the largest AUC of 0.881, with sensitivity and specificity values of 0.906 and 0.745, respectively. The visualized curves are shown in Figure 6B.

As shown in Table 4, when any 2 parameters were combined across DWI, ASL, and ¹⁸F FDG-PET for the center of the solid component and PTR₅, the combination of rSUV_max with rADC_min or rCBF showed equally excellent diagnostic efficacy, with an AUC of 0.874. However, the 3-way combination of parameters from the solid component and PTR₅ had lower AUC values than did the multiparametric combinations for the center only. These visualized curves are shown in Figure 6C.

Additionally, when combining all the 3 functional parameters and integrating the parameters from the solid component and PTR at different distances, the discrimination efficacy gradually increased with increasing distance of PTR. The combination of rSUV_max, rADC_min, and rCBF from the solid component and PTR₂₀ had the largest AUC of 0.928, with corresponding sensitivity and specificity were 94.5% and 69.5%, respectively.

Predictive nomogram for the probability of HGG and its performance

According to the diagnostic performance of the combined multi-parameters from different regions, an individualized nomogram prediction model was constructed to predict HGGs (Figure 7A). The total score was calculated, including the rSUV_max, rADC_min, and rCBF for the solid component and PTR₅, and the value of each variable was assigned a score on the point-scale axis. A total score was calculated by adding each single score. By projecting the total score onto the individual variable axes of the nomogram, we were able to estimate the probability of HGG. The nomogram showed good accuracy, with a C-index of 0.906 [95% confidence interval (CI): 0.849–0.963]. Figure 7B displays the calibration curve of the nomogram, which showed that the HGG probabilities predicted by the nomogram agreed well with the actual probabilities.

Figure 7 The predictive model of HGG. (A) The visualized predictive nomogram of HGG, incorporating the 3 parameters from the solid component and the peritumoral region (PTR_{5 mm}). The value of each of variable was given a score on the point scale axis. A total score was calculated by adding each single score. By projecting the total score to the lower total point scale, we were able to estimate the probability of HGG. (B) The calibration curves in the nomogram. The x-axis represents the nomogram predicted probability and the y-axis represents the actual probability of HGG. rSUV_max, relative maximum standardized uptake; rCBF_max, relative cerebral blood flow; rADC_min, relative minimum apparent diffusion coefficient; HGG, high-grade glioma; PTR, peritumoral region.

Discussion

Differentiating LGGs from HGGs can be challenging but essential for making optimal treatment decisions. Recent studies found that glioma cells can infiltrate the apparently normal region covering 20 mm around the tumor border as visualized on conventional enhanced MRI. We proposed to use multiple parameters from solid component and PTRs from hybrid ¹⁸F-FDG PET/MRI to grade glioma. HGGs showed higher rSUV_max, lower rADC_min, and higher rCBF value relative to LGGs, with significant intergroup differences in rADC_min and rCBF values for the solid component and 5–10 mm-adjacent region. Regardless of single or combined parameters, only those including rSUV_max achieved optimal discrimination performance. When properties of the solid component and PTR at different distances were integrated, the diagnostic efficacy improved with increasing distance of PTR. A nomogram prediction model incorporating 3 parameters from the solid component and PTR₅ predicted HGGs with optimal discrimination and excellent calibration. This finding is valuable in clinical practice by permitting patients with glioma to be stratified before surgery.

PET provides information on the tumor metabolism and proliferation in a noninvasive, dynamic, qualitative, and quantitative manner. ¹⁸F-FDG remains the most widely used radiotracer to evaluate brain tumors, and its uptake indirectly reflects cell density and tumor aggressiveness (31). In the current study, HGGs showed higher rSUV_max than did LGGs at any measured point including the solid and PTR; especially in the solid component, the AUC was about 0.803–0.927 in differentiating LGGs from HGGs. This may reflect the high glucose avidity in malignant brain tumors, as suggested in previous reports (18,31,32), ¹⁸F-FDG-PET is a reliable tool to reflect this difference. However, these previous studies were mainly performed by combining the MRI and ¹⁸F-FDG-PET parameters, rather than hybrid ¹⁸F-FDG-PET/MRI-derived parameters. Additionally, we applied a relative SUV_max, which may overcome the influence from the background uptake (33) and alleviate some overlap in ¹⁸F-FDG uptake to a certain extent. The diagnostic performance in our study was slightly better than that in a previous report (34) in which O-(2-[¹⁸F]-fluoroethyl)-L-tyrosine (¹⁸F-FET) PET showed an AUC of 0.80–0.83 in differentiating LGGs from HGGs, which may also be ascribed to the relative value applied in this study.

Of note, the HGG and LGG groups differed in the solid component and the 5-mm- and 10-mm-adjacent PTR, suggesting that the greatest metabolic discrepancy between glioma exists mainly in and close to the solid component, where tumor cells proliferate much more actively. This was in line with the theoretical tumor region mode that with the increasing of the distance adjacent to the PTR, the tumor cell density decreased (35). Although there was no between-group difference, rSUV_max in the 15–20-mm-adjacent PTR (Table S2 and Figure 4A) exhibited some alterations, indicating occult metabolic abnormality in the PTR that was considered normative in past decades. Therefore, PTR is an important area that should not be undervalued in the evaluation of gliomas. Importantly, compared to relying on a single parameter from any imaging technique or any tumor region, incorporating rSUV_max with other MRI (DWI or ASL) parameters enhances grading performance. Thus, rSUV_max plays a significant role in differentiation of glioma grades. This research agrees with a previous review reporting that ¹⁸F-FDG PET can provide additional information that complements MRI data, thus easing glioma management (18). In this context, we consider that ¹⁸F-FDG-PET/MRI can be a vital step in the clinical workflow to distinguish HGGs from LGGs before surgery.

ASL provides microcirculation information by measuring blood flow using magnetically labeled water protons in the arterial blood as an endogenous tracer. rCBF derived from ASL has been viewed as an effective marker for discriminating LGGs from HGGs (36,37); however, it has not been used to assess PTR for glioma grading. In our study, a puzzling result was that rCBF values were higher for HGGs than for LGGs even at areas located 20 mm away from the tumor margin. However, this is not sufficient to distinguish the 2 grades. We suggest that there is aberrant vascularization in a wide area of PTR in both HGGs and LGGs. This could be attributed to the tumorigenic and angiogenic properties of PTR, which promote the growth and invasion of gliomas (38). In a pilot study, it may be worth assessing the merits of rCBF values at 15–20 mm from the conventionally defined tumor margins as a sensitivity marker for PTR. DWI-generated ADC values can quantitatively evaluate tissue cellularity, which is useful because proliferating tumor cells hamper extracellular water diffusion in vivo (39). Nevertheless, the grading performance of PTR based on ADC has not been scrutinized. Our findings revealed significantly decreased rADC_min values for HGGs, consistent with the results of previous studies (40). Similar to the findings in a previous report (26), we found an increase in the rADC_min in PTR, and, with increasing distance of PTR, the rADC_min values also decreased; however, the properties of PTR have not been studied in detail.

Multiparametric imaging is a promising tool for distinguishing tumor characteristics. ¹⁸F-FDG PET/MRI not only provides glucose metabolism information via ¹⁸F-FDG PET imaging but also enables the simultaneous acquisition of multiple quantitative MRI during PET imaging, providing a more comprehensive assessment of the glioma grading. Our study verified that a combination of multiple parameters derived from ¹⁸F FDG-PET/MRI (rSUV_max, rADC_min, or rCBF) yielded better results than did use of a single parameter or incorporation of any 2 parameters alone. In particular, those including rSUV_max achieved optimal discrimination performance; our results further supported the recommendation of the Neuro-Oncology working group for the clinical use of PET imaging in glioma (32). These findings suggest that integrated PET/MRI may be particularly useful for grading gliomas, providing comprehensive morphological and metabolic information in a single examination. Furthermore, a single ¹⁸F-FDG PET/MRI examination was less influenced by the unaligned images from multimodality images, providing a robust result (41).

Interestingly, when the 3 ¹⁸FDG-PET/MRI-based parameters were combined for distinct tumor regions, the combination of parameters derived from the solid component of the tumor and PTR₂₀ displayed the best performance in differentiating HGGs form LGGs, with an AUC of 0.928 (95% CI: 0.884–0.972). Pallud et al. (42) collected biopsy samples within and beyond tumor margins, finding a significant density of tumor cells at distances of 10–20 mm beyond the conventional imaging-defined limits. Similarly, Gerin et al. (43) discovered tumor cell infiltration in up to 20 mm of parenchyma around conventional MRI-defined abnormalities. However, the aforementioned MRI acquisition protocols were mostly performed using conventional MRI sequences such as T2WI. Zhang et al. (28) reported that a multiparametric measurement of the enhancing tumors and PTR diagnostic model based on ¹⁸F-FDG PET/MRI is superior to a single parameter method in differentiating of HGG from the primary central nervous system lymphoma. Thus, our nomogram may be an important predictive tool to determine patient-specific probabilities of HGGs with optimal discrimination, with a C-index of 0.906 (95% CI: 0.849–0.963).

Our study had several limitations. First, this was a single-center, retrospective study with a small sample size. We could not separate subgroups, such as according to IDH mutation and other characteristics, as this would have reduced statistical power. Thus, the results may have been statistically biased. A large cohort from multiple centers is required for validation. Second, this retrospective study was conducted from 2019. As a result, the pathological results of the included samples were based on the 2016 CNS WHO classification (4th edition) instead of the latest edition (5th edition) released in 2021. Third, multiparametric measures for PTR do not provide direct evidence regarding the histopathology of the tumor tissue. This is also a clinical challenge that may be overcome to some degree by conducting animal studies. Fourth, due to ethical constraints by the Internal Ethics Committee of the Hospital, we could not perform both FDG and FET-PET for evaluation, although some reports have mentioned that the ¹⁸F-FET possessed some advantages over ¹⁸F-FDG-PET. Meanwhile, a systematic review and meta-analysis (22) found that both tracers were able to distinguish between LGGs and HGGs. Furthermore, we used the relative value of the SUV_max, which may alleviate the disadvantage of the ¹⁸F-FDG to some degree.

Conclusions

The combination of rSUV_max, rCBF, and rADC_min derived from hybrid PET/MRI of the solid component and PTR facilitated more accurate discrimination of LGGs from HGGs than did a single parameter alone. ¹⁸F-FDG PET/MRI has particular value in estimating the glioma histologic grade, which is a potential tool to guide the initiation of proper treatment and improve patients’ outcomes. Thus, multiparametric ¹⁸F-FDG PET/MRI can be a vital step in the clinical workflow to distinguish HGGs from LGGs before surgery. Moreover, the cellular and metabolic features of PTR in both HGGs and LGGs are crucial for identifying new therapeutic targets (25).
