Prognostic implication of consolidation-to-tumor ratio in early lung adenocarcinoma: a retrospective cross-sectional study
Original Article

Prognostic implication of consolidation-to-tumor ratio in early lung adenocarcinoma: a retrospective cross-sectional study

Weiwei Jing1#, Mengxi Liu1#, Wangjia Li1, Dan Li2, Yangying Wu1, Fajin Lv1

1Department of Radiology, The First Affiliated Hospital of Chongqing Medical University, Chongqing, China; 2Department of Pathology, The First Affiliated Hospital of Chongqing Medical University, Chongqing, China

Contributions: (I) Conception and design: F Lv, W Jing, M Liu; (II) Administrative support: F Lv; (III) Provision of study materials or patients: W Jing, M Liu; (IV) Collection and assembly of data: W Li, D Li, Y Wu; (V) Data analysis and interpretation: M Liu; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Fajin Lv, MD. Department of Radiology, The First Affiliated Hospital of Chongqing Medical University, 1 Youyi Rd., Yuanjiagang, Yuzhong District, Chongqing 400016, China. Email: fajinlv@163.com.

Background: The threshold value of consolidation-to-tumor ratio (CTR) for distinguishing between ground-glass opacity (GGO)-predominant and solid-predominant ground-glass nodules (GGNs) needs to be clarified, as the lack of clarity has caused the prognostic implications to remain ambiguous. This study aimed to determine the threshold value of CTR for distinguishing between GGO-predominant GGNs and solid-predominant GGNs and elucidate the prognostic implications of the solid-predominant GGNs categorized by CTR on c-stage IA lung adenocarcinoma.

Methods: Between January 2016 and October 2018, 764 c-stage IA lung adenocarcinoma cases were assembled from the First Affiliated Hospital of Chongqing Medical University. Of the 764 lesions, 515 (67.4%) were nodules with a GGO component, and 249 (32.6%) were solid nodules (SNs) on thin-section computed tomography (CT). We evaluated the correlation of the 3-dimensional (3D) consolidation component volume ratio with CTR based on the coefficient of determination, r. After receiver operating characteristic (ROC) analysis of 515 GGNs, we defined the nodule with CTR >0.750 as solid-predominant GGN and the nodule with CTR ≤0.750 as GGO-predominant GGN. Subsequently, the prognosis of 439 patients who had follow-up registration was evaluated. Survival curves were calculated using the Kaplan-Meier method, and the log-rank test was employed to compare survival rates among different groups. Cox proportional hazard regression models were applied to evaluate the independent risk factors for recurrence-free survival (RFS).

Results: Among 764 patients, 515 (67.4%) were nodules with a GGO component, and 249 (32.6%) were SNs on thin-section CT. For 515 GGNs, the 3D consolidation component volume ratio correlated well with CTR (r=0.888). CTR tended to be slightly larger than the 3D consolidation component volume ratio. A 3D consolidation component volume ratio >50% was best predicted by CTR >0.750, followed by CTR >0.549. CTR >0.750 and CTR >0.549 predicted 3D consolidation component volume ratio >50% with 85% and 99.2% sensitivity and 91.6% and 57.2% specificity, respectively. The 5-year RFS and overall survival (OS) of patients with 0.750< CTR <1 were worse than those of patients with 0≤ CTR ≤0.750 (P<0.001 and P<0.001, respectively) but better than those of patients with CTR =1 (P=0.002 and P=0.03, respectively). Carcinoembryonic antigen (CEA) >2.1 [hazard ratio (HR) =12.516, 95% confidence interval (CI): 1.729–90.598], CTR >0.750 (HR =13.934, 95% CI: 3.341–58.123), larger consolidation component size with diameter more than 20 mm (HR =1.855, 95% CI: 1.242–2.770), poorly differentiated (HR =1.622, 95% CI: 1.056–2.491), lymph node metastasis (HR =2.473, 95% CI: 1.601–3.821), and sublobar resection (HR =2.596, 95% CI: 1.701–3.962) could predict the poor prognosis. Patients with 0≤ CTR ≤0.750 receiving sublobar resection had prognoses comparable to those receiving lobar resection, whether the tumor size ≤2 cm or consolidation component size ≤3 cm. Lobar resection was superior to sublobar resection for non-small cell lung cancer (NSCLC) ≤2 cm with CTR >0.750.

Conclusions: Compared to CTR =0.5, the 2-dimensional (2D) CTR =0.750 found using the 3D consolidation component volume ratio as the gold standard better differentiated between solid-predominant GGNs and GGO-predominant GGNs. CTR >0.750 was an independent risk factor associated with the poor prognosis of patients with c-stage IA lung adenocarcinoma. Sublobar resection should be cautiously adopted in GGNs with 0.750< CTR ≤1.

Keywords: Lung adenocarcinoma; ground-glass nodule (GGN); consolidation-to-tumor ratio (CTR); prognosis


Submitted Oct 13, 2023. Accepted for publication Mar 29, 2024. Published online Apr 26, 2024.

doi: 10.21037/qims-23-1438


Introduction

The International Association for the Study of Lung Cancer (IASLC) staging committee, in 2016, suggested that the clinical T-stage should be based on the size of the consolidation component within ground-glass nodules (GGNs) (1). However, the current clinical T stage ignores the influence of the ground-glass opacity (GGO) component on prognosis. The 5-year overall survival (OS) rate of GGNs varies between 91.2% and 99.4%, whereas the 5-year OS rate of solid nodules (SNs) ranges from 68.9% to 88% (2-9). GGNs have a better prognosis than SNs without a GGO component. In this context, the new clinical staging cannot distinguish radiological GGNs from SNs, which may result in staging migration when the consolidation component of both tumors has the same diameter. Therefore, it is necessary to reclassify the T stage to differentiate radiological GGNs from SNs.

Currently, certain studies (10,11) suggest that it is appropriate to categorize all GGNs as a single type, irrespective of their overall size, the dimensions of their consolidation components, or the consolidation-to-tumor ratio (CTR). However, the clinicopathological characteristics and prognostic factors of GGNs remain unknown and warrant further investigation. The prognostic factor for early-stage lung adenocarcinoma presenting as GGNs has been indicated by several studies (4,12,13) to be the CTR. Aoki et al. (14) found patients with GGO components of more than 50% showed a significantly better prognosis than those with GGO components of less than 50%. Zhai et al. (6) analyzed 1,070 GGNs and noted that patients with CTR >0.75 had similar outcomes to those with pure-SNs. However, Hattori et al. (3) found that the 5-year OS was equivalent in the GGO-predominant (0.5≤ CTR <0.75) and solid-predominant (0.75≤ CTR ≤1.0) arms. Thus, the CTR range employed to differentiate GGO-predominant GGNs from solid-predominant GGNs spans from 0.5 to 0.75 (13,15,16), yet substantial discord persists, and various CTRs yield diverse research outcomes. Consequently, it becomes imperative to ascertain a precise CTR threshold capable of effectively discerning between these 2 types of nodules before we understand the impact of solid-predominant GGNs on the prognosis of c-stage IA non-small cell lung cancer (NSCLC).

Therefore, the objective of this study was to elucidate the prognostic implications of CTR in GGNs and determine the threshold value of CTR for distinguishing between GGO-predominant GGNs and solid-predominant GGNs. We present this article in accordance with the STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-23-1438/rc).


Methods

Study design and patients

This study retrospectively reviewed 3,387 cases of c-stage IA lung adenocarcinoma that underwent surgery at the First Affiliated Hospital of Chongqing Medical University between January 2016 and October 2018. The tumor clinical staging was determined according to the 8th edition of the IASLC guidelines. Patients’ demographics (gender and age) and clinical factors, smoking index (product of the number of smoking years and the number of cigarettes smoked per day), and surgical procedure (lobectomy, segmentectomy, or wedge resection) were collected. Those nodules with a history of radiotherapy (403 cases), multiple pulmonary nodules (687 cases), and cases without preoperative thin-section computed tomography (CT) scans (1,533 cases) were excluded. Ultimately, 764 patients with available data were enrolled. The enrollment of patients is shown in Figure 1. Of the 764 lesions, 515 (67.4%) were nodules with a GGO component, and 249 (32.6%) were SNs on thin-section CT. After receiver operating characteristic (ROC) analysis of 515 GGNs, we defined the nodule with CTR >0.750 as solid-predominant GGN and the nodule with CTR ≤0.750 as GGO-predominant GGN. Subsequently, the prognosis of 439 patients who had follow-up registration was evaluated. Approval was obtained from the Institutional Review Board of the First Affiliated Hospital of Chongqing Medical University (IRB No. K2023-223) and the requirement for written informed consent for this retrospective study was waived. The study was conducted in accordance with the ethical standards of the responsible institution regarding human subjects, as well as in compliance with the Declaration of Helsinki (as revised in 2013).

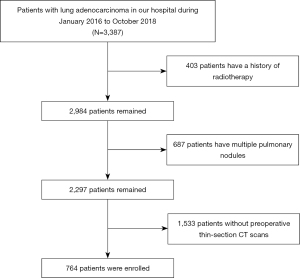

Figure 1 Flow diagram shows the enrollment of patients. CT, computed tomography.

Radiologic evaluation

Thin-section CT images were reconstructed with collimation of 1 mm. On preoperative thin-section CT scans, the CT images were analyzed using a lung setting, with a window level of −600 Hounsfield units (HU) and a window width of 1,800 HU. A lung nodule exhibiting both GGO and consolidation components was classified as a GGN, whereas an SN was defined as a lesion lacking any GGO component. Each nodule was assessed by 2 independent observers in the Picture Archiving and Communication Systems program. On the basis of the regions of interest of nodules drawn by radiologists for the whole boundary of nodules and their consolidation component, the program automatically calculated the volume of nodules and volume of the consolidation component. The 2 radiologists, who had over 20 and 5 years of experience, respectively, manually measured the longest diameter of each nodule and the maximum diameter of the consolidation component of each nodule using electronic calipers. The CTR was determined by calculating the proportion of the maximum diameter of the consolidation component to the longest diameter of the nodule, as observed in the maximum section of the axial thin-section CT. The 3-dimensional (3D) consolidation component volume ratio was determined by calculating the proportion of the volume of the consolidation component to the volume of the nodule. Actually, the nodule of 3D consolidation component volume ratio >50% was solid-predominant GGN, the nodule of 3D consolidation component volume ratio ≤50% was GGO-predominant GGN (Figure 2). Since the CTR >0.750 can well predict the 3D consolidation component volume ratio >50%, we defined the nodule with CTR >0.750 as solid-predominant GGN and the nodule with CTR ≤0.750 as GGO-predominant GGN.

Figure 2 Typical images of radiologically invasive NSCLC for (A) GGO-predominant and (B) solid-predominant ground-glass lung cancer. GGO, ground-glass opacity; GGNs, ground-glass nodules; NSCLC, non-small cell lung cancer.

Pathologic evaluation

Formalin-fixed paraffin-embedded tissues were sectioned and subsequently subjected to staining with hematoxylin and eosin, as well as the Alcian blue-periodic acid-Schiff method, to assess cytoplasmic mucin production. A pathologist who had over 20 years of experience utilized the 5th edition of the World Health Organization classification of tumors in the lung, pleura, thymus, and heart to determine histologic typing and pathologic grade (17).

Follow-up protocol

Postoperative follow-up appointments were scheduled at intervals of 3 months during the first 2 years following resection, every 6 months from the third to fifth year, and annually thereafter. These follow-up procedures consisted of regular chest and upper-abdominal CT scans, as well as head CT scans. The primary objectives of this study were to determine the OS and recurrence-free survival (RFS). OS was calculated from the date of the operation until the date of death resulting from any cause or the last follow-up. RFS was calculated from the initial operation until the occurrence of the first recurrence or the last clinical visit.

Statistical analysis

Continuous data were presented as the mean ± standard deviation (SD) or median (Q1, Q3) and were subjected to comparison using either the Student’s t-test or the Mann-Whitney U test. Categorical data were compared using Pearson’s chi-square test or the Kruskal-Wallis H test. The optimal cutoff value for the smoking index [280] and carcinoembryonic antigen (CEA) (2.1) was analyzed by X-title software (Yale School of Medicine, New Haven, CT, USA). At first, the correlation of 3D consolidation component volume ratio with CTR was evaluated by the coefficient of determination, r. Furthermore, GGNs were categorized into 2 distinct groups: consolidation component volume ratio ≤50% and consolidation component volume ratio >50%. Subsequently, ROC analysis with Youden’s index was employed to determine the cutoff value of the CTR that resulted in the greatest disparity between GGNs with a consolidation component volume ratio ≤50% and that consolidation component volume ratio >50%. Delong’s test was used to determine whether there is a statistical difference in 3D consolidation component volume ratio >50% prediction between CTR >0.549 and CTR >0.750. Survival curves were calculated using the Kaplan-Meier method, and the log-rank test was employed to compare survival rates among different groups. Variables with a significant impact on survival in univariable analysis were included in a multivariable Cox proportional hazard model. Cox proportional hazard regression models were applied to evaluate the independent risk factors for RFS. The variables with P values less than 0.1 in univariate analysis were entered into a multivariate model. The statistical analyses were conducted using the software SPSS 26.0 (IBM Corp., Armonk, NY, USA) and MedCalc 20.1 (MedCalc, Ostend, Belgium). A statistical significance was attributed to a P value of less than 0.05, and all reported significance levels were considered to be 2-sided.


Results

Patient characteristics

A total of 764 c-stage IA lung nodules were reviewed. Among them, 509 were diagnosed as IA, 135 as minimally invasive adenocarcinoma (MIA), and 20 as adenocarcinoma in situ (AIS). Of the 509 patients with IA, 439 patients were revised. Therefore, the 439 patients were finally included in the prognosis factor analysis.

Of the 764 lesions, 515 (67.4%) were nodules with a GGO component, and 249 (32.6%) were SNs on thin-section CT. We compared the clinicopathologic characteristics between the 2 groups: GGNs and SNs with and without GGO (Table 1). Statistically significant differences were observed between the 2 groups regarding various clinicopathological features.

Table 1

Patient characteristics

Variables Clinical stage IA NSCLC P value
With GGO (n=515) Solid (n=249)
Gender <0.001**
   Male 190 (36.9) 140 (56.2)
   Female 325 (63.1) 109 (43.8)
Age (years) 60 [52, 66] 62 [53, 69] 0.009*
Smoking index <0.001**
   ≤280 427 (82.9) 150 (60.2)
   >280 88 (17.1) 99 (39.8)
CEA (ng/mL) <0.001**
   ≤2.1 152 (29.5) 15 (6)
   >2.1 363 (70.5) 234 (94)
Group by consolidation component size (mm) <0.001**
   0–10 285 (55.3) 21 (8.4)
   11–20 172 (33.4) 87 (34.9)
   21–30 58 (11.3) 141 (56.6) <0.001**
Pathology sub-type
   AIS 20 (3.9) 0
   MIA 135 (26.2) 0
   IAC 360 (69.9) 249 (100)
Pathology grade <0.001**
   AIS/MIA
   Well differentiated 68 (18.9) 1 (0.4)
   Moderately differentiated 266 (73.9) 176 (70.7)
   Poorly differentiated 26 (7.2) 72 (28.9)
Pathological lymph node <0.001**
   N0 504 (97.9) 197 (79.1)
   N1 2 (0.4) 16 (6.4)
   N2 8 (1.6) 35 (14.1)
   N3 1 (0.2) 1 (0.4)
Maximum tumor size (mm) 17.3 [12.8, 23.6] 21 [17, 26] <0.001**
CTR 0.581 [0.43, 0.76] 1 [1, 1] <0.001**
Surgery approach <0.001**
   Lobar resection 294 (57.1) 191 (76.7)
   Segmentectomy 126 (24.5) 16 (6.4)
   Wedge resection 95 (18.4) 42 (16.9)

Values are presented as number (%) or median [Q1, Q3]. *, P<0.01; **, P<0.001. NSCLC, non-small cell lung cancer; GGO, ground-glass opacity; CEA, carcinoembryonic antigen; AIS, adenocarcinoma in situ; MIA, minimally invasive adenocarcinoma; IAC, invasive adenocarcinoma; CTR, consolidation-to-tumor ratio.

Predictive probability of CTR for 3D consolidation component volume ratio >50%

3D consolidation component volume ratio correlated well with CTR (r=0.888) (Figure 3A). As indicated in Figure 3A, CTR tended to be slightly larger than the 3D consolidation component volume ratio. Based upon ROC analysis, 515 cases of GGNs were classified into 2 groups: nodule with 3D consolidation component volume ratio ≤50% (n=395) and >50% (n=120) (Figure 3B). The CTR of more than 0.750 on 2-dimensional (2D) axial thin-section CT was the significant indicator of nodule with 3D consolidation component volume ratio >50%: sensitivity, 85%; specificity, 91.6%. However, solid-predominant GGN was always defined in other papers as a CTR of more than 0.5 on thin-section CT (13,16), so we examined the other cutoff value, 0.5, for the CTR in GGNs. As a result, the area under the curve (AUC) of the CTR >0.750 [AUC: 0.883, 95% confidence interval (CI): 0.852–0.910, P<0.001] was significantly larger than the CTR >0.549 (AUC: 0.782, 95% CI: 0.744–0.817, P<0.001), which means that the CTR >0.750 can well predict the 3D consolidation component volume ratio >50%. Hence, we defined the nodule with CTR >0.750 as solid-predominant GGN and the nodule with CTR ≤0.750 as GGO-predominant GGN.

Figure 3 Predictive probability of CTR for 3D consolidation component volume ratio >50%. (A) Correlation of 3D consolidation component volume ratio (y) and CTR (x). 3D consolidation component volume ratio correlated well with CTR (r=0.888). (B) Receiver operating characteristic analysis for 2 groups: nodule with 3D consolidation component volume ratio ≤50% (n=395) and >50% (n=120). The CTR of more than 0.750 on 2D axial thin-section CT was the significant indicator of nodule with 3D consolidation component volume ratio >50%: sensitivity, 85%; specificity, 91.6%. The AUC of the CTR >0.750 was significantly larger than the CTR >0.549 (AUC =0.883 vs. 0.782, P<0.001). 3D, 3-dimensional; CTR, consolidation-to-tumor ratio; r, coefficient of determination; 2D, 2-dimensional; CT, computed tomography; AUC, area under the curve.

Survival outcomes among 0≤ CTR ≤0.750, 0.750< CTR <1 and CTR =1 groups

In total, 439 patients had follow-up registration. When the 439 patients with follow-up registration were classified into 3 groups, namely GGO-predominant GGNs (0≤ CTR ≤0.750), solid-predominant GGNs (0.750< CTR <1), and SNs (CTR =1), the SNs and solid-predominant GGNs showed a more oncologic invasive behavior compared with the GGO-predominant GGNs (Table 2). The 5-year OS and 5-year RFS of the clinical stage IA NSCLC in this study were 82.8% and 73.2%, respectively, with a median follow-up time of 66 months, which was significantly different among GGO-predominant GGNs, solid-predominant GGNs, and SNs (Figure 4A, 5-year RFS: GGO-predominant GGNs =98.5%, solid-predominant GGNs =81.4%, SNs =58%, P<0.001; Figure 4B, 5-year OS: GGO-predominant GGNs =100%, solid-predominant GGNs =86.4%, SNs =72.9%, P<0.001).

Table 2

Clinicopathologic characteristics of 439 patients with resected clinical stage IA NSCLC

Variables Clinical stage IA NSCLC P value
GGO-predominant
(n=131, 0≤ CTR ≤0.750)
Solid-predominant
(n=59, 0.750< CTR <1)
Solid nodule
(n=249, CTR =1)
Gender <0.001*
   Male 46 (35.1) 23 (39) 140 (56.2)
   Female 85 (64.9) 36 (61) 109 (43.8)
Age (years) 60 [52, 67] 61 [55, 66] 62 [53, 69.5] 0.32
Smoking index <0.001*
   ≤280 110 (84) 48 (81.4) 150 (60.2)
   >280 21 (16) 11 (18.6) 99 (39.8)
CEA (ng/mL) <0.001*
   ≤2.1 36 (27.5) 15 (25.4) 15 (6)
   >2.1 95 (72.5) 44 (74.6) 234 (94)
Pathology grade <0.001*
   Well differentiated 31 (23.7) 1 (1.7) 1 (0.4)
   Moderately differentiated 97 (74) 54 (91.5) 176 (70.7)
   Poorly differentiated 3 (2.3) 4 (6.8) 72 (28.9)
Pathological lymph node metastasis
   Negative 129 (98.5) 56 (94.9) 197 (79.1) <0.001*
   Positive 2 (1.5) 3 (5.1) 52 (20.9)
Consolidation component size (mm) <0.001*
   ≤20 128 (97.7) 35 (59.3) 108 (43.4)
   >20 3 (2.3) 24 (40.7) 141 (56.6)
Maximum tumor size (mm) <0.001*
   ≤30  125 (95.4) 54 (91.5) 248 (99.6)
   >30  6 (4.6) 5 (8.5) 1 (0.4)
Surgery approach 0.16
   Lobar resection 92 (70.2) 39 (66.1) 191 (76.7)
   Sublobar resection 39 (29.8) 20 (33.9) 58 (23.3)

Values are presented as number (%) or median [Q1, Q3]. *, P<0.001. NSCLC, non-small cell lung cancer; GGO, ground-glass opacity; CTR, consolidation-to-tumor ratio; CEA, carcinoembryonic antigen.

Figure 4 Survival outcomes among 0≤ CTR ≤0.750, 0.750< CTR <1 and CTR =1 groups in c-stage IA NSCLC [(A) RFS; (B) OS]. The 5-year RFS and OS were significantly among 0≤ CTR ≤0.750, 0.750< CTR <1, and CTR =1 groups. RFS, recurrence-free survival; CTR, consolidation-to-tumor ratio; HR, hazard ratio; CI, confidence interval; OS, overall survival; NSCLC, non-small cell lung cancer.

Based on a Cox proportional hazards models analysis for 5 year RFS in the 439 patients, CEA >2.1 ng/mL [hazard ratio (HR) =12.516, P=0.01, 95% CI: 1.729–90.598], CTR >0.750 (HR =13.934, P<0.001, 95% CI: 3.341–58.123), larger consolidation component size with diameter more than 20 mm (HR =1.855, P=0.003, 95% CI: 1.242–2.770), poorly differentiated (HR =1.622, P=0.03, 95% CI: 1.056–2.491), lymph node metastasis (HR =2.473, P<0.001, 95% CI: 1.601–3.821), and sublobar resection (HR =2.596, P<0.001, 95% CI: 1.701–3.962) were independent risk factors associated with the poor prognosis of patients with c-stage IA lung adenocarcinoma (Table 3).

Table 3

Cox proportional hazard model for the 5-year recurrence-free survival in 439 patients

Variate Univariate Multivariate
HR (95% CI) P value HR (95% CI) P value
Gender (female) 0.506 (0.348–0.734) <0.001*** 0.855 (0.468–1.562) 0.610
Age 1.024 (1.005–1.043) 0.01* 1.006 (0.987–1.026) 0.537
Smoking index (>280) 2.669 (1.857–3.838) <0.001*** 1.297 (0.724–2.324) 0.38
CEA (>2.1 ng/mL) 24.26 (3.388–173.698) 0.001** 12.516 (1.729–90.598) 0.01*
CTR (CTR >0.750) 30.301 (7.486–122.643) <0.001*** 13.934 (3.341–58.123) <0.001***
Maximum tumor size 0.569 (0.141–2.303) 0.43
Consolidation component size (D >2 cm) 4.073 (2.771–5.988) <0.001*** 1.855 (1.242–2.770) 0.003**
Pathology grade (poorly differentiated) 3.416 (2.344–4.980) <0.001*** 1.622 (1.056–2.491) 0.03*
Lymph node metastasis (positive) 4.108 (2.768–6.098) <0.001*** 2.473 (1.601–3.821) <0.001***
Surgical approach (sublobar resection) 1.574 (1.074–2.307) 0.02* 2.596 (1.701–3.962) <0.001***

*, P<0.05; **, P<0.01; ***, P<0.001. , P value determined by Cox proportional hazard model. HR, hazard ratio; CI, confidence interval; CEA, carcinoembryonic antigen; CTR, consolidation tumor ratio; D, diameter.

Survival outcomes between lobar-resection and sublobar-resection groups in each CTR classification

When we evaluated the survival outcomes based on the surgical approach, it was excellent in the GGO-predominant GGNs. In particular, the 5-year RFS of the GGO-predominant GGNs was 97.8% or more regardless of surgical approach (5-year RFS: lobar-resection GGO-predominant GGNs =97.8%, sublobar-resection GGO-predominant GGNs =100%, P=0.36, 5-year OS: lobar-resection GGO-predominant GGNs =100%, sublobar-resection GGO-predominant GGNs =100%). The difference in RFS between lobar-resection and sublobar-resection was not significant in the GGO-predominant GGNs (lobar-resection vs. sub lobar-resection: P=0.36).

Meanwhile, the prognostic impact of the surgical approach was definitive in the solid-predominant GGNs and SNs. In terms of solid-predominant GGNs, both the 5-year RFS and 5-year OS split almost fairly between lobar-resection and sublobar-resection groups (lobar-resection vs sublobar-resection: 5-year RFS, P=0.003, HR =0.167, 95% CI: 0.046–0.601; 5-year OS, P=0.008, HR =0.152, 95% CI: 0.034–0.678) (Figure 5A, 5-year RFS: lobar-resection =92.3%, sublobar-resection =60%; Figure 5B, 5-year OS: lobar-resection =94.9%, sublobar-resection =70%). As for SNs, both the 5-year OS and 5-year RFS split almost fairly between lobar-resection and sublobar-resection (lobar-resection vs. sublobar-resection:5-year RFS, P=0.005, HR =0.558, 95% CI: 0.345–0.903; 5-year OS, P=0.02, HR =0.551, 95% CI: 0.307–0.990) (Figure 5C, 5-year RFS: lobar-resection =61.9%, sublobar-resection =44.8%; Figure 5D, 5-year OS: lobar-resection =76.3%, sublobar-resection =61.9%).

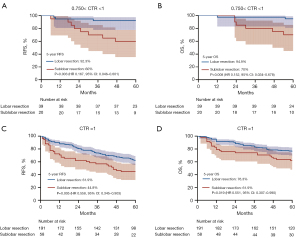

Figure 5 Comparison of survival outcomes between lobar-resection and sublobar-resection groups in 0.750< CTR <1 [(A) RFS; (B) OS] and CTR =1 [(C) RFS; (D) OS]. Both the 5-year OS and 5-year RFS split almost fairly between lobar-resection and sublobar-resection groups, whether the 0.750< CTR <1 or CTR =1. RFS, recurrence-free survival; CTR, consolidation-to-tumor ratio; HR, hazard ratio; CI, confidence interval; OS, overall survival.

Survival outcomes between lobar-resection and sublobar-resection groups with tumor size ≤2 cm in each CTR classification

The 5-year OS revealed significant differences between lobar-resection and sublobar-resection groups of tumor size no more than 2 cm (Figure 6A, 5-year RFS: 83.3% vs. 74.6%, P=0.11, HR =0.589, 95% CI: 0.293–1.182; Figure 6B, 5-year OS: 91.1% vs. 80.6%, P=0.03, HR =0.421, 95% CI: 0.175–1.015). When we evaluated the outcomes based on CTR classification, both the 5-year RFS and OS were significantly different between the lobar-resection and sublobar-resection groups in NSCLC ≤2 cm with CTR >0.750 (Figure 6C, 5-year RFS: 77% vs. 60%, P=0.02, HR =0.474, 95% CI: 0.228–0.983; Figure 6D, 5-year OS: 87.8% vs. 69.6%, P=0.008, HR =0.348, 95% CI: 0.139–0.869). However, for NSCLC ≤2 cm with CTR ≤0.750, no difference in both RFS and OS was found between the lobar-resection and sublobar-resection groups (5-year RFS: 100% vs. 100%, 5-year OS: 100% vs. 100%).

Figure 6 Comparison of survival outcomes between lobar-resection and sublobar-resection groups with tumor size ≤2 cm in 0≤ CTR ≤1 [(A) RFS; (B) OS] and 0.750< CTR [(C) RFS; (D) OS]. The 5-year OS significantly differed between the lobar-resection and sublobar-resection groups, whether the 0≤ CTR ≤1 or CTR >0.750. RFS, recurrence-free survival; HR, hazard ratio; CI, confidence interval; OS, overall survival; CTR, consolidation-to-tumor ratio.

Discussion

On the basis of a series of prospective studies concerning the prognostic value of CTR and its effect on decision-making of surgical approach (18), this study aimed to determine the threshold value of CTR for distinguishing between GGO-predominant GGNs and solid-predominant GGNs and elucidate the prognostic implications of the solid-predominant GGNs categorized by CTR on c-stage IA lung adenocarcinoma. The strong point of this study is that this investigation is the first to experimentally identify CTR values that differentiate between solid-predominant GGNs and GGO-predominant GGNs. As a result, this study reliably defined the solid-predominant GGNs based on CTR and found that their presence could predict poor outcomes. Thus, our study has practical implications for the management of c-stage IA NSCLC.

The controversy surrounding the differentiation of GGO-predominant GGNs from solid-predominant GGNs based on CTR has been a subject of academic debate. So far, 2 methods have been mainly reported: Nakao et al. (13) have classified GGNs into 3 distinct categories: GGO-predominant (CTR ≤0.5), solid-predominant (CTR >0.5), and SNs (CTR =1); whereas Hattori et al. (3) established the classification of GGO types, with 0.5≤ CTR <0.75 representing GGO-predominant, and 0.75≤ CTR <1 indicating solid-predominant. This study is the first to experimentally identify CTR values that differentiate between solid-predominant GGNs and GGO-predominant GGNs. The volume ratio of consolidation components was employed as the reference standard, and it was determined that a CTR cutoff value of 0.750 effectively distinguishes consolidation components with a volume ratio of at least 50%. When the cutoff value was set as 0.5, the specificity was lower. Thus, we prefer to define GGNs with CTR >0.750 as solid-predominant GGNs.

For GGNs, one debate is whether CTR is the indicator of prognosis. The clinical trial conducted by the Japan Clinical Oncology Group (JCOG) 0201 (19) has demonstrated that a maximum consolidation diameter/maximum tumor diameter (c/t) ratio of ≤0.25 in GGNs can effectively forecast the presence of non-invasive lung adenocarcinoma, thereby establishing it as a defined entity known as imaging non-invasive adenocarcinoma. The survival outcomes of JCOG0201 (20) showed that GGNs with CTR <0.5 have a better prognosis. Following this, JCOG sequentially developed JCOG0804, JCOG0802, and JCOG1211 in order to investigate the potential of image features in informing clinical decision-making for early lung adenocarcinoma based on the CTR. In this study, we found CTR >0.750 (HR =13.934, P<0.001, 95% CI: 3.341–58.123) was an independent risk factor associated with the poor prognosis of patients with c-stage IA lung adenocarcinoma. The range of 95% CI of HR in CTR as an independent risk factor associated with poor prognosis was too wide. The reason for this phenomenon may be due to a small sample size. However, Hattori et al. (10) reported that the CTR was not a prognostic factor for GGNs. Subsequently, the same team (3) found no statistical difference (P=0.70) in 5-year OS between GGO-predominant GGNs and solid-predominant GGNs. This discrepancy may be attributed to Hattori et al.’s comparable clinicopathological characteristics between GGO-predominant GGNs and solid-predominant GGNs, with no discernible variation in the distribution of pathological grade. The GGO-predominant GGNs are found to have a pathologic grading of well-differentiated in 60% of cases, whereas a solid-predominant GGNs is in 56% of cases. However, in our study, there were significant differences in pathological grade distribution and lymph node involvement between the cases with GGO-predominant GGNs and those with solid-predominant GGNs. In the case group with GGO-predominant GGNs, well-differentiated accounted for 23.7%, moderately differentiated accounted for 74%, and poorly differentiated accounted for 2.3%. In the case group with solid-predominant, well-differentiated accounted for 1.7%, moderately differentiated accounted for 91.5%, and poorly differentiated accounted for 6.8% (Table 3). In alignment with previous studies, GGO-predominant GGNs (CTR ≤0.750) were related to better survival in c-Stage IA NSCLC. Therefore, a clear distinction based on the CTR >0.750 or not is essential when considering the clinicopathologic and oncologic outcomes of patients with c-Stage IA NSCLC.

Despite lobar resection being the established surgical approach for early lung cancer, emerging evidence suggests that sublobar resection is gaining recognition in the clinical management of early lung adenocarcinoma. The survival outcomes of JCOG0201 (20) and JCOG1211 (21) have substantiated that sublobar resection can be employed as a standardized approach for nodules measuring less than 3 cm with a CTR <0.5. A multicenter retrospective study’s results supported patients with GGO-predominant clinical stage IA adenocarcinoma can be successfully treated with sublobar resection (22). The results of our study also showed that sublobar resection could achieve superior perioperative outcomes in comparison with lobar resection in GGNs with CTR ≤0.750, which is defined as GGO-predominant GGNs. However, in solid-predominant GGNs, which surgery approach should be preferred is in debate. Recently published results of CALGB140503 (23) and JCOG0802 (24) have demonstrated favorable survival time of sublobar resection, compared to lobar resection, for peripheral IA1 NSCLC. Data from Germany (25) showed that locoregional and distant recurrences were not significantly different for patients undergoing either sublobar resection or lobar resection for stage IA NSCLC. In contrast, an early study from the USA reported that lung adenocarcinoma of 2 cm or smaller with a micropapillary component of 5% or greater treated with lobar resection were at a higher risk of recurrence than similar patients treated with sublobar resection (26). Moreover, Baig et al. (26) reported that lobar resection was associated with better long-term survival outcomes as compared to sublobar resection for small peripheral NSCLC ≤2 cm with high grades of tumor differentiation. Ma et al. (27) recently published a study that showed that angioinvasive adenocarcinoma ≤2 cm treated with sublobar resection exhibits poor outcomes. In our research, lobar resection was superior to sublobar resection for NSCLC ≤2 cm with CTR >0.750. Thus, sublobar resection should be cautiously adopted in GGNs with 0.750< CTR ≤1.

Study limitation

Firstly, it is imperative to acknowledge that the current study is limited due to its small sample size and reliance on data solely obtained from a single-center database. Expanding the sample size and conducting experiments across multiple centers is recommended to enhance the robustness and generalizability of future findings. Secondly, it is crucial to note that there is currently a lack of consensus regarding a universally accepted measurement method for assessing the content of ground-glass in pulmonary nodules. Although Japan has pioneered the use of the CTR as a means of evaluating ground-glass content, it is important to highlight that CTR’s efficacy in distinguishing GGO-predominant GGNs from solid-predominant GGNs has exhibited considerable variability, ranging from 0.5 to 0.75. This paper presents the calculation of the CTR cutoff value, determined to be 0.750, for distinguishing between the 2 entities by utilizing the volume ratio of consolidation components as the gold standard. However, further investigation is required to validate the feasibility of this research finding. Additionally, it is important to note that this study is retrospective, and its conclusions necessitate confirmation through additional prospective trials. Moreover, the findings of this study indicate that lung nodules containing ground-glass components exhibit distinct clinicopathological characteristics and genetic alterations. Consequently, a comprehensive analysis of the biological and molecular changes associated with these 2 nodule types is imperative.


Conclusions

It is noteworthy that this study affirms that the solid-predominant GGNs consist of nodules with a CTR greater than 0.750 rather than greater than 0.5. CTR >0.750 was an independent risk factor associated with the poor prognosis of patients with c-stage IA lung adenocarcinoma. Sublobar resection should be cautiously adopted in GGNs with 0.750< CTR ≤1.


Acknowledgments

Funding: This work was supported by Chongqing Technology Innovation and Application Development Projects (No. CSTC2021jscx-ksbN0030), Chongqing Science and Health Joint Medical Research Project (No. 2022ZDXM006), and First-Class Discipline Construction Project of The First Affiliated Hospital of Chongqing Medical University (No. CYYY-BSYJSCXXM-202336).


Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-23-1438/rc

Conflicts of interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-23-1438/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Institutional Review Board of The First Affiliated Hospital of Chongqing Medical University (No. K2023-223. Date: 2023/06/27) and the requirement for individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.


References

  1. Travis WD, Asamura H, Bankier AA, Beasley MB, Detterbeck F, Flieder DB, Goo JM, MacMahon H, Naidich D, Nicholson AG, Powell CA, Prokop M, Rami-Porta R, Rusch V, van Schil P, Yatabe Y; International Association for the Study of Lung Cancer Staging and Prognostic Factors Committee and Advisory Board Members. The IASLC Lung Cancer Staging Project: Proposals for Coding T Categories for Subsolid Nodules and Assessment of Tumor Size in Part-Solid Tumors in the Forthcoming Eighth Edition of the TNM Classification of Lung Cancer. J Thorac Oncol 2016;11:1204-23.
  2. Hattori A, Hirayama S, Matsunaga T, Hayashi T, Takamochi K, Oh S, Suzuki K. Distinct Clinicopathologic Characteristics and Prognosis Based on the Presence of Ground Glass Opacity Component in Clinical Stage IA Lung Adenocarcinoma. J Thorac Oncol 2019;14:265-75. [Crossref] [PubMed]
  3. Hattori A, Matsunaga T, Takamochi K, Oh S, Suzuki K. Importance of Ground Glass Opacity Component in Clinical Stage IA Radiologic Invasive Lung Cancer. Ann Thorac Surg 2017;104:313-20. [Crossref] [PubMed]
  4. Watanabe Y, Hattori A, Nojiri S, Matsunaga T, Takamochi K, Oh S, Suzuki K. Clinical impact of a small component of ground-glass opacity in solid-dominant clinical stage IA non-small cell lung cancer. J Thorac Cardiovasc Surg 2022;163:791-801.e4. [Crossref] [PubMed]
  5. Wang C, Wu Y, Li J, Ren P, Gou Y, Shao J, Zhou Y, Xiao X, Tuersun P, Liu D, Zhang L, Li W. Distinct clinicopathologic factors and prognosis based on the presence of ground-glass opacity components in patients with resected stage I non-small cell lung cancer. Ann Transl Med 2020;8:1133. [Crossref] [PubMed]
  6. Zhai WY, Wong WS, Duan FF, Liang DC, Gong L, Dai SQ, Wang JY. Distinct Prognostic Factors of Ground Glass Opacity and Pure-Solid Lesion in Pathological Stage I Invasive Lung Adenocarcinoma. World J Oncol 2022;13:259-71. [Crossref] [PubMed]
  7. Miyoshi T, Aokage K, Katsumata S, Tane K, Ishii G, Tsuboi M. Ground-Glass Opacity Is a Strong Prognosticator for Pathologic Stage IA Lung Adenocarcinoma. Ann Thorac Surg 2019;108:249-55. [Crossref] [PubMed]
  8. Hattori A, Suzuki K, Takamochi K, Wakabayashi M, Aokage K, Saji H, Watanabe SIJapan Clinical Oncology Group Lung Cancer Surgical Study Group. Prognostic impact of a ground-glass opacity component in clinical stage IA non-small cell lung cancer. J Thorac Cardiovasc Surg 2021;161:1469-80. [Crossref] [PubMed]
  9. Li M, Xi J, Sui Q, Kuroda H, Hamanaka K, Bongiolatti S, Hong G, Zhan C, Feng M, Wang Q, Tan L. Impact of a Ground-glass Opacity Component on c-Stage IA Lung Adenocarcinoma. Semin Thorac Cardiovasc Surg 2023;35:783-95. [Crossref] [PubMed]
  10. Hattori A, Matsunaga T, Takamochi K, Oh S, Suzuki K. Neither Maximum Tumor Size nor Solid Component Size Is Prognostic in Part-Solid Lung Cancer: Impact of Tumor Size Should Be Applied Exclusively to Solid Lung Cancer. Ann Thorac Surg 2016;102:407-15. [Crossref] [PubMed]
  11. Ye T, Deng L, Wang S, Xiang J, Zhang Y, Hu H, Sun Y, Li Y, Shen L, Xie L, Gu W, Zhao Y, Fu F, Peng W, Chen H. Lung Adenocarcinomas Manifesting as Radiological Part-Solid Nodules Define a Special Clinical Subtype. J Thorac Oncol 2019;14:617-27. [Crossref] [PubMed]
  12. Hattori A, Matsunaga T, Fukui M, Suzuki K, Takamochi K, Suzuki K. Prognostic Impact of Very Small Ground-Glass Opacity Component in Stage IA Solid Predominant Non-small Cell Lung Cancer. Semin Thorac Cardiovasc Surg 2022; Epub ahead of print. [Crossref]
  13. Nakao M, Oikado K, Sato Y, Hashimoto K, Ichinose J, Matsuura Y, Okumura S, Ninomiya H, Mun M. Prognostic Stratification According to Size and Dominance of Radiologic Solid Component in Clinical Stage IA Lung Adenocarcinoma. JTO Clin Res Rep 2022;3:100279. [Crossref] [PubMed]
  14. Aoki T, Tomoda Y, Watanabe H, Nakata H, Kasai T, Hashimoto H, Kodate M, Osaki T, Yasumoto K. Peripheral lung adenocarcinoma: correlation of thin-section CT findings with histologic prognostic factors and survival. Radiology 2001;220:803-9. [Crossref] [PubMed]
  15. Matsunaga T, Suzuki K, Takamochi K, Oh S. What is the radiological definition of part-solid tumour in lung cancer?†. Eur J Cardiothorac Surg 2017;51:242-7. [Crossref] [PubMed]
  16. Hattori A, Matsunaga T, Takamochi K, Oh S, Suzuki K. Radiological classification of multiple lung cancers and the prognostic impact based on the presence of a ground glass opacity component on thin-section computed tomography. Lung Cancer 2017;113:7-13. [Crossref] [PubMed]
  17. Nicholson AG, Tsao MS, Beasley MB, Borczuk AC, Brambilla E, Cooper WA, Dacic S, Jain D, Kerr KM, Lantuejoul S, Noguchi M, Papotti M, Rekhtman N, Scagliotti G, van Schil P, Sholl L, Yatabe Y, Yoshida A, Travis WD. The 2021 WHO Classification of Lung Tumors: Impact of Advances Since 2015. J Thorac Oncol 2022;17:362-87. [Crossref] [PubMed]
  18. Cardillo G, Petersen RH, Ricciardi S, Patel A, Lodhia JV, Gooseman MR, Brunelli A, Dunning J, Fang W, Gossot D, Licht PB, Lim E, Roessner ED, Scarci M, Milojevic M. European guidelines for the surgical management of pure ground-glass opacities and part-solid nodules: Task Force of the European Association of Cardio-Thoracic Surgery and the European Society of Thoracic Surgeons. Eur J Cardiothorac Surg 2023;64:ezad222. [Crossref] [PubMed]
  19. Suzuki K, Koike T, Asakawa T, Kusumoto M, Asamura H, Nagai K, Tada H, Mitsudomi T, Tsuboi M, Shibata T, Fukuda H, Kato HJapan Lung Cancer Surgical Study Group. (JCOG LCSSG). A prospective radiological study of thin-section computed tomography to predict pathological noninvasiveness in peripheral clinical IA lung cancer (Japan Clinical Oncology Group 0201). J Thorac Oncol 2011;6:751-6. [Crossref] [PubMed]
  20. Asamura H, Hishida T, Suzuki K, Koike T, Nakamura K, Kusumoto M, Nagai K, Tada H, Mitsudomi T, Tsuboi M, Shibata T, Fukuda HJapan Clinical Oncology Group Lung Cancer Surgical Study Group. Radiographically determined noninvasive adenocarcinoma of the lung: survival outcomes of Japan Clinical Oncology Group 0201. J Thorac Cardiovasc Surg 2013;146:24-30. [Crossref] [PubMed]
  21. Aokage K, Suzuki K, Saji H, Wakabayashi M, Kataoka T, Sekino Y, et al. Segmentectomy for ground-glass-dominant lung cancer with a tumour diameter of 3 cm or less including ground-glass opacity (JCOG1211): a multicentre, single-arm, confirmatory, phase 3 trial. Lancet Respir Med 2023;11:540-9. [Crossref] [PubMed]
  22. Tsutani Y, Miyata Y, Nakayama H, Okumura S, Adachi S, Yoshimura M, Okada M. Appropriate sublobar resection choice for ground glass opacity-dominant clinical stage IA lung adenocarcinoma: wedge resection or segmentectomy. Chest 2014;145:66-71. [Crossref] [PubMed]
  23. Altorki N, Wang X, Kozono D, Watt C, Landrenau R, Wigle D, et al. Lobar or Sublobar Resection for Peripheral Stage IA Non-Small-Cell Lung Cancer. N Engl J Med 2023;388:489-98. [Crossref] [PubMed]
  24. Saji H, Okada M, Tsuboi M, Nakajima R, Suzuki K, Aokage K, et al. Segmentectomy versus lobectomy in small-sized peripheral non-small-cell lung cancer (JCOG0802/WJOG4607L): a multicentre, open-label, phase 3, randomised, controlled, non-inferiority trial. Lancet 2022;399:1607-17. [Crossref] [PubMed]
  25. Stamatis G, Leschber G, Schwarz B, Brintrup DL, Flossdorf S, Passlick B, Hecker E, Kugler C, Eichhorn M, Krbek T, Eggeling S, Hatz R, Müller MR, Hillinger S, Aigner C, Jöckel KH. Survival outcomes in a prospective randomized multicenter Phase III trial comparing patients undergoing anatomical segmentectomy versus standard lobectomy for non-small cell lung cancer up to 2 cm. Lung Cancer 2022;172:108-16. [Crossref] [PubMed]
  26. Baig MZ, Razi SS, Weber JF, Connery CP, Bhora FY. Lobectomy is superior to segmentectomy for peripheral high grade non-small cell lung cancer ≤2 cm. J Thorac Dis 2020;12:5925-33. [Crossref] [PubMed]
  27. Ma L, Sullivan TB, Rieger-Christ KM, Yambayev I, Zhao Q, Higgins SE, Yilmaz OH, Sultan L, Servais EL, Suzuki K, Burks EJ. Vascular invasion predicts the subgroup of lung adenocarcinomas ≤2.0 cm at risk of poor outcome treated by wedge resection compared to lobectomy. JTCVS Open 2023;16:938-47. [Crossref] [PubMed]
Cite this article as: Jing W, Liu M, Li W, Li D, Wu Y, Lv F. Prognostic implication of consolidation-to-tumor ratio in early lung adenocarcinoma: a retrospective cross-sectional study. Quant Imaging Med Surg 2024;14(5):3366-3380. doi: 10.21037/qims-23-1438
