Evaluation of parietal pleural adhesion and invasion in subpleural lung cancer: value of B-mode ultrasound and contrast-enhanced ultrasound

Introduction

Lung cancer is a common cause of cancer-related death worldwide (1). Accurate tumor-node-metastasis (TNM) staging is crucial for optimizing treatment programs and improving prognosis, with the degree of pleural invasion of peripheral lung cancer being an important indicator of T staging. Specifically, parietal pleural invasion, designated as pleural invasion 3 based on pleura status, is a factor that contributes to poor prognosis and serves as an important indicator for upgrade to stage T3 (2-5). In such cases, radical surgery, such as extrapleural or total resection, is usually required (6,7). Moreover, parietal pleural adhesion/invasion increases surgical difficulty. Chemotherapy regimens also depend on the pleural invasion stage of lung cancer (8,9). Hence, precise preoperative identification of parietal pleural invasion is essential.

Several noninvasive medical imaging techniques have been reported for identifying parietal pleural invasion, with computed tomography (CT) being the most commonly used for lung cancer (10-12). Recently, one study attempted to identify parietal pleural invasion or adhesion (invasion/adhesion) by assessing the abnormal regional motion of the lung surface via four-dimensional dynamic-ventilation CT. The diagnostic accuracy for evaluating parietal pleural invasion or adhesion was significantly higher than that of conventional chest CT, although only 18 cases were investigated (10). Similarly, others have reported that dynamic magnetic resonance imaging (MRI) can help evaluate parietal pleural and chest wall invasion and improve conventional CT or MRI accuracy in predicting chest wall invasion of lung cancer (11). Although advanced CT and MRI technologies exhibit good diagnostic performance for parietal pleural or chest wall invasion, they are relatively expensive, cumbersome, and—in the case of CT scans—emit radiation. In contrast, ultrasonography offers advantages in terms of cost-effectiveness and real-time evaluation of relative movement. Historically, ultrasound was perceived to be less efficacious in evaluating lesions within the lung due to alveolar gas interference. However, subpleural lesions in peripheral lung cancer invasion can be clearly detected by ultrasound without such interference. Thus, ultrasonography may be an effective method for evaluating the parietal pleural adhesion/invasion of subpleural lung cancer.

B-mode ultrasonography has demonstrated superior accuracy in assessing the chest wall invasion of lung cancer compared to traditional CT (13,14). However, this invasion is a type of deep parietal pleural invasion. Lesion mobility and direct signs of invasion in cases of extensive and deep parietal pleural invasion may be obvious and easy to detect; however, early superficial adhesion/invasion may not significantly affect lung lesion mobility, and signs of direct invasion may be occult. Therefore, a more accurate imaging technique is necessary to evaluate the parietal pleural adhesion/invasion of lung cancer, especially for early invasion. Contrast-enhanced ultrasound (CEUS) presents superior contrast compared to two-dimensional ultrasound and provides real-time visualization of microvessel distribution in tissues (15,16). CEUS also overcomes the disadvantage of respiratory motion artifacts when observing blood perfusion. CEUS has been reported to have high accuracy in evaluating the degree of capsular invasion and peripheral tissue infiltration of thyroid cancer, cervical canal cancer, and other organ tumors (17-19). However, its value in evaluating parietal pleural invasion of peripheral lung cancer remains uncertain.

The VX2 tumor originates from squamous cell carcinoma derived from rabbit papilloma induced by the Shope virus. It exhibits characteristics such as implantation feasibility in multiple sites, high survival rate after implantation, and rapid growth. The construction of a rabbit lung cancer animal model using the VX2 tumor has been widely reported for establishing lung cancer patterns and for conducting imaging studies of lung cancer (20-22). This study aimed to investigate the value of B-mode ultrasound and CEUS in diagnosing parietal pleural adhesion/invasion of subpleural lung cancer in a rabbit lung VX2 tumor model. We present this article in accordance with the STARD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-23-1542/rc).

Methods

Animals and ethical considerations

The study was approved by the Animal Ethics and Welfare Committee of Southern Medical University (No. NFYY-2021-0339) in compliance with the institution’s guidelines for the care and use of animals. The study included 40 male New Zealand white rabbits (Southern Medical University, Guangzhou, Guangdong, China), with an average body weight of 2.5–3.0 kg and aged between 3 and 4 months. Each rabbit was housed individually in cages maintained at a temperature of 16–25 ℃ and humidity of 40–70%. Rabbits, housing, and experimental environments were specific pathogen free. Rabbits were housed in air-conditioned cages with ad libitum access to laboratory food and drinking water, with regular cleaning being conducted. After 2 weeks of domestication, all the rabbits remained healthy.

Preparation of tumor-bearing rabbits

The VX2 tumor tissue, provided by the Experimental Animal Center of Southern Medical University, was dissected using ophthalmic scissors and inoculated into the lateral muscle of the proximal thigh via syringes. One-week postinjection, tumor formation at the injection site was examined via Doppler ultrasound. Successful formation of the VX2 tumor tissue was confirmed through the detection of blood supply at the injection site. Once the tumor reached a size of 1 cm, the tumor tissues were extracted and used to construct the lung cancer model.

Model construction and confirmation of subpleural lung tumors

The objective of this study was to develop an animal model with peripheral lung lesions involving pleural contact, specifically a model of subpleural lung cancer with early parietal pleural invasion. If the injection site were far from the pleura, a large tumor lesion and long growth period would be required to meet the model criteria. However, if the lesions were too large or had a prolonged growth period, this would likely weaken the rabbits, thus making anesthetic procedures and ultrasound examination difficult. Overall, the injection point should be located in the lung parenchyma as close as possible to the parietal pleura. This study adopted ultrasound-guided tumor injection to meet the modeling requirements. The details of the procedure were as follows.

Following anesthesia induction, the left or right chest was randomly selected, with the injection area being as distant as possible from the heart. Skin preparation and routine disinfection were performed on the chest of the target area. A syringe containing 1–2 mL of VX2 tumor tissue block suspension was prepared. First, the needle tip was guided to the pleura under real-time ultrasonic guidance. Subsequently, the needle was advanced 3–5 mm into the subpleural lung parenchyma, and the VX2 tumor tissue was immediately injected (see Figure 1). Postinjection complications, such as pneumothorax, hemothorax, or bleeding, were examined with ultrasound. Routine intramuscular injection of 200,000 U/d of penicillin was administered for 1-day postoperation to prevent pulmonary infection. Detailed chest ultrasonography was performed 7 days after tumor implantation. The model was considered to be successfully established if a subpleural lung tumor was detected by ultrasound in the injection area.

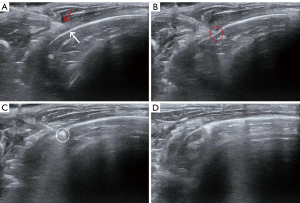

Figure 1 Construction of the rabbit subpleural lung tumor model via injection VX2 tumor tissue under ultrasonic guidance. (A) The needle tip reaches the chest wall under real-time ultrasound guidance but does not touch the pleura (red arrow: needle tip; white arrow: pleura). (B) The needle tip reaches the pleura under real-time ultrasonic guidance (red circle: the point where the needle tip touches the pleura). (C) The needle tip pierces the pleura and penetrates 3–5 mm into the lung parenchyma; echogenic changes appear the pleuropneumonic interface (white circle). (D) No pneumothorax or hemothorax is detected by ultrasound after puncture.

Evaluation of subpleural lung lesions and parietal pleural adhesion/invasion

Within 1–3 weeks following subpleural lesion formation, parietal pleural invasion of the largest subpleural lesions was evaluated by ultrasound.

After anesthesia induction, the rabbits were positioned laterally. Ultrasonographic evaluation was performed using a transthoracic ultrasound instrument (Resona 7T; Mindray, Shenzhen, China) with an L9-3U probe (2.5–9.0 MHz). Lung lesions and pleura were evaluated via B-mode ultrasound and CEUS. A sonographer (sonographer 1) with 5 years of experience in chest ultrasound and CEUS performed the ultrasonography and collected lesion data. B-mode ultrasound scanning progress was recorded and stored intermittently. A 0.5 mL/kg bolus of contrast agent (Sonovue; Bracco, Milan, Italy) was then intravenously injected and was followed by a 5.0-mL saline flush. Subsequently, the area was continuously observed for 180 seconds. To test the interrater reliability, another sonographer (sonographer 2) who was blinded to the assessment made by sonographer 1 and who had 5 years of experience in chest ultrasound and CEUS reviewed the stored ultrasound scanning video.

Characteristics observed via B-mode ultrasound included the lesion size, presence of pleural effusion, relative movement between subpleural lesions and the chest wall, and communication region between the lesion and the parietal pleura. Lesion size was determined by measuring the maximum diameter of the lesion on ultrasound. As the movement of the lesion could be affected by the respiratory state of the rabbit, the movement was only used as an indicator of suitability for CEUS and not as a standard to confirm whether the lesion was adhesive or invasive. Analysis of adhesion/invasion via B-mode ultrasound analysis of was mainly conducted by observing whether there was an adhesion/invasion zone between the lesion and the parietal pleura. A contiguous band between the two indicated adhesion/invasion; while a mass and a parietal pleura that were smooth and not clearly connected indicated noninvasion.

Characteristics observed via CEUS included the continuity of the parietal pleura, the communication region between the lesion and the parietal pleura, and abnormally enhanced areas between lesions and the parietal pleura. When a connection was found between the mass and the parietal pleura, adhesion/invasion was considered present; otherwise, adhesion/invasion was considered absent.

Diagnostic gold standard of subpleural lesion with parietal pleural adhesion/invasion

The gold standard for detecting parietal pleural adhesion/invasion of subpleural lung cancer is based on anatomical findings during operation and pathological examinations.

Following ultrasound evaluation, the affected disease locations, including the lesion, surrounding lung tissue, and pleura, were anatomically analyzed to ascertain the integrity of the parietal pleura and the presence of adhesions between the parietal pleura and the lesions. Lesions without parietal pleural adhesion/invasion was considered when pleura was smooth and complete without adhesion to the lesion. Conversely, adhesion/invasion of the parietal pleura was confirmed if adhesion was present between the lesion and the parietal pleura upon dissection. When parietal pleural invasion was suspected and assessment of adhesion/invasion between the lesion and parietal pleura was challenging during the anatomical assessment, a pathological evaluation of the subpleural lesion, visceral pleura, and parietal pleura was conducted for confirmation. All anatomical specimens were fixed in 10% formalin and sent for histopathological examination, which included paraffin-embedding, careful sectioning, and hematoxylin and eosin (HE) staining. All pathological procedures were determined through consultation between two pathologists with at least 5 years of experience who were blinded to the sonographers’ evaluation results.

Statistical analyses

Statistical analyses were performed using SPSS version 22.0 (IBM Corp., Armonk, NY, USA). Continuous variables are expressed as the means with standard deviations, and categorical variables are expressed as frequencies or percentages. The accuracy, specificity, and sensitivity of B-mode ultrasound and CEUS in diagnosing parietal pleural adhesion/invasion of subpleural lung cancer by sonographers 1 and 2 were analyzed. The interrater reliability for B-mode ultrasound and CEUS was assessed using weighted kappa statistics. A P value <0.05 in a two-sided test was considered statistically significant.

Results

No immediate pneumothorax or hemorrhage was observed in any rabbit following ultrasound-guided injection. However, three rabbits died under anesthesia before ultrasound evaluation, and an additional three rabbits died during feeding within 1–3 weeks after model construction. Ultimately, 34 rabbits were subjected to complete ultrasonic evaluation. Within 10–14 days after tumor injection, ultrasonography detected subpleural lung cancer in all 34 rabbits (15 left lesions and 19 right lesions), indicating a 100% tumor formation rate. There were 20 and 14 cases of subpleural lesions with and without parietal pleural adhesion/invasion, respectively, confirmed by anatomical and/or pathological assessments. Among the 14 cases without adhesion/invasion, lesions were observed on days 7, 14, and 18 after tumor injection in 7, 6, and 1 cases, respectively (see Figure 2). Among the 20 cases with adhesion/invasion, parietal pleural adhesion/invasion was observed on days 14, 18, and 21 after tumor injection in 4, 8, and 8 cases, respectively (see Figure 3).

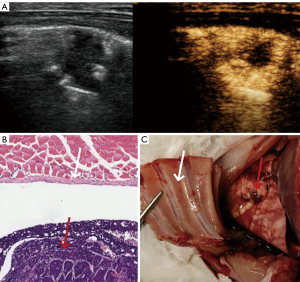

Figure 2 Subpleural lung cancer without parietal pleural adhesion/invasion. (A) B-mode ultrasound and contrast-enhanced ultrasound show the parietal pleura is smooth and complete, with no obvious invasion or adhesion between the lesion and the parietal pleural. (B) Pathology confirms (hematoxylin and eosin staining, ×100) no parietal pleural adhesion/invasion. The red arrow indicates the tumor, and the white arrow indicates the parietal pleura. (C) Dissection confirms no parietal pleural adhesion/invasion. The red arrow indicates the tumor, and the white arrow indicates the parietal pleura.

Figure 3 Subpleural lung cancer with early local invasion of the pleura and parietal pleural adhesion/invasion. (A,B) No obvious invasion/adhesion is observed by B-mode ultrasound, while invasion/adhesion between the lesion and parietal pleural is detected by contrast-enhanced ultrasound (red arrow). (C) Invasion/adhesion between the lesion and parietal pleura is also found during dissection (red arrow).

B-mode ultrasound examination

Sonographer 1 identified 10 and 24 subpleural lesions with and without parietal pleural adhesion/invasion, respectively, through B-mode ultrasonography. Compared with the gold standard method, sonographer 1 diagnosed 24 cases correctly and 10 cases incorrectly, all of which were false negatives. The sensitivity, specificity, and accuracy of sonographer 1 using B-mode ultrasound were 50.0% [95% confidence interval (CI): 26.0–74.0%], 100.0%, and 70.6% (95% CI: 54.5–86.7%), respectively (see Table 1). Sonographer 2 identified 10 and 24 subpleural lesions with and without parietal pleural adhesion/invasion, respectively, through B-mode ultrasonography. Compared with the gold standard method, sonographer 2 diagnosed 22 cases correctly and 12 cases incorrectly. Of the latter, there was 1 false positive and 11 false negatives. The sensitivity, specificity, and accuracy of sonographer 2 using B-mode ultrasound were 45.0% (95% CI: 21.1–68.9%), 92.9% (95% CI: 77.5–100.0%), and 64.7% (95% CI: 47.8–81.6%), respectively (see Table 1).

CEUS examination

The 34 cases of subpleural lesions were unevenly enhanced in CEUS. Sonographer 1 identified 18 and 16 cases of subpleural lesions with and without parietal pleural adhesion/invasion, respectively, through CEUS. Compared with the gold standard method, sonographer 1 correctly diagnosed subpleural lesions with adhesion/invasion in 32 cases and incorrectly in 2 cases. Of the latter, both were false negatives. The sensitivity, specificity, and accuracy of sonographer 1 using CEUS were 90.0% (95% CI: 75.6–100.0%), 100.0%, and 94.1% (95% CI: 85.8–100.0%), respectively (see Table 1). Sonographer 2 identified 17 and 17 cases of subpleural lesions with and without parietal pleural adhesion/invasion, respectively, through CEUS. Compared with the gold standard method, sonographer 2 correctly diagnosed subpleural lesions with parietal pleural invasion in 31 cases and incorrectly in 3 cases, all of which were false negatives. The sensitivity, specificity, and accuracy of sonographer 2 using CEUS were 85.0% (95% CI: 67.9–100.0%), 100.0%, and 91.2% (95% CI: 81.1–100.0%), respectively (see Table 1).

Comparison of accuracy and interrater reliability between B-mode ultrasound and CEUS

The diagnostic accuracy of sonographer 1 using CEUS was not significantly higher than that of using B-mode ultrasound (94.1% vs. 70.6%; P=0.08). Meanwhile, the diagnostic accuracy of sonographer 2 using CEUS was significantly higher than that of using B-mode ultrasound (91.2% vs. 64.7%; P=0.03). The κ value of interrater reliability between sonographers 1 and 2 was 0.717 for B-mode ultrasound (P<0.001), and the κ value of interrater reliability between sonographers 1 and 2 was deemed to be excellent for CEUS (κ=0.941; P<0.001).

Discussion

Accurate and convenient preoperative diagnostic imaging of parietal pleural adhesion/invasion is important for formulating treatment plans for patients with peripheral lung cancer. To achieve this, we established a novel animal model of subpleural lung cancer with parietal pleural adhesion/invasion through ultrasound-guided injection. Subsequently, we investigated the value of CEUS in evaluating parietal pleural adhesion/invasion of subpleural lung cancer and compared the diagnostic efficacy and interrater reliability of CEUS and B-mode ultrasound.

Previously reported methods for establishing a rabbit VX2 lung tumor model have mainly included blind percutaneous injection, percutaneous CT-guided injection, and transbronchial inoculation (20-22). Blind injection poses challenges in controlling the injection site, and percutaneous CT-guided injection, despite facilitating injection site monitoring, is cumbersome, radioactive, and relatively expensive. Transbronchial inoculation presents difficulty in injecting tumor tissues into the subpleural bronchioles and is highly dependent on the operator’s skill and experience. Considering the advantages of real-time ultrasonography, including convenience, absence of radiation exposure, and low cost, we attempted to establish an animal model using percutaneous ultrasound-guided injection. The needle tip was directed to the pleura under ultrasonic guidance and tumor tissues were immediately injected, ensuring precise injection as close to the pleura as possible (see Figure 1). This novel approach to constructing a subpleural lung tumor model through ultrasound-guided tumor injection provides a new animal model of lung tumors and may be beneficial for subsequent research.

Ultrasonography cannot discover lesions within the lung due to interference of lung gases, leading to its underutilization in diagnosing thoracic tumors. However, the chest wall, pleura, and subpleural lung tumors are not impacted by lung gases, and their locations are shallow (see Figure 2). Therefore, the association between subpleural lung cancer and the parietal pleura, such as adhesion/invasion, can be investigated by ultrasound. Researchers have reported B-mode ultrasound to be more accurate than CT in diagnosing wall invasion of lung cancer, possibly because ultrasound allows for real-time evaluation of a lesion’s movement (13,14). The weakness in relative movement between lung lesions and the parietal pleura or chest wall is an important imaging feature for diagnosing parietal pleural adhesion/invasion, whether by ultrasound, four-dimensional dynamic-ventilation CT, or dynamic MRI (10-14). However, chest wall invasion represents deep parietal pleural invasion. It remains uncertain whether such weak movement can help diagnose early local parietal pleural adhesion/invasion. In the early parietal pleural adhesion/invasion animal model developed in this study, there was a tendency toward weaker movement in cases involving large-scale or deep invasion. However, such movement may not necessarily be significantly weakened in slight local or early-stage parietal pleural adhesion/invasion. Therefore, in addition to examining lesion movement, observing areas of adhesion/invasion is also critical. In our study, we used continuity of the parietal pleura and communication between lesions and the parietal pleura to determine the accuracy of B-mode ultrasound in diagnosing parietal pleural adhesion/invasion of subpleural lung cancer, ultimately yielding an accuracy of 70.6%, which is slightly lower than previously reported rates. This is likely due to the prevalence of early local parietal pleural invasion in our cases (13,14).

Although B-mode ultrasound has acceptable diagnostic efficacy in diagnosing parietal pleural adhesion/invasion of subpleural lung cancer, employing advanced ultrasound technologies may further improve the diagnostic value of ultrasonography. With the increasing recognition and application of thoracic ultrasound, the value of CEUS in diagnosing lung and pleural diseases has attracted greater attention. CEUS can differentiate benign from malignant lung lesions and lung cancer with pneumonia (22-24). CEUS also has good diagnostic efficacy in differentiating benign from malignant pleural diseases (25,26). However, its value in diagnosing parietal pleural invasion of subpleural lung cancer remains uncertain. This is the first study to investigate the value of CEUS value in evaluating parietal pleural adhesion/invasion of subpleural lung cancer, revealing a sensitivity, specificity, and accuracy of 90.0%, 100.0%, and 94.1%, respectively. We also demonstrated that the accuracy of CEUS was significantly better than that of B-mode ultrasound. One study reported that CEUS is a more valuable noninvasive imaging technique than is B-mode ultrasound for detecting extracapsular extension of papillary thyroid cancer due to its ability to detect abnormal microvascular perfusion at the invasion area (17). The formation of adhesion/invasion is based on the formation of abnormal microcirculation whether in the early or progressive stages. CEUS is convenient and can be performed in real time, and it has high sensitivity in detecting microvascular perfusion. Additionally, CEUS can observe the relative movement between the lesion and chest wall and can also identify areas of early-stage adhesion/invasion, unlike B-mode ultrasound (see Figure 3). Overall, CEUS exhibited excellent diagnostic ability in evaluating parietal pleural invasion of subpleural lung cancer, especially early-stage invasion.

We also investigated the interrater reliability of CEUS and B-mode ultrasound in diagnosing parietal pleural adhesion/invasion of subpleural lung cancer; in addition to diagnostic accuracy, this metric is also an important indicator of the clinical applicability of ultrasonography, especially in emerging fields. CEUS has exhibited excellent interrater reliability in evaluating lesion size and enhancement mode, as well as in identifying inferior vena cava wall invasion (κ=0.90) and differentiating bland thrombus from tumor thrombus (κ=0.97) (27-29). In our study, we found that CEUS and B-mode ultrasound had satisfactory interrater reliability in evaluating parietal pleural adhesion/invasion, but CEUS was superior to B-mode ultrasound (κ=0.941 vs. κ=0.717).

This study has some limitations. First, an animal model was employed, so further clinical verification is required. Second, due to experimental constraints, ultrasonography was not compared with CT or MRI. Furthermore, adhesion and invasion were not subdivided in this study. Finally, due to limited sample sizes, we could not analyze the factors influencing diagnostic accuracy.

Conclusions

Based on an animal model, B-mode ultrasound and CEUS exhibited good diagnostic efficacy and interrater reliability in evaluating parietal pleural adhesion/invasion of subpleural lung cancer, with CEUS showing superiority in both metrics.
