Semi-supervised learning in diagnosis of infant hip dysplasia towards multisource ultrasound images

Introduction

Developmental dysplasia of the hip (DDH) has an incidence rate of 1.6–28.5%, which is one of the most common musculoskeletal disorders that seriously affects infant health (1). Late diagnoses increase the need for operative intervention and have long term implications for patients and their families (2). Ultrasound, which can penetrate the infant hip and produce different echo strengths, is used to assess its structural abnormalities (3). Moreover, it is radiation-free and cost-effective, making it a primary tool for early DDH diagnosis. Graf introduced a standardized scanning technique for hip sonography examination, involving recognition of standard plane and anatomical structure (4). It categorizes DDH into 4 types and multiple subtypes, providing reliable results with repeatability.

Graf’s ultrasound classification is crucial for determining whether infant hips are abnormal. It relies on the standard plane recognition and landmark identification of anatomical structures, which depend on the personal experience of specialized doctors and may lead to measurement variations among doctors.

In recent years, deep neural networks have been explored for their excellent image feature extraction capabilities in ultrasound diagnosis (5-10). Most auxiliary diagnostic methods based on deep learning rely heavily on the pixel-level annotated data (11). To mitigate the dependency of deep learning methods on annotation of various data sources, we introduced contrastive learning techniques based on a Siamese architecture to improve the performance of ultrasound diagnosis among various infants and ultrasound machines.

Methods

Sample selection

A total of 493 infants who underwent hip ultrasound examinations were selected for this study at the Department of Orthopedics of Yangzhou Maternal and Child Health Care Service Centre between 2021 and 2022. The age of these infants ranged from 30 to 90 days. In the experiment, a total of 4,437 hip ultrasound images were collected. Among these, 1,479 images strictly adhered to the requirements of standard plane based on the Graf’s method. These images were reviewed and categorized by 6 orthopedists with extensive clinical experience. The study was approved by the Research Ethics Committee of Southeast University and Yangzhou Maternal and Child Health Care Service Centre. The requirement for individual consent for this retrospective analysis was waived. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Our approach

The components employed in this method are illustrated in Figure 1. Initially, ultrasound data were collected and partially annotated to construct the dataset. A subset of the dataset was annotated with semantic information of landmarks for anatomical structures. A feature pyramid network (FPN) (12) was pretrained using a contrastive learning approach via a Siamese network. Then, the model with 2 downstream task branches was trained by using the pretrained feature maps and labeled data. The downstream tasks consisted of standard plane recognition and landmarks identification based on semantic segmentation. Finally, α and β angles were calculated based on the landmarks. The final results were presented to assist doctors in the diagnosis process.

Figure 1 Framework of our proposed method. (A) Contrastive learning; (B) feature pyramid network module; (C) downstream tasks including standard plane recognition and semantic segmentation.

Contrastive self-supervised learning

In order to fully leverage a large amount of unlabeled data, this approach utilizes contrastive learning for pre-training. Contrastive learning, as a novel machine learning technique, guides the model to learn common features among unlabeled data by teaching it the similarities and dissimilarities between data features. Its advantage lies in its ability to make full use of a large amount of unlabeled data by creating a proxy task where custom pseudo-labels are treated as training signals, and the learned representations can then be applied to downstream tasks (11).

Currently, there are several commonly used strategies of contrastive learning:

SimCLR (13): it generates positive samples using data augmentation and uses other data within the same batch as negative samples.

SwAV (14): it uses clustering to create positive and negative samples, avoiding the need for large batch sizes or MemoryBank.

BYOL (15): it uses BatchNormalization to eliminate the need for searching negative samples during training and prevents training collapse.

SimSiam (16): it employs the expectation-maximization (EM) strategy to control the gradient propagation during training, preventing training collapse more effectively and being easier to implement.

Contrastive learning proxy tasks typically encourage models to bring similar data pairs closer while pushing dissimilar data pairs apart. SimCLR directly uses co-occurring negative samples within the current batch, requiring a large batch size and resulting in significant memory consumption during training. SwAV combines clustering algorithms with neural networks to encode input information for contrast, integrating it into cluster centers, avoiding the use of large batch sizes but significantly increasing computational complexity during training. BYOL does not use negative sample pairs; it directly predicts the output of 1 view from another view of an image. BYOL is essentially a momentum encoder twin network and cannot entirely prevent model training collapse. Compared to the methods above, SimSiam is a kind of Siamese architecture, which directly maximizes the similarity of 1 image’s 2 views, using neither negative pairs nor a momentum encoder. It works with typical batch sizes and does not rely on large-batch training (16).

In this study, the contrastive learning scheme based on SimSiam was used for the optimization of feature extractor parameters following these steps:

• Considering the following loss function:

  $$L\left(\theta ,\eta \right)=l_2\left[F_{\theta }\left(x\right)-F_{\eta }\left(x\right)\right]$$[1] where

  $F$ is the feature extraction network with network parameters

  $\theta$;

  $\Gamma$ is the data enhancement function;

  $F_{\eta }$ is the optimal parameter network. Therefore, in order for the network to learn the optimal extraction capability, we need to solve

  $\theta$ and

  $\eta$ simultaneously to minimize

  $L$.

• According to the EM algorithm, the process of minimizing L follows these 2 alternating steps:

  $${\theta }^t\leftarrow \underset{\theta }{\arg \min }L\left(\theta ,{\eta }^{t-1}\right)$$[2]

  $${\eta }^t\leftarrow \underset{\eta }{\arg \min }L\left({\theta }^t,\eta \right)$$[3] where

  $t$ is the index of the alternating solution. When solving

  ${\theta }^t$, the parameter

  ${\eta }^{t-1}$ is controlled by stopping gradient descent; when solving

  ${\eta }^t$,

  ${\theta }^t$ is the optimal parameters under the current data enhancement method

  $\Gamma$.

At the same time, the predictor was improved based on both the selected backbone network and the output feature map. The convolutional layer in FPN was used to replace the original fully connected layer, so that it could process both feature vectors and feature maps, as shown in Figure 2.

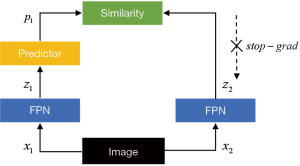

Figure 2 The pretraining process. FPN, feature pyramid network.

The pre-training process was divided into 4 steps: (I) perform data augmentation in different ways to obtain multiple pairs of positive samples x1,x2; (II) input x1,x2 into the feature extractor and obtain the feature maps z1,z2; (III) since the input x1,x2 are positive samples, we hope that the information extracted by the feature extractor should be consistent. Then, p1 is obtained by the predictor with z1; (IV) minimize the distance between p1 and z1, and estimate the parameters of the feature extractor by controlling the gradient propagation.

A loss function based on cosine similarity was used as:

D(p1,z2)=−p1⋅z2‖p1‖2×‖z2‖2[4]

Combined with the EM algorithm, the loss function was defined as:

Loss=D(p1,stopgrad(z2))[5]

Among them, the encoder on x1 receives the gradient from p1 for update, and the encoder on x2 does not update the parameters from z2 due to gradient stop. In order to realize the alternate update iteration of the encoder parameters, z2 is also processed through the predictor to obtain p2. The loss function is expanded to the following formula to update the encoder parameters on x2 as follows:

Loss=12D(p1,stopgrad(z2))+12D(p2,stopgrad(z1))[6]

Data augmentation

In order to improve robustness of model, we further adopted random online data augmentation during the training process as follows: (I) affine transformation: Linear transformation and translation are performed on the original image. It does not change the collinearity of each pixel in the original image and the proportion of the contour. (II) Gaussian noise and random contrast are added to sonographic images. (III) Image compression and random cropping: It simulates the differences in the locations of landmarks in different images. (IV) Stochastic combination: randomly select and combine the above methods. Examples of the original sonographic images and the enhanced sonographic images are shown in Figure 3.

Figure 3 Data augmentation: (A) affine transformation; (B) Gaussian noise and random contrast; (C) image compression and random cropping; (D) stochastic combination.

Dataset construction

The dataset contained 2,958 images of non-standard plane and 1,479 images of standard plane during the training and testing. Among the standard plane images, there were 400 samples with labels for semantic segmentation.

In order to verify the effect of each module in our method, we used 1,079 unlabeled data in the pre-training step, 320 labeled data as the training set, and 80 labeled data as the test set for the landmark identification. All standard plane images and non-standard plane images are used in the evaluation of standard plane recognition. Data allocation is shown in Table 1.

The annotated data contained pixel-level semantic landmark information of anatomical structures. All images and landmarks were subject to strict quality control to ensure the authenticity and reliability of model training. The diagram of anatomical structure annotation is shown in Figure 4. In terms of Graf’s method, a sonographic image should be decided as a standard plane by the principle that 3 landmarks of anatomical structure should appear simultaneously, including the lower limb of the bony ilium in the depth of the acetabular fossa, the mid portion of the acetabular roof, and the acetabular labrum.

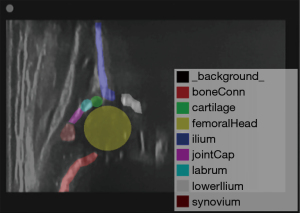

Figure 4 Schematic diagram of anatomical structure of infant acetabulum. boneConn, the junction of cartilage and bone; cartilage, hyaline cartilage preformed acetabular roof; femoralHead, femoral head; jointCap, joint capsule; labrum, acetabular labrum; ilium&lowerIlium, bony part of acetabular roof; synovium, synovial fold.

Training

We used ResNeXt-FPN-50 as the backbone network in the experiment (12). The model was implemented via the PyTorch framework. First, unlabeled data were used to perform comparative-learning-based pre-training on the backbone network on a server with 4 NVIDIA 3080Ti graphics cards, and 300 epochs were trained with a learning rate of 0.001. Then, semantic segmentation model and landmark identification were trained for 100 epochs with a learning rate of 0.001. The entire training process took 10 hours.

Evaluation metrics

In this study, we evaluated the effect of contrastive learning and compare our method (“Ori”) with other methods, including fully convolutional network (FCN) (17), Unet (18), and deeplabv3 (19). In this experiment, the following metrics were selected:

• Dice similarity coefficient (DSC): it is used to measure the similarity of 2 sets, with a range of 0 to 1. The larger the value is, the more similar the 2 sets are. It is often used to calculate the similarity of closed regions.

  $$\text{DSC}\left(X,Y\right)=\frac{2\left|X\cap Y\right|}{\left|X\right|+\left|Y\right|}=\frac{2TP}{2TP+FP+FN}$$[7] where

  $X$ represents the predicted point set, and

  $Y$ represents the labeled point set.

• Hausdorff distance (HD): it is sensitive to the segmented boundaries, used to measure the distance between 2 edge point sets and reflect the similarity between 2 contours.

  $$h\left(A,B\right)={\max }_{a\in A}\left\{{\min }_{b\in B}\left\{d\left(a,b\right)\right\}\right\}$$[8]

  $$\text{HD}\left(A,B\right)=\max \left\{h\left(A,B\right),h\left(B,A\right)\right\}$$[9] where

  $d(.)$ is the distance between 2 points;

  $A$ and

  $B$ are the contour point sets;

  $a$ and

  $b$ are the points in the contour point sets in pixel.

• In addition, the metrics, accuracy, precision, and recall are used to evaluate the performance of standard plane recognition.

Results

The comparison of landmark identification between different models on DSC and HD is shown in Table 2 and Table 3, respectively. The method with contrastive learning, denoted as “+CL”, had a mean DSC of 0.7873 and a mean HD of 5.0102 in landmarks identification, whereas the method without contrastive learning had a mean DSC of 0.7734 and a mean HD of 6.1586. These values were obtained from all tested images (80 samples). The average performance of the model pretrained based on the contrastive learning was better, as shown in Figure 5. In Figure 6, taking the bony part of acetabular roof as an example, the feature extraction networks based on contrastive learning could better extract features and ultimately perform better on semantic segmentation of landmarks.

Figure 5 Comparison between various models and our proposed method. +CL, the original model with contrastive learning; Ori, the original model; Unet, the U-net model; FCN, fully convolutional network; Deeplabv3, the Deeplab v3 model.

Figure 6 Comparison of semantic segmentation about effects of contrastive learning. +CL, the original model with contrastive learning; Ori, the original model.

Furthermore, the results of standard plane classification on the model “Ori+CL” were as follows: accuracy of 95.4%, precision of 91.64%, and recall of 94.86%, compared to the model without contrastive learning which had an accuracy of 93.66%, precision of 84.32%, and recall of 91.68%. A big difference on the precision value was apparent because our method via contrastive learning could improve the capacity of identification of image details. The corresponding confusion matrix is as shown in Table 4 and Table 5. The receiver operating characteristic (ROC) curve of the model “Ori+CL” is illustrated in Figure 7. The corresponding area under the curve (AUC) was 0.982.

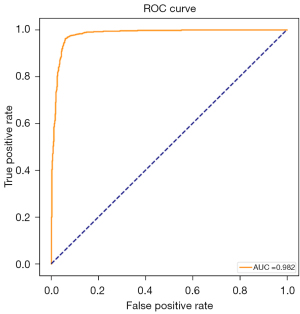

Figure 7 The ROC curve of our proposed model. ROC, receiver operating characteristic; AUC, area under the curve.

By means of 1,500 ultrasound images (500 positive samples and 1,000 negative samples), we implemented comparison experiments between the proposed algorithm and the professional manual operators in terms of false positive ratio (FPR) and false negative ratio (FNR), which were expressed as follows.

FPR=FPFP+TN[10]

FNR=FNTP+FN[11]

where FP denotes the number of false positive samples, TN means the number of true negative samples, FN represents the number of false negative samples, and TP indicates the number of true positive samples.

The concrete comparison results are provided in Table 6. From this table, we can see that the performance of our algorithm was better than that of manual operators. Specifically, the FPR of the proposed method decreased by 39.4%, and the FNR of the manual operators was 9.4%, which is far higher than that of our algorithm (5%). Obviously, the established model can assist doctors in diagnosis to improve medical efficiency.

Discussion

In recent years, deep neural networks have been gradually explored in hip ultrasound screening of infants, due to their excellent image feature extraction capabilities. In 2016, Golan et al. introduced a deep convolutional neural network (CNN) for the first time (5). They used CNN to divide the flat iliac bone and lower limbs to automatically calculate the Graf’s alpha angle in infant sonographic images. In 2017, Hareendranathan et al. proposed a method to automatically segment the acetabulum bone and derive geometric indices of hip dysplasia (6). In 2018, Zhang et al. introduced region of interest (ROI) into a fully CNN to improve the recognition accuracy of acetabulum (7). In 2019, Sezer et al. input the segmented image segments into CNN to directly diagnose the patient’s hip development (8). In the same year, El-Hariri et al. proposed a feature-based deep learning method that utilizes the multi-channel input of U-Net to achieve iliac segmentation (9). The methods used in these studies require a large amount of preliminary data annotation work in practical applications. This study applied contrastive learning to DDH ultrasound examination. It was found that our pre-training method can effectively moderate the demands of data annotation, and improve the accuracy of ultrasound detection, especially when there are multiple data sources. These findings are of great significance to guide clinical treatment.

In this paper, we propose a semi-supervised learning framework for assisting DDH diagnosis, by using data enhancement and contrastive learning to deal with the problem of distribution shift due to ultrasound data from various objects and machines. A backbone network based on the FPN structure is used to effectively identify landmarks at different scales. The performance of detection is improved in terms of accuracy and robustness. The contrastive learning method in this article has a mean DSC of 0.7873 and a mean HD of 5.0102 in landmark identification. The mean DSC without the contrast learning method is 0.7734 and the mean HD is 6.1586. As a reference, the metrics of FCN, Unet, and deeplabv3 are worse than our proposed method. By using this method, the accuracy of standard plane recognition is 95.4%, the precision is 91.64%, and the recall is 94.86%.

This study shows that the contrastive self-supervised learning method and the FPN structure can effectively extract the features of sonographic images and improve the performance of analysis and measurement. The pre-training method can effectively reduce the need for data annotation and lower the threshold for using deep learning in DDH inspection. This solution enables automated measurement and evaluation of sonographic images. It can also promote large-scale DDH screening, help patients detect and treat early-stage diseases in time, and improve prognosis. This model can assist doctors in diagnosis via a visible interpretation and automated measurement, improve medical efficiency, and has important clinical significance. At present, our method is in the process of clinical verifications.

This study had some limitations: (I) in terms of standard plane acquisition, this model can only provide simple prompts based on the identified landmarks. Further work is needed on how to automatically obtain standard images from the examination process to better serve the clinic. (II) In terms of downstream task, the training data used by this model only includes type I and type II hip data. More data on dislocated hips need to be collected and annotated for further research. (III) Artificial intelligence (AI)-based methods can only provide assistance to doctors. In actual clinical work, doctors can obtain diagnosis data from various patients to improve diagnostic accuracy.

Conclusions

We have proposed a semi-supervised deep learning method following Graf’s principle, which can better utilize past ultrasound examination data to more accurately identify the landmarks of infant hips, thereby improving the efficiency of diagnosis of infant hip dysplasia. Early screening of DDH by auxiliary doctors is of great significance and has broad clinical application prospects.
