The rupture risk of intracranial saccular aneurysm: a case—control study based on a three-dimensional computed tomography angiography model

Introduction

Intracranial aneurysms, marked by the pathological dilation of cerebral artery and its branches, account for about 80–85% of spontaneous subarachnoid hemorrhages (SAH) (1). SAH resulting from ruptured intracranial aneurysms is associated with a high mortality rate of about 35% (2). Recent advancements in medical imaging such as high-resolution magnetic resonance vessel wall imaging (HRMR VWI) and four-dimensional computed tomography angiography (4D-CTA), have led to a higher detection rate of cerebral aneurysms. However, HRMR VWI may prolong the time to treatment due to its longer associated acquisition time. Nonetheless, these novel techniques may eventually replace digital subtraction angiography (DSA) as a first-line modality for diagnostic workup of intracranial aneurysms but remain to be popularized. For now, three-dimensional CTA (3D-CTA) is still the mainstream method for the diagnosis of intracranial saccular aneurysms (ISAs). As imaging technology continues to evolve, more accurate prediction of ISA rupture stands to inform the clinical decision-making regarding the need for intervention (3).

In recent years, there has been an increase in research focusing on the clinical, imaging, and hemodynamic factors of intracranial aneurysms. Identified risk factors for cerebral aneurysm rupture include age, hypertension, smoking, family history of cerebrovascular disease, and aneurysm size and location (4,5). For example, intracranial aneurysms exceeding 7 mm in length in the anterior communicating artery are at a higher risk of rupture (3). In addition to size and location, hemodynamic factors play a critical role in rupture risk, as the aneurysm’s ground base, the width of aneurysm neck, and border on the parental artery also influence hemodynamics. For wide-neck aneurysms, as per Qiu et al. (6), the increased aneurysm volume results in intensified eddy currents and wall shear stress, making then more susceptible to rupture (6). Moreover, the inflow angle of intracranial aneurysms affects blood flow patterns (7). Elevated inflow angles correlate with increased blood flow velocity and pressure at the aneurysm apex, heightening rupture risk (8,9). As these angles enlarge, blood flow becomes more turbulent, accelerating aneurysm growth and leading to potential rupture (10).

In recent years, the staging scoring methods used to evaluate the risk of intracranial aneurysm rupture include the Population, Hypertension, Age, Size, Earlier Subarachnoid Hemorrhage, and Site (PHASES) score (11) and Earlier Subarachnoid Hemorrhage, Aneurysm Location, Age, Population, Aneurysm Size and Shape (ELAPSS) score (12). Predictive factors essentially include patient age, gender, hypertension, history of subarachnoid hemorrhage, geographic region, and aneurysm size and location. While current scoring methods for rupture prediction include various factors, they often lack the 3D morphological characteristics of ISAs. Due to the limited number of previous studies on 3D morphological features, there is currently a lack of systematic evidence demonstrating the impact of these features on aneurysm rupture. Previous research has predominantly focused on 2D morphological analysis of aneurysms, resulting in scoring systems that primarily only involve 2D morphological features. This study, therefore, aimed to identify the differences in 3D morphological features between ruptured and unruptured ISAs to better understand the risk factors for rupture. We present this article in accordance with the STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-23-1694/rc).

Methods

Study population

This retrospective case-control study comprised 97 patients who were diagnosed with ISAs in the Emergency Department and Inpatient Unit of The First Affiliated Hospital of Jinan University between March 2016 and March 2022. The inclusion criteria were as follows: (I) patients diagnosed with intracranial aneurysms via DSA CTA, (II) patients with ISAs, and (III) patients with complete medical imaging data. Meanwhile, the exclusion criteria were as follows: (I) patients with fusiform, dissecting aneurysms, or pseudo-aneurysms diagnosed by any angiographic imaging method; (II) patients with aneurysms and comorbid moyamoya disease, cerebral arteriovenous malformations, or cerebral arteriovenous fistulas; (III) patients with recurrent aneurysms posttreatment; and (IV) patients with incomplete medical imaging data.

The rupture group included patients with aneurysmal subarachnoid hemorrhage confirmed by CTA or DSA, which often manifests clinically as headache, vomiting, nuchal rigidity, cranial nerve dysfunction, or altered consciousness (2). The unrupture group included patients with intracranial aneurysms identified during routine examinations or other diagnostic procedures who did not have a history of any type of SAH or a confirmed history of ruptured aneurysms (1). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by Institutional Review Board of The First Affiliated Hospital of Jinan University. The need for individual consent in this retrospective analysis was waived.

Image acquisition

CTA of the skull was performed using a 320-slice CT scanner (Aquilion ONE, Toshiba Corporation, Japan). The scan covered a 16 cm range with a rotation time of 0.5 seconds. The reconstruction layer thickness was 0.5 mm, and the field of view (FOV) was 24 cm. The scanning tube voltage and current were set a 100 kV and 200 mA, respectively. A nonionic contrast agent, ioprotramine (concentration 350 mg I/mL; Bayer HealthCare Pharmaceuticals, Germany) was administered intravenously at a volume of 60 mL and an injection flow rate of 4.0 mL/s. A bolus tracking technique synchronized the head CTA with a standard plain CT scan of the head. The region of interest was placed at the internal carotid artery’s proximal segment, with image acquisition starting when the CT value reached 100 Hounsfield units (HU) within 3 seconds and lasted for 3–4 seconds.

Image processing and parameter calculation

The 2D morphological features of ISAs, including diameter (D) and neck width (N), were repeatedly measured on the original CTA images (Figure 1) by two radiologists (radiologist A: Y.C.; radiologist B: W.M.). The two radiologists were provided the location of the aneurysms but were not aware of additional information. They conducted independent measurements, and in case of disagreement, they discussed the measurement until consensus was achieved. Radiologists A analyzed all ISAs, while radiologists B analyzed half of the ISAs provided randomly from each group. The 3D models of ISAs and their parental arteries were delineated using 3D Slicer software (version 5.2.2, Slicer Community) (13). The obtained subtraction CTA sequence was exported in DICOM format and copied to 3D-Slicer software for review. The main steps for image processing were as follows. (I) For CTA reconstruction, the threshold selection tool (Threshold) in the Segment Editor module was used to adjust the threshold range to make the blood vessels clearer and to obtain a reconstructed picture of the blood vessels of the head. (II) For aneurysm 3D model building, the draw tool was used to build a 3D model of the aneurysm and parent artery. (III) For aneurysmal surface area (ASA) and volume measurement, a new segment was created with the Segment Editor module. A blank segmentation layer was created, and logical operators were used to perform addition (Add) and subtraction (Subtract) operations. Finally, two segmentation layers were obtained that were separate from the aneurysm and the parent artery. The surface area and volume of the aneurysm could be viewed by accessing the Models module. (IV) For aneurysm maximum sectional area (MSA) measurement method, the Markups Closed Curve tool was used to circle the MSA of aneurysms. Area information was selected to display the MSA of aneurysms. Measurements were conducted twice, and the average was recorded (Figure 2).

Figure 1 Illustration and CTA image of ISA. (A) Illustration of the length diameter and neck width of ISA. (B) CTA image of the ISA with the length diameter and neck width. CTA, computed tomography angiography; ISA, intracranial saccular aneurysm.

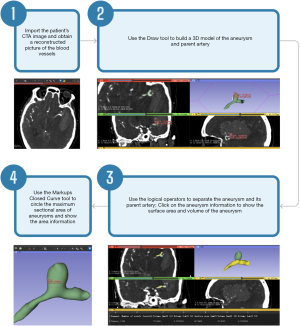

Figure 2 The process of generating a 3D ISA model on 3D Slicer software. CTA, computed tomography angiography; 3D, three-dimensional; ISA, intracranial saccular aneurysm.

The measurement indicators were defined as follows: D was the maximum distance from any point at the aneurysm’s apex to the neck’s midpoint, N was the longest diameter across the aneurysmal neck plane, intracranial aneurysmal volume (IAV) was the total volume occupied by the aneurysm as assessed with 3D-Slicer, MSA was the largest projected area of the aneurysm as assessed with 3D-Slicer, and ASA was the aneurysm’s outer surface area as assessed with 3D-Slicer.

The calculation indices were as follows: MSA/diameter (MSA/D), MSA/neck width (MSA/N), MSA/IAV, ASA/neck width (ASA/N), ASA/MSA, ASA/IAV, IAV/diameter (IAV/D), and IAV/neck width (IAV/N).

Statistical methods

In this study, CTA was used to evaluate the sensitivity, specificity, accuracy, and the receiver operating characteristic (ROC) curve of 3D morphological features in predicting aneurysm rupture. SPSS version 26.0 (IBM Corp.) was used to analyze the research data. The normality of quantitative data was evaluated with the Shapiro-Wilk test. Quantitative data with a normal distribution are expressed as x ± s, and the paired sample t-test was used for comparison between groups. Meanwhile, quantitative data with a nonnormal distribution are expressed as median and interquartile range. The Wilcoxon rank sum test of paired samples was used for comparison between groups. Weighted kappa (κ) statistics were used to assess interobserver agreement for the measurement. A weighted κ value >0.81 was considered excellent agreement, 0.61–0.80 good, 0.41–0.60 moderate, 0.21–0.40 poor, and <0.21 very poor. The enumeration data were analyzed with the x² test, and the measurement data were analyzed with the t-test and rank sum test. The meaningful indicators were identified with the DeLong test (14) so that the ROC curves of the participants could be drawn. Because the sample size of this study was small, according to the condition of events per variable (EPV) required by multivariate logistic regression, the EPV was set to 10; that is, if the minimum number of events per independent variable X (the number of intracranial aneurysms in this study) were 10–11, then the number of morphological features included in the model would be 4 (15). The selection of 4 was based on the fact that the unrupture (smaller) group consisted of 44 participants, resulting in an average ratio of 4.4 (or 4) per feature. According to the area under the curve (AUC), 4–5 morphological features with better diagnostic efficacy were selected, and the logistic regression model was established with the stepwise method. This model identified the independent risk factors, and an ROC curve was drawn for the predictive factors, and the AUC was calculated. There were no missing data in this study.

Results

General characteristics of the study population

We initially collected the CTA imaging data of 174 patients. After screening (Figure 3), there were 97 patients (40 males and 57 females; age 61±11 years), comprising 97 ISAs, who were divided into a rupture group (n=53) and a unrupture group (n=44). In the rupture group, DSA was performed in 21 cases, accounting for 40% of the total number of ruptured cases. Conversely, in the unrupture group, DSA was conducted in 30 cases, accounting for 68% of the total number of unruptured cases. After being diagnosed with intracranial aneurysm, 20 cases (38% of the rupture group) underwent clipping, 17 cases (32%) received embolization, and 16 cases (30%) did not undergo any operation. As for the unrupture group, 6 cases (14% of the unrupture group) underwent clipping, 7 cases (16%) received embolization, and 31 cases (70%) did not undergo any operation (Table 1).

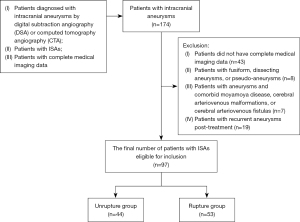

Figure 3 Patient flow diagram. DSA, digital subtraction angiography; CTA, computed tomography angiography; ISA, intracranial saccular aneurysm.

Interobserver agreement of the measurement indices

The interobserver agreement in all the measurement indices was excellent [IAV: weighted κ=0.816, 95% confidence interval (CI): 0.709–0.923; ASA: weighted κ=0.898, 95% CI: 0.813–0.982; MSA: weighted κ=0.877; 95% CI: 0.785–0.969; D: weighted κ=0.816; 95% CI: 0.708–0.923; N: weighted κ=0.855; 95% CI: 0.757–0.953], as was the total agreement in all indices (weighted κ=0.852; 95% CI: 0.754–0.950) (Table 2).

Single factor analysis

This study incorporated three 3D morphological features: IAV, ASA, and MSA (Table 3). The Wilcoxon rank sum test for two independent samples revealed significant differences in IAV, ASA, and MSA between the ruptured and unruptured ISAs. The IAV in the rupture group was larger than that in the unrupture group (Z=–4.77; P<0.05), as was the ASA (Z=–4.44; P<0.05) and MSA (Z=–5.58; P<0.05). From these morphological measurements, additional features including IAV/D, IAV/N, MSA/D, MSA/N, MSA/IAV, ASA/D, ASA/N, ASA/MSA, and ASA/IAV were calculated (Table 3). Further Wilcoxon rank sum testing indicated significant differences in IAV/D, IAV/N, MSA/D, MSA/N, ASA/N, ASA/MSA, and ASA/IAV between the rupture and unrupture groups. The result showed that IAV/D (Z=–3.34; P<0.05), IAV/N (Z=–5.39; P<0.05), MSA/D (Z=–3.76; P<0.05), MSA/N (Z=–4.00; P<0.05), and ASA/N (Z=–6.12; P<0.05) were larger in the rupture group while ASA/MSA (Z=–4.85; P<0.05) and ASA/IAV (Z=–5.12; P<0.05) were smaller.

Establishment and evaluation of the predictive model

The ROC curve was plotted for the aforementioned 10 morphological features, and the AUC was calculated (Table 4). ASA/N and ASA/MSA were identified as having high predictive efficacy. The rupture of the aneurysm was considered to be the dependent variable (rupture =1, unrupture =0). After stepwise logistic regression was conducted, ASA/N and ASA/MSA emerged as independent predictors of aneurysm rupture (Table 3). The AUC for ASA/N was 0.862, with a sensitivity of 87% and a specificity of 66%. For ASA/MSA, the AUC was 0.873, with a sensitivity of 91% and a specificity of 57% (Table 5) (Figure 4).

Figure 4 The ROC of ASA/N and ASA/MSA. (A) The ROC of ASA/N. (B) The ROC of ASA/MSA. ROC, receiver operating characteristic; ASA/N, aneurysmal surface area/neck width; ASA/MSA, aneurysmal surface area/maximum sectional area; AUC, area under the curve; CI, confidence interval.

The logistic regression equation was as follow:

P=eX/(1+eX)[1]

where P is the prediction probability, e is the natural logarithm, and X = 1.778 + (2.898 × ASA/N) – (1.876 × ASA/MSA). This model assessed the probability of aneurysm rupture, and its ROC curve was drawn. The resulting AUC was 0.938, with a sensitivity of 93.8% and a specificity of 58.82% (Figure 5).

Figure 5 The ROC of the combined model. ROC, receiver operating characteristic curve; AUC, area under the curve; CI, confidence interval.

Discussion

In this study, we observed that the rupture group exhibited significantly larger IAV, ASA, and MSA values compared to the unrupture group. Additionally, the IAV/D, IAV/N, MSA/D, MSA/N, and ASA/N values were higher in the rupture group while the ASA/MSA and ASA/IAV values were lower.

We conducted a comprehensive analysis of the imaging characteristics exhibited by 53 cases of ruptured ISAs and 44 cases of unruptured ISAs. A 3D model of ISAs and their parent arteries was constructed using 3D-Slicer. Two independent researchers measured the 3D morphological features of each aneurysm, including ASA, IAV, and MSA. Aneurysm body diameter and neck width were measured on multiplanar CTA images. This method enhanced the accuracy of calculating 3D measurement parameters, as the dimensions of the aneurysm body and neck width are directly linked to the risk of rupture. Given the prevalence of ISAs in clinical settings, this study focused solely on ISAs. The findings indicated that the IAV, ASA, and MSA values were higher in the rupture group than in the unrupture group. Research by Villablanca et al. (16) also indicated there to be a correlation between aneurysm rupture and volume expansion rate. The risk of rupture escalates with volume expansion, leading to a greater likelihood of vortex formation, erratic intra-aneurysmal blood flow, and abnormal pulsation points on the aneurysm wall. The degree of these abnormal pulsations reflects the structural weakness of the wall (17), with more pulsations indicating a more fragile wall structure and thus an increased risk of rupture. As aneurysms expand, their ASA increases due to the stretching of the aneurysm surface. Histological examination reveals that aneurysm walls often have only an intima, lacking medial smooth muscle tissue and elastic fibers or exhibiting breaks in elastic fibers, reducing wall compliance (18). With the analogy of an aneurysm as a balloon, blood flow is akin to gas entering the balloon: the more the gas fills the balloon, the faster the volume and ASA increase. A thinner balloon wall implies greater instability and a higher likelihood of rupture. Therefore, the ASA of an aneurysm partly reflects the wall’s structural weakness, with a larger ASA indicating a higher likelihood of rupture. Additionally, the MSA of an aneurysm, representing its maximum projected area, signifies the aneurysm’s size. A larger MSA suggests a larger aneurysm length and diameter, correlating with an increased risk of rupture.

Given the complexity of the rupture mechanism in intracranial aneurysms, relying solely on one factor for rupture prediction is insufficiently representative. Hence, we included additional calculated parameters in our measurement index, including IAV/D, IAV/N, MSA/D, MSA/N, MSA/IAV, ASA/D, ASA/N, ASA/MSA, and ASA/IAV. In the rupture group, the IAV/D, IAV/N, MSA/D, MSA/N, and ASA/N values were larger, while the ASA/MSA and ASA/IAV values were lower. Multivariate logistic regression analysis indicated that ASA/N and ASA/MSA were independent risk factors for aneurysm rupture. Larger ASA/N values suggest a larger ASA, weaker aneurysm wall stability, and a narrower neck. Previous studies have demonstrated that blood flow velocity within the aneurysm decreases as the neck narrows and the volume increases. Geometric features that signal an increased risk of rupture, such as variations in balloon and aneurysm size, are closely linked to low flow velocities. In aneurysms with low flow, high aneurysmal pressure and intra-aneurysmal blood pooling are key contributors to rupture. Elevated ASA/N values further encourage blood pooling within the aneurysm, leading to vessel wall changes that precipitate rupture (19). Blood flow within an aneurysm is partly determined by the product of blood flow velocity and the aneurysm’s cross-sectional area. As the aneurysm’s maximum cross-sectional area increases, more blood enters the aneurysm, raising the risk of intra-aneurysmal accumulation and potential vessel wall damage. This underscores that lower ASA/MSA values not only increase blood flow within the aneurysm but also contribute to increased aneurysm volume and enlarged ASA, aggravating the instability of ISAs and ultimately leading to rupture.

Some limitations to this study should be mentioned. First, this study employed a relatively small sample size and a retrospective, single-center design. These factors may limit the generalizability of our findings in the broader population. Future studies should be larger and multicentered to validate and enhance the robustness of these findings. Second, it is important to acknowledge that the use of a hand-drawn model in 3D Slicer might have introduced some bias, possibly affecting the evaluation to a certain degree.

Conclusions

In this study, the ASA/N and ASA/MSA values served as independent risk factors for predicting ruptured ISAs. The results of this study contribute to a deeper understanding of the diverse morphological characteristics associated with ruptured intracranial aneurysms and offer valuable insights for both pre- and postoperative management.
