Normal bone marrow signal characteristics in whole-body diffusion-weighted images of amateur marathon runners

Introduction

In the literature, the sensitivity of whole-body diffusion-weighted imaging (WB-DWI) (1) for detecting bone marrow infiltrating diseases is higher than that of conventional magnetic resonance imaging (MRI) and bone scintigraphy, and at least equivalent to that of fluorine-18-fluorodeoxy-glucose positron emission tomography (2-5). Thus, in terms of functional imaging, WB-DWI is a good method for screening bone marrow infiltrating lesions [e.g., multiple myeloma (MM), bone marrow metastasis, leukemia, and lymphoma] (6-9), as it has no radiation and high sensitivity (10-12). Many cancers, such as breast cancer and lung cancer, are prone to bone metastasis. In 2020, breast cancer and lung cancer were the first (11.7%) and second (11.4%) most commonly diagnosed cancers worldwide (13). Among individuals newly diagnosed with advanced breast cancer, 50% have bone metastases (14), and about 17–43.8% of women patients with breast cancer are diagnosed before the age of 50 years (15,16). Very little research has been conducted on breast cancer and lung cancer patients with diffuse bone marrow infiltration (17-19). Approximately 10% of MM patients are diagnosed when they are aged less than 50 years old, and 25% of MM patients present with diffuse bone marrow infiltration (20,21). About 10–20% of leukemia patients are aged 30–50 years old at the time of onset (22), and a portion of leukemia patients show diffuse bone marrow infiltration (19,23). After the diagnosis and treatment of the above-mentioned cancers, regular screening for bone marrow lesions is required (10,11). Some people aged 30–50 years, including early-onset cancer patients after surgery, engage in marathon, or long-distance running for exercise (24).

WB-DWI is an important method for predicting tumor responses to therapy in the Myeloma Response Assessment and Diagnosis System (10). In any pathologic process, including focal or diffuse infiltration, increased signal intensity on diffusion-weighted imaging (DWI) indicates the replacement of the normal bone marrow (21,25-27). However, not all diffuse hyperintensities in the high b-value diffusion-weighted (DW) images of bone marrow indicate lesions; normal bone marrow can also display diffuse hyperintensity, which indicates a higher portion of red bone marrow (28,29). Ording Müller et al. (30) visually evaluated the WB-DWI (b=1,000 s/mm²) signal features of bone marrow in the normal lumbar spines and pelvises of 42 children (24 male and 18 female; age range, 2 months to 16 years) and found diffuse high signal intensities in both the vertebral bodies and pelvic skeletons of all the children. In a previous assessment of the bone marrow DW signal intensities of 98 healthy volunteers aged 21–81 years based on WB-DWI (31), diffuse bone marrow signal hyperintensity was more common in Chinese females aged 21–50 years (68.4%) than those aged 51–81 years (15.4%). Further research indicated that the proportion of DWI bone marrow hyperintensity was significantly higher in premenopausal (91%) women than perimenopausal (75%) and postmenopausal (8%) women (32).

Numerous studies have shown that high altitude (33), the use of granulocyte colony-stimulating factors (10,34), chronic anemia (29), and heavy smoking can stimulate marrow hyperplasia (21,35), which also produces DWI hyperintensities. Aerobic training, such as marathon training, can reverse bone marrow conversion, which manifests as focal or diffuse hypointense regions on the T1-weighted sequence, and hyperintensity in the corresponding region on the fat-suppressed T2-weighted sequence (36-38). However, the WB-DWI signal characteristics of bone marrow in marathon runners had not previously been examined.

We hypothesized that marathon running would cause diffuse hyperintensity of bone marrow on WB-DWI. In this study, we compared the bone marrow DWI signal characteristics of normal adult amateur marathon runners with those of healthy volunteers who did not engage in any heavy-load training. The results provide valuable reference information for the screening of whole-body bone marrow diseases using WB-DWI. We present this article in accordance with the STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-23-1006/rc).

Methods

Subject selection

This prospective study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the Ethics Committee of The Third Hospital of Hebei Medical University. All the participants included in this study signed an informed consent form before undergoing the MRI examination.

Amateur marathon runners were randomly recruited from the Chengde Marathon Outdoor Sports Association in Hebei, China, from April 2021 to September 2021. Amateur marathon runners were defined as those who had not participated in formal training as occupational runners (39). To be eligible for inclusion in this study, the amateur marathon runners had to meet the following inclusion criteria: (I) have engaged in over 3 years of training for regular or half-marathon races; (II) have a running frequency of more than 20 days a month with a distance of more than 100 km per month; and (III) meet the common inclusion criteria for the two groups.

The age- and gender-matched healthy volunteers were recruited from friends and colleagues as controls during the same period. To be eligible for inclusion in this study, the controls had to meet the following inclusion criteria: (I) have never participated in any marathon activities or other long-term heavy-load sports (e.g., swimming, cycling, and aerobics); and (II) meet the common inclusion criteria for the two groups.

The common inclusion criteria for the two groups were as follows: (I) normal blood routine laboratory examination results; (II) no known clinical or imaging evidence of any bone disease (e.g., tumors, metastases, and metabolic disorders); (III) no history of hormone and granulocyte colony-stimulating factor use (34); (IV) no history of heavy smoking (≥20 cigarettes per day) or obesity [body mass index (BMI) ≥28 kg/m²] (40); (V) regular menstruation for female volunteers; and (VI) no contraindication to the MRI examination.

The exclusion criteria for the two groups were as follows: (I) Modic changes involving more than half of the vertebral body; and/or (II) suboptimal image quality.

Based on the above criteria, 30 amateur marathon runners (20 males and 10 females, aged 30–50 years) were recruited in the amateur marathon runners group. Of them, one male amateur marathon runner had a history of lumbar vertebrae minor trauma 20 years ago, which presented normally in the current MRI, one male amateur marathon runner had a history of a cruciate ligament tear 20 years ago, and another had a history of a medial collateral ligament 5 years ago in the right knee, which fell outside the scope of the WB-DWI in this study. Thirty healthy volunteers (20 males and 10 females) were recruited as controls. No subjects were excluded from the study.

The following clinical information was recorded for each subject: age, sex, BMI [defined as BMI = weight (kg)/height (m)²], white blood cell count (WBC, 10⁹/L), red blood cell count (RBC, 10¹²/L), platelet count (PLT, 10⁹/L), hemoglobin (HGB, g/L), and red blood cell distribution width-coefficient of variation (RDW-CV, %).

MRI examination

MRI was performed using a 1.5-Tesla scanner (Magnetom Avanto, Siemens, Erlangen, Germany) equipped with a 12-element head matrix coil, a four-element neck matrix coil, a 24-element spine matrix coil, and four six-element body matrix coils. The parameters of the DWI sequence were as follows: repetition time/echo time (TR/TE), 8,000/83 ms; field of view (FOV), 50×50 cm²; slice/gap, 4/0 mm; matrix, 192×148; number of excitation (NEX), 6; and b-values, 0 and 800 s/mm². The chemical shift selective saturation technique was used in the DWI sequence for fat suppression. Axial slices were acquired from the head to the middle femur using the 4–5 station approach. Coronal maximal intensity projections of the DW images were reconstructed using the original axial images and the inverted images for background suppression. Quantitative apparent diffusion coefficient (ADC) maps were calculated by two b values, 0 and 800 s/mm², automatically generated by the MRI system for measurement.

T2 values were measured by a multi-echo spin-echo sequence and calculated with an exponential decay model. The parameters of the T2 mapping sequence for the lumbar spine were as follows: TR, 2,000 ms; TE, 10.4/20.8/31.2/41.6/52.0/62.4 ms; slice/gap, 4/0.8 mm; FOV, 25×24 cm²; matrix, 256×174; and NEX, 2.

Visual evaluation of bone marrow WB-DWI signal intensity

The signal intensity of the bone marrow on the DW images (b-value of 800 s/mm²) was visually evaluated independently by two radiologists (H.C. and Yongzhong Chen, MD, with 15 and 3 years of clinical experience interpreting musculoskeletal MRI scans, respectively) using the same criteria. Bone marrow signal hyperintensity (Figure 1A,1B) was defined as an intensity higher than that of the surrounding muscles, while hypointensity (Figure 1C,1D) was defined as an intensity lower than or equal to that of the surrounding muscles (31,32). To assess the intra-observer agreement, H.C. re-evaluated the DW images for all participants following the procedure used in the first evaluation one month later without knowledge of the results of the first reading.

Figure 1 Visual evaluation criteria for defining hyperintensity and hypointensity of bone marrow on WB-DW images (b=800 s/mm²). (A,C) WB-DW images; (B,D) inverted images. Diffuse hyperintensity of bone marrow in WB-DW images was defined as those signals that were higher than the signals of muscles (A,B); diffuse hypointensity of bone marrow in WB-DW images was defined as those signals that were lower than or equal to the signals of muscles (C,D). WB-DW, whole-body diffusion-weighted.

Quantitative image analysis

The signal intensity of the bone marrow (SI_BM) and surrounding muscles (SI_muscle) in the DW images (b-value =800 s/mm²) was measured on the workstation. A circular or elliptical region of interest (ROI) was drawn manually on the DW images (1.5–2.5 cm²; as large as possible, while avoiding the basivertebral vessels, cortex, and artifacts) and then automatically copied onto the corresponding ADC map (Figure 2); the ADC values of the ROIs were read from the screen directly. In the muscles, the ROIs (1.5–2.5 cm²) were placed on the erector spinae and multifidus muscle for the thoracolumbar vertebrae and the gluteal muscle for the sacrum and hip (Figure 2A). In the thoracolumbar vertebrae, one ROI was placed by identifying a central slice in each of the five thoracic vertebrae (T8 through T12) and each of the five lumbar vertebrae (L1 through L5). In the sacrum, ROIs were placed on five consecutive slices with the maximum area of the cancellous bone. In the hip, ROIs were placed on five slices of the sacroiliac joint and symphysis pubis level of each side with the maximum area of the cancellous bone. The ROIs of the same part were the same to the greatest extent possible. The average measurements of five vertebrae bodies or slices were used for further analysis.

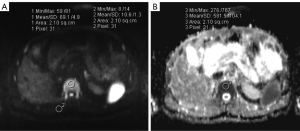

Figure 2 A schematic diagram showing the drawing of the ROI. (A) ROI 1 for SI_BM and ROI 2 for SI_muscle were manually drawn on the axial DW image (b=800 s/mm²). (B) ROI 1 in the DW image was automatically copied onto the corresponding ADC map, and defined as ROI 3. SD, standard deviation; ROI, region of interest; SI_BM, signal intensity of bone marrow; SI_muscle, signal intensity of muscle; DW, diffusion-weighted; ADC, apparent diffusion coefficient.

To measure the T2 value of the lumbar vertebrae, a circular ROI (2.0 cm²) was manually drawn at the center of the first to the fifth vertebral body (L1–L5) on the middle sagittal T2 mapping images. The average T2 values of the five vertebrae bodies were used for further analysis.

For inter-observer reliability testing, the SI_BM, SI_muscle, ADC, and T2 values were measured by H.C. and Yongzhong Chen, MD using the same criteria. One month later, to test the intra-observer reliability, the measurements were repeated by H.C. using the same methods as above without reference to the previously determined values. Only the H.C. measurements were used for the overall statistical analysis (29).

The DW SIR_BM-muscle was defined as (10,29,41):

SIRBM-muscle=SIBM/SImuscle[1]

Statistical analysis

All the statistical analyses were performed using commercial SPSS 22.0 software (SPSS Inc., Chicago, IL, USA). All the tests were two-sided with a significance level of P<0.05. The chi-square (χ²) test was used to compare the frequency of hyperintense bone marrow in the DW images between each group. Fisher’s exact test was used if the sample size was less than 40.

To compare the differences in the SIR_BM-muscle, ADC, and T2 values between the amateur marathon runner and control groups, the independent sample t-test and Mann-Whitney U test were used for normally and non-normally distributed data, respectively.

Intra- and inter-observer agreement for the visual assessment of the bone marrow signal intensity in the DW images was analyzed using the k statistic suggested by Laborie et al. (42) and adapted from Landis and Koch in 1977 (43). The k values were interpreted as follows: k=0–0.20, poor agreement; k=0.21–0.40, fair agreement; k=0.41–0.60, moderate agreement; k=0.61–0.80, good agreement; and k=0.81–1.00, very good agreement.

The intra- and inter-observer reliability for the SI_BM, SI_muscle, ADC, and T2 measurements was determined based on the intraclass correlation coefficient (ICC). The ICC values were interpreted as follows: 0.41–0.60, moderate reliability; 0.61–0.80, good reliability; and ≥0.81, very good reliability (31,44).

Results

Subject demographics

The demographic characteristics of the amateur marathon runner and control groups are set out in Table 1. The mean age, BMI, WBC, RDW-CV, PLT, RBC, and HGB did not differ significantly between the two groups (all P>0.05).

Visualization of bone marrow signal intensity in DW images (b=800 s/mm²)

The frequency of bone marrow DWI hyperintense signals was significantly higher in the amateur marathon runners [66.67% (20/30)] than the controls [33.33% (10/30); P=0.01, Figure 3A]. Meanwhile, the frequency was significantly higher in the male amateur marathon runners [50% (10/20)] than the male controls [5% (1/20), P=0.003, Figure 3B]. However, no statistically significant difference was observed in the frequency of DWI hyperintense signals between the female amateur marathon runners [100% (10/10)] and the female controls [90% (9/10), P>0.99, Figure 3C).

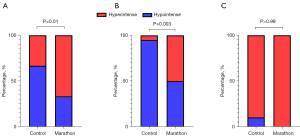

Figure 3 Stacked bar chart comparing the frequency of diffuse hyperintensity of the bone marrow on DW images (b=800 s/mm²) between the amateur marathon runners and controls. (A) All subjects; (B) male subjects; (C) female subjects. DW, diffusion-weighted.

The bone marrow of 30 of the 60 participants showed diffuse DWI hyperintensity, and all the 60 subjects’ humeral heads, femoral heads, and great trochanters showed hypointensity (Figure 4). The frequency of diffuse hyperintensity in the metaphysis and proximal humerus was 60% (6/10) in the female amateur marathon runners compared to 40% (4/10) in the female controls, while that in the male amateur marathon runners was 10% (2/20) compared to 0% (0/20) in the male controls, but the difference was not significant (P=0.656 and 0.487, respectively). In the metaphysis and proximal femur, the frequency of diffuse hyperintensity was significantly higher in both the female amateur marathon runners [100% (10/10)] than the female controls [50% (5/10), P=0.033], and the male amateur marathon runners [30% (6/20)] than the male controls [0% (0/20), P=0.027].

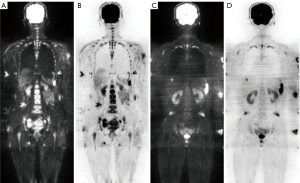

Figure 4 The maximal intensity projection image of the WB-DWI (b=800 s/mm²) of a 48-year-old male amateur marathon runner. The bone marrow in the bilateral humeral head (A), femoral head and great trochanter (B,C) was hypointense, while the bone marrow in the metaphysis and proximal of the humerus (A) and femur (B,C) was hyperintense. WB-DWI, whole-body diffusion-weighted imaging.

Bone marrow DWI signal intensity and ADC and T2 measurements

The SIR_BM-muscle values were significantly higher in the male amateur marathon runners than the male controls in the thoracic vertebrae (4.68 vs. 3.57, P=0.021), lumbar vertebrae (4.49 vs. 3.01, P<0.001), sacrum (3.67 vs. 2.62, P=0.002), and hip (3.45 vs. 2.50, P=0.002); however, the SIR_BM-muscle values were only significantly higher in the female amateur marathon runners than the female controls in thoracic vertebrae (7.69 vs. 5.87, P=0.029) and hip (4.76 vs. 3.92, P=0.004) (see Table 2).

The mean T2 values of the lumbar vertebrae were significantly higher in the amateur marathon runners than the controls [116.96 (105.18, 125.51) vs. 106.41 (90.52, 121.41) ms, P=0.041]. The mean T2 values of the lumbar vertebrae were significantly higher in the male amateur marathon runners than the male controls [116.76 (104.89, 124.24) vs. 97.63 (89.37, 107.91) ms, P=0.001]. The mean T2 values of lumbar vertebrae were not significantly different between the female amateur marathon runners and the corresponding controls (118.58±15.02 vs. 124.10±12.68 ms, P=0.386).

The mean ADC of the hip was significantly higher in the amateur marathon runners than the controls (592.69×10⁻⁶vs. 525.02×10⁻⁶ mm²/s, P=0.002); however, the ADCs of the other sites did not differ significantly between the two groups (P>0.05). The mean ADCs of the sacrum (569.89×10⁻⁶vs. 523.81×10⁻⁶ mm²/s, P=0.03) and hip (577.36×10⁻⁶vs. 481.16×10⁻⁶ mm²/s, P<0.001) were significantly higher in the male amateur marathon runners than the male controls; however, the ADCs of the other sites did not differ significantly between the male amateur marathon runners and the male controls (P>0.05). In terms of the thoracic vertebrae, lumbar vertebrae, sacrum, and hip, the mean ADCs did not differ significantly between the female amateur marathon runners and the female controls (P>0.05) (see Table 3).

The mean age, BMI, yearly running distance, running years, WBC, RDW-CV, PLT, RBC, and HGB in the male amateur marathon runners with bone marrow hypointensity (10 subjects) did not differ significantly from those with hyperintensity (10 subjects) (see Table 4).

Intra- and inter-observer agreement for visual evaluation of the signal intensity of the DW images

The inter-observer agreement (k=0.900) and intra-observer agreement (k=0.833) were very good for the visual evaluation of DWI signal intensity.

Intra- and interobserver reliability of the quantitative measurements

In the quantitative ROI assessments, the inter-observer reliability between the two investigators for the SI_BM, SI_muscle, ADC, and T2 measurements ranged from good to very good {ICC =0.969 [95% confidence interval (CI): 0.953–0.978], 0.799 (95% CI: 0.735–0.848), 0.889 (95% CI: 0.834–0.923), and 0.930 (95% CI: 0.884–0.958), respectively}. The intra-observer reliability for the SI_BM, SI_muscle, ADC, and T2 measurements ranged from good to very good [ICC =0.938 (95% CI: 0.917–0.953), 0.733 (95% CI: 0.612–0.812), 0.865 (95% CI: 0.801–0.905), and 0.882 (95% CI: 0.770–0.936), respectively].

Discussion

In this study, we compared the WB-DWI bone marrow signal characteristics of 30 healthy adult amateur marathon runners (aged 30–50 years) with those of 30 healthy age- and gender-matched volunteers who had not engaged in any long-term sports training. The frequency difference of the bone marrow DWI (b=800 s/mm²) hyperintensity between the male amateur marathon runners and controls (50% vs. 5%) was much greater than that of the females (100% vs. 90%). These results indicate that marathon training increases the likelihood of bone marrow hyperintensity in DW images. Thus, when WB-DWI is used to screen bone marrow diseases, the patient’s marathon training history should be considered to avoid false-positive diagnoses. The further signal quantitative study showed that the SIR_BM-muscle values were significantly higher in the male amateur marathon runners than the male controls in the thoracic vertebrae (4.68 vs. 3.57), lumbar vertebrae (4.49 vs. 3.01), sacrum (3.67 vs. 2.62), and hip (3.45 vs. 2.50), which further supports the visual assessment results.

At birth, the entire skeleton is filled with red bone marrow, and the physiological conversion of red marrow into yellow marrow occurs with aging. The adult distribution of red bone marrow, which appears at age 25, is characterized by the presence of red bone marrow in the axial skeleton (vertebral bodies, sacral bone, and medial parts of hip bones) and articular ends of humeral and femoral bones (45,46). In this study, hypointensity was observed in the images of the humeral heads, femoral heads, and great trochanters of the 30 subjects who showed diffuse bone marrow hyperintensity in the DW images of the thoracolumbar vertebrae, sacrum, hips, ribs, sternum, and scapula (100%). Thus, we speculate that the bone marrow DWI hyperintensities caused by marathon training will not involve epiphyseal sites; however, further research is needed.

In the current study, 100% of the femoral metaphysis and proximal segments showed bone marrow DWI hyperintensity in the female amateur marathon runners, compared with only 50% in the controls. Meanwhile, 60% of the humeral metaphysis and proximal segments showed hyperintensity in the female amateur marathon runners, compared with 40% in the controls. In the male amateur marathon runners, 30% of the femoral metaphysis and proximal segments showed hyperintensity, while the frequency for humeral metaphysis and proximal segments was 10% (compared to 0% in the controls for both). These results indicate that the change in bone marrow signal intensity caused by marathon training was more obvious in the femur than the humerus. We speculate that the increase in DWI bone marrow signal intensity might be related to the impact force on bones during marathon training, which explains why the signal change was much more pronounced in the femur than the humerus.

In our previous study, we found diffuse DWI hyperintensities of the bone marrow in 91% of premenopausal, 75% of perimenopausal, and 8% of postmenopausal women (32). In our current study, all the females were in the premenopausal period. The frequency of DWI bone marrow hyperintensity in the female controls was 90%, which is consistent with the findings of our previous study (32), while the frequency in the female marathon runners was 100%. There was no significant difference in the frequency between the female marathon runners and controls in the current study.

Fifty percent (10/20) of the male amateur marathon runners showed bone marrow DWI hyperintensity in current study. In our previous study (31), we found that only 3.3% of the males aged 21–50 years showed bone marrow DWI hyperintensity. These results indicate that marathon exercise increases the frequency of bone marrow high DWI signals; however, the reason for this needs to be further investigated.

Based on previous studies, bone marrow hyperintensity in DW images is related to the increased water content of the bone marrow, resulting from the T2 shine-through effect (31,32,47). In this study, the T2 values of the lumbar vertebrae were significantly higher in the male amateur marathon runners than the male controls (116.76 vs. 97.63 ms), which is consistent with the SIR_BM-muscle results (see Table 2), which could be one reason for the increasing frequency of the high bone marrow DWI signal in male marathon runners. One reason for the increased water content of the bone marrow might be marrow hyperplasia stimulated by the impact force on bone created by long-term marathon training (31). No significant difference between the female amateur marathon runners and the corresponding controls (118.58 vs. 124.10 ms) was found, which is similar to the SIR_BM-muscle results (see Table 2). According to our previous study, the frequency of bone marrow DWI hyperintensity in reproductive-age women (91%) was higher than that in men (3.3%) (21–50 years old) (31,32), indicating that in reproductive-age women, menstruation and sex hormones could maintain red bone marrow status (48). There was no significant difference in the frequency of the bone marrow high DWI signal found between postmenopausal women (8%) and men aged 21–50 years (3.3%), P=0.40 (31,32), which may indicate that women’s marrow transfers to yellow marrow after the loss of menstruation and sex hormones.

Finally, significant differences in the bone marrow ADC values between the amateur marathon runners and the controls were only observed in the male’s sacrum (569.89×10⁻⁶vs. 523.81×10⁻⁶ mm²/s) and hips (577.36×10⁻⁶vs. 481.16×10⁻⁶ mm²/s) (see Table 3), which indicates that the ADC values are not important factors of the bone marrow high DWI signal. Further studies need to be conducted to clarify the underlying complex mechanism (49).

The current study had several limitations. First, the age range of the amateur marathon runners was narrow (30–50 years). Runners of other age ranges, particularly postmenopausal women, should be studied in future, as the bone marrow only shows a high signal visually in WB-DWI in 3.3–5.9% of 21–81 years old males (31) and 8% of postmenopausal women (32). If marathon training can increase the diffuse high signal frequency of bone marrow in DWI in other age ranges, further study is needed. Second, no histological analysis of bone marrow was performed. Third, the effects of other factors, such as the effect of running pace on the bone marrow DWI signal were not analyzed.

Conclusions

Marathon training resulted in bone marrow diffuse hyperintensity on WB-DWI, especially in male marathon runners. In the present study, bone marrow hyperintensity was observed in 50% of the male amateur marathon runners aged 30–50 years. However, bone marrow hyperintensity does not affect the humeral head, femoral head, and femoral trochanteric epiphysis. Our results suggest that when WB-DWI is used to screen bone marrow diseases, marathon training history should be considered to avoid false-positive diagnoses.
