Value of dual-layer spectral detector CT in predicting lymph node metastasis of non-small cell lung cancer

Introduction

Early detection and diagnosis can reduce lung cancer mortality rates, however, lung cancer remains the most common malignant tumor globally. As the main cause of cancer-related deaths worldwide, lung cancer places a huge burden on public health and the economy (1). Non-small cell lung cancer (NSCLC) is the major histological subtype of lung cancer, accounting for 80–85% of all lung cancers, and has a 5-year survival rate of only 23.6% (2). Lymph node metastasis (LNM) is the most common and major metastatic pathway in patients with NSCLC, approximately 16.6% of patients with stage-T1 NSCLC subsequently develop LNMs (3). According to the National Comprehensive Cancer Network Guidelines (4,5), surgery should be the first choice of treatment for early NSCLC, and radiotherapy and chemotherapy should be the first choice of treatment for advanced cases. For patients with resectable NSCLC, intraoperative radical mediastinal, hilar, and intrapulmonary lymph node dissection play key roles in improving tumor-free and overall survival rates. The accurate evaluation of LNM is an important factor in lung cancer staging, treatment, and prognosis (6).

Clinically, lymph nodes with a short axial diameter >10 mm measured using computed tomography (CT) were considered to be metastatic. Almeida et al. (7) studied this diagnostic criterion and found that their sensitivity and specificity were 51% and 85%, respectively, and the predicted results were unsatisfactory. As a non-invasive imaging technique, positron emission tomography/CT (PET/CT) is relatively accurate in diagnosing metastatic lymph nodes. More and more multidisciplinary lung cancer research teams recommended using PET-CT to assess LNM. However, false positives due to lymph node enlargement caused by infection, inflammation, or high metabolism, as well as expensive examination costs and large radiation exposure, limit the use of this examination. Thus, PET/CT has not been widely applied in clinical practice (8,9). Invasive methods, including thoracoscopic surgery and fiberoptic bronchoscopy-guided biopsy, are highly accurate. However, as they may lead to the risk of other complications, such as chest hematoma, infection, pneumothorax, or nerve damage, they are not the preferred diagnostic method for determining LNM (10).

Dual-layer spectral detector CT (SDCT) uses a multilayer detection system that eliminates the requirement for a predetermined energy CT. Compared with conventional CT, SDCT can provide multiple quantitative parameters of the essential characteristics of a substance. It can also provide more objective and accurate information on histological features and hemodynamics (11-13). Iodine concentration (IC), normalized iodine concentration (NIC), and the slope of the spectral curve (λ) can be used to quantify the concentration of the tissue contrast agent (iodine) associated with tumor blood supply and blood vessels. The effective atomic number (Z_eff), electron density (ED), uric acid charts, and calcium suppression can be used to better reflect the composition and characteristics of the substances. Relevant studies have confirmed that SDCT is highly accurate in differentiating between benign and malignant tumors and in predicting LNM (14-16). However, previous studies on the SDCT prediction of LNM have mainly focused on whether the lymph nodes of various malignant tumors were metastatic by extracting quantitative information about the lymph nodes themselves (14-16). Unfortunately, it is difficult to achieve a one-to-one correspondence between SDCT and pathology in the selection and evaluation of lymph nodes in clinical practice, which often leads to deviations in analysis results. Thus, the prediction of LNM by analyzing the relevant features of the primary tumors instead of the lymph nodes has attracted increasing attention and has proven effective in some malignant tumor lymph node studies (17-21). There are few reports on predicting LNM by exploring the primary cancer foci of NSCLC using SDCT. Comprehensive evaluation systems involving multiple combinations of lesion morphology, clinical hematological indicators, and spectral quantitative parameters in NSCLC are rare.

Thus, this study aimed to explore the importance of SDCT quantitative parameters and their derivatives, combined with morphological information of the lesion and the clinical data of patients, in predicting LNM in NSCLC. We also established a predictive model for LNM to help develop the best treatment strategy.

Methods

Study population

The study was approved by the Institutional Ethics Committee of Jiangsu Cancer Hospital, and the requirement for individual consent for this retrospective analysis was waived. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). A retrospective analysis was performed using the data of patients admitted to our hospital from September 2021 to November 2022 who underwent radical surgery and systematic lymph node dissection. To be eligible for inclusion in this study, the patients had to meet the following inclusion criteria: (I) present with solid solitary pulmonary nodules (SPNs), 8 mm < diameter ≤30 mm; (II) have undergone a SDCT chest-enhanced scan at our hospital; and (III) have NSCLC confirmed by postoperative pathology. Patients were excluded from the study if they met any of the following exclusion criteria: (I) had multiple primary lesions in the lung (n=3); (II) had received preoperative chemoradiotherapy or other anti-tumor therapy (n=7); (III) had incomplete clinical examination data (including clinical data, tumor index detection data, and spectral enhanced CT image data within 1 month before surgery) (n=15); and/or (IV) had images of suboptimal quality and/or images that were difficult to analyze (n=2). Ultimately, 91 patients were included in this study. They were divided into the non-LNM group (n=57) and the LNM group (n=34) according to the pathological findings for the lymph nodes. A flowchart of the specific inclusion and exclusion criteria is presented in Figure 1. Data of the clinicopathological characteristics, including age, sex, smoking status, tumor markers, and pathological type, of all the patients were collected.

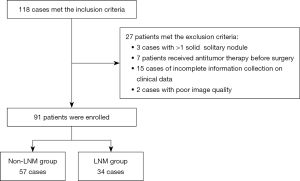

Figure 1 Flow chart of the patient inclusion and exclusion criteria. LNM, lymph node metastasis.

SDCT image acquisition

The patients underwent SDCT (IQon; Philips Healthcare, Best, The Netherlands), following the same routine scanning protocol as that used for chest enhancement. All the patients were placed in the supine position, and the scan range was from the thoracic inlet to the costophrenic angle. The scanning parameters were as follows: tube voltage: 120 kVp; tube current modulation: three-dimensional; matrix: 512×512; collimator width: 64×0.625 mm; scan field of view: 372 mm; spacing: 0.90; and rotation time: 0.50 seconds. The thickness of the scanning layer was 5 mm, and that of the reconstruction layer was 1 mm. Contrast agent (iodofol: 1.0–1.5 mL/kg, iodine: 350 mg/mL; Jiangsu Hengrui Medicine, Lianyungang, China) was injected in the antecubital vein at a flow rate of 2.5–3.0 mL/s, and normal saline (20 mL) was then injected at the same flow rate. After the injection, the chest enhancement scan was delayed by 50 seconds.

Radiological analysis of the morphological characteristics on SDCT

Images of all the enrolled patients with NSCLC were interpreted and analyzed jointly by two diagnostic radiologists (A with four years of experience, and B with eight years of experience). Both physicians were unaware of the pathological results. When analyzing the morphological characteristics of the lesions, they were fully combined with thin-layer scanning and multi-planar reconstruction techniques to interpret the signs, such as lobulation, burr, pleural indentation, vessel convergence, vacuoles, and cavities (22). If any disagreements arose between the physicians, a consensus was reached by discussion.

Acquisition and analysis of SDCT quantitative parameters

All the images were uploaded to the IntelliSpace Portal (Philips Healthcare, Best, The Netherlands) for analysis and processing using a Spectral CT Viewer (Philips Healthcare) that was provided with the workstation. The image analysis was performed by a radiologist (A) and supervised by a senior radiologist (B). The image data of all the patients were obtained via surgery in the mediastinal window. After the lesions were found in the film reading, the region of interest (ROI) was manually delineated at three consecutive levels, including the largest lesion level and its adjacent upper and lower levels. Areas of calcification, blood vessels, voids, atelectasis, and necrosis were avoided, as these may affect the measurements. The average of three measurements for each patient was used as the final analytical data. The ROI of the aorta with similar layers was obtained using the same method for standardizing the SDCT quantitative parameters. Subsequently, a series of parameters was obtained.

The following values were recorded in our study: The CT values of the lesions at virtual non-contrast (VNC) and enhancement (40 and 70 keV), which were recorded as CT_SPN-VNC, CT_SPN-40keV, and CT_SPN-70keV, respectively; and the CT values of the aorta at VNC (CT_aorta-VNC) and enhancement at 70 keV (CT_aorta), which were recorded and used as references. The following formulas were used to calculate the lesion to aorta virtual plain scan ratio (SAR_VNC), the lesion to aorta enhancement ratios (SAR_40keV and SAR_70keV), the differences between the lesion enhancement and virtual plain scan CT value (Δ_40keV and Δ_70keV), the contrast enhancement ratios (CER_40keV and CER_70keV), the standardized reinforcement scores (NEF_40keV and NEF_70keV), and λ (23,24):

SARVNC=CTSPN-VNC/CTaorta-VNC[1]

SAR40keV/70keV=CTSPN-40keV/70keV/CTaorta[2]

Δ40keV/70keV=CTSPN-40keV/70keV−CTSPN-VNC[3]

CER40keV/70keV=Δ40keV/70keV/CTSPN-VNC[4]

NEF40keV/70keV=Δ40keV/70keV/(CTaorta−CTaorta-VNC)[5]

λ=(CTSPN-40keV−CTSPN-70keV)/(70−40)[6]

The IC (mg/mL), Z values, and ED values were normalized to the aorta to account for hemodynamic changes between the patients. The NIC, normalized electron density (NED), and normalized Z (NZ_eff) were calculated using the following formulas:

NIC=ICSPN/ICaorta[7]

NED=NEDSPN/NEDaorta[8]

NZeff=Zeff-SPN/Zeff-aorta[9]

To assess interobserver repeatability and variability, 50.5% (46/91) of the study participants were randomly selected, and the previous measurement procedure was repeated by another radiologist (C, with 14 years of experience in radiology). Interobserver agreement was assessed using Bland-Altman plots and intraclass correlation coefficients (ICCs).

Statistical analysis

All the data were statistically analyzed using SPSS 22 (SPSS, Inc., Chicago, IL, USA) and MedCalc15 (MedCalc Software, Mariakerke, Belgium). The continuous variables are expressed as the mean ± standard deviation. The chi-square test or Fisher’s exact test was used to analyze the differences in the basic clinical data and the morphological characteristics of the primary cancer lesions between the non-LNM and LNM groups. The Kolmogorov-Smirnov method was used to test the normality of tumor markers, the SDCT quantitative parameters of the primary cancer lesions, and the derived parameters. Levene’s test was used to test the homogeneity of variance. The differences between the multiple SDCT quantitative parameters and their derived quantitative parameters between the non-LNM and LNM groups were analyzed using the Mann-Whitney U and independent samples t-tests, and a false discovery rate (FDR) correction for multiple tests was used in the univariate analysis. The diagnostic performance of LNM in NSCLC patients was evaluated by plotting the receiver operating characteristic (ROC) curves for the corresponding parameters. To identify the independent predictive factors of LNM in NSCLC patients and establish the best multi-parameter regression prediction model, we subjected the following factors to a multi-factor logistic regression analysis: the statistically significant different clinical data, tumor indicators, morphological signs of primary cancer lesions on SDCT, and each quantitative parameter of SDCT, and its derived parameters. Interobserver agreement for the SDCT-related parameters was assessed using Bland-Altman plots and ICCs (an ICC of 0.000–0.200 was considered poor, 0.201–0.400 was considered fair, 0.401–0.600 was considered moderate, 0.601–0.800 was considered good; and 0.801–1.000 was considered excellent).

Results

Statistical analysis of the basic clinical data

A total of 91 patients presenting with solid SPNs who underwent radical surgery and systematic lymphatic dissection were included in this study. In the non-LNM group (n=57, 29 males and 28 females), the patients had a mean age of 65.667±9.238 years, and 26 patients had a smoking history. In the LNM group (n=34, 20 males and 14 females), the patients had a mean age of 62.647±8.131 years, and 17 patients had a smoking history. We analyzed the differences between the two groups in terms of age, sex, and smoking history, but no statistically significant differences were found (P=0.119, 0.462, and 0.685, respectively) (Table 1).

Statistical analysis of the SDCT imaging signs

Table 2 shows the variability in interpreting the morphological features of the primary lesions on SDCT between the non-LNM and LNM groups of NSCLC patients. We analyzed the CT presentation of the primary cancer lesions in the two groups in relation to the following 10 aspects: location, size, lesion morphology, lobulation sign, short burr sign, pleural indentation sign, vessel convergence sign, air bronchogram sign, vacuole sign, and calcification. There were significant differences between the two groups in terms of the lesion size and vessel convergence sign (P<0.001 and P=0.025, respectively), which were more obvious in the LNM group than in the non-LNM group. There were no statistically significant differences between the non-LNM and LNM groups in terms of the location, morphology, short burr sign, lobulation sign, pleural indentation sign, air bronchogram sign, vacuole sign, and calcification (P>0.05).

Analysis of the tumor markers in the non-LNM and LNM groups

The following six common tumor indicators between the non-LNM and LNM groups were collected and compared: carcinoembryonic antigen (CEA), carbohydrate antigen 724 (CA724), CA125, CA199, α-fetoprotein (AFP), and neuron-specific enolase (NSE). There were no statistically significant differences in the tumor markers between the two groups (P>0.05) (Table 3).

Comparison of the SDCT quantitative parameters between the non-LNM and LNM groups

The acquisition of the quantitative parameters of the primary lesions and the outlines of the ROIs between the two groups are shown schematically in Figure 2 and Figure 3, respectively. The SDCT quantitative parameters and their derived quantitative parameters were obtained using ROI delineation and normalized uniformly. A total of 13 quantitative and derived quantitative indicators were included in the statistical analysis. Table 4 sets out the analysis results of the differences in the quantitative parameters related to the primary lesions in the two groups. In total, 11 quantitative parameters (i.e., SAR_40keV, SAR_70keV, Δ_40keV, Δ_70keV, CER_40keV, CER_70keV, NEF_40keV, NEF_70keV, λ, NIC, and NZ_eff) were significantly higher in the non-LNM group than the LNM group (P<0.05). However, no significant differences between the two groups were observed in relation to the other two quantitative parameters; that is, SAR_VNC and NED (P=0.258 and 0.223, respectively).

Figure 2 A solitary pulmonary nodule in the lower lingual segment of the upper lobe of the left lung of a 59-year-old female with pathologically confirmed adenocarcinoma; no lymph node metastasis was observed. (A-F) Plots of the quantitative parameters corresponding to SDCT 70 keV and 40 keV, VNC, IC, ED, and Z_eff, respectively. The ROI outlined by the green circle reflects the spectral quantitative parameters corresponding to the lesion and its aorta at the same level. For this lesion, CT_SPN-70keV =84.1 HU, CT_SPN-40keV =195.5 HU, CT_SPN-VNC =40.0 HU, IC_SPN =1.82 mg/mL, ED_SPN =104.3% EDW, Z_eff-spn =8.29; CT_aorta-70keV =158.5 HU, CT_aorta-40keV =437.5 HU, CT_aorta-VNC =47.4 HU, IC_aorta =4.58 mg/mL, ED_aorta =105.4% EDW, and Z_eff-aorta =9.40. SDCT, dual-layer spectral detector computed tomography; VNC, virtual non-contrast; IC, iodine concentration; ED, electron-cloud density; ROI, region of interest; SPN, solitary pulmonary nodule; EDW, electron density to water; Z_eff, effective atomic number.

Figure 3 A solitary pulmonary nodule in the dorsal segment of the lower lobe of the right lung of a 48-year-old male with pathologically confirmed squamous carcinoma with LNM. (A-F) Plots of the quantitative parameters corresponding to SDCT 70 keV and 40 keV, VNC, IC, ED, and Z_eff, respectively. For this lesion, CT_SPN-70keV =70.4 HU, CT_SPN-40keV =158.2 HU, CT_SPN-VNC =37.2 HU, IC_SPN =1.42 mg/mL, ED_SPN =103.9% EDW, Z_eff-spn =8.11; CT_aorta-70keV =142.9 HU, CT_aorta-40keV =403.0 HU, CT_aorta-VNC =39.9 HU, IC_aorta =4.26 mg/mL, ED_aorta =104.6% EDW, and Z_eff-aorta =9.30. LNM, lymph node metastasis; SDCT, dual-layer spectral detector computed tomography; VNC, virtual non-contrast; IC, iodine concentration; ED, electron-cloud density; SPN, solitary pulmonary nodule; EDW, electron density to water; Z_eff, effective atomic number.

Diagnostic performance of the SDCT quantitative parameters in LNM prediction

The diagnostic efficacy of the quantitative parameters associated with SDCT in predicting LNM in patients with NSCLC that differed significantly between the non-LNM and LNM groups are detailed in Table 5. The statistical analysis showed that the three quantitative SDCT parameters with the highest diagnostic efficacy in distinguishing between LNM and non-LNM cases were CER_40keV, NIC, and CER_70keV [areas under the curve (AUCs) =0.794, 0.791, and 0.783, respectively] (Figure 4); the highest of which was CER_40keV. When the CER_40keV cut-off value was 3.752, it had a sensitivity of 64.7%, a specificity of 82.5%, a positive prediction rate (PPR) of 68.8%, a negative prediction rate (NPR) of 79.7%, and an accuracy of 75.0%. When the NIC cut-off value was 0.266, it had a sensitivity of 79.4%, a specificity of 71.9%, a PPR of 62.8%, a NPR of 85.4%, and an accuracy of 73.9%. When the CER_70keV cut-off value was 1.117, it had a sensitivity of 64.7%, a specificity of 82.5%, a PPR of 68.8%, a NPR of 79.7%, and an accuracy of 75.0%.

Figure 4 The ROC curves showing that the three quantitative parameters CER_40keV, NIC, and CER_70keV had the highest diagnostic efficacy in distinguishing between the non-LNM and LNM groups. AUC =0.794, 0.791, and 0.783 respectively. ROC, receiver operating characteristic; CER, contrast enhancement ratio; NIC, normalized iodine concentration; LNM, lymph node metastasis; AUC, area under the curve.

Combining the morphological features and SDCT quantitative parameters to predict LNM

A binary logistic regression analysis was performed in which the factors that differed significantly between the non-LNM and LNM groups, including the lesion size, vessel convergence sign, and 11 quantitative parameters (i.e., SAR_40keV, SAR_70keV, Δ_40keV, Δ_70keV, CER_40keV, CER_70keV, NEF_40keV, NEF_70keV, λ, NIC, and NZ_eff) were the independent variables, and LNM was the dependent variable. The results showed that size [odds ratio (OR): 1.157, 95% confidence interval (CI): 1.046–1.281, P=0.005], λ (OR: 0.473, 95% CI: 0.253–0.882, P=0.018), and NIC (OR: 0.396, 95% CI: 0.195–0.802, P=0.010) were independent predictive factors of LNM. The ROC curve analysis showed that the AUCs of size, λ, NIC, and their combination in diagnosing LNM were 0.748, 0.777, 0.791, and 0.892, respectively. The AUC of their combination (size + λ + NIC) was the largest (0.892). When the cut-off value was 0.292, the sensitivity, specificity, PPR, NPR, and accuracy were 82.4%, 84.2%, 73.7%, 88.7%, and 81.5%, respectively. The probability prediction model was expressed as follows:

Logit(P)=1.842+0.146lesion size−0.75λ−0.927NIC[10]

The detailed data mentioned above are presented in Table 6 and Figure 5, respectively.

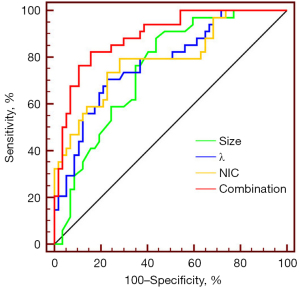

Figure 5 The ROC curve analysis showing that the AUCs of the size, λ, NIC and their combination for predicting the efficacy of LNM were 0.748, 0.777, 0.791, and 0.892, respectively. The AUC (0.892) of the combination parameters was the largest, which was superior to NIC (AUC =0.791), the highest diagnostic efficacy among independent risk factors. ROC, receiver operating characteristic; AUC, area under the curve; NIC, normalized iodine concentration; LNM, lymph node metastasis.

Interobserver consistency assessment

We randomly selected 50.5% (46/91) of the study participants for assessment, and the previous SDCT-related quantitative parameter measurement and acquisition process was repeated by radiologist C. The ICC values ranged from 0.801–0.935, indicating that the SDCT quantitative parameters and their related derived quantitative parameters had excellent interobserver agreement (Table 7). The Bland-Altman plots showed that all or a large proportion of the measurements were within the 95% CI, indicating excellent interobserver agreement in the assessment (Figure 6).

Figure 6 Bland-Altman plots showing the consistency of the interobserver data assessed using SAR_40keV, SAR_70keV, Δ_40keV, Δ_70keV, CER_40keV, CER_70keV, NEF_40keV, NEF_70keV, λ, NIC, NED, NZ_eff, and SAR_VNC. All the results were excellent. SAR_40keV/70keV, solitary pulmonary nodule in the 40 keV/70 keV to arterial enhancement ratio; Δ_40keV/70keV, attenuation difference of the solitary pulmonary nodule between the 40 keV/70 keV and VNC; CER, contrast enhancement ratio; NEF, normalized arterial enhancement fraction; λ, slope of the spectral attenuation curve; NIC, normalized iodine concentration; NED, normalized electron density; NZ_eff, normalized effective atomic number; SAR_VNC, solitary pulmonary nodule at VNC to arterial VNC ratio; VNC, virtual non-contrast.

Discussion

LNM is the most common form of metastasis in NSCLC, and the presence or absence of LNM is of great significance in determining the surgical modality, disease stage, and patient prognosis (25). It is difficult to achieve a one-to-one correspondence between SDCT and pathology in the selection and evaluation of lymph nodes in clinical practice, which often leads to inconsistent results. Consequently, many studies have sought to obtain relatively stable information by analyzing and extracting the relevant features of primary tumors to predict LNM risk or metastasis (17-21).

In this study, a morphological analysis was performed on the following 10 SDCT signs of primary lesions: location, size, morphology, lobulation sign, short burr sign, pleural indentation sign, vessel convergence sign, air bronchogram sign, vacuole sign, and calcification. Significant differences in the lesion size and vessel convergence sign were observed between the non-LNM and LNM groups. The diameter of the primary lesion of NSCLC was larger in the LNM group than the non-LNM group (22.697 vs. 17.351 mm). This might be due to the relatively higher malignancy and faster growth of the primary lesions in the LNM group (26). Our study also showed that the size of the primary NSCLC lesions could be used as an independent risk factor in predicting LNM and had an AUC of 0.748. The proportion of vessel convergence signs was significantly higher in the LNM group than the non-LNM group [27/34 (79.41%) vs. 32/57 (56.14%), respectively], which suggests that malignant lesions require more nutrients to grow and also exhibit stronger metastatic properties (27).

Tumor markers are important in detecting malignant tumors for indications, prognostic monitoring, recurrence, and metastasis (28,29). We analyzed the differences in six tumor markers (i.e., CEA, CA724, CA125, CA199, AFP, and NSE) between the non-LNM and LNM groups. There were no statistically significant differences in these tumor indicators between the two groups. The included patients had solid SPNs (8 mm < diameter ≤30 mm), and the lesions in the non-LNM and LNM groups were relatively small (22.697 vs. 17.351 mm, respectively). Notably, CEA, CA724, CA125, CA199, and AFP are often highly correlated with digestive system tumors and have a weak role in lung cancer. NSE is the preferred marker for detecting SCLC (30,31) and was also found to be weakly associated with NSCLC in this study. Cytokeratin 211 and squamous cell carcinoma antigen are considered the most valuable serum markers for NSCLC. However, as not all the patients were examined before surgery, the correlation between these two tumor markers and LNM could not be further examined in the present study.

SDCT can be used to obtain various energy spectrum parameter images in addition to traditional CT images. It provides valuable information for detecting lesions, accurately determining the range of lesions, differentiating between benign and malignant lesions, and determining the likelihood of recurrence and metastasis. NIC and λ have been widely used to diagnose and predict LNM in oral, rectal, and thyroid cancers (14,19,32-34). NIC is a relatively stable parameter and an objective and quantitative reflection of tumor iodinated contrast intake, which is proportional to the tumor vessel density. In the present study, the NIC of the primary cancer lesions was lower in the LNM group than the non-LNM group, which is consistent with the findings of previous studies (14,33,35-37). This result may be due to the higher malignancy of the lesions in the LNM group, the invasion and destruction of adjacent blood vessels, and the immaturity and low functional efficiency of tumor neovascularization. Thus, poor blood supply leads to reduced iodine content in a tumor, while some internal tumor necrosis is also responsible for the absence of significant contrast enhancement. The λ values reflect the characteristics of the CT value of each tissue changing with X-ray energy. In this study, the λ values obtained from the lesions in the LNM group were significantly lower than those obtained from the non-LNM group, as λ also primarily characterizes the iodine content in the tissue; this trend is similar to that of NIC. Additionally, this study found that NIC and λ were independent predictive factors of LNM in NSCLC. Their diagnostic efficacies were 0.791 and 0.777, respectively, which further demonstrates the stability of these two quantitative parameters.

In addition, in examining which SDCT multi-parameters can be used to predict LNM in NSCLC, this study showed that NZ_eff had diagnostic value. The NZ_eff value of the lesions in the non-LNM group was slightly higher than that in the LNM group (0.855 vs. 0.802, respectively), which has not been reported in previous studies and may provide new ideas for predicting LNM in lung cancer. Nagano et al. (38) studied mediastinal LNM in NSCLC and showed that the ED of the metastatic lymph nodes was significantly lower than that of the non-metastatic lymph nodes. The present study found no significant difference in the NED between the LNM and non-LNM groups. Our study differs from Nagano et al.’s in a number of respects. First, the study populations differ. We used the primary lesions (solid SPNs) as the ROIs rather than the lymph nodes. Second, the NED was normalized to the aorta rather than the original value. Our study also found that 11 SDCT value-related derived parameters (i.e., SAR_40keV, SAR_70keV, Δ_40keV, Δ_70keV, CER _40keV, CER_70keV, NEF_40keV, NEF_70keV, λ, NIC, and NZ_eff) differed significantly between the two groups. However, no statistically significant differences were observed between the two groups in terms of the two quantitative parameters; that is, SAR_VNC and NED (P=0.258 and 0.223, respectively). This suggests that the parameters associated with SDCT values can also reflect tumor information and provide a reference for clinical diagnosis. Similarly, Ma et al. (23) showed that parameters related to CT values, such as the CER, enhancement value in the venous phase, and enhancement value in the delayed phase, can be used as alternative markers for preoperatively detecting lymphovascular invasion in advanced gastric cancer. Liu et al. (39) also achieved good results in predicting serosal invasion in gastric cancer using CT value-related parameters, such as arterial phase, venous phase, and delayed phase enhancement values.

Unlike previous studies that focused solely on the value of SDCT multi-parameters in predicting LNM, this study also incorporated patients’ existing examination data. We explored the available resources to construct the most superior model for predicting LNM. The results showed that lesion size, λ, and NIC were independent predictive factors of LNM in NSCLC. Among all the independent predictive factors, NIC had the best diagnostic efficacy for LNM (AUC =0.791). However, the combined prediction model of NIC, λ, and lesion size was more effective than any single parameter alone (AUC =0.892). This study provides a new technique for predicting LNM in patients with NSCLC.

This study had several limitations. First, in this study, the patients had pathological diagnoses of NSCLC and solid SPNs of 8 mm < diameter ≤30 mm, and patients with masses larger than 30 mm were not included in the study. Second, the study used retrospective data collected from a single center; to improve the reliability of evidence, we would need a larger sample size and the acquisition parameters of multi-institution CT scanners. Third, while tumor indicators have been used for disease diagnosis and LNM prediction (39-41), there was no significant difference between the two groups in this study. This may be related to the small sample size and the lack of a comprehensive collection of tumor indicators. This issue will be addressed in subsequent multicenter experiments with larger sample sizes. Fourth, deep-learning methods have been extensively used in various prediction and classification tasks related to various types of diseases, including breast, lung, and melanoma cancers (42-44), and related research needs to be conducted to extract more useful and comprehensive information to assist in cancer diagnosis and treatment.

Conclusions

In conclusion, we found that the SDCT quantitative parameters combined with the clinical data showed promise in predicting LNM in NSCLC and had satisfactory diagnostic performance and reproducibility.
