Characteristics of whole-body dynamic ¹⁸F-FDG PET/CT Patlak multi-parametric imaging in lung cancer and the influence of different delineation methods on quantitative parameters

Introduction

Lung cancer is the most common cancer type and the leading cause of cancer-related death worldwide (1). Positron emission tomography/computed tomography (PET/CT) using flourine-18 fluorodeoxyglucose (¹⁸F-FDG) plays an important role in the diagnosis and staging of lung cancer (2). Whole-body dynamic multi-parameter PET imaging is a recently developed technique in nuclear medicine, which allows for tracking the positron tracer’s activity distribution inside the body in vivo over 3-dimensional (3D) space and time, namely over a 4-dimensional (4D) spatiotemporal space, to provide valuable clinically relevant information beyond the metrics that can be deduced from the standardized uptake value (SUV) metric alone (3-5). Researchers have explored the scanning mode of whole-body dynamic ¹⁸F-FDG PET and recommended continuous dynamic acquisition from the start of the imaging agent injection to 75 min, and new parameter images can be obtained through the Patlak reconstruction (6): an image representing the metabolic rate of FDG into the tissue (MR_FDG) and another representing the distribution volume (DV) of free FDG in the tissue (7).

Although dynamic whole-body PET has been in clinical use for fewer than 5 years, the clinical workflow has been optimized to reduce the scanning time (8). Dias et al. (9) recommended the use of a population-based input function (PBIF) to transform Patlak imaging into a 20-min procedure]. We have previously reported on the feasibility of shorter acquisition times using two short dynamic scans for a multiparametric PET study and the influence of quantitative performance in shortened dynamic PET (10). Several reports have demonstrated the use of dynamic whole-body PET/CT to describe parameters in normal tissues and different types of tumors, such as non-small cell lung cancer, breast cancer, nasopharyngeal carcinoma, and so on (11-13). The role of dynamic ¹⁸F-FDG PET/CT Patlak multi-parametric imaging in tumor diagnosis, staging, and efficacy evaluation has also been preliminary explored (14-16). Dynamic PET imaging has enabled the continuous assessment of tissue metabolism. DV images reflect free FDG, whereas MR_FDG images reflect FDG metabolism, and SUV images are equivalent to the “sum” of MR_FDG and DV images (17). Thus, the combination of the three parameters improves the specificity and accuracy of lesion diagnosis. However, to our knowledge, the characteristics and the delineation method of whole-body dynamic ¹⁸F-FDG PET/CT Patlak multi-parametric imaging of lung tumor need further exploration. The aim of this study was to assess the characteristics of whole-body dynamic ¹⁸F-FDG PET/CT Patlak multi-parametric imaging in lung cancer and the influence of different delineation methods on quantitative parameters.

Methods

Patient clinical data collection

The study was approved by the Clinical Medical Research Ethics Committee of The First Affiliated Hospital of Anhui Medical University (PJ2019-15-04) and informed consent was provided by all individual participants. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Lung cancer diagnosis and treatment rely heavily on accurate imaging techniques, with ¹⁸F-FDG PET/CT playing a crucial role. The Patlak multi-parametric analysis method offers insights into tumor behavior and heterogeneity. In this study, we explored different ways of outlining to enhance the reliability and accuracy of lung cancer assessment using whole-body dynamic ¹⁸F-FDG PET/CT Patlak multi-parametric imaging.

The inclusion criteria were as follows (Figure 1): (I) adult lung cancer patients who underwent dynamic whole-body ¹⁸F-FDG PET/CT before treatment, (II) adequate image quality for image interpretation, and (III) the lesion pathology type was obtained by histopathological staining and immunohistochemical analysis. The exclusion criteria were poor image quality for analysis or incomplete pathological information.

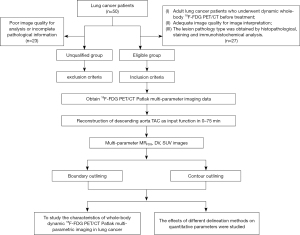

Figure 1 Flow diagram shows patient selection details. ¹⁸F-FDG PET/CT, flourine-18 fluorodeoxyglucose positron emission tomography/computed tomography; TAC, time-activity curve; MR_FDG, metabolic rate of FDG; DV, Patlak intercept; SUV, standardized uptake value.

From August 2020 to August 2022, 27 patients with pathologically confirmed lung cancer, who underwent dynamic whole-body ¹⁸F-FDG PET imaging were randomly included. Parametric images of MR_FDG and Patlak intercept (DV) (DV = V₀ + V_p = K₁K₂/(K₂ + K₃)² + V_p) were generated using the nested directed Patlak reconstruction method on Siemens Biograph Vision workstation (Siemens Healthineers, Erlangen, Germany). The maximum, mean, and peak values of primary lung cancer lesions were investigated using contour delineation and boundary delineation. Statistical analysis was performed to analyze the characteristics of multi-parametric images of lung cancer and the relationship with clinicopathological features, and to compare the effects of contour delineation and boundary delineation on quantitative parameters.

Whole-body dynamic ¹⁸F-FDG PET/CT imaging

A Siemens Biograph Vision PET/CT scanner (Siemens) was used. ¹⁸F-FDG was purchased from Nanjing Jiangyuan Andike Positron Research and Development Co. (Wuxi, China). Patients were required to fast for at least 6 hours before the scan, and their blood glucose levels were controlled below 8.1 mmol/L after 15 min of quiet rest. Once the purpose and advantages of the examination process had been explained to the patients and their family members and informed consent had been provided, the participants underwent dynamic whole-body PET/CT. PET data were acquired starting simultaneously with the injection of a weight-based dose of ¹⁸F-FDG (3.71±1.05 MBq/kg). The whole scanning process took approximately 75 min and consisted of the following steps (Figure 2): (I) low-dose whole-body CT (1.0 mm section thickness, 100 kV tube voltage, 43 mA/s tube current) for attenuation correction; (II) ¹⁸F-FDG injection that started at the same time as a 6-min dynamic single-bed PET scan centered on the cardiac region, which was used to acquire the input function (12 frames × 5 s, 6 frames × 10 s, 8 frames × 30 s); and (III) a subsequent set of 16 whole-body PET scans in continuous bed motion to capture the late dynamics of the tracer in both the blood plasma and the tissues (5 frames × 2 min, 11 frames × 5 min).

Figure 2 Whole-body dynamic ¹⁸F-FDG PET/CT Patlak multi-parametric imaging protocol. The whole scanning process took approximately 75 min and consisted of the following steps: (I) low-dose whole-body CT for attenuation correction; (II) ¹⁸F-FDG injection that started at the same time as a 6-min dynamic single-bed PET scan centered on the cardiac region, which was used to acquire the input function and (III) a subsequent set of 16 whole-body PET scans in continuous bed motion to capture the late dynamics of the tracer in both the blood plasma and the tissues. CT, computed tomography; SUV, standardized uptake value; MR_FDG, metabolic rate of FDG; FDG, fluorodeoxyglucose; DV, Patlak intercept; ¹⁸F-FDG PET/CT, flourine-18 fluorodeoxyglucose positron emission tomography/computed tomography.

Reconstruction method

After the scan was completed, the image-derived input function (IDIF) was automatically generated from the delineation of the proximal descending aorta using step (II). Patlak reconstruction (to perform the Patlak transformation) to form the MR_FDG, and DV parametric images (Figure 3) used all frames of the PET series and the IDIF. The patient’s blood glucose was obtained to calculate the MR_FDG using the following equation: the tracer uptake rate (Ki) = K₁K₃/(K₂ + K₃). K1: plasma to non-phosphorylated compartment, K2: non-phosphorylated to plasma compartment, K3: non-phosphorylated to phosphorylated compartment.

Figure 3 A 68-year-old man with left lung squamous cell carcinoma. First line: static SUV; the second line: MR_FDG images; the last line: DV images. (A) MIP of SUV image; (B) axial CT image; (C) axial fuse SUV image; (D) axial SUV image; (E) MIP of MR_FDG image; (F) axial CT image; (G) axial fuse MR_FDG image; (H) axial MR_FDG image; (I) MIP of DV image; (J) axial CT image; (K) axial fuse DV image; (L) axial DV image. The left upper lobe lung tumor display intense focal ¹⁸F-FDG uptake (MR_FDG-max =0.44 μmol·min⁻¹·mL⁻¹, DV_max =241.39%, SUV_max =16.47, TBR_max-SUV =22.00, TBR_max-MR_FDG =25.45, TBR_mean-SUV =12.50, TBR_mean-MR_FDG =14.62, CNR_max-SUV =74.32, CNR_max-MR_FDG =105.00, CNR_mean-SUV =41.40, and CNR_mean-MR_FDG =57.50). SUV, standardized uptake value; MR_FDG, metabolic rate of FDG; DV, Patlak intercept; MIP, maximum intensity projection; CT, computed tomography; ¹⁸F-FDG, flourine-18 fluorodeoxyglucose; TBR, target-to-background ratio; CNR, contrast-to-noise ratio.

MR_FDG = Ki × blood glucose. The last three dynamic PET frames (60 to 75 min) were used to reconstruct the routine static clinical PET images for SUV calculation [SUV = radiation concentration in the lesion (kBq/mL)/injection volume (MBq)/weight (kg)]. The reconstruction parameters were as follows: ordered subset expectation maximization (OSEM) True X + TOF, four iterations, five subsets, and 220 matrices, with relative scatter correction and no Gaussian post filtering.

Image analysis

Double-blind visual comparison of SUV, MR_FDG, and DV images was performed on the workstation (syngo.via, Siemens Healthineers) by two nuclear medicine physicians (attending physicians with more than 10 years of experience in PET reading). When conducting quantitative analysis of SUV, MR_FDG, and DV images, we needed to consider how to delineate the volume of interest (VOI) in the three images, especially the delineation of lesions. We used two different outlining methods in this study. The first implemented the contour outlining (i.e., threshold outlining) method to outline the lesion in the SUV images and replicate the contour (threshold outlining) in the MR_FDG and DV images, where the threshold outlining method automatically draws the VOI on the primary lung cancer lesion using 41% of the maximum pixel value as the segmentation threshold outline boundary (18). The second method used the boundary outline (i.e., shape outline, a spherical VOI of the largest diameter of the primary lesion) method in the SUV images to outline the lesion and replicate the shape in the MR_FDG and DV images (VOI shape consistent). The max, peak, and mean values of SUV, MR_FDG, and DV parameters of the primary lesion were obtained. In essence, ‘peak’ emphasizes the momentary highest value at a specific time or location, whereas the ‘maximum value’ considers the highest average or cumulative value over the entire time or spatial range. The background area was manually outlined in the adjacent tissue to obtain the mean value of the background (BKG_mean) and the standard deviation of the background (BKG_SD).

We used the target-to-background ratio (TBR) and the contrast-to-noise ratio (CNR) as two objective indicators to quantitatively assess the image quality in terms of the “lesion detectability”. The mean and max values of the TBR were given as: TBR_max = tumor VOI_max/background VOI_mean; TBR_mean = tumor VOI_mean/background VOI_mean. These were measured on SUV images TBR_max-SUV and TBR_mean-SUV, and on parametric MR_FDG images TBR_max-MR_FDG and TBR_mean-MR_FDG.

CNR is the lesion contrast (target tumor-background) divided by the noise (SD in the background). The CNR for the mean and max was given as: CNR_mean = (tumor VOI_mean-background VOI_mean)/background ROI_SD; CNR_max = (tumor VOI_max-background VOI_mean)/background ROI_SD. These were measured on SUV images CNR_mean-SUV and CNR_max-SUV, and on parametric MR_FDG images CNR_mean-MR_FDG and CNR_max-MR_FDG.

Statistical analysis

Statistical analysis was performed using SPSS software (version 23.0; IBM Corp., Armonk, NY, USA) and GraphPad Prism 8.0.2 (GraphPad Software, San Diego, CA, USA). All data were presented as mean ± SD or range as appropriate. Paired t-tests or unpaired t-tests were performed to compare two sets of data, and P values less than 0.05 were considered statistically significant.

Results

Patient characteristics and quantitative and semi quantitative FDG uptake in lung cancer lesions

In this study, 27 patients (15 males and 12 females; mean age: 64.67±10.55 years; tumor diameter: 2.94±1.11 cm; 13 adenocarcinomas, 12 squamous carcinomas, and two small cell lung cancer) were enrolled (Table 1) and Patlak reconstruction methods were used to generate good-quality multi-parametric images of the SUV, MR_FDG, and DV. The quantitative parameter values of SUV_max (13.16±5.45), SUV_peak (10.36±4.83), SUV_mean (7.56±3.52), MR_FDGmax (0.26±0.15) µmol·min⁻¹·mL⁻¹, MR_FDG-peak (0.19±0.12) µmol·min⁻¹·mL⁻¹, MR_FDG-mean (0.14±0.08) µmol·min⁻¹·mL⁻¹, DV_max (165.56%±99.89%), DV_peak (117.66%±72.24%), and DV_mean (62.16%±33.65%) were obtained for the lung primary lesions (Table 2 and Figure 4).

Figure 4 Quantitative parameters of lung cancer. (A) SUV; (B) MR_FDG; (C) DV. SUV, standardized uptake value; SUV_max, maximum SUV of target lesion; SUV_peak, peak SUV of target lesion; SUV_mean, average SUV of target lesion; MR_FDG, metabolic rate of FDG; FDG, fluorodeoxyglucose; MR_FDG-max, maximum MR_FDG of target lesion; MR_FDG-peak, peak MR_FDG of target lesion; MR_FDG-mean, average MR_FDG of target lesion; DV, Patlak intercept; DV_max, maximum DV of target lesion; DV_peak, peak DV of target lesion; DV_mean, average DV of target lesion.

Comparison of dynamic and static PET images of lesions

The maximum and mean values of the objective indicators TBR and CNR were statistically analyzed for 27 primary lesions in MR_FDG and SUV images (Table 3). As shown in Figure 5, the maximum and mean values of TBR and CNR of the primary lesion in MR_FDG images were significantly higher than SUV images, and the differences were statistically significant (all P<0.05).

Figure 5 TBR and CNR values. (A) TBR_max; (B) TBR_mean; (C) CNR_max; (D) CNR_mean. TBR_mean-MRFDG and TBR_max-MRFDG values are always higher than TBR_mean-SUV and TBR_max-SUV values for lung cancer. The same finding is observed for CNR. TBR_max, maximum value of TBR; TBR, target-to-background ratio; SUV, standardized uptake value; MRFDG, metabolic rate of FDG; FDG, fluorodeoxyglucose; TBR_mean, average value of TBR; CNR_max, maximum value of CNR; CNR, contrast-to-noise ratio; CNR_mean, average value of CNR.

The relationship between MRFDG and clinicopathological characteristics of lung cancer

The relationship between the maximum, peak, and mean values of MR_FDG images and the clinicopathological characteristics of lung cancer patients was statistically analyzed (Figure 6). As shown in Table 4, the differences of MR_FDG-max, MR_FDG-peak, and MR_FDG-mean, in different subgroups of lung tumor lesions were statistically significant (all P<0.05) with different lengths and pathological types, and there were higher in the subgroups of tumor lesions ≥3 cm and squamous cell carcinoma of the lung.

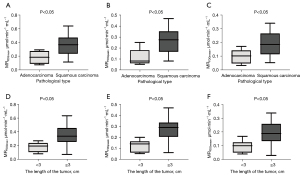

Figure 6 Relationship between MR_FDG-max, MR_FDG-peak, MR_FDG-mean, and clinicopathological features of lung cancer. (A) Relationship between MR_FDG-max and pathological type. (B) Relationship between MR_FDG-peak and pathological type. (C) Relationship between MR_FDG-mean and pathological type. (D) Relationship between MR_FDG-max and the length of tumor. (E) Relationship between MR_FDG-peak and the length of tumor. (F) Relationship between MR_FDG-mean and the length of tumor. MR_FDG-max, maximum MR_FDG of target lesion; MR_FDG, metabolic rate of FDG; FDG, fluorodeoxyglucose; MR_FDG-peak, peak MR_FDG of target lesion; MR_FDG-mean, average MR_FDG of target lesion.

Influence of VOI delineation method on quantitative data

We obtained quantitative parameters of the primary lesions in 27 lung cancer patients by different outlining methods (Table 5), the means and ratios of which are shown in Figure 7. Statistical analysis showed that the differences of the maximum and peak values of MR_FDG and DV were not statistically significant in the different outlining method subgroups (all P>0.05). However, the difference of the mean values of MR_FDG and DV were statistically significant in the different outline method groupings (all P<0.05).

Figure 7 The ratio and average of quantitative lung cancer parameters drawn in different delineation methods. Statistical analysis showed that the differences of the maximum and peak values of MR_FDG and DV were not statistically significant in the different outlining method subgroups (all P>0.05). However, the difference of the mean values of MR_FDG and DV were statistically significant in the different outline method groupings (all P<0.05). MR_FDG-max, maximum MR_FDG of target lesion; MR_FDG, metabolic rate of FDG; FDG, fluorodeoxyglucose; MR_FDG-peak, peak MR_FDG of target lesion; MR_FDG-mean, average MR_FDG of target lesion; DV, Patlak intercept.

Discussion

In the present study, we used the direct Patlak parametric model to reconstruct multi-parametric images derived from the 0–75-min dynamic scans, which resulted in multi-parametric images that were clearly less noisy than the parametric images produced by the traditional indirect image-based approach. Multi-parameter images of SUV, MR_FDG, and DV can be obtained through reconstruction. After that, the lesions can be delineated, so as to obtain the overall max, mean, and peak value of SUV, MR_FDG, and DV of lung cancer lesions. The new parametric images in this study complement the static SUV images, which adds more data to support lung cancer diagnoses. Our study contributes to the growing body of literature on quantitative PET imaging in oncology. By specifically investigating the impact of delineation methods on lung cancer assessment, we provide valuable insights into the nuances of utilizing the Patlak multi-parametric analysis method for this purpose.

Whole-body dynamic multi-parameter PET imaging is a recently developed technique in nuclear medicine. In this study, the multi-parametric PET images were of great visual quality. The objective parameters of SUV images and MR_FDG images were compared and analyzed by paired t-test. The results indicated that the TBR and CNR of MR_FDG images were both higher than those of the SUV images (P<0.05). This feature of MR_FDG images is consistent with the previous study (14,17). It has been reported that multi-parameter PET imaging contains more tracer dynamics information and is therefore less susceptible to the limitations associated with static SUV imaging, such as signal differences caused by acquisition time, blood glucose levels, and population heterogeneity (19-21). Higher TBR and CNR indicates better lesion detectability, thus MR_FDG images have better lesion detectability than SUV images. Although quantitative parameters image characteristics can theoretically facilitate lesion detectability, it is prudent to acknowledge that the discovery of additional lesions is contingent on multiple factors, beyond just image improvements. Our study echoed this trend, and we appreciate the clarification that this phenomenon is not unique to our investigation.

In this study, the differences of MR_FDG-max, MR_FDG-peak and MR_FDG-mean, in different subgroups of lung tumor lesions were statistically significant with different lengths and pathological types, and there were higher in the subgroups of tumor lesions ≥3 cm and squamous cell carcinoma of the lung. Tan et al. (22) also found that lung cancer lesions with different diameters have different PET metabolic parameters, and SUV values have important value in predicting tumor size. Schuurbiers et al. (23) proposed that lung adenocarcinomas undergo glycolysis under normoxic conditions, whereas squamous cell carcinoma has a very high anaerobic glycolysis rate. A previous study (24) showed that the metabolic rate of lung squamous cell carcinoma is significantly higher than that of lung adenocarcinoma. Glucose transporters (GLUTs) are associated with FDG uptake in lung cancer cells, and GLUT expression in lung squamous cell carcinoma is higher than that in lung adenocarcinoma (25,26).

It is well known that different delineation methods influence the quantitative parameters. The threshold delineation and the shape delineation are commonly used in the clinic. However, each delineation method has its own advantages and limitations (27). The threshold delineation method is widely used in lung cancer and can be performed quickly and consistently, with little variability between delineators, but the volume of the lesion is not fully delineated by ensuring that the threshold used for delineation is higher than the average background value, taking into account background absorption. In fact, the simple method involving selection of a fixed threshold failed to provide an accurate estimation of the tumor volume (28). The shape delineation method can completely delineate the lesion volume, but it often overestimates the lesion volume, including a large proportion of the background area in the delineation. The more the lesion shape deviates from the sphere, the more inaccurate the delineation results, and the greater the variability between different delineators. The large inter-observer variation in the gross tumor volume definition jeopardizes comparisons between clinicians, institutes, and treatments (29,30). The results of this study found that the two types of delineation method had less influence on the max and peak values of the quantitative parameters. Furthermore, in both delineation methods, only in individual DV figures did deviation appear. This is mainly because DV is more sensitive to the influence of movement, and the lesion position may be mismatched (31). During the post-processing phase, manual shifting should be performed to make them match. In the present study, the use of a different delineation method had a great influence on the mean value of the quantitative parameters (P<0.05). The possible cause is that the tumor volume will be overestimated via shape delineation method and underestimated via threshold delineation method. In clinical practice, we need to select the suitable delineation method according to the objective. Both delineation methods are acceptable if only the max and peak values of the quantitative parameters will be studied. Meanwhile, if the mean value of quantitative parameters needs to be considered, we must select the delineation method as required. For example, it is better to use the threshold delineation method in radiation therapy studies, because the aim is to describe the extent of the tumor as accurately as possible to avoid unnecessary irradiation of healthy tissue. Meanwhile, it is better to use the shape delineation method in tumor response assessment and to accept any tendency to overestimate the true volume.

This study had several limitations including the small sample size and single center study. In addition, the dynamic PET scan protocol and reconstruction method deserve to be optimized and further discussed. Moreover, it was only a preliminary exploration of multi-parameter imaging of lung cancer, and further exploration of its value in differential diagnosis and staging is required. We are currently collecting cases for future studies.

Conclusions

This study demonstrated that multi-parametric dynamic whole-body PET scanning helps to obtain quantitative estimates of glucose metabolism in lung cancer lesions with high TBR and CNR. The multi-parameters are various from different pathology types to tumor size. Different delineation methods were found to have a great influence on MR_FDG-mean and DV_mean. This study provides reference data and guidance on the delineation method for further research on lung cancer in the later stage.
