Diagnostic value of computed tomography myocardial perfusion imaging to detect coexisting microvascular dysfunction in patients with obstructive epicardial coronary artery disease

Introduction

The efficacy of computed tomography myocardial perfusion (CT-MP) in detecting ischemic regions has been repeatedly reported (1,2). A significant correlation has been reported between absolute myocardial blood flow (MBF) calculated using dynamic CT-MP and ¹⁵O-HsO positron-emission tomography in patients with coronary artery disease (3). Recently, coronary microvascular dysfunction (CMD) has been increasingly evaluated as a significant factor in the signs and symptoms of myocardial ischemia (4). Presence of CMD and diabetes were reported to be independent predictors of major adverse cardiovascular events in the 2-year follow-up period after fractional flow reserve (FFR)-guided revascularization (5). Myocardial ischemia caused by CMD has prognostic value for patients with chronic coronary syndrome (CCS) (6). We previously reported that CMD is associated with fibrofatty and necrotic component (FFNC) volume and epicardial fat volume on coronary computed tomography (CT) analysis (7). However, limited data are available regarding the prevalence of coexisting CMD in patients undergoing percutaneous coronary intervention (PCI) and the impact of CMD on absolute coronary flow. Therefore, the present study sought to (I) investigate the diagnostic value of coronary computed tomography angiography (CCTA) and quantitative evaluation of absolute coronary flow by CT-MP to detect coexisting CMD in patients with significant epicardial coronary stenosis and (II) analyze the predictive factors for territories with CMD before PCI. We present this article in accordance with the STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-23-618/rc).

Methods

Study design and patient population

Consecutive patients scheduled for elective PCI with anginal symptoms (Canadian Cardiovascular Society class 1–3) after physiological proof of ischemia by FFR in diagnostic coronary angiography were prospectively recruited from a single tertiary care center between April 2019 and November 2021. All patients had functionally significant de novo stenotic lesions in a single coronary artery (positive noninvasive test results or invasive tests, including FFR ≤0.80, or positive resting indices). Acute coronary syndrome patients were excluded. Patients with the inability to provide consent, history of myocardial infarction, occluded target vessels, left main coronary artery disease, chronic renal disease, and contraindications to adenosine were excluded. Of the 97 initially enrolled patients who underwent CT-MP before the scheduled PCI, 29 were excluded due to insufficient CT imaging for plaque analysis, CT-MP data acquisition, or incomplete physiological data. Thus, 68 patients who underwent a successful PCI and had complete CT-MP data were finally analyzed (Figure 1). Optimal medical therapy including high-dose statins, dual antiplatelets, and antihypertensives was administrated immediately after diagnostic catheterization in all enrolled patients. Ad hoc PCI was not performed in the study patients according to the study protocol.

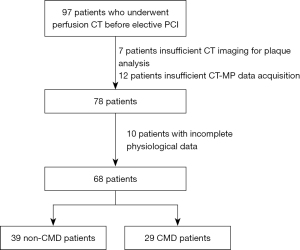

Figure 1 Flow diagram of included patients. CT, computed tomography; PCI, percutaneous coronary intervention; CT-MP, computed tomography myocardial perfusion; CMD, coronary microvascular dysfunction.

The study was approved by the Institutional Ethics Committee of Tsuchiura Kyodo General Hospital (reference #808/Tsuchiura; March 22, 2019) and conducted in compliance with the tenets of the Declaration of Helsinki (as revised in 2013) for investigations with human participants. Written informed consent for the study and future data use for retrospective analyses was provided by all patients.

Invasive coronary angiography, PCI, and FFR measurements

Standard diagnostic coronary angiography was initially performed via the radial artery using a 5F system to assess the coronary anatomy and severity of functional stenosis. Quantitative coronary angiography analysis was performed using the CMS-MEDIS system (Medis Medical Imaging Systems, Leiden, The Netherlands). A bolus heparin (5,000 IU) is injected before the angiography. Intracoronary nitroglycerin (0.2 mg) administration was performed at the start of the procedure and before functional measurements.

The FFR, mean transit time (Tmn), coronary flow reserve (CFR) and index of microcirculatory resistance (IMR) values were determined using a Radi Analyzer Xpress instrument with a single 0.014-inch PressureWire^TM (Abbott Vascular, St. Paul, MN, USA) at the time of diagnostic catheterization or before PCI. The FFR value was calculated as the ratio of the mean distal coronary pressure to the mean aortic pressure during stable hyperemia, which was induced by intravenous adenosine (140 µg/kg/min through a central vein). At first, the pressure guidewire was calibrated at the tip of guiding catheter. And then, the wire was advanced distal to the coronary stenosis, and the intracoronary pressure was measured. Subsequently, 3 mL of room-temperature saline was administrated three times, and the baseline Tmn was determined. CFR was defined as the resting Tmn divided by the hyperemic Tmn. The IMR was calculated as follows: IMR = P_a × T_mn [(P_d − P_w)/(P_a − P_w)], where P_a is the aortic pressure during maximum hyperemia, P_d is the distal coronary pressure during maximum hyperemia, and P_w is the coronary wedge pressure (8). CMD was defined by IMR ≥25. Strict prohibition of ingesting caffeinated beverages was instructed for >24 hours before catheterization. Eligible patients who had non-totally occluded and functionally significant stenosis (FFR ≤0.80) subsequently underwent preprocedural CT-MP assessment before the scheduled PCI procedure for the culprit lesion.

All patients underwent PCI using a 6F system via the radial artery according to the standard technique and latest guidelines. Coronary stent implantation (2^nd or 3^rd generation drug-eluting stents) was performed with predilatation. The type of stent was selected at the operator’s discretion and the strategy was determined by the interventionist. Online quantitative coronary angiography was performed to determine the appropriate stent size for avoiding aggressive stent expansion. Successful PCI was defined as resulting in <20% residual stenosis, thrombolysis in myocardial infarction grade 3 flow, no side branch occlusion or distal embolization, and no PCI-related myocardial infarction.

Coronary CT angiography and the assessments of plaque characteristics

A 320-row multidetector computed tomography (MDCT) system (Aquilion ONE; Canon Medical Systems Corporation, Otawara, Japan) was used for acquisition of MDCT images in accordance with the Society of Cardiovascular Computed Tomography guidelines (9). Coronary artery calcium scores obtained from non-contrast cardiac CT were analyzed using the method described by Agatston et al. (10). Quantitative plaque characteristics were analyzed according to the definitions from previous study (11). The 3-D plaque quantification was performed for both the target lesions and target vessels using semi-automated plaque analysis software (QAngioCT Research Edition version 2.1.9.1, Medis Medical Imaging Systems) with appropriate manual correction (12). Total plaque volume and FFNC volume were selected as clinically relevant parameters from previous study, and plaque quantification in the whole vessel was performed (13).

Epicardial fat volume, epicardial fat attenuation, pericoronary adipose tissue attenuation index (PCATA) and CT-derived cardiac mass analysis

From CCTA images, epicardial fat volume and epicardial fat attenuation were measured using semi-automated analysis software (VirtualPlace, Aze Inc., Otawara, Japan) as previously described (14).

Dedicated workstation (Aquarius iNtuition Edition, version 4.4.13. P3; TeraRecon Inc., Foster City, CA, USA) is used for the analysis of the PCATA. The proximal 40 mm segment of the left anterior-descending artery and left circumflex artery, and proximal 10–50 mm segment of the right coronary artery were traced, as described previously (15). Pericoronary fat attenuation value was determined based on all voxels with CT attenuation between −190 and −30 HU located within a radial distance from the outer vessel wall equal to the diameter of the coronary vessels. Pericoronary fat attenuation was measured by an expert investigator blinded to the clinical data (Sugiyama T).

Quantitative assessment of left ventricular (LV) mass was conducted using the Aquarius iNtuition Workstation Edition version 4.4.13 (TeraRecon Inc.) at the mid-diastole phase, as previously described (16). Two independent investigators (Sugiyama T and Kanaji Y) analyzed the whole target vessel territory cardiac mass and the cardiac mass at risk from the target lesion.

CT-MP assessment

A second-generation 320-row MDCT system (Aquilion ONE; Canon Medical System Corporation) was used for dynamic CT-MP/CCTA examination in accordance with the Society of Cardiovascular Computed Tomography guidelines (9). CT-MP dynamic scans were performed with a tube voltage of 80 kV and tube current of 120 mA at 70–80% of the R-R interval. CCTA and CT-MP protocols have been previously reported (3). Stress dynamic CT-MP with intravenous adenosine triphosphate infusion (0.016 mg/kg/min) was followed by rest dynamic CT-MP. For each dynamic CT-MP examination, 50 mL of contrast medium, followed by a 30-mL saline chaser, was infused at 5 mL/s using a dual-head power injector. A bolus-tracking technique with real-time image reconstruction was used with the region of interest set in the pulmonary artery trunk at a threshold of 100 HU. After a 5-s delay, dynamic CT-MP images were acquired for 25 s using the electrocardiography (ECG) monitoring for prospective triggering with a phase window of only 70–80% of the R-R interval. For dynamic imaging, a tube voltage of 80 kV and a tube current of 120 mA were used.

Rest CCTA imaging was performed as a boost scan during rest dynamic CT-MP, with a tube voltage of 80 kV and tube current of 650 mA [for body mass index (BMI) <22.5 kg/m²] or 800 mA (for BMI ≥22.5 kg/m²) at 75% of the R-R interval with 0.5 mm reconstruction. The boost timing was the peak enhancement time of the left main coronary trunk in stress dynamic CT-MP.

Quantitative assessment of MBF using CT-MP imaging was performed using commercially available software Vitrea version 8.10 (Vital Images Inc., Minnesota, USA) as previously reported (17,18). The MBF was calculated using model-independent deconvolution analysis. The time attenuation curve of the ascending aorta was used as the input function. The CT-MBF was evaluated using a 17-segment model. Vessel territory regional and whole-myocardial MBF were assessed.

Statistical analysis

Statistical analyses were performed using SPSS version 25.0 (SPSS, Inc., Chicago, IL, USA). Categorical data are presented as numbers and percentages and were compared using the Chi-squared test. Shapiro-Wilk statistics was used for the assessment of the normality of the distributed values. Continuous data are presented as the mean ± standard deviation for normally distributed variants or as the median [interquartile range (IQR)] for non-normal distribution and were analyzed using the Student’s t-test and the Mann-Whitney U test, respectively. Associations were evaluated by analyzing Pearson’s correlation for normally distributed data and Spearman’s correlation for non-normally distributed data. Univariate and multivariate logistic regression analyses were performed to predict the occurrence of CMD. The Hosmer-Lemeshow test was used to evaluate the fitness of the models. Receiver operating characteristic (ROC) curve analysis was performed to assess the best cutoff values for predicting CMD. A prediction model for CMD was constructed to determine the incremental discriminatory and reclassification performance of CT plaque analysis findings and CT-MP indices using relative integrated discrimination improvement (IDI) and category-free net reclassification index (NRI). Statistical significance was set at P<0.05.

Results

Baseline characteristics and angiographic and physiological findings

Tables 1,2 summarize the baseline characteristics and angiographic and physiological data of 68 patients in two groups divided by IMR <25 or IMR ≥25. Thirty-nine lesions (57.4%) were non-CMD and 29 (42.6%) were CMD. Lesion distribution showed 13 lesions (19.1%) in the right coronary artery, 48 (70.6%) in the left anterior-descending artery, and 7 (10.3%) in the left circumflex artery. In lesions with CMD, the reference diameter was larger compared to those without CMD [2.61 (IQR, 2.33–3.19) vs. 2.39 (IQR, 2.16–2.74), P=0.038].

In CT-MP-derived regional analysis, rest MBF of lesions CMD was comparable between the two groups with and without CMD [0.80 (IQR, 0.59–0.95) and 0.90 (IQR, 0.69–1.12) mL/min/g, P=0.199). The hyperemic-MBF of lesions without CMD was significantly higher than those with CMD [2.31 (IQR, 1.67–3.34) and 1.68 (IQR, 0.84–2.44) mL/min/g, P=0.015]. The prevalence of CFR_CT-MP <2.0 was significantly higher in lesions with CMD than in those without CMD (62.1% vs. 28.2%, P=0.011).

The median estimated radiation dose was 19.8 (18.8–22.8) mSv for CT studies.

CT plaque analysis

Table 3 summarizes the results of CT plaque analysis. On per-plaque analysis, FFNC volume was significantly greater in lesions with CMD than in those without [31.8 (IQR, 19.0–48.9) and 25.1 (IQR, 17.2–32.1) mm³, P=0.045]. Epicardial fat volume was significantly higher in lesions with CMD than in those without [166 (IQR, 124–215) and 126 (IQR, 97–172) mm³, P=0.023]. Epicardial fat attenuation was not significantly different between lesions with and without CMD [−80.03 (IQR, −83.79 to −76.24) and −83.08 (IQR, −84.82 to −78.62) HU, P=0.333].

Pericoronary fat attenuation index

Table 4 shows the pericoronary fat attenuation index in lesions with and without CMD. There were no significant differences in the PCATA of the PCI target vessel, right coronary artery, and left anterior-descending artery and the mean value of the three vessels between non-CMD and CMD territories.

Determinants of CMD

Regional CFR_CT-MP <2.0, regional hyperemic MBF, whole cardiac CFR_CT-MP <2.0, whole cardiac stress MBF, FFNC volume, and epicardial fat volume were significant predictors of CMD on univariate logistic regression analysis. As for the significant predictors in univariate analysis, regional CFR_CT-MP <2.0 and regional hyperemic MBF were selected as regional CT-derived flow variables, and FFNC volume and epicardial fat volume were selected as morphological characteristics in coronary plaques and the epicardium.

For the multivariable logistic regression analysis, four models using significant predictors in the univariate analyses were constructed. The Hosmer-Lemeshow test indicated that the model using a combination of regional hyperemic MBF and FFNC volume showed the best fit for predicting CMD (Table 5). ROC analysis revealed the best cut-off values of these two variables for predicting coexisting CMD were regional hyperemic MBF <2.59 mL/min/g [area under the curve (AUC): 0.674; 95% confidence interval (CI): 0.545–0.804] and FFNC volume >31.68 (AUC: 0.644; 95% CI: 0.507–0.780), respectively.

The addition of FFNC- and CT-MP-derived hyperemic MBF to regional CFR_CT-MP and epicardial fat volume significantly improved the ability to predict the presence of CMD (Table 6).

When the total cohort was divided into four groups according to the best cutoff values for regional hyperemic MBF and NNFC volume, the prevalence of CMD in the four groups was significantly different (P=0.026; Figure 2).

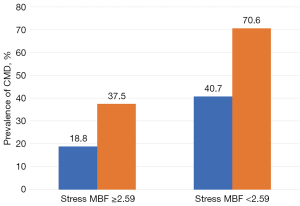

Figure 2 Prevalence of CMD. The total cohort was divided into four groups according to the best cutoff values for regional hyperemic MBF and FFNC volume, and the prevalence of CMD in the four groups was significantly different. Blue bar shows FFNC ≤31.68 mm³, and orange bar shows FFNC >31.68 mm³. MBF, myocardial blood flow; CMD, coronary microvascular dysfunction; FFNC, fibrofatty and necrotic core components.

Discussion

This study aimed to clarify the diagnostic value of CT-MP-derived coronary flow indices and CCTA-based plaque analysis for detecting lesions with coexisting microvascular dysfunction in patients with de novo functionally stenotic lesions. The major findings were (I) the prevalence of CMD was 42.6%; (II) hyperemic MBF and FFNC volume were both significant predictors of CMD; (III) reference diameter was larger in lesions with CMD compared to those without CMD; (IV) CT-MP-derived hyperemic MBF had incremental diagnostic efficacy in addition to FFNC. In the lesions with hyperemic MBF <2.59 and FFNC >31.68, CMD accounted up to 70.6% of all target vessel territories, compared with 18.8% with neither of these two factors.

To the best of our knowledge, this is the first study to investigate the diagnostic performance of CT-MP findings in vessel territories with coexisting microvascular dysfunction in patients undergoing FFR-guided PCI. The present study indicated that 42.6% of territories with functionally significant stenotic lesions exhibited coexistence of CMD. Our results also indicate that CCTA-defined plaque characteristics are associated with microvascular dysfunction. Our report is in line with a review by Crea et al., which reported a significant association between the risk factors for CMD and atherosclerosis (4).

Clinical implications

CT-MP has been reported to be a useful modality for identifying or ruling out hemodynamically significant coronary lesions (19). However, the diagnostic efficacy of CT-MP for detecting CMD and its clinical implications in patients with coexisting CMD with functionally significant lesions undergoing PCI remain to be determined. Our results suggest that CT-MP can help determine the presence of CMD in PCI target territories. Further studies with larger sample sizes are needed to test our hypothesis-generating results and evaluate the prognostic value of pre-PCI CMD in target territories after PCI.

Limitation

This study had several important limitations. The present study included only 68 lesions in the final analysis. The study design, including its single-center, non-randomized, observational nature, could only provide hypothesis-generating results. All the patients included in the present study had functionally significant lesions. Lesions with CMD but without epicardial significance were not assessed. CMD was assessed using only IMR; the difference between diffuse coronary artery disease and microvascular disease was not assessed. Patients with severe renal dysfunction were excluded because of the contrast used for CT-MP. The rigorous exclusion criteria and CT protocols limited the number of study patients and may have resulted in a certain level of selection bias. In particular, 88.2% of the patients were male, which may limit the generalizability of the present study’s results.

A control group of patients without chest pain or evidence of atherosclerosis was not included in the present study. Therefore, the prevalence of CMD in asymptomatic patients without significant stenosis could not be assessed based on the results of the present study.

However, the strength of the present study is that all data were obtained using the same CT modality (a 320 detector raw CT system).

Conclusions

Coexisting CMD is not uncommon in territories with functionally significant epicardial lesions in patients that undergo PCI. Absolute coronary flow assessment using CT-MP and plaque analysis using CCTA may help detect coexisting subtended microvascular dysfunction in patients with CCS and functionally significant epicardial coronary lesions. Further studies are needed to validate our hypothesis-generating results and assess the clinical significance of coexisting CMD in patients undergoing PCI.

Acknowledgments

The authors thank all physicians, nurses, radiographers, other heart team members, and patients who were involved in this study. And this study was presented at the European Society of Cardiology Congress 2022.

Funding: None.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-23-618/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-23-618/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work and ensure that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was approved by the Institutional Ethics Committee of Tsuchiura Kyodo General Hospital (reference #808/Tsuchiura; March 22, 2019) and conducted in compliance with the tenets of the Declaration of Helsinki (as revised in 2013) for investigations with human participants. All patients provided written informed consent for the study and future data use for retrospective analyses.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.

References

1. George RT, Arbab-Zadeh A, Miller JM, Kitagawa K, Chang HJ, Bluemke DA, Becker L, Yousuf O, Texter J, Lardo AC, Lima JA. Adenosine stress 64- and 256-row detector computed tomography angiography and perfusion imaging: a pilot study evaluating the transmural extent of perfusion abnormalities to predict atherosclerosis causing myocardial ischemia. Circ Cardiovasc Imaging 2009;2:174-82. [Crossref]
2. Rochitte CE, George RT, Chen MY, Arbab-Zadeh A, Dewey M, Miller JM, et al. Computed tomography angiography and perfusion to assess coronary artery stenosis causing perfusion defects by single photon emission computed tomography: the CORE320 study. Eur Heart J 2014;35:1120-30. [Crossref]
3. Kikuchi Y, Oyama-Manabe N, Naya M, Manabe O, Tomiyama Y, Sasaki T, Katoh C, Kudo K, Tamaki N, Shirato H. Quantification of myocardial blood flow using dynamic 320-row multi-detector CT as compared with 15O-H2O PET. Eur Radiol 2014;24:1547-56. [Crossref]
4. Crea F, Camici PG, Bairey Merz CN. Coronary microvascular dysfunction: an update. Eur Heart J 2014;35:1101-11. [Crossref]
5. Hu X, Zhang J, Lee JM, Chen Z, Hwang D, Park J, Shin ES, Nam CW, Doh JH, Chen S, Yang J, Tanaka N, Kuramitsu S, Matsuo H, Takashima H, Akasaka T, Koo BK, Wang J. Prognostic impact of diabetes mellitus and index of microcirculatory resistance in patients undergoing fractional flow reserve-guided revascularization. Int J Cardiol 2020;307:171-5. [Crossref]
6. Taqueti VR, Hachamovitch R, Murthy VL, Naya M, Foster CR, Hainer J, Dorbala S, Blankstein R, Di Carli MF. Global coronary flow reserve is associated with adverse cardiovascular events independently of luminal angiographic severity and modifies the effect of early revascularization. Circulation 2015;131:19-27. [Crossref]
7. Hoshino M, Yang S, Sugiyama T, Zhang J, Kanaji Y, Hamaya R, et al. Characteristic findings of microvascular dysfunction on coronary computed tomography angiography in patients with intermediate coronary stenosis. Eur Radiol 2021;31:9198-210. [Crossref]
8. Aarnoudse W, van den Berg P, van de Vosse F, Geven M, Rutten M, Van Turnhout M, Fearon W, de Bruyne B, Pijls N. Myocardial resistance assessed by guidewire-based pressure-temperature measurement: in vitro validation. Catheter Cardiovasc Interv 2004;62:56-63. [Crossref]
9. Abbara S, Blanke P, Maroules CD, Cheezum M, Choi AD, Han BK, Marwan M, Naoum C, Norgaard BL, Rubinshtein R, Schoenhagen P, Villines T, Leipsic J. SCCT guidelines for the performance and acquisition of coronary computed tomographic angiography: A report of the society of Cardiovascular Computed Tomography Guidelines Committee: Endorsed by the North American Society for Cardiovascular Imaging (NASCI). J Cardiovasc Comput Tomogr 2016;10:435-49. [Crossref]
10. Agatston AS, Janowitz WR, Hildner FJ, Zusmer NR, Viamonte M Jr, Detrano R. Quantification of coronary artery calcium using ultrafast computed tomography. J Am Coll Cardiol 1990;15:827-32. [Crossref]
11. Motoyama S, Ito H, Sarai M, Kondo T, Kawai H, Nagahara Y, Harigaya H, Kan S, Anno H, Takahashi H, Naruse H, Ishii J, Hecht H, Shaw LJ, Ozaki Y, Narula J. Plaque Characterization by Coronary Computed Tomography Angiography and the Likelihood of Acute Coronary Events in Mid-Term Follow-Up. J Am Coll Cardiol 2015;66:337-46. [Crossref]
12. Park HB, Lee BK, Shin S, Heo R, Arsanjani R, Kitslaar PH, Broersen A, Dijkstra J, Ahn SG, Min JK, Chang HJ, Hong MK, Jang Y, Chung N. Clinical Feasibility of 3D Automated Coronary Atherosclerotic Plaque Quantification Algorithm on Coronary Computed Tomography Angiography: Comparison with Intravascular Ultrasound. Eur Radiol 2015;25:3073-83. [Crossref]
13. Nakazato R, Shalev A, Doh JH, Koo BK, Gransar H, Gomez MJ, Leipsic J, Park HB, Berman DS, Min JK. Aggregate plaque volume by coronary computed tomography angiography is superior and incremental to luminal narrowing for diagnosis of ischemic lesions of intermediate stenosis severity. J Am Coll Cardiol 2013;62:460-7. [Crossref]
14. Oda S, Utsunomiya D, Funama Y, Yuki H, Kidoh M, Nakaura T, Takaoka H, Matsumura M, Katahira K, Noda K, Oshima S, Tokuyasu S, Yamashita Y. Effect of iterative reconstruction on variability and reproducibility of epicardial fat volume quantification by cardiac CT. J Cardiovasc Comput Tomogr 2016;10:150-5. [Crossref]
15. Oikonomou EK, Marwan M, Desai MY, Mancio J, Alashi A, Hutt Centeno E, et al. Non-invasive detection of coronary inflammation using computed tomography and prediction of residual cardiovascular risk (the CRISP CT study): a post-hoc analysis of prospective outcome data. Lancet 2018;392:929-39. [Crossref]
16. Klein R, Ametepe ES, Yam Y, Dwivedi G, Chow BJ. Cardiac CT assessment of left ventricular mass in mid-diastasis and its prognostic value. Eur Heart J Cardiovasc Imaging 2017;18:95-102. [Crossref]
17. Tanabe Y, Kido T, Uetani T, Kurata A, Kono T, Ogimoto A, Miyagawa M, Soma T, Murase K, Iwaki H, Mochizuki T. Differentiation of myocardial ischemia and infarction assessed by dynamic computed tomography perfusion imaging and comparison with cardiac magnetic resonance and single-photon emission computed tomography. Eur Radiol 2016;26:3790-801. [Crossref]
18. Kono T, Uetani T, Inoue K, Nagai T, Nishimura K, Suzuki J, Tanabe Y, Kido T, Kurata A, Mochizuki T, Ogimoto A, Okura T, Higaki J, Yamaguchi O, Ikeda S. Diagnostic accuracy of stress myocardial computed tomography perfusion imaging to detect myocardial ischemia: a comparison with coronary flow velocity reserve derived from transthoracic Doppler echocardiography. J Cardiol 2020;76:251-8. [Crossref]
19. Obara M, Naya M, Oyama-Manabe N, Aikawa T, Tomiyama Y, Sasaki T, Kikuchi Y, Manabe O, Katoh C, Tamaki N, Tsutsui H. Diagnostic value of quantitative coronary flow reserve and myocardial blood flow estimated by dynamic 320 MDCT scanning in patients with obstructive coronary artery disease. Medicine (Baltimore) 2018;97:e11354. [Crossref]
