Preliminary exploration of the correlation between spectral computed tomography quantitative parameters and spread through air spaces in lung adenocarcinoma

Introduction

Lung cancer is among the most prevalent malignant tumors, with pulmonary adenocarcinoma being its most common pathological type (1,2). The World Health Organization (WHO) classification in 2015 recognized the invasion pattern known as spread through air spaces (STAS) in lung adenocarcinoma (LUAD), which involves micropapillary clusters, solid nests, or single cells spreading beyond the main tumor’s edge into the air spaces (3). The prognostic importance of STAS was further confirmed by the WHO classification of 2021 (4).

STAS is a poor prognostic factor in LUAD and has been linked to reduced disease-free survival (DFS) and overall survival (OS) (5,6). Minimally invasive sublobar resection is gaining popularity as a surgical option for treating early-stage tumors (7,8). However, recent studies (9,10) have shown that STAS-positive adenocarcinomas have a higher tendency to relapse after sublobar resection. Therefore, it is not suitable for such tumors and lobectomy is preferred. Thus, preoperative determination of STAS status is crucial for selecting the most suitable surgical method to improve patient outcomes.

Unfortunately, STAS can only be identified post-operatively (11). To date, several studies have utilized preoperative computed tomography (CT) characteristics to evaluate STAS in LUAD. Studies (12-14) have found a correlation between STAS and certain CT features, such as spiculation, lobulation, and pleural indentation. Nevertheless, these CT features are subjective and lack quantitative evaluation. Spectral CT imaging can obtain the density of materials and images at different kiloelectron volt (keV) levels, which can be used for quantitative analysis of substances (15). Spectral CT has been extensively utilized in the analysis of lung cancer, exhibiting its potential value in distinguishing benign and malignant lung lesions, identifying lymph node metastasis, and distinguishing pathological grading of lung cancer (16-18).

Therefore, investigating the correlation between spectral CT quantitative parameters and STAS may facilitate preoperative diagnosis of STAS in LUAD. However, this relationship has yet to be investigated by researchers. Thus, this study aimed to explore the potential association between spectral CT quantitative parameters and STAS in LUAD. We present this article in accordance with the STARD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-23-984/rc).

Methods

Patients

This retrospective study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and approved by the Ethics Committee of the Affiliated Hospital of Qingdao University (No. QYFY WZLL 28103); the requirement for individual consent for this retrospective analysis was waived. We consecutively collected patients with LUAD who underwent surgical resection at the Affiliated Hospital of Qingdao University between January 2021 and October 2022, and they were included in the study if they met the following conditions: (I) pathology-confirmed adenocarcinoma and (II) had undergone spectral CT scan within a month prior to the surgery. The exclusion criteria were as follows: (I) multiple lesions; (II) preoperative neoadjuvant therapy; and (III) incomplete pathological data. Ultimately, 47 patients (22 males and 25 females; age range, 50–71 years; mean age, 60.9±5.8 years) were included in this study. Figure 1 shows the flow chart of patient selection.

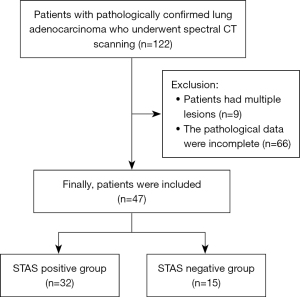

Figure 1 Flow chart of the study. CT, computed tomography; STAS, spread through air spaces.

CT examination

The Revolution CT scanner (GE Healthcare, Chicago, IL, USA) was used to perform CT scans. The scanning parameters included: tube voltage of 80 and 140 kVp instantaneous switching (0.5 ms); automatic tube current modulation was enabled; helical tube rotation time of 0.5 s; pitch of 0.992, scanning field of view of 500 mm; slice thickness and gap of 5 mm. Intravenous injections of contrast media (Omnipaque 350, GE Healthcare) were administered to patients at a rate of 3.0 mL/s, totaling 70–80 mL. Scanning for both arterial phase (AP) and venous phase (VP) were conducted at 25 and 60 s intervals, respectively, after injection of contrast media.

CT image analysis

The original data was reconstructed to produce images with a slice thickness of 1.25 mm. The reconstructed images were sent to an Advantage Workstation (AW4.6, GE Healthcare) and analyzed by the Gemstone Spectral Imaging (GSI) Viewer software (GE Healthcare). The images were analyzed by two radiologists with over 5 years of work experience. We selected the largest slice of the lesion to identify the region of interest (ROI), avoiding vessels, necrosis, and calcification as much as possible. CT values on 40, 70, and 100 keV monochromatic images were measured for the lesion, along with its iodine concentration (IC) on iodine-based material decomposition image. The IC of the aorta on the same slice was also measured. To minimize the effect of patient variation, the IC of the lesion was normalized to the IC of the aorta, resulting in the normalized iodine concentration (NIC). The slope of the spectral curve (λHU) was calculated as λHU = (CT40keV − CT100keV)/(100–40). The CT characteristics of the lesion, including tumor density, lobulation, spiculation, pleural indentation, and cavitation, were assessed independently by two radiologists without prior knowledge of STAS status. Any disagreements were discussed and resolved. The maximum diameter of the lesion and its solid component were measured, and the consolidation/tumor ratio (CTR) was then calculated.

Histopathologic evaluation

The definition of STAS was established as the detection of tumor cells in the pulmonary air spaces beyond the primary tumor margin (4).

Statistical analysis

The software SPSS 26.0 (IBM Corp., Armonk, NY, USA) was used for statistical analysis. Non-normally distributed continuous variables were described using medians and interquartile ranges, whereas frequencies and percentages were used to express categorical variables. Mann-Whitney U test or independent sample t-test was applied to compare continuous variables, and the χ² test or Fisher’s exact test was employed to scrutinize categorical variables. We utilized the area under the curve (AUC) of the receiver operating characteristic (ROC) to evaluate the diagnostic efficiency of significant factors or combined models comprising CT characteristics and quantitative parameters, derived through multivariate logistic regression analysis. A two-sided P<0.05 was considered statistically significant.

Results

Patient clinical and CT characteristics

Out of the 47 identified lesions, 32 were STAS positive and 15 were STAS negative, yielding a positive STAS rate of 68.1% (32/47) as shown in Table 1. Pathologic stage (P=0.040), tumor density (P<0.001), spiculation (P=0.003), maximum solid component diameter (P=0.008), and CTR (P=0.001) varied significantly between the two groups, whereas the other characteristics did not demonstrate any statistically significant differences.

Quantitative parameters analysis

Table 2 displays the correlation between STAS status and quantitative parameters of spectral CT. The results indicated that CT100keVa (P=0.002) and CT100keVv (P=0.007) exhibited significant differences between the two groups. Specifically, the CT100keV values of AP and VP were significantly higher in the STAS positive group as compared to the STAS negative group. Nevertheless, no significant differences were observed between the two groups in terms of CT40keV, CT70keV, IC, NIC, and λHU for AP and VP.

Diagnostic efficiency of quantitative parameters and CT characteristics

Table 3 presents the diagnostic efficiency of each quantitative parameter and CT characteristic, whereas Figure 2 depicts their corresponding ROC curves. According to the findings, the tumor density demonstrated a superior diagnostic capability (AUC =0.824, 95% confidence interval (CI): 0.709–0.939, sensitivity =59.4%, specificity =100.0%) compared to other variables. Furthermore, the diagnostic performance of the quantitative parameter CT100keVa (AUC =0.779, 95% CI: 0.633–0.925, sensitivity =78.1%, specificity =80.0%) surpassed that of CT100keVv (AUC =0.746, 95% CI: 0.605–0.886, sensitivity =43.8%, specificity =100.0%).

Figure 2 ROC curves of each CT quantitative parameter and CT characteristic. CT, computed tomography; a, arterial; v, venous; CTR, consolidation/tumor ratio; ROC, receiver operating characteristic.

Diagnostic efficiency of the combined models

A radiological model was created by conducting the stepwise logistic regression on the significant CT features, and the model consisted of tumor density and spiculation. These significant quantitative parameters, separately combined with the radiological model, were then used to develop the combined models. Figure 3 displays the ROC curves for all combined models. The diagnostic efficiency of these models was superior to that of individual parameters and CT features, and the CT100keVa + CT100keVv + Radiological model showed the highest diagnostic capability (AUC =0.952, 95% CI: 0.894–1.000, sensitivity =90.6%, specificity =86.7%) (Table 4). Figures 4,5 display two examples of spectral CT images.

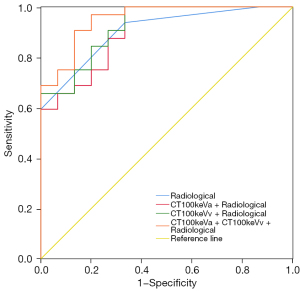

Figure 3 ROC curves of each combined model. CT, computed tomography; a, arterial; v, venous; ROC, receiver operating characteristic.

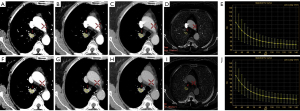

Figure 4 Spectral CT quantitative parameters in a 66-year-old female with LUAD with STAS. (A-E) Arterial phase; (F-J) venous phase. (A,F) CT40keV value is 95.48 and 108.84 HU, respectively; (B,G) CT70keV value is 56.63 and 64.30 HU, respectively; (C,H) CT100keVa value is 46.57 and 52.71 HU, respectively; (D,I) the IC of the lesion is 6.69×100 and 7.84×100 µg/cm³, respectively; (E,J) spectral curve (λHU is 0.82 and 0.94, respectively). Yellow circles represent the regions of interest. HU, Hounsfield unit; CT, computed tomography; LUAD, lung adenocarcinoma; STAS, spread through air spaces; IC, iodine concentration; λHU, slope of the spectral curve.

Figure 5 Spectral CT quantitative parameters in a 64-year-old female with lung adenocarcinoma without STAS. (A-E) Arterial phase; (F-J) venous phase. (A,F) CT40keV value is 105.42 and 222.91 HU, respectively; (B,G) CT70keV value is 3.84 and 69.23 HU, respectively; (C,H) CT100keVa value is −22.57 and 29.23 HU, respectively; (D,I) the IC of the lesion is 18.00×100 and 27.23×100 µg/cm³, respectively; (E,J) spectral curve (λHU is 2.13 and 3.23, respectively). Yellow circles represent the regions of interest. HU, Hounsfield unit; CT, computed tomography; STAS, spread through air spaces; IC, iodine concentration; λHU, slope of the spectral curve.

Discussion

The study findings revealed a significant correlation between STAS phenomenon and the spectral CT quantitative parameters CT100keVa and CT100keVv. The STAS-positive group had significantly higher CT100keVa and CT100keVv values compared to the STAS-negative group. Additionally, combining significant quantitative parameters with CT features demonstrated a good predictive value for STAS in LUAD (AUC =0.952). This suggests that spectral CT quantitative parameters are a valuable supplement to conventional CT features that can aid clinicians in preoperative determination of STAS status in LUAD.

STAS is a novel invasive modality that serves as a significant factor contributing to the unfavorable prognosis of LUAD. Several previous studies (19-21) have demonstrated that STAS is linked to aggressive clinicopathological features including pleural invasion, high-grade histological type, and lymphovascular invasion. Tumors that exhibit STAS positivity display more invasive ability and a faster growth rate. These phenomena indicate that STAS-positive tumors may require a greater blood supply to proliferate. The degree of tumor enhancement, as reflected by the CT value, can be used to measure the degree of tumor vascularization, thereby reflecting the blood supply of the tumor. Therefore, the findings of this study indirectly reflected the blood supply requirement of tumors exhibiting STAS.

Regarding the conventional CT signs, our study reveals that STAS-positive tumors were more likely to exhibit spiculation and a greater number of solid components, which is consistent with earlier studies (12,13). In contrast to the previous studies, our study did not observe a significant correlation between STAS and lobulation or pleural indentation. This deviation from the prior research results may be related to the sample size. Nevertheless, our results still indicated that STAS-positive tumors exhibited a higher incidence of lobulation and pleural indentation.

In order to quantitatively evaluate the lesions, many studies have adopted radiomics and achieved good results (22-24). Radiomics can extract a large number of quantitative features from images, which can reflect information that cannot be observed by the naked eye. However, our study provides a novel approach for clinical application aimed at establishing a new relationship between spectral CT quantitative parameters and STAS. Compared with conventional CT, spectral CT can quantitatively evaluate tumors using multiple parameters. Our research findings indicate that CT100keVa and CT100keVv can independently identify STAS status. This, to the best of our knowledge, is the first novel discovery that suggests the potential value of spectral CT quantitative parameters in identifying STAS in LUAD. Previous studies (13,25) have built models utilizing CT features to evaluate STAS in LUAD and achieved moderate predictive efficiency. In this study, the model based on the combination of conventional CT features and spectral CT quantitative parameters showed better discriminative ability, with an AUC of 0.952, sensitivity of 90.6%, and specificity of 86.7%, and outperformed their models. Combining qualitative and quantitative analysis represents a fantastic opportunity for clinicians to distinguish STAS-positive from -negative cases of LUAD.

Although the current study presented critical findings, it has some limitations. First, the sample size of this study was small, and more cases are necessary to validate our findings. Second, we did not examine the association between spectral CT parameters and STAS in various histologic subtypes of LUAD. Third, our study was restricted to a limited number of tumor layers and did not consider the overall characteristics of the lesion. Fourth, our study used a single CT scanner, and the findings need to be validated on different types of scanners.

Conclusions

Our study demonstrates a correlation between spectral CT quantitative parameters and STAS status in LUAD, with CT100keVa and CT100keVv exhibiting the potential for identifying STAS.
