Investigation of relayed nuclear Overhauser enhancement effect at −1.6 ppm in an ischemic stroke model

Introduction

During ischemic stroke, vascular occlusion triggers a complex signaling cascade that ultimately leads to neuronal cell death. This serial of multi-step pathophysiological events is known as the ischemic cascade (Figure 1). Briefly, the reduced blood flow causes anaerobic glycolysis and tissue acidosis, ionic pump failure and anoxic depolarization, causing increased glutamate release, and an elevation in intracellular calcium. This is then followed by mitochondrial collapse, cytotoxic edema, increased nitric oxide generation, and the production of free radicals which results in lipid peroxidation, leading to apoptosis or necrosis (1,2).

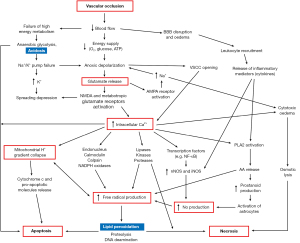

Figure 1 Ischemic cascade of biochemical events in the event of cerebral ischemia. The red boxes indicate the events of interest in CEST MRI; bold font represent important events. BBB, blood-brain barrier; ATP, adenosine triphosphate; VSCC, voltage sensitive calcium channel; AMPA, α-amino-3-hydroxy-5-methyl-4-isoxazolepropionic acid; NMDA, N-methyl-D-aspartate; NADPH, nicotinamide adenine dinucleotide phosphate; NF-κB, nuclear factor κB; nNOS, neuronal nitric oxide synthase; iNOS, inducible nitric oxide synthase; PLA2, phospholipase A2; AA, arachidonic acid; NO, nitric oxide. The figure was adapted from Sutherland et al. (1) with permission.

The purpose of acute stroke reperfusion treatment is to salvage as much viable tissue as possible prior to cell death; this tissue is known as the penumbra. However, the pathophysiology of stroke is complex, making the identification of the at-risk tissue a non-trivial task. The viability and size of the penumbra change dynamically depending on the regional blood flow, pathophysiological environment, and treatment (3). Thus, the ability to identify regions of tissue undergoing different stages or biochemical events within the ischemic cascade can reveal crucial information regarding the pathophysiology of the stroke tissue, and ultimately lead to a more precise diagnosis and therapeutic strategy.

Chemical exchange saturation transfer (CEST) is a magnetic resonance imaging (MRI) technique that works through the phenomenon by which saturation is transferred between solute and water molecules through chemical exchange (4,5). This contrast technique exploits the low-concentration solute molecules with exchangeable protons whose properties vary depending on the physiological conditions.

Thus far, the most widely studied form of CEST MRI is amide proton transfer (APT), originating from the backbone of proteins and peptides (6). APT is sensitive to intracellular pH changes (7) owing to the base-catalyzed amide proton exchange rate in the physiological range (8). As tissue acidosis occurs relatively early in the ischemic cascade (Figure 1), APT imaging is often proposed to be used as a biomarker for estimating the penumbra. Past studies have assessed the capability of APT imaging of supplementing conventional MRI in delineating the acidotic penumbra (9-16). While the results are promising, APT imaging provides mainly information on the tissue acidification of the ischemic injury.

Besides low-concentration metabolites, CEST MRI is also sensitive to nuclear Overhauser enhancement (NOE)-mediated effects that is related to spin interactions. Specifically, NOE is the transfer of nuclear spin polarization from one nuclear spin population to another via dipole-dipole cross-relaxation (17-19).

Previous studies have shown that for mobile proteins, the dominant mechanism for NOE effects observed upfield of water resonance is through intramolecular NOE from a non-exchangeable proton to an exchangeable proton, followed by chemical exchange between the exchangeable proton and bulk water (20-22), also known as relayed NOE. One of the most studied forms of relayed NOE effect is that resonating around −3.5 ppm (23). This relayed NOE effect is attributed to aliphatic protons and has been investigated particularly in neuro-oncology (24-27) as well as in ischemic stroke (28).

Recently, an increasing number of studies have investigated the relayed NOE effect resonating at −1.6 ppm [NOE(−1.6 ppm)] (19,29-31). In contrast to relayed NOE at −3.5 ppm, studies have shown the NOE(−1.6 ppm) signal to potentially arise from membrane choline (Cho) phospholipids, although the exact pathway of the observed effect is yet to be elucidated (32,33).

A crucial event in the ischemic cascade is the increased production of free radicals (Figure 1). These reactive oxygen species react irreversibly with cellular constituents including the double bonds of phospholipids, causing lipid peroxidation and membrane damage (2), which then leads to apoptosis or necrosis. Since lipid peroxidation occurs just before cell death, NOE(−1.6 ppm) related to membrane phospholipids may be sensitive to the consequent changes in the membrane, and can thus potentially act as a biomarker to identify tissue that is affected by lipid peroxidation and at immediate risk of cell death. This would provide vital information on a different stage of the ischemic cascade, allowing for a more in-depth analysis of the ischemic injury and thus precise diagnosis.

Previously, a 5-pool Lorentzian fitting was performed to quantify the NOE(−1.6 ppm) dip but the results were quite noisy and the NOE deficit area was only compared with diffusion deficit area (29). This study aimed to analyze NOE(−1.6 ppm) effect in an animal stroke model in a different way in order to determine the potential utility of NOE(−1.6 ppm) for ischemic stroke diagnosis to complement conventional MRIs such as diffusion and perfusion weighted imaging, as well as APT imaging. It is stipulated that the results may shed light on the implications of the observed effect and the new pathophysiological information revealed through NOE(−1.6 ppm) imaging.

Methods

Animal preparation

All animal experiments were approved by the Animal Care and Ethical Review Committee of the University of Oxford and the Home Office (UK), in compliance with the University of Oxford Policy on the Use of Animals in Scientific Research and the Animals (Scientific Procedures) Act 1986 (UK). Reporting of animal experiments is in line with the ARRIVE guidelines. Intraluminal filament method, where a filament (Doccol, USA) was advanced up to the internal carotid artery was applied to induce middle cerebral artery occlusion (MCAO) (34) in six male Sprague Dawley rats around 8–10 weeks old and weighed in the low 200 g range, sourced from Envigo, UK. The filament remained in place throughout imaging. The CEST data of one of the rats was significantly noisy and was thus excluded; only data from the five remaining rats (referred to as Animals 1–5) were used for all subsequent analyses. The rats underwent MRI scans about 14 mins after MCAO.

MRI

All MRI experiments were carried out using a 9.4 T field strength scanner (Agilent, CA, USA). The images had spatial resolution of 0.5×0.5×1 mm³ and 64×64 matrix size. T₁-weighted images were acquired using nine inversion times (TI) from 13.14–8,000 ms (repetition time/TR =10,000 ms, echo time/TE =27.16 ms); the scan took 3.35 mins. Diffusion-weighted images (DWI) were obtained at two b values –0 and 1,000 s/mm² in 31 seconds. A multi-phase pseudo-continuous arterial spin labeling (MP-PCASL) was applied at 8 radiofrequency (RF) phase offsets ranging from 0º to 315º with TE =28.68 ms and TR =4,000 ms. The label plane was placed around the neck, perpendicular to the carotid arteries, with the label duration of 1.4 s, comprising of a series of 600 µs long Hanning-shaped pulses with 600 µs separation and post-label delay of 0.55 s. Baseline signal intensity and reference images for coil sensitivity were acquired by omitting labelling pulses. The perfusion-weighted images (PWI) had an acquisition time of 1.48 min.

Multi-slice CEST images were acquired at the frequency offsets: 100, 72, 51, 37, 26, 19, 13.5, 9.7, 7, 5, 4.1, 3.9, 3.8, 3.7, 3.6, 3.5, 3.4, 3.3, 3.2, 3.1, 2.9, 2.7, 2.4, 2.1, 1.9, 1.8, 1.7, 1.6, 1.5, 1.2, 0.9, 0.6, 0.3, 0, −0.3, −0.6, −0.9, −1.2, −1.5, −1.7, −2, −2.3, −2.6, −2.9, −3.2, −3.5, −3.8 and −4.1. The unsaturated images were ±300 ppm. The saturation scheme used consisted of 50 primary and 5 secondary Gaussian pulses of 20 ms pulse duration and 50% duty cycle; three saturation flip angles (FAs) were acquired: 184º, 276º, and 366º (equivalent to average powers of 0.547, 0.820, and 1.088 µT respectively), and the secondary pulses were added to compensate for saturation loss during multi-slice acquisition. The total number of CEST slices was 10 with an in-plane 64×64 acquisition. The voxel size was 0.5×0.5×1 mm³. Each CEST experiment had an acquisition time of 8.67 mins; TE =27.16 ms and TR =5 s. The average total acquisition time was about 120 mins because some animals took a longer time to be shimmed and some scans had to be repeated.

Data analysis

Apparent diffusion coefficient (ADC) maps were calculated as: ADC=−1(b2−b1)ln(Sb2Sb1) where b₁=0 and b₂=1,000 s/mm². K-means clustering with k = 2 and K-means++ algorithm for center initialization seeding was used to automatically segment the ischemic lesions from the generated ADC maps (35-37) and a contralateral mask was manually drawn opposite to this. T₁ maps were obtained via mono-exponential fitting of the acquired signal intensities as a function of the inversion time (TI): S=|a+c×exp(−TIT1)|, where a and c are constants. Cerebral blood flow (CBF) maps were generated using a model-based fitting approach (38), where regions of similar phase offsets in the raw multiphase data were defined using supervoxel clustering which were then used to obtain high signal-to-noise ratio phase maps to produce calibrated CBF maps via a Bayesian multiphase fitting approach.

The collected CEST data were first normalized by the unsaturated image I₀, i.e., Z(Δω)=I(Δω)I0, where I(Δω)is the CEST image at frequency offset Δω and I₀ was the averaged signals at ±300 ppm. Then, the Z-spectra were smoothed using a moving average over a three-data point window to eliminate noise. Following this, the Z-spectra were corrected for B₀ inhomogeneity via voxel-wise single-Lorentzian curve fitting at frequency offsets assumed to only have direct water saturation (39)—within ±1.2 ppm and above/below ±6.0 ppm. The z-spectra were interpolated to the acquired frequency offset list above and −1.6 ppm after the B₀ inhomogeneity correction.

The APT signal was quantified using the apparent exchange-dependent relaxation (AREX) of the inhomogeneity-corrected CEST images as below (40):

MTRRex(Δω)=1Z(Δω)−1Zref[1]

AREX(Δω)=MTRRex(Δω)T1w[2]

where Δω is the resonance frequency of the labile proton, in this case, Δω =3.5 ppm, Z_ref is the reference signal at −3.5 ppm and T_1W is the water longitudinal relaxation time (41,42).

Additionally, the commonly used magnetization transfer ratio asymmetry at 3.5 ppm [MTR_asym(3.5 ppm)] was also calculated. The generated CEST images were smoothed using a 2×2 median filter.

NOE(−1.6 ppm) is not easy to be quantified because this transfer of magnetization effect is around the shoulder of the z-spectrum, may not be seen by direct observation of the z-spectrum and its effect is much smaller than the other commonly known effects such as APT and NOE(−3.5 ppm) (43,44). Although changes of the NOE(−1.6 ppm) had been reported by several studies (19,29-31), the quantified results were very noisy and huge signal variation was observed.

In this study, the NOE(−1.6 ppm) was quantified using a different approach, where the inverse of collected signal at −1.6 ppm, Z(−1.6 ppm) was first subtracted from a reference using the signal at 19 ppm, Z(19 ppm) normalized by the signal at 13.5 ppm, Z(13.5 ppm), i.e., Z(19ppm)Z(13.5ppm) and then divided by the water longitudinal relaxation time:

NOE(−1.6ppm)=1Z(−1.6ppm)−Z(19ppm)Z(13.5ppm)T1w[3]

The reference signal, Z(19ppm)Z(13.5ppm) should be free from potential contaminations such as magnetization transfer (MT) and other CEST/rNOE exchange (45); the opposite offset (1.6 ppm) was not used as the reference as it may have contaminations from nearby CEST effects such as amine around 2 ppm which has been shown to alter significantly during ischemia due to slower amine proton exchange rate in an acidic environment (13,46); the quantified NOE signal is normalized by the water relaxation time because it is widely known that this will change significantly after stroke (35-37).

Relative NOE(−1.6 ppm) was calculated as: ReNOE(−1.6ppm)=NOE(−1.6ppm)|mean(NOEnormal(−1.6ppm))|, where NOE_normal(−1.6 ppm) is the quantified NOE signal in the contralateral normal appearing mask manually drawn opposite to the ischemic region. A two-tailed paired t-test was used to test for significant differences between the ReNOE(−1.6 ppm) within the ADC deficit and contralateral areas at 5% significance level.

To determine the optimal saturation power for maximum contrast between the ischemic and non-ischemic tissues, the contrast-to-noise ratio (CNR) of the NOE(−1.6 ppm) maps was evaluated as:

CNR=contrastCov[4]

where contrast is:

contrast=|mean(NOEnormal(−1.6ppm))−mean(NOEischemic(−1.6ppm))mean(NOEnormal(−1.6ppm))+mean(NOEischemic(−1.6ppm))|[5]

and CoV is the coefficient of variation:

CoV=STD(NOEnormal(−1.6ppm))|mean(NOEnormal(−1.6ppm))|[6]

STD is the standard deviation.

All the generated CEST images were smoothed using a 2×2 median filter (43,44). To compare spatial heterogeneity patterns of the ADC, AREX(3.5 ppm), and NOE(−1.6 ppm) maps within the ischemic area, the two-dimensional gradients i.e., the directional changes of the voxels within the ADC deficit area were calculated:

∇F=∂F∂xi^+∂F∂yj^[7]

where F(x,y) is the image, i.e., the ADC, AREX(3.5 ppm), or NOE(−1.6 ppm) maps.

Lastly, the deficit areas of the AREX(3.5 ppm), NOE(−1.6 ppm), and CBF maps were also automatically segmented using K-means clustering, with some manual corrections verified by an experienced clinician. The binary masks of the segmented ADC, CBF, AREX(3.5 ppm), and NOE(−1.6 ppm) areas were overlaid to produce the mismatch maps of the deficit areas. All the data processing and analyses were performed using custom written functions in Matlabs on the biggest ADC deficit slice of each animal.

Results

Figure 2 shows the ADC and T₁ maps, as well as the 184º, 276º, 366º FA Z-spectra and NOE(−1.6 ppm) images of a representative animal (Animal 1). ADC was decreased in the ischemic area, while T₁ was hyperintense, consistent with previous findings (36). The segmented ADC deficit area (red) and the corresponding contralateral mask (blue) are overlaid on the MR images.

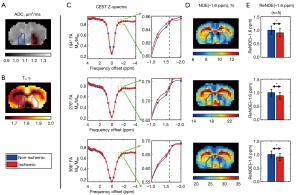

Figure 2 Representative results of the different magnetic resonance imaging data collected in this study. (A) ADC (µm²/ms), (B) T1 (s), (C) CEST Z-spectra, and (D) NOE(−1.6 ppm) at 184º, 276º, 366º saturation flip angles of a representative animal (Animal 1), along with (E) the bar chart of ReNOE(−1.6 ppm) of all animals (n=5). The ADC deficit (red) and contralateral (blue) areas are overlaid on the MR images. *, P<0.05. ADC, apparent diffusion coefficient; FA, flip angle; CEST, chemical exchange saturation transfer; NOE, nuclear Overhauser enhancement; ReNOE, relative nuclear Overhauser enhancement; MR, magnetic resonance.

The CEST Z-spectra decreased in magnitude while the CEST dips broadened with increasing FA, as a result of the increased saturation power. A dip was observed around −1.6 ppm across all FAs. Upon generating the NOE(−1.6 ppm) maps, it was observed that the ischemic areas were hypointense, in line with a previous study (29), and coincided well with the ADC deficit area. The ReNOE(−1.6 ppm) of all five animals were found to have significant differences between the ischemic and non-ischemic tissues across all FAs.

The average NOE(−1.6 ppm) of all five animals increased from 184º to 366º FA in both ischemic and non-ischemic tissues (Figure 3A). The CNR of NOE(−1.6 ppm) between the two tissues was found to peak at 276º FA, with 184º FA producing the lowest CNR, followed by 366º, as shown in Figure 3B. Likewise, the CNR of AREX(3.5 ppm) and AREX(2 ppm) were also maximized at 276º FA (Figure S1). Since this FA produced the highest CNR in both NOE(−1.6 ppm) and AREX(3.5 ppm), the CEST/AREX/NOE maps at 276º FA were used for all subsequent analyses. The most commonly used metric, MTR_asym(3.5 ppm) was reported in Figure S2 to facilitate the comparison of results with the literature and future studies.

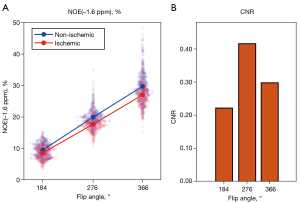

Figure 3 The NOE(−1.6 ppm) signal in the ischemic and non-ischemic tissues. (A) The average NOE(−1.6 ppm) of ischemic (red) and non-ischemic (blue) tissues are shown as line plots; the individual NOE(−1.6 ppm) values are visualized as SinaPlots (47). (B) CNR of the NOE(−1.6 ppm) between the two tissues. The flip angles: 184º, 276º, and 366º are equivalent to average powers of 0.547, 0.820, and 1.088 µT respectively. NOE, nuclear Overhauser enhancement; CNR, contrast-to-noise ratio.

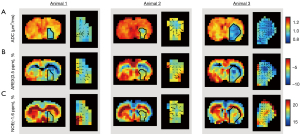

Figure 4 shows the ADC, AREX(3.5 ppm), and NOE(−1.6 ppm) maps at 276º FA of three representative animals (Animal 1–3), overlaid with the spatial gradients within the ADC deficit areas, shown as arrows. The ADC within the deficit area was comparably more homogenous than the 3.5 ppm AREX map and −1.6 ppm NOE map. Comparing between the two maps, although both AREX(3.5 ppm) and NOE(−1.6 ppm) were hypointense within the ADC deficit area, the two maps exhibited different spatial signal variations within the deficit area, evidenced by the different gradient directions in the AREX(3.5 ppm) and NOE(−1.6 ppm) plots.

Figure 4 The quantified results of representative animals. The spatial gradients (arrows) of the (A) ADC, (B) AREX(3.5 ppm), and (C) NOE(−1.6 ppm) maps at 276º FA within the ADC deficit area of Animals 1–3. ADC, apparent diffusion coefficient; AREX, apparent exchange-dependent relaxation; NOE, nuclear Overhauser enhancement; FA, flip angle.

The deficit areas of the ADC, CBF, AREX(3.5 ppm), and NOE(−1.6 ppm) maps were further segmented in Figure 5. Both AREX(3.5 ppm) and NOE(−1.6 ppm) produced deficit areas that coincided well with the ADC deficit areas. The AREX(3.5 ppm) deficit areas were intermediate in size between the ADC and CBF deficit areas. Conversely, the NOE(−1.6 ppm) deficit areas were found to be equal or larger than the ADC deficit areas, but smaller than the AREX(3.5 ppm) deficit areas. Altogether, the mismatch maps of the MRI deficit areas produced four regions of increasing sizes: ADC deficit (white) < NOE(−1.6 ppm) (red) < AREX(3.5 ppm) (blue) < CBF (green).

Figure 5 The ischemic masks in different magnetic resonance imaging results and mismatch maps of representative animals. The (A) ADC (white), (B) CBF (green), (C) AREX(3.5 ppm) (blue), and (D) NOE(−1.6 ppm) (red) deficit areas of Animals 1–3, and (E) the mismatch maps with display priority of white > red > blue > green. ADC, apparent diffusion coefficient; CBF, cerebral blood flow; AREX, apparent exchange-dependent relaxation; NOE, nuclear Overhauser enhancement.

Discussion

This study analyzed NOE(−1.6 ppm) effect in animal stroke models in order to assess its potential utility in an ischemic stroke model. Several studies have sought to find possible origins of the relayed NOE effect resonating at −1.6 ppm. Zhang et al. first showed egg phosphatidylcholine (PtdCho) with cholesterol to exhibit the same NOE(−1.6 ppm) resonance observed in that of rat brain, suggesting the Cho phospholipids in cell membranes to be related to the observed relayed NOE effect (31). Zu et al. also later verified the NOE(−1.6 ppm) signal to be sensitive to Cho phospholipids and the presence of cholesterol was also shown to be crucial in inducing the relayed NOE effect. In vivo, the signal possibly stems from the head groups of PtdCho and sphingomyelin (SM) as they are the major phospholipid components of eukaryotic cells (32).

Although Cho phospholipids are largely agreed to be related to NOE(−1.6 ppm), the exact pathway or mechanism of inducing the relayed NOE signal is still not well understood. The study by Zu et al. initially suggested the relayed NOE signal to be the dependent on the membrane fluidity and composition (32). However, a more recent publication by Chang et al. showed that the key to inducing the relayed NOE signal is not the lipid bilayer dynamics, but the hydroxyl group of cholesterol (33). Still, this has only been verified at the molecular level and thus further investigations are still needed to determine the pathway of the relayed NOE signal in vivo. Nevertheless, the studies largely agree that NOE(−1.6 ppm) effect potentially arises from membrane Cho phospholipids (31-33).

PtdCho is a major component of the phospholipid membrane of cells and has been shown to be broken down in response to cerebral ischemia (48). This loss is also associated with a breakdown of other phospholipids including SM (49) as well as activation of phospholipases (50). This results in free fatty acid formation and activation of enzymes such as cyclooxygenases and lipoxygenases that can lead to reactive oxygen species formation. The presence of free radicals can cause substantial lipid peroxidation and loss of cell integrity. This is a prominent part of the ischemic cascade, as strategies to restore phospholipid (PtdCho and SM) levels such as the use of CDP-choline can prevent lipid peroxidation, cell loss and could be used as a potential therapeutic treatment for stroke patients (49,51,52). Thus, the ability to identify regions of tissue affected by lipid peroxidation could contribute towards an improved therapeutic strategy.

From the results, it was found that NOE(−1.6 ppm) exhibited different signal variations within the ADC deficit area compared to AREX(3.5 ppm) (Figure 4), suggesting that the APT and NOE(−1.6 ppm) were sensitive to different changes within the ischemic tissue and thus relay information on separate stages or events in the ischemic cascade. Most notably, while the AREX(3.5 ppm) deficit areas were intermediate in size between the ADC and CBF deficit areas, the NOE(−1.6 ppm) deficit areas were observed to be smaller than the AREX(3.5 ppm) deficit areas but larger than or equal in size to the ADC deficit areas (Figure 5). This suggested that the NOE(−1.6 ppm) maps further delineated the ADC/AREX(3.5 ppm) mismatch into zones of normal and decreased NOE(−1.6 ppm) effect. Since NOE(−1.6 ppm) effect is related to the membrane phospholipids, it is possible that the NOE(−1.6 ppm) is sensitive to the lipid peroxidation of the membranes, and its deficit area highlighted the tissue with potential membrane damage and tissue close to cell death (Figure 1).

Previous studies on APT imaging of ischemic stroke focused on its use to separate the DWI/PWI mismatch into zones of acidotic penumbra and benign oligemia (53-55), as was also observed in the present study. The findings of the present study thus builds on this, demonstrating that the use of NOE(−1.6 ppm) may further delineate the ADC/AREX(3.5 ppm) mismatch into zones of tissue affected by lipid peroxidation and membrane damage, and those that were not. When analyzed together, the DWI/NOE(−1.6 ppm)/APT/PWI mismatch map revealed four regions within the ischemic tissue, possibly: the ischemic infarct, at-risk tissue undergoing lipid peroxidation and membrane damage, acidotic at-risk tissue, and the benign oligemia. Therefore, the use of NOE(−1.6 ppm) CEST MRI has the potential to allow for a better understanding of stroke pathophysiology and improve tissue fate definition, thus achieving a more precise diagnosis. Nevertheless, it is not possible to rule out that there may be a potential change of the lesion size, MRI and tissue parameters (e.g., relaxation rates, pH, etc.) over the course of MRI acquisitions that could affect the observed mismatch maps. In any case, histopathology and further studies are still needed to elucidate the origins or observed changes of NOE(−1.6 ppm).

It is worth noting that NOE(−1.6 ppm) effect may not be visible using clinical scanners with low field strengths of 3 T and below as the induced effect is very small and close to the water center frequency. Nevertheless, recent years have seen the rapid methodological and hardware developments of ultrahigh magnetic field clinical MRI particularly at 7 T, and an increasing usage of 7 T MR scanners for human imaging (56). The implementation of high field strength scanners would thus enable the investigation of NOE(−1.6 ppm) at the clinical level (23).

In addition to the aforementioned elusive signal inducing pathway, the changes in NOE(−1.6 ppm) proton pool in ischemic tissue that result in the changes in the observed effect is also currently not well understood. In order to speculate possible explanations for this, numerical simulation of a six-pool CEST model using average experimental water relaxation times and parameters taken from literature (57-62) was performed (see Appendix 1). The concentration of the NOE(−1.6 ppm) pool of ischemic tissue was kept constant while the exchange rate was varied with a range of values (decrease by 30–50% of the normal value) to match the observed trends in the experimental data as seen in Figure 3. Although the concentration is also expected to change in ischemic tissue, it is difficult to isolate the concentration effects from the exchange rate as the two have the same effect on the observed signal. In order to estimate the effective changes in the proton pool after stroke, changes in the proton concentration were assumed to be negligible, as stipulated by Zhou et al. in the case of early time point stroke (8). The simulation results suggested that the observed decrease in NOE(−1.6 ppm) was likely due to a reduction in the NOE(−1.6 ppm) exchange rate by 44% of the normal value if the concentration did not change (Figure S3). Still, further studies involving proteomics are recommended to shed light on the percentage of concentration change and determine the isolated changes in all the pool concentration and exchange rate after stroke (63).

In this study, K-means clustering was used to automatically segment the deficit areas of the MR images as it is difficult to differentiate between the gray and white matter of the rat brains manually due to the small volume and low resolution of the images. Although this approach differs from the clinical gold standard of having experienced radiologists drawing the regions-of-interests manually, automatic segmentation allows for more reproducible results. However, due to the small size of the rat brains, the automatic segmentation of the deficit areas may have included the ventricles. Additionally, the small sample size was also one of the limitations of the study.

Multi-pool Lorentzian fits are another popular method to quantify the various CEST and relayed NOE effects, but it is not easy to have a reliable fit at −1.6 ppm due to the magnitude of this effect and its small frequency separation with the water. For more reliable signal quantification at −1.6 ppm, it is suggested to first smooth the acquired Z-spectra with a moving average to minimize noise and then only quantify it using Eq. [3] with reference signal not affected by any known exchange effect and normalized by a nearby saturated signal, e.g., Z(19 ppm)/Z(13.5 ppm). It is believed that the quantified NOE(−1.6 ppm) in this study is more ‘clean’ because longitudinal relaxation time which is widely known to change after stroke, has been minimized by dividing it with T₁ and the reference signal [Z(19 ppm)/Z(13.5 ppm)] is minimally effected by MT and other factors; the reference signal can be a ratio of any two neighboring offsets that are free from any known CEST or NOE. Nevertheless, it is possible that direct saturation as well as relayed NOE at −3.5 ppm and potentially some minor effect from MT at −1.6 ppm could still affect the quantified NOE(−1.6 ppm). In order to ensure optimal and reliable NOE(−1.6 ppm) could be obtained, the experiments were repeated with three different saturation powers. It was found that all the experiments showed consistent NOE(−1.6 ppm) effect after stroke using the proposed definition. This is the first study to show CEST imaging coupled with DWI and PWI may potentially separate the ischemic tissue into four zones to better understand the pathophysiology or the ischemic cascade after stroke. More investigations are needed to improve the specificity of the quantified relayed NOE at −1.6 ppm to support the observations, e.g., the most optimal way to quantify this small NOE signal, and to confirm that CEST can be used to detect the biochemical events of the ischemic cascade. In addition, the saturation time was not optimized in this study due to the time constraint in the induced stroke experiments.

Conclusions

CEST imaging of NOE(−1.6 ppm) that is related to membrane phospholipids shows potential in identifying ischemic tissue that is affected by lipid peroxidation and membrane damage, separate from the acidotic tissue estimated using APT. When the NOE(−1.6 ppm) deficit area is analyzed together with the DWI, APT and PWI deficit areas, the ischemic tissue could potentially be defined using information from four different sources. This can reveal important information regarding the complex pathophysiology of the stroke tissue and contribute to a more precise acute stroke diagnosis. Nevertheless, further studies are needed to elucidate the origins and observed changes of NOE(−1.6 ppm).
