Deep medullary veins as an important imaging indicator of poor prognosis in acute ischemic stroke: a retrospective cohort survey

Introduction

Acute ischemic stroke (AIS) refers to brain tissue in the blood supply area becoming ischemic due to occlusion or narrowing of an intracranial artery, leading to brain cell necrosis. It is associated with a poor prognosis, a high disability rate, and a recurrence rate of about 11–12%, and is currently recognized as the second leading cause of death worldwide (1,2). The prognosis of AIS is influenced by various factors, such as age, hypertension, diabetes mellitus, hyperuricemia (3), proprotein convertase subtilisin/kexin type 9 (PCSK9) levels, and genetic polymorphisms (4). The neuroimaging factors related to AIS include ischemic semidark zone, infarct size, hemorrhagic transformation, and collateral circulation formation. Among these, collateral circulation may be particularly significant, as it improves the reperfusion rate of brain tissue, reduces the rate of hemorrhagic transformation, decreases mortality, and ultimately leads to a better clinical outcome for AIS patients (5-8).

The current assessment of collateral circulation is divided into structural and functional assessments, multiphase computed tomography angiography (mCTA), magnetic resonance angiography (MRA), susceptibility-weighted imaging (SWI), and digital subtraction angiography (DSA), with the latter comprising computed tomography perfusion (CTP), arterial spin labeling (ASL), and magnetic resonance (MR) perfusion-weighted imaging (PWI). In contrast, the advantage of SWI is the display of tiny intracerebral veins, the sensitivity to paramagnetic substance, the accurate reflection of changes in deoxygenated hemoglobin content (9), and the ability to reveal prominent veins that contain high levels of deoxyhemoglobin. When there is a mismatch between the oxygen supply and oxygen demand of brain tissue in the hypoperfused area of AIS, the soft meningeal or medullary veins on the infarcted side appear dilated and enlarged compared to the healthy side of the same layer, thus reflecting poor compensation of the collateral circulation; therefore, these 2 manifestations are currently considered to be imaging markers of the status of the collateral circulation (10-15). However, the imaging evaluation criteria regarding collateral circulation have not been standardize, and the evaluation of the collateral circulation by the soft meningeal veins remains problematic in clinical application.

Over recent years, the small cerebral veins involved in the formation of the deep lateral circulation in the brain have gradually received increased attention, especially the deep medullary veins (DMVs), which drains the white matter of the lateral paraventricular brain and has been widely used in the study of various diseases. DMVs are located in the periventricular white matter region, with the vast majority being distributed in the head and body of the caudate nucleus or next to the body of the lateral ventricle (16). Computed tomography (CT) and conventional MR examination sequences are unable to show DMVs, and they are only visible on SWI images. The degree of DMV visualization is subject to influence by intracerebral blood flow, making it capable of reflecting brain tissue reperfusion and the quality of collateral circulation from a venous perspective after the onset of AIS. Previous studies (16-18) have demonstrated that a reduced number of DMV visualizations can be used as an imaging marker for cerebral white matter hypersignal and cerebral small vessel disease. However, whether DMV morphological changes and reduced visualizations can be utilized as imaging markers for AIS remains to be investigated.

The objective of this study was thus to evaluate the distribution and morphological features of DMVs in the brains of patients with AIS using SWI imaging. First, visualization scoring criteria were developed based on the degree of DMV visualization continuity, and then symmetry was judged based on the degree and numbers of DMV expansion so as to determine whether DMVs could be a new imaging index to predict the prognosis of AIS from various perspectives. The study aims to provide robust support for the clinical management and evaluation of patients with AIS. We present this article in accordance with the STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-23-321/rc).

Methods

Study design and population

A retrospective cohort study was conducted on patients who were hospitalized in the Department of Neurology of Liaoning Provincial People’s Hospital and diagnosed with AIS between January 2019 and September 2021. After screening based on inclusion and exclusion criteria was applied, a total of 90 individuals were included in this study (Figure 1). The study was conducted in accordance with the Declaration of Helsinki (revised in 2013) and was approved by the medical ethics committee of The People’s Hospital of Liaoning Province (No. 2022-K001). Informed consent was obtained from all individual participants. The sample size was calculated using the 10-fold events per variable (EPV) principle, which is a common method for multifactorial regression analysis (19).

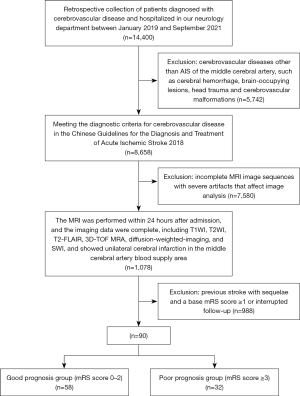

Figure 1 Case screening flowchart. AIS, acute ischemic stroke; MRI, magnetic resonance imaging; T1WI, T1-weighted imaging; T2WI, T2-weighted imaging; FLAIR, fluid-attenuated inversion recovery; 3D-TOF, 3-dimensional time of flight; MRA, magnetic resonance angiography; SWI, susceptibility-weighted imaging; mRS, modified Rankin Scale.

Inclusion and exclusion criteria

The inclusion criteria were as follows: (I) patients meeting the diagnostic criteria for cerebrovascular disease in the Chinese Guidelines for the Diagnosis and Treatment of Acute Ischemic Stroke 2018 (20); and (II) patients who underwent magnetic resonance imaging (MRI) performed within 24 h after admission with complete imaging data, including T1-weighted imaging (T1WI), T2-weighted imaging (T2WI), fluid-attenuated inversion recovery (FLAIR), 3-dimensional time-of-flight (3D-TOF) MRA, diffusion-weighted imaging (DWI), and SWI that showed unilateral cerebral infarction in the middle cerebral artery blood supply area.

The exclusion criteria were as follows: (I) patients with cerebrovascular diseases other than AIS, such as cerebral hemorrhage, brain-occupying lesions, head trauma, and cerebrovascular malformations; (II) MRI images showing severe artifacts that affect imaging analysis; (III) previous stroke with sequelae and a base modified Rankin Scale (mRS) score ≥1; (Ⅳ) inadequate clinical data or interrupted follow-up.

MRI examination

A Discovery 750 3.0T MRI scanner with an 8-channel coil in the head (GE HealthCare) was applied to scan the patient. The patient was scanned in the supine position, head first, with the scan baseline parallel to the anterior-posterior joint line, up to the cranial vault and down to the level of the greater occipital foramen. The scan sequences included conventional sequences and DWI and SWI sequences. The scanning parameters of each sequence are shown in Table 1. All scanned data were uploaded to the ADW 4.7 workstation (GE HealthCare) for postprocessing and analysis.

Baseline data and imaging index

The baseline data were obtained through electronic medical records. The clinical parameters included in the analysis were age at admission, sex, systolic and diastolic blood pressure, fasting glucose, cholesterol, total homocysteine (tHcy), National Institutes of Health Stroke Scale (NIHSS) score at admission, and mRS score obtained via telephone or outpatient follow-up at 3 months. Based on the mRS score, patients were divided into 2 groups: those with good prognosis (0–2 points) and those with poor prognosis (≥3 points). Imaging metrics analyzed included DMV symmetry at admission, DMV score, scores for white matter hyperintensities (WMHs), paraventricular WMHs (PVWMHs), deep WMHs (DWMHs), and infarct size. All image data analysis was performed by 3 radiologists with more than 10 years of experience in reviewing cerebrovascular disease. In cases where there was disagreement, agreement was reached after discussion.

Imaging index scoring criteria

DMV visual assessment

According to the anatomical distribution characteristics of the DMVs, the centrum semiovale level and the parietal ventricular level were selected for observation, and 6 regions were divided according to the above levels (Figure 2), including the bilateral frontal regions, parietal regions, and occipital regions. The DMV score was then evaluated within each region, and the sum was added as the final score, based on the visual scoring criteria for DMVs proposed in the literature (Figure 3) (17,21). The scores were calculated as follows: (I) 0 points = each vein is continuous, with a uniform signal; (II) 1 point = each vein is continuous, but 1 or more veins have an uneven signal; (III) 2 points = 1 or more veins are discontinuous and show punctiform low signal; and (IV) 3 points = no continuous veins are observed. The DMV visual score ranges from 0 to 18, with higher scores indicating intermittent and unclear vein display.

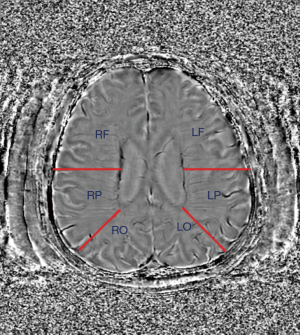

Figure 2 DMV scoring area division map. Divided into six regions: LF region, RF region, LP region, RP region, LO region, and RO region. DMV, deep medullary vein; LF, left frontal; RF, right frontal; LP, left parietal; RP, right parietal; LO, left occipital; RO, right occipital.

Figure 3 Schematic of the DMV scoring criteria. (A) DMV 0 points: each vein is continuous with a uniform signal; the box shows part of the RF and all of RP area; and the arrow shows the continuous and uniform development of DMV in the RP area. (B) DMV 1 point: each vein is continuous but 1 or more veins have an uneven signal, the box shows part of the LF and all of the LP area, and the arrow shows the DMV development is continuous with an uneven signal in the LP area. (C) DMV 2 points: 1 or more veins are discontinuous and show punctiform low signal, the box shows all the RF and part of the LP region, and the arrow shows DMV discontinuity in the RF region as a point-like low signal. (D) DMV 3 points: no continuous veins are observed, and the box shows blurring of the DMVs in the LO area. DMV, deep medullary vein; RF, right frontal; RP, right parietal; LF, left frontal; LP, left parietal; LO, left occipital.

DMV symmetry was indicated as follows: both lateral parietal ventricles showed DMVs in the same area and were similarly dilated, with a difference in number of no more than 5 (Figure 4).

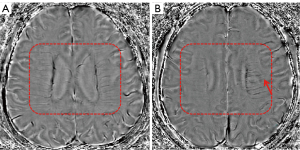

Figure 4 Schematic of DMV symmetry determination. (A) The dotted box shows DMV symmetric distribution, with the degree and number of DMV visualization on both sides of the lateral ventricles being close. (B) The dotted box shows DMV asymmetric distribution, uneven thickening, and an increase in the number of DMVs on the left side of the lateral ventricle (arrow). DMV, deep medullary vein.

WHM score

On the FLAIR sequence according to the Fazekas scale (0–6 points) (22), the PVWMH and DWMH were scored separately, and the scores of the 2 components were added together to form the WMH score. The PVWMH score was determined as follows: 0, no lesion; 1, cap or pencil-like thin lesion; 2, a smooth halo of the lesion; and 3, irregular paraventricular high signal extending into the DWM. Meanwhile, the DWMH score was determined as follows, 0, no lesion; 1, punctate lesion; 2, lesion starting to fuse; and 3, lesion extensively fused.

Infarct area grouping

The patients were staged according to the maximum infarct size corresponding to the symptoms shown on T2WI: (I) lacunar cerebral infarction: ≤1.5 cm²; (II) small infarction: 1.6–3.0 cm²; (III) medium infarction: 3.1–5.0 cm² and less than one lobe area; (IV) large infarction: more than one lobe or greater than 5.0 cm².

Statistical methods

All of the data were analyzed using SPSS 23.0 (IBM Corp.). The results are reported using descriptive statistics for continuous variables, including mean and standard deviation for normally distributed data and median and interquartile range (IQR) for nonnormally distributed data. Categorical data are reported as frequencies and percentages and were analyzed using the independent samples t-test, Mann-Whitney test, Fisher exact test, and Pearson chi-squared test. Correlation analysis was performed with Spearman correlation test. The forward Ward method was used and corrected for confounding factors. Subsequently, variables with P<0.15 and factors that might cause poor prognosis in acute cerebral infarction (despite P>0.15) were selected in the univariate analysis for inclusion in the multivariate logistic regression analysis. The level of statistical significance was set at a two-tailed P value of less than 0.05.

Results

Patient baseline information

A total of 90 patients with AIS were included in this study, comprising 63 males and 27 females, with a mean age of 65.9±9.8 years. In the good prognosis group, there were 58 cases (64.4%), including 42 males and 16 females, with a mean age of 64.9±9.9 years; in the poor prognosis group, there were 32 cases (35.6%), including 21 males and 11 females, with a mean age of 67.7±9.5 years. Among all cases, 18 were treated with recombinant tissue plasminogen activator (rt-PA), 2 with intraarterial thrombectomy (IAT), 2 with rt-PA followed by IAT, and 68 with antithrombotic drugs.

As shown in Table 2, there were statistical differences in the admission NIHSS score, DMV symmetry, DMV score, and infarct size between the 2 groups but no statistical differences in age, sex, diastolic blood pressure, fasting glucose, cholesterol, tHcy, PVWMH score, WMH score, or DWMH score. The results showed that the median DMV scores in patients with poor prognosis were higher than those with good prognosis, implying that DMV morphological discontinuities and inhomogeneous signal were more prominent. In the good prognosis group, 72.4% had symmetrical DMV distribution and 27.6% had asymmetrical distribution, while in the poor prognosis group, 46.9% had symmetrical DMV distribution and 53.1% had asymmetrical distribution, indicating a higher occurrence of asymmetrical DMV distribution in the poor prognosis group. The highest percentage of lacunar cerebral infarction was found to be 46.5% in the good prognosis group, while the highest percentage of large infarction was 43.8% in the poor prognosis group (χ²=9.022; P=0.029). DMV score had a positive correlation with NIHSS score (rs=0.209; P=0.048).

Logistic regression analysis

Age, diastolic blood pressure, fasting glucose, admission NIHSS score, DMV symmetry, DMV score, PVWMH score, and infarct area were selected for inclusion in the multivariate logistic regression analysis, which showed that the logistic model was statistically significant (χ²=32.063; P<0.05). As shown in Table 3, the independent risk factors for poor prognosis of AIS were DMV score [odds ratio (OR), 1.356; 95% confidence interval (CI): 1.114–1.650; P=0.002], NIHSS score (OR, 1.280; 95% CI: 1.117–1.466; P<0.001), and fasting glucose (OR, 1.220; 95% CI: 1.023–1.456; P=0.027).

Discussion

The principal results of our study are as follows: (I) DMV can be used as an imaging indicator of AIS prognosis, and patients with asymmetric distribution of DMV and discontinuous visualization of DMVs have a poor prognosis; (II) fasting glucose values are higher in patients with poor AIS prognosis.

In addition to acute stroke studies, the DMV marker is currently being applied in studies of cerebral white matter hypersignal, smog, and cerebral small vessel disease. For example, the DMVs are involved in the pathogenesis and prognosis of cerebral white matter hypersignal as a draining vein. There is also a noninflammatory periventricular venous lesion in the WMH, which arises due to collagen deposition in the wall, resulting in the narrowing or even occlusion and rupture of the lumen of the vein. This venous lesion leads to local brain tissue ischemia and increases the volume of white matter hypersignal in the lateral ventricles (17,21,23,24). The characteristics of DMVs are associated with the severity of smog and cerebral small vessel disease: the greater the number of dilatations, the lower the cerebral blood flow and cerebrovascular reserve in the middle cerebral artery supply area (18,25). In contrast, in cerebral venous thrombotic disease, the brush sign of DMV expansion formation is associated with ipsilateral brain parenchymal lesions, the degree of thrombosis, and the severity of focal neurological deficits (26).

In recent years, SWI sequences have been widely used in clinical research; in stroke, they are mainly used for the prediction of hemorrhagic transformation after ischemic stroke as well as the establishment and assessment of collateral circulation. SWI combined with DWI can be applied to assess infarct area growth; however, developing methods of effectively monitoring the collateral circulation remodeling in the infarct area is a key issue in the clinical treatment of cerebral infarction. Verma et al. (27) showed the importance of soft cerebral collateral circulation on brain tissue perfusion, validating the importance of collateral circulation in stroke. The assessment of collateral circulation plays an important role in treatment decisions. The main imaging indicators studied in collateral circulation are asymmetric cortical vein (ACV) sign and FLAIR high-signal vascular sign (HVS), among which HVS can reflect the status of soft meningeal collateral vessels (28,29). A previous study has confirmed there to be a correlation between ACV, HVS, and DMV (30), but overall, there are relatively few studies on DMVs.

Our research determined that DMVs are a crucial factor in the prognosis of patients with AIS. A high DMV score predicts poor prognosis for patients with AIS. In the poor prognosis group, DMV demonstrated inhomogeneous signals, visual discontinuity, and blurred displays. The visibility of veins on SWI is dependent on the degree of deoxyhemoglobin within the blood (17), and the decrease in cerebral blood flow leads to an increase in oxygen uptake by brain tissue and an increase in the amount of deoxyhemoglobin within the blood, thus resulting in a significantly low or inhomogeneous signal of venous appearances on SWI images (31). When the collateral circulation is well compensated, the ischemic brain tissue maintains a certain perfusion pressure and blood flow through compensatory blood flow. Although the oxygen content in local capillaries and small veins is lower than that in normal brain tissue, their oxygen uptake fraction is improved and deoxyhemoglobin content is relatively low, so the incidence of insignificant DMV dilation or inhomogeneous low signal is low (12,32,33). Previous studies have also provided explanations from a pathological point of view (16,34), suggesting that with an increase in venous wall thickening and luminal narrowing, luminal occlusion may occur as the final stage of disruption of DMVs, leading to discontinuous, speckled visualization or blurring of DMVs. Therefore, we conducted a dual examination in this study in terms of DMV dilatation symmetry and vein morphology. In addition, venous outflow is affected by varying degrees of reduced arterial flow, and slow venous return is accompanied by collateral circulation formation when arteries are obstructed; therefore, we can infer that the degree of upstream arterial ischemia also affects the change in DMV score. To conclude, a low DMV venous inhomogeneous signal may be the result of altered venous hemodynamics or venous obstruction (35), and its expansion may reflect the poor compensatory capacity of the intracerebral collateral circulation.

Several studies indicate that asymmetric signs of the soft meningeal vein or DMV visualization in SWI images can predict a poor prognosis (36-38); however, these studies did not exclude the effect of other confounding factors on the outcome variables. The present study was refined on this basis, and we found that the DMV asymmetric signs were associated with AIS prognosis in univariate analysis, but logistic regression analysis showed that they were not an influential factor in the prognosis of AIS. The reasons for this may be related to the definition of DMV symmetry and the time interval between the onset and completion of the MR examination. In the present study, we defined asymmetric distribution as the degree of bilateral lateral paraventricular DMV being different, and we did not quantify the degree of DMV development; moreover, we did not limit the time window between onset and MR examination, so we speculated that the change in the degree of DMV development was not obvious because the change in brain tissue hypoperfusion was mild and because the increase in deoxyhemoglobin content was not significant at the early stage of infarction. In this study, most patients had significant DMVs on the affected side, and only a few patients had significant DMVs on the healthy side. We speculate that this may be due to the following reasons: first, the brain tissue on the infarct side is hypoperfused, and the intravascular deoxygenated hemoglobin content is increased, which aggravates the DMV shadowing on the affected side; second, with regard to the pathogenesis of WMH, if the periventricular venous lumen is obstructed or ruptured, the DMV dilation is not significant or the DMV shadowing is reduced at the time of infarction even if the oxygen uptake rate of the brain tissue on the affected side is increased (39); third, the collateral circulation within the brain tissue on the infarct side is well compensated, and the intravascular deoxygenated hemoglobin content is relatively low and thus not significantly dilated.

The reason that WMH was not found to be an imaging factor for AIS prognosis in this study is because the Fazekas scale scoring scale used in this study is too superficial and sufficiently refined, for example, in the aspect of volumetric measurements. Nonetheless, the relationship between WMH as an MRI imaging marker of cerebral small vessel disease and the prognosis of AIS warrants further in-depth study.

In this study, the prognosis of AIS patients was used as the outcome variable to analyze the factors related to prognosis. The findings suggest that NIHSS, DMV score, and fasting glucose are factors affecting prognosis. However, it should be noted that the clinical factors included were not comprehensive, with the focus mainly being on the analysis of the DMV imaging index, and further grading of fasting glucose or qualification of the glycemic control and medication for patients was not applied. Nonetheless, previous studies (40,41) have confirmed that fasting glucose is one of the factors of AIS prognosis and that hyperglycemia is associated with poor prognosis, which is consistent with the results of this study.

Conclusions

DMVs constitute a crucial indicator of poor prognosis in patients with AIS. DMV score, as evaluated using the 3-level visualization scale, can serve as a predictor of poor prognosis, offering valuable information for early assessment of a patient’s clinical situation and providing a basis for determining clinical treatment plans.

Acknowledgments

Funding: This work was supported by the Shenyang Science and Technology Program Public Health R&D Special Project (No. 22-321-32-02).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-23-321/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-23-321/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the medical ethics committee of The People’s Hospital of Liaoning Province (No. 2022-K001). Informed consent was obtained from all individual participants.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
