DOTATOC PET/CT imaging of a typical carcinoid tumor in a human ex-vivo perfused lung lobe

Introduction

In neuroendocrine tumors, somatostatin receptor imaging which is crucial for the diagnosis of distant metastases, is traditionally performed using Indium-111 [¹¹¹In] diethylene-triamine-pentaacetate (DTPA) scintigraphy or Gallium-68 [⁶⁸Ga] dodecane tetraacetic acid DOTA-peptide somatostatin receptor imaging (SSRI) with positron emission tomography (PET) (1). The introduction of hybrid imaging modalities into clinical practice, such as combined PET/computed tomography scan (PET/CT) (2,3) and combined PET/magnetic resonance imaging (PET/MRI) (4,5), has promoted the use of [⁶⁸Ga]-DOTA-peptide imaging by combining morphological imaging with the sensitivity of PET. [⁶⁸Ga]-DOTA-peptide PET/CT and PET/MRI have become irreplaceable for initial tumor staging, patient selection for peptide receptor radionuclide therapy (PRRT), assessment of tumor response following chemotherapy, and liver-directed therapy (1,6). Recent approaches, such as the characterization of tumors through textural features in morphological imaging and PET, hold great potential regarding tumor response prediction and non-invasive grading of neuroendocrine tumors and neuroendocrine carcinomas, respectively (7-10). However, imaging features’ relationship with histopathology requires further study before widespread clinical use. Isolated lung perfusion (ILP) (11,12) could be used to correlate histopathology with imaging in a viable organ without compromising patient safety and comfort. This brief report discusses our initial experience with ex-vivo ILP as a research tool in nuclear medicine imaging.

Methods

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Approval of this study was given by the ethics committee of the University of Duisburg-Essen (No. 17-7802_1-BO), and informed consent was obtained from the patient.

A 49-year-old male presented to our clinic with recurrent hemoptysis. The CT showed a suspicious 3.4 cm nodule in the left lower lobe with post-obstructive atelectasis. Subsequent fluorine-18 [¹⁸F]-fluorodeoxyglucose (FDG) PET/CT showed [¹⁸F]-FDG activity in the primary tumor (SUV_max 5.7) without evidence of distant metastasis (Figure 1A). Histopathology and immunohistochemistry identified a typical carcinoid (Ki67<1%) without nodal involvement. A [⁶⁸Ga]-DOTATOC PET/CT showed intense and homogeneous somatostatin receptor 2 (SSTR2) expression in the primary tumor (SUV_max 32.1) (Figure 1B). The clinical tumor stage was cT2a cN0 cM0, stage IIA. Given the patients’ good pulmonary function, a left lower lobectomy with lymph node dissection was performed. Pathologic examination of the surgical specimen confirmed a pT2a pN0 (0/9) L0 V0 G1 R0 (stage IIA) typical carcinoid. The patient’s recovery was uneventful, and no recurrence was seen on follow-up.

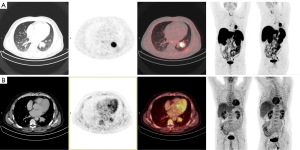

Figure 1 Preoperative PET/CT imaging. (A) Gallium-68-Edotreotide [⁶⁸Ga]-DOTATOC PET/CT. (B) [¹⁸F]-FDG-PET/CT. To improve visualization of the FDG uptake of the carcinoid located dorsally of the heart, maximum intensity projections (MIP) are shown in anterior and left anterior oblique views. PET/CT, positron emission tomography-computed tomography; [⁶⁸Ga]-DOTATOC, Gallium-68-Edotreotide; [¹⁸F]-FDG, fluorine-18-fluorodeoxyglucose.

Isolated lung perfusion

Cold static preservation and ILP were performed according to our institutional protocol (11,12). After surgical retrieval of the lobe, the vasculature was flushed with cold preservation solution (1,000 mL Perfadex Plus^®, 5,000 IU Heparin). The delay from intraoperative arterial clamping to cold static preservation was 15 min. The lobe was inflated via the bronchus, and vascular cannulas were sutured in. Cold ischemia was maintained for 343 min (5.7 hours) before perfusion. After gradual rewarming (37 ℃), the lobe was ventilated with 140 mL tidal volume (8 breaths/minute, FiO₂: 0.4, PEEP: 7 cmH₂O). Maximum perfusion flow was 610 mL/min, and the perfusate was continuously deoxygenated. The circuit is depicted in Figure 2.

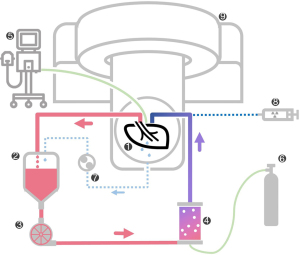

Figure 2 Schematic drawing of the experimental setting. The lung lobe [1] is placed on the PET/CT [9] gantry. Pulmonary venous perfusate flow is directed through a reservoir [2], a centrifugal pump [3], and a gas exchange membrane [4] before being pumped into the pulmonary artery. A ventilator [5] and a deoxygenation gas mixture [6] allow for physiological gas exchange. Green lines mark ventilation/gas tubes. An additional roller pump [7] collects leaked perfusate. [⁶⁸Ga]-DOTATOC [8] was administered via the pulmonary artery. PET/CT, positron emission tomography-computed tomography; [⁶⁸Ga]-DOTATOC, Gallium-68-Edotreotide.

DOTATOC PET-CT imaging

The lung lobe was placed in a digital PET/CT (Vereos, Philips, The Netherlands) equipped with a 64-slice CT, time-of-flight technology, and an axial field-of-view of 17 cm. One gantry position covered the entire specimen. Forty minutes after the onset of ILP, data acquisition was started. After a high-resolution CT scan (100 kV, 250 mA, spatial resolution 0.67 mm × 0.67 mm), 100 MBq [⁶⁸Ga]-DOTATOC was injected as a slow bolus via a long extension line into the pulmonary artery. The bolus reached the specimen 55 minutes after initiation of ILP. PET data were acquired in list mode for 80 min. The emission data was attenuation corrected, sorted into 60s-timeframes, and reconstructed with an iterative OSEM algorithm (3 iterations, 9 subsets) with a spatial resolution of 1 mm × 1 mm× 1 mm. Thereafter, spherical volumes-of-interest (VOI) (6 mm × 6 mm × 6 mm) were placed over the cannula (VOI1), a large intrapulmonary artery (VOI2), the center of the carcinoid (VOI3a), the periphery of the carcinoid (VOI3b), and the lung parenchyma (VOI4) (Figure 3). The mean count rates per ml in these VOIs were corrected for half-life, and finally used to derive VOI-based time activity curves (TAC), presented in Figure 4.

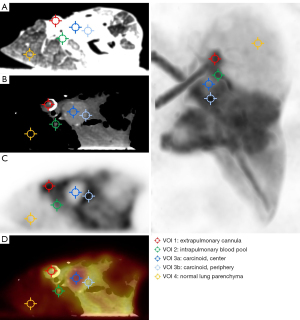

Figure 3 Defined volumes of interest in a transversal plane. (A) Lung window in computed tomography. (B) Mediastinal window. (C) PET image. (D) Fused PET/CT; right panel: multiplanar projection of PET images in coronal view. VOI, volume of interest; PET, positron emission tomography.

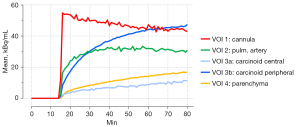

Figure 4 Count rates over time (from the start of data acquisition) in different VOI. The [⁶⁸Ga]-DOTATOC slow bolus reached the surgical specimen 15 min after data acquisition was started. [⁶⁸Ga]-DOTATOC, Gallium-68-Edotreotide; VOI, volumes of interest.

During ILP, strict safety precautions were taken.

Results

ILP was carried out for 120 minutes. Perfusate gas analysis of the venous outflow showed a final pO₂ of 94.2 mmHg and a pCO₂ of 42.4 mmHg (at t120 min). Regarding metabolic activity of the isolated lobe, glucose consumption was calculated to be 9.66 mg/min (linear regression analyses, R²=0.8359) and lactate production 93.2 µmol/min (R²=0.9717). There were no changes in electrolytic composition (cNa⁺ 162 mmol/L; cK⁺ 3.2 mmol/L; cCa²⁺ 0.61 mmol/L).

VOI1-TAC revealed a fast peak in the synthetic silicone cannula with a subsequent linear decrease. The count rates of the intrapulmonary artery (VOI2) increased less and plateaued after 20 min. Since the carcinoid tumor presented as a centrally hypometabolic lesion with an increased receptor expression in its periphery, two VOIs were defined. While the center VOI3a showed a low uptake, even less than the normal lung parenchyma, VOI3b placed at the periphery of the typical carcinoid demonstrated an asymptotic rise with an activity concentration higher than in surrounding parenchyma (VOI4). Additionally, 15 min post-injection, tracer concentration in VOI3b exceeded that of the blood pool (VOI2). After that, the signal-to-background ratio of the tumor’s periphery (VOI3b) to the blood pool (VOI2) increased to reach a plateau of 1.5 about 60 min post-injection. The TAC of the normal lung parenchyma (VOI4) constantly rose with an initial sigmoid course and linearly after that. The signal-to-background ratio of the carcinoid’s periphery (VOI3b) to normal lung parenchyma (VOI4) peaked at 3.7 and linearly decreased to 2.8 at the end of the measurement.

Discussion

Typical carcinoids are low-grade pulmonary neuroendocrine tumors (NET) with low mitotic rates (13). Compared to other neuroendocrine tumors, they usually express SSTR2, making them suitable for imaging with [⁶⁸Ga]-DOTA-peptides (14-16). Here, we present [⁶⁸Ga]-DOTATOC PET/CT imaging of a typical human carcinoid in an ex vivo isolated lung lobe. This experiment demonstrates the feasibility of imaging perfusion and metabolism of extracorporeal organs over two hours with the possibility of acquiring TACs from afferent vessels for modeling input functions and from various regions within the respective organ. In our setting, five VOIs were defined to describe the tracer influx and circulating tracer in a pulmonary lobe artery, the unspecific SSTR2 uptake into normal lung parenchyma, and tumoral uptake in central and peripheral areas of the carcinoid.

Interestingly, after the arrival of the slow tracer bolus at the input cannula, a rapid increase of the TAC suggests an adherence of the tracer to the tubing, which might be attributable to the lipophilic properties of the silicone. This activity slowly decreased, suggesting that the tubing acts as a tracer reservoir with a continuous release. This effect might be considered a limitation of the experimental setup in its current form, especially when aiming for data modeling with a single bolus input and recirculation of the perfusate. In the lung parenchyma, count rates demonstrated a sigmoidal increase followed by a linear [⁶⁸Ga]-DOTATOC uptake, probably due to the constant tracer supply.

In the carcinoid itself, we found two metabolically different areas. Contrary to the in-vivo observations, the center of the tumor appeared to be largely inactive, indicating a deficient expression of active receptor sites. This difference might suggest early metabolic changes like internalization of the binding sites or degradation of the receptor, initiating central necrosis of the carcinoid due to changes in the peritumoral environment after resection. Another mechanism might be a switch in the binding of the intracellular SSTR2 part from GTP to GDP, making it inaccessible for SST receptor agonists like [⁶⁸Ga]-DOTATOC (17). These hypothesized changes seem to precede alterations detectable by histopathology since there was no visible tumor necrosis on the final pathological report. In contrast, the tumor’s periphery intensely accumulated [⁶⁸Ga]-DOTATOC over time, suggesting viable tissue.

While kinetic measurements for dosimetry of the whole body and organ radiation exposure in patients undergoing [⁶⁸Ga]-DOTATOC PET/CT are well established, data on [⁶⁸Ga]-DOTATOC tumoral uptake and kinetics are sparse (18). Velikyan et al. performed dynamic PET/CT scans in three NET patients over 32 min. They added a static image at 50 min, which equals nearly equivalent observation time compared to the data presented here (19). However, only one of these patients was not treated with somatostatin analogues. In that patient, the NET uptake curve was very similar to our findings in the periphery TAC of the carcinoid, with an initial exponential rise followed by a slowly linear increase. Later, this intratumoral uptake pattern was replicated in another series (20). Our ex vivo [⁶⁸Ga]-DOTATOC TAC in a viable NET lesion matches those in vivo data reports, emphasizing the isolated lung perfusion model’s validity in molecular imaging.

Conclusions

Given our results of a centrally located SSTR2-reduction, which appeared to precede histological tumor alterations towards necrosis while in the carcinoid’s periphery, the receptors remained preserved, this ex vivo ILP model might be beneficial for studying early metabolic effects on tumor-related micro-environmental changes. In addition, future applications of this model in PET/CT might include additional dynamic and interventional studies, e.g., pharmacological challenges. This brief report provides the basis for further research endeavors in this field.
