Comparative study of normal condyle and temporomandibular joint prosthesis movement during mouth opening by dynamic magnetic resonance imaging and computed tomography

Introduction

Temporomandibular joint (TMJ) alloplastic total joint replacement (TJR) is widely accepted as a safe, effective, and reliable end-stage procedure for patients with severe TMJ conditions, such as advanced degenerative joint disease, tumors, developmental anomalies, and ankylosis (1). The main advantages of TJR are reduced intraoperative time, increased suitability, no risk of resorption, no need for a donor site, and bone grafts (2,3). TMJ Concepts (Stryker; Ventura, CA, USA) and Biomet/Lorenz (Jacksonville, FL, USA) are the most widely used alloplastic TMJ replacement systems. Long-term clinical studies have shown that both systems are effective in increasing maximum mouth opening and quality of life (4,5). However, many researchers have observed restrictions in protrusion and laterotrusion (5-7). The sliding distance of a condylar prosthesis is about 2 mm (7), which is much smaller than the 16 mm of a normal condyle (8). Previous studies have highlighted 2 main causes for the restriction: the loss of external (lateral) pterygoid muscle attachment and the formation of scar tissue around the surgical area (5,9,10). Additionally, the design of the glenoid fossa prosthesis also restricts the motion of the condylar prosthesis (7).

To restore mandibular movement after alloplastic TJR, the design of the prosthesis may need to be modified. This first requires quantifying the postoperative movement of the TMJ and mandible, as well as the kinematical difference between normal individuals and those who undergo TMJ TJR, especially the corresponding points on the normal condyle to the artificial condylar head, which has no lateral pterygoid muscle (LPM) attachment. This has not yet been described in the literature. There are numerous methods to measure mandibular kinematics (11-16), such as mandibular motion trajectory machines, which require auxiliary devices attached to the patient’s face and teeth, and computed tomography (CT) scanning. However, these methods have common limitations. Firstly, it is difficult to quantify the impact of placing markers and/or measurement devices on the teeth and skin on kinematics when using these methods. Secondly, placing markers or devices on the skin will not make their movement completely consistent with that of the bone because of interference by skin, fat, and muscle between the markers or devices and bone. Although placing markers or devices on the teeth is an alternative method, it is not suitable for individuals with missing or unstable teeth.

Dynamic magnetic resonance imaging (MRI) and CT can record the mandibular movement directly without the need for auxiliary devices. Therefore, in this study, we used dynamic MRI (17-20) on volunteers with normal TMJ because, unlike CT, MRI has no radiation. Dynamic CT was employed for patients after TJR because the prosthesis cannot be seen clearly on MRI but is visible on CT. In our previous study, we designed a novel TMJ prosthesis for LPM attachment (21). By comparing the kinematics difference during mouth opening between normal TMJ and condylar prosthesis, we will modify the fossa prosthesis design to achieve improved mandibular prosthesis movement, which will provide a reference for a change in prosthesis design.

Methods

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the Independent Ethics Committee of Shanghai Jiao Tong University School of Medicine Affiliated 9th People’s Hospital (No. SH9H-2021-T111-2). Informed consent was provided by all individual participants.

The inclusion criteria for volunteers receiving dynamic MRI examination were as follows: (I) age ≥18 years; (II) MRI showing normal disc and condyle relationship; (III) no history of TMJ disease or surgery; (IV) no maxillofacial deformity; and (V) normal occlusion and intact dentition.

The inclusion criteria for participants receiving dynamic CT were as follows: (I) accepted Biomet standard alloplastic TJR; (II) postoperative follow-up time of at least 6 months; (III) maximum incisor opening (MIO) ≥30 mm; and (IV) no pain, swelling, or discomfort in the TMJ area.

Dynamic MRI for normal TMJ

The scanning was performed using a 1.5 Tesla-Speed Excite system (GE Healthcare, Milwaukee, WI, USA) on the oblique sagittal position of the condyle. The fast imaging employing steady-state acquisition (FIESTA) MRI parameters were as follows: repetition time (TR): 3.6 ms; echo time (TE): 1.8 ms; slice thickness (SL)/SPACE: 5 mm/1 mm; field of view (FOV): 18 cm × 18 cm; MATRIX: 256×256; flip angle: 60°; number of excitations (NEX): 90 s; bandwidth: 125 kHz. All volunteers were instructed to perform an open-close mouth movement slowly. A total of 60 continuous images were obtained in 90 seconds. The images obtained were saved on a computer for further analysis (20).

Data analysis

A complete mouth-opening process was selected from the 60 continuous images obtained. The shapes of the condyle, ramus, and glenoid fossa in the selected images were traced. Next, the direction of the axis of the condylar head was determined using the 2 steps method described by Hu et al. (22): the first circle (O₁) was drawn tangentially to the anterior, posterior, and superior surfaces of the condylar head. The second circle (O₂) was drawn at the most curved area between the condylar head and neck. The center of the two circles determined the direction of the condylar axis (Figure 1A).

Figure 1 The procedure of obtaining the coordinate of 12 points of a volunteer. (A) The direction of the axis of condylar head was determined using the two steps method and the coordinate system was established. (B-G) The position of P₀ to P_-55 were determined during mouth opening process. (H) Twelve trajectories were drawn and smoothed using MATLAB software (MathWorks, US).

Then, the coordinate system was established as follows: (I) the vertex of the joint socket was set as the origin of the coordinate system; (II) the Y axis was set as the line passing through the origin and parallel to the condylar axis; (III) the X axis was set as the line passing through the origin and perpendicular to the Y axis. The intersection between the condylar axis and the superior surface of the condylar head determined the position of the top of the condyle (the first point, P₀). The following 5 points (P_-5, P_-10, P_-15, P_-20, P_-25) were set as the points 5 mm, 10 mm, 15 mm, 20 mm, and 25 mm down the first point (Figure 1B). The coordinates of P₀ to P_-25 in each image was recorded (Figure 1B-1H). The line joining P₀ in each image in chronological order could preliminarily simulate the trajectory of P₀ (Figure 2A). Generating a smooth curve by discrete data to simulate the actual situation was performed by cubic splint data, mathematical method (23,24). The trajectories were smoothed using the splint function in MATLAB software (MathWorks, Natick, MA, US) (Figure 2B). The coordinates of 46 points were selected at equal intervals on the smoothed trajectory for subsequent analysis (Figure 2C).

Figure 2 The preliminary simulation of a trajectory of P₀ and its further mathematical progressing. (A) The line joining P₀ in each image in chronological order could preliminarily simulate the trajectory of P₀; (B) the trajectory was smoothed using the splint function in MATLAB software; (C) the coordinate of 46 points were selected at equal interval on the smoothed trajectory for further analysis.

There were 18 healthy TMJs included in the study, so 18 trajectories were obtained for P₀. The starting coordinate and shape of the trajectories can both affect the calculation of an average trajectory. To exclude the effect of the starting coordinate, 18 trajectories of P₀ were moved to the same starting coordinate. The average trajectory was determined by the location of 46 points and each point was an average of the coordinates of the corresponding points on the 18 trajectories (Figure 3). The average trajectories of P_-5, P_-10, P_-15, P_-20, and P_-25 were calculated using the same procedure. The average trajectory shape was quantified by arc lengths and the average curvature radius. Arc length was approximately the sum of the length of the line segments between 46 points calculated by MATLAB software. The average curvature was determined by the curvature at 46 points calculated by ProE software (Parametric Technology Corporation, Boston, MA, USA).

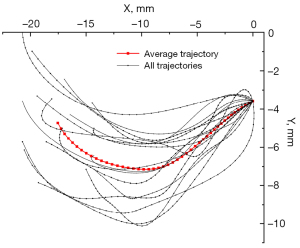

Figure 3 Calculation of the average trajectory of P₀. Eighteen trajectories of P₀ were moved to the same starting coordinate. Average trajectory was determined by the location of 46 points (red dots) and the coordinate of each point was an average of the corresponding points on the 18 trajectories (black dots).

The similarity of the 18 trajectories of P₀ was calculated by the Fréchet distance, which is a description of the similarity of the 2 trajectories proposed by the French mathematician Maurice René Fréchet (24). It can be colloquially defined as follows: a man is walking a dog on a leash and they move along 2 different curves. The Fréchet distance of these two curves is the shortest leash that allows the man and dog to travel through their paths (24). The Fréchet distance was calculated for each trajectory relative to the average trajectory. The sum of 18 Fréchet distances represented the similarity of the 18 trajectories of P₀. The other 11 points were calculated in the same way. A shorter Fréchet distance denoted better similarity of the trajectories. The point with the best similarity of trajectories was located and the arc length and average curvature radius of its average trajectory were clarified.

Dynamic CT for TMJ prosthesis

Dynamic CT scanning was performed using a 64-slice spiral Discovery CT (HD 750 CT; General Electric Company, Boston, MA, USA). The patient lay facing upwards so that the orbital ear plane was perpendicular to the horizontal plane. Each participant slowly opened their mouth from the intercuspal position to the maximum opening three times. The CT parameters were as follows: Patients’ images were randomly captured at equal time intervals from the top of the skull to the lowest edge of the mandible, with a layer thickness of 0.625 mm. The scanning voltage was 120 kV and the bulb current was 284 mA. Digital imaging and communications in medicine (DICOM) data were imported into Proplan 1.4 (Materialise, Leuven, Belgium). By segmentation and reconstruction, 3-dimensional (3D) images of the patient’s skull in each frame were obtained and saved as standard triangle language (STL) files.

Data analysis

The above STL files were imported into the auto Geomagic Wrap 2015, and the maxilla and mandible were spatially fit at each frame according to the anatomical marker points of the maxilla to obtain the movement position of the jaw at each frame based on the maxilla. The reconstructed CT plain scan images at each time were cumulatively matched with the maxilla as the reference position to obtain the spatial position and range of continuous movement of the patient’s condyle after artificial joint replacement (Figure 4A).

Figure 4 Registration and model of the mandibular movement. (A) 3D model of mandibular mouth-opening movement after registration of maxillary; (B) Mandibular registration point cloud, source point cloud green at the intercuspal position registered to the target point cloud red. After registration, the point cloud is displayed in blue. 3D, 3-dimensional.

The triangular patch model (.STL) of the mandible was then converted into the point cloud model (.PCD). Taking the mandibule at the intercuspal position as the source point cloud and the others as the target point cloud, coarse registration and accurate registration were carried out successively. The initial registration was carried out by the 3D shape context (3DSC) method based on local features. The search radius of 3DSC registration was set to 0.5 mm. Accurate registration was performed using the iterative closest point (ICP). The iterations of ICP registration were set to 100. The maximum distance between the corresponding points was 0.01 mm. The threshold value of the difference between two adjacent iterations was set to 1e-10 [transformation epsilon, singular value decomposition (SVD)], and the threshold value of the sum of root mean square error (Euclidean fitness epsilon) was set to 0.01. The point cloud was randomly down-sampled to obtain a point cloud of 4,000 points based on Vitter (25) for calculation efficiency (Figure 4B). The final output result of point cloud registration was the rotation matrix R_iand translation vector t_i of the rigid transformation of the mandible from the intercuspal position frame to the i frame.

Spatial coordinates of the apex of bilateral condyles and the midpoint of maxillary and mandibular central incisors at the intercuspal position were determined in Geomagic Wrap 2015 (3D Systems, Rock Hill, SC, USA), and the spatial coordinate positions of these points in another frame were calculated using the formula below:

αi=Riα1+ti[1]

Where αi is the spatial coordinate position of a point at the intercuspal position frame, αi is the spatial coordinate of the point in the ith frame, and R_iand t_iare the rotation matrix and corresponding translation vector of the mandibular movement from the intercuspal position frame to the ith frame calculated above, respectively. Then, the trajectories of the highest point of bilateral condyles, the midpoint of mandibular central incisors, were smoothed by the splint function.

The motion curve shape of the highest point of all condyles at the MIO was evaluated. For ease of comparison between normal participants, the curve path of spatial motion from the motion’s initial point to the termination point was calculated in the sagittal plane of each point along the condyle, including both prosthetic and natural condyles.

Results

For the normal TMJs, there were 9 volunteers with 18 joints. Of these, 4 were females and 5 were males, with an average age of 23.8 years and an average MIO of 40.6 mm (Table 1). The average trajectory for each point was a concave upward curve (Figure 5). The arc lengths and average curvature radius were shown in Table 2. For P₀, the arc length and curvature radius of the average trajectory were 18.8 and 12.5 mm, respectively. The arc length of the average trajectory decreased from P₀ to P_-25 and reached 12.2 mm at P_-25. The curvature radius of the average trajectory gradually decreased from P₀ to P_-25 and reached 3.8 mm at P_-25. The sum of the Fréchet distance of each point is shown in Table 3 (Figure 6). From P₀ to P_-20, the Fréchet distance decreased from 54.88 to 46.78 mm. P_-20 had the shortest Fréchet distance. The arc length and average curvature radius of its average trajectory were 13.0 and 4.2 mm, respectively.

Figure 5 The trajectories of P₀ (A), P_-5 (B), P_-10 (C), P_-15 (D), P_-20 (E), and P_-25 (F) moved to the same starting coordinate. The red line represents the average trajectories for each point.

Figure 6 Calculation of the Fréchet distance. The red curve represents the average trajectory of P₀. The black curve represents one trajectory of P₀. The red lines represent the Fréchet distance between the two curves.

As for the TMJ TJR, there were 5 patients, including 4 females and 1 male, with an average age of 46.8 years. Among them, 4 had unilateral TJR, and 1 had bilateral TJR. The average postoperative follow-up time was 22 months. The preoperative MIO was 27.8 mm and the postoperative MIO was 40.6 mm (Table 4). The trajectories of the contralateral normal joints of patients with unilateral TJR and all condylar prostheses were significantly decreased (Table 2). The average arc lengths and curvature radius of P_-10, which denoted the corresponding points in the normal joint to the top of the condylar prosthesis, were 15.6/6.6 mm for the normal cases, 13.1/4.9 mm and 4.7/4.4 mm in normal and prosthetic TMJ, respectively, for the unilateral replacement patients, and 6.4/5.8 mm for the bilateral replacement patient, respectively (Figure 7). The average trajectories from P₀ to P_-25 in the normal TMJ and P_-10 to P_-25 in the prosthetic TMJ of patients who received TJR are shown in Figure 8.

Figure 7 The trajectories from P₀ to P_-25 in the normal TMJ and P₀ to P_-25 in prosthetic TMJ (A), and detailed displayed trajectories of the P_-10 of prosthetic side and the P₀ and P_-10 in the contralateral normal joint (B) of unilateral replacement patient. Trajectories from prosthetic P₀ to P_-25 (C), and detailed displayed trajectories of prosthetic P_-10 of bilateral replacement patient (D). TMJ, temporomandibular joint.

Figure 8 The average trajectories from P₀ to P_-25 in the normal TMJ (A), P₀ to P_-25 in the prosthetic TMJ (B) of unilateral replacement patients and the average trajectories from P₀ to P_-25 in the prosthetic TMJ of a bilateral replacement patient (C). TMJ, temporomandibular joint.

Discussion

Although there are many different methods to analyze condylar motion, such as using an Arcus Digma ultrasound device (12) or a tracking camera system with CT (10,13), dynamic stereometry combining MRI (14), patients are still required to wear tracking devices attached to the teeth or face, which may complicate the measuring procedure and affect the mandibular movement. Jeon et al. (26) used a digital camera to record the mouth-opening movement but it failed to show the movement of the condyle. In this study, we used dynamic MRI and CT to study the motion of normal and TJR joints. By using the FIESTA sequence, the scanning time was reduced, and no attached device was needed for patients during the natural mouth-opening process. The FIESTA sequence can generate T2/T1 contrast and offer a good tissue contrast between the joint liquid and the articular disc with a short TR and TE. Although it cannot be 3D-reconstructed and loses motion information in the other planes, it can provide clear anatomic landmarks of the condyle in the sagittal plane (20). Considering the possible influence of the titanium alloy and cobalt-chromium alloy on MRI, we used dynamic CT to study the postoperative motion of the contralateral normal joints and TJR joints in this study. During the scanning, the patient does not need to wear any external devices on their teeth or skin, reducing the time to manufacture personalized devices, and it is especially suitable for patients with dentition defects and dentition loss.

In the present study, we evaluated the motion of normal TMJ and TMJ after alloplastic joint replacement. We chose volunteers aged >18 years for dynamic MRI examination because the TJR patients were >18 years. Additionally, we included TJR follow-up of >6 months with an MIO >30 mm because the patients’ mouth opening recovered stable and the motion of the prosthesis will not change after operative trauma; 30 mm was the least recovered MIO relative to normal volunteers. Similar to previous findings (8), the arc length of the average trajectory of the top of the condyle in normal participants was 18.8 mm. The arc length of the average trajectory of the top of the condyle was 5.27 mm in the patient group, which exceeded that reported in previous research (2 mm) (8). This may be due to the smaller sample size in this study or the sliding distance rather than the arc length calculated by Merlini et al.

We found the maximum mouth opening improved significantly after alloplastic joint replacement, whereas laterotrusion was restricted. This once again showed that TMJ TJR could substantially improve the quality of life of patients after surgery, as has been established by a large number of previous studies (5-7). A common belief is that the loss of the external (lateral) pterygoid muscle attachment is an essential factor restricting the sliding of the condylar prosthesis (5,9,10). However, Celebi et al. (9) found that the TMJ fossa prosthesis restricted the artificial condyle movement even if the LPM was attached to a cadaver head during the mouth-opening process. Therefore, to restore the mandibular lateral and protrusive movement, it is not only necessary to reattach the LPM, but also to modify the interface between the glenoid fossa and condylar prostheses.

Van Loon et al. (10) confirmed the rationality of reducing the compensatory motion on the healthy side by lowering the rotational center of the condylar prosthesis. They pointed out that lowering the rotational center of the condylar prosthesis by 15 mm could minimize the compensatory motion of the healthy side. This concept has been widely adopted in today’s prostheses. However, there is no consensus on the optimal descent distance of the condylar prosthesis. Further optimization of the prosthesis design relies on determining the movement from the condyle to the mandibular angle, but there are currently no reports on this. The average arc lengths and curvature radius of normal joints between the condylar head and P_-20 can provide a reference for prosthesis design, which has also not yet been reported. In the study, we analyzed the trajectory from the top of the condyle to the angle along the ramus during mouth opening. We used the Fréchet distance to determine the point with the most negligible influence of receptor difference. The arc length and curvature radius of the average trajectories gradually decreased from the top to the angle. The point with the most similar trajectories was located 20 mm below the top of the condyle. The arc length and curvature radius of the average trajectory was 13.0 and 4.2 mm, respectively. Our results showed that from P_-20 to P₀, the similarity of the trajectories decreased. This was probably because as the point got closer to the top of the condyle, the trajectories were influenced by the anatomical form of the glenoid fossa. The location with a low similarity of trajectories was not suitable for the design of standard prostheses. By comparing the trajectories of the corresponding point P_-10 in the normal TMJ and the top of the condylar prosthesis, we found that the latter was reduced. This is because the LPM was stripped and the loss of function in the TJR joints. The contralateral normal joint’s movement was also affected after unilateral TJR implantation.

The range of mandibular motion is different between cases of TMJ TJR among tumor or ankylosis (fibrous or bony) and osteoarthritis patients. In this study, we chose osteoarthritis TJR patients for trajectory analysis because they are close to normal anatomy. Although the sample size was small, including only 4 unilateral TJR patients and one bilateral TJR patient, we developed 2 new methods to measure mandibular joint motion by dynamic MRI and CT, respectively. In the future, various pathological conditions before TJR surgery, as well as increasing the number of TJR cases, are needed using the established method from this study for more comprehensive analysis.

Alloplastic TJR has been shown to be clinically effective in numerous studies. However, the movement of the condyle changes from both sliding and rotation to almost only rotation movement after TJR. This is because the LPM loses its attachment after the operation, resulting in limited mandibular movement (27). It has been suggested that changes in prosthesis design may have improved postoperative jaw kinematics, especially reattaching the LPM’s inferior head (LPM-IH) to the prosthetic TMJ to support normal functional occlusion and mandibular motion (28). Mommaerts (29) designed a new prosthesis with a lattice scaffold located in the condylar neck of titanium for the LPM to reattach. However, this prosthesis is prone to a degree of wear in practical application (30), which is due to improved mandibular movement. Thus, the contact surface of the fossa needs to be modified according to normal joint movement. In this study, the trajectory of the joint during opening and closing mouth movements between normal individuals and TJR patients were compared using dynamic imaging methods, which could directly capture the mandibular movement. Since this is a preliminary study aimed at developing a new approach to measure mandibular joint motion, we only included 5 patients who agreed to undergo a dynamic CT examination in 2020. We believe by our new method of measuring mandibular joint movement for more cases, the modification of TJR prosthesis will be proposed in the future.

Conclusions

In this study, we developed 2 new methods to measure mandibular joint motion. In addition, we found that P_-20 in the normal joint has the most similar trajectory among individuals. The trajectory difference between the prosthesis apex without LPM attachment and the corresponding point at the normal joint with LPM attachment provides a reference for fossa prosthesis functional surface design.
